Ronin 2805-11 User manual

PN 2805-11
Ronin Lift
Instruction
Manual
REV. Q: DATE MARCH 3, 2021

User Disclaimer & Warnings 3
Product Safety - Lithium-Ion Battery 4
Power Supply Charging & Information 5
Product Safety –Ronin Lift 6
Ronin Lift Technical Specifications 7
System Overview 8
Ronin Lift Device Labels 9
Approved Ropes 12
Rope Requirements 13
Rope Preparation 14
Box Contents 15
Ronin Lift Operation (Serial Numbers 3201-R & Up) 16
Rope Loading 17
Ascending / Descending 19
Removing Rope From The System 28
Ronin Lift Operation (Serial Numbers 3200-R & Below) 22
Rope Loading 23
Ascending / Descending 25
Removing Rope From The System 28
Ronin Lift Winching & Hauling 29
Wireless Remote 30
Remote Precautions & Charging 31
Remote Operation 32
Inspection & Maintenance 33
Returning For Service 34
Annual Service Exceptions 28
Ronin Lift Duty Cycle 37
End of Life 37
Warranty 38
REV. Q: DATE MARCH 3, 2021
Table Of Contents

REV. Q: DATE MARCH 3, 2021
User Disclaimer
Warning
Training is not required but recommended for any
new users. This manual is not a substitute for
user training.
To avoid injury, you should never remove the
front cover of your Ronin Lift or modify it in
anyway. Any changes or modifications are
considered out of compliance, which voids the
warranty and the Lift’s certification for
commercial or personal use.
Never use the equipment until you have read and
understand this instruction manual. Ronin
Revolution Corporation and any of its distributing
subsidiaries are not responsible for any damages,
injuries or deaths that result due to usage outside
the instruction of this instruction manual.
Always visit www.roninpowerascender.com for
the most current version of this manual.
Tel: [phone]
Email: [e-mail]
Never open the front cover
of your Ronin Lift.
You must read and
understand this manual
before using your Ronin Lift.
3

REV. Q: DATE MARCH 3, 2021

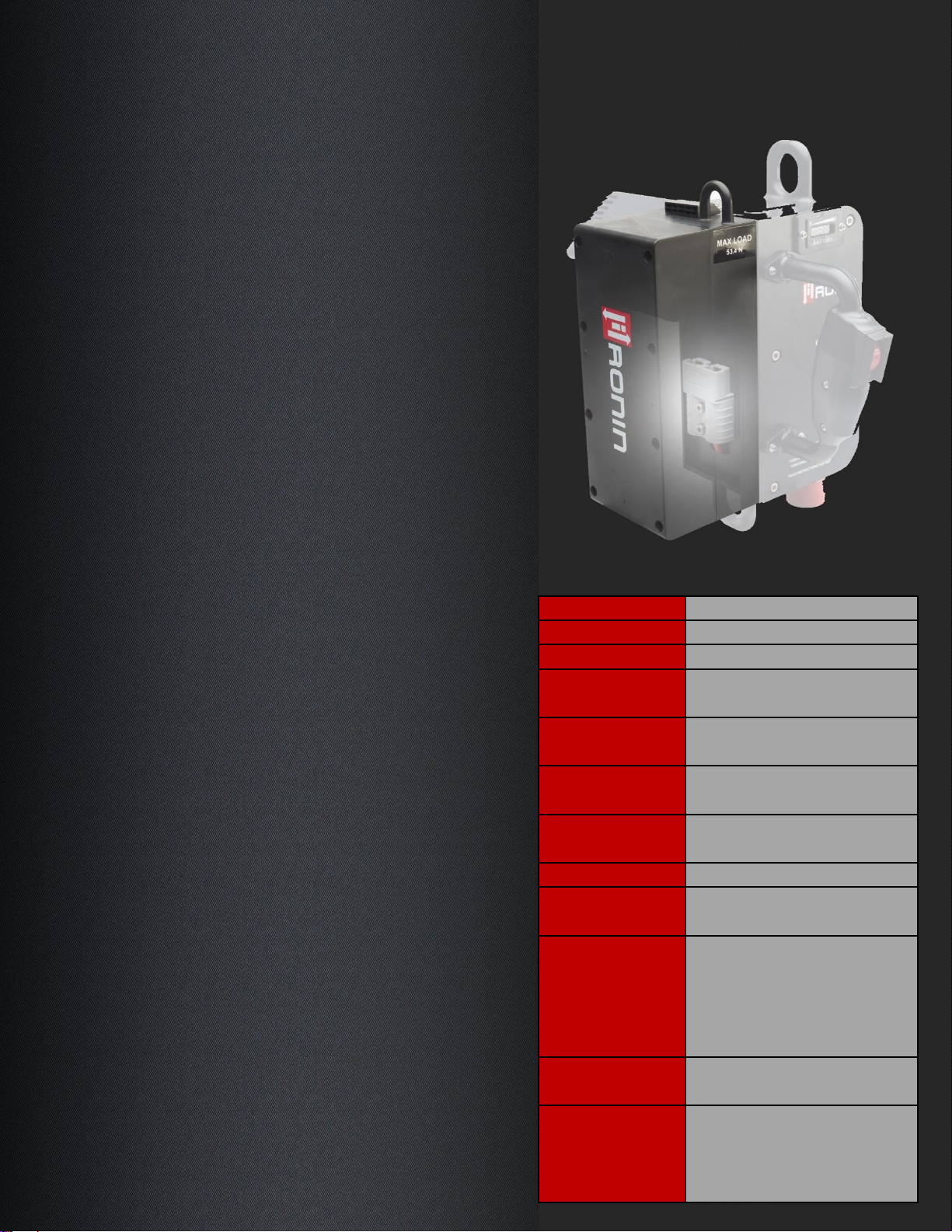

Product Safety
Lithium-Ion Battery Information
•The battery should always be removed
from the Ronin before storage or
extended periods of non-use. Failure to
comply could result in degradation of the
battery cells or loss of all battery life.
•The battery must be removed from the
Ronin Lift, before charging.
•Each Ronin battery has an overcurrent
safety cutoff to prevent lifts over max safe
working load.
•For shipping, the battery falls under
UN3481 PI 966 Section II, Batteries
shipped with equipment. Due to the
weight and size of the battery you can
only ship one battery per package.
Contact Ronin for the Battery Safety Data
Sheet.
•Stop use if battery becomes too hot to
touch, or battery becomes swollen /
bloated.
•The battery should never be connected to
the Ronin Lift in areas with poor
ventilation or where gas may be present.
•Battery needs to be stored in a cool dry
place when not in use.
Type
Lithium
-Ion
Voltage
28.8 VDC Nominal
Amperage
90 amps (1 min burst)
Battery
Capacity
6 Ah
Operating
Temperature
-
4º F –100º F (-20º C –
38º C)
Mass
Approximately 6.5 lbs.
(3Kg)
Battery Life
Approximately 300
Charges
Charge Time
Approximately 2 hours
Charging
Temp
109 º F (43 º C) Maximum
Storage
Temperature
-
4º F –113º F (-20º C –
45º C) Less than 1
month
-
4º F –95º F (-20º C –
35º
C) Less than 6 months
Storage
Humidity
≤ 80% Less than 1 month
≤ 70% Less than 6 months
Storage
Voltage
50% charge approx. is
recommended for
extended periods of
battery storage
4

REV. Q: DATE MARCH 3, 2021
•The battery charger is adaptable from
100v –240v outlets. The charger cables
shipped with the unit fit type A, B or C.
•Do not leave any battery charging
unattended for longer than 3–4-hours.
•Do not handle damaged or leaking
lithium-ion batteries.
•Do not allow the battery to come into
contact with fire or subject to extreme
temperatures such as direct sunlight for
extended periods of time.
•Regularly inspect AC power cord for
damage.
Power Supply Information
Type Lithium-Ion Battery
Charger
Input
Charging
Voltage
100 VAC –240 VAC
Input
Charging
Amperage
5 amps max
Operating
Temperatur
e
32º F
–95º F (0º C –
35º
C)
Operating
Humidity 5% - 90%
Charge
Time Approximately 2 hours
Charging
Temp
95º F (35 º C) Maximum
Storage
Temperatur
e
-4º F –185º F (-20º C –
85º C)
Storage
Humidity 5% - 90%
Standby (Solid Green with no battery
plugged in)
Power Supply Charging
Charging (Solid Red when battery is
charging)
Fully Charged (Solid Green with
battery plugged in)
5

REV. Q: DATE MARCH 3, 2021
Product Safety
Ronin Lift Information
•Do not use the Ronin Lift without the required
proper personal protective equipment (PPE).
Not doing so may cause serious injury or
death.
•Inspect all equipment prior to each use.
•Only use approved static ropes with the Ronin
Lift.
•Each Ronin battery has an overcurrent safety
cutoff to prevent lifts over max safe working
load.
•Ronin Lift is IP54 rated for light rain and use of
wet rope. Do not spray with direct water
stream or use in heavy rain conditions.
•Do not stick any foreign metal objects into the
Rope inlet or Rope exit holes for any reason.
•Stop using the device immediately if you begin
to feel tired or if you experience discomfort or
pain in your hands, arms or legs while
operating the device
•Do not cover motor ventilation holes
•This product is recommended for adults 18
years of age and higher. Children under the
age of 18 must be supervised by a trained
adult.
6

REV. Q: DATE MARCH 3, 2021
Motor
28 VDC nominal
100 amps (1 min burst)
275º F (135º C) max operating Temp
4500 rpm
5 N
-m continuous torque
Gearbox
32:1 reduction
Speed Controller
Pulse Width Modulation (PWM)
120 amps max
33 VDC Max
Thumbwheel
.381k ohm
60º rotation
Brake
Manual Operations Via Brake Handle
Rope Diameters
Static Rope 10 mm to 12 mm (SN’s 2999 and below)
Static Rope 10 mm to 13 mm (SN’s 3000 and up)
Max Rated Power
2,800 watts
Mass
Approximately 24 lbs.
Speed
Variable at Approximately 0.50
–1.5 ft/sec (0.15 -0.46m/sec)
Operating Temp
-
4º F –100º F (-20º C –38º C)
Sound Level
83.1
dBa
Vibration Level
6.9 m/s
2
Max Capacity
400 lbs. (181 kg) (1.78
kN) Max load or 1 Person Max
Operational Humidity
0
–85 %
Operating Barometric
Pressure
29.9 in. Hg
–7.04 in. Hg (101 kPa –23.8 kPa)
Storage Temperature
-
4º F –113º F (-20º C –45º C) Less than 1 month
-
4º F –95º F (-20º C –35º C) Less than 6 months
Storage Humidity
≤ 80% Less than 1 month
≤ 70% Less than 6 months
Ronin Lift Technical Specifications
7

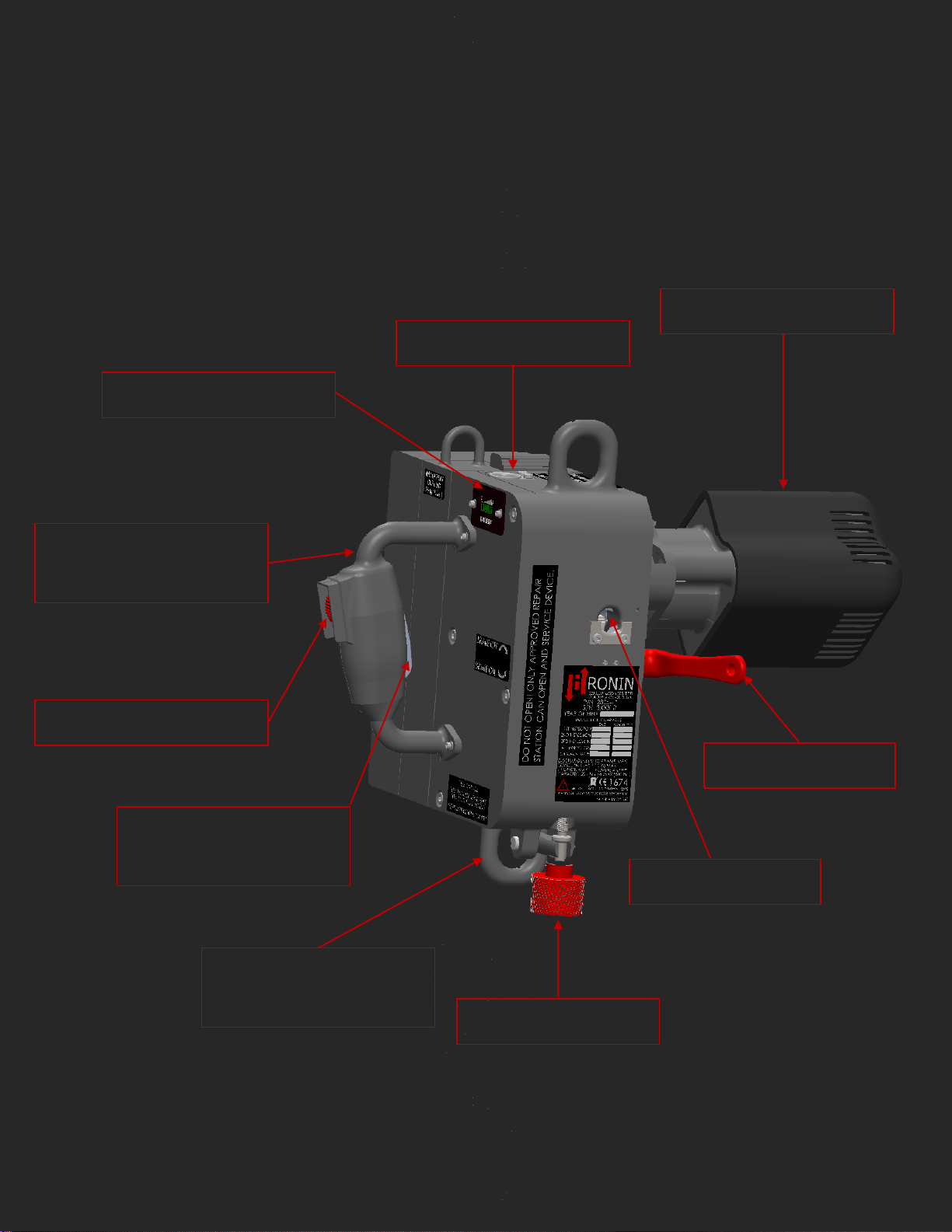

System Overview
Battery Indicator
Brake Handle
Tensioner Knob
Carabineer Clip
Attachment Point
Machine Guarded
Handle
Thumbwheel
Motor & Gearbox
Rope Exit Hole
Rope Inlet Hole
REV. Q: DATE MARCH 3, 2021 8
Deadman Trigger
Handle Upgrade

Device Labels
The Ronin Lift ID Plate provides device
information, part number, serial number,
year of manufacture, device limits and
capabilities, certifications acquired, and
yearly maintenance intervals performed for
the 5-year service life of the Ronin Lift.
Warning Label instructions: User must
read the entire instruction manual and
have a thorough understanding of the
device, prior to use. A secondary rope
grab must always be used.
REV. Q: DATE MARCH 3, 2021
Service Bulletin ID Plate helps Ronin
service locations to keep track of
active service bulletins that have been
applied.
9

REV. Q: DATE MARCH 3, 2021
Device Labels
The Ronin Lift can only be serviced
or repaired by Ronin or an approved
certified repair center. The
maintenance or repair can be
scheduled by visiting
www.roninpowerascender.com and
obtaining a Return Material
Authorization (RMA). Do not open
the Ronin Lift or warranty will be
voided. The “Do Not Open” label is
a tear away one-use label for anti-
tampering.
The brake label provides instructions
on which direction to operate the
brake handle for releasing the brake.
The brake is always in the “On”
position. To release the brake, you
must physically pull down on the
handle and hold it open to descend.
Once you release the brake, then it
will automatically spring back to the
on position. The brake is an On / Off
switch and cannot be feathered. To
control descent speed and ultimately
come to a stop, it is recommended
to tend the tailing line of the rope in
your right hand, while holding the
brake open with your left hand.
Simply squeezing the rope with your
right hand will slow you down or
bring you to a stop, then release the
brake handle. This will help to
preserve your ropes life
10

REV. Q: DATE MARCH 3, 2021
Device Labels Serial Numbers 3201-R and Up
will have the below tensioner
label. The tension label describes
which direction to turn the red
tensioner knob to apply less
tension (Left Turn) or more
tension (Right Turn) to the rope.
Less tension (Left Turn)
decreases the grip on the rope for
lighter loads or to increase
descent speed. Turning the
tension fully to the left is to load
rope only. Turning it to the Right
(clockwise) direction increases
grip on the rope for ascending /
lifting loads.
Serial Numbers 3200-R and
Below the tension label describes
which direction to turn the red
tensioner knob to apply more (Left
Turn) or less tension (Right Turn)
to the rope. More tension (Left
Turn) increases the grip on the
rope to reduce rope slippage with
heavier loads. Turning it to the Left
(Counterclockwise) direction
increases grip on the rope.
Turning it fully to the Right
(Clockwise) direction allows rope
to be loaded in the device.
11

REV. Q: DATE MARCH 3, 2021
Approved Ropes
Ronin Lift Serial Numbers 3000-R and up
Ronin Lift Serial Numbers 2999-R and below
1: Ronin HP Rope by Marlow –11.5 mm dia.
2: Marlow –ProTech 500 –11.0 mm dia.
3: Teufelberger –X-Static –11.7 mm Dia.
4: Teufelberger –KM III Max –11 mm Dia.
12
1: Ronin HP Rope by Marlow –11.5 mm dia.
2: Marlow –ProTech 500 –11.0 mm dia.
3: Sterling –Tech 125 – ½” dia.
4: Yale Cordage –R.I.N.G. –11.5 mm dia.
5: Yale Cordage –Scandere –11.7 mm dia.
6: Sterling HTP Red –13 mm dia.
7: Sterling WorkPro – ½” dia.
8: Teufelberger –X-Static –11.7 mm dia.
9: Teufelberger –KM III Max –11 mm dia.
10: Pelican Rope –White Rope –11 mm dia.
11: Pelican Rope –1WPP-160L54-001 – ½” dia.
12: PMI –RR125BL030M –12.5 mm dia.
13: Sterling –Element – ½” dia.
14: Yale Cordage –Calamine –11.7 mm dia.
15. Sterling –Scion –11.5 mm dia.
16. PMI –E-Z Bend –11 mm dia.
17: Yale Cordage –XTC-16 –13 mm dia.
18. Teufelberger –Platinum Protect PES/PA –11 mm dia.

REV. Q: DATE MARCH 3, 2021
•Rope Type: Static Rope
•Rope Diameter: 10 mm –13 mm
•Rope Diameter Shrinkage: Cannot
shrink below 10 mm under loaded
conditions
•Sheath Construction: Tech-
Nora/Aramid Preferred (Kernmantle
is acceptable)
•Rope Elongation: Less than or equal
to 2% at 300 lbs. for 10 mm –11.5
mm. Less than or equal to 3.3% at
300 lbs. for 11.6 mm –13.0 mm
•Plait Count: Preferred 32 or 48 Plait
(16 and 24 are acceptable)
If additional help is needed with your
rope selection, then please contact us
today
Rope Requirements
Ronin Lift Serial Numbers 3000-R
and up only
We do not force usage of a
single rope for our
ascenders. However, not all
ropes are created equal.
With that in mind here is a
list of ropes we’ve
approved for use with our
system. Rope will have a
big impact on how your
ascender performs.
13

Remove any tape or markers from the
ends of the rope, before inserting into
the Ronin Lift. Make sure your ends are
burnt so NO inner core is visible. A hot
knife cut, or factory burn is not
acceptable.
Please follow the instructions below.
Rope Preparation
•Remove any tape or markers from
the ends of the rope.
•Eject the inner core out from the
outer jacket about 0.5 in (1.3 cm).
•Cut the inner core with rope cutters
and milk the outer sheath back over
the inner core. The inner core
should be recessed into the outer
jacket now.
•Burn the ends of the rope with a
torch and use a rag to cone the end
after burning.
•Make sure your rope tip is coned
and no inner core is visible.
REV. Q: DATE MARCH 3, 2021
Always check your
ropes condition, prior to
use with the Ronin Lift.
Ensure it and your
secondary backup are in
acceptable climbing
condition.
Remove any tape or
markers from your rope
before loading into the
Ronin Lift.
14

REV. Q: DATE MARCH 3, 2021
1: Ronin Lift Kit (Includes Bollard Friction
Saver & Reverse Functionality.)
2: Lithium-Ion Rechargeable Battery
3: AC Power Supply
4: Type A, B or C, AC Power Cord
5: Rope Brush
Box Contents
15

REV. Q: DATE MARCH 3, 2021
•Make sure you are using a secondary
rope grab system.
•Check that your primary and secondary
climbing lines are in acceptable climbing
condition.
•All PPE is on and secured (Helmet,
Gloves, eye protection.)
•Battery indicator is showing sufficient
charge for the job.
•Be sure to clean out any rope fibers from
the brake teeth, visible from the rope exit
hole.
•Attach the battery to the Ronin Lift and
confirm you hear a series of 5 beeps.
(Be sure to push down the battery with
some force, when connecting to the
Ronin.)
•Slowly roll down the thumbwheel. The
motor should activate and speed up as
you roll down further. When you release
the thumbwheel, the motor should turn
off. (If you have a Deadman handle
upgrade then perform this while
squeezing the Deadman trigger)
Ronin Lift Operation
Battery Installation & Start up
procedure
Do not use if feeling
tired, fatigued or on any
medication that prevents
use of heavy machinery.
You must read and
understand this manual
before using your Ronin Lift.
16

REV. Q: DATE MARCH 3, 2021
Be sure you’ve read and understand the Rope Preparation
section on page 14, before continuing.
Step 1: Fully rotate the red tensioner knob in
the counterclockwise (Left) direction, until the
rocker arm bottoms out on the ascenders
housing. This will pull down the tensioner and
create space to allow the rope to feed into the
system. Make sure the red knob is turned
fully counterclockwise (Left), until it cannot
be turned any more.
Step 2: Insert an approved Static Line Rope
(10 mm to 13 mm diameter) through the rope
inlet hole. Push until it stops. TAP the
thumbwheel once, while pushing the rope.
The system should have pulled in about 2 in (5
cm) of rope
Rope loading for Ronin Lifts with
serial numbers 3201 & up.
Rope Inlet Hole
Turn knob Fully to the Left
Rope Loading
17

REV. Q: DATE MARCH 3, 2021
Step 3: Now pull down on the red brake
handle slightly and slowly roll down the
thumbwheel, until the rope comes out the rope
exit hole. Do not pull the red brake handle
fully open or this will activate reverse
function.
Step 4: Before Ascending turn the red
tensioner knob to the clockwise (Right)
direction, until hand tight. If you feel the Ronin
slipping on the rope during ascending or
winching, then stop and turn the red tensioner
knob clockwise (Right) 1-2 additional turns,
until slipping stops.
Step 5: Roll down the thumbwheel slowly and
run out the slack in your climbing line until your
Ronin is at waste level. If your Ronin is
equipped with a Deadman handle upgrade,
then you will need to pull the Deadman
trigger first before the thumbwheel can
activate the motor.
Brake Handle
Rope Exit Hole
Turn Fully to the Right
until you start to feel
resistance and then go
hand tight.
Rope loading for Ronin Lifts with
serial numbers 3201 & up.
18

REV. Q: DATE MARCH 3, 2021
Step 1: Connect the Ronin Lift to your harness
with a load rated carabineer clip, using the
lower housing attachment point
Step 2: Rotate the thumbwheel down slowly to
start ascending. The thumbwheel switch is a
variable speed thumbwheel capable of
providing ascent speeds of 0.5 –1.5 ft/sec
(0.15 - 0.46 m/sec). The further you roll down
the thumbwheel the faster the ascent will be.
(Note: The brake is always engaged
automatically, while ascending. When you
release the thumbwheel, the Ronin will
automatically brake in that spot.)
Lower Carabineer
Attachment Point
Caution: Ensure you have all safety
equipment on and properly secured, prior
to using Ronin Lift. Misuse or improperly
secured equipment could result in serious
injury or death. Never use the Ronin Lift
without a secondary rope grab system,
helmet, gloves and eye protection.
Ronin Lift Operation
Ascending & Descending for
Ronin Lifts with serial numbers
3201 & up.
Variable Speed
Thumbwheel
19

REV. Q: DATE MARCH 3, 2021
Step 3: Once your reach your desired
height, then simply release the
thumbwheel. The brake will
automatically hold you in place.
Step 4: When ready to descend its best
practice to TAP the thumbwheel and then
simultaneously pull the brake handle down.
This will help to preserve your rope. If you run
out of battery at any time and do not have
power, then you can always just pull the brake
handle open to descend. (Note: If you pull
the brake handle open and do not descend
or descend very slowly, then this is due to
the tensioner knob being set too tight for
the weight you are lifting. turn the red
tensioner knob counterclockwise (Left) 1-2
turns to remove tension and repeat step.)
Caution: Do not pull open the brake and
roll the thumbwheel down to descend.
Reverse function is not used to descend
the line.
Release the
thumbwheel to
stop the ascent
Ronin Lift Operation
Ascending & Descending for
Ronin Lifts with serial numbers
3201 & up.
Variable
Speed
Thumbwheel
Brake
Handle
20
