Ronin Lift User manual

Page 1of 28
Instruction Manual
For
Ronin Lift
Your Personal Ascender
“Original Instructions”

Page 2of 28
WARNING
To avoid electrical shock, do not open the Ronin Lift’s front cover. Refer servicing to
qualified personnel only.
Caution
Modification of controls or adjustment of performance, other than specified by procedures
herein, may results in injury or death.
You are cautioned that any changes or modifications, not expressly approved by the party
responsible for compliance, could void the user’s authority to operate the equipment.
If you have questions about this product, visit
www.changeyourelevation.com/contact/ or contact Ronin
Customer Service at [phone]. You can also write to,
Ronin
Customer Service/Technical Support
600 S. Jefferson St Suite D
Placentia CA 92870 USA
Declaration of Conformity
Trade Name: Ronin Lift
Model No.: 2805-11
Responsible Party: Ronin
Address: 600 S. Jefferson St Suite D
Placentia CA 92870 USA
Telephone: [phone]
This device complies with Part 15 of FCC Rules and
Industry. Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.

Page 3of 28
About lithium ion battery
The lithium ion battery used to power this product contains Perchlorate. The following
statement is required by the state of California, USA:
Perchlorate Material –special handling may apply. See
http://www.dtsc.ca.gov/hazardouswaste/percholate

Page 4of 28
Contents
Warning 2
About Lithium Ion Battery 3
Precautions 5
Product Overview 7
Specifications 9
Box Contents 11
Ronin Lift Device Labels 12
Charging Instructions 15
Rope Requirements 16
Battery Installation & Motor Initiation 17
Loading Rope 18
Operating Ronin Lift 20
Ronin Lift Duty Cycle 24
Inspection and Maintenance 25
Inspection and Log Sheet 26
End of Life 27
Warranty 28

Page 5of 28
Precautions
Before using this product, carefully read this manual and retain it for future reference.
Parents and guardians of children should read this manual and make sure that the child
follows all safety precautions.
Safety
This product has been designed with the highest concern for safety. However, any
electro-mechanical device, if used improperly, has the potential for causing fire, electrical
shock or personal injury. To help ensure accident-free operation, follow these guidelines:
•Observe all warnings, precautions and instructions
•Regularly inspect AC power cord for damage
•Do not leave any charging battery unattended
•Unplug charging battery immediately, once charge is complete
•Stop use, unplug AC power cord from electrical outlet immediately if the device
functions in an abnormal manner, produces unusual sounds / smells, becomes too
hot to touch, or battery becomes swollen / bloated
•Do not handle damaged or leaking lithium-ion batteries
•Do not allow the battery to come into contact with fire or subject to extreme
temperatures such as direct sunlight, in a vehicle exposed to sun or near a heat
source
Prior to using Ronin Lift Personal Ascender please ensure you properly inspect all gear
and accessories. To learn more about proper safety precautions please visit the following
websites:
Use & Handling
•Do not use Ronin Lift without the proper safety equipment. Not doing so may
cause serious injury or death
•Only use approved static ropes with Ronin Lift personal ascender
•Do not overheat the DC motor. If motor becomes extremely hot discontinue use
until motor has cooled down
•Inspect all equipment prior to each use, including Ronin Lift, safety harness,
carabineer clips, static rope, and helmet.
•Only use safety rated carabineer clips with Ronin Lift
•Do not wet or submerge Ronin Lift. Ronin Lift is IP54 rated and not waterproof.
•Be careful when carrying the Ronin Lift, if you do not have a good grip, the device
may drop causing potential damage or injury
•Do not stand on or put objects on the device, and do not stack the device with
other devices
•Keep the device, accessories, and any small components out of reach of small
children
•Stop using the device immediately if you begin to feel tired or if you experience
discomfort or pain in your hands, arms or legs while operating the device

Page 6of 28
•If you experience any of the following health problems, discontinue use of the
device immediately. If symptoms persist, consult your doctor.
⎯Dizziness, nausea, fatigue or symptoms similar to motion sickness
⎯Discomfort or pain in a part of the body, such as hands, arms or legs
•Do not place device on the floor or in a place where it may cause someone to trip,
stumble or fall
•Do not expose the device to high temperatures or high humidity
•Do not use device in an electrical storm
•Do not touch connectors on device
•Do no rest the device on any surfaces that are unstable, tilted or subject to
vibration
•Do not allow liquid, small particles or other foreign debris to enter the device
Vents
Do not block any motor vents. To maintain good ventilation, follow the guidelines below:
•Do not cover motor ventilation holes
•Do not allow dust to build up on the motor vents
•Do not allow foreign debris to cover the motor vents
AC Power Cord Use
•Do not plug in AC power cord without verifying electrical outlet compatibility. Check
AC power supply connected to AC power cord for power outlet compatibilities
•To help ensure safe operation, regularly inspect the AC power cord. If damaged,
stop use immediately and contact customer support.
•Do not modify the cord
•Do not use a power cord other than the supplied AC power cord
•Do not touch the AC power cord with wet hands
•Protect the AC power cord from being walked on or pinched particularly at plugs,
expansion receptacles and the point where the cords exits the power supply
•Do not place heavy items on the AC power cord
•Do not place the AC power cord near heating equipment and do not expose the
cord to heat
•Unplug the AC power cord from the electrical outlet when you do not intend to use
the charger. When disconnecting, grasp the AC power cord by the plug and pull
straight out of the electrical outlet. Never pull by the cord and do not pull out at an
angle.
•Do not connect AC power cord to a voltage transformer or inverter.
Moisture & Condensation
If the device is brought directly from a cold location to a warm one, moisture may
condense either on the electronics or motor. Should this occur, the device may not
operate properly. In this case, remove the battery until moisture evaporates from the

Page 7of 28
device (this may take several hours). If the device still does not operate properly contact
customer service.
Product Overview
2
1
4
3
5
6
7
8
9
10
11

Page 8of 28
Ronin Lift Personal Ascender
1 –Ronin Lift Personal Ascender
2 –Lithium Ion Rechargeable Battery
3 –Battery Indicator
4 –Brake/Descend Handle
5 –Tensioner Knob
6 –Carabineer Clip Attachment Point
7 –Handle
8 –Thumbwheel
9 –Motor/Gearbox
10 –Rope Exit Hole
11 –Rope Inlet Hole

Page 9of 28
Ronin Lift Specifications
Motor
28 VDC nominal
100 amps (1 min burst)
275º F (135º C) max operating Temp
4500 rpm
5 N-m continuous torque
Gearbox
32:1 reduction
Speed Controller
Pulse Width Modulation (PWM)
120 amps max
33 VDC Max
Thumbwheel
.381k ohm
60º rotation
Brake
Manual Operations Via Brake Handle
Rope Diameters
Static Rope 10 mm to 12 mm (Up to 13 mm with
reverse function)
Max Rated Power
2,800 watts
Mass
Approximately 24 lbs.
Speed
Variable at Approximately 0.50 –1.3 ft/sec (0.15 -
0.39m/sec)
Operating Temp
-4º F - 100º F (-20º C - 38º C)
Sound Level
83.1 dBa
Vibration Level
6.9 m/s2
Capacity
400 lbs. (1.78 kN) Max load or 1 Person Max
Operational Humidity
0 –85 %
Operating Barometric
Pressure
29.9 in. Hg –7.04 in. Hg (101 kPa –23.8 kPa)
Storage Temperature
-4º F - 113º F (-20º C - 45º C) Less than 1 month
-4º F - 95º F (-20º C - 35º C) Less than 6 months
Storage Humidity
≤ 80% Less than 1 month
≤ 70% Less than 6 months

Page 10 of 28
Battery
Type
Lithium-Ion
Voltage
28.8 VDC Nominal
Amperage
90 amps (1 min burst)
Battery Capacity
6 Ah
Operating Temperature
-4º F - 100º F (-20º C - 38º C)
Mass
Approximately 6.5 lbs.
Battery Life
Approximately 300 Charges
Charge Time
Approximately 2.5 hrs.
Charging Temp
109 º F (43 º C) Maximum
Storage Temperature
-4º F - 113º F (-20º C - 45º C) Less than 1 month
-4º F - 95º F (-20º C - 35º C) Less than 6 months
Storage Humidity
≤ 80% Less than 1 month
≤ 70% Less than 6 months
Power Supply
Type
Lithium-Ion Battery Charger
Input Charging Voltage
110 VAC –240 VAC
Input Charging Amperage
5 amps max
Operating Temperature
32º F - 95º F (0º C - 35º C)
Operating Humidity
5% - 90%
Charge Time
Approximately 2.5 hrs.
Charging Temp
95º F (35 º C) Maximum
Storage Temperature
-4º F - 185º F (-20º C - 85º C)
Storage Humidity
5% - 90%
Rope
Specification
EN 1891 and EN 564 approved rope
Rope Size
10.0 mm –11.5 mm with less than 2.0% elongation
Rope Size
11.6 mm –12.0 mm with less than 3.3% elongation
Rope Size
12.0 mm –13.00 mm with less than 4.0% elongation
(Reverse function units only)
Rope Type
Aramid or Kernmantle Sheath
Rope Sheath
32 Strand or Greater
Sheath Slippage
Very Low
Rope Stiffness
Stiff

Page 11 of 28
Box Contents
1 2 3 4
1: Ronin Lift Personal Ascender
2: Lithium-Ion Rechargable Battery
3: AC Power Supply
4: AC Power Cord

Page 12 of 28
Ronin Lift Device Labels

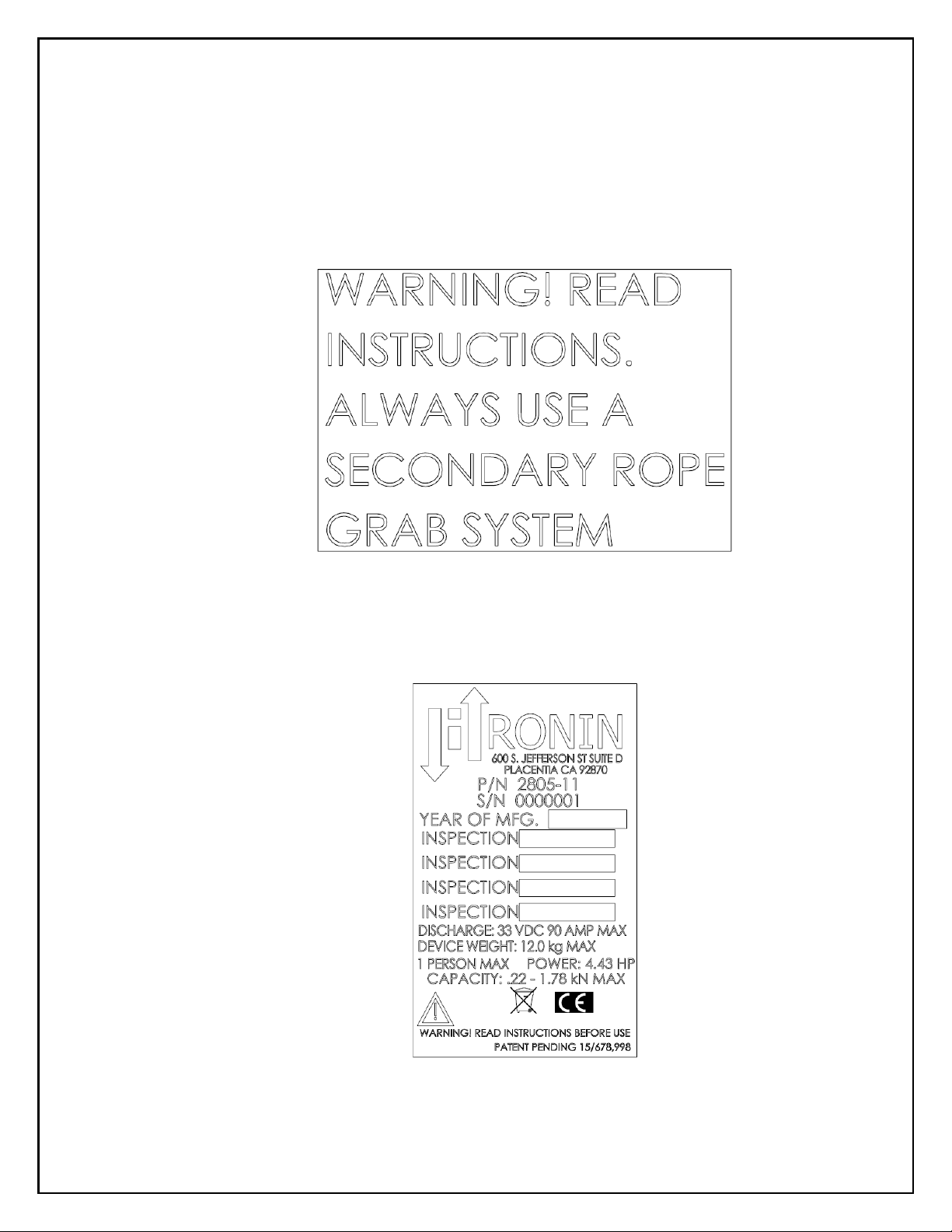

1) Warning Label instructions: User must read the entire instruction manual and
have a thorough understanding of the device, prior to use. Please contact
customer service if you are unsure of anything prior to use.
2) The Ronin Lift label provides device information, part number, serial number,
year of manufacture, device limits and capabilities, certifications acquired, and
yearly maintenance intervals performed for the 5-year life of the Ronin Lift
Personal Ascender.

Page 13 of 28

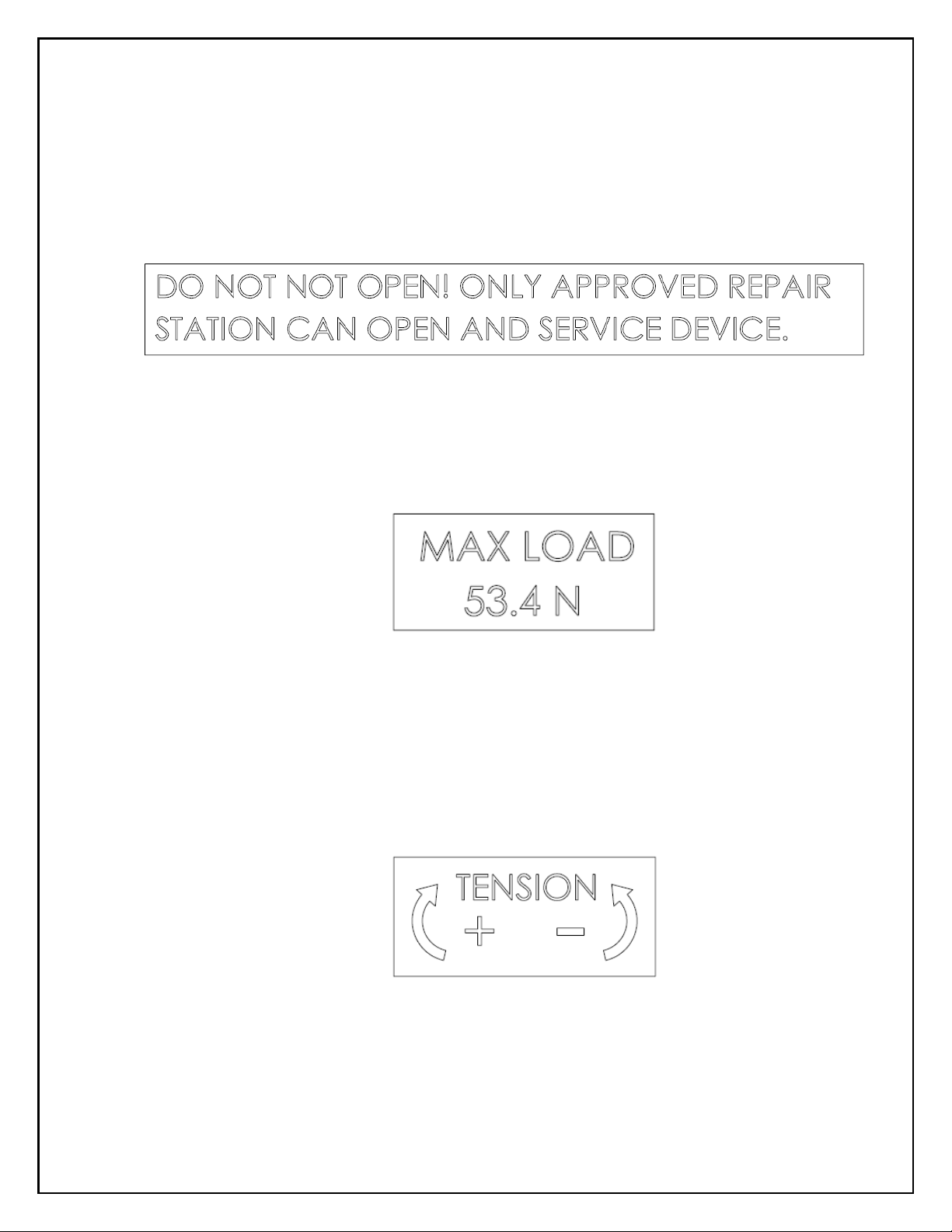

3) Ronin Lift can only be serviced or repaired by an approved certified repair
center or by sending the device back to the manufacturer. The maintenance or
repair can be scheduled by calling and obtaining a Manufacturer Repair Order
(MRO) number. Do not open the Ronin Lift or warranty will be voided. The do
not open label is a tear away one-use label for anti-tampering.
4) Max load label is the maximum permitted load on the battery carabineer
attachment point. The carabineer Attachment point on the battery is not load
bearing, maximum permitted load is 53.4 N (12 lbs.).
5) The tension label describes which direction to turn the tensioner to apply more
or less tension to the rope. More tensions increase the grip on the rope to
reduce rope slippage with heavier loads. It is also used to apply a larger holding
capability during lifting max 400 lbs. loads using the Ronin Lift. Turning it in the
Counterclockwise direction increases grip and holding capacity. Turning it in the
Clockwise direction allows rope to be loaded in the device.

Page 14 of 28
6) The brake label provides instructions on which direction to operate the brake
handle for applying the brake or releasing the brake. The brake is always in the
“On” position. To release the brake, you must physically pull down on the
handle.

Page 15 of 28
Charging the battery
The battery takes approx. 2.5 hrs. to charge.
The charger LED codes are the following:
Standby (Solid Green with no battery plugged in)
Charging (Solid Red when battery is charging)
Fully Charged (Solid Green with battery plugged in)
Battery Warnings
•To charge the battery, you must only use the included charger.
•Only use included AC power cord.
•Do not over-discharge the Lithium-Ion battery.
•Do not store the Battery connected on the device. Remove the battery from the
device when storing the unit.
•Disconnect a depleted battery, do not leave a dead battery on the device
•If at any time the Lithium-Ion battery begins to balloon or swell, discontinue
charging or discharging immediately.
•Always terminate all processes, if the battery/charger malfunctions.
•Do not over charge the battery.
•Store the Lithium-Ion battery at room temperature in a dry area for best results.
•Allow the Lithium-Ion Battery to cool to ambient/room temperature before recharging.
•Never charge the Lithium-Ion battery unattended at any time.
•Never charge the Lithium-Ion battery connected to the Ronin Lift.
•Never Charge the battery above 109 º F (43 º C).
•After battery is discharged from use allow 30 minutes rest prior to recharging.
Rope Requirements
•Only use static line rope with aramid or kernmantle sheath in your Ronin Lift.
•The only approved rope sizes for use with the Ronin Lift is Static Rope, range of 10
mm diameter to 12 mm diameter sizes.
•Static rope sizes between 10 mm and 11.5 mm need to have an aramid or
kernmantle sheath with low elongation (recommended under 2% elongation).
Outer sheath should consist of 32 strands or higher.
•Rope diameter 11.5 mm to 12 mm can be used with larger elongation factors
(recommended under 3.3% elongation). Outer sheath should consist of 32 strands
or higher.
•The diameter of the rope should not shrink below 10 mm when weight is applied to
the device. (This will cause the rope to slowly slip, when brake is applied)
•Both ends of the rope need to have good clean burnt end where the inner core
cannot eject out. All tape or shrink wrap should be removed from the rope. (see
rope burning video https://www.youtube.com/watch?v=dg79vK0CY5I)

Page 16 of 28
•The rope should have low sheath slippage and the outer sheath should not balloon
or swell.
Rope Warnings
•Only use static line ropes with aramid or kernmantle sheath with Ronin Lift
•Do not use Dynamic rope
•Inspect rope prior to use, during use and after use for rope integrity
•Never use damaged or worn rope
•Only use EN 1891 and EN 564 approved rope

Page 17 of 28
Battery Installation and Motor Initiation
Warning: If battery is to be switched out mid-line, then a lanyard shall be attached
to the battery carabineer attachment point and another point either on person or
device. This ensures if the battery was to fall it will be retained by the lanyard. This
is a safety precaution to ensure a battery does not accidentally fall and injure
person(s) below.
1. Slide the battery down the side of the Ronin Lift, matching the slots in the Ronin
Lift with the tangs on the battery.
2. Drive the battery down with enough force to mate the connectors.
Note: The connectors are impact resistant, due to tolerance stack
some batteries may take more force to connect then others.
3. The battery connection will start up the motor arming sequence. You will hear the
motor beep 5 times. After the initial 3 beeps will follow an additional 2 beeps.
These two beeps indicate the motor is armed and the Ronin Lift is ready for use.
4. The battery indicator will also go through a lighting sequence. It will circulate from
empty (red color tick mark left most side) to full (green color tick mark right most
side), then display the batteries current charge state.
Ronin Lift
Battery Slot
Battery

Page 18 of 28
Loading Rope
1. Rotate the red tensioner knob in the clockwise direction, until it bottoms out on the
Ronin Lift ascender housing. This will pull down the tensioner and create space to
allow the rope to feed into the system. Make sure the knob is turned fully
clockwise, until it cannot be turned any more.
Note: Screw the tensioner knob clockwise until it cannot turn anymore. The
knob will start getting tight and this is due to the spring, continue to screw
the knob down until the rocker arm bottoms out on the main housing.
Note: Static line rope 10.0 mm –11.5 mm should have less than 2%
elongation and the outer sheath should be low slippage with 32 strands or
greater.
Static line rope 11.6 mm –12.0 mm should have less than 3.3% elongation
and the outer sheath should be low slippage with 32 strands or greater.
2. Insert Static Line Rope with 10 mm to 12 mm diameter through the rope inlet feed
hole. Start pushing rope into the inlet hole (Top of the device) until it stops. Once it
stops, then push the rope and TAP the thumbwheel trigger. The rope will be
slowly sucked in. (NOTE: Be sure to push the rope with some force, while
TAPING the thumbwheel)
Tensioner knob
Rocker Arm

Page 19 of 28
3. Once you get approximately 10 inches (25 cm) of rope in the system, then stop
and turn the Red Tensioner knob left (Counterclockwise) to the neutral position.
(NOTE: The lever arm should be floating between the two flanges on the shaft of
the Red Tensioner knob. Knob tension will be loose and easy to turn)
4. Pull open the Red brake handle slightly and TAP the thumbwheel, until the rope
comes out of the exit hole. (Note: For units with reverse function do not pull brake
fully open or unit will switch into reverse). Keep an eye on the exit hole to make
sure the rope doesn’t get caught, while exiting. (NOTE: If the rope does not move,
then turn the Red Tensioner knob 1-2 turns in the counterclockwise direction and
repeat the step)
Warning: Do not hold the thumbwheel trigger down. When rope is not fully
feed through the system with proper tension applied, rope can become burnt
and/or tear the sheath. Heat buildup from the shaft spinning around the rope
can cause the sheath to melt or tear. Only tap the trigger as you push the
rope into the inlet.
Rope Inlet

Page 20 of 28
5. Turn the red tensioner knob counterclockwise, until it starts getting tight. The
system is now ready to be used.
Operating Ronin Lift
Caution: Ensure you have all safety equipment on and properly
secured, prior to using Ronin Lift. Misuse or improperly secured
equipment could result in serious injury or death. Never use Ronin Lift
Personal Ascender without a Safety lock line.
1. Be sure to use a secondary rope grab system. Below is an example of a rope grab
system, this is one example. There are many different secondary safety line
systems that can be used.
2. Be sure to use a load baring carabineer clip that complies with ANSI / CE
standards. Connect the Ronin Lift Personal Ascender to your harness with a
carabineer, using the lower housing attachment point.
Thumbwheel
Tensioner Knob
Brake Handle
Rope Exit Hole
