Ronson R-502 User manual

INSTRUCTION MANUAL
MEAT GRINDER
Model: R-502
Rated voltage: 220-240V~ 50/60Hz
Rated power: 350-450W
INSTRUCTION MANUAL
Please read thoroughly for important safety
and save these instructions
R-502

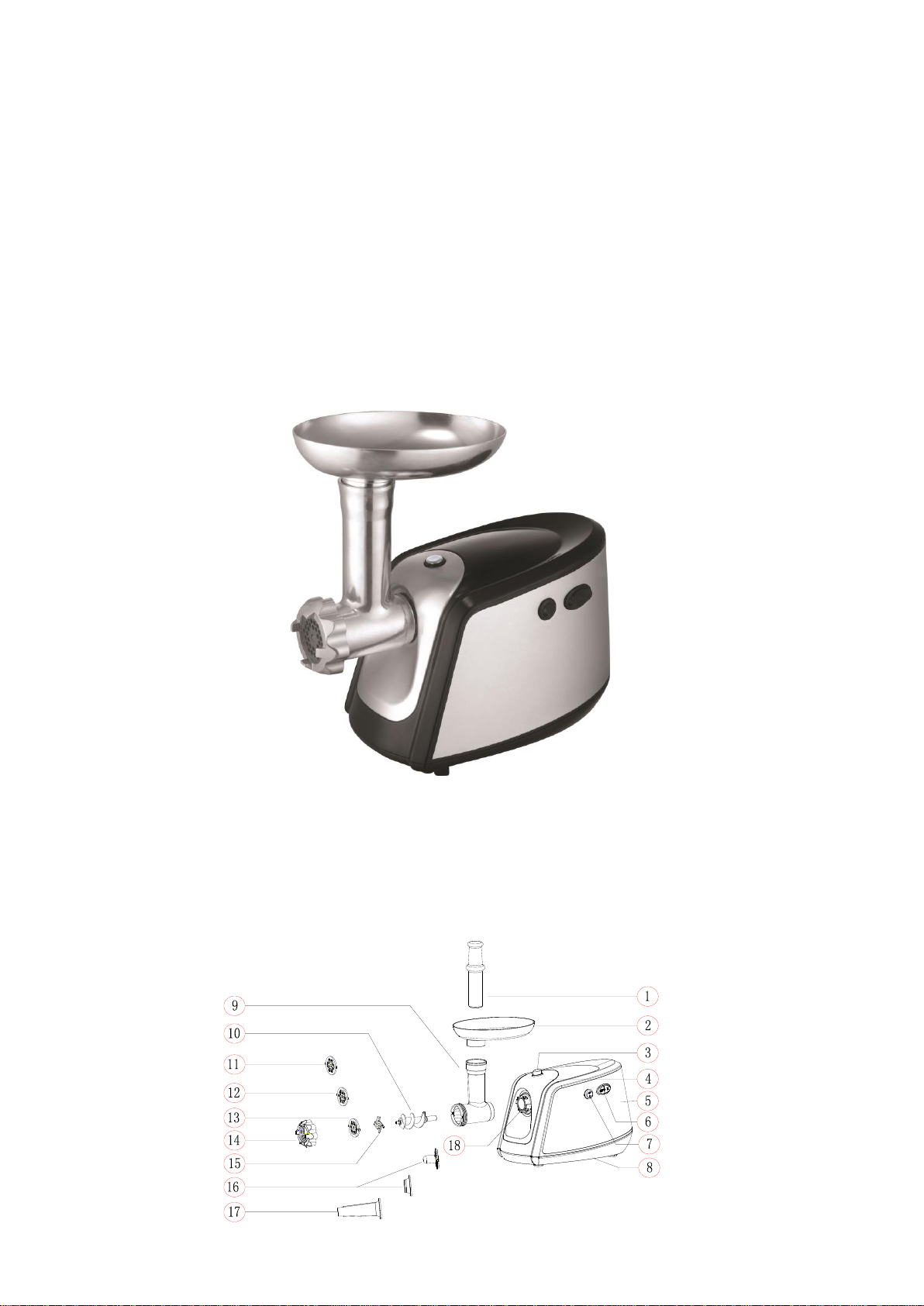

DESCRIPTION

1. Food pusher 10. Feed screw
2. Hopper plate 11. Cutting plate (fine
3. Push knob 12. Cutting plate (medium)
4. Decorative cover 13. Cutting plate (coarse)
5. Motor housing 14. Fixing ring
6. R / ON switch 15. Cutting blade
7. ON/OFF/ Reverse switch 16. Kibbe attachment
8. SWITCH HOLDER 17. Sausage attachment
9. Head 18. Head inlet
IMPORTANT SAFEGUARDS
◆Household use only. Do not use for industrial purpose.
◆Unplug from outlet when assembling and disassembling the unit.
◆Close supervision is necessary when any appliance is used near children.
◆When carrying the unit be sure to hold the motor housing with both hands. Do not carry
the unit by holding only the hopper plate or head.
◆Do not fix the cutting blade and cutting plate when using kibbe attachment.
◆Never feed food by hand. Always use food pusher.
◆Do not grind hard food such as bones, nuts, etc.
◆Do not grind ginger and other materials with hard fiber.
◆Continuous running of meat grinder should be not more than 10 minutes with the
following 10 minutes interval for motor cooling.
◆Reverse function is prohibited while the appliance is operating (For example switch
“ON”knob to “R”knob or on the contrary), wait at least one minute until grinder has
come to a complete stop，otherwise it may cause an abnormal noise, vibration or a
transitory electric spark in the appliance. It could result easily damage to appliance and
make a user frightened.
◆After use, there would be a little food left in the grinder head. This is normal.
◆There might be a bit of black metal powder adhering to the food ground in the end.
Please pick them out and throw away, do not eat them.
◆To avoid jamming, do not force to operate the unit with excessive pressure.
◆When the circuit breaker activates, do not switch on.
◆Never try to replace the parts and repair the unit by yourself.
◆When the appliance is not in use and before cleaning, unplug the appliance from the
outlet.
◆To protect against the risk of electrical shock, do not immerse the unit, cord or plug in
water or other liquid.
◆This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
◆Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent

or similarly qualified persons in order to avoid a hazard.
FOR THE FIRST TIME
◆Check that voltage indicated on the rating label corresponds the mains voltage in your
home.
◆Wash all parts (except body) in warm soapy water.
◆Before plugging in, ensure the“ON/OFF/ Reverse”switch is turned to "OFF" position.
IN INSTRUCTION FOR USE

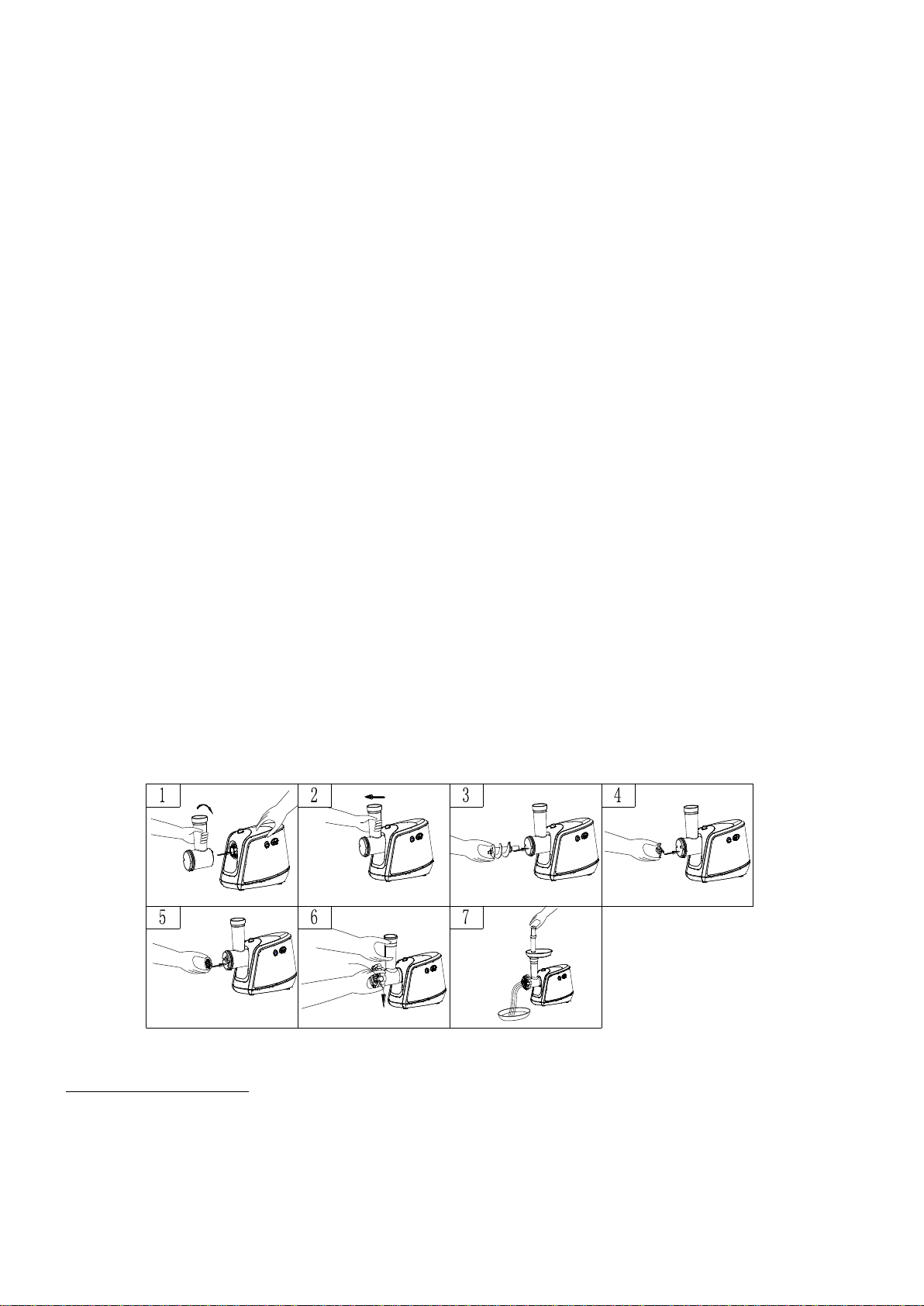

ASSEMBLING
◆Holding the head and insert it in the inlet with one hand, push the black knob with
another hand, tighten it clockwise to secure the head . (fig.2).
◆Place the feed screw into the head, long end first, by turning the feed screw slightly until
it is set into the motor housing (fig.3).
◆Place the cutting blade onto the feed screw shaft with the blade facing the front as
illustrated (fig.4). If it is not fitted properly, meat will not be ground.
◆Place the desired cutting plate next to the cutting blade, fitting protrusions in the slots
(fig.5).
◆Support or press the centre of the cutting plate with one finger then screw the fixing ring
until tight with another hand (fig.6). Do not over tighten.
◆Locate the unit on a firm place.
◆The air passage at the bottom and the side of the motor housing should be kept free and
not blocked.
MINCING MEAT
◆Cut all foods into pieces (Sinewless, boneless and fatless meat is recommended,
approximate size: 20 mm x 20 mm x 60 mm) so that they fit easily into the hopper
opening.
◆Plug in and turn the “R / ON”switch to "ON" position, then turn the “ON/OFF/
Reverse” switch to "ON" position.
◆Feed foods into the hopper plate. Use only the food pusher (fig.7).
◆After use switch the unit off and unplug it from the power supply.

REVERSE FUNCTION
◆In case of jamming switch the appliance off by turning the “R / ON”switch to "R"
position and “ON/OFF/ Reverse” switch to "R"position.
◆Feed screw will be rotating in the opposite direction, and the head will get empty.
◆If it doesn't work, switch the unit off, plug out and clean it.
MAKING KIBBE
RECIPE STUFFING
Mutton 100g
Olive oil 1 tablespoons
Onion (cut finely) 1 tablespoons
Spices to your taste
Salt to your taste
Flour 11/ tablespoons
◆Mince mutton once or twice.
◆Fry onion until brown and add minced mutton,
all spice, salt and flour.
OUTLET COVER
Lean meat 450g
Flour 150-200g
Spices to your taste
Nutmeg (cut finely) 1
Powdered red pepper to your taste
Pepper to your taste
◆Mince meat three times and mix all ingredients together in a bowl. More meat and less
flour for outlet cover creates better consistency and taste.
◆Grind the mixture three times.
◆Disassemble by reversing the steps from 5-3 to remove the cutting plate and cutting
blade.

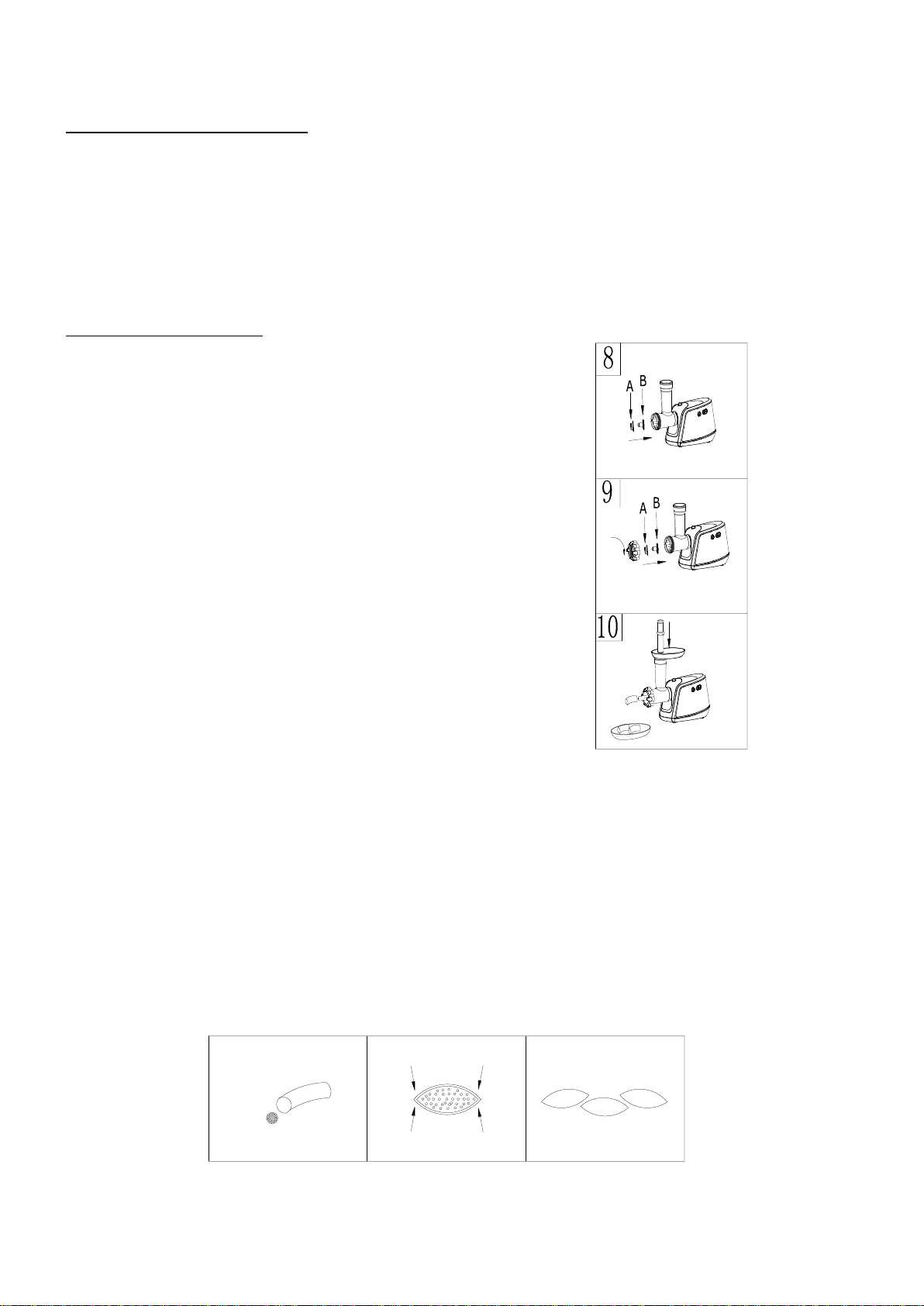

◆Place kibbe attachments onto the feed screw shaft together, fitting protrusions in the
slots (fig.8).
◆Screw fixing ring into place until tight. Do not over tighten (fig.9).
◆Make the cylindrical outlet cover (fig.10).
◆Form kibbe as illustrated below and deep fry.
MAKING SAUSAGE
◆Before starting please assemble sausage attachment as per following (fig.11)

MAKING COOKIES
Use below attachments and steps for making cookies
MAKING TOMATO JUICE
◆Please follow the picture on the way to the tomatoes accessories installed.
◆Please put the tomatoes into the Hopper plate after the tomatoes are wishing clear .
And then use the food pusher to pressure down.

CLEANING AND MAINTENANCE
DISASSEMBLING
◆Make sure that the motor has stopped completely.
◆Disconnect the plug from the power outlet.
◆Disassemble by reversing the steps from 6-1pictures.
◆If the fixing ring is not easily removed by hands,
please use tools（fig.12）.
◆To remove the cutting plate easily, place a screwdriver
between the cutting plate and the head as illustrated and
lift it up (fig.13).
CLEANING
◆Remove meat, etc. Wash each part in warm soapy water.
◆A bleaching solution containing chlorine will discolor aluminum surfaces.
◆Do not immerse the motor housing in water, but only wipe it with a damp cloth and then
dry it thoroughly.
◆Thinners and petrol will crack or change the color of the unit.
◆Wipe all the cutting parts by vegetable oil -wet cloth.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC
DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste.
It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative consequences for the environment and
health, deriving form inappropriate disposal and enables the constituent materials to be recovered to obtain
significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.
