Rose b Nyon User manual

OWNER’S MANUAL
V2018.01 Pedelecs_Nyon_EN

1 Frame 11 Stem
2 Saddle 12 Handlebar
3 Seat post 13 Front light
4 Saddle clamp 14 Mudguard
5 Pannier rack 15 Fork
6 Rear light 16 Brake disc
7 Mudguard 17 Hub
8 Chain 18 Spoke
9 Mid-drive motor 19 Rim
10 Pedal 20 Tyre
21 Battery pack
1
2
6
3
7
8
9
4
10
11
14
17
12
18
13
15
19
20
5
16
21
Translation of original manual

Congratulations on the purchase of your ROSE dream bike!
We are pleased that you have decided to buy a ROSE bike and are sure that your new bike will put a smile on your face
every day.
Your bike is unique – before it has found its way to your home, this bike was individually assembled by hand by a
skilled mechanic and carefully inspected by another specialist to ensure it meets our highest quality standards. We thus
guarantee that your bike offers reliability and state-of-the-art technology. Easy-to-use gears and brakes, an excellent
design and excellent value for money are just some of the reasons why you will love your bike.
Some components were removed or adjusted for shipping. However, they can be easily re-assembled or re-adjusted in
just a few simple steps (see ”3. Bike assembly“ on page 13).
Regular care and maintenance (see ”9. Maintenance“ on page 35) will prolong the life of your beloved bicycle.
This manual includes all information on handling, maintenance and care you need to properly care for your bike. We
recommend you to carefully check and service your bike at regular intervals. Your safety and a long life of your bike
should be worth the effort.
This manual describes all details important for the safe use of your bike, as well as the most important and general
facts about your bike. For more detailed information on the single components of your bike please see the respective
owner’s manual of the manufacturer. The manuals are either included in your purchase documents or available online.
Please take the time to read this manual carefully. The sections marked with the signal words “DANGER”, “WARNING”
and “CAUTION” are of particularly high importance. The instructions contained in these warnings must be followed.
Moreover, we recommend you to follow the steps described in ”7. Before and after your ride“ on page 30 and to
have your bike serviced regularly (see ”9. Maintenance“ on page 35) to ensure your safety on every ride.
Have fun with your dream bike!
Your ROSE Bikes team

1. General information ................................................................................................................ 6
1.1 Explanation of symbols used ......................................................................................................6
1.2 Target group.....................................................................................................................................7
1.3 Requirements to operate an e-bike ..........................................................................................7
1.4 Owner’s manuals supplied by component manufacturers ...............................................7
1.5 Tools....................................................................................................................................................7
1.6 Installation of add-on parts and accessories.........................................................................7
1.7 Replacement of parts ....................................................................................................................7
1.8 Warranty and guarantee...............................................................................................................8
1.9 Wearing parts...................................................................................................................................8
1.10 Weight limit.......................................................................................................................................8
1.11 Exclusion of liability .......................................................................................................................8
2. Safety ........................................................................................................................................ 9
2.1 General safety..................................................................................................................................9
2.2 Safe use of the brakes ..................................................................................................................10
2.3 Safe use of the battery pack .......................................................................................................10
2.4 Safe use of a pannier rack...........................................................................................................11
2.5 Safe use of an adjustable stem..................................................................................................11
2.6 The rider’s duty of care.................................................................................................................11
2.7 Intended use.....................................................................................................................................12
3. Bike assembly.......................................................................................................................... 13

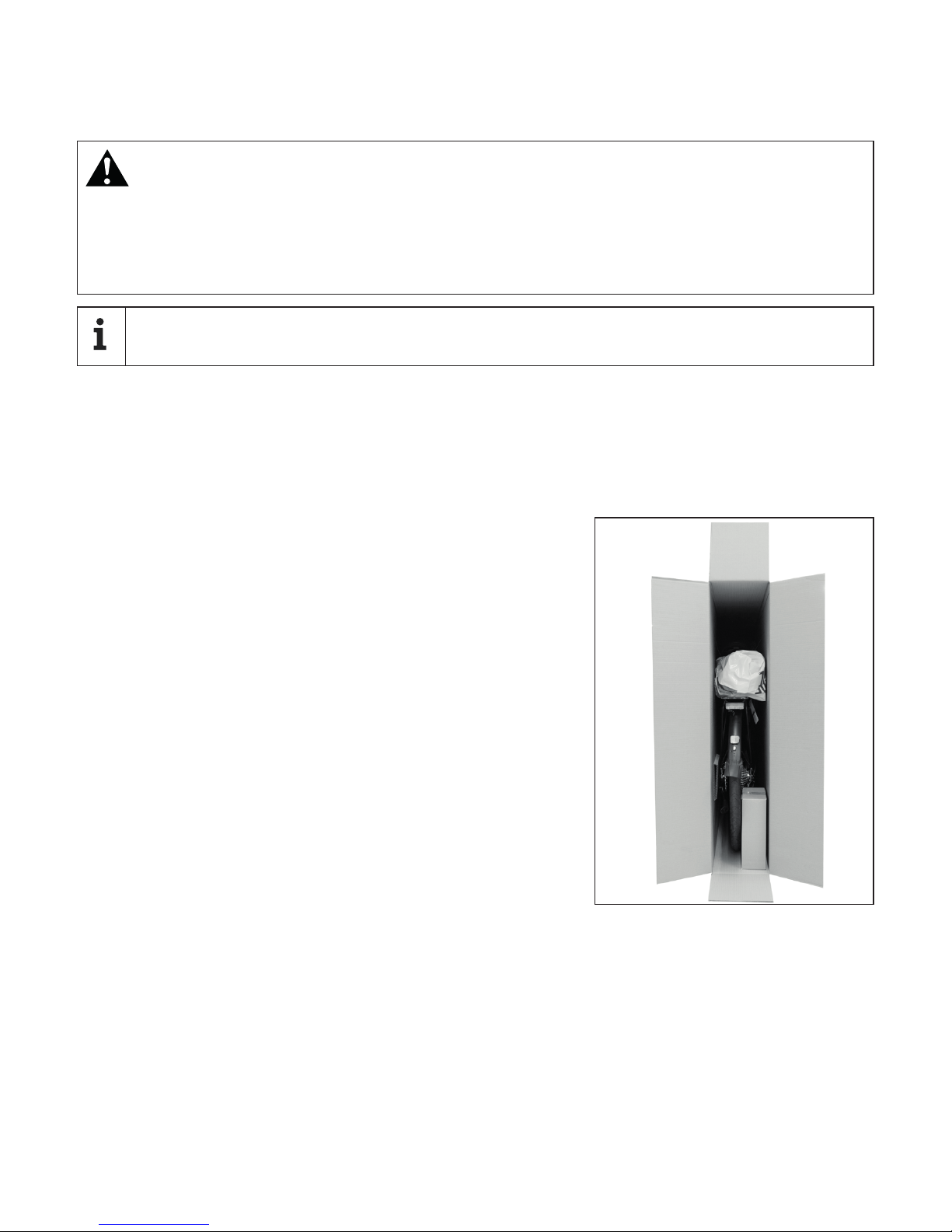

3.1 Opening the ROSE bike box and unpacking the contents ..................................................13
3.2 Straightening the handlebar and adjusting the steering play..........................................14
3.3 Straightening the handlebar and adjusting the steering play [Speedlifter].................15

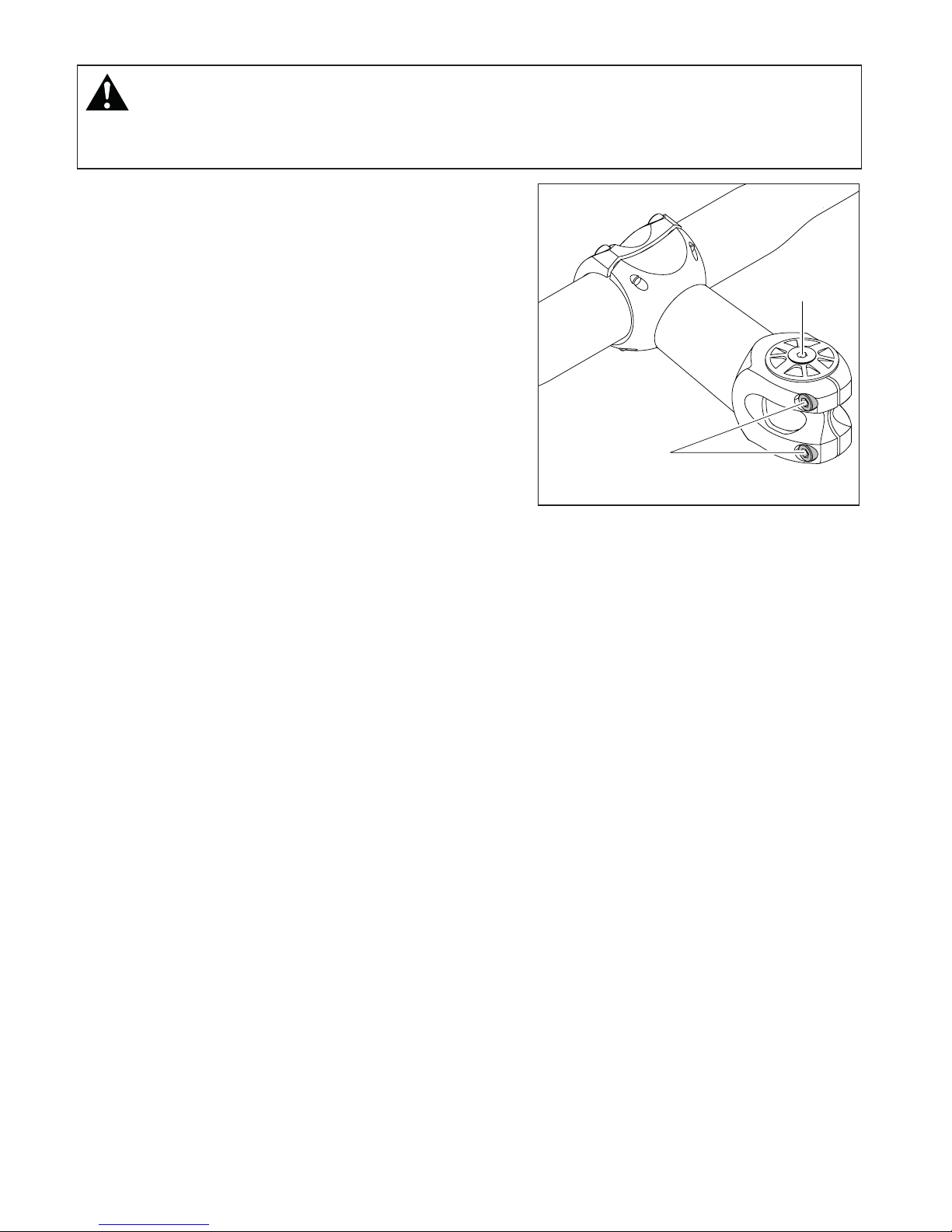

3.4 Adjusting the angle of the handlebar .......................................................................................16
3.5 Adjusting the saddle height.........................................................................................................17

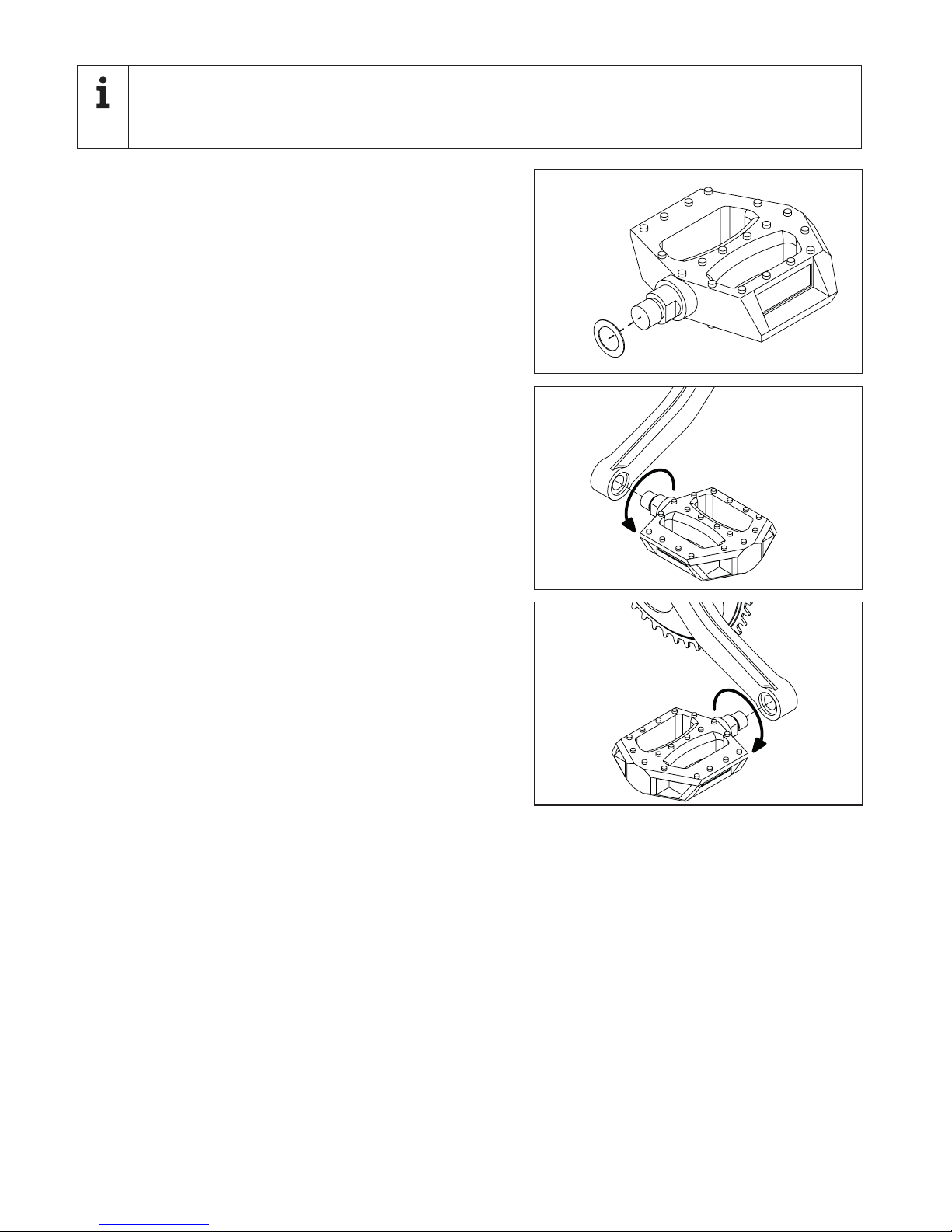

3.6 Installing the pedals.......................................................................................................................18
4. Before your first ride .............................................................................................................. 19
4.1 Checking the battery before first use ......................................................................................19
4.2 Getting started for your first ride and getting used to your new bike ...........................19
5. Riding your e-bike ................................................................................................................... 20
5.1 Information on the e-bike system .............................................................................................20
5.2 Riding..................................................................................................................................................22
5.3 Switching bike lights on/off.........................................................................................................25
5.4 Interrupting your ride ....................................................................................................................26
5.5 Switching off the system .............................................................................................................27
5.6 Charging the battery ......................................................................................................................28
6. Cycling with kids...................................................................................................................... 29
6.1 Carrying kids with a bike seat ....................................................................................................29
6.2 Carrying kids with a bike trailer.................................................................................................29
7. Before and after your ride...................................................................................................... 30
7.1 Before your ride ..............................................................................................................................30
7.2 After your ride..................................................................................................................................32
7.3 After a crash.....................................................................................................................................32

8. Transport, storage and disposal ........................................................................................... 33
8.1 Transport by car..............................................................................................................................33
8.2 Transport on a hitch or roof rack ..............................................................................................33
8.3 Battery storage................................................................................................................................33
8.4 Bike storage......................................................................................................................................33
8.5 Bike shipping....................................................................................................................................34
8.6 Battery shipping ..............................................................................................................................34
8.7 Disposal..............................................................................................................................................34
9. Maintenance ............................................................................................................................. 35
9.1 Bike servicing...................................................................................................................................35
9.2 Replacement of parts ....................................................................................................................36
9.3 Tyre pressure...................................................................................................................................37

6
1. General information
This manual is the most important element to prevent any damages and risks during the assembly, use and servicing of
your new bike. It is provided to give you the most important technical information on your bike, to support you during
bike assembly and to give you helpful tips over the entire life of your bicycle. If in doubt about maintenance works,
please consult a qualified bicycle mechanic.
Please read this manual carefully before taking the first ride on your bike and make sure you understand everything.
Ensure that third-party users are also informed about the contents of this manual and that they understand and follow
all instructions.
Keep this manual for future reference. If you sell or give away your bike, please also include the owner’s manual.
This manual is additionally available as a pdf file on rosebikes.com/manuals
1.1 Explanation of symbols used
DANGER
… indicates a hazard with a high level of risk which, if not avoided, will result in death or serious injury .
WARNING
… indicates a hazard with a medium level of risk which, if not avoided, may result in minor or moderate injury.
CAUTION
… indicates a hazard with a low level of risk which, if not avoided, may result in minor or moderate injury.
NOTE
… indicates a potentially hazardous situation that may result in damage to property.
…indicates additional information.

7
1.2 Target group
This manual is intended for you, the owner of the ROSE bike.
Assembly and maintenance works require basic knowledge in bicycle technology. If in doubt consult a qualified bicycle
mechanic. Improper assembly or maintenance of your bike may result in serious injury or death!
1.3 Requirements to operate an e-bike
The rider should be able to ride a bike, this means that he/she must have basic cycling skills and sufficient balance
to safely ride and steer a pedelec. The use on public roads requires a high level of cognitive ability. The rider must be
mentally and physically able to safely operate the bicycle over a longer period of time and longer distances.
For newcomers and those who have not used an e-bike for a longer period special cycling skills courses for pedelecs
are recommended.
1.4 Owner’s manuals supplied by component manufacturers
This manual contains all information you need for a safe use of your bike. However, apart from this manual, the
documents supplied with your bike also include some product information or manuals of different component
manufacturers. If need be, you can use those documents for further information on the respective product, its
assembly and setup. The owner’s manuals of some manufacturer’s might only be available online.
1.5 Tools
All works on your bicycle require appropriate tools. All nuts and bolts must be tightened using an appropriate torque
wrench. Proper use prevents overtightening and breaking of the bolts.
A proper installation and removal of components can only be guaranteed when using perfectly functioning and
undamaged tools.
1.6 Installation of add-on parts and accessories
Bicycle trailers must only be fixed to the rear axle of the bike using special devices.
Only use child seats and trailers for clamp mounting on the seat tube of the bicycle frame on men’s and unisex models.
Do not mount any child seats and trailers with clamp mount on the seat tube of bicycles with a low entry.
It is not allowed to mount trailers or child seats on the seat post. Racks must only be attached to special fittings
designed for this purpose.
Please read the manufacturers’ manuals before the installation of add-on parts and accessories.
Make sure you don’t exceed the maximum system weight (see “1.10 Weight limit“ on page 8) even with all add-on
parts and accessories fitted!
1.7 Replacement of parts
As e-bike components are subjected to heavy loads, you cannot simply replace them. In most cases, you must obtain
approval from ROSE Bikes or the component manufacturer before replacing a component (also see “9.2 Replacement
of parts“ on page 36). Please contact ROSE Bikes in case of any questions.

8
1.8 Warranty and guarantee
For all information on warranty and guarantee see rosebikes.com/content/help/terms-and-conditions.
Tuning the e-bike will invalidate the warranty.
1.9 Wearing parts
As a technical product, a bicycle consists of many components which are all subject to wear given the nature of their
function. Therefore, the components listed below should be checked regularly and replaced, if necessary:
• Battery pack and drive unit
• Tyres and tubes
• Rims
• Brake pads
• Bearings (headset, bottom bracket bearings, rear triangle bearings, hub bearings)
• Chain, cassette and sprockets
• Handlebar and stem
• Grips
• Saddle and seat post
• Grease, lubricant, hydraulic oil and brake fluid
• Inner and outer brake and gear cables
• Suspension fork and rear shock
• Stickers and paintwork
1.10 Weight limit
Electric ROSE bikes are designed for a maximum weight of 140 kg. The maximum weight is derived from the weight of
rider, bicycle, gear (helmet, backpack, shoes, clothes) and luggage.
1.11 Exclusion of liability
The tasks described in this manual require special knowledge and should only be carried out by people with sufficient
expertise.
The user is liable for damages resulting from:
• Misuse or any other cause beyond the range of the intended use (see “2.7 Intended use“ on page 12)
• Non-compliance with safety regulations
• Improper assembly, repair and maintenance
• Use of unapproved replacement parts and accessories
• Change of construction
• Tuning
If in doubt consult a qualified bicycle mechanic or the ROSE service.

9
2. Safety
2.1 General safety
DANGER
Always wear a helmet!
Adapt your style of riding to your skills. Respect your limits and only ride cautiously in new situations.
DANGER
Risk of accident due to using on-board computer while riding!
Reading from the computer display or changing settings while riding may distract from the traffic situation. This may
result in accidents caused by delayed or hindered rider responses!
• For all settings other than those concerning the level of assistance, you should stop off the road to enter the
respective data.
DANGER
Risk of accident due to misjudgement through other road users!
Other road users mostly misjudge the speed of e-bike riders.
• Always ride carefully and never rely on other road users to react properly.
DANGER
Risk of accident due to improperly installed components!
Improperly installed components may loosen during the ride!
• Always follow the installation instructions included in this manual.
• If in doubt consult the ROSE service or a qualified bicycle mechanic.
DANGER
Risk of injury due to accidental activation of the e-bike drive system!
• Always remove the battery pack from the e-bike before working on the electric bicycle (e.g. servicing, repair,
assembly, maintenance works), as well as before transport (e.g. by car or plane) and storage.
DANGER
Risk of accident due to sudden total failure of pre-damaged or worn components!
Bicycles are subject to high stress and wear. A fall or unforeseeable manoeuvres cause unpredictable peak loads.
These loads can pre-damage components of your bike unnoticed.
• You should have your bike regularly checked for wear and damages by a qualified bicycle mechanic.
Also see “9. Maintenance“ on page 35. Worn or damaged components must be replaced.

10
2.2 Safe use of the brakes
DANGER
Risk of accident due to reduced braking performance caused by brake pads that are not broken in!
Disc brakes can only achieve full braking power when the brake pads are broken in. Choose a place off public roads
to break in the pads.
• Brake 20 to 30 times with the front or rear brake from a speed of 30 km/h down to 5 km/h and repeat the
process for the second brake. You should brake as hard as possible without locking one of the wheels.
• Please also note the instructions of the brake manufacturer (see enclosed manual). In case of any deviations, the
component manufacturer’s instructions apply.
DANGER
Risk of accident due to high braking power of the disc brakes!
Modern disc brakes have a very high braking power. Sudden braking can make you lose control of your bicycle.
• Become familiar with the power and operation of your disc brakes off public roads.
2.3 Safe use of the battery pack
In addition to the safety instructions below, please also follow the instructions described in “8. Transport, storage and
disposal“ on page 33.
DANGER
Risk of accident due to incorrect handling of the battery or its use in a way that is not intended!
• Only use the battery in combination with the appropriate e-bike drive system.
• Only use approved models when replacing the battery pack.
DANGER
Risk of injury due to short circuit, explosion and electrical fire!
• Batteries must not be subjected to mechanical impacts.
• Do not open the battery pack. Otherwise, there is the risk of a short circuit.
• Keep the battery away from heat (and out of permanent sunlight) and fire and never drop it into water.
• Do not store or operate the battery near hot or inflammable objects.
• Keep battery away from paper clips, coins, keys, nails, screws or other metal items when not in use to prevent
shorting exposed battery contacts.
DANGER
Risk of injury due to improper charging of the battery!
Improper charging may cause the battery or other inflammable materials nearby to catch fire.
• Only use the original charger.
• Do not locate the charger or battery near inflammable materials while charging.
• Only charge the battery when dry.
• Do not leave the battery unattended while charging it.

11
DANGER
Risk of injury due to escaping liquid or vapour!
• Damages or improper use may cause liquid to escape from the battery. This may cause skin irritation, eye
irritation or burns!
• Avoid contact with skin and eyes.
• In case of contact with skin, wash off with water.
• In case of contact with the eyes, seek medical assistance.
• Damages or improper use may cause vapours to escape from the battery. These may be irritant to the respiratory
system!
• Seek fresh air and medical attention, if need be.
2.4 Safe use of a pannier rack
WARNING
Risk of accident due to improper handling of a pannier rack!
Improper handling of a pannier rack or the luggage attached to it may lead to serious crashes.
• Never exceed the rack’s maximum load limit. Check the pannier rack or the manufacturer’s manual for the
maximum load limit (also see “1.4 Owner’s manuals supplied by component manufacturers“ on page 7).
• Do not exceed the load limit of the bicycle even when the rack is loaded (see “1.10 Weight limit“ on page 8).
• A loaded rack may change the steering and braking characteristics of your bike.
• Always attach additional accessories for the rack (e.g. panniers) according to the manufacturer’s instructions.
• Ensure lights or reflectors are not obstructed when the pannier is attached.
• Distribute weight evenly on both sides of the rack.
• Secure luggage against sliding or falling down. Make sure there are no loose parts hanging down.
• Secure and regularly check the rack’s mounting brackets.
• Racks must not be modified.
• Do not attach trailers to the rack.
2.5 Safe use of an adjustable stem
WARNING
Risk of accident due to improper use of a stem with adjustable height and angle!
An improperly adjusted or tightened stem can cause you to lose control and fall.
• Do not adjust the height of your stem while riding.
• Make sure the stem is positioned and tightened properly before riding the bicycle.
WARNING
Risk of accident due to the use of a conventional stem on a steerer that is designed for Speedlifter stems!
The installation of a Speedlifter system requires a modification of the steerer tube. A Speedlifter stem cannot be
replaced with a conventional stem.
• The replacement of a Speedlifter system with a conventional stem requires a special adapter and must be carried
out by a qualified bicycle mechanic.
2.6 The rider’s duty of care
Following the instructions specified in this manual does not absolve the rider from their duty of care to ensure that their
bike is always in good condition. If there are any questions consult a qualified bicycle mechanic or the ROSE service.

12
2.7 Intended use
The intended use of ROSE bikes is divided into five different categories – ranging from the use on paved roads through
to downhill or freeride use. The bikes must only be used in accordance with their intended purpose/use. Otherwise, the
user takes responsibility.
A sticker on the frame of your bike will show you the intended use.
1
Category 1: For use on paved roads only
Category 1 includes all bikes and components that should only be used on paved roads.
The wheels will always stay in contact with the ground.
2
Category 2: For use on and off the road and for drops of up to 15 cm
Category 2 includes all bikes and components that can be used in conditions described under
category 1, as well as on gravel roads and moderate trails. The wheels may also loose contact
with the ground. Drops should not be higher than 15 cm.
3
Category 3: For use in rough terrain and for jumps of up to 61 cm
Category 3 includes all bikes and components that can be used in conditions described under
category 1 and 2, as well as on rough trails and rough and unpaved roads that require good
cycling skills. Jumps and drops should not be higher than 61 cm.
4
Category 4: For use in rough terrain and for jumps of up to 122 cm
Category 4 includes all bikes and components that can be used in conditions described under
category 1, 2 and 3, as well as for higher speeds on rough and steep trails. Jumps should not be
higher than 122 cm.
5
Category 5: Extreme biking (Downhill, Freeride, Dirt)
Category 5 includes all bikes and components that can be used in conditions described under
category 1, 2, 3 and 4, as well as for extreme jumps and high speeds on rough trails and in bike
parks.
Dirt and slopestyle bikes are not designed for use on downhill tracks.

13
3. Bike assembly
This chapter aims at helping you remove your bike from the ROSE bike box and re-assemble it.
Depending on the bike model, different components may have been removed or repositioned for shipping. In addition,
you need to fit the pedals and check if your bike is in a roadworthy condition.
DANGER
Risk of accident due to improperly installed components!
Improperly installed components may loosen during the ride!
• Always follow the installation instructions included in this manual.
• If in doubt consult the ROSE service or a qualified bicycle mechanic.
In addition to this manual, you will find some videos on how to assemble your bike at rosebikes.com.
Required tools
Depending on bike model and equipment, you will need the following tools for assembly:
• 4 mm, 5 mm, 6 mm, 8 mm hex keys
• Torque wrench with a 4 mm, 5 mm, 6 mm und 8 mm hex drive
• 15 mm open-ended spanner
3.1 Opening the ROSE bike box and unpacking the contents
Before opening, check the ROSE bike box for any damages. After that,
check the contents for completeness! Please notify all possible defects
immediately!
The bike box of ROSE e-bikes is designed to allow you to wheel the bike out
of the box. For this, please open the box on the small side.
1. Carefully open the ROSE bike box on one of the small sides. Make sure
not to damage any parts especially when using a knife.
2. Wheel the bike out of the bike box and unpack all other contents.
3. Remove – if present – any transport locking devices from the frame.
Keep hold of the ROSE bike box! You might need it to return the bike for
servicing or repair.

14
3.2 Straightening the handlebar and adjusting the steering play
CAUTION
The adjusting bolt for the steering play (1) does not serve to tighten the stem, but only to adjust the play in the
steering bearing!
1. Loosen the stem clamp bolt(s) (2) with a hex wrench. Do not
loosen the adjusting bolt for the steering play (1).
2. Turn the handlebar through 90 degrees and align it with the
front wheel.
1
2
3. Check the steering bearing for play by pulling the front brake and trying to push the bike gently backwards and
forwards.
→You should not notice any play.
4. If you feel any movement inside the headset, tighten the adjusting screw for the steering play (1) a quarter turn.
5. Check the headset once again for play and repeat the previous steps, if need be, until there is no more play inside
the bearing. If in doubt seek professional advice from a qualified bicycle mechanic.
6. Tighten the stem clamp bolt(s) (2) alternately to a torque of 8 Nm.

15
3.3 Straightening the handlebar and adjusting the steering play [Speedlifter]
2
3
4
*
6
7
5
1
Speedlifter
1. Loosen the stem clamp bolt(s) (2) with a hex wrench.
2. Turn the handlebar through 90 degrees and align it with the front wheel.
3. Tighten the stem clamp bolt(s) (2) alternately to a torque of 8 Nm.
4. Check the steering bearing for play by pulling the front brake and trying to push the bike gently backwards and
forwards.
→You should not notice any play.
5. If you feel any movement inside the headset:
5.1 Turn the clamp bolt (4) on the Speedlifter (3) anti-clockwise for one to two turns.
5.2 Use a 36 mm open-jaw wrench to turn the adjustment ring (5) clockwise in small increments until you do no
longer notice any play.
→After the steering head bearings have been adjusted, no more than three of the adjustment ring‘s (5) thread
turns should be visible. If you see more than three thread turns, ask a qualified bicycle mechanic to adjust
the headset play.
5.3 Tighten the clamp bolt (4) to a torque of 6 to 8 Nm.
6. Check the headset once again for play and repeat the previous steps, if need be, until there is no more play inside
the bearing. If in doubt seek professional advice from a qualified bicycle mechanic.
Speedlifter Twist
1. Open the quick-release lever (7).
2. Press the safety lever (6) to the top and hold it in position.
3. Turn the handlebar in the direction of travel.
4. Let the safety lever (6) go and close the quick-release lever (7).
*Speedlifter Twist only

16
3.4 Adjusting the angle of the handlebar
1. Loosen the handlebar clamp bolts by turning them anti-clockwise until the angle of your handlebar can be adjusted.
2. Check whether there is a protective film between handlebar and stem.
If there is a protective film:
2.1 Completely loosen the handlebar clamp bolts and remove
the handlebar clamp(s).
2.2 Remove the handlebar and take off the protective film.
2.3 Re-install the handlebar and handlebar clamp(s).
2.4 Turn the clamp bolts clockwise and tighten them just
enough so that the handlebar can still be moved.
3. Centrally align the handlebar and adjust the angle.
4. Tighten the bolts of the handlebar clamp alternately in small
increments until you have reached the tightening torque of
4Nm.

17
3.5 Adjusting the saddle height
DANGER
Risk of accident and damage due to the extension of the seat post beyond the minimum insertion mark!
If the seat post is not inserted to the minimum insertion mark, it may break or damage the frame while riding.
• The seat post must not be extended further than the limit mark.
1. Open the seat post clamp bolt.
2. Change the height of the saddle by raising or lowering the seat
post and make sure your saddle is straight.
The minimum insertion depth is marked by a limit mark and the
seat post must not be lifted any higher!
MIN INSERT
3. Tighten the seat post clamp bolt to a torque of 6Nm.
6 Nm
4. Get on your bike and check whether the saddle height is right.
→You should easily get on and off the bike.
→Your toes should touch the ground when standing.

18
3.6 Installing the pedals
One of the pedals has a right- and the other a left-hand thread.
Most pedals have the letter “L” and “R” stamped on the end of the thread. Some pedals come with a groove
in the flange of the left pedal.
For more information see the manufacturer‘s manual.
1. Check if your bike was supplied with washers and slide both
washers onto the pedal axles – if present.
2. Turn the left pedal counter-clockwise to screw it into the
thread of the left crank arm and tighten the pedal to a torque
of 35Nm.
35 Nm
3. Turn the right pedal clockwise to screw it into the thread of the
right crank arm and tighten the pedal to a torque of 35Nm.
35 Nm
Your bike is now fully assembled. However, before you take the first ride you should follow the instructions in the
chapters ”4. Before your first ride“ on page 19 and ”7.1 Before your ride“ on page 30.

19
4. Before your first ride
4.1 Checking the battery before first use
Check the battery pack before charging or using your e-bike for the
first time.
Press the on/off switch to switch on the battery.
→If no charge indicator LED lights up , the battery pack
might be faulty.
Do not charge or use a defective battery. Get in contact with
a qualified bicycle mechanic or the ROSE service.
→If at least one charge level indicator LED lights up, yet not all
, fully charge the battery before your first ride (see
“5.6 Charging the battery“ on page 28).
4.2 Getting started for your first ride and getting used to your
new bike
Make yourself familiar with the handling, brakes, shifting system and
– if available – with the suspension elements of your bike away from public roads. Do not forget to wear a helmet! Only
slowly increase the difficulty of the terrain or manoeuvres.
Requirements:
• The bike is assembled in accordance with chapter “3. Bike assembly“ on page 13.
• The saddle height is properly adjusted to guarantee a comfortable ride and to ensure you will get on and off the
bike easily.
• All tasks from the chart “Before your ride” (see “7.1 Before your ride“ on page 30) have been carried out.
1. Break in the brake pads.
Choose a road away from public roads and brake 20 to 30 times with the front or rear brake from a speed of 30
km/h down to 5 km/h. You should brake as hard as possible without locking one of the wheels. Repeat the process
for the other brake. Only then the brake can show its full braking power.
Please also note the instructions of the brake manufacturer (see enclosed manual).
2. Check the functioning of the brakes while riding.
Normally, the rear brake is located on the right-hand side of the handlebar, and the front brake is on the left-
hand side. However, if required, the brake levers can also be mounted the other way around.
If the positioning of the brake levers on your bike is new and unfamiliar, you will have to be careful on your
first rides. Make yourself familiar with the functioning and power of the brakes while riding at reduced speed.
Many brakes offer the possibility to adjust bite point and lever reach. For this, please note the brake
manufacturer’s instructions (see enclosed manual).
Shifting system:
3. Shift through all gears while riding at reduced speed and choose the right gear.

20
5. Riding your e-bike
5.1 Information on the e-bike system
5.1.1 On-board computer
Control elements
1 Joystick
2 “Home“ Button
3 On-board computer
4 Holder for on-board computer
5 On/off switch for on-board computer
6 Bike lights button
7 Brightness sensor
8 USB port
9 Protective cap of USB port
5.1.2 Control unit
1 Control unit
2 Joystick
3 “Home“ Button
4
Button to reduce assistance level “ -“
5 Button to increase assistance level “ +“
6 WALK assistance button
3
2
1
6
5
4
7
8 9
WA LK
WA LK
5
63
2
4
1
