Rosemount TankRadar Pro Parts list manual

www.rosemount-tg.com
Technical Description
501026En, Ed. 3, Rev E
July 2007
Radar Level Gauge

Technical Description
501026En, Ed. 3, Rev E
July 2007 TankRadar Pro
3
Contents
System overview ________________________________________________ 5
Features _______________________________________________________ 6
Measurement principle ___________________________________________ 6
Applications ____________________________________________________ 7
Select the right Pro gauge ________________________________________ 8
Transmitter Head versions ________________________________________________8
Software modules _______________________________________________________8
Antenna versions________________________________________________ 9
Cone antenna __________________________________________________________9
Parabolic antenna______________________________________________________10
Still-pipe Array antenna__________________________________________________ 11
Process seal antenna ___________________________________________________12
Rod antenna __________________________________________________________13
Flanges _______________________________________________________ 13
Measuring range _______________________________________________ 14
System integration _____________________________________________ 15
4-20 mA HART®systems ________________________________________________15
TRL/2 eldbus systems__________________________________________________16
Foundation™ eldbus systems ____________________________________________16
Mechanical mounting ___________________________________________ 17
Free propagation_______________________________________________________17
Pipe installation________________________________________________________18
Electrical connections___________________________________________ 18
Specications _________________________________________________ 19
Product certicates _____________________________________________ 22

TankRadar Pro
Technical Description
501026En, Ed. 3, Rev E
July 2007
4
Copyright © July 2007
by Rosemount Tank Radar AB.
Technical data is subject to change without prior notice.
Rosemount Tank Radar AB accepts no responsibility for any errors that may appear in
this description.
Viton®, and Kalrez®are registered trademarks of Du Pont Performance Elastomers.
Hastelloy®is a registered trademark of Haynes International.
Monel®is a registered trademark of International Nickel Co.
HART®is a registered trademark of the HART Communication Foundation
FOUNDATION is a trademark of the Fieldbus Foundation.
DeltaV®is a trademark of Emerson Process Management group of companies.
All other marks are the property of their respective owners.
Ordering information____________________________________________ 24
Transmitter Head ______________________________________________________24
Antennas_____________________________________________________________25
Cone antenna ______________________________________________________25
Cone antenna, extended _____________________________________________26
Cone antenna with integrated purging ___________________________________27
Parabolic antenna___________________________________________________28
1- and 2-in. Still-pipe antennas _________________________________________29
Still-pipe Array antenna_______________________________________________30
Process Seal antenna________________________________________________31
Rod antenna _______________________________________________________32
Model Code Example ________________________________________________32
Patents _______________________________________________________ 33
Technical documentation for TankRadar Pro ________________________ 33

Technical Description
501026En, Ed. 3, Rev E
July 2007 TankRadar Pro
5
System overview
Temperature
Sensor
Pro Parabolic
Antenna Gauge
Pro Still-pipe
Array
Antenna Gauge
Pro Cone
Antenna
Gauge
RTG 3900
TankRadar Rex
Field
Communication
Unit
2210 Display
Unit
Field Bus
Modem
TankMaster PC
Workstations in
network
Alternative
Connections
to DCS
Pro Still-pipe
Antenna Gauge Pro Process
Seal Antenna
Gauge
Pro Rod
Antenna
Gauge

TankRadar Pro
Technical Description
501026En, Ed. 3, Rev E
July 2007
TankRadar® Pro with its exible conguration is suitable
for both stand-alone applications and large-scale plant
installations with various tank types.

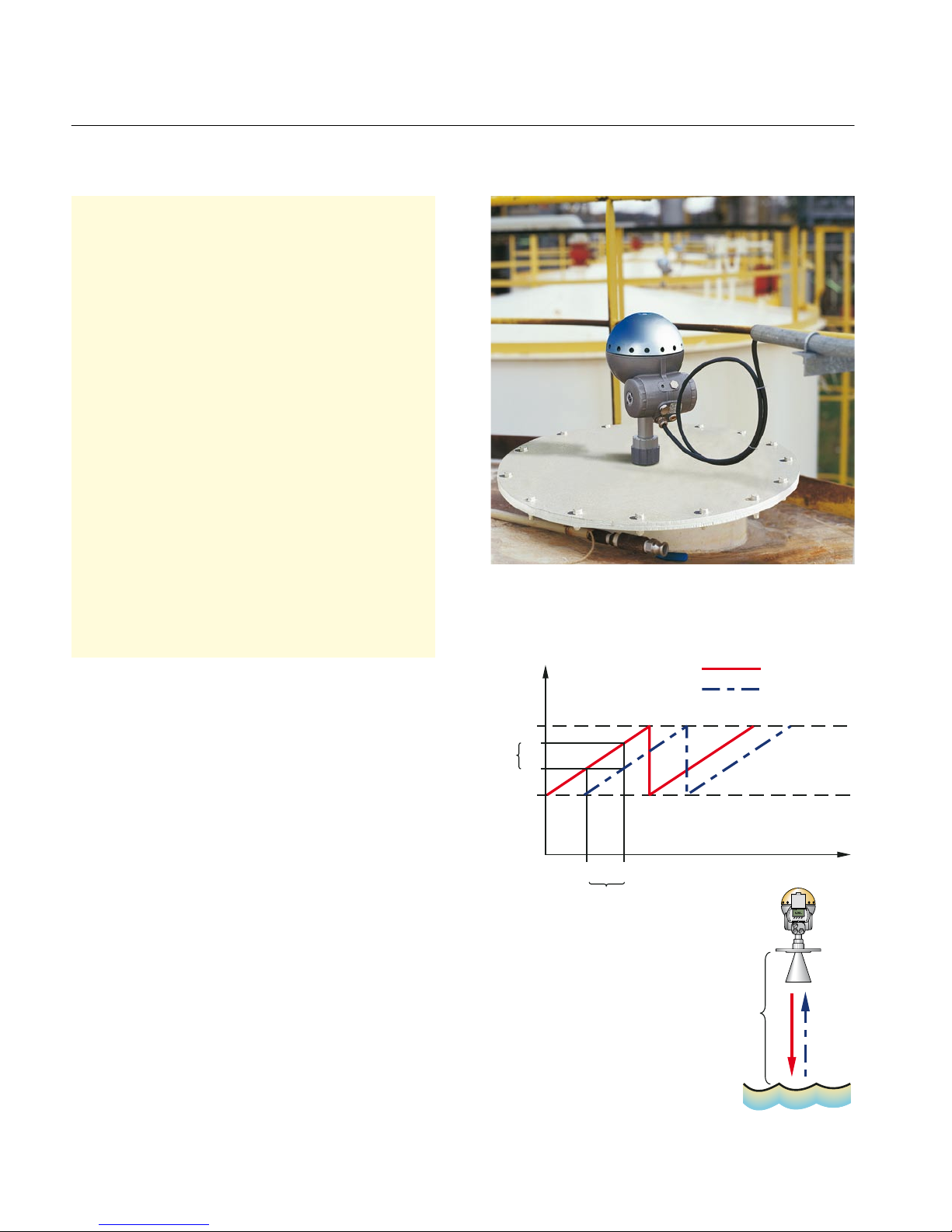

The FMCW method is based on a radar
sweep with continuous changes in
frequency.
f1f0
fmax
f1
f0
fmin
Frequency (GHz) Transmitted
Reected
Time
∆f
t0t1
∆t
∆f ~ ∆t ~ ∆d
d
6
• Multi-purpose radar level gauge
• No moving parts and no contact with the liquid
• No maintenance
• Highest reliability
• Easy installation
• High accuracy
• Handles difcult tank conditions due to
ultra-high sensitivity and unique signal
processing features
• High exibility with interchangeable
Transmitter Heads and antennas
• A wide array of antennas and versions for
best performance in all applications
• Interactive setup with Windows® based PC
software or via display unit
• Analog 4-20 mA superimposed with HART®,
and digital Probus® DP, Foundation™ eldbus
or TRL/2 eldbus outputs
Measurement principle
The level of the liquid (or solid) is measured by radar
signals transmitted from the antenna at the tank top.
After the radar signal is reected by the liquid surface
the echo is picked up by the antenna. As the signal is
varying in frequency the echo has a slightly different
frequency compared to the signal transmitted at that
moment. The difference in frequency is proportional
to the distance to the liquid, and can be accurately
calculated. This method is called FMCW (Frequency
Modulated Continuous Wave) and is used in all high
performance radar gauges.
TankRadar Pro uses the 10 GHz frequency band
to get optimum balance between beamwidth and
sensitivity to antenna contamination.
Features

Technical Description
501026En, Ed. 3, Rev E
July 2007 TankRadar Pro
7

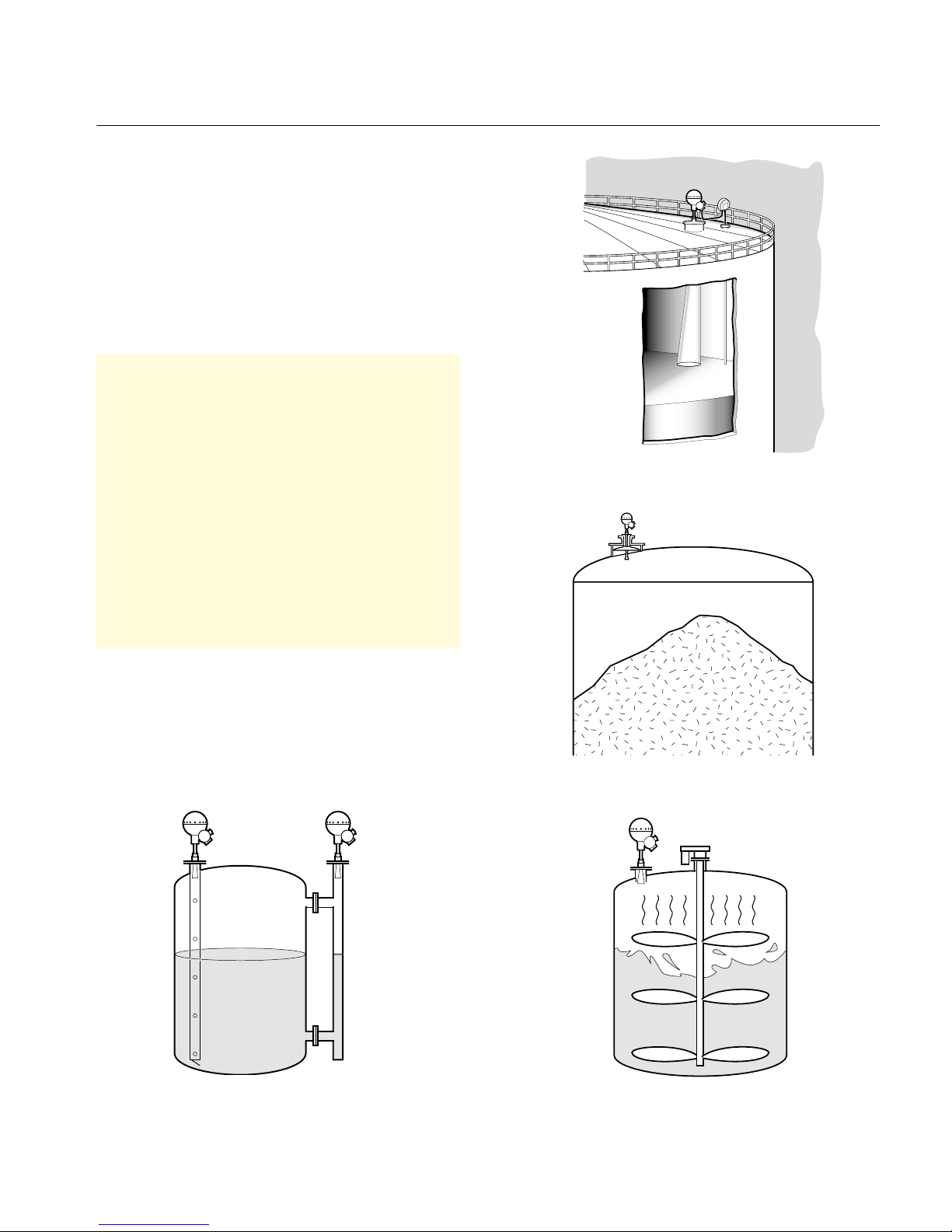

TankRadar Pro uses state-of-the art microwave
technology to get highest reliability and precision.
It measures the level of liquids, slurries as well as
many solids. The gauge operates in a wide range
of temperatures, pressures, vapor gas mixtures and
various process conditions.
The applications include:
• Storage tanks at reneries and tank terminals
• LPG storage
• Power plants
• Chemical & petrochemical industry
• Pharmaceutical
• Food and beverage
• Water and sewage treatment
• Hydroelectric power generation and dams
• Cement, powder, wood chips and other solid
material applications
Applications in tanks with agitators require a radar gauge
with TankRadar Pro’s high sensitivity and advanced signal
processing to separate the measuring signal from noise
created by disturbances.
Still-pipe or bridle mounting is recommended for LPG
applications, where the surface sometimes is boiling, and for
some extremely turbulent conditions. The pipe reduces foam
and turbulence and also increases surface reection.
TankRadar Pro parabola and cone versions provide free
propagation, high accuracy level measurement in storage
tanks.
Solid materials, like cement, often give extremely small radar
reections, requiring the most sensitive antenna, the 20”
parabolic.
Applications

TankRadar Pro
Technical Description
501026En, Ed. 3, Rev E
July 2007

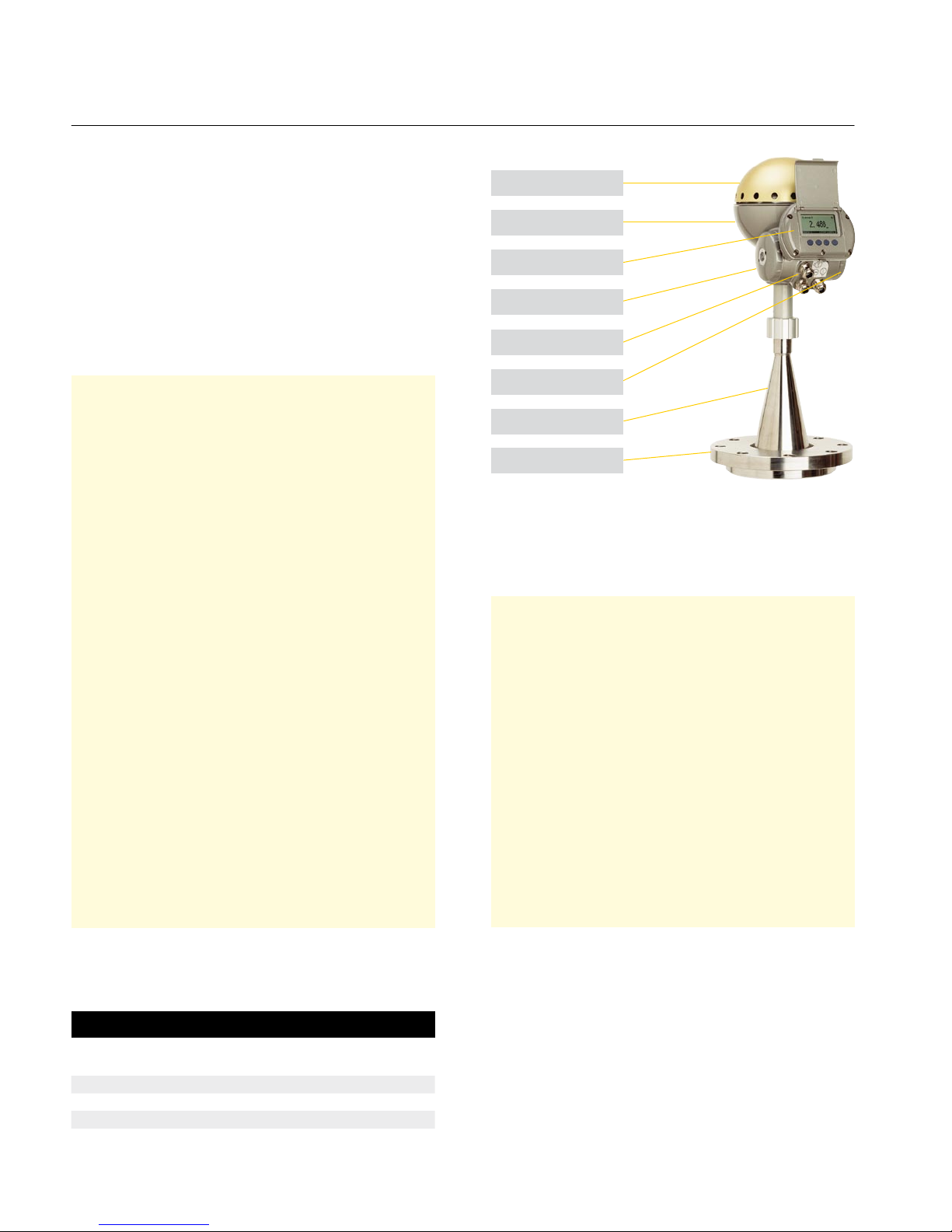

Antenna
Tank connection
Weather protection
Electronic housing
Display unit
Junction box Ex (e)
Cable glands
Junction box Ex (i)
8
A TankRadar Pro gauge consists of a Transmitter
Head and a tank connection including antenna.
The Transmitter Head, as well as the electronics
inside, is interchangeable without opening the tank.
Transmitter Head versions
The Transmitter Head is available in four basic
versions:
• Lite
Intended for applications in non-hazardous areas
only. Suitable for tanks without internal structures and
agitators, e.g. certain storage tanks, water, dam
applications etc. The Lite version has FFT calculations
enabled providing an instrument accuracy of
± 10 mm (± 0.4 in.). Echoxer, FHAST™ and MET™
are available as options.
• Standard
For hazardous applications in most tanks (also spheri-
cal or bullet tanks, and tanks with internal structures).
The Standard version includes the Echoxer software
which more accurately than standard FFT maps all
microwave interference sources. The Standard
instrument accuracy is ± 10 mm (± 0.4 in.) which can
be improved to ± 5 mm (± 0.2 in.) using the optional
FHAST™ software module.
• Gold
Gold is the most advanced version for difcult
applications in tanks with agitators, heating coils and
other disturbances. It includes the Echoxer software,
FHAST™ software for increased accuracy plus MET™
software for further increased disturbance echo
handling. Instrument accuracy is ± 5 mm (± 0.2 in.).
• Platinum
For high accuracy tank gauging applications, Platinum
is the best TankRadar Pro choice. It includes the
FHAST™ software and selected hardware for
maximum performance. Instrument accuracy is
± 3 mm (± 0.12 in.) for parabolic, still-pipe array and
8-in. cone antennas.
Volume calculation for symmetrical tanks is included
in all versions. Strapping table for non-symmetrical
tanks is available as an option.
Software modules
Various options make it possible to optimize the
gauge for different applications:
• Fast Fourier Transformation (FFT)
Fast Fourier Transformation is a signal processing
technique used to map the echo structure of the tank.
• Echoxer
A software module that makes it possible to measure on
the surface in spite of strong disturbance echoes from
mechanical structures such as agitators and bafes.
• Fast High Accuracy Signal Technology (FHAST™)
A module that improves the efciency of the signal
processing by limiting the region to be analyzed around
the surface. This results in an improved accuracy of
± 5 mm (± 0.2 in.).
• Multiple Echo Tracking (MET™)
Improves the resolution and accuracy in echo disturbed
regions and close to the tank bottom. Continuous
measurement on multiple disturbing echoes facilitates
identication of the actual surface echo.
All software options are possible to upgrade in the
eld without any changes in electronics. Upgrades
are made by entering a new start code in the gauge
and can be done on a temporary basis for trial
purposes.
Software modules in available Pro versions
Explosion
approval
FFT FHAST™
Increased
accuracy
Echoxer
Disturbance
echo handling
MET™
Improved
resolution
Lite - X Option Option Option
Standard X X Option X Option
Gold X X X X X
Platinum X X X Option -
Select the right Pro gauge

Technical Description
501026En, Ed. 3, Rev E
July 2007 TankRadar Pro
4002001000 300-40
60
55
50
40
30
20
10
-1
0
5
798
-15
145
73
0
75239221232 570-40
1
1
2
2

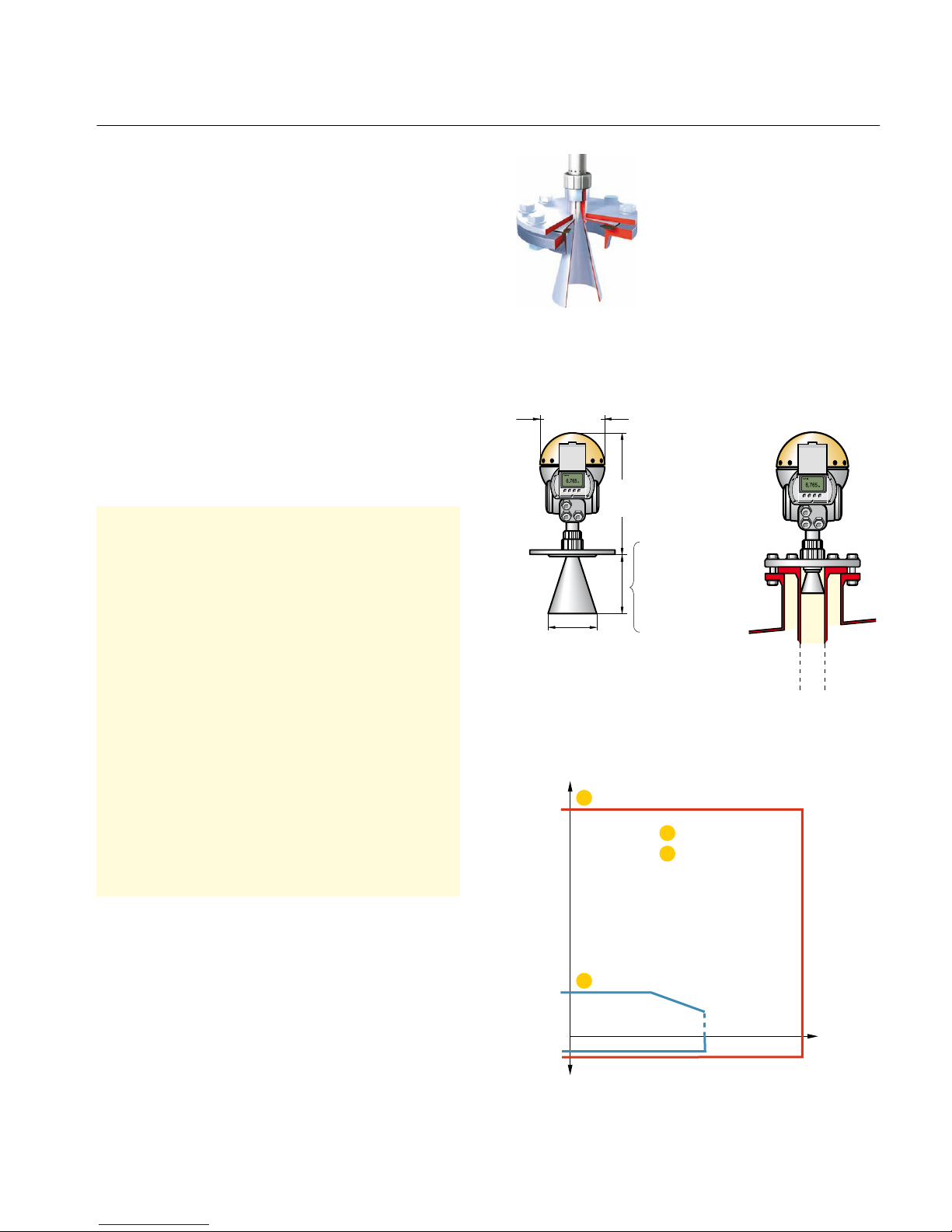

The relation between temperature and maximum pressure
for cone antennas.
The thin antenna plate prevents the
ange from exposure to the tank
environment.
2 in. : 70 (2.76)
3 in. : 95 (3.74)
4 in. : 150 (5.91)
6 in. : 260 (10.24)
8 in. : 370 (14.57)
2 in. : 56 (2.20)
3 in. : 70 (2.76)
4 in. : 93 (3.66)
6 in. : 141 (5.55)
8 in. : 189 (7.44)
200 (7.87)
mm (inch)
400
(15.75)
Temperature (°F)
Temperature (°C)
Pressure (bar) Pressure (psig)
Quartz
PTFE
2-in. Still-pipe Antenna
TankRadar Pro can be equipped with different
antennas to fulll various requirements. The tank
connection, including antenna, is the only part
exposed to the tank atmosphere. The cone antenna
is most commonly used. When selecting antenna
dimension, it is generally recommended to use as
large antenna diameter as possible.
Cone antenna
The cone antenna is suitable for liquid applications.
It can be used for both free propagation and still-pipe
mounted installations. Thanks to the unique ange
clamp solution the existing tank ange can be used
as tank connection. The gauge can also be delivered
with ange included.
• Standard cone antennas for 3-, 4-, 6- and 8-in. tank
openings. The 3-, 4- and 6-in. cones can be extended
to t long tank nozzles. See pages 24-32, “Ordering
Information”, for standard ange options.
• A 1- and 2-in. version is available together with a
still-pipe solution.
• For larger pipes, use the still-pipe array antennas.
• Materials exposed to the tank atmosphere:
Sealing in PTFE or quartz. Antenna in Stainless
Steel, Hastelloy®C-22, Titanium gr. 2, Monel®400 or
Tantalum.
O-ring in Viton® uoroelastomer or Kalrez®
peruoroelastomer.
• Special material such as Hastelloy®C-22,
Titanium gr. 2, Monel®400 and Tantalum.
• Accuracy up to ± 5 mm (± 0.2 in.) using the FHAST™
software option.
• Accuracy with 8-in. cone up to ± 3 mm (± 0.12 in.)
using the Platinum version.
See page 18 for description of still-pipe installations.
For pressure and temperature restrictions depending
on ange and O-ring selection, see page 21.
Antenna versions
9

TankRadar Pro
Technical Description
501026En, Ed. 3, Rev E
July 2007
230
20050 100 150 0
-40
445
392122 212 302 32
-40
10
+0.2
0.5
0.5
-0.2
145
0+2.9
-2.9
0
5 73
1
1
1
2
2
mm (inch)
440
(17.32)
162
(6.4)
445 (17.52)
200 (7.87)
Temperature (°F)
Temperature (°C)
Pressure (bar) Pressure (psig)
Welded
Clamped
10

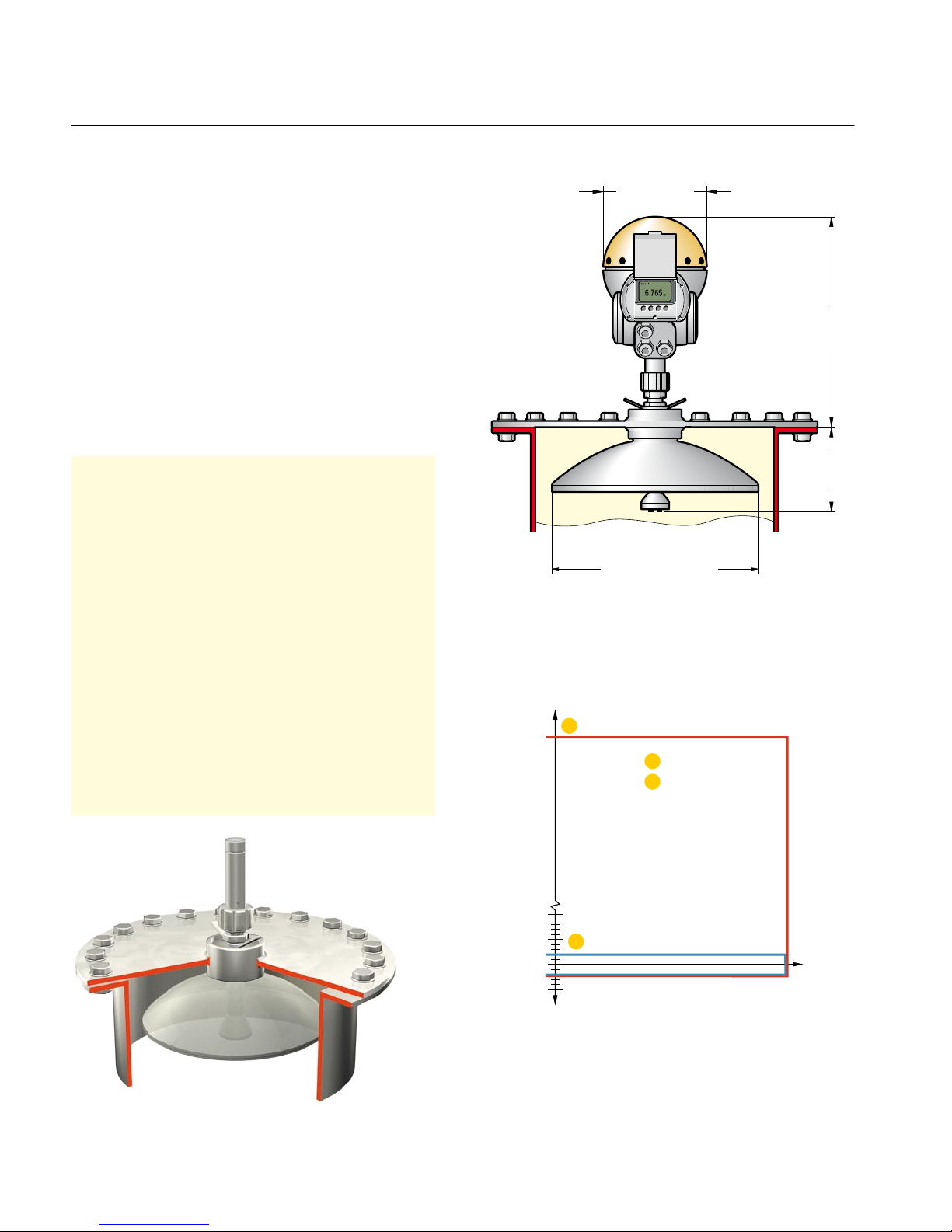

Parabolic antenna
The parabolic antenna is suitable for both liquid and
solid applications. As it has the largest diameter it
has the most narrow radar beam and can be used
for extremely long measuring distances.
The parabolic is also the antenna type most
insensitive to contamination. It can be used in
applications with severe antenna condensation like
asphalt and liquid sulphur.
Two versions are available:
the very easily installed version with clamped
mounting of anges with a 96 mm (3.78-in.) diameter
hole in ange (low pressures) and a welded version
(high pressures).
• Suitable in all tanks with 450 mm (18 in.)
or larger openings.
• Exposed parts in tank: Stainless steel
and FEP/PTFE uoropolymer.
• Best installed accuracy for inventory
applications.
• Highest antenna gain.
• Withstands heavy contamination.
• Flexible PTFE protective cover available for
dusty applications.
• Suitable for long range measurement up
to 100 m (330 ft).
• ± 3 mm (± 0.1 in.) accuracy for platinum
version.
The relation between temperature and maximum pressure for
parabolic antennas.
Parabolic antenna welded to tank opening.

Technical Description
501026En, Ed. 3, Rev E
July 2007 TankRadar Pro
0 20 40 60 80 100
104 140 176 212
120-40
32 68 248-40
0 0
3.6
7.2
14.5
29
0.25
0.50
0.75
1.00
1.25
1.50
1.75
2.00
1
1
2
3
2
3
Pressure (psig)
200 (7.87)
mm (inch)
400
(15.75)
Pro Still-pipe Array Antenna,
xed version.
Pro Still-pipe Array Antenna,
hinged-lid version with
design that enables hand-
dipping.
Hinged Hatch 10 & 12 in.
Temperature (°C)
Pressure (bar)
Hinged Hatch 5,6 and 8 in.
Fixed
Temperature (°F)
11
Still-pipe Array antenna
The Still-pipe Array Antenna with its small-sized
antenna is designed for mounting on existing still-
pipes. Typical applications are crude oil tanks with
oating roofs and gasoline/product tanks with or
without inner oating roofs.
The gauge uses a unique patented Low Loss Mode
to transmit the radar waves in the center of the pipe.
This virtually eliminates degradation of the accuracy
due to rust and product deposits inside the pipe.
The Still-pipe Array Antenna is available in two
models, the xed and the hinged-lid version.
The still-pipe must be vertical within 0.5° (0.2 m over
20 m) to obtain highest measurement accuracy.
• Suitable for mounting on existing still-pipes.
• Small-sized antenna for 5-, 6-, 8-, 10- or 12-in.
still-pipes.
• Exposed parts in tank:
Antenna in Polyphenylensuld (PPS).
Sealing in PTFE.
O-ring in Fluorosilicone.
Flange in Acid Proof Steel EN 1.4404
(AISI 316L).
• ± 3 mm (± 0.1 in.) accuracy.
The relation between temperature and maximum pressure for
array antennas.

TankRadar Pro
Technical Description
501026En, Ed. 3, Rev E
July 2007
12
4 in. : 550 (21.65)
6 in. : 650 (25.59)
200 (7.87)
mm (inch)
4 in. : 160 (6.30)
6 in. : 218 (8.58)
Process seal antenna
The dish made of PTFE or ceramics seals off the
cone shaped antenna from the tank atmosphere.
This combines the benets of using a cone antenna
with the advantage of only exposing material
suitable for hygienic or corrosive applications.
• Suitable in hygienic or aggressive tank
atmospheres
• Cone antenna protected from the tank
atmosphere by a ceramic or PTFE sealing
• Ceramic seal withstands high pressures and
temperatures
• 4- and 6-in. versions
• 4-in. version for hazardous applications
• ± 10 mm (± 0.4 in.) accuracy
400200100 1500 300-40
20
-1
0
-15
0
75239221232 570-40
15
10
5
6 86
16 230
2
1
1
2
3
4
2
3
4
Temperature (°F)
Temperature (°C)
Pressure (bar) Pressure (psig)
4-in. Ceramic
6-in. Ceramic
4-in. PTFE
6-in. PTFE
The relation between temperature and maximum pressure for
process seal antennas.

Technical Description
501026En, Ed. 3, Rev E
July 2007 TankRadar Pro
0 100
212
200-40
32 392-40
0
-1 0
16
25
-15
232
363
1
2
3
4
4
1
2
3
13
Flanges are available in DIN, ANSI or JIS standards.
Flange material is hot-dipped galvanized carbon
steel or stainless steel.
For complete listing of available standard anges,
see page 19 “Specication” and pages 24-32
“Ordering Information”.
Flanges
Rod antenna
The rod antenna is suitable for small nozzles / tanks.
The upper (inactive) part of the antenna is made of
stainless steel and the lower (active) part is PTFE.
The rod antenna is available in / with:
• Two lengths, 400 mm (15.7 in.) and 550 mm
(21.7 in.) with 300 mm (11.8 in.) active part.
• Flange or threaded tank connection.
The inactive part of the antenna must stick beneath
the nozzle for optimal measuring performance.
• Withstands high pressure
• For 1.5-, 2-, 3- and 4-in. tank connections
• ± 5 mm (± 0.2 in.) accuracy
Temperature (°F)
Temperature (°C)
Pressure (bar) Pressure (psig)
25 bars at 100 °C
363 psig at 212 °F
The relation between temperature and maximum pressure for
rod antennas.
16 bars at 200 °C
232 psig at 392 °F
-1 bar at 200 °C
-15 psig at 392 °F
-1 bar at -40 °C
-15 psig at -40 °F
200 (7.87)
mm (inch)
400 (15.75)
Inactive length 100 (3.94) or
Inactive length 250 (9.84)
300 (11.81)

TankRadar Pro
Technical Description
501026En, Ed. 3, Rev E
July 2007
14
0
10
20
30
40
50
60
0
10
20
30
40
50
60
0
10
20
30
40
50
60
0
10
20
30
40
50
60
0
10
20
30
40
50
60
a b c a b c a b c a b c a b c
0
10
20
30
40
50
0
10
20
30
40
50
0
10
20
30
40
50
0
10
20
30
40
50
0
10
20
30
40
50
a b c a b c a b c a b c a b c
0
10
20
30
40
50
0
10
20
30
40
50
0
10
20
30
40
50
0
10
20
30
40
50
0
10
20
30
40
50
a b c a b c a b c a b c a b c
3-in. Cone 4-in. Cone / Rod 6-in. Cone 8-in. Cone Parabolic (m)
(m)
5-, 6- and 8-in.
Array Antenna
10-12-in.
Array Antenna
1-in. Still-pipe
Antenna
2-in. Still-pipe
Antenna
3-6-in. Cone Antenna in
existing still-pipe
(m)
The diagrams below show how the measuring
range is inuenced by the antenna type, dielectric
constant of the liquid (εr) and the process conditions.
For optimum performance the maximum measuring
distance should be kept within the range indicated
with darker colour in the diagrams. To increase the
measuring range further in turbulent tanks, a still-
pipe can be used.
Measuring range
in tanks with calm
surfaces.
Measuring range
in gently stirred
tanks.
Measuring range in
still-pipe tanks.
Measuring range
a: Oil, petrochemicals, gasoline and other
hydrocarbons (εr=1.9-4.0).
b: Alcohols, concentrated acids, organic
solvents, oil/water mixtures and acetone
(εr=4.0-10).
c: Conductive liquids, e.g. water based
solutions, dilute acids and alkalis (εr> 10).
For still-pipe mounted Pro gauges the typical
measuring range is 35-50 m (115-160 ft) also in
turbulent tanks with liquids having εrless than 1.9.
NOTE:
• For liquids with εr smaller than 1.9, such as liqueed
gas, an 8-in. or bigger antenna is recommended for
free propagation measurements. In this case, the typical
measuring range is 15 m (50 ft).
• The measuring range for 4- and 6-in. process seal
antennas equals about 60% of that for 4- and 6-in.
cone antennas.
• For array antennas, the measuring range depends on
still-pipe slot size.
• The values below are valid for clean antennas.
• Max. product level should be kept 20 mm (0.8 in.) from the
antenna end. Measurements with a rod antenna immersed
in the product is possible with special conguration.
3-in. Cone 4-in. Cone / Rod 6-in. Cone 8-in. Cone Parabolic

Technical Description
501026En, Ed. 3, Rev E
July 2007 TankRadar Pro
Control System
PC with RadarMaster/
TankMaster software
Modem
Handheld HART®
communicator
Remote
display
Alarm
Relay
Unit
4-20 mA/HART®
Temperature
sensor
15
TankRadar Pro can be equipped with a number of
different output alternatives such as analog
4-20 mA HART®, Foundation™ eldbus,
Probus®DP or the Rosemount Modbus based
TRL/2 eld bus. Any or multiple of the calculated
values such as level, volume, average temperature
or signal strength can be assigned to the signal
output.
Data are displayed on the optional 2210 Display
Unit mounted on the gauge or separately. Via the
remotely mounted display, up to six temperature
sensors can be connected.
TankRadar Pro is easily congurable on the 4-key
display keyboard or via a PC using the windows
based RadarMaster software package. The user-
friendly wizard and the enhanced on-line manual in
RadarMaster makes it easy to congure the gauge
for any type of application.
4-20 mA HART®systems
The 4-20 mA HART®analog outputs are either
passive for connection to powered cables or active
providing signal power for external display units
etc. The analog outputs can also be specied to be
intrinsically safe. Conguration can also be done
from a Rosemount AMS™ system or a Rosemount
275/375 Handheld Communicator.
The intrinsically safe 2210 Display Unit shows level
(m or ft) and temperature (ºC or ºF) and can be used
for gauge conguration.
System integration

TankRadar Pro
Technical Description
501026En, Ed. 3, Rev E
July 2007
TM
Group
Buses
PC with RadarMaster/
TankMaster software
Field
Buses
Field
Communication
Unit
TankRadar Rex
Temperature Input
Safe Area
Hazardous Area
Control System
HOST / DCS System Maintenance
TankRadar Pro
Temperauture Sensor
Display
Unit
16
TRL/2 eldbus systems
When using the digital TRL/2 eld bus outputs, up
to 12-15 gauges can be connected to each two-
wire eld bus, maintaining a high data updating
speed. Each eld bus is connected to a Field
Communication Unit (FCU) that handles up to four
eld buses with data from maximum 32 tanks.
Several FCU's can be installed to handle a large
number of tanks. From the FCU, data can be
transmitted on RS232/485 or TRL/2 bus formats
to host computers (DCS, PC or PLC). Pro gauges
with TRL/2 bus output can also be connected to the
TankMaster operator software providing an OPC
server that can be linked to the plant network.
Foundation™ eldbus systems
Foundation™ eldbus offers a digital high speed,
two-way, multi-drop communication link among
intelligent eld devices and automation systems.
Device interoperability makes it possible to create
intelligent control loops. TankRadar Pro can be
connected to the eldbus together with any other
type of instrument. Up to 16 Pro gauges can be
connected to each segment. The eldbus interface
can be specied to be intrinsically safe.
Pro can be congured from any host system.
Enhanced support for conguration, service
diagnostics and on-line help is available from the
Emerson DeltaV®system.

Technical Description
501026En, Ed. 3, Rev E
July 2007 TankRadar Pro
Minimum distance:
0.6 m (2.0 ft)
10 mm (0.4 in.)
or more
Half power
beam width
Beam angle
5m
10m
15m
20m
Distance
17

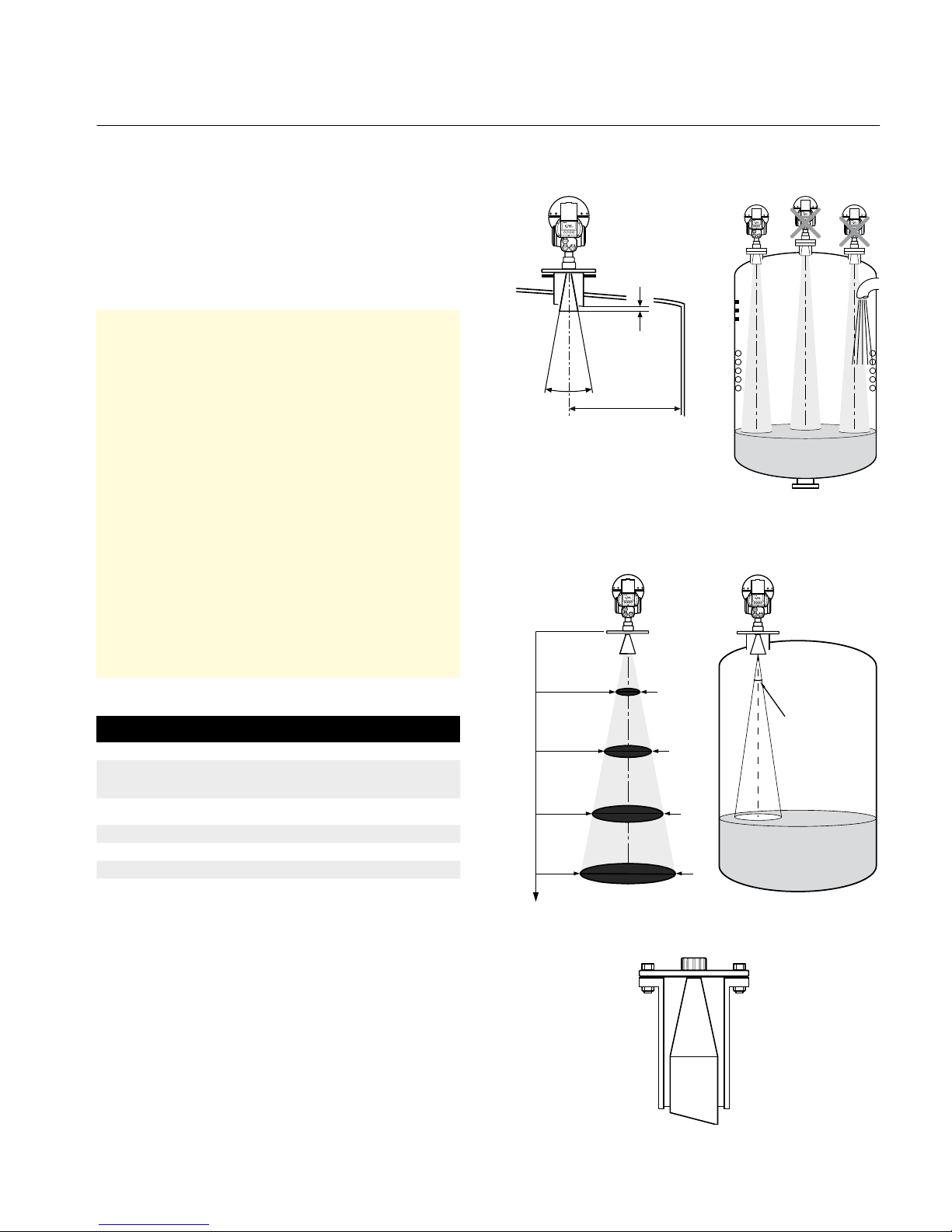

The TankRadar Pro gauge is easily carried to the
tank top and mounted on a suitable nozzle or pipe.
Free propagation
The gauge should be installed as follows:
• Antenna oriented perpendicular to a horizontal
surface.
• The gauge should be mounted with as few
disturbing objects as possible within the beam
angle.
• Filling inlets creating turbulence should
preferably be kept at a distance.
• Choose as large antenna diameter as possible.
A larger receiving area concentrates the radar
beam and ensures maximum antenna gain.
Increased antenna gain means greater margin
for weak surface echoes.
• The cone antenna may be inclined 1-2°
towards the center of the tank to increase the
accuracy (applicable for tanks higher than
10 m).
Beam Diameter and Beam Angle
Distance, m (ft)
Antenna
type
3-in. Cone 4-in. Cone /
4-in. Process
Seal / Rod
6-in. Cone /
6-in. Process
Seal
8-in. Cone Parabolic
Beam
angle
25° 21° 18° 15° 10°
5 (16) 2.2 (7.2) 1.9 (6.2) 1.6 (5.2) 1.3 (4.3) 0.9 (3.0)
10 (33) 4.4 (14) 3.7 (12) 3.1 (10) 2.6 (8.5) 1.7 (5.6)
15 (49) 6.7 (22) 5.6 (18) 4.7 (15) 3.9 (13) 2.6 (8.5)
20 (66) 8.9 (29) 7.4 (24) 6.3 (21) 5.3 (17) 3.5 (11)
The at tank wall can be located within the antenna
beam angle, as long as there is a minimum distance
from the gauge to the tank wall, see picture above.
An extended cone (picture on the right) can be used
for long nozzles.
The standard length of the extended cone is
500 mm (20 in.) for 3-, 4- or 6-in. cone antennas.
Longer cones are available on request.
For best measurement
performance the nozzle height
should be shorter than the
antenna
Mechanical mounting
Beam Diameter and Beam Angle for TankRadar Pro antennas
Cone Antenna Extension
Best practice for
mechanical mounting
of free propagation
radar level gauge.

TankRadar Pro
Technical Description
501026En, Ed. 3, Rev E
July 2007
Deection plate
IS Gnd
DP DA
DP+
4-20 mA-
4-20 mA+
4-20 mA HART-
4-20 mA HART+
X2
1
2
3
4
5
6
4-20 mA-
4-20 mA+
L/L2/-
X2
1
2
3
4
N/L1/+
4-20 mA HART+ /Profibus DP/TRL2 bus
4-20 mA HART- /Profibus DP/TRL2 bus
X1
4
3
2
1
7DP DB
Alternative 1
Intrinsically Safe (EEx i)
Display Panel
Secondary
output
Primary
output
Alternative 2
Non Intrinsically Safe (EEx e)
Secondary
output
Not used
Non Intrinsically Safe (EEx e)
Primary
output
Power supply
18
Pipe installation
Still-pipe installation is particularly suitable for
applications with highly turbulent liquids or liquids
with very low εr giving weak radar reections, such
as LPG. 2-, 3-, 4- and 6-in cone antennas can be
mounted in existing still-pipes.
Used pipes must generally be clean inside, without
irregularities, rust or excessive holes.
Also available is a 1-in. still-pipe and antenna
assembly with a maximum range of 3 m (10 ft).
The 1- and 2-in. still-pipe gauges are suitable for
clean liquids only and can be delivered complete
with still-pipe, deection plate and ttings without
any need for welding.
It is also possible to use the Still-pipe Array antenna
for measurement inside an existing still-pipe.
This antenna is available in 6-, 8-, 10- and 12-in.,
xed and hinged-hatch designs.
Consult Emerson Process Management /
Rosemount Tank Gauging or an authorized
distributor for installation advice.
Electrical connections
The Transmitter Head has two separate junction
boxes. One is for a non-intrinsically safe primary
signal output and power supply cables. The other
is normally used for intrinsically safe (IS) HART®/
analog outputs or optionally for a non-IS analog
output.
Outputs can be either active or passive depending
on required options.
Cables are twisted and shielded pairs, minimum
0.5 mm2 (AWG 20), ½-in. NPT (threaded) for cable
glands or male conduit ttings.
For complete installation instructions,
see the Reference Manual for TankRadar Pro
(306010E).
TankRadar Pro measures level in 1- to 12-in. still-pipes

Technical Description
501026En, Ed. 3, Rev E
July 2007 TankRadar Pro
19
Specications
General
Product designation TankRadar Pro: Lite, Standard, Gold or Platinum
Operating principle 10 GHz FMCW radar
Beam angle See page 17
Microwave output power Max 1.0 mW
Internal calibration Integrated digital reference for automatic compensation of radar sweep.
Signal processing Digital signal processing using FFT, FHAST™, MET™ and Echoxer
Temperature measurement 1-3 spot elements, PT100 or CU100, or 6 spot elements with common return.
Input accuracy ± 0.5 °C ( ± 0.9 °F).
Display / Conguration
Display (factory mounted on gauge) • 6-digit graphical LCD display, 128 x 64 pixels.
• For display and conguration.
• 4 control soft-keys.
• 7 text lines with 16 characters/line
• Weather/dirt protection cover. Protection class IP67.
Display (mounted separately) Same as above, mounted in separate enclosure, Protection class IP67
Max cable length, display - radar gauge: 100 m (330 ft)
Cable type: 4 wire shielded instrument cable, min 0.5mm², (AWG 20)
Optional: Temperature measurement 1-3 spot elements PT100 or CU100 (see above)
HART®device Rosemount 275/375 handheld communicator.
Rosemount Asset Management Solutions software (AMS™).
Foundation™ eldbus All Foundation™ eldbus host systems (DeltaV®provides enhanced graphics).
PC/remote conguration RadarMaster, Windows based conguration software.
WinSetup, setup software for terminals and reneries.
Mechanical
Antennas Cone, Parabolic, Still-pipe Array, Process Seal and Rod antennas
Antenna material exposed to tank
atmosphere
Cone Antenna
(PTFE sealing)
Antenna Material, alt 1: Stainless Steel 316L, alt 2:
Hastelloy®C-22, alt 3: Tantalum, alt 4: Monel®400
O-rings: Viton® uoroelastomer or Kalrez® peruoroelastomer
Sealing: PTFE uoropolymer
Cone Antenna
(Quartz sealing)
Antenna Material, alt 1: Stainless Steel 316L, alt 2:
Hastelloy®C-22, alt 3: Tantalum, alt 4: Monel®400
O-rings: Viton® uoroelastomer or Kalrez® peruoroelastomer
Sealing: Quartz
Parabolic Antenna Stainless Steel 316L, FEP/PTFE uoropolymer
Process Seal Antenna PTFE uoropolymer or Al2O3(Aluminium oxide)
1- and 2 in. Still-pipe
Antennas
Antenna Material: Stainless Steel 316L
O-rings: Viton® uoroelastomer or Kalrez® peruoroelastomer
Sealing: PTFE uoropolymer or Quartz
Still-pipe Array Antenna Antenna Material: Polyphenylensuld (PPS).
O-ring: Fluorosilicone.
Sealing: PTFE uoropolymer.
Rod Antenna Antenna Material: Stainless Steel 316L and PTFE uoropolymer
O-rings: Viton® uoroelastomer or Kalrez® peruoroelastomer
Sealing: PTFE uoropolymer
Antenna dimensions See pages 9-13
Antenna extension Dimensions See page 17
Material Extended cone antennas available in Stainless steel 316L
Flushing connection 1/2-in. NPT
Housing/enclosure Permanent mould cast aluminium, chromed and 120 μm powder painted.
Flanges DIN, ANSI and JIS standard,
Material: Hot-galvanized carbon steel, Fe/Zn Class A 553589 or
Stainless Steel A182 Gr. F 316L and EN 10222-5-1.4404

TankRadar Pro
Technical Description
501026En, Ed. 3, Rev E
July 2007
20
Mechanical
Weight, excl. ange Approximately 8 kg (18 lbs), depending on antenna selection.
Height above ange 400 mm (15 in.)
Electrical
Power supply Ultra-wide 24–240 V DC or AC 0-60 Hz
Power consumption Maximum 10 W, nominal 5 W
Outputs Primary output
(for level, volume etc) Alt. 1: HART®+ 4–20 mA current loop (IS option)
Alt. 2: TRL/2 Bus (FSK with Modbus protocol)
Alt. 3: Probus®DP
Alt. 4: Foundation™ eldbus (IS option)
Secondary output (Optional, for volume,
signal quality, temperature etc.)
Analog 4–20 mA current loop, active or passive.
Optional: IS version.
Analog output characteristics Type Analog 4–20 mA Current Loop, active (with) or
passive (without loop supply).
Galvanic isolation > 1500 V RMS or DC
Accuracy ± 300 µA at 4 mA
± 600 µA at 20 mA
Range 4-20 mA
Alarm level 3.8 mA, 22 mA or freeze; software selectable
Resolution 0.5 µA (0.003%)
Linearity ± 0.01%
Temperature drift ± 50 ppm/°C (± 28 ppm/°F)
Output impedance > 10 MΩ
Voltage compliance 7-30 V (passive output)
External loop resistance < 700 Ω (passive output with 24 V external supply)
< 300 Ω (active output)
Foundation™ eldbus characteristics Polarity sensitive No
Quiescent current draw 12.5 mA
Lift-off minimum voltage 9.0 V
Device capacitance / inductance Ci=0 μF / Li=0 mH
Class Link Master (LAS)
Number of available VCRs 20
VCR Statistics Yes
Slot time / Response delay / Inter
message delay
Min 6 ms / Max 4 ms / Min 7 ms
Function blocks 6 analog input, 2 transducer, 1 resource
Execution time 60 ms for AI-block
Instantiation Yes (all activated)
Available Menus and Methods Transducer Block: Congure Gauge, Restart Device,
Set to Factory Defaults, Sensor Bus.
Resource Function Block: Master Reset
Conforming Foundation™ eldbus ITK 4.6
Advanced diagnostics Failures:
Warnings:
Errors:
Level, Temperature and Volume
measurement failure
Empty tank, Full tank, Database,
Hardware, Software and Conguration
warnings
Database, Hardware, Software and
Conguration warnings
Output cabling Twisted and shielded pair, min. 0.5 mm² (AWG 20)
Cable entries 3 x ½-in. NPT, for cable glands or conduit entries.
Optional: Cable gland kit, including 3 x EEx e approved (ATEX) ½-in. NPT cable glands.
Optional: 3 x EEx e approved, including 3 x EEx e (ATEX) adapters ½-in. NPT/M20
Relay output Optional equipment, mounted in separate enclosure. Potential free contacts, normally open or
normally closed, selectable. Switching capacity: 100-260 VAC 3 A or 24-48 VDC 3 A
Function: alarm limits and hysteresis set at Radar gauge.
