Multi-Media Navigation System Installation Guide
Installation Guide
NOTICE OF INTENDED INSTALLATION AND USE
THE ROSEN MULTI-MEDIA NAVIGATION SYSTEMS CONTAIN AN INTERNAL VIDEO PLAYER, WHICH IS
NOT INTENDED FOR VIEWING BY THE DRIVER. THE VIDEO PLAYER IS DISABLED WHEN THE
VEHICLE IS IN MOTION THROUGH A CONNECTION TO THE PARKING BRAKE.
THE INSTALLER OF THIS PRODUCT MUST INSURE THE VIDEO DISABLE CONNECTION IS
WORKING PROPERLY PRIOR TO DELIVERY OF THE VEHICLE.
IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR INTERFERE WITH SAFE OPERATION
OF THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY OR DEATH, AND COULD ALSO
VIOLATE STATE AND/OR FEDERAL LAW.
ROSEN ENTERTAINMENT SYSTEMS DISCLAIMS ANY LIABILITY FOR ANY BODILY INJURY OR
PROPERTY DAMAGE THAT MAY RESULT FROM ANY IMPROPER OR UNINTENDED INSTALLATION
AND/OR USE.
STOP
Damage to the vehicle may occur
Do not proceed until process has been completed
CAUTION
CAUTION
Process must be carefully observed in order to reduce the
risk of damage to the accessory or vehicle
CRITICAL
Process must be carefully observed in order to ensure a
quality installation
TOOLS and EQUIPMENT
Specific tools and equipment recommended for this
process
SAFETY RISK
Observe safe practices, this process can be dangerous and
there is a risk of personal injury
TESTING and TROUBLESHOOTING
Content specific testing and troubleshooting points
DS-MZ1010 Mazda 3

Installation Guide Mazda 3
Rosen Entertainment Systems Copyright 2010 All Rights Reserved
Installation Guide DP-MZ1014 Rev A
Page 2
PREPARING FOR THE INSTALLATION
Before you start, please read these critical steps below
STEP
1
BEFORE YOU START THE INSTALLATION,
READ THIS GUIDE!
VISIT
Rosen Dealer Central
For the latest Updates, Corrections and Technical Tips
about this product and installation
www.RosenDealerCentral.com
CHECK THE BATTERY
Test the battery voltage to make sure it’s fully charged to a
minimum of 12.8 VDC
This only takes seconds and can save hours of
troubleshooting later.
TURN THE VEHICLE
OFF
Keep the Vehicle Off during the installation to avoid setting
various Vehicle Fault sensors
Keep the Vehicle OFF during the
installation
Failure to follow this may cause the AIRBAG FAULT
SENSOR to become enabled. Dealer Service Departments
charge a significant fee to reset the Fault Sensor.

Installation Guide Mazda 3
Rosen Entertainment Systems Copyright 2010 All Rights Reserved
Installation Guide DP-MZ1014 Rev A
Page 3

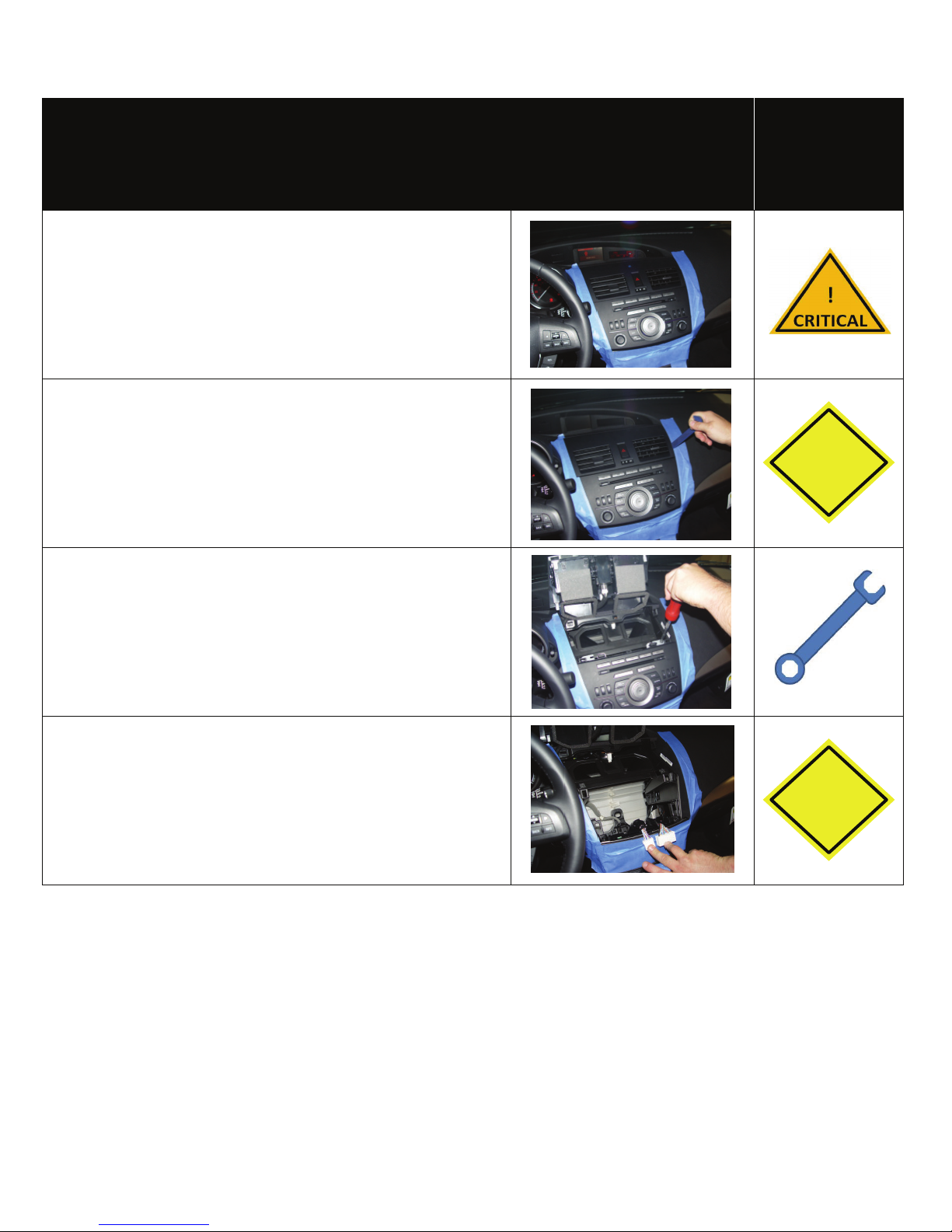

REMOVE THE FACTORY RADIO
You will need to remove multiple interior trim components prior to removing the factory radio.
The following steps will help guide you through this process.
STEP
2
Protect Dash And Radio
Protect vehicle dash from any scratches that can occur
during removing/installing radio
Remove Upper Vent Assembly
Carefully remove upper vent assembly using thin pry tool
CAUTION
Remove Radio Mounting Screws
Carefully remove 2 x phillips radio mounting screws on top
of radio
Remove Factory Radio
Carefully remove factory radio being careful not to damage
dashboard
CAUTION

Installation Guide Mazda 3
Rosen Entertainment Systems Copyright 2010 All Rights Reserved
Installation Guide DP-MZ1014 Rev A
Page 4
LOCATING REMOTE COMPONENTS
You will need to mount the GPS and Optional Satellite Radio Antennas on the exterior of the vehicle.
And mount the iPod Interface Connector in the vehicle. The following steps will help guide you
through this process.
STEP
3
Use Caution around SRS Components
It is the installer’s responsibility to ensure that the safety
equipment in the vehicle is NOT adversely affected by installation
of this system. Ensure that the routing of the harnesses do NOT
obstruct airbags, SRS or other safety devices.
Mount the GPS and Sat Radio antenna in a
location on the exterior of the Vehicle
Route the GPS harness away from other power harnesses in the
vehicle.
This will help to ensure optimum performance of the GPS system.
“OPTIONAL”
Install the iPod interface connector in a
location accessible to the end-user
Locate the iPod interface module in an area which can be
serviced in the future.
The iPod cable is intended to be a serviceable item, which plugs
into the iPod/Sat radio Interface Module.
Install The Rosen Navigation System
You will need to prepare the Rosen Navigation System for installation in the vehicle
STEP
4
Remove the DVD Transport Screws
There are 2 x Phillips Transport Screws which protect the DVD
Mechanism during transportation.
Transport Screws must be removed prior to installation.

Installation Guide Mazda 3
Rosen Entertainment Systems Copyright 2010 All Rights Reserved
Installation Guide DP-MZ1014 Rev A
Page 5

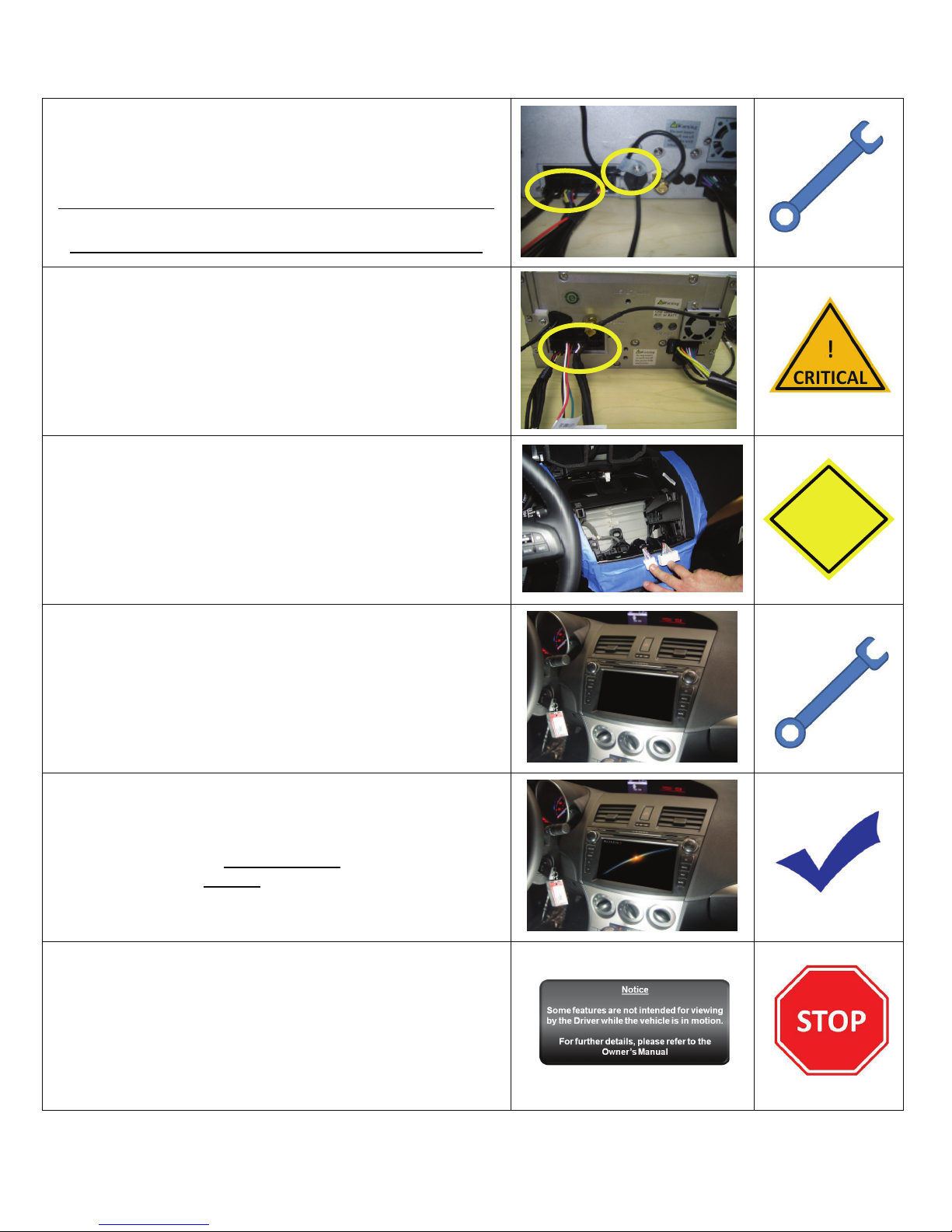

Connect the Power and GPS Harnesses
The GPS Harness must be tightened with a WRENCH to ensure
it is properly seated.
Be sure to use white cable clamp to secure GPS antenna cable
Failure to follow this step may result in poor GPS signal
Connect Optional Harnesses such as iPod,
Satellite Radio, Camera, Reverse Sensors
These harnesses must be fully engaged prior to the system
installation.
See the Harness Diagrams for more information
Prepare the Vehicle side harnesses for
connection to the Rosen Harness
Use care not to pinch or damage cables as this will cause
performance issues/failures
CAUTION
Mount Rosen Navigation into Dash
Insert Rosen Navigation System Into Dash and re-install
radio mounting screws that were removed. Reinstall radio
trim bezel removed in step 2
Turn the vehicle ON and confirm the unit is
fully operational
With the connectors Fully Engaged, turn the vehicle on
and press the RESET for 5 seconds on the unit.
Insert a DVD to confirm the Video Disable
Circuit is properly Operating.
The Brake Wire must be connected to the Park Brake
Indicator Wire to complete a ground when the brake is
engaged.

Installation Guide Mazda 3
Rosen Entertainment Systems Copyright 2010 All Rights Reserved
Installation Guide DP-MZ1014 Rev A
Page 6
RE-INSTALL THE TRIM COMPONENTS
You will need to reinstall all trim components
STEP
5
Re-Install Upper Vent Assembly
Carefully re-install upper vent assembly
CAUTION
ENABLE INSTALLER SETTINGS
You will need to select certain Installer Setting based on any Optional Equipment that you may have
installed
STEP
6
Launch the Installer Setting Screen
From any screen with the Menu Button, follow these steps
to display the Installer Setting Screen, select:
1) From any Screen, select “Menu”
2) From the Menu Screen, select “Settings”
3) Press “Keypad,” Press “7253” and “Enter”
Select the individual Settings as needed for
the installed components
Selectable options vary by product and installation. Select
the options as applicable for the installed optional
components.

Installation Guide Mazda 3
Rosen Entertainment Systems Copyright 2010 All Rights Reserved
Installation Guide DP-MZ1014 Rev A
Page 7
Perform Pre-Delivery Tests
You will need to perform several Pre-Delivery Tests to ensure customer satisfaction
Some optional equipment may not be applicable
STEP
7
Turn the vehicle ON and System ON
Confirm the unit starts up properly
Troubleshooting
1) Reset the System while the Vehicle is ON
2) Confirm all connectors are properly installed
3) Check the Vehicle and System Fuses
Select RADIO as the Source
Confirm that the AM and FM reception are as expected
Troubleshooting
1) Confirm Antenna is properly connected.
2) Reset the System
Select SATELLITE RADIO as the Source
Confirm Channel 001 is present after ~5 minutes
Troubleshooting
1) Confirm the SAT Radio is Turned ON in the Installer Settings
2) Confirm the antenna has unobstructed view of the Sky
3) Confirm the antenna is located on the outside of the vehicle
Select iPOD as the Source
Confirm iPod is communicating and playback is OK
Troubleshooting
1) Confirm iPod Version Compatibility – not all are compatible
2) Confirm the harnesses are properly engaged
3) Reset the System
Select CD as the Source
Confirm CD audio playback is OK
Troubleshooting
1) Confirm the Disc is Store Bought and in good condition
2) Reset the system

Installation Guide Mazda 3
Rosen Entertainment Systems Copyright 2010 All Rights Reserved
Installation Guide DP-MZ1014 Rev A
Page 8

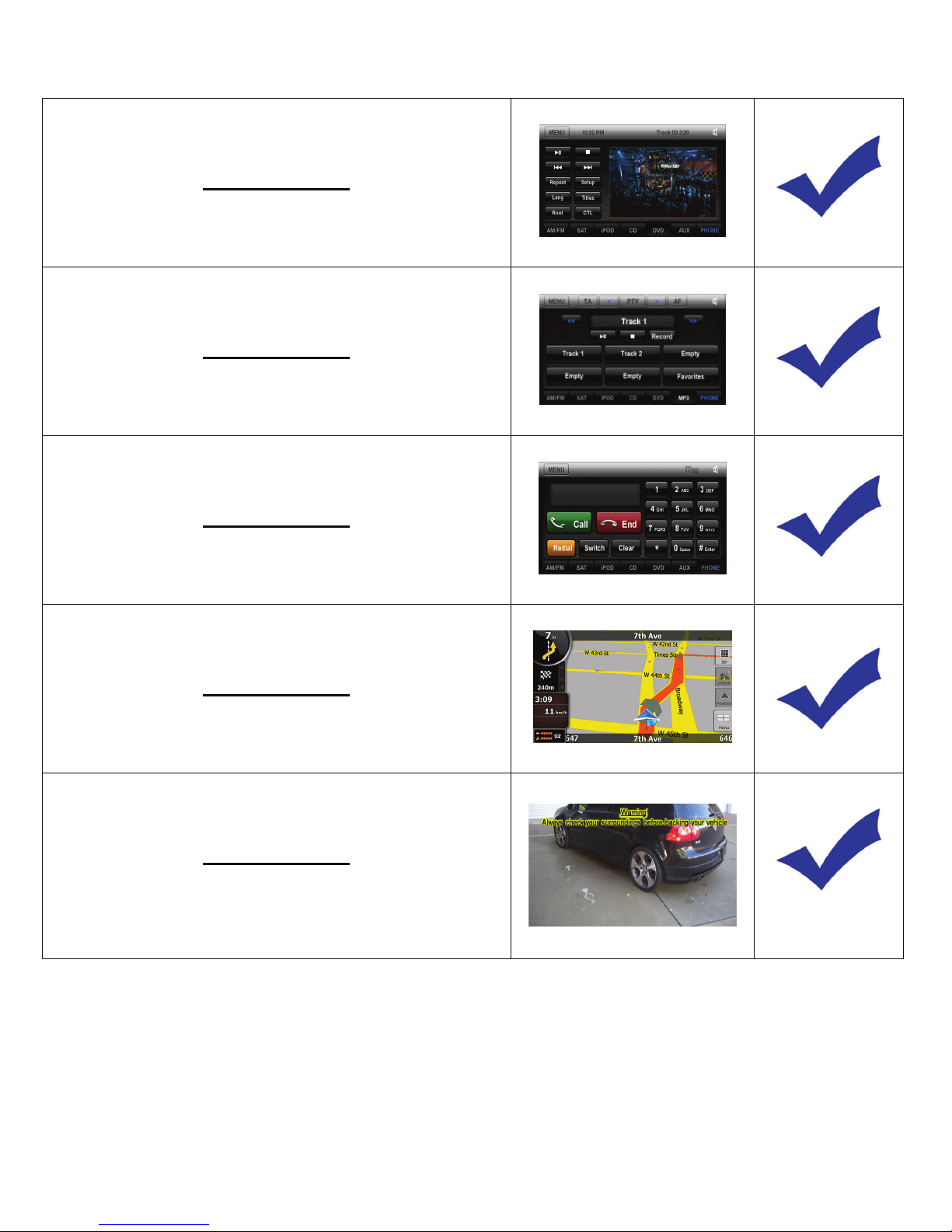

Select DVD as the Source
Confirm DVD video playback is OK
Troubleshooting
1) Ensure the Park Brake is set to view video
2) Confirm the Disc is Store Bought and in good condition
3) Reset the system
Select MP3 as the Source
Confirm MP3 playback is OK – Select Favorites
Troubleshooting
1) Confirm that a Test Track exists in the Favorites Folder
2) Reset the system
Select Phone as the Source
Confirm Phone Pairing is successful
Troubleshooting
1) Confirm the Phone has BT and is in discoverable mode
2) Confirm the Phone is compatible with the system
3) Reset the system
Select NAV as the Source
Confirm the Navigation loads and signal strength is OK
Troubleshooting
1) Confirm the antenna has an unobstructed view of the sky
2) Confirm the antenna is located on the outside of the vehicle
3) Confirm the antenna connection is properly tightened
Select Reverse Camera
Confirm the backup camera screen shows in reverse
Troubleshooting
1) Confirm the Camera is set to ON in the Installer Settings
2) Confirm the Reverse Trigger wire is attached properly
3) Confirm the Camera is receiving 12VDC as required

Installation Guide Mazda 3
Rosen Entertainment Systems Copyright 2010 All Rights Reserved
Installation Guide DP-MZ1014 Rev A
Page 9
Service and Optional Parts List
Part Number Description Part Number Description
DP-MZ1011 Quick Reference Guide DP-MZ1012* Harness, Main Interconnect
DP-MZ1014 Installation Guide DP-MZ1013* Harness, Steering Wheel Cntls
DP-1047 GPS Antenna Windshield Mount DP-1001 Manual, Owner’s
DP-1008 Harness, AUX Out DP-1003 Manual, Navigation
DP-1009 Harness, AUX IN DP-1004 Remote Control
DP-1010** Harness, Sensors/Camera DP-1023 Pin, Stylus
DP-1011 Harness, Dolby 5.1/Amp DP-1020-H11 Card, SD w/ maps
DP-1022 Antenna, GPS DP-1054**** Sirius Tuner Kit
DP-1055*** Sirius Tuner/iPod Multimedia Kit DP-1053 Harness, Sirius/iPod
DP-1066 Camera, License Plate Black DP-1007 Harness, USB Adaptor
DP-1067 Camera, License Plate Chrome DP-1051 Harness, Sirius Interface
DP-1068 Camera, Universal Black DP-MZ0715 Harness, Antenna Adaptor
* DP-MZ1012/DP-MZ1013 are integrated into same harness
** Included with DP-1066, DP-1067, and DP-1068
*** Kit consists of DP-1053 iPod/Sirius combo cable and Sirius Tuner/antenna
****Kit consists of DP-1051 Sirius only cable and Sirius Tuner/Antenna

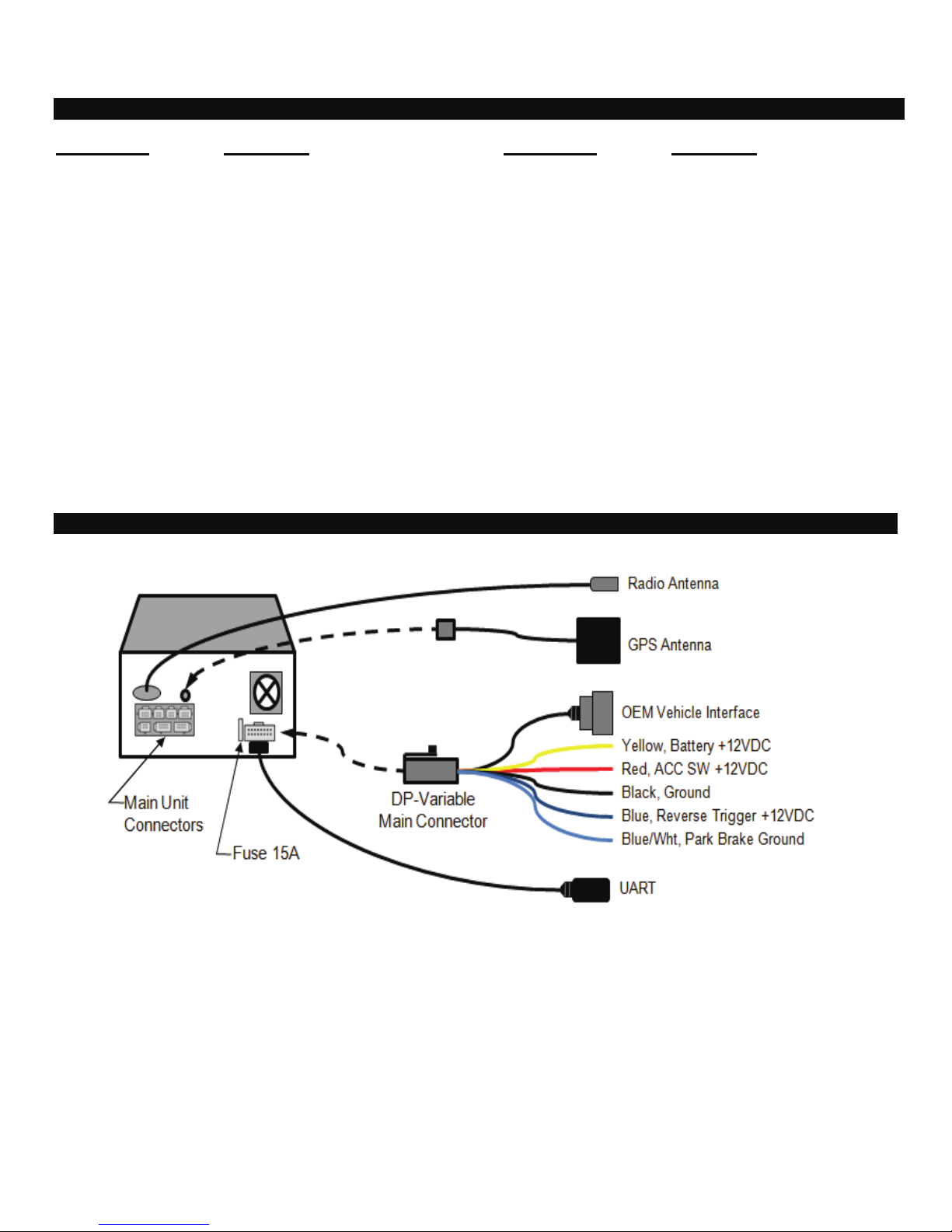

Main Harness Diagram

Installation Guide Mazda 3
Rosen Entertainment Systems Copyright 2010 All Rights Reserved
Installation Guide DP-MZ1014 Rev A
Page 10
Optional Harness Diagram

Installation Guide Mazda 3
Rosen Entertainment Systems Copyright 2010 All Rights Reserved
Installation Guide DP-MZ1014 Rev A
Page 11
Option Harness Diagram
