ROSIERES RHIP680X User manual

Model no.: RHIP680X
ENGLISH INSTALLATION AND USER’S MANUAL

2
CONTENT
INTRODUCTION..........................................................................3
SAFETYPRECAUTION............................................................3-4
PREPARE FOR INSTALLATION................................................5
SPECIFICATIONS......................................................................6
INSTALLATION......................................... ................ .............6-9
OPERATION..............................................................................10
MAINTENANCE.........................................................................11
TROUBLESHOOTING...............................................................12
ENVIRONMENTALPROTECTION.............................................12

3
INTRODUCTION
Thank you for choosing this cooker hood.
This instruction manual is designed to provide you with all required
Instructions related to the installation, use and maintenance of the
appliance.
In order to operate the unit correctly and safety, please read this instruction
manual carefully before installation and usage.
The cooker hood use high quality materials, and is made with a
streamlined design. Equipped with large power electric motor and
centrifugal fan, it also provides strong suction power, low noise operation,
non-stick grease filter and easy assembly installation.
SAFETY PRECAUTION
 Never let the children operate the machine.
 The cooker hood is for home use only, not
suitable for barbecue, roast shop and other
commercial purpose.
 The cooker hood and its filter should be
clean regularly in order to keep in good
working condition.
 Clean the cooker hood according to the
instruction manual and keep the unit from
danger of burning. There is a fire risk if
cleaning is not carried out in accordance
with the instructions.
 Forbid the direct baking from the gas
cooker.
 Please keep the kitchen room a good
convection.
 If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent similarly qualified persons in order to
avoid a hazard.
 There shall be adequate ventilation of the
room when the range hoods used at the
same time as appliances burning gas or

4
other fuels;
 he air must not be discharged into a flue
that is used for exhausting fumes from
appliances burning gas or other fuels;
 Regulations concerning the discharge of air
have to be fulfilled.
 This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved.
 Children should be supervised to ensure that
they do not play with the appliance.
 Cleaning and user maintenance shall not be
made by children without supervision.
 Do not flame under the range hood.
 CAUTION: Accessible parts may become
hot when used with cooking appliance.
 The warning shall be in the same part of the
instructions that include details of how to
mount the equipment.
Electrical Shock Hazard
 Only plug this unit into a properly earthed outlet. If
in doubt seek advice from a suitably qualified
engineer.
 Failure to follow these instructions can result in
death, fire, or electrical shock.

5

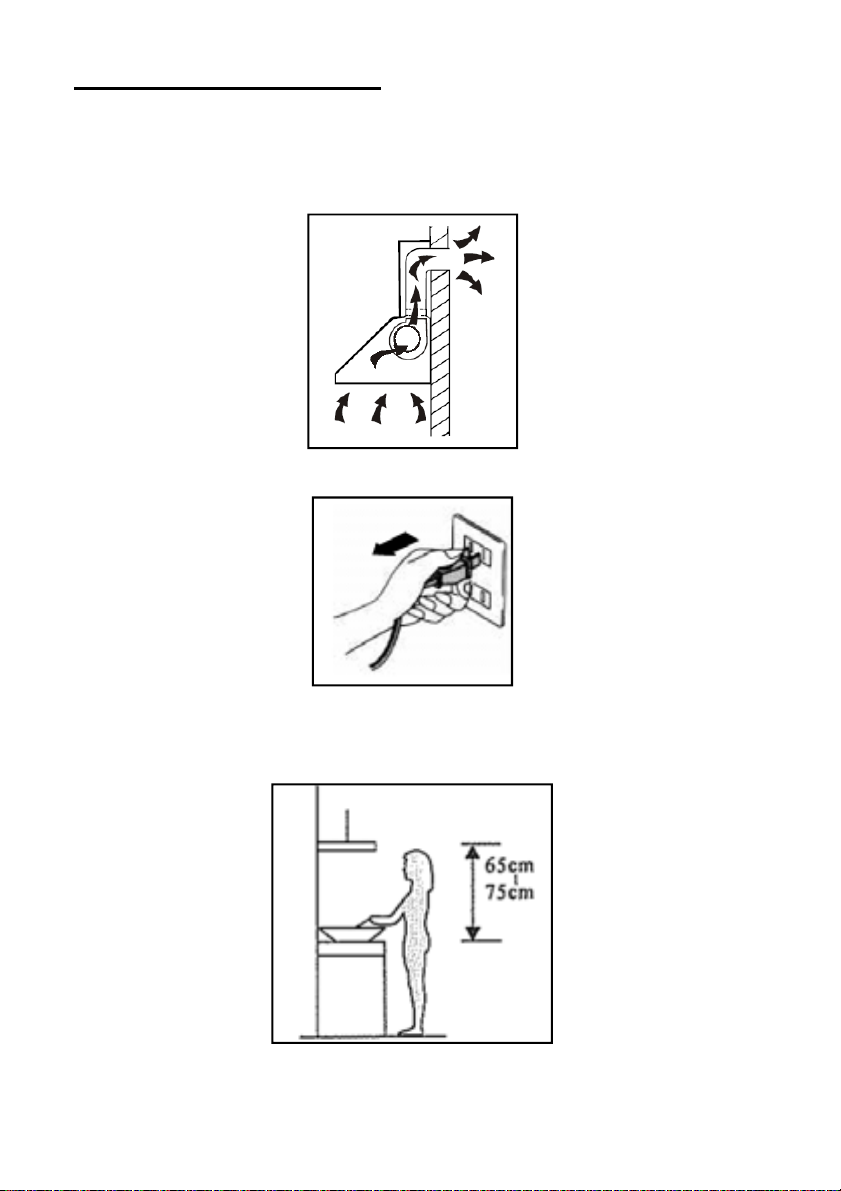

Prepare for installation:
a. If you have an outlet to the outside, your cooker hood can be connected
as below picture by means of an extraction duct (enamel, aluminum,
flexible pipe or inflammable material with an interior diameter of 150mm)
b. Before installation, turn the unit off and unplug it from the outlet.
c. The cooker hood should be placed at a distance of 65~75cm above the
cooking plane for best effect.

6
Specifications
Model Product dimension(W,D,H mm)
RHIP680X 520mm x 295mm x 308mm
Installation
–The typical installation method for your range hood is into a purpose
built overhead/wall cabinet.
– Using a jigsaw, create the required cut-out for your range hood, as per
the following:
RHIP680X: 485 × 265mm
– Make sure the cut-out is at least 20mm from the cabinet edge.

7

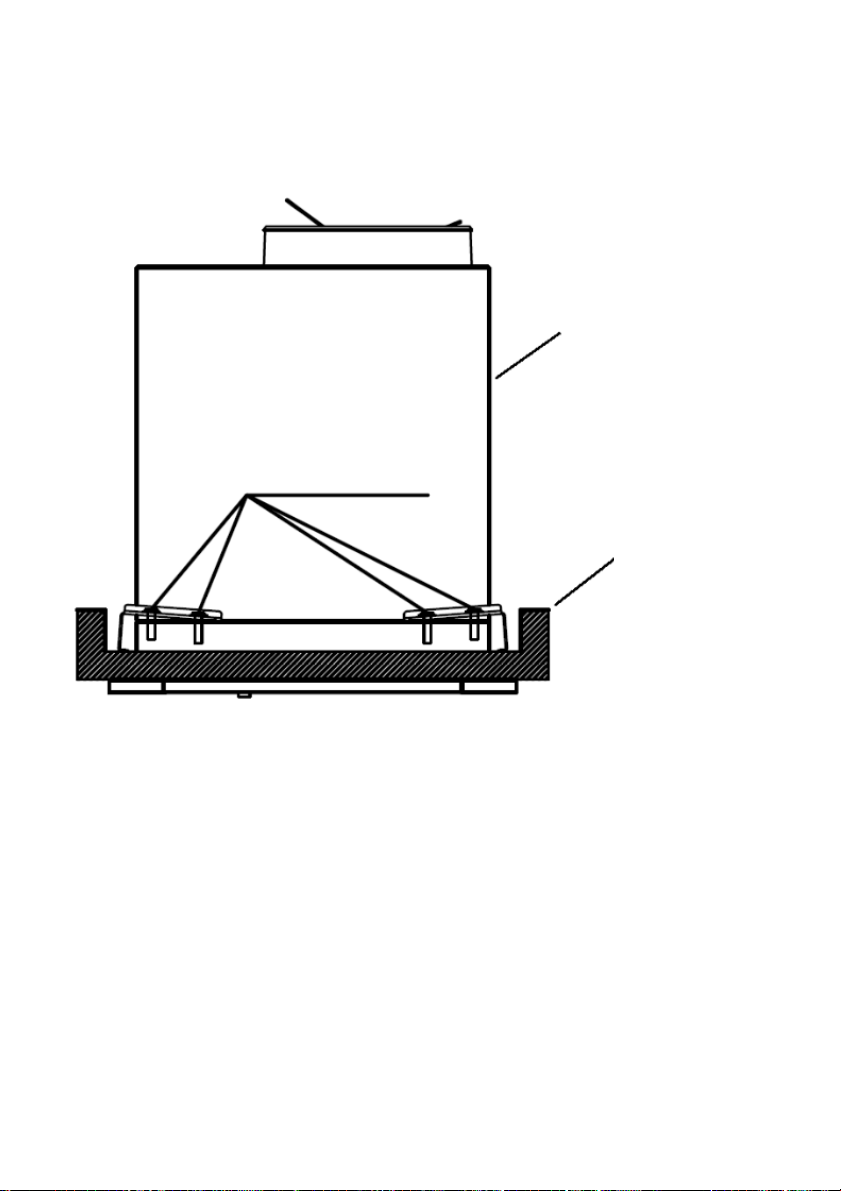

1. Insert the range hood to the cabinet
2. Remove 8 screws of 4 hanging plates on the range hood, push the
4 hanging plates on the top side of cabinet edge.

8
3. Screw 4 hanging plates onto the range hood using 8
screws( previously removed on step 2).
Note: Make sure the screws MUST be securely tightened.

9

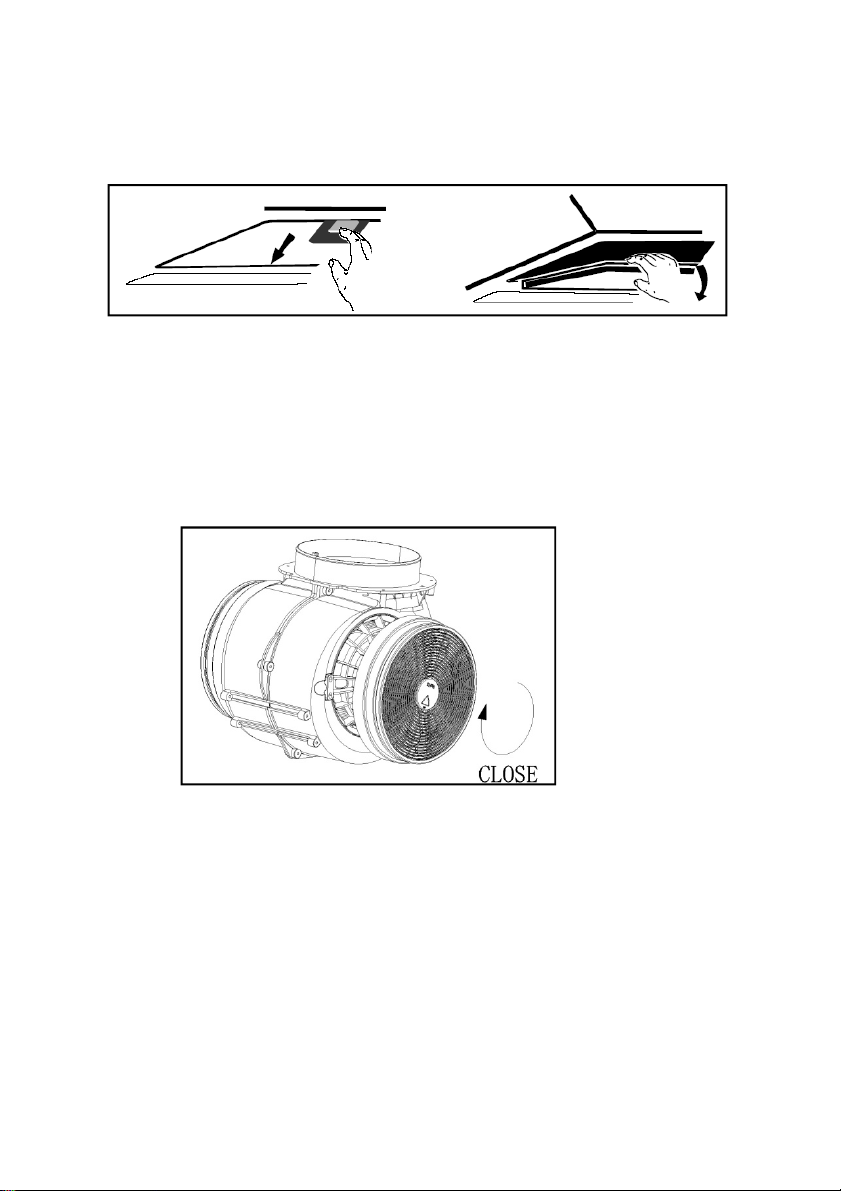

Activated carbon filter can be used to trap odors.
In order to install the activated carbon filter, the grease filter should be
detached first. Press the lock and pull it downward.
Plug the activated carbon filter into the unit and turn it in clockwise direction.
Repeat the same on the other side.
NOTE:
oMake sure the filter is securelylocked. Otherwise, it would
loosen and cause dangerous.
oWhen activated carbon filter attached, the suction power will
be lower.

10
OPERATION
Electronic button
STANDBY MODE
After plug in, all lighting, system in STANDBY MODE.
Low Speed button
It’s used for Ventilation on the kitchen. It is suitable for simmering
and cooking which do not make much steam.
Medium Speed button
Airflow speed is ideally for ventilation in standard cooking operation.
High Speed button
When high density of smoke or steam produced, press high-speed
button for highest effective ventilation.
Booster button
Depress this button to enter into highest speed and it will increase
speed for 5 minutes, before slowing down again.
Light button
Short press for lamp control.
