Ross RPPW2600 User manual

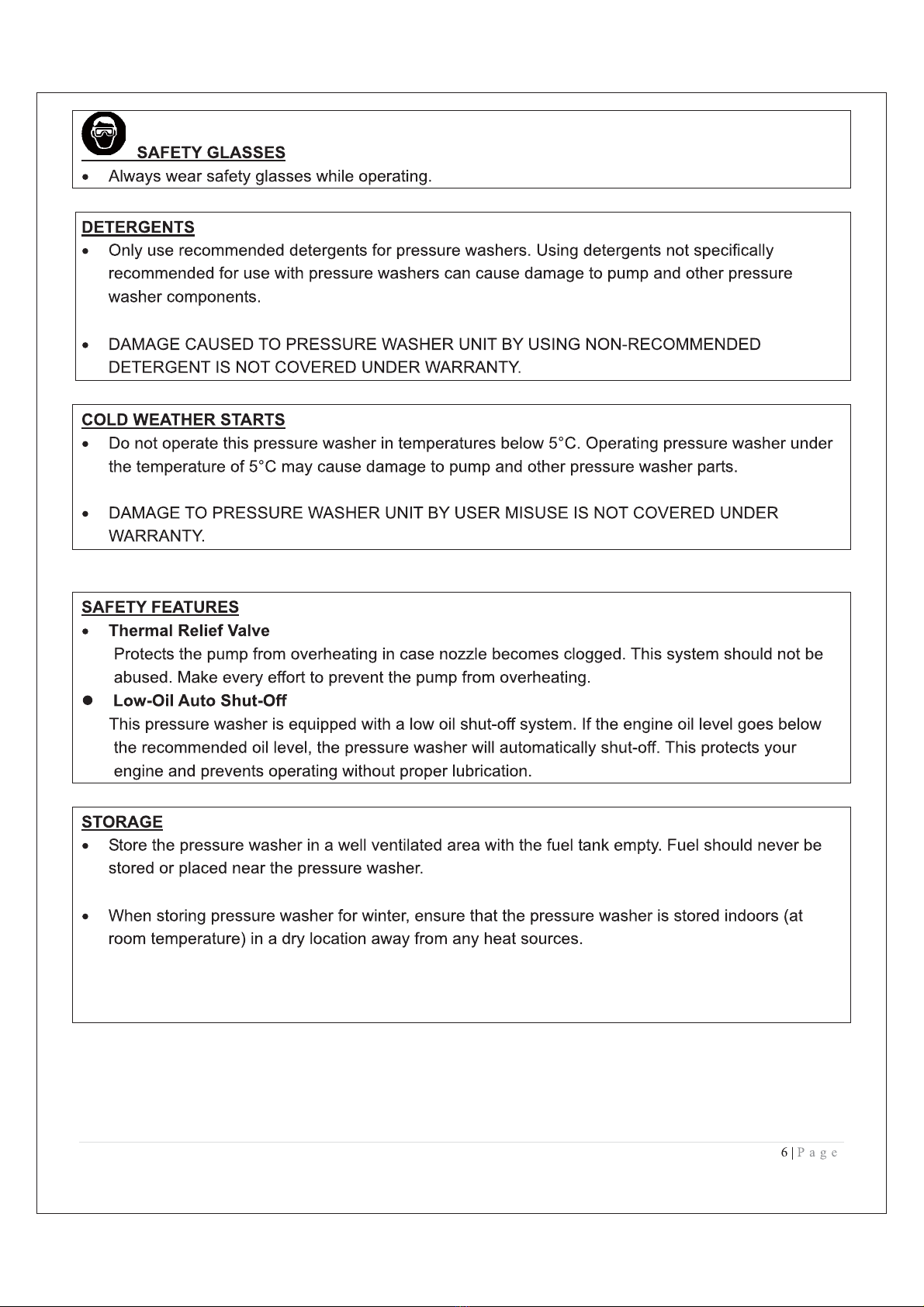

Protect yourself and others by observing all safety information, warnings, and cautions.
Failure to comply with instructions could result in personal injury and/or damage to
product or property. Please retain instructions for future reference!

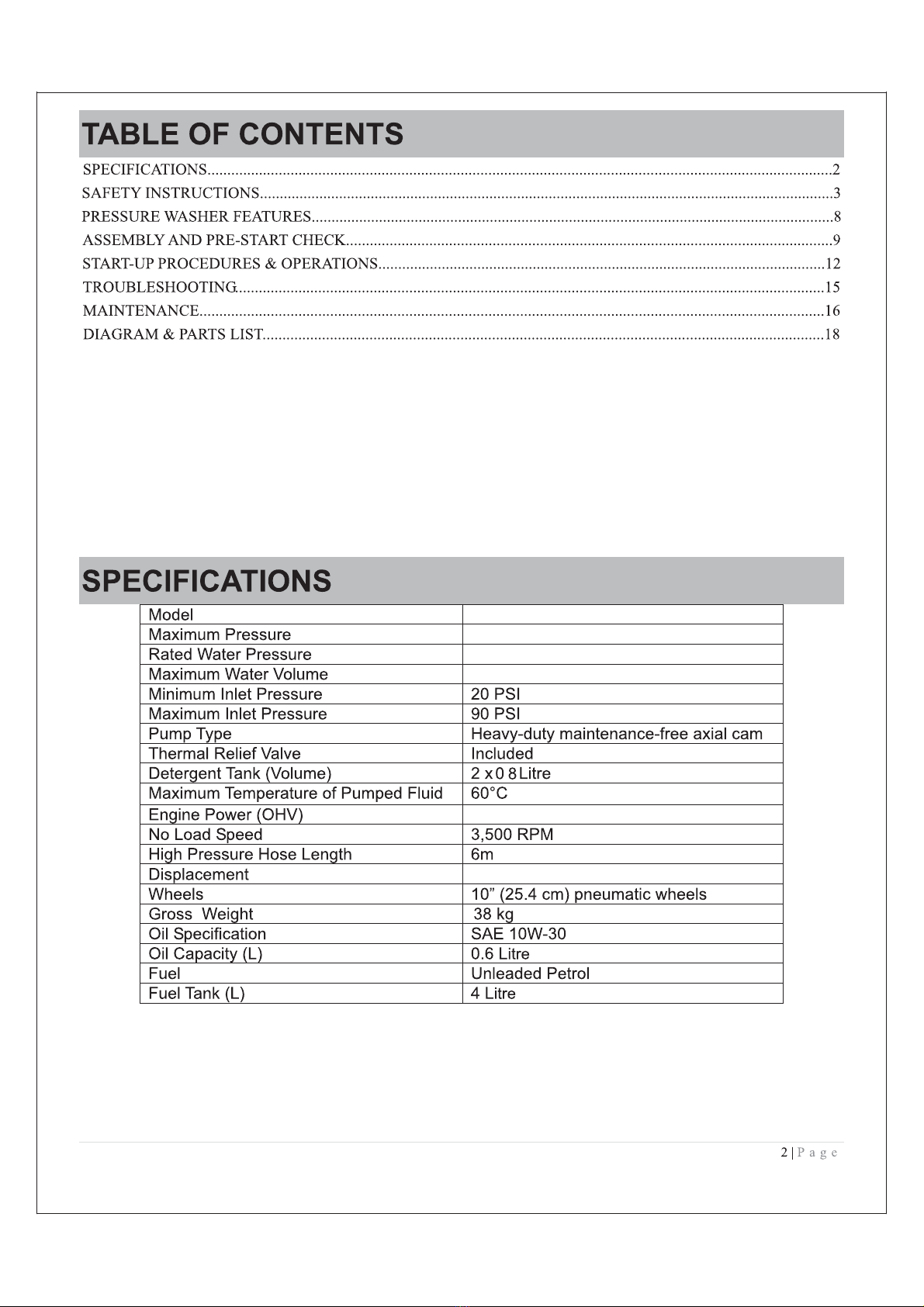

ROSSPOWER RPPW2600

X
RPPW2600
2600 psi (180 bar)
2000 psi (140 bar)
8 L/min
5.5hp
163cc
.

X

X

X

X

X

X

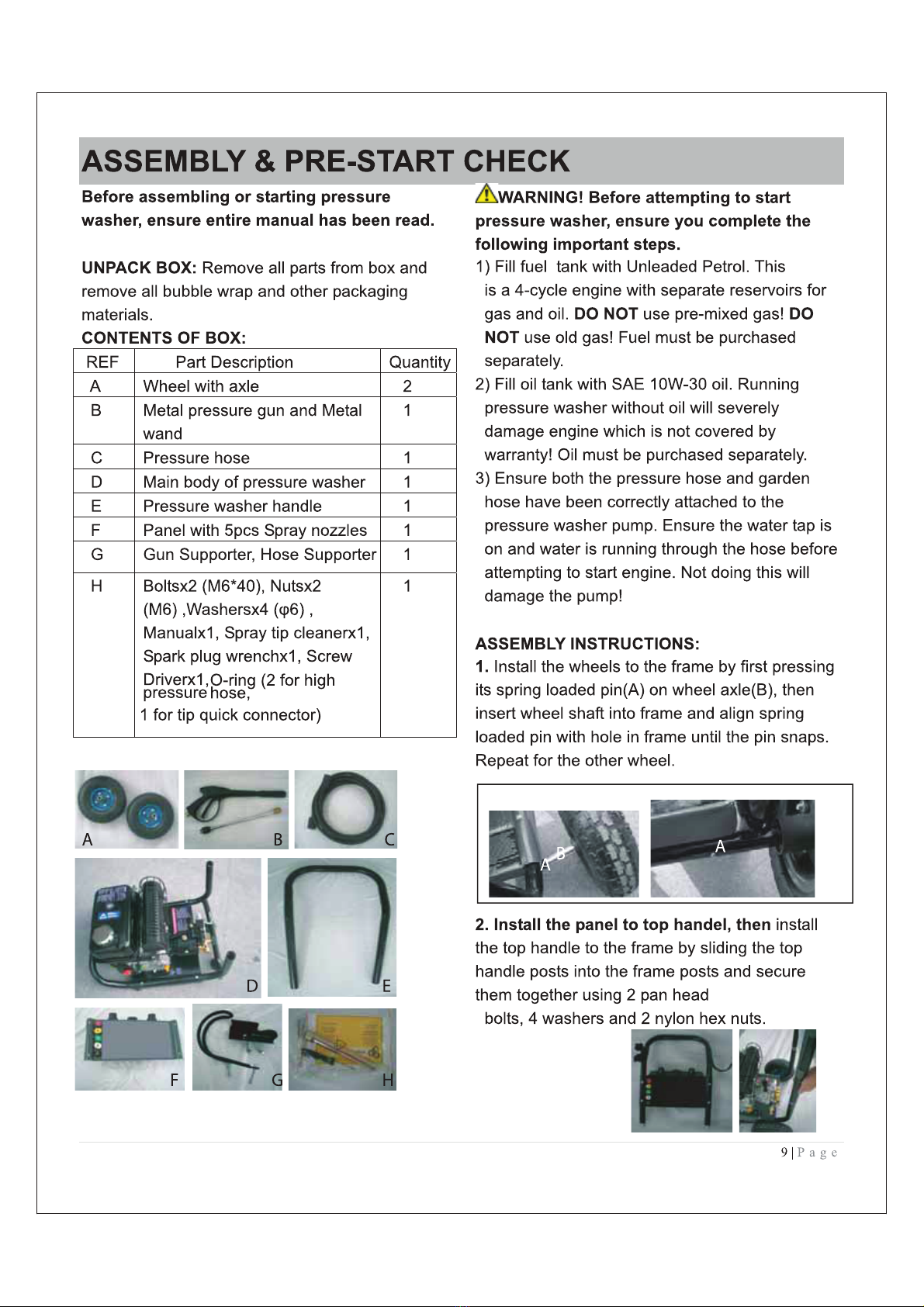

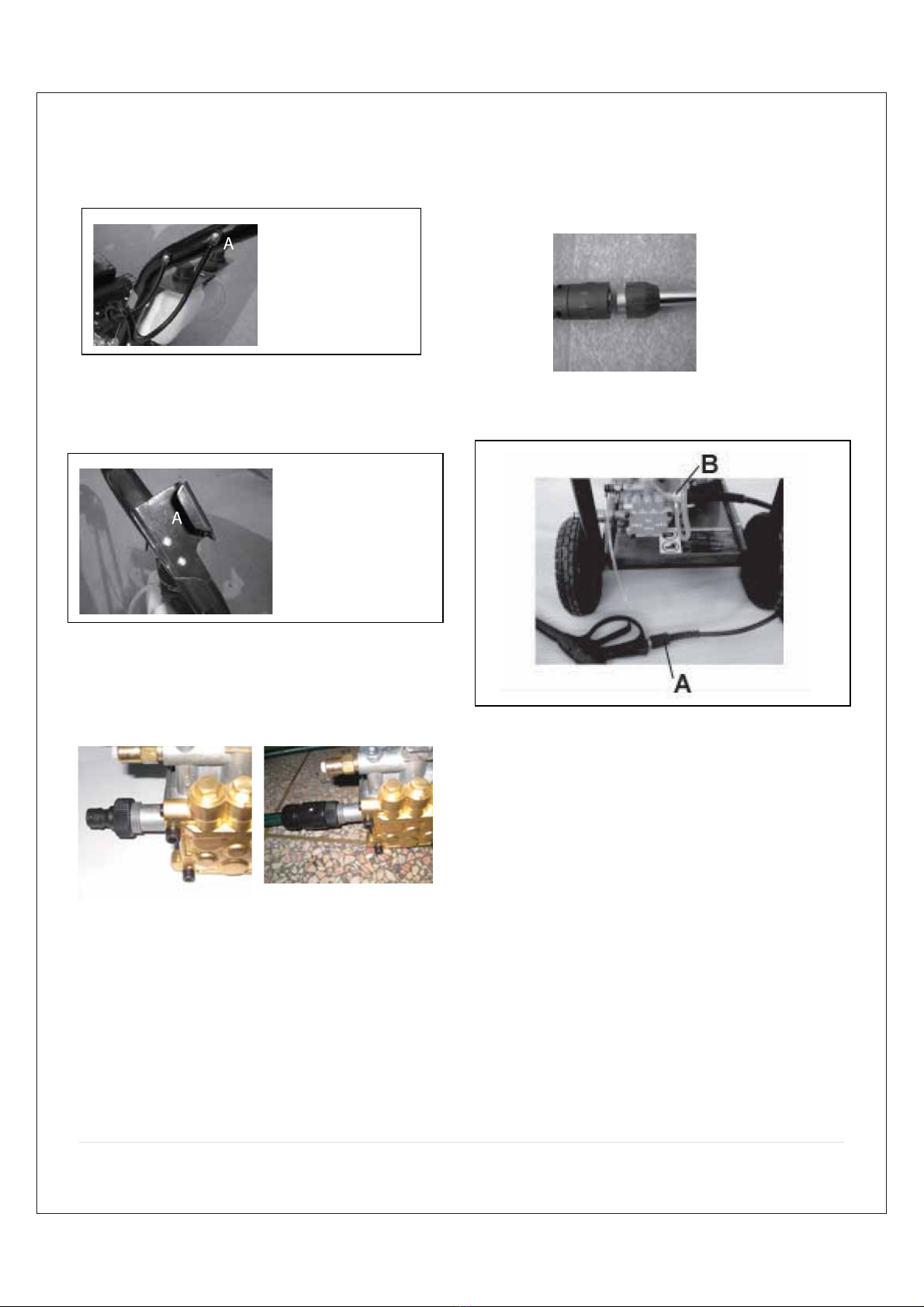

 Assemble the hose support(A) to the right side
of the frame using 2 pan head bolts, 4 washers
and 2 nylon hex nuts.
10 | Page
 Assemble the wand support(A) to the left side
of the frame using 2 pan head bolts, 4 washers
and 2 nylon hex nuts.
 Attach quick-connect to pump inlet.
To do this, screw one side of the quick-connect
to the pump inlet. Next, screw the other side of
the quick-connect to the hose. See illustration
below.
metal gun(B). Pull back the rubber piece(C) to
expose the threaded fitting and screw the 2
pieces together, re-position the rubber piece.
. Next install the pressure hose to the wand
(A)and install the other end of the pressure hose
to the pump outlet(B) as shown below.
 Assemble the stainless steel wand (A)and the
!"
!
"#

X
PRE-START CHECK OIL LEVEL
WARNING! Pressure washer has no oil currently in crankcase! Operating the unit without the
correct amount of oil will damage the engine. Oil crankcase capacity: 0.6 L.
Always check the oil level before starting the engine, make sure the pressure washer is on a
level surface before checking oil level. Always use SAE 10W-30 oil.
4O#HECK/IL,EVEL 
1) Turn the oil gauge dipstick (A)
counter clockwise; remove it and clean it with a
clean cloth.
2) Fully reinsert the oil gauge dipstick and pull it
out to check the oil level.
3) If the oil level is halfway up the dipstick or
below, refill with SAE 10W-30 oil through the
dipstick hole until the oil level reaches 3/4 up
the dipstick or until it reaches the bottom lip of
the dipstick hole as shown in illustration to the
right.
4) Re-position the oil gauge dipstick and tighten it
by turning clockwise.
PRE-START CHECK FUEL LEVEL 
WARNING! Make sure there is enough fuel in the fuel tank before operating.
Check the fuel level indicator window(A), if the red float gauge is all the way up, it is not
necessary to add fuel. If the red float gauge is not, or barely visible, it is necessary to add fuel.
1) If it is necessary to add fuel, first make sure
the engine is OFF, and then remove the fuel
cap(B) by turning it counter clockwise.

2) When refuelling, make sure the fuel filter (C)
is in place and keep in mind all safety
precautions.
3) Use clean unleaded petrol with a minimum of
87 octane. $/./4 use old fuel. $/ ./4 mix
oil with gasoline. Fuel tank capacity: 4.0 Litres.
*** This is a 4-cycle engine and does not require a
gas/oil mixture. There is a separate reservoir
for gas and a separate reservoir for oil.
11 | Page
A
C
B
!

X

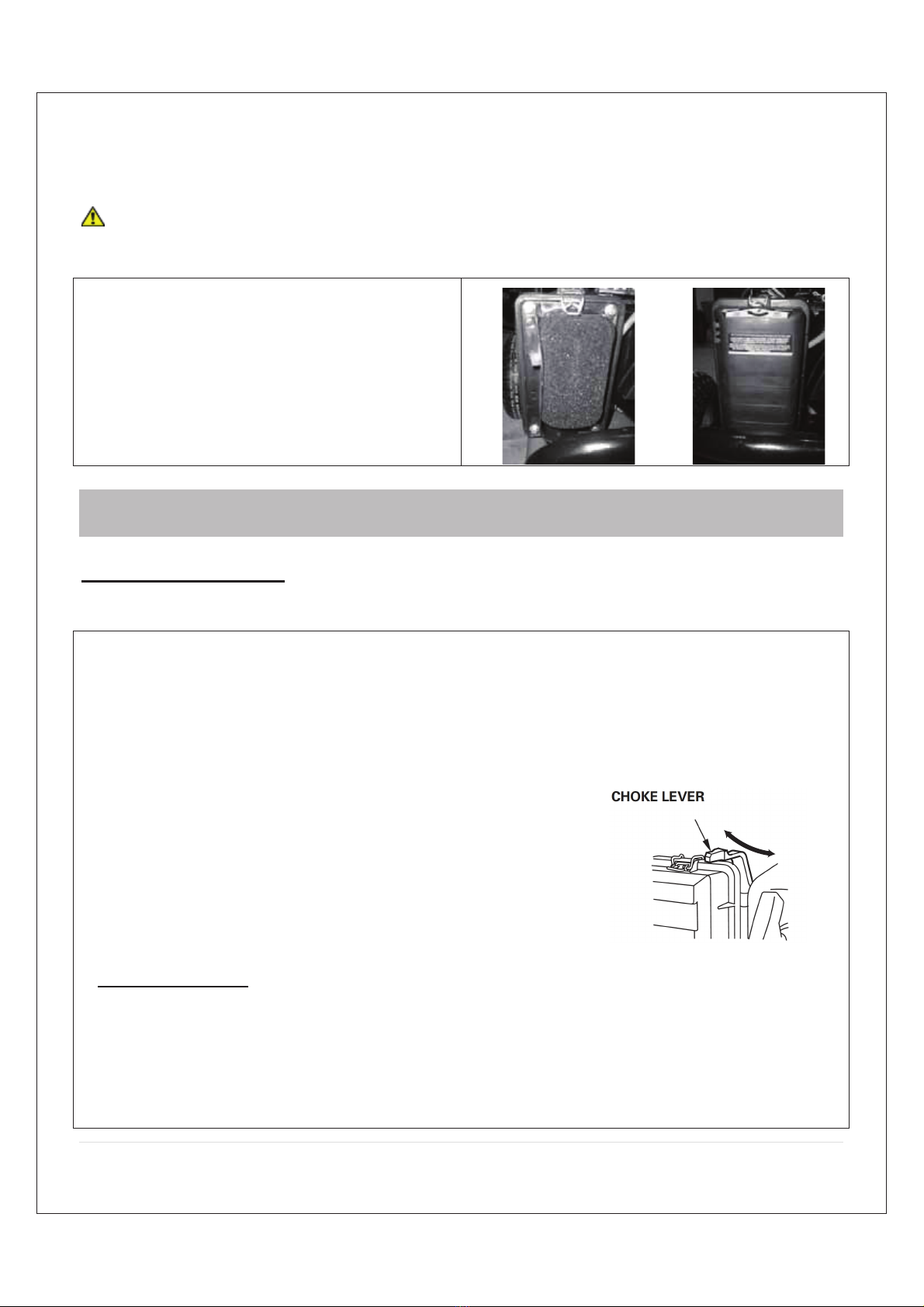

PRE-START CHECK AIR FILTER
WARNING! The air filter should be checked after prolonged storage, the following steps
should be done when checking the air filter. It is recommended to replace the air filter once
every Spring.
1) Snap the top and bottom clips(A) backwards
and remove the air filter cover(B).
2) Remove the air filter(C), wash filter in kerosene,
squeeze kerosene out, soak filter in engine oil
and squeeze engine oil out.
3) Replace filter and replace the air filter cover.
START-UP PROCEDURES & OPERATION
START-UP PROCEDURES
Follow these instructions to safely start your pressure washer:
1) Check engine oil level; fill to recommended level if necessary, Check gasoline level, fill if necessary.
2) This pressurewasher comes with a pump quick connect coupling. Itallows you to quickly connect or
disconnect the garden hose from the pump. Pulling the mid ring will disconnect the quick connect
coupling. Connect garden hose to the pump quick connect coupling and TURN WATER ON. The
water supply must provide a minimum of 15L/min at 20 PSI or the pump may be damaged.
3) Squeeze gun trigger. This will allow air to escape from the hose in order to prime the pump. Squeeze
trigger until there is a steady flow of water
4) Turn engine switch to the “On” position.
5) Open fuel valve (”On” position).
6) Close the Choke lever by moving the lever towards the left.
Also move the throttle lever to its maximum setting (towards the left)
7) Locate recoil cord and pull slowly until resistance is felt. At this point, pull rapidly to start engine.
Repeat if necessary.
8) Once engine starts, open choke lever by moving the lever towards the right.
9) If motor fails to start, repeat steps 3-9.
12 | P a g e
A
B
C
OPEN
CLOSED

X

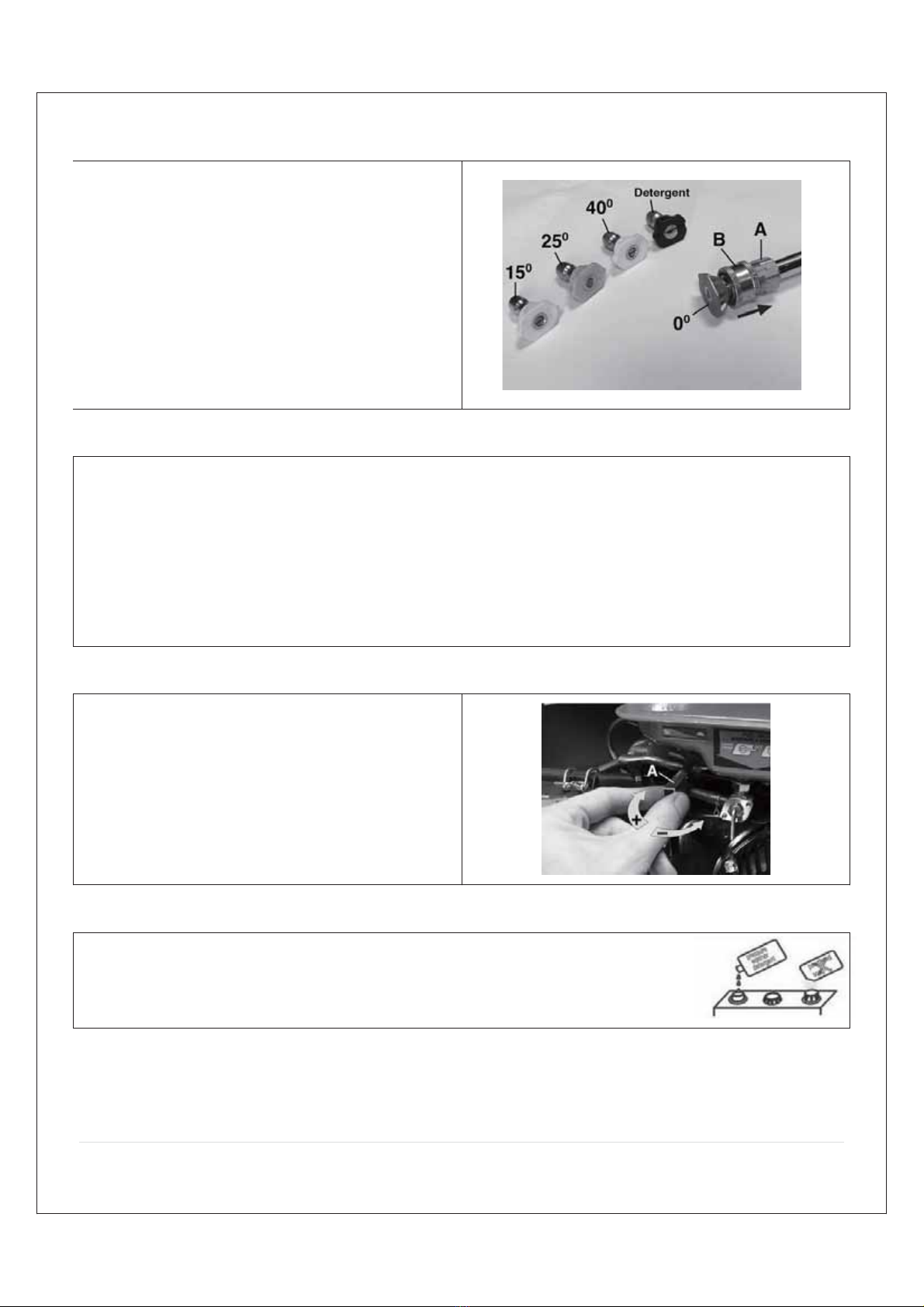

OPERATION: SPRAY NOZZLE USAGE
sThis pressure washer comes with a stainless
steel wand, its tip has a quick connect coupler
to fit different nozzles.
sThe spray pattern is adjusted by installing the
appropriate spray pattern nozzle to the quick
connect coupler. Five nozzles are included, 0°,
15°, 25°, 40° and a detergent nozzle.
sTo install a nozzle to the quick connect
coupler, pull the coupler ring backwards and
insert the desired nozzle, release the coupler
ring to lock it in place.






NOZZLE USAGE:
s0° (red) - Thin and powerful stream of water for difficult stains and debris removal.
s15° (yellow) - Thin angled spray for focused cleaning.

s25° (green) - Medium angled spray for focused cleaning. 

s40° (white) - Large fan pattern for wider cleaning applications. 

sDetergent (black) - This nozzle must be used in conjunction with a cleaning detergent at low
pressure. Only use this nozzle when using a detergent or cleaning solution.
ADJUSTING WATER PRESSURE:
sThe water pressure is regulated by the throttle
lever.
sMoving the throttle lever towards the left will
increase the engine speed thus increasing the
water pressure.
sMoving the throttle lever towards the right will
decrease the engine speed thus decreasing
the water pressure.
DETERGENT INJECTOR (LOW PRESSURE):
sThis pressure washer is intended for use with pressure washer detergents only.
sDo not use powdered soaps which clog the injection system.
sFollow the detergent manufacturer’s directions if you have any questions or concerns.
13 | Page

X
14 | Page

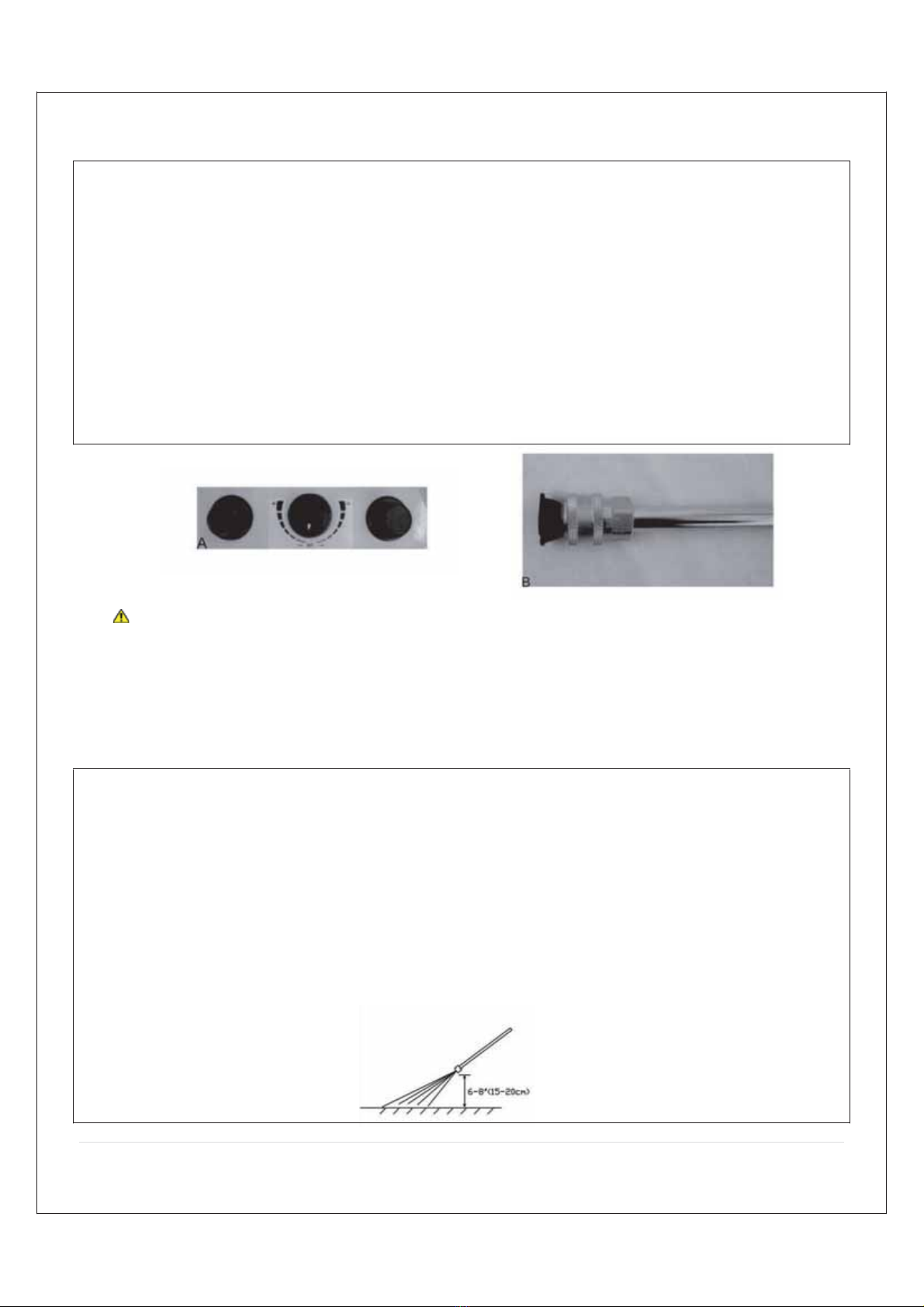

HOW TO USE DETERGENT WITH PRESSURE WASHER:
1) Ensure detergent siphon tubes are set up correctly. You may want to refer to assembly
instruction #8 on page 10 to verify that siphon tubes are set up properly.
2) Pour the two kinds of detergents into the detergent tanks. It is recommend to have one detergent
tank filled with All-Purpose detergent, and the other filled with a more specific cleaning detergent.

3) The indicator on the detergent dial shows the amount and the consumption of detergent(A).
4) When using a detergent, the stainless steel wand must be fitted with the detergent nozzle
(black). See “OPERATION SPRAY NOZZLE USAGE” on page 13 for instructions on how to
connect detergent nozzle to wand.(B)
5) If the throttle lever is not in the fast position, the injection of the detergent may be decreased or
stopped completely, in this case, move the throttle lever towards the left to increase engine
speed and pressure.
Important Note: When you have finished using the detergent injector system, remove the
injector filter from the detergent container and place it in a different larger container
containing only clean water and let the pressure washer run until you no longer notice
detergent coming out of the wand. This will prevent detergent from gumming up the wand
and reducing pressure for next use.

USING THE PRESSURE WASHER TO CLEAN:
sSome cleaning jobs can be completed by using only water, but for most, it is advantageous to use
a detergent to penetrate and remove the dirt more effectively. When using pressure washer
approved detergent, make sure the surface to clean is dry. Wetting the surface first is not
recommended; it will dilute the detergent and will reduce the cleaning effectiveness.
sAvoid hot surfaces or direct sunlight; this will minimize the chances of the detergent
damaging the painted surface.
s$/./4 let the detergent dry or it may damage the painted surface. Allow the detergent to remain
on the surface for a short time before rinsing with clean water under high pressure.
sPosition the tip of the wand 6-8’ (15-20 cm) away from the surface to clean at a 45°angle.

X
15 | Page
7528%/(6+227,1*
352%/(0&$86(&255(&7,21
Engine will not start (or stops
while operating)
1. Low-oil shutdown
2. Engine switch not in “ON”
position.
3. Pressure built up in the hose
1. Fill engine with SAE 10W-30 oil
2. Turn switch “ON”
3. Squeeze trigger while starting
If engine sounds abnormally, it
could be overloaded.
1. Nozzle partially blocked
2. Excessive pressure
1. Clean nozzle using nozzle cleaning
tool or paper clip
2. Shorten the spring coil of the reflux
valve
Engine is running but pump
won’t build maximum pressure or
has irregular pressure
1. Faucet closed
2. Unit has been stored in freezing
temperatures
3. Inadequate water supply
4. Water inlet screen clogged
5. Kink in garden hose
6. Wand tip worn or damaged
7. Air in pump
8. Engine speed not set to
maximum position
1. Open faucet
2. Thaw out unit completely including
hose, gun and wand.
3. Provide a minimum of 15L/Min 20
PSI
4. Clean screen
5. Straighten garden hose
6. Replace wand
7. Let it run with gun open and wand
removed until steady stream of water
is released
8. Set throttle to maximum position
No intake of chemicals 1. Injection tube not securely
inserted into unit
2. Tube cracked or split
3. Wrong nozzle
4. Injector dial turned off
5. Injection tube strainer clogged
6. Nozzle blocked
7. Clogged chemicals injector
1. Push firmly into injector fitting
2. Replace tube
3. Switch to low pressure nozzle
4. Turn collar counter-clockwise
5. Clean strainer
6. Clean nozzle
7. Dissolve by running warm water
Trigger will not move 1. Gun safety lock engaged 1. Release safety lock
Water in crankcase 1. High humidity
2. Worn seals
1. Change oil more frequently
2. Change the oil seals
Noisy operation 1. Worn bearings
2. Air mixed with water
1. Change the bearing
2. Check inlet lines for restrictions
and/or proper sizing
High crankcase temperatures 1. Wrong grade of oil
2. Improper amount of oil in
crankcase
1. Use SAE 10W-30 oil
2. Adjust oil level to proper amount
Rough/pulsating operating with
pressure drop
1. Inlet restriction
2. Air mixed with water
1. Check system for stoppages, air
leaks, correctly sized inlet, plumbing
to pump
2.Check inlet lines for restrictions
and/or proper sizing

X
MAINTENANCE
7!4%2).,%4&),4%2
sThis pressure washer is equipped with a
water inlet filter. 

sThis water filter must be kept clean at all
times or else it will restrict the water flow to
the pressure washer and may damage the
pump. 

sRemove the quick connect coupling from the
water inlet, then remove and clean water filter.
sDO NOT operate this pressure washer
without the water inlet filter in place as
deposits could build up internally and affect
the functioning of the unit.

 See in-store for replacement filters.







ENGINE MAINTENACE:
Engine Oil Replacement
sEngine oil should be replaced after the first 20 hours of operation or after the first month of use.
sIt should be replaced every 100 hours or 6 months.
sTo replace engine oil; Loosen the oil gauge dipstick(A). Place an oil
pan underneath drain hex bolt(B), remove hex bolt and drain oil.
Once all the oil has completely drained, retighten the hex bolt.
Recommended Engine Oil 
sIt is recommended to use SAE10W-30 4-stroke gasoline engine oil.
sFill with clean engine oil through the oil gauge dipstick hole to recommended level.
Inspecting, Replacing or Cleaning Spark Plug 
sThe spark plug should be checked every 100 hours of operation or every 6 months.
To replace or clean spark plug:
1) Dismantle the spark plug wire(A) by pulling it off the spark plug(B).
Using the supplied spark plug wrench, undo the spark plug by turning
counter clockwise.
 
2) Check to see if there is carbon sediment build-up, if so, remove it.
If the carbon sediment is excessive, replace the spark plug.
3) Measure the electrodes clearance using a feeler gauge. The spark plug electrode clearance should
be between 0.7-0.8 mm. If the clearance exceeds 0.8 mm, replace the spark plug. The original spark
plug supplied is an LG F7RTC, you can replace it with an NGK BP6ES spark plug or equivalent.
16 | Page

X
17 | Page
4) Reinstall spark plug in the reverse order.
PRESSURE WASHER STORAGE:
-If you plan on storing your pressure washer for an extended period of time, the following
steps should be followed:
1) Add fuel stabilizer to fuel tank to minimize the formation of fuel gum deposits during storage.
2) Run engine at least 5 minutes after adding stabilizer to allow it to enter the fuel system.
NOTE: If a fuel stabilizer is not used, all gasoline must be drained from the tank and carburetor to
prevent gum deposits from forming on these parts and causing possible malfunction of the engine
(see instructions on draining fuel below).
3) Drain engine oil from engine as described in “Engine Oil Replacement.”
4) Pour approximately one teaspoon of engine oil through the spark plug hole and pull the recoil
starter slowly until you feel increased pressure which indicates the piston is on its compression
stroke and leave it in this position. This closes both the intake and exhaust valves to prevent
the inside of the cylinder from rusting.
5) Use pressure washer antifreeze to ensure that your pump will not freeze during the winter and
to keep components lubricated for maximum efficiency. See instructions below on (Preventing
Freezing Damage).
6) Cover the pressure washer and store it in a clean, well ventilated
and dry place. Ensure storage area is at room temperature.
*** See in-store to purchase fuel stabilizer or pressure washer antifreeze.
-If you wish to drain the fuel instead of adding fuel stabilizer, please follow these steps:
1) Turn fuel shut-off valve to the “OFF” position, remove drain hex. bolt (A)from the carburetor(B).
2) Now turn fuel shut-off valve to the “ON” position and drain the fuel from the tank, carburetor and
hose.
3) Reposition the carburetor drain hex bolt once the fuel is completely drained.
PREVENTING FREEZING DAMAGE:
sIf your pressure washer is subjected to freezing temperatures, damage could occur. This type of
damage is not covered under warranty. To avoid possible damage, a small amount of antifreeze
can be used.
sPlace the unit on its side with the water inlet facing upwards,
pour 1/4 cup of antifreeze into the water inlet.
sDisconnect spark plug wire, and then pull recoil starter several times to circulate the antifreeze in
the pump system. Reconnect spark plug wire.
sIt is also important to make sure the wand and all hoses are disconnected and drained of all water
or they may burst.
sWhen taking pressure washer out of storage, run water through the system until it runs clear.

X
',$*5$0$1'3$576/,67






18 | Page


X
19 | Page
5HI1R'(6&5,37,2147<5HI1R'(6&5,37,2147<
1 Wand 1 24 Inlet quick connector 1
2 Gun 1 25 Drain pipe 1
3 Bolt M5*45 4 26 Circlip 2
4 Washer 5 14 27 Washer 16 2
5 Bolt M5*40 4 28 10" (25.4 cm) wheel 2
6 Nozzle 5 29 Wheel shaft 2
6-1 0° nozzle (red) 1 30 Spring gasket 8 4
6-2 15° nozzle (yellow) 1 31 Inner hex bolt M8*25 4
6-3 25° nozzle (green) 1 32 Washer 8 14
6-4 40° nozzle (white) 1 33 Spring wire 2
6-5 Detergent nozzle (black) 1 34 Clip 2
7 Nozzle grommet 5 35 High pressure pump 1
8 Gun holder 1 36 Locknut M6 2
9 Locknut M5 8 37 Inner hex bolt M8*40 4
10 Spring Lock 5 38 Rubber foot 2
11 Detergent bottle switch knob 1 39 Inner hex bolt M8*45 2
12 Detergent bottle switch seal ring 1 40 Locknut M8 6
13 Detergent bottle switch 1 41 Frame 1
14 Detergent bottle cap 2 42 Engine rubber isolator 1
15 Detergent bottle gasket 2 43 Bolt M6*40 2
16 Hose hook 1 44 Washer 6 4
17 6m high pressure hose 1 45 Gasoline engine 1
18 Detergent bottle 2 46 Handle 1
19 Bolt M5*12 2 47 Panel 1
20 Injection hose ˄short˅2 48 O ring for wand 1
21 Detergent bottle switch nut 1 49 O ring for gun 1
22 Injection hose ˄long˅1 50 Muffler shade 1
23 Thermal relief cap 1#Owner’s Manual
“#” Indicates a non-illustrated part.







Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
This product is covered by a 12 month warranty.
This warranty will not apply:
(i) where this product has been subjected to misuse, abuse, accident or want of care;
(ii) where this product has been used for a purpose for which it was not designed or is not
suited;
(iii) where the service of this product has been undertaken by a non-authorised person or
company or if non-approved parts have been used;
(iv) where this product has been used for industrial purposes.
Should service become necessary during the warranty period, the purchaser should contact an
Authorised Service Centre or J W Ross. In order to obtain warranty service, the purchaser must
present the store receipt showing the name of the retailer and the date of purchase.
The period of the warranty begins from the original date of purchase, notwithstanding any
subsequent repair or parts replacement.
Purchaser shall be responsible for all transport charges to and from the Authorised Service
Centre.
Damage in transit is not covered by this warranty. The purchaser should remove from the prod-
uct any liquids (if applicable) before sending the chain saw for service or repair. The chain saw
should be packed securely to prevent damage.
Warranty exclusions
Wear parts or service related parts required when performing normal and regular maintenance
of this product are not covered by warranty unless it is found to be defective by an Authorised
Service Centre. These include, but are not limited to:
Starter ropes, Spark Plugs, Carburettor Adjustments, Lubricants.
Engine Tune-ups, Filters.
Distributed in Australia by J W Ross and Sons ( Australia ) Pty Ltd.
PO Box 352 North Ryde BC, NSW, 1670
Inquiries phone [phone] The J.W. Ross policy is one of continuous improvement and
the company reserves the right to alter designs, colours and
specications without notice.
WARRANTY
ROSSPOWER RPPW2600
