Ross LN2DA100 User manual

Using a screwdriver tighten the securing
bolts onto the mount.
7
LN2DA100
Full motion
TV wall mount
Whilst every effort has been made to ensure that the provided screws are suitable for connecting the mount to the vast majority of
TV brands and models, Ross cannot be held responsible on the rare occasion that the supplied screws are not sufficient.
Contact us for more information at [email protected]
x1
x2
x4x4
Easy installation:
Scan for installation video
For more information visit:
www.ross.uk
x4
M4
1
Gx4
2
G
x4
1
H
x4
3
Gx4
4
G
M4 M5 M5
Dx4 Ex1 F
x1
I
x4
2
H
SET INCLUDES

H
E
1
H
1/2
G
2
H
G1/2/3/4
2
H
E
G3
1
H
E
G1

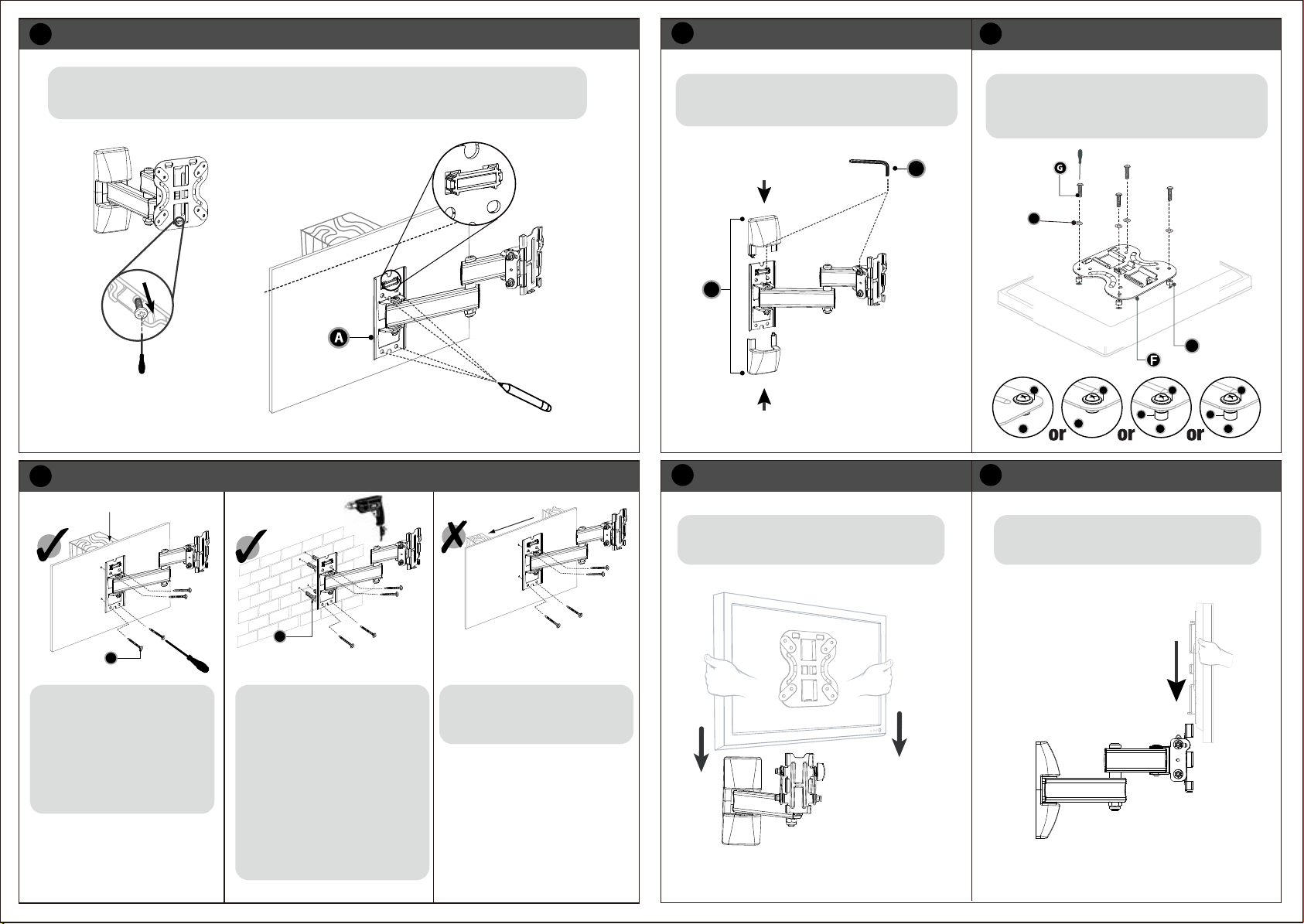

Loosen the secure bolt on
the bracket.
1
2
34
5 6
When selecting the position of the TV mount ensure that it is fixed onto a wooden joist or onto a solid
wall. Mark the wall where the fixing locations are ensuring that the mount will be mounted on to a flat
surface and is level.
Clip the covers (I) onto the base of the unit. Using the
provided Allen key (D) tighten the up the two angling
bolts to the appropriate angle required.
Hold each side of the TV with the hooks facing
away from you.
Slide the TV onto the bracket ensuring that the
TV is centered onto the mount.
Provided select the appropriate ones to hold the
hooks (G) onto the TV. Ensuring that the mounts are
facing the the top end of your TV screw the mounts
onto the TV ensuring not to over-tighten.
B
C
Using the provided self taping
screws (B) type. Holding the TV
mount starting in the one corner,
screw the provided screws (B) into
a wooden joist fixing the opposite
corners, until the mount is secure
onto the wall. Ensure all are tight
and secure.
When selecting the position of the TV
mount. ensuring that the mount will
be mounted on to a flat surface and is
level. Mark the wall where the fixing
locations are. Drill the holes using a
10mm masonry bit. Using a hammer
knock the the wall plugs (C) provided
into the wall. Holding the TV mount
start in the one corner screw the
provided screws (B) into the wall
fixing the opposite corners until the
mount is secure onto the wall. Ensure
all are tight and secure.
Ensure that the mount is fixed to a
solid object and not into plasterboard
on its own.
I
D
