ROSSMONT Waver Master WR-2CH User manual
OWNER'S MANUAL
Waver
TAKE CONTROL
Waver Master WR-2CH
Via Bellodo 18
36063 – Marostica (VI) - Italy
email: [email protected]
website: www.rossmont.com
facebook: www.facebook.com/rossmontitaly
made in Italy
ROSSMONT
Srl
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING –To guard against injury, basic safety precautions should be observed, including the
following:
If the appliance shows any sign of abnormal operation, immediately unplug it from the power
source.
If the appliance falls into the water, DON’T reach for it. First unplug it and then retrieve it. If
electrical components of the appliance get wet, unplug the appliance immediately.
Carefully examine the appliance after installation. It should not be plugged in if there is
water on parts not intended to be wet.
Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or if it
is dropped or damaged in any manner.
To avoid the possibility of the appliance plug or receptacle getting wet, position aquarium
stand and tank to one side of a wall mounted receptacle to prevent water from dripping onto
the receptacle or plug. A “drip loop” (see illustration) should be arranged by the user for
each cord connecting an aquarium appliance to a receptacle. The “drip loop” is the part of
the cord below the level of the mains supply socket or the connector (if an extension cord is
used), to prevent water traveling along the cord and coming in contact with the receptacle.
If the plug or receptacle does get wet, DON’T unplug the cord. Disconnect the fuse or circuit
breaker that supplies power to the appliance. Then unplug and examine for presence of
water in the receptacle.
Close supervision is necessary when any appliance is used by or near children.
To avoid injury, do not contact moving parts or hot parts such as heaters, reflectors, lamp
bulbs, etc.
Always unplug an appliance from an outlet when not in use, before putting on or taking off
parts, and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull
to disconnect.
Do not use an appliance for other than intended use. The use of attachments not
recommended or sold by the appliance manufacturer may cause an unsafe condition.
Do not install or store the appliance where it will be exposed to the weather or to
temperatures below freezing.
Make sure an appliance mounted on a tank is securely installed before operating it.
Read and observe all the important notices on the appliance.
If an extension cord is necessary, a cord with a proper rating should be used. A cord rated
for less amperes or watts than the appliance rating may overheat. Care should be taken to
arrange the cord so that it will not be tripped over or pulled.
As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit
fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Never
use with an extension cord unless plug can be fully inserted. Do not attempt to defeat this
safety feature.
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
n)
SAVE THESE INSTRUCTIONS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
DANGER - To avoid possible electric shock, special care should be taken since water is
employed in the use of aquarium equipment.
For each of the following situations, do not attempt repairs by yourself: return the appliance to an
authorized service facility for service or discard the appliance.
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
3
FCC COMPLIANCE STATEMENTS
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference,
and
2. this device must accept any interference received, including interference that may cause
undesired operation.
WARNING: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. (FCC § 15.21 -Information to
user)
(FCC§ 15.105 Information to the user statements)
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF EXPOSURE CONDITIONS
The user is cautioned to maintain a minimum distance of 20cm (8 inch) from the product to ensure
compliance with RF exposure requirements.
FCC Details
Applicant: Rossmont Srl
Model: Waver Master WR-2CH
Contains FCC ID: 2AGQLCWVU01A and FCC ID: 2AGQLCWVU01
Model: Waver Slave RF-2CH
Contains FCC ID: 2AGQLCWVU01
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
5
ENGLISH
GENERAL INTRODUCTION
Dear Customer, thank you for choosing this highend product, designed, assembled and tested in
Italy.
Waver is the new wireless controller for Rossmont aquarium equipment with the unique capability to
control in speed synchronous motors powered at Mains voltage.
In addition to be a DRIVER, this product has been conceived to be an AIO (All in One) INTERFACE
for Rossmont devices and a REMOTE SWITCHER.
The powerful software with a friendly-user GUI gives Aquarists the opportunity to live a real reef
simulation experience.
With the aim of continuous improvements, Rossmont R&D Dept will continue to develop new
firmware and software releases and it will be possible to update the product completely wirelessly
simply by downloading the latest version from our official website www.rossmont.com .
We ask you to read the following instructions to let you appreciate the product in all its potential.
A copy of this manual is freely downloadable from our website.
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
6
PRODUCT SAFETY GUIDE
• IMPORTANT: Prior to any operation you must verify the integrity of all parts of the product,
especially the cords and plug/sockets.
• To prevent any accidental electric shock, make sure the product is positioned in a safe and
dry place, protected from water, humidity, calcium and/or salt deposits
• Before using this product, check the data label on the bottom of the product and verify
that the operating voltage corresponds to your Mains voltage
• The product is intended for internal use only
• Do not install near any heat sources such as radiators, heat register, stoves, or other
apparatus that produces heat
• It’s possible to use the device at a temperature not higher than 35°C/95°F
• This device is compatible with Rossmont products only
• This device is intended for use as an aquarium equipment only.
• Do not connect any device which is not specifically intended for use with Waver otherwise
the warranty is voided.
• Do not attempt to power another Waver unit connecting it to the product cord extensions
sockets
• Clean only with dry cloth
• Unplug any electrical appliance connected to your aquarium before putting your hands in
water.
• It’s strongly recommended the wall socket is positioned at a higher level than the tank
to prevent the risk of water damages to electrical system. If this is not possible, verify the
lowest part of the cable is lower than the wall socket position: DRIP LOOP.
• In case the plug/socket were wet, please disconnect the general
switch
• Do not lift the product by the cord. Disconnect and connect the
unit only by grasping the plug.
• It’s necessary to power the product through a residual current
circuit-breaker system with a rated current not exceeding 30mA
• Do not connect the appliance if the power cord or one of the
extension cables is frayed or damaged. In this case it’s necessary to
replace the entire unit without trying to repair it
• The product is not intended for use by people with reduced sensory, physical or mental,
unless they are close supervised and instructed by a person responsible for their safety.
The controller is not a toy: do not allow children to play with it
• This guide will give you instructions for Waver device only. For Mover pumps or any other
Rossmont product please refer to the dedicated instruction manual
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
7
QUICK SETUP
1 – Plug the power cord into wall socket
2 - The system does a fast auto-checkup and the 3 LEDs will pulse. Wait until the central white LED
is stable.
3 – With your PC / Tablet / Smartphone Wifi turned on, view the list of available networks. Connect
to Waver’s Wifi Network Name (e.g. “Rossmont...”)
4- Open your web browser (e.g. Chrome, Safari, Firefox, etc...) and ensure it’s updated with the
latest version
5- Go to the address bar and type the following address:
6- Once the login screen appears, type user and password as following:
http://192.168.9.75
USER: rossmont
PASSWORD: waver
Once you've completed the login procedure the main screen will appear.
Enjoy your new Rossmont Waver
NOTE: To hard reset the Waver (in case you have lost your user or password), follow steps 1 to 2
then tap and hold the central capacitive button for 20 seconds.
IMPORTANT: The complete product manual is included in PDF format under CONFIGURATION ->
HELP or it is freely downloadable from www.rossmont.com under SUPPORT -> DOWNLOAD area
section.
Do not use the protection grid on the MX Models pumps with Waver.
MAINTENANCE
The product doesn’t require any particular maintenance but it’s important to keep surfaces clean
especially from humidity or dust deposits which could influence the correct operation of the
capacitive touch button.
To keep the surfaces clean, it’s enough to pass a soft dry cloth.
Do not use any kind of solvent or abrasive paper.
It’s recommended to clean the surface/environment where the product is positioned.
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
8
PARTS DESCRIPTION
FRONT
A. Capacitive touch button
B. White LED
C. Channels Blue LEDs
D. Power supply cable
E. Extension cables with
socket
REAR
F. 4x Service screws
(Warning: DO NOT try to open or
it voids warranty!)
G. Device data label
H. 4x holes for mounting screw
kit (optional accessory)
DATA LABEL INFORMATIONS
A. Model name
B. Product code
C. Input voltage (must correspond to your Mains voltage)
D. Rated Output voltage (must correspond to the connected device)
E. Max total load (maximum power absorption sum of applicable devices)
F. Product Serial ID
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
9
SOFTWARE

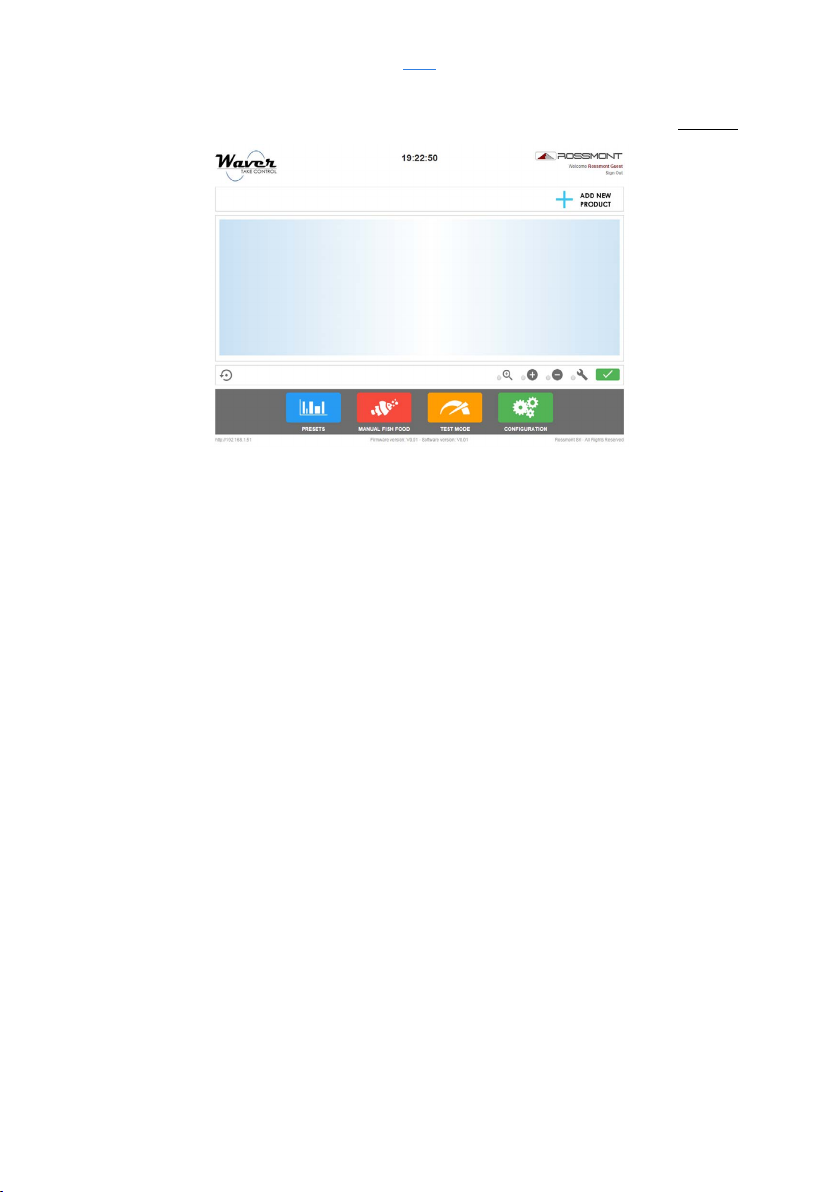

Once you've completed the login procedure the main screen will appear (see below an example).
CONFIGURATION (MENU)
TIME SETTINGS
To adjust the time
LOGIN CREDENTIALS
To set custom user and password for a safe access to the unit
NETWORK SETTINGS
It allows to configure infrastructure mode:
IP ADDRESS
It allows to change Waver’s IP address (especially in case you have to manage multiple units
included into a WLAN)
SUBNET MASK
It needs to be the same one of the modem/router at home
(e.g.1 router IP address: 192.168.1.1 Subnet mask: 255.255.255.0)
(e.g.2 router IP address: 10.0.0.1 Subnet mask: 255.0.0.0)
Don’t change it in case of Direct Access
GATEWAY
In case of remote access, type the IP address of the home modem/router (usually it’s 192.168.0.1 or
192.168.1.1 or 192.168.1.254... etc.)
TCP PORT
Set by default on port 80 (port 80 is omitted in the IP address)
If you set a different TCP port, in the web browser type the IP address followed by :# of TCP port
(e.g. If TCP port is set to 90 , IP address = 192.168.1.75:90)
DNS1 / DNS2
Only needed in case of technical support
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
10
WIFI SETTINGS
WIFI MODE:
• DIRECT ACCESS: set by default. The unit broadcasts its own SSID (wifi network name, e.g.
Rossmont106#####) and devices can connect directly to the Waver by searching the Wifi
among the available wireless networks list
• INFRASTRUCTURE: the unit can be inserted into an existing WLAN (WiFi router required) and
it’s also possible to access it remotely if the WLAN is connected to Internet (modem required)
How to insert Waver into a WLAN - Infrastructure Mode
IMPORTANT: Save ONLY at the end of all steps (otherwise you will have to reset Waver by tapping
touch button for 20 sec)
• Click on CONFIGURATION menu, Network Settings, in the IP Address 192.168.9.75 replace the
9 (this number is called CLASS IP) with the same number of your home router/modem (usually
0 or 1 or 2)
• Click on WIFI SETTINGS, select INFRASTRUCTURE, then insert your home WiFi SSID (the
name of your home wireless network), the type of password (usually WPA2) and the password
of your home network
• Save the changes made
The Waver will be then rebooted and you will be able to connect to your home WLAN network
and have access to Waver through the address modified in the first step (e.g. 192.168.0.75 or
192.168.1.75)
NOTE: Multiple Waver units inside WLAN must have different IP Addresses.
(e.g. Waver1= 192.168.1.75 Waver2= 192.168.1.77 Waver3= 192.168.1.84)
WIFI CHANNEL:
It allows to change the integrated wifi module transmission channel
PROTECTION:
It switches between SSID password encryption modes
SSID:
Name of the wifi network broadcast by the Waver
NOTE: It’s recommended to customize this parameter especially if you have to manage more Master
units.
PASSWORD:
Password to access SSID
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
11
UPDATE FIRMWARE
IMPORTANT: for this operation the device COULD necessarily erase all custom data and bring the
unit to factory default configuration. Please refer to release note to understand if this will occur
before making any change.
This updates the internal flash memory of the device. The firmware contains all the hardware
instructions and it's important to keep this updated with the latest version recommended by
Rossmont.
New firmware versions could contain improvements for existing products, general hardware
improvements, bug fixes, and/or even the required informations to drive new Rossmont devices.
Visit the www.rossmont.com download area section to freely download the latest firmware version.
UPDATE SOFTWARE
This only updates the software with latest improvements and it's important to keep this updated with
the latest version recommended by Rossmont.
This "soft" update will not erase the custom data inserted, including graph and configurations.
Visit the www.rossmont.com download area section to freely download the latest software version.
HELP (INSTRUCTION MANUAL)
It contains the full instruction manual of the product. When a new firmware or software version is
released, a new instruction manual version is released too and it will be automatically included
under this section.
RESET TO FACTORY DEFAULT
It resets the unit to factory default configuration.
User and password are set to:
USER: rossmont
PASSWORD: waver
Every slave connection is interrupted and the wifi connection mode is brought to DIRECT ACCESS.
The device IP is set to 192.168.9.75
SAVE AND CLOSE
This saves all the customizations in configurations
EXIT WITHOUT SAVING
It brings back to the main screen
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
12
EDIT THE GRAPH
The vertical axis shows the relative % of the speed of the pumps while the horizontal axis shows the
time of the day.
The program is automatically repeated every day at midnight.
NOTE: the minimum relative speed % that can be assigned is 1%.
To completely switch off a product channel please apply an OFF preset (see paragraph "PRESETS")
To add a new point on the graph, select the ADD icon and then click on the desired point of the
graph.
It is possible to delete a point by selecting the DELETE icon and then click on the point which
has to be deleted
The EDIT icon allows to correct the position of a point in the graph.
The ZOOM icon allows to operate on a shorter time period. Once selected, draw a window on
the desired time period and the graph will be refreshed with the zoom on the portion previously
selected.
To reset the zoom to its original scale click on RESET ZOOM on the bottom right area of the graph.
Once completed operations on the graph, click on APPLY icon to apply the program.
It's possible to reset the graph by clicking on the RESET GRAPH icon on the left.
• Please plug the Rossmont device into the channel extension cable socket.
• Click on "ADD PRODUCT" (during this process the unit will automatically search for
additional Waver Slave channels)
• Select the correspondent model of device you're connecting
IMPORTANT: Do not attempt to operate a different model than the one actually connected
• Assign a description which will help you to recognise the product in case of multiple
devices connected
• You can delete the added product by simply clicking on the icon
• You can show on/off the graph curve of the device by simply clicking on the icon
ADD A NEW PRODUCT
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
13
PRESETS
Presets are conceived to bypass the curve of the graph without the need to edit the points. Each
preset has its own function and configurable parameters and they can be added or deleted in any
moment.
All presets are adjustable in duration by setting the START TIME and the END TIME
The table below shows the 6 different presets:
PRESET ICON DESCRIPTION ADJUSTABLE PARAMETERS
FIXED The pump is operated
at a stable speed. POWER: pump speed %
FISH FOOD The speed is set to
minimum power
-
OFF
The channel is totally
switched off. At the
end of preset the pump
will be operated at
maximum power for
a few seconds then it
normally continues to
follow the graph
-
CYCLE
Loop alternations from
min to max power.
Minimum pulse duration
of 0,5 sec
% MIN: pump speed % at minimum
% MAX: pump speed % at maximum
T MIN (sec): duration in seconds for stable
speed at MIN level
T MAX (sec): duration in seconds for
stable speed at MAX level
T RISE (sec): transition time in seconds to
pass from MIN to MAX
T FALL (sec): transition time in seconds to
pass from MAX to MIN
RANDOM
Automatic transitions
from MIN to MAX with
random durations from
10 sec to 10 minutes.
It simulates the weather
change process.
% MIN: pump speed % at minimum
% MAX: pump speed % at maximum
STORMY
Automatic transitions
from MIN to MAX with
random durations from
0,5 sec to 10 sec.
It simulates the high
water movement during
a storm.
% MIN: pump speed % at minimum
% MAX: pump speed % at maximum
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
14
PRESETS OPTIONS
Presets can be assigned to more than one pump simultaneously by flagging the checkbox of the
correspondent name.
In addition to regular operation, a preset can also operate INVERTED: by flagging this checkbox, the
selected pump will be "mirrored" on the basis of a 50% power line (vertical axis).
e.g. A RANDOM preset is set to 20%. With INVERTED checkbox flagged the pump will operate to
80%.
Starting from FW 1.1.0 version by flagging INVERTED in Preset Cycle the pump will work with the
same percentages min/max(%) but mirrored between themselves and not on the basis of 50%
power line.
e.g.
min: 20% max: 80%
CH1 = min: 20% max: 80%
CH2 INVERTED = min: 80% max 20%
Each preset is customizable with a different color selectable from the color palette on the right.
Once completed the customization of a preset click on SAVE button to apply it on the graph.
To delete a preset, click on EDIT and then on DELETE
To exit from presets editor click on CLOSE.
MANUAL FISH FOOD
This button is an easy-to-access manner to bring all the connected pumps at minimum level for the
feed operation.
It's set for a standard duration of 5 minutes then the unit automatically continues the program.
TEST MODE
This mode lets you check if the pumps have been set as you desired. By clicking this button the
whole 24h program will be reproduced in 5 minutes.
After this period the unit automatically continues the program.
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
15
CAPACITIVE TOUCH BUTTON
The Waver unit has a buit-in safe capacitive touch button for some operations. By tapping and
holding it, the white LED in the center of the unit flashes every second.
NOTE: It's important to keep the area of the button clean from dust or humidity which could
compromise the correct button responsiveness.
The next table shows all the functions:
TAP & HOLD
TIME FUNCTION DESCRIPTION
2 sec FISH FOOD
It brings all the connected pumps (including those
connected to all Waver Slaves) at minimum level for
the feed operation.
It’s set for a standard duration of 5 minutes then the
unit automatically continues the program.
To manually exit this mode tap & hold again the
capacitive button for 1 second.
6 sec MAINTENANCE
Conceived for pumps maintenance. It interrupts the
output current on channels without shutting down the
whole unit. While this function is active it’s possible
to unplug the connected devices from the extension
cables.
This function is operated only on the Waver unit
where the capacitive touch button is pressed.
To manually exit this mode tap & hold again the
capacitive button for 1 second.
20 sec HARD RESET
It resets the unit to factory default configuration. User
and password are set to:
USER: rossmont
PASSWORD: waver
Every slave connection is interrupted and the wifi
connection mode is brought to DIRECT ACCESS.
The device IP is set to 192.168.9.75
3 sec
(available only
on WAVER
SLAVE
RF-2CH)
SLAVE CONNECTION
This function is available only when a MASTER unit is
searching for a SLAVE channel to add.
When clicking on ADD PRODUCT, the SLAVE search
time will last for 15 seconds.
Once the registration is completed the SLAVE device
will remain linked to MASTER unit.
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
16
LIMITED WARRANTY
This product is granted against defects in material and workmanship for a period of 24 months from
the date of purchase.
Any claim due to an incorrect installation or operation, improper use or alteration by the buyer, lack
of maintenance, improper repair attempt or the action of the frost are excluded.
This warranty is limited to the repair or replacement of the product at Rossmont discretion.
This warranty does not cover personal injury, property loss, including livestock or damage (direct,
incidental, or consequential) arising out of use of this product.
Some states do not allow the exclusion or limitation of incidental or consequential damages or
exclusions of implied warranties, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights that vary from state to
state.
According to the law it's your right to return the product to your dealer in the original packaging for
the purpose of repair or replacement, accompanied by a purchase receipt (recording the date of
purchase) and a detailed motivation of your complaint. The shipping forward and return expenses
are in charge of the buyer.
Rossmont reserves the right to make technical changes, especially for the benefit of security.
DISPOSAL (ref. Directive 2012/19/EC)
The symbol of the crossed wheeled bin indicates that the product, at the end of
its useful life shall not be disposed with other household waste. Home users will
be able to return the unusable product to retailers who provide this service or to
recycling centers for the proper disposal as an electrical and electronic equipment
waste. This simple action will help to protect the environment and the sustainable
reuse of resources.
ONE LAST NOTE FOR YOU
We're aiming for products focused on Quality with the mission to elevate the value of the "Made in
Italy" brand worldwide. By our side this is the real opportunity to follow each production process in
first person, with the certainty that this will increase the reliability level in the aquarium market.
We don't leave nothing to the chance and every detail makes the difference: our work begins from
the design and it only ends with your satisfaction, which is our best prize.
For any further information on our Company or products, please visit our website www.rossmont.
com and join our Facebook page at www.facebook.com/rossmontitaly.
Share with us your experience with our products: you're always welcome!
Thank you
The founders
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
17
ITALIANO
INTRODUZIONE GENERALE
Gentile Cliente, grazie per aver scelto questo prodotto di eccellenza, progettato, assemblato e
collaudato in Italia.
Waver è il nuovo controller senza fili per apparecchi Rossmont con la capacità unica di controllare
in velocità motori sincroni alimentati a tensione di rete.
Oltre a essere un driver, questo prodotto è stato concepito per essere una INTERFACCIA AIO (All in
One) per dispositivi Rossmont e un interruttore da remoto.
Il potente software con interfaccia grafica di facile utilizzo permette all’acquariofilo l’opportunità di
vivere una vera e propria esperienza di simulazione del reef.
Nell’ottica del miglioramento continuo, il dipartimento di ricerca e sviluppo Rossmont continuerà
a sviluppare nuove versioni firmware e software e sarà possibile aggiornare il prodotto
completamente wireless, semplicemente scaricando l’ultima versione dal nostro sito ufficiale
www.rossmont.com.
Le chiediamo di leggere le seguenti istruzioni per poter apprezzare il prodotto in tutte le sue
potenzialità.
Una copia di questo manuale è scaricabile gratuitamente dal nostro sito.
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
18
NORME DI SICUREZZA
• IMPORTANTE: Prima di ogni operazione verificare l’integrità di tutte le parti del prodotto,
specialmente i cavi e le spine/prese.
• Per prevenire qualsiasi rischio di shock elettrico accidentale, assicuratrsi che il prodotto sia
posizionato in un luogo sicuro ed asciutto, protetto da acqua, umidità, calcare e/o depositi
salini
• Prima di usare questo prodotto, controllare i dati dell’etichetta sul fondo del prodotto e
verificare che il voltaggio operativo corrisponda al voltaggio della vostra rete elettrica
• Il prodotto si intende solo per uso interno
• Non installare accanto a fonti di calore quali termosifoni, stufe o altri apparati che producano
calore
• E’ possibile usare il dispositivo a temperature non superiori ai 35°C/95°F
• Questo dispositivo è compatibile unicamente con prodotti Rossmont
• Questo dispositivo si intende solo come apparecchio per acquari
• Non connettere nessun dispositivo che non sia specificatamente inteso per l’uso con Waver
altrimenti la garanzia non è valida
• Non cercare di alimentare un’altra unità Waver connettendola alla presa sulla prolunga del
prodotto
• Pulire solo con un panno asciutto
• Staccare qualsiasi apparecchio elettrico collegato al vostro acquario prima di mettere le mani
in acqua.
• Si raccomanda che la presa murale sia posizionata ad un livello superiore rispetto alla vasca
per evitare il rischio che l’acqua danneggi l’impianto elettrico. Se ciò non è possibile, verificare
che la parte più bassa del cavo sia più in basso rispetto alla presa:
DRIP LOOP.
• Nel caso in cui la spina / presa risultino bagnati, interrompere l’interruttore
generale
• Non sollevare il prodotto afferrandolo per il cavo. Scollegare e
collegarel’apparecchio solo afferrando la spina.
• È necessario alimentare il prodotto attraverso un sistema corrente
interruttore differenziale con una corrente non superiore a 30mA
• Non collegare l’apparecchio se il cavo di alimentazione o una delle
prolunghe risulta sfilacciato o danneggiato. In questo caso è
necessario sostituire l’intera unità senza tentare di ripararla.
• Il prodotto non è destinato all’uso da parte di persone con ridotte capacità sensoriali, fisiche o
mentali, se non sono sorvegliate e istruite da una persona responsabile della loro sicurezza.
• Il controller non è un giocattolo: non permettere ai bambini di giocare con esso
• Questa guida vi darà istruzioni per dispositivo Waver solo. Per pompe Mover o di qualsiasi altro
prodotto Rossmont fare riferimento al manuale di istruzioni dedicato
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
19
CONFIGURAZIONE RAPIDA
1 - Inserire il cavo di alimentazione nella presa a muro
2 - Il sistema esegue un veloce check-up e i 3 LED lampeggeranno. Attendere che il LED bianco
centrale sia stabile.
3 - Con il WiFi del PC / Tablet / Smartphone acceso, visualizzare l’elenco delle reti disponibili.
Connettersi al nome della rete Wifi di Waver (ad esempio “Rossmont ...”)
4- Aprire il browser web (es. Chrome, Safari, Firefox, ecc ...) e assicurarsi che sia aggiornato
all’ultima versione
5- Andare alla barra degli indirizzi e digitare il seguente indirizzo:
6- Una volta che la schermata di login appare, digitare utente e password come di seguito:
http://192.168.9.75
USER: rossmont
PASSWORD: waver
Una volta completata la procedura di login viene visualizzata la schermata principale.
Buon divertimento con il nuovo Rossmont Waver
NOTA: Per l’hard reset del Waver (nel caso in cui si perdano utente o password), seguire i passi da 1
a 2 poi toccare e tenere premuto il pulsante capacitivo centrale per 20 secondi.
IMPORTANTE: Il manuale completo del prodotto è incluso in formato PDF sotto CONFIGURATION ->
HELP o è gratuitamente scaricabile dal sito www.rossmont.com sotto SUPPORTO -> DOWNLOAD.
MANUTENZIONE
Il prodotto non richiede alcuna manutenzione particolare, ma è importante mantenere pulite le
superfici specialmente da umidità o depositi di polvere che potrebbero influenzare il corretto
funzionamento del pulsante capacitivo.
Per mantenere le superfici pulite, è sufficiente passare un panno morbido e asciutto.
Non utilizzare alcun tipo di solvente o carta abrasiva.
Si consiglia di pulire la superficie / ambiente in cui il prodotto viene posizionato.
Non usare la griglia di protezione sui modelli MX con Waver.
Firmware Ver. 1.1.3+
Software Ver. 1.0.6+
INDEX
20
DESCRIZIONE DELLE PARTI
FRONTE
A. Tasto capacitivo
B. LED bianco
C. LED blu dei canali
D. Cavo alimentazione
E. Prolunga con presa
RETRO
F. 4x viti di servizio
(ATTENZIONE: NON provare ad
aprire o la garanzia decade!)
G. Etichetta dati del dispositivo
H. 4x fori per kit viti di montag-
gio (accessorio opzionale)
INFORMAZIONI SULL’ETICHETTA DATI TARGA
A. Nome del prodotto
B. Codice del prodotto
C. Tensione di alimentazione (deve corrispondere a quella della vostra rete elettrica)
D. Tensione di uscita nominale (deve corrispondere a quella del dispositivo connesso)
E. Carico totale massimo (somma dell’assorbimento massimo di potenza dei dispositivi
applicabili)
F. Identificativo seriale del prodotto
Other manuals for Waver Master WR-2CH
1
Table of contents
Languages:
Other ROSSMONT Controllers manuals
