ROTECNA FEEDING BALL User manual

FEEDING BALL
13 0 0 5 10 1 - Manual FEEDINGBALL EN - rev.00 - 10.2017
OPERATING AND
INSTALLATION INSTRUCTIONS

Edición 2017 2
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
1. MANUFACTURING STANDARDS AND CONTROLS................................................. 3
2. DECLARATION OF CONFORMITY....................................................................................5
3. RECOMMENDATIONS .............................................................................................................7
3.1 SAFET Y .................................................................................................................................8
3.2 CLEANING AND MAINTENANCE .........................................................................8
4. PRESENTATION ...........................................................................................................................9
4.1. FEEDING BALL ...............................................................................................................10
4.2 RECOMMENDATIONS FOR USE OF THE FEEDING BALL ......................11
5. TECHNICAL DATA....................................................................................................................12
5.1 MODELS............................................................................................................................13
5.2 ACCESSORIES .................................................................................................................15
6. INSTALLATION ..........................................................................................................................17
6.1. FEEDING BALL ASSEMBLY ......................................................................................18
6.2 ASSEMBLY OF ROD ................................................................................................... 20
6.3 ASSEMBLY of the LID for THE FEEDING BALL HOPPER..........................21
6.4 COMBINATIONS of the FEEDING BALL with ACCESSORIES................ 22
7. START-UP AND OPERATION ............................................................................................. 23
7.1 START-UP...........................................................................................................................24
7.2 MAINTENANCE OF THE FEEDING BALL BODY........................................... 25
8. GUIDE TO PROBLEM-SOLVING........................................................................................27
9. POINTS OF SALE AND MAINTENANCE SERVICE ...................................................27
Read the instructions
CONTENTS
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com

FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
1. MANUFACTURING STANDARDS AND CONTROLS

Edición 2017 4
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
MANUFACTURING STANDARDS AND CONTROLS
This manual is for informative purposes.
The purpose of this manual is to provide information about
the characteristics of the products sold by ROTECNA, and to
facilitate their installation. Under no circumstances may this
information override the applicable regulations on installa-
tions in any country; therefore the installer responsible for
the assembly of ROTECNA products must do so in accor-
dance with the corresponding regulations.
FEEDING BALL
Product manufactured in accordance with specific standards, and verified
according to manufacturing controls.
Read the instructions.
Rotecna Product.
Appliance manufactured under the ISO9001 Quality System.
It complies with the applicable regulations in accordance
with European Directives
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com

FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
2. DECLARATION OF CONFORMITY

Edición 2017 6
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
DECLARATION OF CONFORMITY
Declaración del Fabricante
En el contexto de las Directivas 2006/42/CE nosotros:
According to the Regulation 2006/42/CE, We:
ROTECNA, S.A.
Polígon Industrial - Camí vell de Tàrrega, s/n, nave-3
25310 Agramunt (Lleida) España
Tel: [phone] - Fax: [phone]
www.rotecna.com
Declaramos bajo nuestra exclusiva responasabilidad que los productos:
Declare under our sole responsability that the products:
Modelo / Model FEEDING BALL soporte plástico FEEDING BALL soporte inox
Referencia / Reference 13005000 13006000
a los cuales se reere esta declaración son conformes a las siguientes normas u otros documentos normativos/
mentioned in the declaration, is in conformity with the following standards or other normative documents
• * Según el anexo II, tipo B, de la Directiva de máquinas 98/37 / CEE, 91/368 / CEE, 93/68 / CEE
• * According to Annex II type B of the machinery directive 98/37/CEE, 91/368/CEE,93/68/CEE
Siguiendo lo dispuesto en la Directiva:
According to the declaration of the Regulation:
• * EN 60034-1-2004, EN 60335-1: 2002 + A11: 2004 + A1: 2004 implementado por Directiva 73/23/EEC y modificada
(2006/95 / EEC).
• * EN 60034-1-2004, EN 60335-1: 2002 + A11: 2004 + A1: 2004 implemented by Directive 73/23/EEC, as amended
(2006/95/EEC).
Agramunt, 20 de Junio de 2017 Sr. Máximo Olivas. Director General
Agramunt, 20th of June, 2017 Rotecna, s.a.
Lugar y fecha de emisión Nombre y firma o BRAND equivalente de la persona autorizada
Place and date of emision Name and signature or equivalent marking of autorized person
Manufacturer’s declaration
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com

FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
3. RECOMMENDATIONS

Edición 2017 8
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
1. Adjustments to the different system components must be performed with the proper safety equipment:
2. The system can be used with most feeds currently commercially available. Other feed mixes may disturb the functio-
ning of the system.
3.1 SAFETY RECOMMENDATIONS
VERY IMPORTANT!

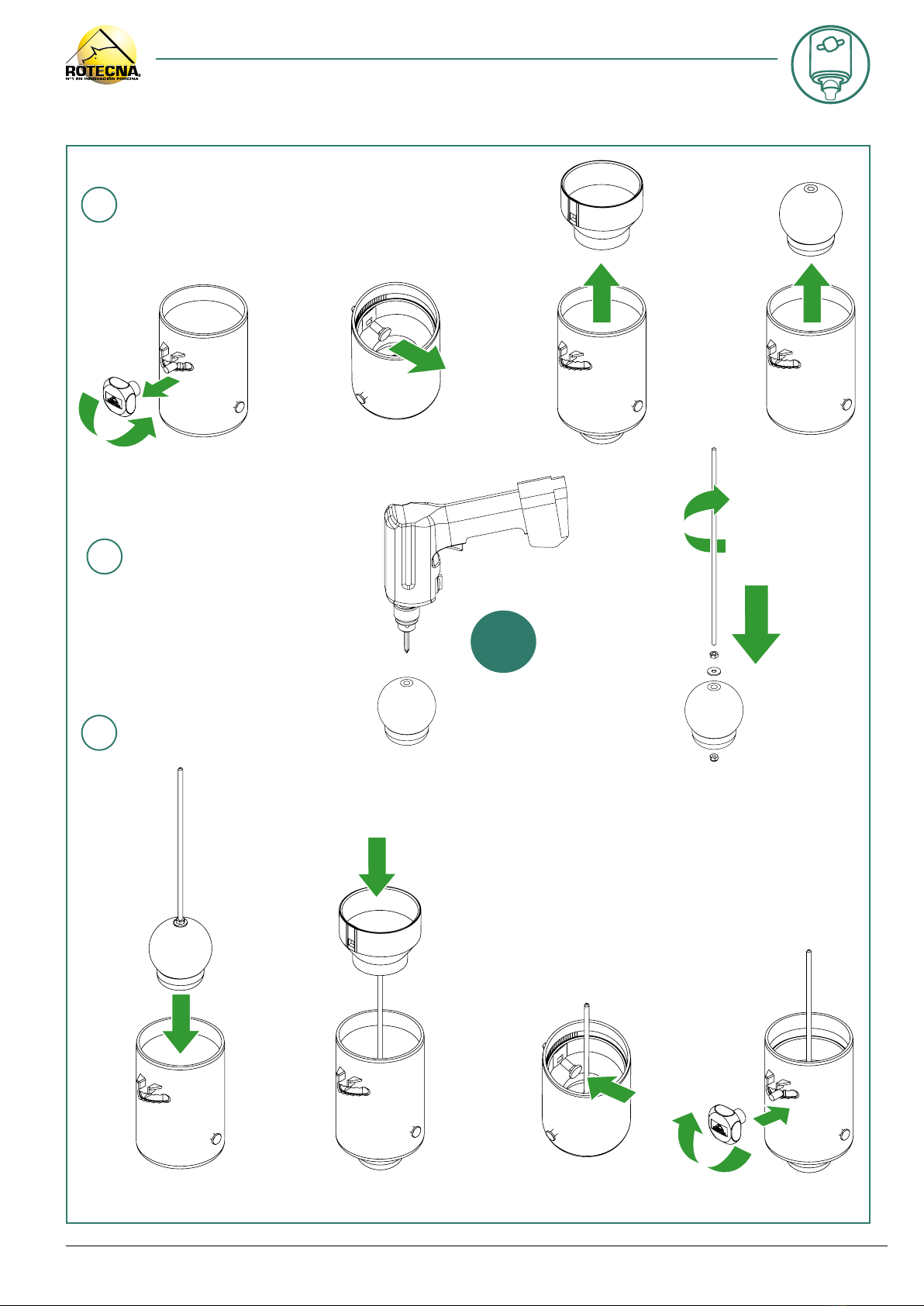

3.2 CLEANING AND MAINTENANCE
1. The Feeding Ball mechanism can be fully dismantled for cleaning.
2. Do not clean the system with corrosive products.
3. Avoid the use of water when there is feed inside.
4. After cleaning the mechanism it must completely dried before being filled.
5. Once a year, check the condition of the points susceptible to possible wear.
3. RECOMMENDATIONS
MONTHLY QUARTERLY HALF-YEARLY ANNUALLY
Check the movement of the ball X
Check that the handle is securely fixed at the desired height X
Check that there is no obstruction in the downpipe of the hopper X
Recommendations for optimal maintenance of the system:
Note:
The user must ensure the maintenance and preservation of all the identication signs and warning
plates included with the product. Under no circumstances are they to be removed or modied.
It is obligatory
to wear gloves
in the operating
area.
It is obligatory
to wear eye
protection.
It is obligatory to
wear a protective
mask in the ope-
rating area.
It is obligatory
to wear suitable
footwear in the
operating area.
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com

FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
4. PRESENTATION

Edición 2017 10
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
The Feeding Ball is a slow flow feeder, especially designed for fe-
eding nursing sows, although it can also be used in the weaning-
breeding period. It allows the animal to be fed in a restricted man-
ner or at will.
The pig farmer decides what amount of feed will fall each time the
sow activates the mechanism’s ball, controlling the amount falling
using an adjustment system.
Sows adapt very easily to the mechanism, given that the move-
ment that they need to make to activate it is similar to the move-
ment they make when rooting. Another important characteristic
of the system is that the animal has fresh feed 24 hours a day and
can eat small portions of feed whenever it likes, which prevents
feed being wasted and increases the consumption of sows at night
during warm periods.
With the correct use of the Feeding Ball, we can obtain the fo-
llowing advantages: maximising the consumption of sows during
lactation, less loss of weight and physical form of the sow, greater
weight of the piglets at weaning, less feed waste and less depen-
dency on labour and working hours. Its use in the weaning-bree-
ding period results in good follicular development, which will result
in more and better oocytes, therefore obtaining larger and more
homogeneous litters.
4.1 ROTECNA FEEDING BALL
4. PRESENTATION
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com

Edición 2017 11
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
• Adaptation: Most sows usually learn to eat without any help. However, with some sows (mostly first-timers) it is necessary to
teach them how to eat. To do this, by simply touching the mechanism they can see and learn how it works.
• Opening of the mechanism: In the entrance of the animals (mostly first-timers), the recommendation is for the mechanism
to be fully open so that the sows associate touching the ball with the fall of the feed.
• Feeding programme: Although the adjustments will depend on genetics and the running of each farm, one possible feeding
regime is:
• Birth day - day 6 postpartum: Phased increase in the daily consumption of feed.
• Day 7 - weaning: At will feeding, so the sow can decide when and how much she wants to eat. To avoid the change from day 6 to day 7
being so abrupt, it is advisable to limit the food available on day 7 postpartum, or in other words, to not allow feeding completely at will.
Instead, for example, you could give 5 kg in the morning and 5 kg in the afternoon, so that greedy sows do not eat too much.
If it is seen that a sow does not eat well during the first week, when it is phased, it is possible to delay the feeding at will stage until
the sow is considered to be ready or, if appropriate, continue with the progressive increase until weaning.
• Before supplying feed it is advisable to carry out the following checks/actions:
1. Consumption of feed. Check whether the sow has eaten its last portion (rationed) or has eaten about the same as the other
sows in the pen (at will) (check the remaining feed in the feeder and Feeding Ball kit).
1. Acumulación de pienso en el comedero. Se mirará si los comederos están más o menos vacíos o hay pienso/agua acumu-
lado. En caso de haberlo, es imprescindible comprobar si el pienso sobrante está bueno o agrio. Cuando el pienso está malo
hay que tirarlo. Cuando la alimentación es ad libitum y la cerda acumula pienso en el comedero, hay que ajustar la apertura
del mecanismo. Si hay mucha agua acumulada también se aconseja sacarla y dejar sólo un poco (con la válvula de nivel VRH-
3 se aconseja dejar un nivel de 2/3 cm. de agua en el comedero) para que la cerda coma pastado.
4.2 RECOMENDACIONES EN EL USO DEL FEEDING BALL
4. PRESENTATION
CHECK
CHECK
RESPONSE
RESPONSE
ACTION
ACTION
Has the sow eaten?
YES
NO
Give it the appropriate portion
Check:
• Whether the feed is falling
• Whether there is water
• Whether the sow is sick (mastitis, metritis,…)
Take the
appropriate
measures
2. Build-up of feed in the feeder. Check to see whether the feeders are largely empty or there is a build up of feed/water If
this is the case, it is essential to check whether the remaining feed is good or has gone off. If the feed has gone off it needs
throwing away. When the feeding is at will and the sow accumulates feed in the feeder, the opening of the mechanism must
be adjusted. If there is also too much water building up, it is advisable to remove this and only leave a little (with the VRH-3
level valve it is advisable to leave a level of 2/3 cm of water in the feeder) so that the sow can graze.
Adjust the opening of the Feeding Ball.
Check the condition of the feed, especially
in summer. If it is not in the best possible
condition you must THROW IT OUT.
Remove the necessary water so that the sow
can eat well.
Give it the appropriate portion.
Does the sow have a
build-up of feed/water
in the feeder?
Feed with
water or feed
Only water
YES
NO
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com

FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
5. TECHNICAL DATA

1
2
3
4
6
5
109
138,5
9
12
12
112
40
162,5
161
Edición 2017 13
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
5.1 MODELS
5. TECHNICAL DATA
FEEDING BALL (plastic suport) 13005000
CODE FEED CAPACITY
liters
EMPTY WEIGHT
(gr) SUITABLE FOR
13005000  1.060 DRY FOOD FOR MATERNITY AND
BREEDING CONTROL
TECHNICAL DATA
EXPLODED VIEW
BRAND CODE DESCRIPTION AMOUNT
113005001 Bracket Kit (Plastic bracket) 1
213000010 Adjustment silo boot FB 1
313000070 FB Ball New 1
413001010 Body Feeding Ball 1
5NEGR10X25I Screw 10x25 STAINLESS STEEL 603 1
613005018 Handle M10 Dispenser 1
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com

1
2
3
45
6
Edición 2017 14
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
5. TECHNICAL DATA
5.1 MODELS
FEEDING BALL (stainless steel suport)
13006000
CODE FEED CAPACITY
liters
EMPTY WEIGHT
(gr) SUITABLE FOR
13006000  2.930 DRY FOOD FOR MATERNITY
AND BREEDING CONTROL
TECHNICAL DATA
EXPLODED VIEW
BRAND CODE DESCRIPTION AMOUNT
1 13002000 FB BRACKET KIT STAINLESS STEEL SUPORT 1
213000010 Adjustment silo boot FB 1
313000070 FB Ball New 1
413001010 Body Feeding Ball 1
5NEGR10X25I Screw 10x25 STAINLESS STEEL DIN603 1
713005018 Handle M10 Dispenser 1
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com

ø70
ø118
806
ø80
681
ø78
ø117,5
ø125
3
2
1
4
1
2
3
4
Edición 2017 15
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
5. TECHNICAL DATA
5.2 ACCESSORIES
FEEDING BALL KIT DISPENSER Ø125 (8.5l) 13 0 05011
FEEDING BALL KIT DISPENSER Ø80 (4l) 13005015
CODE FEED CAPACITY
liters
EMPTY WEIGHT
(gr)
13005011 8,5 1.060
13005015 4
TECHNICAL DATA
EXPLODED VIEW
BRAND CODE DESCRIPTION AMOUNT
1 A0000235 Clamp 120-140 DIN3017 1
213005003 Connector to Feeding Ball 1
313005005 Transparent tube Ø125x545 1
413005004 Anti-vibration adapter 1
BRAND CODE DESCRIPTION AMOUNT
1 13000030 Reduction 70-80 FB 1
213000060 Feeding Ball Tube (700mm) 1
3ABRALINE75 Line clamp of 75 1
413000020 Reduction 11280 FB 1
13005011 FEEDING BALL KIT DISPENSER Ø125
13005015 FEEDING BALL KIT DISPENSER Ø80
13005011
FEEDING BALL KIT
DISPENSER Ø125
13005015
FEEDING BALL KIT
DISPENSER Ø80
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com

408
163
Ø100
249
330
6
1
2
3
4
230
110
114
2
Edición 2017 16
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
5. TECHNICAL DATA
5.2 ACCESSORIES

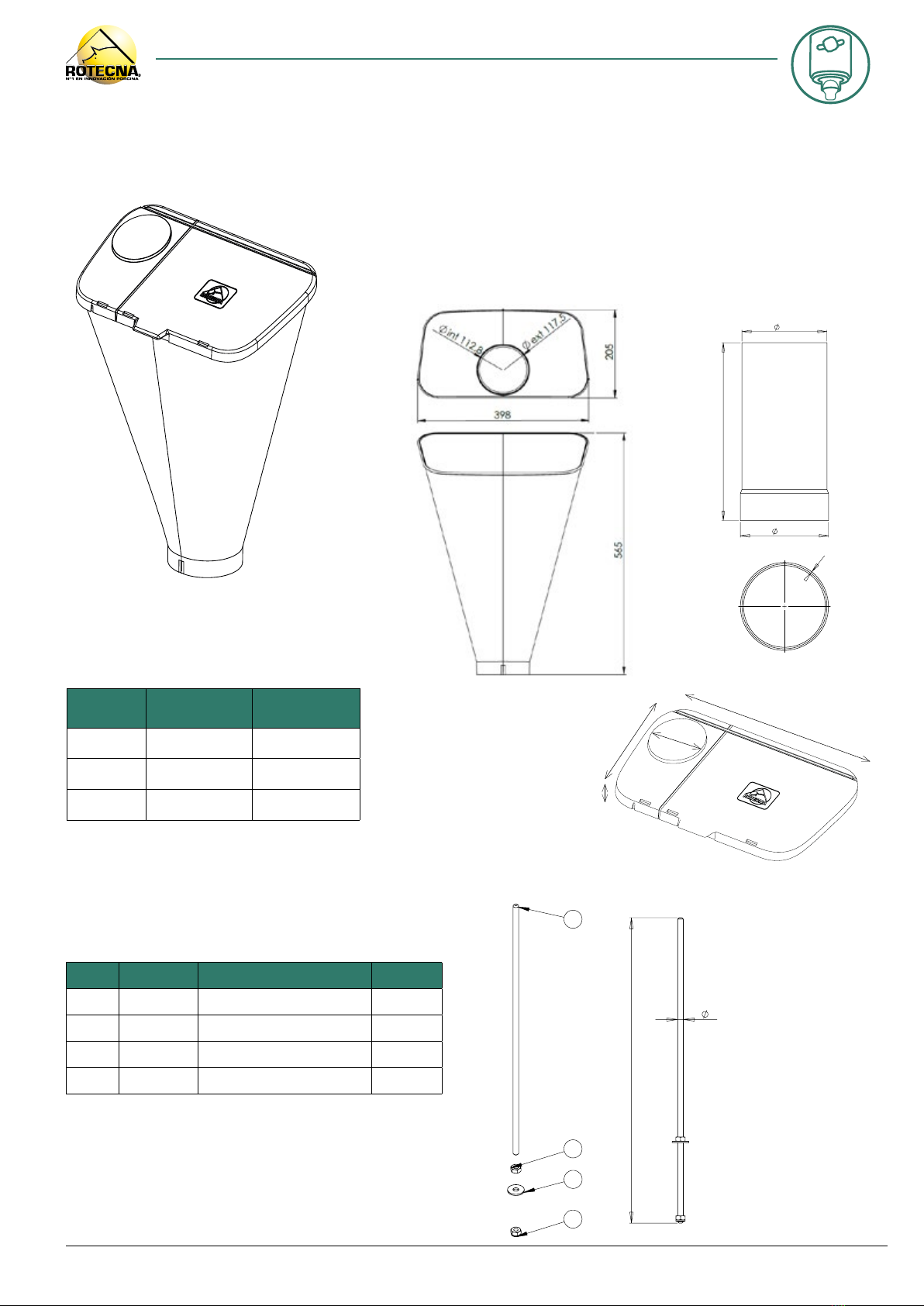

HOPPER for FEEDING BALL (15l) 13005010
LID for the FEEDING BALL HOPPER 21100001
HOPPER EXTENTION for FEEDING BALL 13006010
ROD KIT FB 13000095
LID for the FEEDING BALL HOPPER
21100001
HOPPER for FEEDING BALL
13005010
HOPPER EXTENTION
for FEEDING BALL
13006010
BRAND CODE DESCRIPTION AMOUNT
1 1300301 Rod FB nished 1
2FEMELLAM6I M6 Stainless steel DIN934 lock nut 1
3VOLANDM6AI Washer M6 902 stainless steel 1
4AUTOBLOC6I M6 Inox 985 Autobloc 1
TECHNICAL DATA
EXPLODED VIEW
CODE FEED CAPACITY
liters
EMPTY WEIGHT
(gr)
13005010 15 940
21100001 -
13006010 250
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com

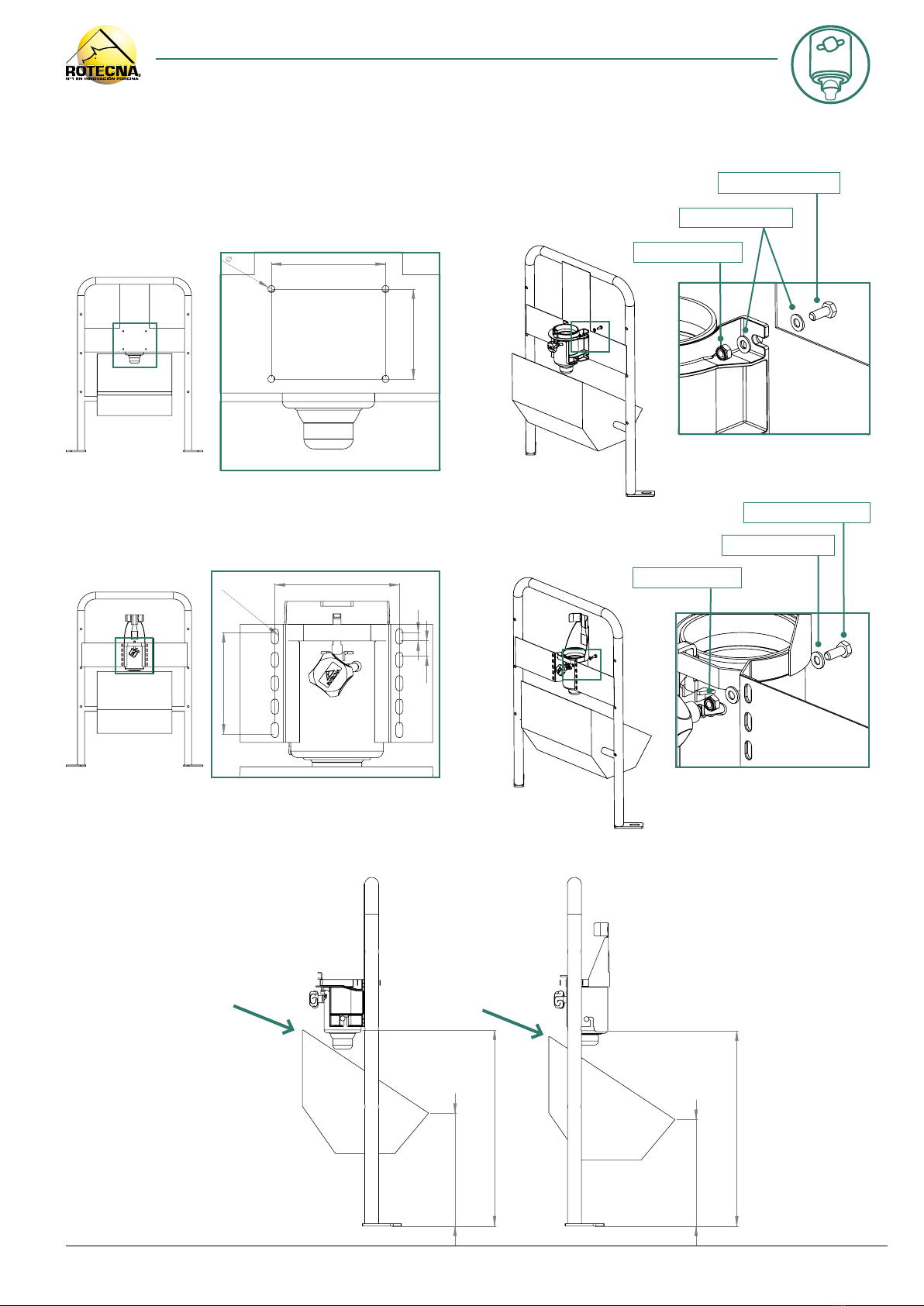

FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
6. INSTALLATION

20 mm
Edición 2017 18
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
6.1 ASSEMBLY OF THE FEEDING BALL
6. INSTALLATION
1. Install the Feeding Ball at the front of the farrowing pen.
2. The handle must be facing outwards.
FEEDING BALL (plastic suport)
13005000
FEEDING BALL (plastic suport)
13005000
FEEDING BALL (stainless steel suport)
13006000
FEEDING BALL (stainless steel suport)
13006000
It is recommended to place the opening
of the FEEDING BALL below the highest
part of the feeder.
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com

300 - 330 mm
630 - 670 mm
300 - 330 mm
630 - 670 mm
E
9
138,5
109,1
151,1
10
18,4
Ø9
123,5
(*) (*)
Edición 2017 19
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
6. INSTALLATION
3. It can be placed in the centre of the feeder or on one
side to leave room for the drinking bowl.
6.1 MONTAJE DEL FEEDING BALL
4. Position the Feeding Ball depending on whether the bracket is plastic or stainless steel.
FEEDING BALL (plastic suport) 13005000
FEEDING BALL (plastic suport) 13005000
FEEDING BALL (stainless steel suport) 13006000
FEEDING BALL (stainless steel suport)
13006000
4 x M8x25 INOX DIN933
4 x M8x25 INOX DIN933
4 x M8 INOX DIN985
4 x M8 INOX DIN985
8 x M8 INOX DIN9021
4 x M8 INOX DIN9021
Positioning measurements:
(*) The highest part of the feeder
must always be above the Feeding
Ball.
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com

A.
B.
C.
Ø 9mm
Edición 2017 20
FEEDING BALL • OPERATING AND INSTALLATION INSTRUCTIONS
6.2 ROD KIT FB 13000095
Remove the ball from
inside the Feeding Ball.
Assemble the rod Kit FB.
Mount the Feeding Ball.
6. INSTALLATION
ROTECNA, S.A. -Tel. [phone]· e·mail: [e-mail] · www.rotecna.com
