RITEWAY F Series Installation and operation manual

3
SECTION 1 PAGE
INTRODUCTION & MANUAL INFORMATION 1,2
PRE-DELIVERY INSPECTION / NOTES 3
SPECIFICATIONS 4,5
SERVICE AND WARRANTY INFORMATION 6,7
SAFETY SUGGESTIONS 8
DECAL LOCATIONS 9,10
MAINTENANCE / GREASE LOCATIONS 11,12
OPERATING NSTRUCTIONS 13-18
ASSEMBLY INSTRUCTIONS 19-28
GRADE CHART 29
TORQUE CHART 30
SECTION 2 PAGE
PARTS 1-30
HYDRAULIC SCHEMATICS 31-40
DESIGN LAYOUT OF ALL MODELS 41-45

1
We are pleased to welcome you as an owner of a product from RITE WAY
MFG. This machinery is the culmination of years of agricultural and engineering
experience and has been designed to deliver you with many years of successful
operation service.
For the most efficient operation of your LAND ROLLER we have provided this
owner’s manual. In this manual we have included proper maintenance and func-
tional procedures to offer maximum longevity for your new equipment. Before op-
erating we urge a careful study of this manual to provide a thorough understanding
of your new LAND ROLLER. We also recommend that you take care of this man-
ual so it will be available for future reference. Should your manual become lost or
destroyed a new copy can be obtained from your Rite Way Manufacturing deal-
er. We will also be happy to answer any questions you might have concerning the
use or care of this product.
Rite Way Manufacturing Co. Ltd.
P.O. Box 328
Imperial, Saskatchewan, Canada
S0G 2J0
PH: 306-963-2180
Fax: [phone]
Web Site: www.ritewaymfg.com
Email: [email protected]
Thank you for making the decision to purchase a RITE WAY product!

2
Unit Model Number Forward Fold Land Roller
Manual Revision Number 1.6
Manual Revision Date October 2020
Manual Serial Number Range 18-3178 to Current
Owner / Equipment Information
Serial Number of Unit
Date of Purchase
Dealer Name
Dealer Address
Dealer Phone Number
Salesman Name
Salesman Phone Number
Notes
The area below is provided for the owner / end-user to make notes regarding the equipment.

3
Pre-delivery Inspection Completed By (Sign Below) Pre-delivery Inspection Confirmed By (Sign Below)
 Remove wrapping and wash unit, removing all road debris. (Road salt, mud, snow, etc.)
 Inspect paint, decals and general appearance of unit.
 Verify that the owners manual is in the manual storage tube.
 Verify ‘SLOW MOVING VEHICLE’ sign (SMV) is on unit
 Verify that jacks are with the unit and function properly.
 Check wheel bolts for proper torque.
 Check for proper tire pressure (PSI).
 Verify that the wheel hubs are lubricated.
 Verify that locking pins and / or ram locks are in place.
 Lubricate all components as per operators manual recommendation.
 Check that all bolts and fasteners are at the proper torque specifications.
(NOTE: All cap screws that have lock nuts joining moving pieces should not be tightened completely,
they must allow movement. i.e. Spring pressure kits, rock shaft connector, draft arm, etc.
 Check sprocket alignment and chain tension. (If applicable)
 Check locking collars and set screws for proper tension. (If applicable)
 Verify operation of lights. (If applicable)
 Verify the unit moves ‘IN’ and ‘OUT’ of transport without any binding.
 Verify that tires are tracking properly when in transport mode.
 Insure that all hydraulic hoses and lines are routed properly and secured.
 Verify that all hydraulic fittings / hoses are secure and there are no oil leaks.
 Inspect all cylinders for leakage and the cylinder shaft for rust, pits, or scratches.
 Verify operation of all hydraulic functions - Cycle hydraulic cylinders to remove air from the system.
 Verify that ‘The customer is aware of warning decals and proper jack placement for transport.’.
 Verify that ‘The customer is aware of proper operation and transportation of the unit’.
 Verify that ‘The customer has received an operators manual’.
 Explain all maintenance and service intervals to the customer (From operators manual).
 Advise the customer of grease zerk locations and maintenance schedules.
 Level the unit per operators manual and instruct the customer on the proper procedures.
 Verify that the center harrow section has been rotated to working position.
 Level the unit per operators manual and instruct the customer on the proper procedures.

4
• Standard unit requires - 4 Hydraulic Banks.
• Heavy duty hydraulic cylinders.
• Zinc plated steel hydraulic lines
• Heavy Duty Wing Frame:
• 6” x 4” x 0.250” (150 mm x 100 mm x 6 mm)
• Heavy Duty Centre Frame:
• 8” x 6” x 0.250” (200 mm x 150 mm x 6 mm)
• Acremeter kit
• Highway Tires
• Mud Scraper Kit
• Wing Tie Bar (F3)
• 5/8” Wall Drums
• 42” diameter; 0.65” wall thickness
• Patented FORWARD™ unfolding system
• Auto-fold hydraulic wing lock
• Adjustable hitch height c/w perfect hitch clevis
• Dual wing transport tires
• Over-center wing lockups
• Triple Lip Seal Bearings
• Large diameter drum with premium heavy wall:
• 42” diameter; 0.50” wall thickness (1067mm x 13mm)
• Taper lock replaceable drum shafts
• Wing tie bar (F5 & F7)
• Safety Chains
• Adjustable Hitch Height c/w Perfect Hitch Clevis
• Light Kit

5
F3 - 3 Section Land Roller
MODEL WORKING
WIDTH WING CONFIGURATION TRANSPORT LENGTH
TRANSPORT
WIDTH
WEIGHT 1/2”
DRUM
WEIGHT 5/8”
DRUM
F3-32 32’ 10’-12’-10’ 38’ 14’ 17,640 lbs 19,560 lbs
(9.8 m) (3.1 m-3.6 m-3.1 m) (11.6 m) (4.3 m) (8,001 kg) (8,872 kg)
F3-36 36’ 12’-12’-12’ 40’ 14’ 19,000 lbs 21,160 lbs
(11.0 m) (3.6 m-3.6 m-3.6 m) (12.2 m) (4.3 m) (8,618 kg) (9,598 kg)
F3-42 42’ 15’-12’-15’ 45’ 14’ 21,220 lbs 23,740 lbs
(12.8 m) (4.5 m-3.6 m-4.5 m) (13.7 m) (4.3 m) (9,625 kg) (10,768 kg)
F3-46 46’ 17’-12’-17’ 47’ 14’ 22,910 lbs 25,670 lbs
(14.1 m) (5.2 m-3.6 m-5.2 m) (14.3 m) (4.3 m) (10,392 kg) (11,644 kg)
F3-52 52’ 20’-12’-20’ 50’ 14’ 24,400 lbs 27,520 lbs
(15.8 m) (6.1 m-3.6 m-6.1 m) (15.2 m) (4.3 m) (11,068 kg) (12,483 kg)
F3-40 NT 40’ 15’-10’-15’ 45’ 12’ 20,600 lbs 23,000 lbs
(12.2 m) (4.5 m-3.1 m-4.5 m) (13.7 m) (3.7 m) (9,344 kg) (10,433 kg)
F3-50 NT 50’ 20’-10’-20’ 50’ 12’ 23,100 lbs 26,100 lbs
(15.2 m) (6.1 m-3.6 m-6.1 m) (15.2 m) (3.7 m) (10,478 kg) (11,839 kg)
F5 - 5 Section Land Roller
MODEL WORKING
WIDTH WING CONFIGURATION TRANSPORT LENGTH
TRANSPORT
WIDTH
WEIGHT 1/2”
DRUM
WEIGHT 5/8”
DRUM
F5-46 46’ 8’-8’-12’-8’-8’ 47’ 4” 14’ 23,000 lbs 25,640
(14 m) (2.4 m-2.4 m-3.6 m-2.4 m-2.4 m) (14.4 m) (4.3 m) (10,433 kg) (11,630 kg)
F5-50 50’ 10’-8’-12’-8’-10’ 49’ 4” 14’ 24,800 lbs 27,680
(14.4 m) (3.1 m-2.4 m-3.6 m-2.4 m-3.1 m) (15.0 m) (4.3 m) (11,249 kg) (12,555 kg)
F5-54 54’ 10’-10’-12’-10’-10’ 51’ 4” 14’ 26,490 lbs 29,610
(16.4 m) (3.1 m-3.1 m-3.6 m-3.1 m-3.1 m) (15.6 m) (4.3 m) (12,016 kg) (13,431 kg)
F5-58 56’ 12’-10’-12’-10’-12’ 53’ 4” 14’ 28,478 lbs 31,838
(17.7 m) (3.6 m-3.1 m-3.6 m-3.1 m-3.6 m) (16.2 m) (4.3 m) (12,917 kg) (14,441 kg)
F5-62 62’ 12’-12’-12’-12’-12’ 55’ 4” 14’ 30,250 lbs 33,850
(18.9 m) (3.6 m-3.6 m-3.6 m-3.6 m-3.6 m) (16.9 m) (4.3 m) (13,721 kg) (15,354 kg)
F5-68 68’ 4” 12’-15’-12’-15’-12’ 61’ 6” 14’ 32,620 lbs 36,580
(20.8 m) (3.6 m-4.5 m-3.6 m-4.5 m-3.6 m) (18.7 m) (4.3 m) (14,796 kg) (16,592 kg)
F5-74 74’ 15’-15’-12’-15’-15’ 64’ 6” 14’ 35,520 lbs —
(22.5 m) (4.5 m-4.5 m-3.6 m-4.5 m-4.5 m) (19.7 m) (4.3 m) (16,112 kg)
F5-78 78’ 17’-15’-12’-15’-17’ 66’ 6” 14’ 37,440 lbs —
(23.7 m) (5.2 m-4.5 m-3.6 m-4.5 m-5.2 m) (20.3 m) (4.3 m) (16,983 kg)
F5-84 84’ 20’-15’-12’-15’-20’ 69’ 6” 14’ 40,320 lbs —
(25.6 m) (6.1 m-4.5 m-3.6 m-4.5 m-6.1 m) (21.2 m) (4.3 m) (18,289 kg)
F7 - 7 Section Land Roller
MODEL WORKING
WIDTH WING CONFIGURATION TRANSPORT LENGTH
TRANSPORT
WIDTH
WEIGHT 1/2”
DRUM
WEIGHT 5/8”
DRUM
F7-65 65’ 8’-8’-8’-12’-8’-8’-8’ 59’ 8” 14’ 32,500 lbs —
(19.8 m) (2.4 m-2.4 m-2.4 m-3.6 m-2.4 m-2.4 m-2.4 m) (18.2 m) (4.3 m) (14,742 kg)
F7-69 69’ 10’-8’-8’-12’-8’-8’-10’ 61’ 8” 14’ 33,740 lbs —
(21.0 m) (3.1 m-2.4 m-2.4 m-3.6 m-2.4 m-2.4 m-3.1 m) (18.2 m) (4.3 m) (15,304 kg)
F7-73 73’ 10’-10’-8’-12’-8’-10’-10’ 62’ 6” 14’ 35,040 lbs —
(22.3 m) (3.1 m-3.1 m-2.4 m-3.6 m-2.4 m-3.1 m-3.1 m) (19.0 m) (4.3 m) (15,894 kg)
F7-77 77’ 12’-10’-8’-12’-8’-10’-12’ 65’ 8” 14’ 36,960 lbs —
(23.5 m) (3.6 m-3.1 m-2.4 m-3.6 m-2.4 m-3.1 m-3.6 m) (20.0 m) (4.3 m) (16,765 kg)
F7-81 81’ 12’-10’-10’-12’-10’-10’-12’ 67’ 8” 14’ 38,718 lbs —
(26.7 m) (3.6 m-3.1 m-3.1 m-3.6 m-3.1 m-3.1 m-3.6 m) (20.6 m) (4.3 m) (17,562 kg)
F7-85 85’ 12’-12’-10’-12’-10’-12’-12’ 69’ 8” 14’ 39,950 lbs —
(25.9 m) (3.6 m-3.6 m-3.1 m-3.6 m-3.1 m-3.6 m-3.6 m) (21.2 m) (4.3 m) (18,121 kg)
F7-89 89’ 12’-12’-12’-12’-12’-12’-12’ 71’ 8” 14’ 41,190 lbs —
(27.1 m) (3.6 m-3.6 m-3.6 m-3.6 m-3.6 m-3.6 m-3.6 m)(21.8 m) (4.3 m) (18,683 kg)

6
Rite Way Manufacturing Co. Ltd. (hereafter referred to as Rite Way) warrants each new ma-
chine to be free from defects in materials and workmanship for a period of one (1) year from date of
purchase under normal agricultural use and service. In addition, Rite Way will supply at no charge,
(F.O.B Rite Way Factory) any part that has failed within the 2nd year. Rite Way’s obligation under this
warranty is limited to the repair or replacement of any defective parts of the equipment at its own dis-
cretion.
Any alterations, modifications or additions done to a finished product will void this warranty
unless prior written permission from Rite Way is obtained.
Items that are not manufactured by Rite Way are covered by the warranty of the supplier of
these items. We will therefore extend, without assuming any responsibility, any warranty given to us by
our suppliers.
This warranty shall-not apply to any machine, that in the company’s judgment has be subjected
to misuse, negligence or accident. In no event shall the owner be entitled to recover costs for inci-
dental, special or consequential damages such as, but not limited to; Loss of crop, loss of profit or rev-
enue, other commercial losses, inconvenience or rental costs.
This warranty shall not apply unless Rite Way or its designated dealer is promptly notified of
claimed defects and the allegedly defective part is held for inspection.
Repair parts purchased for machines ‘Out of Warranty’, are warranted to be free from defects in
material and workmanship under normal use and service for a period of ninety (90) days from the date
of delivery to the customer.
The warranty shall only become valid when delivery notification for warranty is received by Rite
Way within 20 days of the completion of sale.
OWNER’S / USERS OBLIGATION: It is the responsibility of the user to read the Operators Manual and
understand the safe and correct operating procedures as it pertains to the operation of the product,
and to lubricate and maintain the product according to the maintenance schedule in the Manual.
The user is responsible for inspecting the machine, and for having parts repaired or replaced
when continued use of the product could cause damage or excessive wear to any other parts. It is the
user’s responsibility to deliver their machine to a Rite Way dealer for service or replacement of defec-
tive parts which are covered by the standard warranty.
Rite Way will not by held responsible for charges such as transportation, fuel, lodging when a
dealer / dealer representative travels to a customer location for warranty or inspection.

7
1. All claims must be handled through a dealer / distributor. All claims must be submitted on a proper-
ly completed claim form within 30 days of the date of repair.
2. A warranty registration claim form must be on file at Rite Way Mfg. to validate a warranty claim.
3. Defective parts are to be held at the dealer / distributor’s place of business until the warranty claim
form has been processed. Rite Way will advise when parts can be released.
4. Parts that require inspection by Rite Way personnel must be accompanied by a Return Goods
Form number, and must be sent by pre-paid freight. Rite Way will refund pre-paid freight charges
on any items determined to be defective.
5. Rite Way will not assume responsibility for repairs or expenses incurred without authorization. War-
ranty labour in excess of $150.00 must be authorized before such work is performed and photo-
graphs before and after repairs are required.
6. Warranty labour is to be claimed on the warranty claim form, only if the warranty labour was per-
formed by the dealer. Travel time is not covered by warranty and should not be included. Rite Way
reserves the right to adjust or allocate labour times and values based on its experience.
7. It is the responsibility of the dealer to ensure that the warranty registration forms are properly com-
pleted and returned to Rite Way Mfg., Imperial, SK.

8
1. Read manual thoroughly before operating machine.
2. Study all warning decals on implement.
3. Most accidents occur because of neglect or carelessness.
4. Do not allow riders on the tractor or implement during operation.
5. Do not allow children on or near the machine.
6. Connect the implement hitch to the tractor before operating the hydraulic system.
NOTE: Be aware of any hydraulic leaks.
7. Always throttle the tractor down and use caution when connecting the implement to the tractor
hitch.
NOTE: Never stand between the tractor and implement.
8. Ensure that safety chains are in place prior to transporting.
9. Ensure that all transport lock pins are secured in place prior to transport.
10. DO NOT lower unit in transport position or swing arm / draft arm damage will occur.
11. Lower the hitch jack onto firm ground and chock the tires when un-hooking implement from tractor.
NOTE: Ensure the unit is on level ground prior to un-hooking tractor.
12. Exercise extra caution when working on hillsides or near ditches.
13. Ensure that the tractor draw-bar is pinned during transport.
14. Maximum speed while transporting the LAND ROLLER is 30 mph (48 km/h).
15. Do not work on this machine when hydraulic system is under pressure.
16. Ensure that the Roller is lowered to the ground before doing any work on machine.
NOTE: If it is necessary to work on machine with the Roller drums raised, ensure that
cylinders are locked in position.
1. Observe all laws and regulations when transporting unit on public roads.
2. Do not transport this machine on public roads unless all safety & maintenance checks have been
completed.
3. Ensure the tires are inflated to the correct pressure:
12.5L-15 : 90 psi
380/55 R16.5 : 70 psi
235/75 R17.5 : 125 psi
This machine will provide years of trouble-free & safe operation IF
all maintenance and safety instructions are followed.

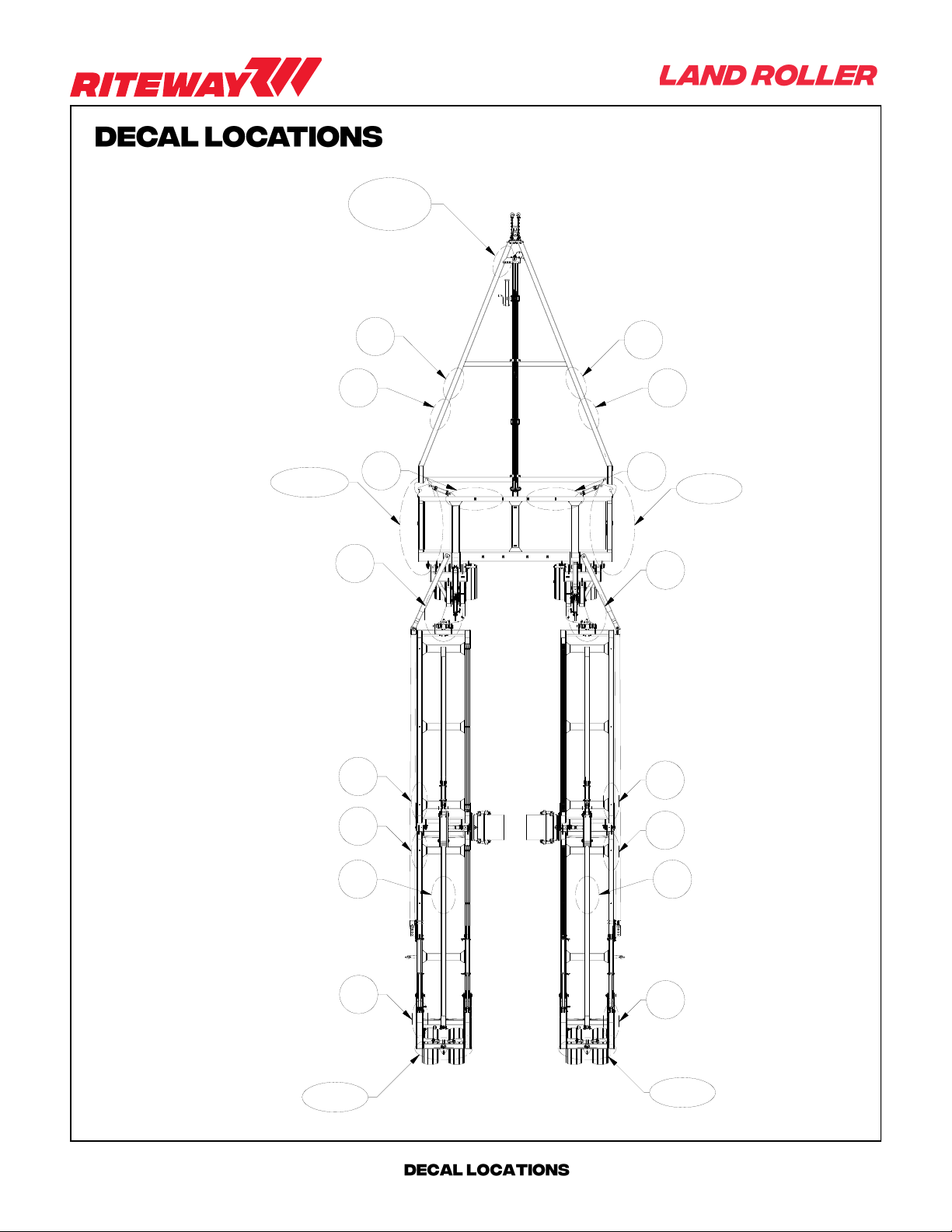

9
11
88
2, 3, 5, 7,
9, 10
11
1,6,8,12 1,8,12
1,8
1
1
1,8
1
1
4,8,12 4,8,12
11
11
11
15
15

10
FFS-52 21-0001
1060-0009 Amber Reflector (3 x 2) 16
2060-0011 Caution - Escaping Fluid Hazard... 1
3060-0015 Important - Block Wheels... 2
4060-0022 Red Reflector (3 x 2) 4
5060-0028 Warning - Lower or Block Elevated... 2
6060-0034 Riteway Serial Number Plate 1
7060-0038 Attention - Insure That All Cylinders Are Retracted... 1
8060-0046 Grease Every 8 Hours 1
9060-0061 Important - Hydraulic Hose Application (Three Color) 1
10 060-0067 Warning - Check And Tighten Hub... 1
11 060-0121 Riteway Mfg. (Large Decal, 31 x 5 - White) 2
12 060-0108 www.ritewaymfg.com - (1” x 20”) 2
13 060-0032 R (Load Jobs Only) as required 2
14 060-0033 L (Load Jobs Only) as required 2
15 060-0095 Warning—Turns of more than 45º…2

11
• Repack the wheel hubs after the first 500 kilometres of travel ; then yearly thereafter.
• Visually inspect the wheel bolts for tightness each day. Torque to 110 ft lbs. (149 Nm) after the first
few hours of operation and frequently thereafter.
• Ensure the tires are inflated to the correct pressure:
12.5L-15 : 90 psi
380/55 R16.5 : 70 psi
235/75 R17.5 : 125 psi
• Grease all pins and knuckles. (See decals locations)
• Grease harrow chain bearings.
• Visually inspect hydraulic hoses & fittings for leaks or damage.
• Inspect wheel bearings / hubs for tightness and grease.
• Check wheel bolts for tightness and re-torque.
• Visually inspect unit for loose, worn or damaged components.
• Coat any exposed cylinder shafts with thick oil or grease.
• Ensure that parking jacks are situated on firm ground. Failure to do so may cause the hitch to rise
sharply as the jack pads sink into the ground.
• Lock all applicable safety pins into place.
NOTE: All fasteners with locknuts that are used to join moving pieces should not be
tightened completely to allow for movement.

12
EVERY 8 HRS
EVERY 8 HRS
EVERY 8 HRS
EVERY 8 HRS
Grease should be applied to both sides of the machine.

13
NOTE: Always choose a level area when folding unit either into or from transport position.
NOTE: Lubricate all pins, axles and bearings regularly to prevent premature failure of compo-
nents. (See Page 14 Section 1 for lubrication diagram).
NOTE: Maximum field operating SPEED OF the LAND ROLLER is 8 mph (13 km/h).
Above this speed damage can occur and will not be covered by warranty.
• Move tractor into position where pin can be dropped into place through draw bar hitch.
NOTE: Use a clevis type tractor hitch with a retained type of hitch pin.
• Retract parking jack and secure in transport position prior to moving the machine.
NOTE: Ensure that parking jack handle is secured by chain prior to moving the machine
(Failure to do so may damage the jack handle).
NOTE: Clean hydraulic hose ends prior to coupling with tractor hydraulic system.
• Ensure that the roller sections are either; Fully raised in transport position, or Fully lowered into
field position.
NOTE: If the Roller is in transport position, ensure that all lock pins are in place.
• Chock block all tires front and back before disconnecting from the tractor.
NOTE: Failure to properly block unit may result in damage or injury. Negative hitch
weight may result if tires are not blocked properly in position.
• Lower parking jack (s) into position, lowering until roller hitch is raised off of the tractor clevis.
NOTE: Ensure that the jack is placed on firm ground prior to un hooking.
• During field operation, always make turns so that the inside wing drum continues to rotate. Sharp
turns will increase the stress applied to the auto-fold system & inside wing drum and may cause
damage to the unit.

14
1. When entering the field from transport, find a location that is as level as possible and stop the trac-
tor / roller.
2. Remove all wing axle safety lock pins and tee lock pins.
3. While moving forward in low gear, feather wing axle wheels by activating the hydraulic steering cyl-
inders to maximum angle (approximately 45 degrees) - the slow moving sign will indicate the posi-
tion.
4. Continue to drive forward slowly, wings will open to about 45 degrees, Stop.
5. Feather wing axle wheels back to straight (transport) position while backing up.
6. Continue to back up until the draft arms / swing arms move into the cam lock sockets.
7. Activate the hydraulics to lower the unit (roller drums) to the ground, hold hydraulic lever until the
wing axles are fully raised.
NOTE: Ensure that all wing transport locks are fully open and draft arm lock is fully closed.
NOTE: F3 (3 Section Roller) does not use / require wing transport lock.

15
1. Bring unit to a complete stop in a level area of the field.
2. Use hydraulic system to raise drums / lower wing axle & walking axle.
• NOTE: Ensure that all wing cam locks are fully engaged.
• NOTE: Ensure that draft arm locks are fully retracted / released.
3. Slowly drive forward until wings have moved into transport position.
4. Replace all safety lock pins and tee lock pins.
5. Unit is ready for road transport.
• NOTE: Ensure safety chains are properly attached to tractor and lighting system has
been activated.
