Rotel RMB-1075V02 User manual

Table of Contents
Specification
Specification.....................................1
Parts List..........................................2~7
Adjustment....................................... 8
Note On Safety................................. 8

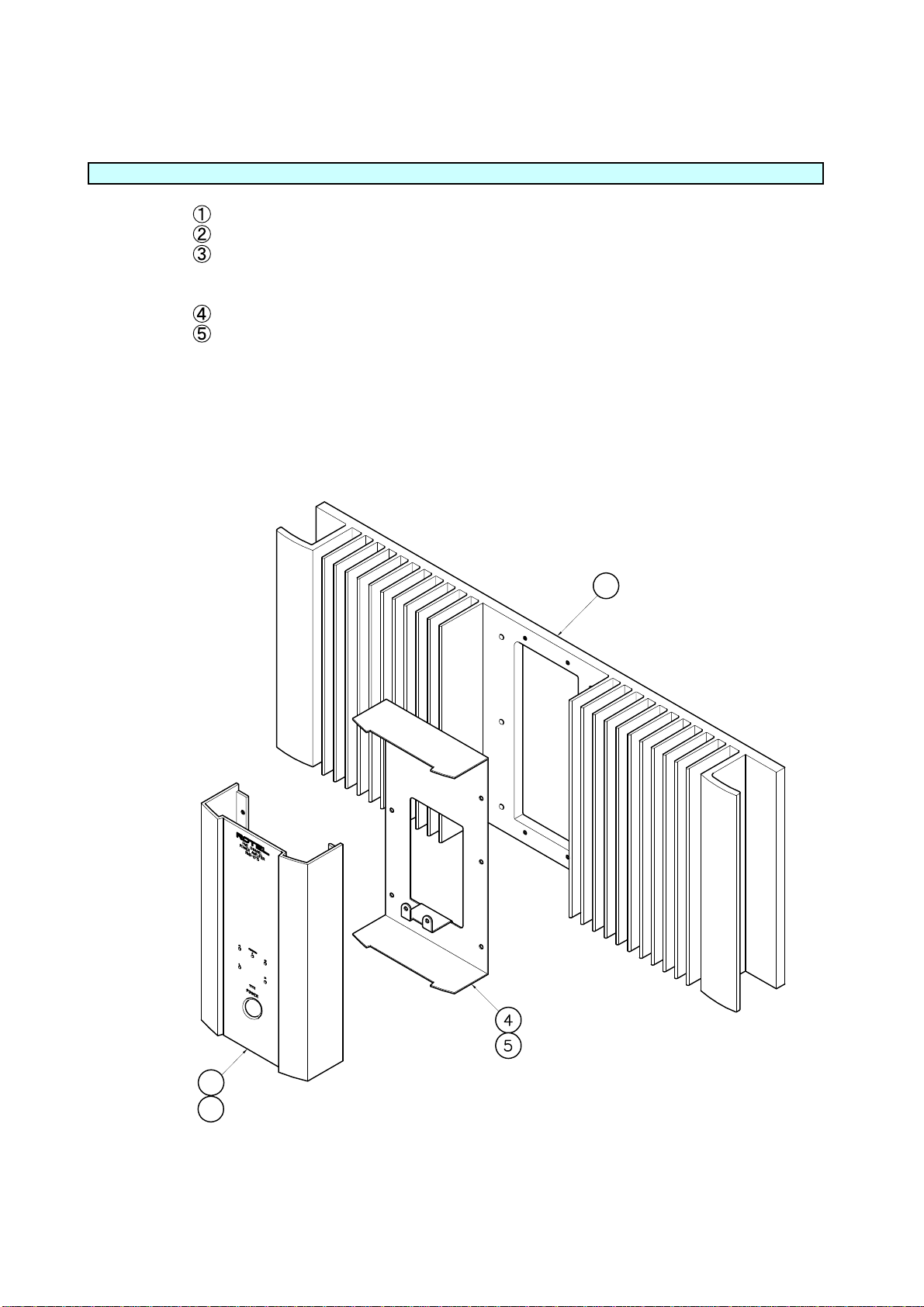

Case Outlines...................................9
PCB Assembly.................................9~10

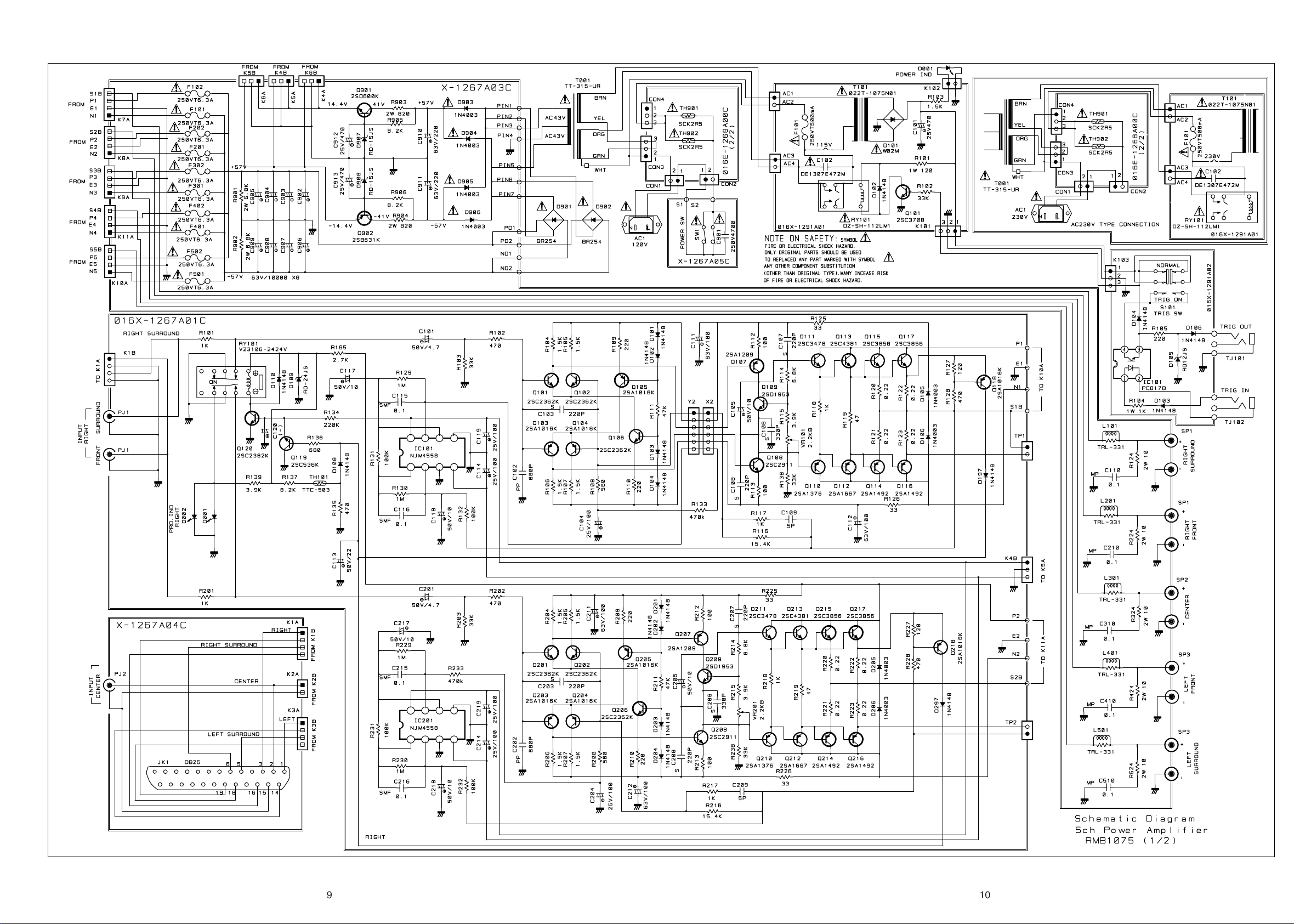

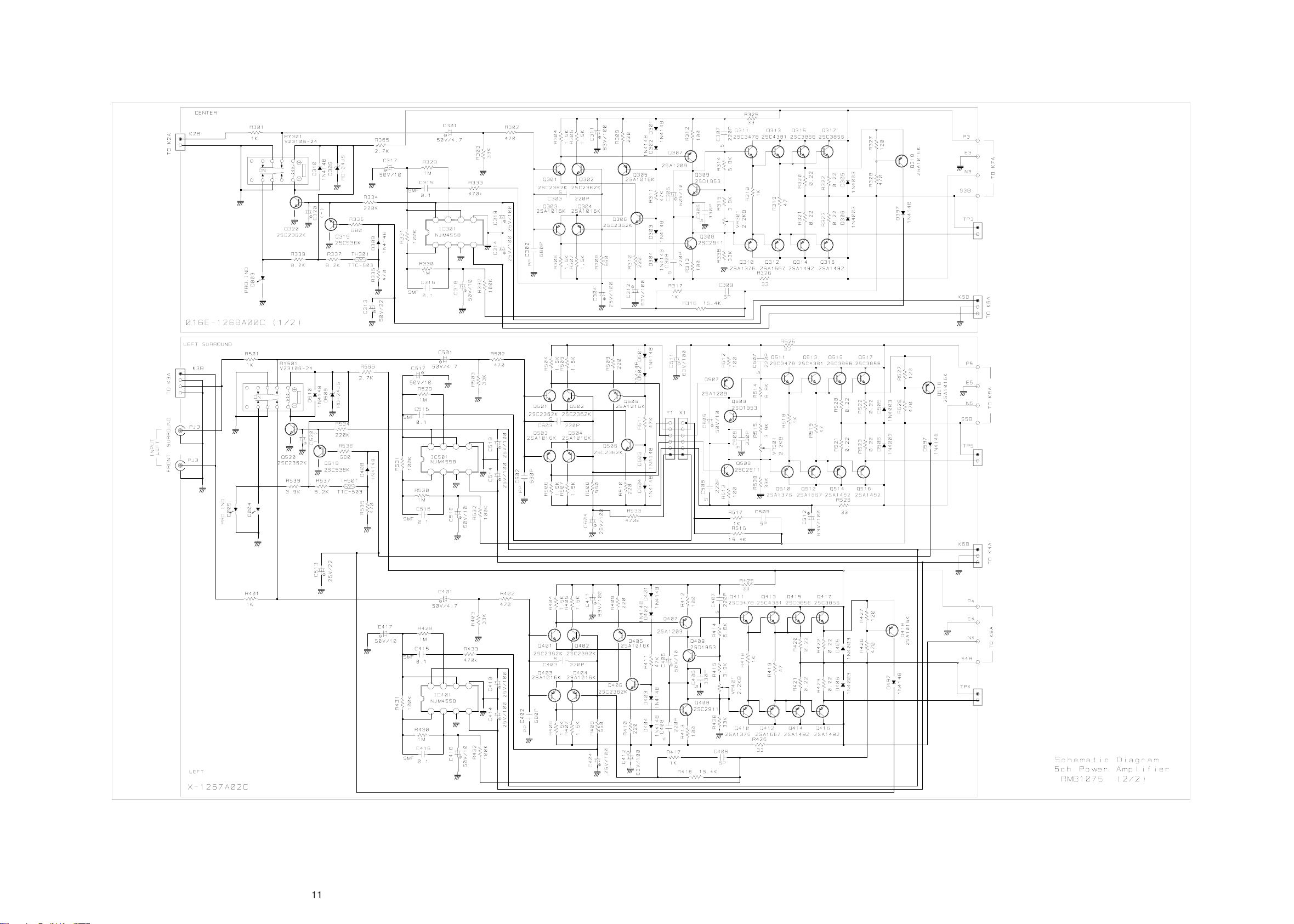

Schematic Diagram.......................... 11~12
Continuous Power Output (20-20 kHz < 0.03%, 8 ohms) 100 Watts/ch
Total Harmonic Distortion (20-20 kHz, 8 ohms) < 0.03%
Intermodulation Distortion (60 Hz: 7 kHz, 4:1) < 0.03%
Frequency Response (0.5dB) 10Hz-80kHz
Damping Factor (20-20K Hz, 8 ohms) 180
Speaker Impedance 4 ohms minimum
Signal to Noise Ratio, (IHF A network) 115 dB
Input Impedance/Sensitivity 27 k Ohoms/1.0 volt
Power Requirement 115 volts 60 Hz or
230 volts 50 Hz
Power Consumption 800 watts
Dimensions (W x H x D) 440 x 139 x 396mm
173/8" x 51/2" x 155/8"
Weight (net) 15.5 kg, 34.1 Lb.
SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN
Serial. NO.
Begining
®
Quality Uncompromised
Y-336B-0506pdf
RMB-1075V02

FIVE CHANNEL
POWER AMPLIFIER
RMB-1075
PROTECTION
FL CTR FR
SL SR
POWER
Manufactured under license from
Lucasfilm Ltd. Lucasfilm and THX
are registered trademarks of
Lucasfilm Ltd.
CAUTION
RISK OF ELECTRIC SHOCK
DO NO T OPEN
WARNING:SHOCK HARZARD–DO NOT OPEN
AVIS: RISQUE DE CHOC ELECTRIQUE–NE PAS OUVRIR
POWER AMPLIFIER
MODEL NO. RMB-1075
POWER CONSUMPTION: 800W
SPEAKER IMPEDANCE
4 OHMS MINIMUM
SERIAL NO.
WARNING: TO REDUCE THE RISK
OF FIRE OR ELECTRICAL SHOCK,
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
INPUT
CENTER
DB25 INPUT
LEFT
SURROUNDFRONT
LEFT SURROUNDFRONTSURROUND FRONT SPEAKERS
CENTER
RIGHT
SURROUND FRONT
RIGHT
12V TRIGGER
IN OUT
ON
OFF

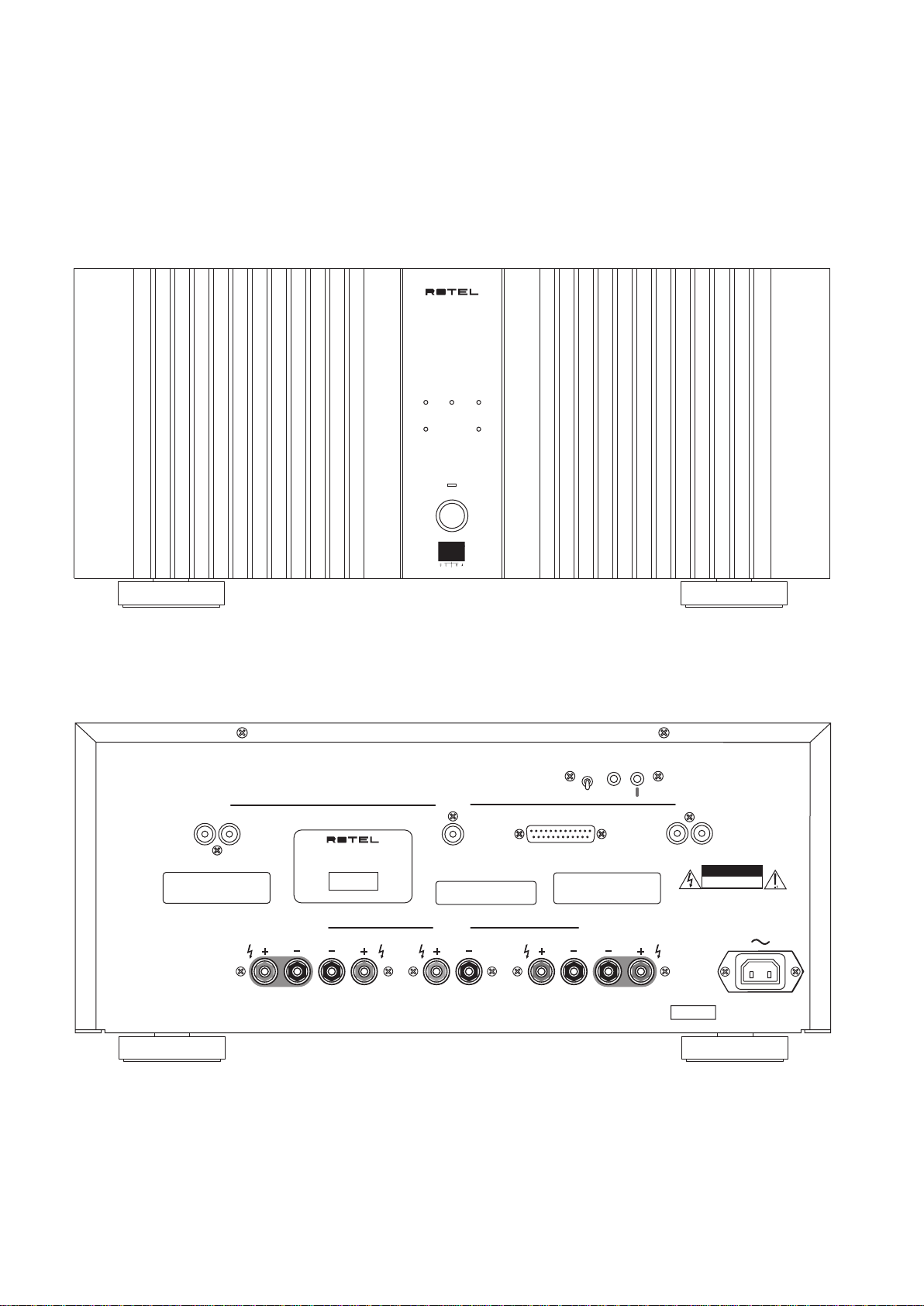

Appearance RMB-1075v02
2

Parts List 1/4 RMB-1075v02
SYMBOL.NO PARTS NO. DESCRIPTION
501 X-1363 PCB ASSY
013 4TTU-13 PCB SUPPORT
PJ1,PJ3 066 4TR-2166#5 2P 2P PIN JACK AU (BLK.BLK)
501 X-1267-B PCB ASSY
C901 019 C-4357A03 CAPACITOR COVER (S) H=22
H1-H2,H3-H6,H9-H12 019 TO-126 MICA SHEET TBM-51W-15 #9524
L101,201,301,401,501 021 TRL-331 SPEAKER COIL 1F 23T
IC101,201,401,501 031 NJM4558DD IC (OPE DUAL)
Q119,519 032 TC536-FG TRANSISTOR 2SC536KAA-FG
Q107,207,407,507 033 A1209-ST TRANSISTOR 2SA1209-ST
Q902 033 B631-EF TRANSISTOR 2SB631K-EF
Q108,208,408,508 033 C2911-ST TRANSISTOR 2SC2911-ST
Q901 033 D600-EF TRANSISTOR 2SD600K-EF
Q103-105,118,203-205,218 033 TA1016-FG TRANSISTOR 2SA1016KAA-FG
Q403-405,418,503-505,518 033 TA1016-FG TRANSISTOR 2SA1016KAA-FG
Q110,210,410,510 033 TA1376A-LKU TRANSISTOR 2SA1376AT-LKU
Q101,102,106,120,201,202,206 033 TC2362-FG TRANSISTOR 2SC2362KAA-FG
Q401,402,406,501,502,506,520 033 TC2362-FG TRANSISTOR 2SC2362KAA-FG
Q111,211,411,511 033 TC3478A-LKU TRANSISTOR 2SC3478AT-LKU
D105,106,205,206,405,406 034 T1N4003-TB DIODE 1N4003-E
D505,506,903-906 034 T1N4003-TB DIODE 1N4003-E
D101-104,108,110,197,201-204,297 034 T1N4148-86 DIODE 1N4148TAP-50
D401-404,408,497,501-504,510,597 034 T1N4148-86 DIODE 1N4148TAP-50
D907,908 034 TRD15JST1 ZENER DIODE 15V (AB2)
D109,509 034 TRD24JST1 ZENER DIODE 24V (AB2)
TH101,TH501 034 TTC-503 THERMISTOR 50K
F101,102,201,202,301,302 036 5ST6.3 FUSE 250VT6.3A
F401,402,501,502 036 5ST6.3 FUSE 250VT6.3A
C105,205,405,505 041 35ZA10MTZ ELECTROLYTIC CAPACITOR 35V10uF
C101,201,401,501 041 35ZA4R7MTZ ELECTROLYTIC CAPACITOR 35V4.7uF
C902-909 041 ALC20S1079DG ELECTROLYTIC CAPACITOR 63V10000uF
C104,204,404,504 041 TEEUFC1E101SB ELECTROLYTIC CAPACITOR 25V100uF
C114,119,214,219,414,419,514,519 041 TUTES1E101-TF ELECTROLYTIC CAPACITOR 25V100uF
C912,913 041 TUTES1E471-TS ELECTROLYTIC CAPACITOR 25V470uF
C117,118,217,218,417,418,517,518 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
C113,513 041 TUTES1H220-TF ELECTROLYTIC CAPACITOR 50V22uF
C111,112,211,212,411,412,511,512 041 TUTES1J101-TF ELECTROLYTIC CAPACITOR 63V100uF
C910,911 041 TUTES1J221-TS ELECTROLYTIC CAPACITOR 63V220uF
C109,209,409,509 043 TC50V050 CERAMIC CAPACITOR 50V5pF
C115,116,215,216,415,416,515,516 044 50MSAN104J SF CAPACITOR 50V0.1uF
C901 044 DE1307E472M SPARK KILLER 4700pF
C103,107,108,203,207,208 044 FSC160V221H STYROL CAPACITOR 160V220pF
C403,407,408,503,507,508 044 FSC160V221H STYROL CAPACITOR 160V220pF
C106,206,406,506 044 FSC160V331H STYROL CAPACITOR 160V330pF
C110,210,310,410,510 044 KT18-2A104K M.P CAPACITOR MKT1818-410/015
C102,202,402,502 044 TFKP2-2A681H P.P CAPACITOR FKP2-100V681H
VR101,201,401,501 051 SFR001-222 SEMI-FIXED RESISTOR VM6CKPH1S-2.2K
R127,227,427,527 053 CR14-121J-A CARBON RESISTOR 1/4W 120
R134,534 053 CR14-224J-A CARBON RESISTOR 1/4W 220K
R165,565 053 CR14-272J-A CARBON RESISTOR 1/4W 2.7K
R139,539 053 CR14-392J-A CARBON RESISTOR 1/4W 3.9K
R128,135,228,428,528,535 053 CR14-471J-A CARBON RESISTOR 1/4W 470
R136,536 053 CR14-681J-A CARBON RESISTOR 1/4W 680
R137,537,905,906 053 CR14-822J-A CARBON RESISTOR 1/4W 8.2K
R124,224,324,424,524 054 2WS10JF MOF RESISTOR 2WS 10
R901,902 054 2WS6.8KJF MOF RESISTOR 2WS 6.8K
R903,904 054 2WS820JF MOF RESISTOR 2WS 820
016 X-1363A01-02 PCB ASSY
016 X-1267B01-05 PCB ASSY
3

Parts List 2/4 RMB-1075v02
SYMBOL.NO PARTS NO. DESCRIPTION
R120-123,220-223,420-423,520-523 054 NIR2-0.22JF NIR RESISTOR 2W 0.22
R101,117,118,201,217,218 054 TMFR4001K METAL FILM RESISTOR 1/4W 1K
R401,417,418,501,517,518 054 TMFR4001K METAL FILM RESISTOR 1/4W 1K
R129,130,229,230,429,430,529,530 054 TMFR4001M METAL FILM RESISTOR 1/4W 1M
R104-107,204-207,404-407,504-507 054 TMFR401K5 METAL FILM RESISTOR 1/4W 1.5
R103,138,203,238,403,438,503,538 054 TMFR4033K METAL FILM RESISTOR 1/4W 33K
R125,126,225,226,425,426,525,526 054 TMFR4033R METAL FILM RESISTOR 1/4W 33
R115,215,415,515 054 TMFR403K9 METAL FILM RESISTOR 1/4W 3.9K
R111,211,411,511 054 TMFR4047K METAL FILM RESISTOR 1/4W 47K
R119,219,419,519 054 TMFR4047R METAL FILM RESISTOR 1/4W 47
R114,214,414,514 054 TMFR406K8 METAL FILM RESISTOR 1/4W 6.8K
R131,132,231,232,431,432,531,532 054 TMFR4100K METAL FILM RESISTOR 1/4W 100K
R112,113,212,213,412,413,512,513 054 TMFR4100R METAL FILM RESISTOR 1/4W 100
R116,216,416,516 054 TMFR415K4 METAL FILM RESISTOR 1/4W 15.4K
R109,110,209,210,409,410,509,510 054 TMFR4220R METAL FILM RESISTOR 1/4W 220
R133,233,433,533 054 TMFR4470K METAL FILM RESISTOR 1/4W 470K
R102,202,402,502 054 TMFR4470R METAL FILM RESISTOR 1/4W 470
R108,208,408,508 054 TMFR4560R METAL FILM RESISTOR 1/4W 560
SW1 061 C-4176A07 POWER SWITCH PS3-22-L3AV TV-8
RY101,RY501 063 A24W-K RELAY A24W-K
PJ2 066 4TR-2487#4 1P PIN JACK AU (BLK)
SP1,SP3 067 C-4761A01 4P SPEAKER TERMINAL
SP2 067 C-4762A01 2P SPEAKER TERMINAL
K7A,K8A,K9A,K10A,K11A 068 B04P-XL CONNECTOR WAFER 4P
K2A,D001,002,004,005 068 B2B-EH CONNECTOR WAFER 2P
K4A,K5A,K6A 068 B3B-EH CONNECTOR WAFER 3P
K1A,K3A 068 B4B-EH CONNECTOR WAFER 4P
TP1,TP2,TP4,TP5,E6 068 C-3681#1 WRAPPING TERMINAL 2P
Q109,209.409.509 068 C-4349A04 TRANSISTOR HOUSING WITH WIRE100mm
JK1 068 DBL25SBTK2NS DB25 CONNECTOR
016 E-1268A00C PCB ASSY
H7,H8 019 TO-126 MICA SHEET TBM-51W-15 #9524
IC301 031 NJM4558DD IC (OPE DUAL)
Q319 032 TC536-FG TRANSISTOR 2SC536KAA-FG
Q307 033 A1209-ST TRANSISTOR 2SA1209-ST
Q308 033 C2911-ST TRANSISTOR 2SC2911-ST
Q303,304,305,318 033 TA1016-FG TRANSISTOR 2SA1016KAA-FG
Q310 033 TA1376A-LKU TRANSISTOR 2SA1376AT-LKU
Q301,302,306,320 033 TC2362-FG TRANSISTOR 2SC2362KAA-FG
Q311 033 TC3478A-LKU TR 2SC3478AT-LKU(PAIR 2SA1376A)
TH901,902 034 SCK2R512 SURGE CURRENT THERMISTOR 2.5Ω
D305,306 034 T1N4003-TB DIODE 1N4003-E
D301-304,308,310,397 034 T1N4148-86 DIODE 1N4148TAP-50
D309 034 TRD24JST1(AB2) ZENER DIODE 24V (AB2)
TH301 034 TTC-503 THERMISTOR 50K
C305 041 35ZA10MTZ ELECTROLYTIC CAPACITOR 35V10uF
C301 041 35ZA4R7MTZ ELECTROLYTIC CAPACITOR 35V4.7uF
C304 041 TEEUFC1E101SB ELECTROLYTIC CAPACITOR 25V100uF
C314,319 041 TUTES1E101-TF ELECTROLYTIC CAPACITOR 25V100uF
C317,318 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
C313 041 TUTES1H220-TF ELECTROLYTIC CAPACITOR 50V22uF
C311,312 041 TUTES1J101-TF ELECTROLYTIC CAPACITOR 63V100uF
C309 043 TC50V050 CERAMIC CAPACITOR 50V5pF
C315,316 044 50MSAN104J SF CAPACITOR 50V0.1uF
C303,307,308 044 FSC160V221H STYROL CAPACITOR 160V220pF
C306 044 FSC160V331H STYROL CAPACITOR 160V330pF
C302 044 TFKP2-2A681H P.P CAPACITOR FKP2-100V681H
VR301 051 SFR001-222 SEMI-FIXED RESISTOR VM6CKPH1S-2.2K
016 E-1268A00C PCB ASSY
4

Parts List 3/4 RMB-1075v02
SYMBOL.NO PARTS NO. DESCRIPTION
R327 053 CR14-121J-A CARBON RESISTOR 1/4W 120
R334 053 CR14-224J-A CARBON RESISTOR 1/4W 220K
R365 053 CR14-272J-A CARBON RESISTOR 1/4W 2.7K
R328,335 053 CR14-471J-A CARBON RESISTOR 1/4W 470
R336 053 CR14-681J-A CARBON RESISTOR 1/4W 680
R337,339 053 CR14-822J-A CARBON RESISTOR 1/4W 8.2K
R320,321,322,323 054 NIR2-0.22JF NIR RESISTOR 2W 0.22
R301,317,318 054 TMFR4001K METAL FILM RESISTOR 1/4W 1K
R329,330 054 TMFR4001M METAL FILM RESISTOR 1/4W 1M
R304,305,306,307 054 TMFR401K5 METAL FILM RESISTOR 1/4W 1.5K
R303,338 054 TMFR4033K METAL FILM RESISTOR 1/4W 33K
R325,326 054 TMFR4033R METAL FILM RESISTOR 1/4W 33
R315 054 TMFR403K9 METAL FILM RESISTOR 1/4W 3.9K
R311 054 TMFR4047K METAL FILM RESISTOR 1/4W 47K
R319 054 TMFR4047R METAL FILM RESISTOR 1/4W 47
R314 054 TMFR406K8 METAL FILM RESISTOR 1/4W 6.8K
R331,332 054 TMFR4100K METAL FILM RESISTOR 1/4W 100K
R312,313 054 TMFR4100R METAL FILM RESISTOR 1/4W 100
R316 054 TMFR415K4 METAL FILM RESISTOR 1/4W 15.4K
R309,310 054 TMFR4220R METAL FILM RESISTOR 1/4W 220
R333 054 TMFR4470K METAL FILM RESISTOR 1/4W 470K
R302 054 TMFR4470R METAL FILM RESISTOR 1/4W 470
R308 054 TMFR4560R METAL FILM RESISTOR 1/4W 560
RY301 063 A24W-K RELAY A24W-K
D003 068 B2B-EH CONNECTOR WAFER 2P
TP3 068 C-3681#1 WRAPPING TERMINAL 2P
CON2 068 C-3683#1 PCB TERMINAL 2P P7.5 TP WE-11 I-752NA
CON3,CON4 068 C-3683#2 PCB TERMINAL 3P P7.5 TP WE-12 I-753NA
CON1 068 C-4422A01 PCB TERMINAL 2P P10 TP WF-21 I-102NA
501 X-1291-A PCB ASSY
T101 022 T-1075NO2 SUB TRANSFORMER
IC101 031 PC817B IC (PHOTO COUPLER)
Q101 032 TC3708-ST TRANSISTOR 2SC3708AA-ST
D102,103,104,106 034 T1N4148-86 DIODE 1N4148TAP-50
D105 034 TRD12JST1 ZENER DIODE 12V (AB2)
D101 034 W02M POWER DIODE 200V1.5A
F101 036 5ST500 FUSE 250VT500mA
F903 036 R251-250 FUSE F250MA
C101 041 TUTES1E471-TS ELECTROLYTIC CAPACITOR 25V470uF
C102 044 DE1307E472M SPARK KILLER 4700pF
(R103) 053 CR14-152J-A CARBON RESISTOR 1/4W 1.5K
R105 053 CR14-221J-A CARBON RESISTOR 1/4W 220
R102 053 CR14-333J-A CARBON RESISTOR 1/4W 33K
(R103) 053 CR14-472J-A CARBON RESISTOR 1/4W 4.7K
R101 054 1WS120JF MOF RESISTOR 1WS 120
R104 054 1WS1KJF MOF RESISTOR 1WS 1K
RY101 063 OZT-SS-112LM1 RELAY DC12V TV8
S101 064 C-4613A01 TOGGLE SW 200DP1T2B2M7RE
TJ101,TJ102 065 YKB21-5103A 3.5ΦMINIATURE JACK (ST)
K102 068 B2B-EH CONNECTOR WAFER 2P
K101 068 B3B-EH CONNECTOR WAFER 3P
AC3.AC4 068 C-3681#1 WRAPPING TERMINAL 2P
AC1.AC5,AC2 068 C-4422A01 PCB TERMINAL 2P P10 TP WF-21 I-102NA
K103 068 C-4588A09 CONNECTOR WIRE 3P 420mm
017 TE3-07A00 HEAT SINKER BOARD
032 D1953 TRANSISTOR 2SD1953
033 A1492-OPY TRANSISTOR 2SA1492-OPY
016 X-1291E01-02 PCB ASSY
HEAT SINK ASSEMBLY
5

Parts List 4/4 RMB-1075v02
SYMBOL.NO PARTS NO. DESCRIPTION
033 A1667-OY TRANSISTOR 2SA1667-OY
033 C3856-OPY TRANSISTOR 2SC3856-OPY
033 C4381-OY TRANSISTOR 2SC4381-OY
019 TO-3P MICA SHEET TBM-51W-15 #9043
067 C-4761A01 4P SPEAKER TERMINAL
067 C-4762A01 2P SPEAKER TERMINAL
066 4TR-2166#5 2P PIN JACK AU (BLK.BLK)
011 FP-529-B BLACK PANEL ASSY
011 FP-529-S SILVER PANEL ASSY
011 TE3-01A00 H/S PANEL
012 RV4-09A00 PUSH BUTTON 14Φ(BLACK)
012 RV4-09A01 PUSH BUTTON 14Φ(SILVER)
013 TE3-04A00 PANEL HOLDER (BLACK)
013 TE3-04A01 PANEL HOLDER (SILVER)
014 TE3-08A00 UPPER COVER
019 4TSH-19#2 PLASTIC FOOT 50Φ(BLACK)
022 TT-315-UR02 POWER TRANSFORMER
034 BR254 POWER DIODE 400V25A
034 LTL1214A LED (BRIGHT RED) 2Φ
034 SEL1124R LED (RED) 1X5
034 SEL1E24W LED (BLU) 1X5
069 C-4629A01 AC 2P INLET 6102.3100 (WIRING)
072 C-4621A01 AC CORD SET for USA
072 C-4622A01 AC CORD SET for AUSTRALIA
072 C-4623A01 AC CORD SET for U.K
072 C-4624A01 AC CORD SET for EUROPE
081 SG4-24A00 PACKING (for INSIDE CARTON)
081 TE3-09B00 INSIDE CARTON
081 TE3-10B00 SHIPPING CARTON
081 Z-200 STYROL MOULDING
082 OMRMB-1075 OWNER'S MANUAL(E)
O T H E R S
6

RMB1075/V02
SYMBOL PARTS DESCRIPTION
011 FP-529-B BLACK PANEL ASSY
011 FP-529-S SILVER PANEL ASSY
011 TE3-01A00 H/S PANEL H176
012 RV4-09A00 PUSH BUTTON 14F (BLK)
012 RV4-09A01 PUSH BUTTON 14F (SLV)
013 TE3-04A00 SUB PANEL CHASSIS (BLK)
013 TE3-04A01 SUB PANEL CHASSIS (SLV)
034 SEL1124R LED (RED) 1X5
034 SEL1E24W LED (BLU) 1X5
Addendum List for Black and Silver
3
1
2
Panel Assy is included:
Knob Ring
POWER buttons
LED
7

4
Service Note
Cautions during Inspection and Repair
1. Keep in mind the safety warnings
The safety instructions are shown as the labels or printings on the exterior, the
inside chassis or the parts, etc. Refer to the instructions when proceeding with
inspection or repair.
2. Use only the specified parts for replacement
The selected parts are used at critical area to reduce fire hazard or electrical
shock. So when replacing these parts where designaged with marks or
※marks on the schematic diagram or the parts list, ensure to use only the
same parts.
3. Ensure to dress back the AC (Mains) cord to the original position
If for some reason, the AC cord is moved or partially disassembled, ensure to re-
route or assemble back to the original position. The AC cord area is protected and
secured by tubing and insulation materials for the sake of safety, so that no loose
wire will touch and cause fire hazard and electrical shock.
4. Check for safety aspects after inspection or repair
Ensure all parts, such as screws or wires, removed during inspection or repair are
secured back to the original positions, and check visually for any anomaly. Also
check for any electrical leakage or resistance to maintain the safety.
Adjustment
Instruments : DC milli–voltmeter
Notes : Prior to Bias Adjustment, run about 5minutes with rated output(8ohms)
and warm up Power Transistor and Heat Sink. Set input off.
Step Coupling
TP 1
TP 2
X-1267-01 PCB
X-1267-01 PCB
VR101
VR201
1
2
TP 3 E-1268 PCB VR3013
TP 4 X-1267-02 PCB VR4014
TP 5 X-1267-02 PCB VR5015
Location Adjust Adjust for
DC milli–voltmeter reads 5mV
8

PCB Assembly
64 5
Case Outlines
2SA1016K
2SA1376A
2SC536K
2SC2362K
2SC3478A
2SC3708
2SA1492
2SC3856 PC817B NJM4558DD
2SB631K
2SA1209
2SD1953
2SD600K
2SC2911 2SA1667 2SC4381
9

PCB Assembly
7 8
10

9 10
Schematic Diagram
11

11 12
Schematic Diagram
