Rotel RVE-1060 User manual

Input Selector:
5 selectable inputs, assignable from 13 video inputs
Input Connections:
HDMI (2)
Component Video (3)
S-Video (4)
Composite Video (4)
Input Resolutions:
480i, 576i, 480p, 576p, 720p, 1080i
Output Connections:
HDMI, Component Video, S-Video,
Composite Video
Output Resolutions:
480p, 576p, 720p, 1080i
Output formats:
NTSC or PAL, autoswitching based on format of
input signal
Power Consumption:
1.5 watts (standby)
20 watts (max)
Power Requirements (AC):
110 to 240 volts, 50 to 60 Hz
Weight:
4.2 Kg/9.3 lb.
Dimensions (W x H x D):
432 x 72 x 336 mm
17.01” x 2.84” x 13.23”
VIDEO ENHANCER
RVE-1060
Serial. NO.
Beginning
Y-400A-0705/pdf
Technical
Manual
Table of Contents
Specification......................................1
Parts List...........................................2~9
Upgrade Procedure..........................10~12

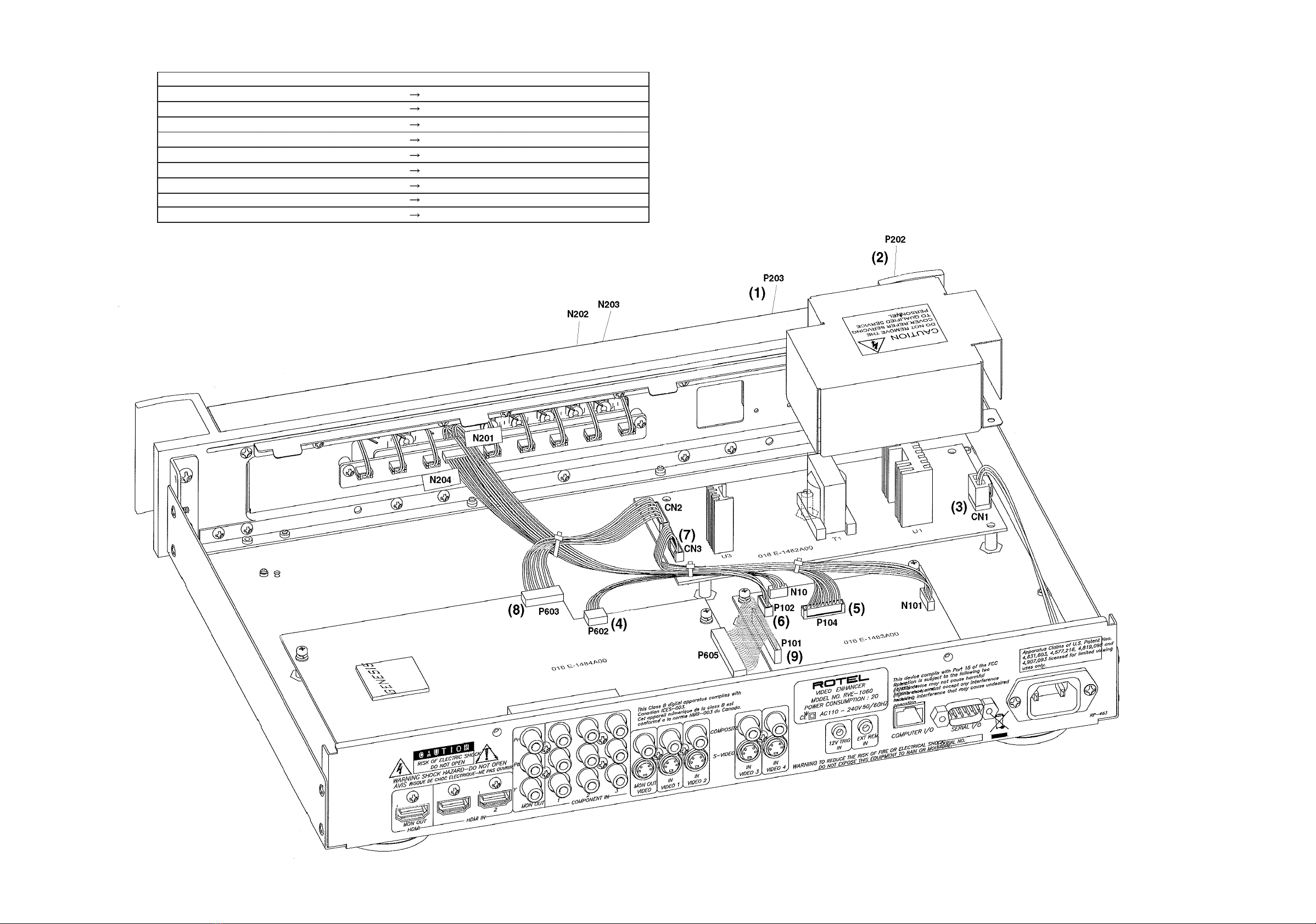

Wiring................................................13

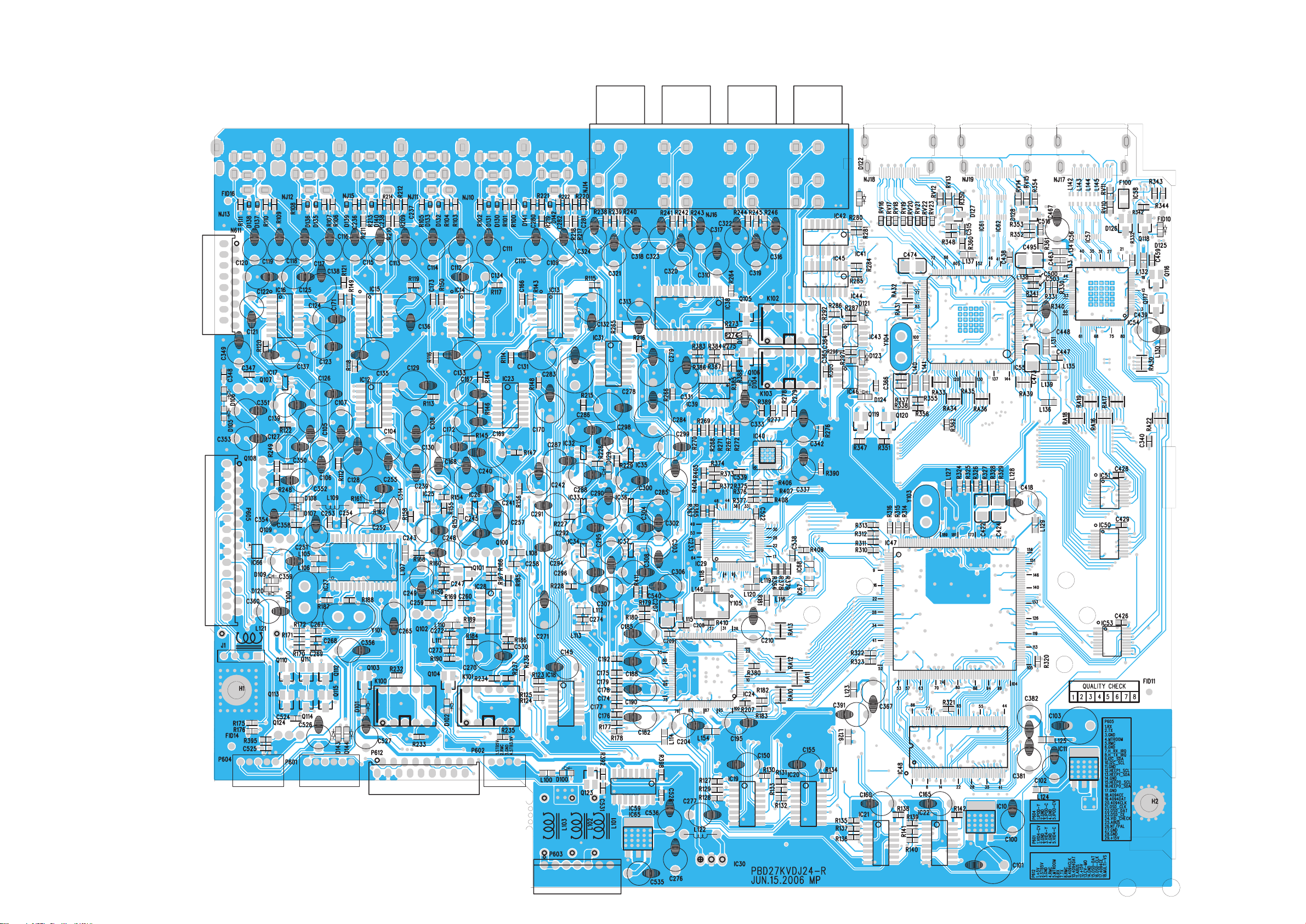

PCB Assembly..................................14~18

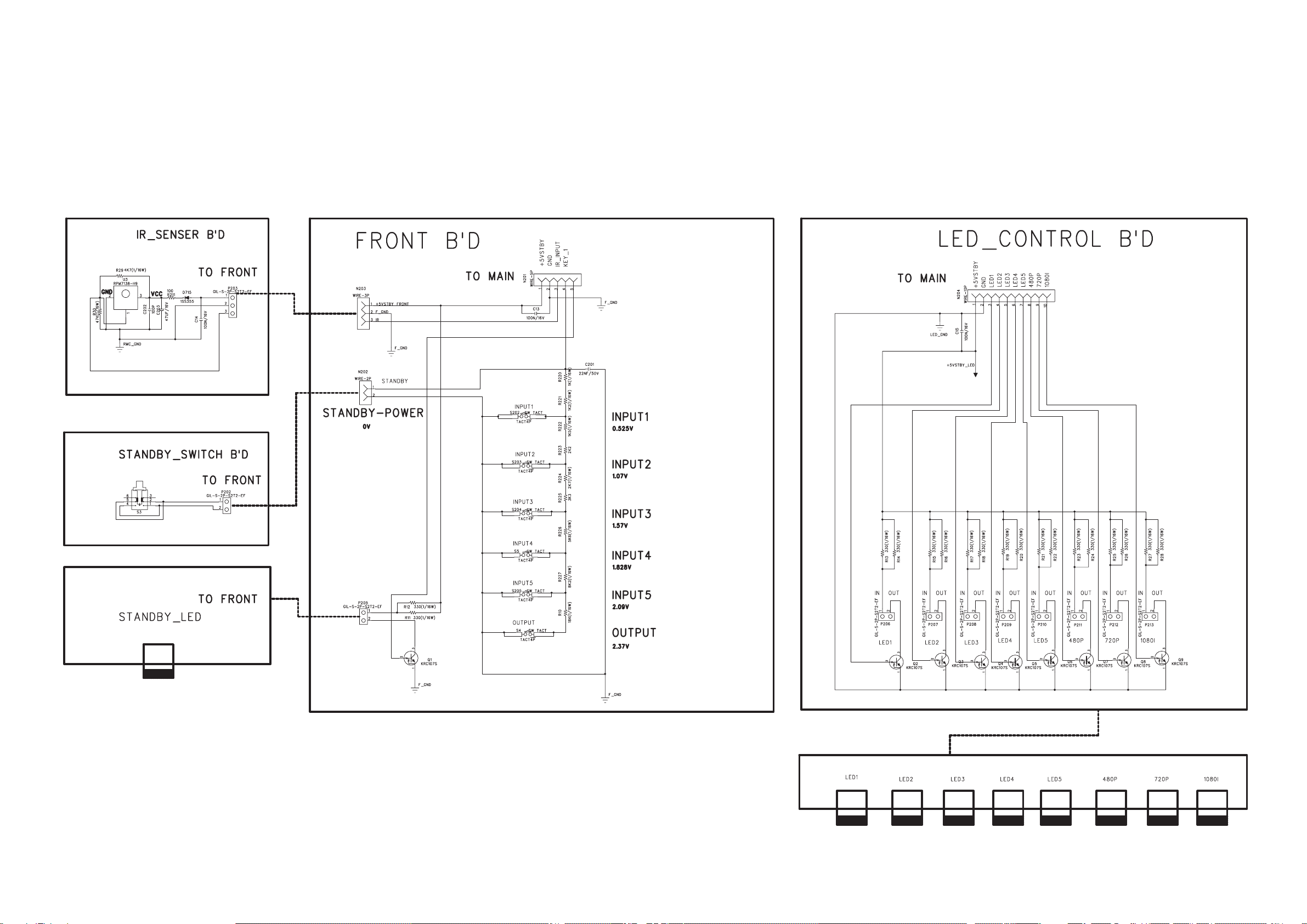

Schematic Diagram ..........................19~24
SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN
®
Quality Uncompromised
THE ROTEL CO., LTD.
Specifications

OUTPUT
1080i720p480p/576p
STANDBY
VIDEO ENHANCER RVE-1060
1 2 3
INPUT
4 5
SERIAL
I/O
MON OUT
VIDEO
IN
VIDEO 1
IN
VIDEO 2
IN
VIDEO 3
IN
VIDEO 4
HDMI
1 2
COMPONENT IN
32MON OUT 1
Y
P B
P R
MON OUT
HDMI
COMPOSITE
S-VIDEO
COMPUTER
I/O
12V TRIG
IN
EXT REM
IN
Appearance RVE-1060
2

Parts List 1/6 RVE-1060
SYMBOL PARTS NO. DESCRIPTION
501 E-1482-A PCB ASSY (SWITCHING SUPPLY)
C10,11,13,15,16 EGS687M1AF12TC ELECTROLYTIC CAPACITOR 10V680uF
C17,C18 EGS227M1EF12TC ELECTROLYTIC CAPACITOR 25V220uF
C5 EGS686M2GL25KD ELECTROLYTIC CAPACITOR 400V68uF
C14 EGS105M1HD11TC ELECTROLYTIC CAPACITOR 50V1uF
C8,C19,C20 EGS476M1HD11TC ELECTROLYTIC CAPACITOR 50V47uF
C3,4 DE1E3KX471KB4BLC1 CERAMIC CAPACITOR 470pF
C21 DE1E3KX152MB4BLC1 CERAMIC CAPACITOR 1500pF
C9,C12 ECO3A102K CERAMIC CAPACITOR 1KV1000pF
C1,C2 PX104K3ID2 SPARK KILLER 0.1uF
L1 SPC-530 CHOKE COIL
CN1 YW396-32V CONNECTOR WAFER 2P
CN3 GIL-S-6P-S2T2-E CONNECTOR WAFER 6P
CN2 5267-07A CONNECTOR WAFER 7P
D1,2 1N4007 DIODE 1N4007 1KV1A
BD1 TS4B05G DIODE BRIDGE
D5 SR206 DIODE SCHOTTKY
D6,D7 SR3A0 DIODE SCHOTTKY
D19 SR1A0 DIODE SCHOTTKY
D3,4,18 UF4007 DIODE UF4007 1A1KV
ZD1 1N5248B DIODE ZENER 1N5248B
Q1 P45N03LTG FET P45N03LTG
F1 SR-5 T2A FUSE 250V2.0A
PC1,PC2 1010 817B IC (PHOTO COUPLER) PC817
U1 KA5M0380R-YDTU IC (PS) KA5M0380R-YDTU
U3 KIA278R33PI IC (REGULATOR) KIA278R33
U4 KIA78R12PI IC (REGULATOR) KIA78R12
U5 CJ7905F IC (REGULATOR) CJ7905F
U2 H431BA IC (SHUNT) H431BA
LF1 KS-30DD LINE FILTER 30uH
C7 TY2A104K050 MYLAR CAPACITOR 100V104K
C6 TM2J472K MYLAR CAPACITOR 630V472K
R14 MF1/8W100F METAL FILM RESISTOR 1/8W 100
R15,R16 MF1/8W3KF METAL FILM RESISTOR 1/8W 3K
R4,R5 CF1/4W150KJ RESISTOR CARBON 1/4W 150K
R3 CF1/4W20KJ RESISTOR CARBON 1/4W 220K
R13,R22 CF1/8W1KJ RESISTOR CARBON 1/8W 1K
R7 CF1/8W22J RESISTOR CARBON 1/8W 22
R12 CF1/8W270J RESISTOR CARBON 1/8W 270
R9,10,18,19,20,21 CF1/8W4.7KJ RESISTOR CARBON 1/8W 4.7K
R2 MOF1W220KJ MOF RESISTOR 1W 220K
R6 MOF2W 47KJ MOF RESISTOR 2W 47
TH1 10D-9 THERMISTOR
T1 KS-2828G1 TRANSISTOR KS-2828G1
Q2 KTD1691 TRANSISTOR KTD1691
TNR1 INR10D471K VARISTOR INR10D471K
501 X-1483 PCB ASSY (MAIN)
BD18-22 H03-FB3012012CF-R-0 FCM2012CF-301T04
BD2,BD3 H03-FB05B3580NN-R-9 BEAD AXIAL TAPHC3580 80.5
L100,L101,L102 H03-LAINB047ACR-R-0 LF 4.7uH
IC10 H03-IC70F3261E1-R-4 IC (CPU) UPD70F3261YGC-8EA-A
IC11 H03-ICSN74AHCT2-R-3 IC (BUFFER DRIVER) SN74AHCT244DW
IC12 H03-IC24LC256D2-R-5 IC (EEPROM) 24LC256T
016 E-1482A00 PCB ASSY
016 X-1483A01-03 PCB ASSY
3

Parts List 2/6 RVE-1060
SYMBOL PARTS NO. DESCRIPTION
IC17 H03-ICMAX322316-R-9 IC (LINE DIRVER) MAX3223CDWR
IC30 H03-ICCJT1173N3-R-4 IC (REGULATOR) CJT117-3.3
U1,U2 H03-ICPC17T10B1-R-A IC (PHOTO COUPLER) PC-17T1
U3 R01-ICRPM7138H9-R-5 IC (REMOTE RECEIVER) RPM7138-H9
Q1,Q2,Q3,Q4,Q5,Q6,Q7,Q8,Q9 H03-TSKRC107SND-R-3 TRANSISTOR KRC107S
Q100 H03-TRMPSA06NNA-R-1 TRAISISTOR MPSA06N
D2 H03-DR1N04004NA-R-9 DIODE 1N4004 400V 1A
D4,D5,D6,D7,D8,D9,D10,D11 H03-DSUDZS15VNB-R-4 DIODE ZENER 15V 200MW
D1,D3,D15,D100-101,D103,D105,D110-111 H03-DS1S50094NB-R-7 D-SLP 1SS355 35V 225MI0A
D102,D106,D715 H03-DS1S50094NB-R-7 D-SLP 1SS355 35V 225MI0A
C105 H03-CEZXA0479MN-R-2 CERAMIC CAPACITOR 5.5V 47MI0F 5R5473V
C108,C109 CZJII0330BE-R-9 CERAMIC CAPACITOR CHIP 33pF
C111 H03-CEHIC04755E-R-A CERAMIC CAPACITOR CHIP 4.7uF
C124,C202 CZJII0101BE-R-2 CERAMIC CAPACITOR CHIP 100pF
C201 CZKII0223BC-R-6 CERAMIC CAPACITOR CHIP 0.022uF
C103 H03-CEHFC0106NN-R-A CERAMIC CAPACITOR CHIP 16V10uF
C2,C4,C8-C15,C101,C104,C107,C110, CZZFI0104BF-R-8 CERAMIC CAPACITOR CHIP 16.0V0.1uF
C112-113,C115-116,C118-119,C147 CZZFI0104BF-R-8 CERAMIC CAPACITOR CHIP 16.0V0.1uF
C121,126-127,C131,C135,C147-148 CZZFI0104BF-R-8 CERAMIC CAPACITOR CHIP 16.0V0.1uF
C5,C6,C102,C203 H03-CEHFC04765E-R-A CERAMIC CAPACITOR CHIP 16.0V47uF
C106,C117,C120,C122,C146 H03-CEHFC01075E-R-0 CERAMIC CAPACITOR CHIP 16V100uF
C7,C145,C149,C150,C151,C152 CCZGC0104NA-R-0 CERAMIC CAPACITOR CHIP 25V0.1uF
C1,C129 H03-CEMGC04775E-R-0 CERAMIC CAPACITOR CHIP 25V470uF
R114,R115,R116,R117 RS3AD0000NA-R-0 RESISTOR CHIP 1/16W 0
R211 RS3AD0101NA-R-5 RESISTOR CHIP 1/16W 100
R4 RS3AD0101NA-R-5 RESISTOR CHIP 1/16W 100
R1,R7,R111,220 RS3AD0102NA-R-3 RESISTOR CHIP 1/16W 1K
R105,R106 RS3AD0103NA-R-1 RESISTOR CHIP 1/16W 10K
R9,R101,R112 RS3AD0103NA-R-1 RESISTOR CHIP 1/16W 10K
R119,R120,R121,122 RS3AD0223NA-R-2 RESISTOR CHIP 1/16W 22K
R29,R100,102,R127-129 RS3AD0472NA-R-3 RESISTOR CHIP 1/16W 4.7K
R30,R110,R118,R301 RS3AD0473NA-R-1 RESISTOR CHIP 1/16W 47K
R222 RS3AD0152NA-R-A RESISTOR CHIP 1/16W 1.5K
R556 RS3AD0104NA-R-A RESISTOR CHIP 1/16W 100K
R10 RS3AD0183NA-R-A RESISTOR CHIP 18K
R221 RS3AD0122NA-R-8 RESISTOR CHIP 1.2k
R103,R104,R223 RS3AD0222NA-R-4 RESISTOR CHIP 2.2K
R224 RS3AD0272NA-R-0 RESISTOR CHIP 2.7k
R225 RS3AD0332NA-R-8 RESISTOR CHIP 3.3k
R226 RS3AD0562NA-R-2 RESISTOR CHIP 5.6k
R227 RS3AD0822NA-R-2 RESISTOR CHIP 8.2k
R107 RS3AD0221NA-R-6 RESISTOR CHIP 220
R11-28 RS3AD0331NA-R-A RESISTOR CHIP 330
R2,R5,R8,R108,R109 RS3AD0471NA-R-5 RESISTOR CHIP 470
P101 H03-WN29DI00000-R-0 CONNECT WAFER 29P
P202,P205-213 H03-WN02SB00000-R-6 CONNECT WAFER 2P
P203 H03-WN03SB00000-R-3 CONNECT WAFER 3P
P102 H03-WN05SB00000-R-8 CONNECT WAFER 5P
P104 H03-WN10SB00000-R-8 CONNECT WAFER 10P
N100 H03-WH20SC00000-R-0 20P PIN JACK
NJ11 R01-SORJ4500000-R-6 JACK RJ-45
NJ12 R01-SOSUB872040-R-4 JACK D-SUB
S1 S2 R01-SOPJ3P00000-R-0 PHONE JACK 3P
S3 R01-SWDPDT00000-R-7 PUSH SWITCH SW-DPDT
S4,S5,S202,S203 ,S204,S205 H03-SWTS062V1A5-R-8 SWITCH TACT TS062V1A50CK4
Y105 H03-OSCEM05M0RU-R-8 CERAMIC RESONATOR
4

Parts List 3/6 RVE-1060
SYMBOL PARTS NO. DESCRIPTION
501 E-1484-A PCB ASSY (VIDEO)
L105-108,L114-116,L118-120,L123-125, H03-FB2012F3R9K-R-5 INDUCTOR COIL 3.9uH
L127-129,L154 H03-FB2012F3R9K-R-5 INDUCTOR COIL 3.9uH
L109 H03-LALNB056ACR-R-7 INDUCTOR COIL 5.6uH
L110,L112 H03-FB2012F1R5K-R-2 INDUCTOR COIL 1.5uH
L111,L113 H03-LS2012F1R8K-R-0 INDUCTOR COIL 1.8uH
L122 H03-LAINB0470CR-R-A LF 47uH
L142,L143,L144,L145 H03-LS2012H9002-R-A CHOKE COIL
L100,L126,L130-141,L146 H03-FB1212012KF-R-4 FCM2012KF-121T08 120
L101,L102,L103,L121 H03-FB05B3580NN-R-9 BEAD AXIAL/TAP 80.5
Y100 H03-OSXBE14M3AU-R-4 CRYSTAL 14.31818MHz
Y101 H03-OSXBE17M7AU-R-6 CRYSTAL 17.734475MHz
Y103 H03-OSX13M5HZ00-R-1 CRYSTAL 13.5MHZ
Y104 H03-OSXBE28M39S-R-7 CRYSTAL 28.322MHz
Y105 H03-OSX27MSCOB0-R-1 CRYSTAL 27.000MHz
C100,C102,C107-108,C110,C113,C116, H03-CEHIC01065E-R-0 CERAMIC CAPACITOR 10uF
C119,C182,C185,C188,C190,C195,'C204, H03-CEHIC01065E-R-0 CERAMIC CAPACITOR 10uF
C210,C239-241,C276,C286,C316-324, H03-CEHIC01065E-R-0 CERAMIC CAPACITOR 10uF
C353-354,C360,C418,C527,C535 H03-CEHIC01065E-R-0 CERAMIC CAPACITOR 10uF
C101,C103,C283,C284 H03-CEHDC0108NN-R-9 CERAMIC CAPACITOR 6.3V1000uF
C104-106,C109,C111-112,C114-115, H03-CEHEC02275E-R-3 CERAMIC CAPACITOR 10V220uF
C117-118,C120,C130,C172,C287 H03-CEHEC02275E-R-3 CERAMIC CAPACITOR 10V220uF
C128-129,C131-136, C270-271,C278-279 H03-CEHEC0477MN-R-2 CERAMIC CAPACITOR 10V470uF
C141,C142,C143 CZJII0101BE-R-2 CERAMIC CAPACITOR 100pF
C144,C149,C154,C159,C164,C180,C183,C186, CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C189,C191,C196,C198,C200,C205,C211,C213, CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C229,C231,C244,C246,C256,C289,C293,C297, CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C301,C305,C309,C311-312,C314-315,C325, CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C327,C332,C334,C336,C338-339,C343,C357, CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C361-363,C368-380,C383-390,C392-399, CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C406-411,C413-417,C419,C423,C425, CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C431-437,C440-443,C449-453,C461,C465, CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C468-470,C475-481,C484-490,C496,C497, CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C501-502,C507,C510,C512-513,C519-521, CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C533-534,C537,C541-544 CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C145,C150,C155,C160,C165,C285,C310, H03-CEHFC04765E-R-A CERAMIC CAPACITOR 16V047uF
C313,C331,C333,C337,C342 H03-CEHFC04765E-R-A CERAMIC CAPACITOR 16V047uF
C166,C171 CZJII0331BE-R-7 CERAMIC CAPACITOR 330pF
C173 CZKII0561BC-R-8 CERAMIC CAPACITOR 560pF
C174-175,C177-179,C192,C208,C233,C259, CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C260,C364-366,C426,C428-429,C438,C447, CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C459,C463,C500,C528,C531 CZZFI0104BF-R-8 CERAMIC CAPACITOR 16V0.1uF
C176,C503 CZKII0102BC-R-7 CERAMIC CAPACITOR 0.001uF
C184,C187,C197,C199,C201,C206,C212,C214, CZKII0103BC-R-5 CERAMIC CAPACITOR 0.01uF
C230,C232,C235,C250,C493,C494,C518 CZKII0103BC-R-5 CERAMIC CAPACITOR 0.01uF
C193 CZKFI0823BC-R-3 CERAMIC CAPACITOR 16V0.082uF
C194 CZKII0822BC-R-6 CERAMIC CAPACITOR 0.0082uF
C272,C274 CZKII0391BC-R-7 CERAMIC CAPACITOR 390pF
C209,C258,C347,C348,C515,C516,C524,C525 CZKII0103BC-R-5 CERAMIC CAPACITOR 0.01uF
C350,C358 CZKII0223BC-R-6 CERAMIC CAPACITOR 0.022pF
C444-446,C454-458,C462,C466,C471,C472, CZKII0102BC-R-7 CAPACITOR CHIP 0.001uF
C498,C499,C504,C505,C508,C511 CZKII0102BC-R-7 CAPACITOR CHIP 0.001uF
C522 CZKII0821BC-R-8 CAPACITOR CHIP 820pF
C242,C249,C255,C265,C290,C291,C294, H03-CEHIC01055E-R-9 CERAMIC CAPACITOR 1uF
016 E-1484A00 PCB ASSY
5

Parts List 4/6 RVE-1060
SYMBOL PARTS NO. DESCRIPTION
C295,C298,C299,C302,C303,C306,C307 H03-CEHIC01055E-R-9 CERAMIC CAPACITOR 1uF
C248 H03-CEHIC0474NN-R-9 CERAMIC CAPACITOR 0.47uF
C351,C352,C359,C526 H03-CEHIC02255E-R-9 CERAMIC CAPACITOR 2.2uF
C252 CPIIC0223NN-R-4 CERAMIC CAPACITOR 0.022uF
C243,C245,C251,C257,C277,C288,C292, H03-CEHFC01075E-R-0 CERAMIC CAPACITOR 16V100uF
C296,C300,C304,C308,C349,C356,C367, H03-CEHFC01075E-R-0 CERAMIC CAPACITOR 16V100uF
C381,C382,C391,C536 H03-CEHFC01075E-R-0 CERAMIC CAPACITOR 16V100uF
C439,C448,C467 H03-CEMFC0226NN-R-1 ELECTROLYTIC CAPACITOR 16V22uF
C530 CZCII0050BE-R-5 CAPACITOR CHIP 5pF
C247 CZDII0100BE-R-8 CAPACITOR CHIP 10pF
C253,C539 CZJII0300BE-R-7 CERAMIC CAPACITOR 30pF
C254 CZJII0270BE-R-1 CERAMIC CAPACITOR 27pF
C261,C262,C263,C264 CZJII0390BE-R-2 CERAMIC CAPACITOR 39pF
C267,C268,C269,C280,C281,C282,,C538 CZJII0101BE-R-2 CERAMIC CAPACITOR 100pF
C273,275,C340 CZJII0220BE-R-5 CERAMIC CAPACITOR 22pF
C420,C421 CZJII0330BE-R-9 CERAMIC CAPACITOR 33pF
C540 CZJII0820BE-R-3 CERAMIC CAPACITOR CHIP ,82pF
C491,C492 CZJII0180BE-R-2 CAPACITOR CHIP 18pF
C514 CPIIC0682NN-R-5 CAPACITOR CHIP 0.0068uF
C523 CSKIE0392BC-R-4 CAPACITOR CHIP 0.0039uF
C529 CZJII0331BE-R-7 CAPACITOR CHIP 330pF
C207,C400-405,C412,C430,C422,C424, CTMFJ0106ZN-R-6 CAPACITOR TANTAL CHIP 16V10uF
C473-474,C495-C460,C464,C482-C483, CTMFJ0106ZN-R-6 CAPACITOR TANTAL CHIP 16V10uF
C506,C509,C517 CTMFJ0106ZN-R-6 CAPACITOR TANTAL CHIP 16V10uF
IC10 H03-ICIL1117SDG-R-4 IC (LOW DROP REGULATOR) IL1117S-1.8
IC11 H03-ICCJT1173N3-R-4 IC (VOLTAGE REGULATOR) CJT117-3.3
IC12,IC42,IC45,IC59 H03-ICBU4053BB4-R-4 IC (ANALOG) BU4053BCF
IC13,IC14,IC15 H03-ICNJM2296D3-R-4 IC-LINEAR NJM2296M-TE1
IC18,IC19,1C20,IC21,IC22 H03-ICBU4094BD3-R-A IC CMOS BU4094BCF
IC24 H03-ICADV7401EF-R-8 IC ADV7401BSTZ-110
IC25,IC26,IC33,IC34,IC35,IC36,IC37 H03-ICM1503XNRE-R-5 IC MM1503XNRE
IC27 H03-ICLC74763ME-R-1 IC LC74763M
IC28,IC31 H03-ICTSH95IDB4-R-3 IC (VIDEOPROC AMPLIFIER) TSH951D
IC29 H03-ICADV7320KS-R-3 IC ADV7320LKSTZ
IC30 H03-ICKIA7806I2-R-6 IC (VOLTQAGE REGULATOR) KIA7806AP
IC32 H03-ICMM1511XDL-R-5 IC (VIDEO SWITCH) MM1511XNRE
IC38 H03-ICNJM2586MN-R-0 IC (VIDEO AMP) NJM2586M
IC39 H03-ICADA44123A-R-4 IC ADA4412-3ARQZ
IC40 H03-ICADA44106A-R-9 IC ADA4410-6ACPZ
IC41,IC44,IC58 H03-TSUPA672TNH-R-0 IC SMD (TRANSISTOR MOSFET) UPA672T
IC43,IC46 H03-ICEEP24LCD2-R-9 IC 24LC08BT-I
IC47 H03-ICFLI2300NN-R-A IC VIDEO ENHANCER FLI2300-BD
IC48 H03-ICK4S6432I6-R-9 IC 64M SDRAMK4S643232H
IC49 H03-IC74LVC254D-R-6 IC SN74LVC257AD
IC50,IC51,IC53 H03-IC74A244PD8-R-7 IC BUFFER DRIVER SN74ALVC244PWR
IC54 H03-ICSIL903080-R-8 IC TRANSMITTER SII9030CTU
IC55 H03-ICSII903144-R-9 IC HDMI RECEIVER SIL9031
IC56,IC57,IC61,IC62 H03-DSAMP0514MN-R-0 IC DIODE TVS ARRAY RCLAMP0514M
IC64 H03-ICAD1580BRT-R-7 IC AD1580BRTZ
IC65 H03-ICCJT1172N5-R-A IC CJT1117-2.5
IC66 H03-IC74CB3T3D2-R-5 IC SN74CB3T3306DCTR
IC67,IC68 H03-ICC1G125DCK-R-0 IC (SINGLE BUS BUFFER) SN74LVC1G125
Q100,Q102 H03-TRKTC3199GR-R-5 TRANSISTOR KTC3199-GR
Q101 H03-TRKTC3875ND-R-1 TRANSISTOR KTC3875S
Q105,Q106,Q113,Q114,Q115,Q118 H03-TSKRC107SND-R-3 TRANSISTOR KRC107S
Q107,Q108,Q109,Q124 H03-TRKTA1267GR-R-2 TRANSISTOR KTA1267-GR
6

Parts List 5/6 RVE-1060
SYMBOL PARTS NO. DESCRIPTION
Q110,Q111,Q112,Q123 H03-TSKRA107SNI-R-5 TRANSISTOR KRA107S
Q119,Q120 H03-TS2N7002LND-R-0 TRANSISTOR 2N7002LT1G
Q121,Q122 H03-TS2N7002LND-R-0 TRANSISTOR 2N7002LT1G
D100,D103-109,D120-125,D129,,D143,D144 H03-DS1S50094NB-R-7 D-SLP 1SS355 35.0V 225MI0A
D126,D127,D128 H03-DSBAV99LTNB-R-5 DIODE SWITCHING BAV99LT1G
D130-133,D135-138,D141-142 H03-DS05GBUSCNB-R-7 DIODE PG05GBUSC
F100 H03-SWNANDC1502-R-7 SWITCH POLY NANOSMDC150F-2 SMD
RV10-15 H03-VR0603V150R-R-4 VARISTOR CHIP CT0603V150RFG
RV16-23 H03-VR0402V275R-R-9 VARISTOR CHIP CT0402V275RFG
R181,R286,R292,R296,R355,R362,R367 RS3AD0000NA-R-0 RESISTOR CHIP 1/16W 0
R288,R291,R294,R298,R301,R302,R304,R357 RS3AD0000NA-R-0 RESISTOR CHIP 1/16W 0
R112-119,R157-158,R184-185,R215-216, RS3AD010ANA-R-6 RESISTOR CHIP 1/16W 1
R226-227,R228-229,R264-265,R266,R276, RS3AD010ANA-R-6 RESISTOR CHIP 1/16W 1
R389,R390,R230,R231 RS3AD010ANA-R-6 RESISTOR CHIP 1/16W 1
R165 RS3AD0152NA-R-A RESISTOR CHIP 1/16W 1.5K
R343,R344 RS3AD0182NA-R-1 RESISTOR CHIP 1/16W 1.8K
R406 RS3AD0100NA-R-7 RESISTOR CHIP 1/16W 10
R168,R177-180,R322-323,R330-331,R340-341, RS3AD0101NA-R-5 RESISTOR CHIP 1/16W 100
R378-379 RS3AD0101NA-R-5 RESISTOR CHIP 1/16W 100
R358,R359,R394 RS3AD0101NA-R-5 RESISTOR CHIP 1/16W 100
R159,R169,R220-222,R310-316,R321,R342, RS3AD0103NA-R-1 RESISTOR CHIP 1/16W 10K
R349,R350,R353,R354,R360,R361,R398 RS3AD0103NA-R-1 RESISTOR CHIP 1/16W 10K
R164,R223,R224,R225,R308,R309 RS3AD0103NA-R-1 RESISTOR CHIP 1/16W 10K
R162,R187,R188 RS3AD0121NA-R-A RESISTOR CHIP 1/16W 120
R167 RS3AD0124NA-R-4 RESISTOR CHIP 1/16W 120K
R126 RS3AD0123NA-R-6 RESISTOR CHIP 1/16W 12K
R130,R134,R138,R142 RS3AD0123NA-R-6 RESISTOR CHIP 1/16W 12K
R150 RS3AD0154NA-R-6 RESISTOR CHIP 1/16W 150k
R252,R253,R256,R259 RS3AD0153NA-R-8 RESISTOR CHIP 1/16W 15K
R153 RS1AD1691NA-R-2 RESISTOR CHIP 1/16W 169
R318 RS1AD1870NA-R-2 RESISTOR CHIP 1/16W 187
R123-125,R127-129,R131-133,R135-137, RS3AD0102NA-R-3 RESISTOR CHIP 1/16W 1K
R139-141,R160-161,R170-172,R347,R351 RS3AD0102NA-R-3 RESISTOR CHIP 1/16W 1K
R251,R255,R258,,R371 RS3AD0102NA-R-3 RESISTOR CHIP 1/16W 1K
R154,R155 RS3AD0105NA-R-8 RESISTOR CHIP 1/16W 1M
R173,R174,R317,R334 RS3AD0105NA-R-8 RESISTOR CHIP 1/16W 1M
R248,R261,R263,R397 RS3AD0222NA-R-4 RESISTOR CHIP 1/16W 2.2k
R151,R152 RS3AD0272NA-R-0 RESISTOR CHIP 1/16W 2.7k
R339 RS3AD0201NA-R-1 RESISTOR CHIP 1/16W 200
R166 RS3AD0224NA-R-0 RESISTOR CHIP 1/16W 220K
R348,R352 RS3AD0223NA-R-2 RESISTOR CHIP 1/16W 22K
R149 RS3AD0271NA-R-2 RESISTOR CHIP 1/16W 270
R186,R372,R373,R374,R375,R376,R377 RS3AD0301NA-R-8 RESISTOR CHIP 1/16W 300
R335,R407,R408 RS3AD0330NA-R-1 RESISTOR CHIP 1/16W 33
R249,260,R262,R396 RS3AD0333NA-R-6 RESISTOR CHIP 1/16W 33k
R369 RS3AD0390NA-R-5 RESISTOR CHIP 1/16W 39
R365,R368 RS3AD0302NA-R-6 RESISTOR CHIP 1/16W 3k
R175-176,R280-281,R284-285,R337-338,R364 RS3AD0472NA-R-3 RESISTOR CHIP 1/16W 4.7K
R208,R282-283,R319,R333-346,R381-382 RS3AD0472NA-R-3 RESISTOR CHIP 1/16W 4.7K
R206,R336 RS3AD0470NA-R-7 RESISTOR CHIP 1/16W 47
R182,R183,R207,R320,R380,R409,R410 RS3AD0470NA-R-7 RESISTOR CHIP 1/16W 47
R332 RS1AD4750NA-R-8 RESISTOR CHIP 1/16W 475
R400,R401,R402,R403 RS3AD0473NA-R-1 RESISTOR CHIP 1/16W 47K
R404,R405 RS3AD068ANA-R-6 RESISTOR CHIP 1/16W 6.8
R163,R392,R411 RS3AD0682NA-R-3 RESISTOR CHIP 1/16W 6.8k
R156 RS3AD0624NA-R-6 RESISTOR CHIP 1/16W 620K
7

Parts List 6/6 RVE-1060
SYMBOL PARTS NO. DESCRIPTION
R247,R250,395 RS3AD0680NA-R-7 RESISTOR CHIP 1/16W 68
R370 RS3AD0681NA-R-5 RESISTOR CHIP 1/16W 680
R254,R257 RS3AD0752NA-R-8 RESISTOR CHIP 1/16W 7.5K
R191,R192 RS1AD0750NA-R-6 RESISTOR CHIP 1/16W 75
R100-103,R105-111,R189-190,R217-219, RS1AD0750NA-R-6 RESISTOR CHIP 1/16W 750
R238-246,R267-275,R277-279,R324-329, RS1AD0750NA-R-6 RESISTOR CHIP 1/16W 750
R383-R388 RS1AD0750NA-R-6 RESISTOR CHIP 1/16W 750
R104 RS1AD787ANA-R-4 RESISTOR CHIP 1/16W 78.7
R143,R391 RS3AD0822NA-R-2 RESISTOR CHIP 1/16W 8.2k
RA30,RA31,RA32 RN3AY0220NA-R-4 RESISTOR NETWORK 22O
RA10-13,RA16-19,RA22,RA33,RA34-36,RA39 RS3AY0470NA-R-2 RESISTOR NETWORK 47
K102,K103 H03-RLL0517811A-R-7 RELAY D3009
P602 H03-WN04AB00000-R-3 CONNECTOR WAFER 4P
P603 H03-WN07AD00000-R-3 CONNECTOR WAFER 7P
P605 H03-WN29AI00000-R-6 CONNECTOR WAFER 29P
P700,P701 H03-WN04AB100WH-R-5 CONNECTOR WAFER 4P
P702 H03-WN10AB000WH-R-4 CONNECTOR WAFER 10P
N700,N701 H03-WN04SB100WH-R-2 CONNECTOR WAFER 4P
N702 H03-WN10SB100WH-R-A CONNECTOR WAFER 10P
NJ10 H03-SORA60031GN-R-4 JACK RCA+S-VIDEO 6P
NJ13 H03-SORA40021GN-R-7 JACK RCA+S-VIDEO 4P
NJ16 H03-SOR12BJ12GN-R-1 JACK RCA 12P
NJ17,NJ18,NJ19 H03-SOYKF457009-R-2 JACK HDMI YKF45-7009
011 FP-620-B BLACK PANEL ASSY
011 FP-620-S SILVER PANEL ASSY
011 VA3-01A00 H/S PANEL
012 RV4-09A00 PUSH BUTTON 14Φ(BLACK)
012 RV4-09A01 PUSH BUTTON 14Φ(SILVER)
012 TB3-18A00 TACT BUTTON 16 KEY (BLACK)
012 TB3-18A01 TACT BUTTON 16 KEY (SILVER)
014 WS3-03A01 UPPER COVER
019 4TSH-19#2 PLASTIC FOOT 50Φ
019 C-4714A00 POWER KNOB RING 14Φ(BLACK)
019 C-4714A01 POWER KNOB RING 14Φ(SILVER)
034 SEL1124R LED (RED) 1X5
034 SEL1E24W LED (BLU) 1X5
069 C-4629A01 AC 2P INLET 6102.3100 (WIRING)
072 C-4621A03 AC CORD SET for USA
072 C-4622A02 AC CORD SET for AUSTRALIA
072 C-4623A03 AC CORD SET for UK
072 C-4624A03 AC CORD SET for EUROPE
072 C-4786A01 COMPUTER I/O CABLE (6-P)
081 WT3-05A00 INSIDE CARTON
081 WT3-06A00 SHIPPING CARTON
081 ZE-218 ETHAFOAM MOULDING
092 RR-VE92 REMOTE CONTROL UNIT
082 OMRVE-1060 OWNER'S MANUAL
O T H E R S
8

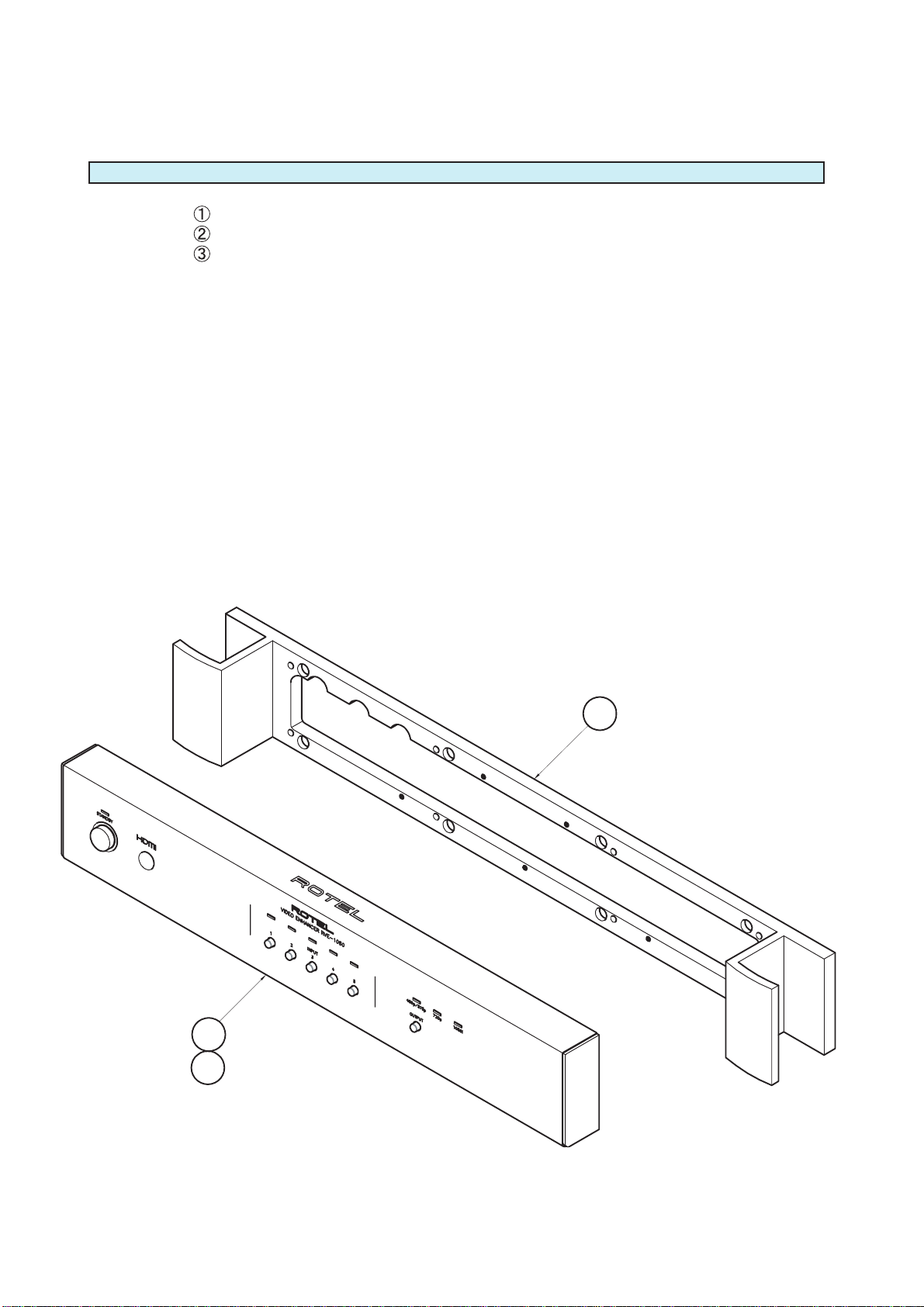

RVE-1060
SYMBOL PARTS DESCRIPTION
011 FP-620-B BLACK PANEL ASS
Y
011 FP-620-S SILVER PANEL ASS
Y
011 VA3-01A00 H/S PANEL H80
012 RV4-09A00 PUSH BUTTON 14F (BLK)
012 RV4-09A01 PUSH BUTTON 14F (SLV)
012 TB3-18A00 TACT BUTTON 16 KEY (BLK)
012 TB3-18A01 TACT BUTTON 16 KEY (SLV)
034 SEL1124R LED (RED) 1X5
034 SEL1E24W LED (BLU) 1X5
Addendum List for Black and Silve
r
Panel Assy is included:
Side Cap
Knob Ring
Tact buttons
LED
3
1
2
9

1. Extract the program zip file in a temporary folder. And save "Fsw.exe" and "SELF100.ini"
2. Power ON the RVE1060 and set the menu of "Upgrade" in "Others Setup" menu to "Yes".
2. Execute "FSW.exe". It is appeared blow screen in the PC.
3. Push "Set" button placed at program's below right side.
4. Press "HEX" button, and choose and load HEX file.
5. Press "COM" button placed at "HEX" button below, and choosing COM1.
(connecting PC's COM1 and cable).
6. Click Command(C) - "Self Mode" in the program menu.
7. Push "Connect" button placed at program's below left side, and BaudRate placed next to "COM"
button will be displayed if the above process is OK.
RVE1060 Upgrade procedure
10

8. Click "Write" button placed next to "Connect" button and push "y" button
when message window shows.
9. "Write" to execute from Block 1 to Block 11 automatically.
10. After finshing "Write", then the total writing time will be displayed in the window.
11. Disconnect AC Line and connect again to store the software. Finish.
11

<Memo>
12

Wiring RVE-1060
WIRING
(1) N203 016 X-1483A02 (FRONT B'D) P203 016 X-1483A04 (IR SENCSER B'D)
(2) N202 016 X-1483A02 (FRONT B'D) P202 016X-1483A05 (STAND BY SW B'D)
(3) AC INLET CN1 016 E-1482A00 (POWER SUPPLY)
(4) N10 016 X-1483A00 (MAIN B'D) P602 016 X-1483A00 (VIDEO B'D)
(5) N204 016 X-1483A03 (LED CONTROL B'D) P104 016 X-1483A00 (MAIN B'D)
(6) N201 016 X-1483A02 (FRONT B'D) P102 016 X-1483A00 (MAIN B'D)
(7) N101 016 X-1483A00 (MAIN B'D) CN3 016 E-1482A00 (POWER SUPPLY)
(8) CN2 016 E-1482A00 (POWER SUPPLY) P603 016 E-1484A00 (VIDEO B'D)
(9) P605 016 E-1484A00 (VIDEO B'D) P101 016 X-1483A00 (MAIN B'D)
13

PCB Assembly (1/5)
Top View
Main PCB 016 X-1483A01~05
RVE-1060
14

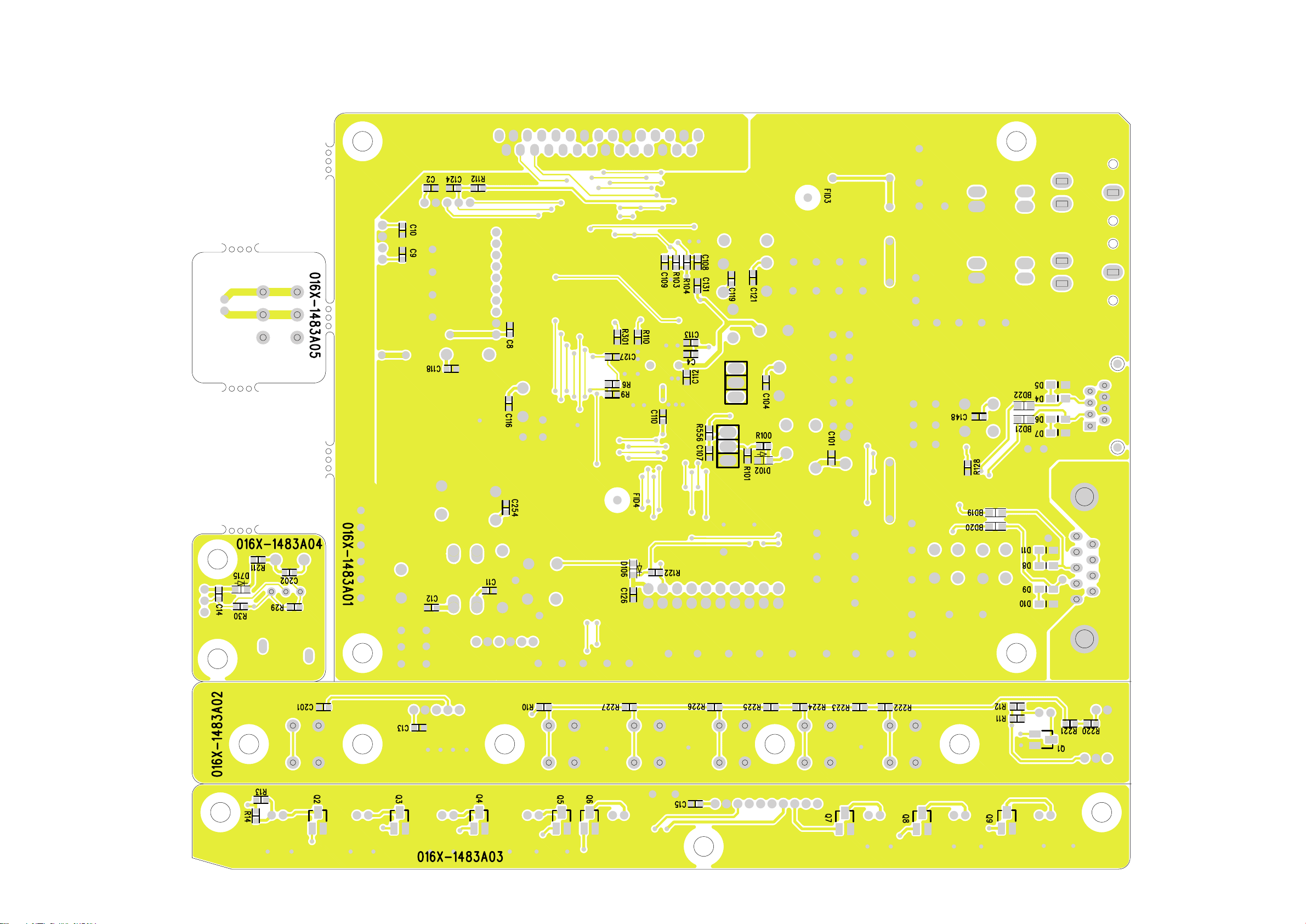

Main PCB 016 X-1483A01~05
Bottom View
PCB Assembly (2/5) RVE-1060
15

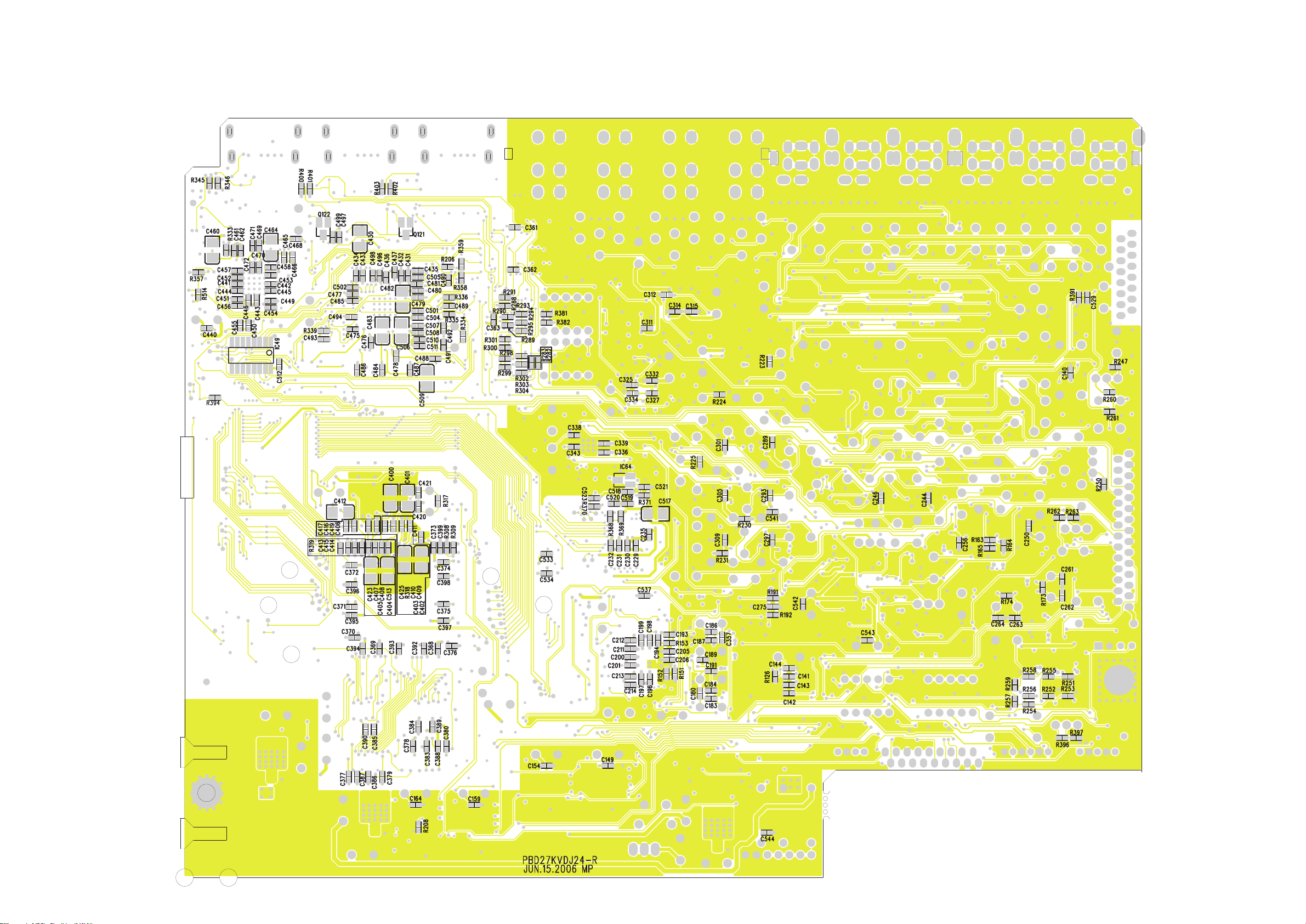

PCB Assembly (3/5) Video PCB 016 E-1484A00
RVE-1060
Top View
16

Video PCB 016 E-1484A00
Bottom View
RVE-1060
PCB Assembly (4/5)
17

PCB Assembly (5/5) Power Supply PCB 016 E-1482A00
Top View
Bottom View
RVE-1060
18

RVE-1060
Schematic Diagram (1/6)
Main PCB (1/2) 016 X-1483A01~05
19
19

Schematic Diagram (2/6)
Front PCB (2/2) 016 X-1483A01~05
RVE-1060
016 X-1483A04
016 X-1483A02 016 X1483A03
016 X1483A05
20
20
