Technical
Manual
SURROUND SOUND RECEIVER
RSX-1562
Table of Contents
Specification......................................1
Parts List...........................................2~11
PCB Assembly..................................23~27

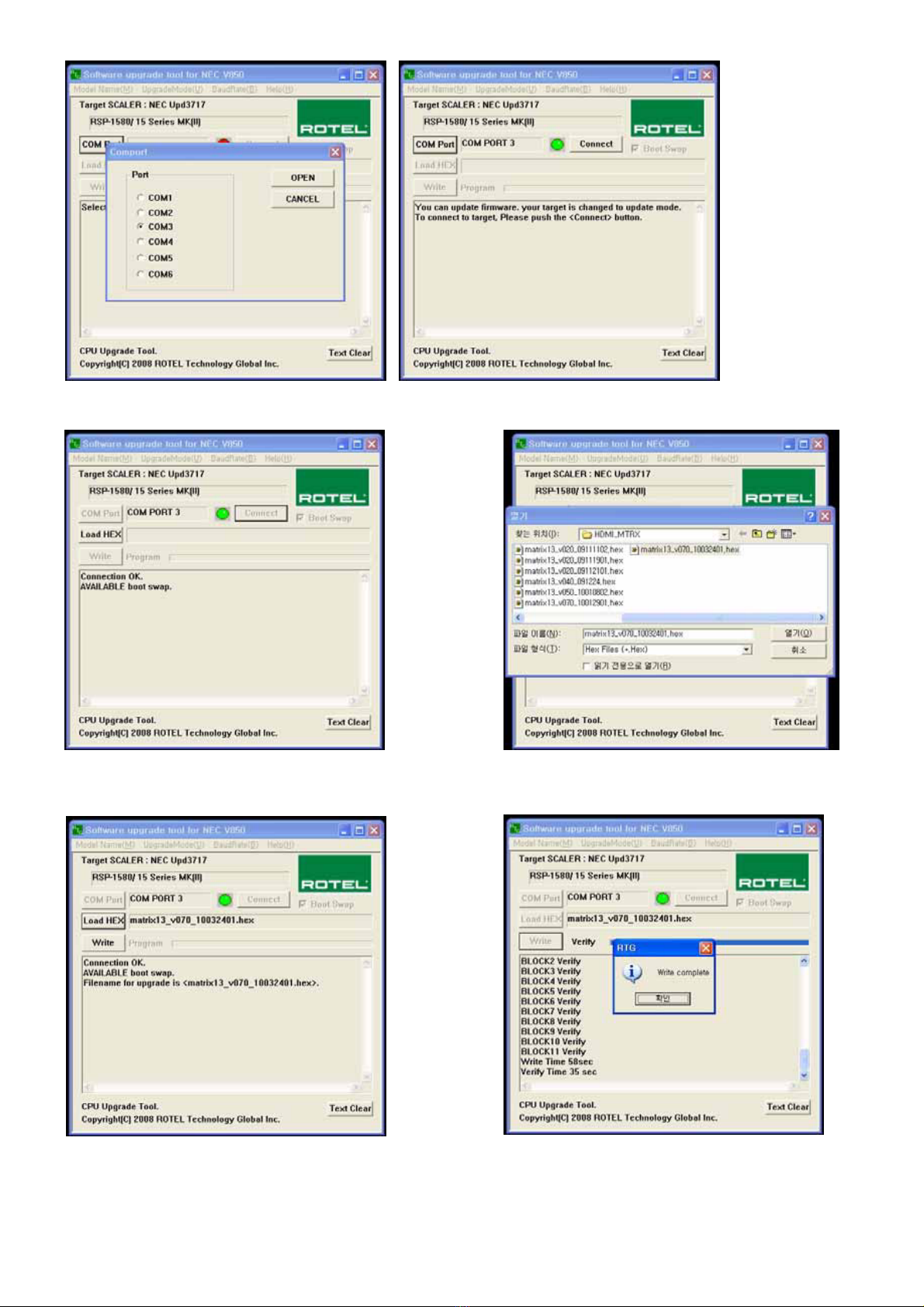

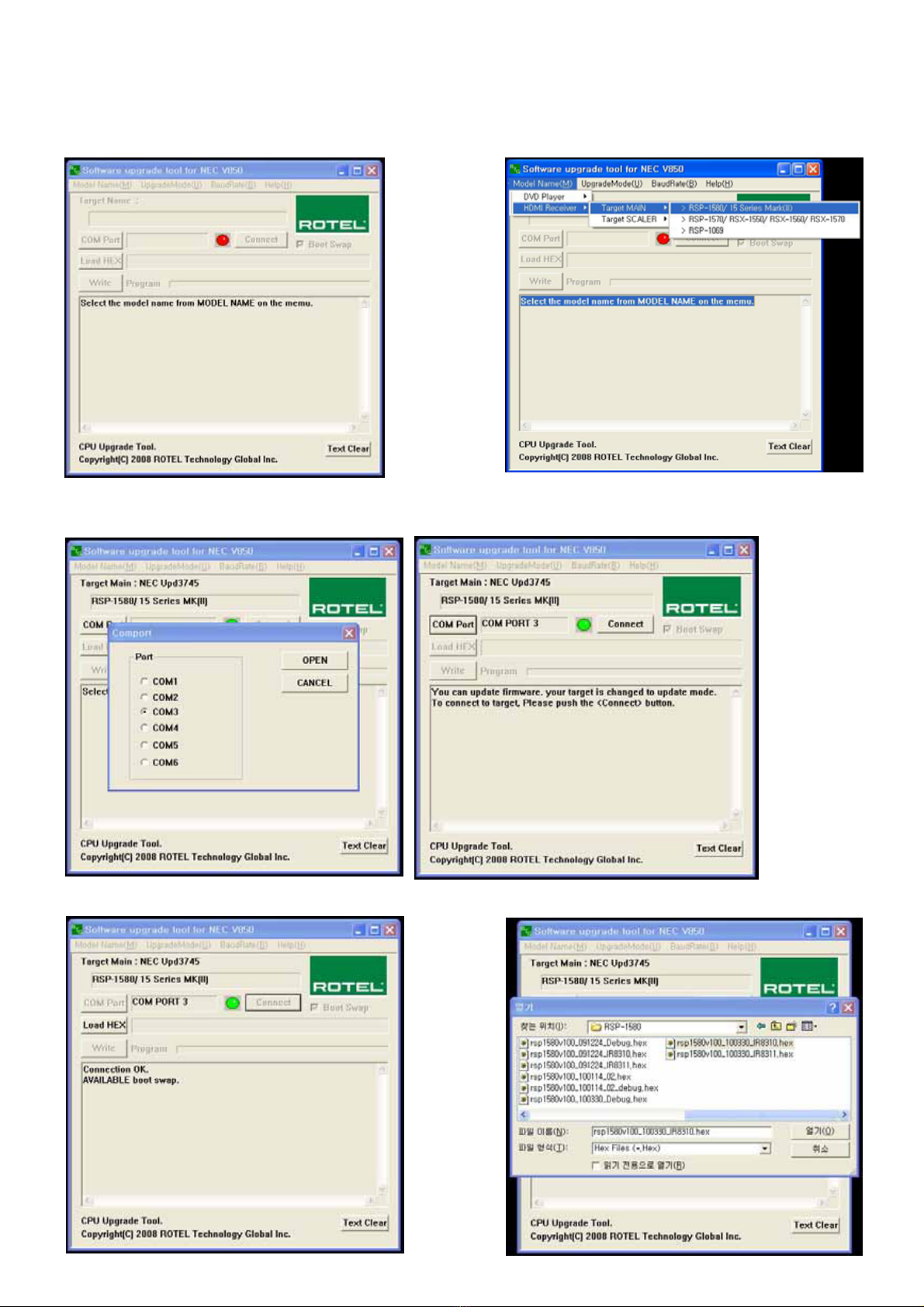

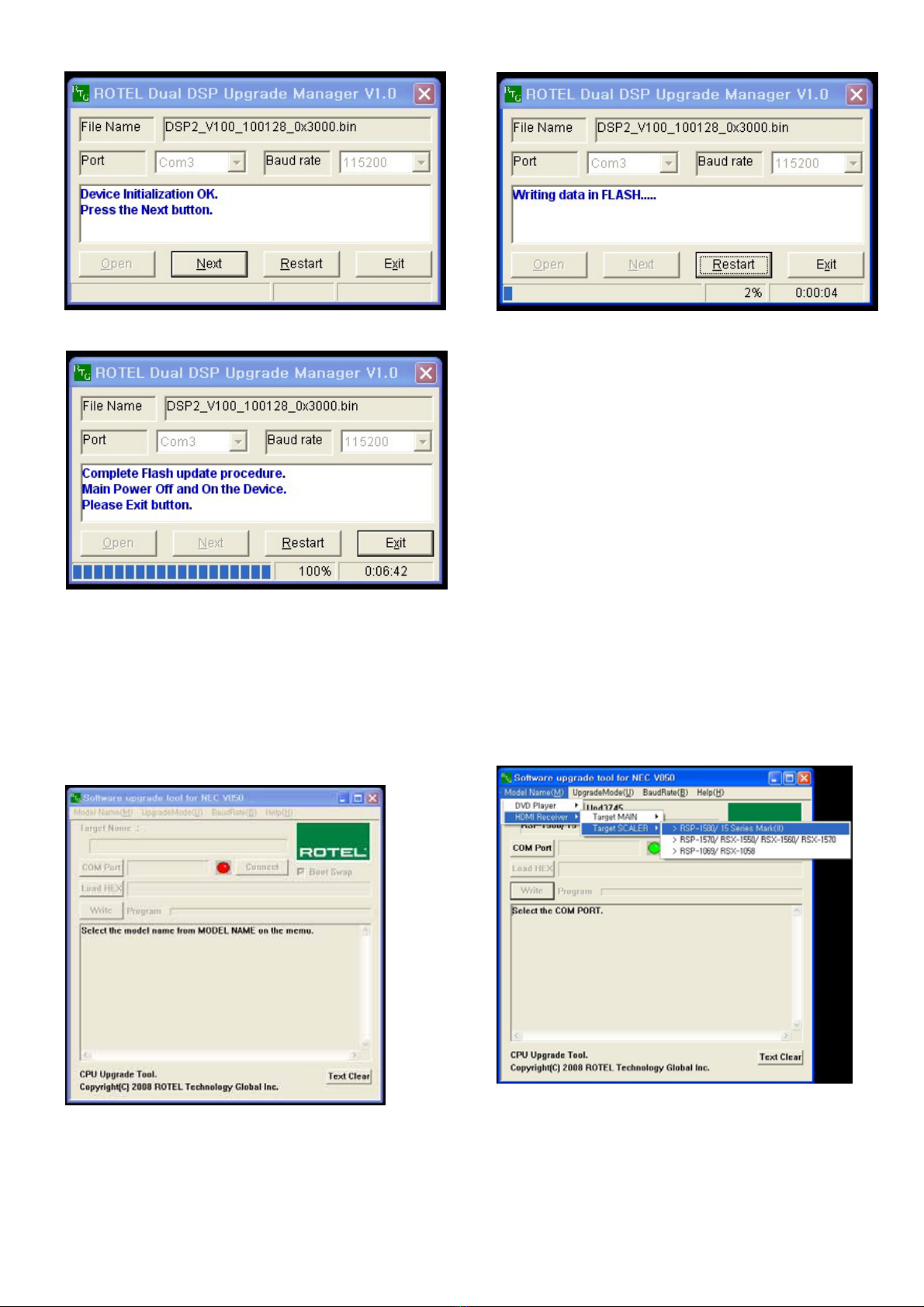

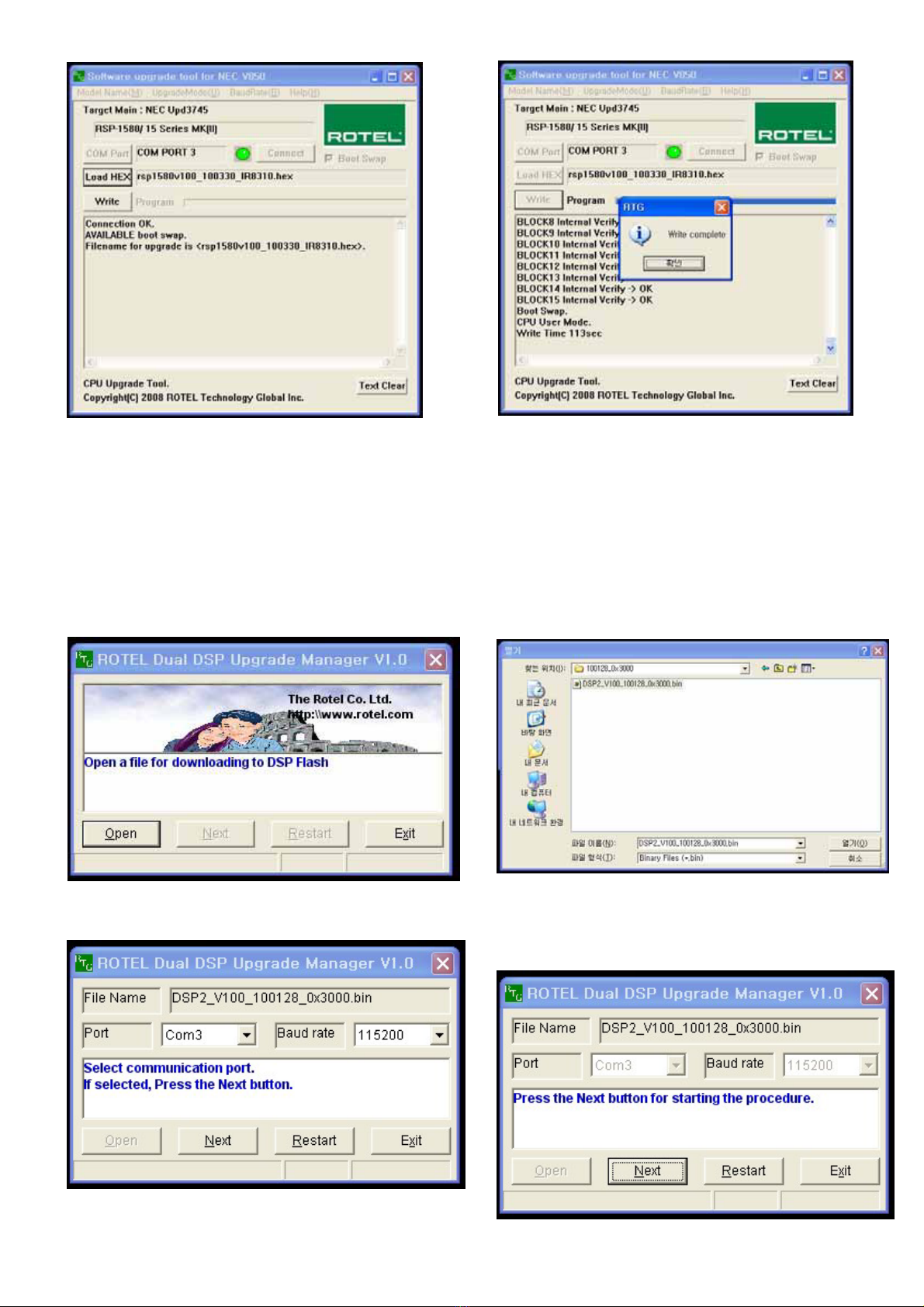

Upgrade Procedure..........................12~22
SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN
Serial. NO.
Beginning
®
Quality Uncompromised
Y-443A-1111/pdf
THE ROTEL CO., LTD.
Specifications
Audio
ContinuousAmplifierPower(sevenchannelsdriver)
100watts/ch(20-20kHz,<0.05%THD,8ohms)
ContinuousAmplifierPower
200watts(1kHz,<1.0%THD,4ohms,DIN)
TotalHarmonicDistortion
<0.008%
IntermodulationDistortion(60Hz:7kHz)
<0.008%
FrequencyResponse
10Hz-120kHz, ±3dB(analogbypass)
10Hz-95kHz,±0.3dB(digitalinput)
SignaltoNoiseRatio(IHFA-weighted)
95dB(analogbypass)
92dB(DolbyDigital,DTS)0dBFs
InputSensitivity/Impedance
LineLevel:200mV/100kohms
PreampOutputLevel/OutputImpedance
1.0V/1kohms
DecodableDigitalInputSignals
DolbyDigital,DolbyDigitalEX,DTS,DTS-ES,DTS96/24,DTS-ES96/24,LPCM(up
to192k). Losslessaudioformats(usingHDMI1.3):DolbyTrueHDandDTSHD
MasterAudio.
DecodableUSB/iPodDigitalInputSignals
AAC(m4a),WAV,MP3,WMA
Video
InputResolutions
480i/576i,480p/576p,720p,1080i
1080p,1080p24Hz,3D(HDMIonly)
OutputResolution
480i/576i(Compositeonly),480p/576p,720p,1080i
1080p,1080p24Hz,3D(HDMIonly)
SignaltoNoiseRatio
45dB
InputImpedance
75ohms
OutputImpedance
75ohms
OutputLevel
1.0volt
HMDIInputs/Outputs
Version1.3,supportingDeepColorpassthroughandBroadColorSpacepassthrough.
Version1.4,supporting3DpassthroughandAudioReturnChannel
FM Tuner
UsableSensitivity
14.2dBf
SignaltoNoiseRatio(at65dBf)
70dB
HarmonicDistortion(at65dBf)
0.03%
StereoSeparation(1kHz)
45dB
Outputlevel
1V
AntennaInput(unbalanced)
75ohms
AM Tuner
Sensitivity
50µV/m
SignaltoNoiseRatio
40dB
OutputLevel
500mV
AntennaInput
LoopAntenna
General
PowerConsumption
500watts
0.5watt(standby)
PowerRequirements(AC)
120volts,60Hz(USAversion)
230volts,50Hz(ECversion)
Weight
15.5kg/34.17lbs
Dimension(WxHxD)
431x188x422mm
17x7 1/2x165/8in
FrontPanelHeight(feetremoved/forrackmount)
4U/176.8mm/7in
Schematic Diagram ..........................28~45
FL
FR
SL
SR
Sbl
C
SW
Sbr
RSX-1562
Appearance
<MEMO>
Press "PLIIx" and "MUTE" of front panel.
When release the lighting, press STANDBY switch or master
power switch.
1.Light-up ALL FL segments to check:
2.Video Calibration (ADC) check:
Press "2CH" and "DSP" of front panel.
3.Forced Video 480p/576p screen:
Press "2CH" and "MUTE" of front panel.
2
Parts List 1/9 RSX-1562
SYMBOL PARTS NO. DESCRIPTION
501 E-1517B-3 PCB ASSY (CONNECTION)
IC503-513 031 IC0009200 IC SMD (OPE AMP) NJM2068M
IC501,502 031 IC0016602 IC SMD (SWITCH ARRAY) TC9163CFG
Q502,504 032 KRA107S TRANSISTOR CHIP KRA107S-RTK/P
Q501,503,509,510 032 KRC107S TRANSISTOR CHIP KRC107S-RTK/P
Q505-508 032 KRC231S TRANSISTOR CHIP KRC231S-RTK/P
D501,502 034 DD0000500 DIODE CHIP KDS184RTK
DZ501 034 DZ0105R11 ZENER DIODE HZS5.1NB2
C568,572,574 041 25ZA47MEFCTZ ELECTROLYTIC CAPACITOR 25V47UF
C538,541,544,567,571,573 041 35ZA10MEFCTZ ELECTROLYTIC CAPACITOR 35V10UF
C545-548,551,552,555,556,561-564 041 EEUFC1E221B ELECTROLYTIC CAPACITOR 25V220UF
C534-537,549,550,553,554,557-560 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47UF
C565,566,570,576,578,580 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47UF
C539,540,542,543,569,575,577,579 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C505,506,509-513 047 GRM2162C1H470JZ01D CERAMIC CAPACITOR CHIP 50V47PF
C501-504,507,508,514-533 047 GRM219F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
R501-504,531,532,547,548,553,554 055 ERJ6ENF1000V RESISTOR CHIP 100
R559,560,579-592 055 ERJ6ENF1000V RESISTOR CHIP 100
R505-510,512,514,545,549,551,555 055 ERJ6ENF1001V RESISTOR CHIP 1K
R557,561,563,565,567,569,571,573 055 ERJ6ENF1001V RESISTOR CHIP 1K
R575,577,595 055 ERJ6ENF1001V RESISTOR CHIP 1K
R593,594 055 ERJ6ENF1002V RESISTOR CHIP 10K
R511,513,516,517,522,523,526,527 055 ERJ6ENF1003V RESISTOR CHIP 100K
R530,546,550,552,556,558,562,564 055 ERJ6ENF1003V RESISTOR CHIP 100K
R519,520,533-537 055 ERJ6ENF2002V RESISTOR CHIP 20K
R515,518,521,524,525,528,529 055 ERJ6ENF2702V RESISTOR CHIP 27K
CP702 068 B12B-PH-KS CONNECTOR POST 12P
CP301 068 B14B-PH-KS CONNECTOR POST 14P
CP531-533 068 B2B-EH CONNECTOR POST 2P
CP534,536,538 068 B3B-EH CONNECTOR POST 3P
CP522-525 068 B3B-EH CONNECTOR POST 3P
CP703 068 B3B-PH-KS CONNECTOR POST 3P
CP518-521 068 B6B-EH CONNECTOR POST 6P
CP535,537,539 068 B8B-EH CONNECTOR POST 8P
501 E-1564A-7 PCB ASSY (TELECHIPS)
XT302 023 CY0900100 CRYSTAL SMD 12MHZ
L301,302 025 BK2125HS601 BEAD COIL CHIP BK2125HS601-T
L303 025 CIL10J2R2K COIL CHIP 1608 2.2UH-CIL10J2R2K
IC305 031 IC0002703 IC SMD (REGULATOR) ABF AME1117CCGTZ
IC304 031 IC0002704 IC SMD (REGULATOR) AME1117ECGTZ AXH
IC303 031 IC0024101 IC SMD (MEMORY) K4S641632K-UC60
IC301 031 IC0030400 IC SMD MFI341S2164 I-POD 2.0 CP Authentication
IC302 031 IC0030500 IC SMD TCC8600 32-bit RISC for Host Player
IC306 531 IC0032603 IC SMD EN29LV160BT WRITING
C307,308 047 GRM1882C1H220JA01D CERAMIC CAPACITOR CHIP 50V22PF
C319-320 047 GRM1882C1H270JA01D CERAMIC CAPACITOR CHIP 50V27PF
C305 047 GRM1882C1H391JA01D CERAMIC CAPACITOR CHIP 50V390PF
C306 047 GRM188B11H122KA01D CERAMIC CAPACITOR CHIP 50V1200PF
C309 047 GRM188F11C105ZA01D CERAMIC CAPACITOR CHIP 16V1UF
C324 047 GRM188F11C105ZA01D CERAMIC CAPACITOR CHIP 16V1UF
C310-313 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C314-318,321-323,325-329,331-340 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C301-304 047 TCSCS1A226M TANTAL CAPACITOR CHIP 10V22UF
R318 055 ERJ3EKF1001V RESISTOR CHIP 1K
R327,328,333,336,337,340 055 ERJ3EKF1002V RESISTOR CHIP 10K
R305 055 ERJ3EKF1004V RESISTOR CHIP 1M
R322-325 055 ERJ3EKF1502V RESISTOR CHIP 15K
R301-304 055 ERJ3EKF22R1V RESISTOR CHIP 22.1
R317 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R319,320,330,331,334 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R332 055 ERJ3EKF4702V RESISTOR CHIP 47K
R335 055 ERJ3EKF56R0V RESISTOR CHIP 56
R306-316 055 EXB28V470JX RESISTOR CHIP ALLEY
J301 068 C-5130A20 PIN HEADER
501 E-1574A-2 PCB ASSY (AC INLET)
LF001 021 2698200001 LINE FILTER
CX101 044 ECQU2A105KL SPARK KILLER 275V1UF
J101 068 C-4422A01 PCB TERMINAL 2P P10
501 E-1595E-1 PCB ASSY (HDMI)
L401-432 021 ACM2012H EMC FILTER COIL ACM2012H-900-2P
IC421 023 CY0600300 OSCILATOR 18.432MHz ISXO-3E
016 E-1517B00 PCB ASSY
016 E-1564A00 PCB ASSY
016 E-1574A01PCB ASSY
016 E-1595E00 PCB ASSY
3
Parts List 2/9 RSX-1562
SYMBOL PARTS NO. DESCRIPTION
XT403 023 CY0700300 CRYSTAL SRXA-S1-18-5.000MHz
XT404 023 CY0700600 CRYSTAL 19.6608MHz SRXA-SI-18
XT401-402 023 CY0700800 CRYSTAL 28.6363MHz SRXA-SI-18
L442-443 025 BK2125HS101 BEAD COIL CHIP BK2125HS101-T
L437-439 025 BK2125HS101 BEAD COIL CHIP BK2125HS101-T
L440-441,447,450-452,464-468 025 BK2125HS102 BEAD COIL CHIP BK2125HS102-T
L435 025 BK2125HS102 BEAD COIL CHIP BK2125HS102-T
L444-446,448-449,453-463 025 BK2125HS601 BEAD COIL CHIP BK2125HS601-T
L433-434 025 BK2125HS601 BEAD COIL CHIP BK2125HS601-T
L436 025 CIL10J2R2K CHIP COIL 1608 2.2UH-CIL10J2R2K
IC428 031 IC0002703 IC SMD (REGULATOR) ABF AME1117CCGTZ
IC439 031 IC0002704 IC SMD (REGULATOR) AXH AME1117ECGTZ
IC420,441 031 IC0019300 IC SMD (BUS SWITCH) SN74CB3Q3305PER
IC450-451 031 IC0020501 IC SMD (SDRAM MEMORY) K4H561638J-LCCC
IC401-402 031 IC0021400 IC SMD (TRISTATE BUFFER) NC7SZ125M5-NL
IC442 031 IC0023700 IC SMD (EEPROM) BR24L08F-W
IC443 031 IC0025300 IC SMD (TEXAS SINGLE) SN74LVC1G3157DBVRQ1
IC446-447 031 IC0025400 IC SMD (TEXAS QUAD) SN74LVC257APWR
IC419 031 IC0025600 IC SMD (VIDEO BUFFER) THS7353PWR
IC406,408,410,412,414,416 031 IC0025600 IC SMD (ANALOG SWITCH) TS5A23157DGSR
Q421 031 IC0025800 IC SMD (DUAL FET) NDC7002N
Q401-408 031 IC0026000 IC SMD (DUAL FET) UPA672T
IC430 031 IC0026100 IC SMD (OCTAL BUFFER) DM74ALS541SJ
IC438 031 IC0026700 IC SMD (CPU SOFT WRITING) UPD70F3717GC-X560
IC435 531 IC0026803 IC SMD (TRANSMITTER) SII9134CTU
D401-408,410-411,413-414,416-417 031 IC0027300 SMD DIODE EMC CLAMP RCLAMP0524P
D419-420,422-423 031 IC0027300 SMD DIODE EMC CLAMP RCLAMP0524P
IC423 531 IC0027902 IC SMD MEMORY FLASH SST39VF3201-70-4C-EKE WRITING
IC444-445 031 IC0028100 IC SMD (DC-DC CONVERTER) EN5335QI-T 3A PWM
IC436 031 IC0028500 IC SMD FLI30336-AC DIGITAL VIDEO PROCESSOR
IC424 031 IC0028700 IC SMD SN74CB3Q3253PWR Dual 1-OF-4 MUX/DEMUX
IC403-404 031 IC0029100 IC SMD TPS2553DBVR Adjustable current limite S/W
IC405,418 031 IC0029400 IC SMD FMS6502MTC24X VIDEO MATRIX SW 8-IN 6-OUT
IC425 031 IC0030100 IC SMD (MEMORY SERIAL EEPROM) AT24C32N-10SC-2.5
IC422 031 IC0035100 IC SMD (HDMI MATRIX) EP9432
IC426-427 031 IC0035200 IC SMD (HDMI TRANSCEIVER) ADV7623
IC433 031 IC0035300 IC SMD (SERIAL INTERFACE EEPROM) R1EX24016A
IC449 031 IC0035400 IC SMD (LOW VOLTAGE REGULATOR) 2A KIA278R025FP
Q422-423 032 KRC107S TRANSISTOR CHIP KRC107S
Q409-420 032 KRC231S TRANSISTOR CHIP KRC231S
D427 034 DD0000500 DIODE CHIP KDS184RTK/P
D409,412,415,418,421,424-426 034 DD0000600 DIODE CHIP KDS226RTK/P
CV401,432,434 034 DV0000100 SMD VARISTOR DV0000100
C552,557-559,564,567,569-575,579 047 CL05B104K05NNNC CERAMIC CAPACITOR CHIP
C580,584,587-592,598,601-603,619 047 CL05B104K05NNNC CERAMIC CAPACITOR CHIP
C620,625-628,630-631,637-638,641 047 CL05B104K05NNNC CERAMIC CAPACITOR CHIP
C642,643,645-653,660-671,673 047 CL05B104K05NNNC CERAMIC CAPACITOR CHIP
C675-676 047 CL05B104K05NNNC CERAMIC CAPACITOR CHIP
C425 047 CL10C8R2CB8NNNC CERAMIC CAPACITOR CHIP 50V8.2PF±0.25PF
CB401-404,412-414,422,425,438-439 047 ECFS1A221M ELECTROLYTIC CAPACITOR SMD 10V220UF
CB436 047 ECFS1A471M ELECTROLYTIC CAPACITOR SMD 10V470UF
CB407-409,415 047 ECFS1C101M ELECTROLYTIC CAPACITOR SMD 16V100UF
CB421,424 047 ECFS1E4R7M ELECTROLYTIC CAPACITOR SMD 25V4.7UF
C696-703 047 FCFS1C100M SMD ELECTROLYTIC CAPACITOR 16V10uF
C457,464-466 047 GRM1882C1H220JA01D CERAMIC CAPACITOR CHIP 50V22PF
C424,426 047 GRM1882C1H331JA01D CERAMIC CAPACITOR CHIP 50V330PF
C633-636 047 GRM1882C1H470JA01D CERAMIC CAPACITOR CHIP 50V47PF
C704 047 GRM1882C1H470JA01D CERAMIC CAPACITOR CHIP 50V47PF
C455 047 GRM1885C2A5R6CZ01D CERAMIC CAPACITOR CHIP 100V5.6PF±0.25PF
C496,678,680,682-684,688,691,693 047 GRM188B11H103KA01D CERAMIC CAPACITOR CHIP 50V0.01UF
C417-422,427-432,472,475,479,482 047 GRM188B11H103KA01D CERAMIC CAPACITOR CHIP 50V0.01UF
C485,695 047 GRM188B11H103KA01D CERAMIC CAPACITOR CHIP 50V0.01UF
CB440 047 GRM188B11H473KA01D CERAMIC CAPACITOR CHIP 50V0.047UF
C547,550 047 GRM188F11C105ZA01D CERAMIC CAPACITOR CHIP 16V1UF
C433-435 047 GRM188F11C105ZA01D CERAMIC CAPACITOR CHIP 16V1UF
C409-416,486-494,497-546,548-549 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C551,553-556,560-563,565-566,568 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C576-578,581-583,585-586,593-597 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C599-600,604-618,622-624,629,632 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C639-640,644,654-659,672,674,677 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C679,681,685-687,689-690,692 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C423,437-438,440-454,456,458-463 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C467-471,474,477-478,480,481 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C483-484,694 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C473,476 047 GRM188R11H153KA01D CERAMIC CAPACITOR CHIP 50V0.015UF
C495 047 GRM188R71H102KA01D CERAMIC CAPACITOR CHIP 50V1000PF
C436,439 047 GRM188R71H102KA01D CERAMIC CAPACITOR CHIP 50V1000PF
CB426-435 047 GRM32ND70J226KE19L CERAMIC CAPACITOR CHIP 6.3V22UF
4
Parts List 3/9 RSX-1562
SYMBOL PARTS NO. DESCRIPTION
CB405-406,411,416-420,423,437 047 TCSCS1A226M TANTAL CAPACITOR CHIP 10V22UF
C467,473 047 TCSCS1A226M TANTAL CAPACITOR CHIP 10V22UF
CB441-466,468-472,474-478 047 TCSCS1A226M TANTAL CAPACITOR CHIP 10V22UF
CB410 047 TCSCS1D225MAAR TANTAL CAPACITOR CHIP 20V2.2uF
R840 054 12WS39JF MOF RESISTOR 39
R729-730 055 ERJ3EKF1000V RESISTOR CHIP 100
R554,559-560,562,594,597,604,608 055 ERJ3EKF1000V RESISTOR CHIP 100
R610-611,615,618,626,631,642,658 055 ERJ3EKF1000V RESISTOR CHIP 100
R413,417,421,425,429,433 055 ERJ3EKF1001V RESISTOR CHIP 1K
R756,760,769,771,773-778,798-799 055 ERJ3EKF1002V RESISTOR CHIP 10K
R475-480,484,486-487,489,491,493 055 ERJ3EKF1002V RESISTOR CHIP 10K
R494,496-499,508-509,511-512 055 ERJ3EKF1002V RESISTOR CHIP 10K
R537-538,557,668,802,830,831 055 ERJ3EKF1002V RESISTOR CHIP 10K
R727-728 055 ERJ3EKF1003V RESISTOR CHIP 100K
R792-793 055 ERJ3EKF2001V RESISTOR CHIP 2K
R435-436,438-439,634,637 055 ERJ3EKF2001V RESISTOR CHIP 2K
R703,707,711,715,719,723 055 ERJ3EKF2002V RESISTOR CHIP 20K
R671 055 ERJ3EKF2200V RESISTOR CHIP 220
R748 055 ERJ3EKF2201V RESISTOR CHIP 2.2K
R449,451,533-536,548-549,564,567 055 ERJ3EKF22R0V RESISTOR CHIP 22
R570,572,577,581-584,586-587,598 055 ERJ3EKF22R0V RESISTOR CHIP 22
R601,605,609,612,616,665,682-683 055 ERJ3EKF22R0V RESISTOR CHIP 22
R685-688,690,692,694,696-697 055 ERJ3EKF22R0V RESISTOR CHIP 22
R810-813 055 ERJ3EKF22R0V RESISTOR CHIP 22
R699,702,708,712,716,720,724,745 055 ERJ3EKF22R0V RESISTOR CHIP 22
R747,751,755,759,772,796,704 055 ERJ3EKF22R0V RESISTOR CHIP 22
R750 055 ERJ3EKF2700V RESISTOR CHIP 270
R550 055 ERJ3EKF2700V RESISTOR CHIP 270
R797,800 055 ERJ3EKF2800V RESISTOR CHIP 280
R539,551-552,556,575,590,674 055 ERJ3EKF33R0V RESISTOR CHIP 33
R754 055 ERJ3EKF4700V RESISTOR CHIP 470
R744,746,749,763,766,768,770,791 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R804-809 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R450,526,529,530,555,558,574,579 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R585,600,607,613-614,621,627-629 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R632,639-640,643-646,648,650,653 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R659-664,684,689,691,693,695 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R705-706,709-710,713-714,717-718 055 ERJ3EKF4702V RESISTOR CHIP 47K
R721-722,725-726,743,764,767 055 ERJ3EKF4702V RESISTOR CHIP 47K
R412,414,416,418,420,422,424,426 055 ERJ3EKF4702V RESISTOR CHIP 47K
R428,430,432,434 055 ERJ3EKF4702V RESISTOR CHIP 47K
R781,784 055 ERJ3EKF4990V RESISTOR CHIP 499
R515,518,520-523 055 ERJ3EKF49R9V RESISTOR CHIP 49.9
R700-701 055 ERJ3EKF5602V RESISTOR CHIP 56K
R409-410 055 ERJ3EKF6802V RESISTOR CHIP 68K
R761 055 ERJ3EKF6980V RESISTOR CHIP 698
R698,440-447 055 ERJ3EKF75R0V RESISTOR CHIP 75
R452-456,466-469,471,473 055 ERJ3EKF75R0V RESISTOR CHIP 75
R514,516-517,519 055 ERJ3EKF86R6V RESISTOR CHIP 86.6
R524-525 055 ERJ3EKF8870V RESISTOR CHIP 887
R411,415,419,423,427,431,458, 055 ERJ3GEY0R00V RESISTOR CHIP 0
R460-465,482-483,527-528,531-532 055 ERJ3GEY0R00V RESISTOR CHIP 0
R540-541,543-547,553,561,563,565 055 ERJ3GEY0R00V RESISTOR CHIP 0
R566,568-569,571,573,576,578,588 055 ERJ3GEY0R00V RESISTOR CHIP 0
R589,592-593,595-596,599,602-603 055 ERJ3GEY0R00V RESISTOR CHIP 0
R606,617,619-620,622-625,630,635 055 ERJ3GEY0R00V RESISTOR CHIP 0
R636,638,641,647,649,652,654,657 055 ERJ3GEY0R00V RESISTOR CHIP 0
R666,669,672-673,676-678,680-681 055 ERJ3GEY0R00V RESISTOR CHIP 0
R731-742,779,783,785,794-795 055 ERJ3GEY0R00V RESISTOR CHIP 0
R752-753,757-758 055 ERJ6RQF1R0V RESISTOR CHIP 1
RN433 055 EXB24V330JX RESISTOR CHIP 33
RN416,419,422,425 055 EXB24V330JX RESISTOR CHIP 33
RN429-432,434 055 EXB24V330JX RESISTOR CHIP 33
RN401-415,417-418,420-421,423-424 055 EXB24V330JX RESISTOR CHIP 33
RN426-428 055 EXB24V330JX RESISTOR CHIP 33
R814-829 055 RCT023R3FLF RESISTOR CHIP 3.3
JK409 066 C-4833A01 6P PIN JACK
JK401-408 066 C-4963A01 CNT HDMI SOCKET
JK410 066 C-5186A00 PIN JACK
CP404 068 B14B-PH-KS CONNECTOR POST 14P
CNT401 068 B2P-VH CONNECTOR POST 2P
CP403,702 068 B6B-PH-KS CONNECTOR POST 6P
CP402 068 B9B-PH-KS CONNECTOR POST 9P
501 E-1596D-1 PCB ASSY (DIGITAL)
IC351 017 C-4401A01 SUB HEAT SINKER
L303 021 2888100012 DIGITAL COIL
016 E-1596D00 PCB ASSY
5
Parts List 4/9 RSX-1562
SYMBOL PARTS NO. DESCRIPTION
XT301 023 CY0300500 CRYSTAL SMD HC49US 6MHz
XT302 023 CY0300600 CRYSTAL SMD HC49US 8MHz
XT304-305 023 CY0700400 CRYSTAL SMD SRXA-S1-18-4MHZ
XT303 023 CY0700700 CRYSTAL SMD SRXA-S1-18-24.576MHZ
L307-308 025 BK2125HS101 BEAD COIL CHIP BK2125HS101-T
L310-323 025 BK2125HS102 BEAD COIL CHIP BK2125HS102-T
L301-302,304-306,309 025 BK2125HS102 BEAD COIL CHIP BK2125HS102-T
IC314 031 IC0001900 IC SMD (D/A TRANSCEIVER) AK4114VQP
IC338 031 IC0002910 IC SMD (EPROM) AT24C16AN
IC316 031 IC0004900 IC SMD (SHIFT REGISTER) HEF4094BT
IC307-310 031 IC0007700 IC (PHOTO COUPLER) LTV817
IC320,322,323,324,340-343 031 IC0009200 IC SMD (OPE AMP) NJM2068M
IC351 031 IC0009900 IC DIP JRC (TO220F) NJM317F
IC332-335 031 IC0023800 IC SMD (DAC) DSD1791DB
IC325-326 031 IC0024101 IC SMD (MEMORY) K4S641632K-UC60
IC321 031 IC0024700 IC SMD (ADC) PCM1804DBG4
IC318 031 IC0025300 IC SMD (TEXAS SINGLE) SN74LVC1G3157DBV
IC345-350 031 IC0025400 IC SMD (TEXAS QUAD) SN74LVC257APWR
IC353,354 531 IC0027103 IC SMD FLASH ROM(SOFT WRITING)SST25VF080-50-4C-52AF WRITING
IC336-337 031 IC0027800 IC SMD (AUDIO DECODER DSP) CS497024-CVZ
IC328 531 IC0028202 IC SMD (CPU SOFT WRITING) UPD70F3746GJ WRITING
IC306 031 IC0028600 IC SMD SN65220DBVR USB port Transient Suppressor
IC319,352 031 IC0028900 IC SMD SN74LVC541APWR OCTAL BUFFER/LINE DRIVE 3-STAGE
IC311 031 IC0029000 IC SMD SN75C3232PWR RS232 Line driver/receiver 3~5V
IC315 031 IC0032800 IC SMD 74VHCU04M HEX SIGNALE STAGE INVERTER
IC331 031 IC0032900 IC SMD CDCS502PW CLOCK GENERATOR SSC
IC330 531 IC0033002 IC SMD STM32F101C8-P572 SOFT WRITING
IC339 031 IC0033300 IC SMD SN74LVC1G08DBV SINGLE 2-INPUT AND GATE
IC312 031 IC0035000 IC SMD USB DRIVER MA101
IC344 031 IC0035500 IC SMD STEREO DAC 24BIT AK4345
IC313 031 IC0035600 IC SMD QUAD AND GATE 74HC08D
IC327 031 IC0035700 IC SMD MASK ROM 128K BIT MN101E31G
IC329 031 IC0035800 IC SMD EEPROM AT24C512BN
Q321 032 KRA107S TRANSISTOR CHIP KRA107S-RTK/P
Q311-320,324-328 032 KRC107S TRANSISTOR CHIP KRC107S-RTK/P
Q301-304,322-323 032 KRC231S TRANSISTOR CHIP KRC231S-RTK/P
Q305-310 032 TA1450-ST TRANSISTOR 2SA1450AA-ST
D313 034 DD0000500 DIODE CHIP KDS184RTK
D308 034 DD0000500 DIODE CHIP KDS184RTK
D309-311 034 DD0000600 DIODE CHIP KDS226RTK
D312 034 DS0000300 DIODE CHIP SCHOTTKY BAT54C
D301-306 034 DS0000300 DIODE CHIP SCHOTTKY BAT54C
C376-383 041 16SH47M+F ELECTROLYTIC CAPACITOR 16V47UF
C362-365,370-373 041 20SH22M+T ELECTROLYTIC CAPACITOR 20V22UF
C397-404 041 EEUFC1E221B ELECTROLYTIC CAPACITOR 25V220UF
C410-411,413-418 041 EEUFC1E470B ELECTROLYTIC CAPACITOR 25V47UF
C301,306,310,335,353,357,360,385 041 TUTES1A101-7TF ELECTROLYTIC CAPACITOR 10V100UF
C425 041 TUTES1A101-7TF ELECTROLYTIC CAPACITOR 10V100UF
C345 041 TUTES1C101-7TF ELECTROLYTIC CAPACITOR 25V47UF
C329-331,337,338,342,344,348,352 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47UF
C354-356 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47UF
C395 041 TUTES1H010-7TF ELECTROLYTIC CAPACITOR 50V1UF
C303,309,321,324,340.341,343,346 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C349,350,368-369,386,388,393-394 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C396,420,422-423,574 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C367,424 041 TUTES1H4R7-7TF ELECTROLYTIC CAPACITOR 50V4.7UF
C323 041 TUTES1HR47-7TF ELECTROLYTIC CAPACITOR 50V0.47UF
C428-434 047 GRM1882C1H100JA01D CERAMIC CAPACITOR CHIP 50V10PF
C458-459,472-473,572-573 047 GRM1882C1H101JA01D CERAMIC CAPACITOR CHIP 50V100PF
C339,351 047 GRM1882C1H101JA01D CERAMIC CAPACITOR CHIP 50V100PF
C498,505 047 GRM1882C1H150JA01D CERAMIC CAPACITOR CHIP 50V15PF
C387 047 GRM1882C1H150JA01D CERAMIC CAPACITOR CHIP 50V15PF
C490,525,544-545 047 GRM1882C1H220JA01D CERAMIC CAPACITOR CHIP 50V22PF
C307,316,358-359 047 GRM1882C1H220JA01D CERAMIC CAPACITOR CHIP 50V22PF
C374-375 047 GRM1882C1H270JA01D CERAMIC CAPACITOR CHIP 50V27PF
C555-570 047 GRM1882C1H561JA01D CERAMIC CAPACITOR CHIP 50V560PF
C327-328 047 GRM188B11H153KA01D CERAMIC CAPACITOR CHIP 50V0.015UF
C547-554 047 GRM188B11H182KA01D CERAMIC CAPACITOR CHIP 50V1800PF
C456,461,475-476 047 GRM188B11H222KA01D CERAMIC CAPACITOR CHIP 50V2200PF
C336,347 047 GRM188B11H223KA01D CERAMIC CAPACITOR CHIP 50V0.022UF
C409,412,419 047 GRM188B11H562KA01D CERAMIC CAPACITOR CHIP 50V5600PF
C448,485 047 GRM188F11C105ZA01D CERAMIC CAPACITOR CHIP 16V1UF
C435-441,444-447,449-455,457 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C460,462-471,474,477-484,486-489 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C491-497,499-504,506-524,526-543 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C546,571 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C302,304-305,308,311-312,317-320 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C322,325-326,332-334,361,366 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
6
Parts List 5/9 RSX-1562
SYMBOL PARTS NO. DESCRIPTION
C384,389-392,405-408,421,426,427 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
R300 054 TMF1000 METAL RESISTOR
R611-612,630,633,657,662-665 055 ERJ3EKF1000V RESISTOR CHIP 100
R669,682,687 055 ERJ3EKF1000V RESISTOR CHIP 100
R301-304,339,347,351,354,365,368 055 ERJ3EKF1000V RESISTOR CHIP 100
R370,374,377,414,429,480 055 ERJ3EKF1000V RESISTOR CHIP 100
R515-521,541 055 ERJ3EKF1000V RESISTOR CHIP 100
R685-686,690 055 ERJ3EKF1001V RESISTOR CHIP 1K
R430,446,514 055 ERJ3EKF1001V RESISTOR CHIP 1K
R596-599,609-610,618,628,632,642 055 ERJ3EKF1002V RESISTOR CHIP 10K
R645,657-660,669-672,682 055 ERJ3EKF1002V RESISTOR CHIP 10K
R332,336-337,367,379,381,385,421 055 ERJ3EKF1002V RESISTOR CHIP 10K
R426-428,432-435,437,440,443,534 055 ERJ3EKF1002V RESISTOR CHIP 10K
R536-537,543-550 055 ERJ3EKF1002V RESISTOR CHIP 10K
R581,583,585,587,591-594, 055 ERJ3EKF1003V RESISTOR CHIP 100K
R599-605,666,674-681,684 055 ERJ3EKF1003V RESISTOR CHIP 100K
R360,362 055 ERJ3EKF1003V RESISTOR CHIP 100K
R621,635 055 ERJ3EKF1004V RESISTOR CHIP 1M
R384 055 ERJ3EKF1004V RESISTOR CHIP 1M
R570-573 055 ERJ3EKF10R0V RESISTOR CHIP 10
R305-306,319 055 ERJ3EKF10R0V RESISTOR CHIP 10
R688 055 ERJ3EKF1200V RESISTOR CHIP 120
R318 055 ERJ3EKF1500V RESISTOR CHIP 150
R345,358,363,372 055 ERJ3EKF1501V RESISTOR CHIP 1.5K
R449-450,453-454,457-458,461-462 055 ERJ3EKF1801V RESISTOR CHIP 1.8K
R465-466,469-470,473-474,477-478 055 ERJ3EKF1801V RESISTOR CHIP 1.8K
R590 055 ERJ3EKF1802V RESISTOR CHIP 18K
R562,565-566,569 055 ERJ3EKF2200V RESISTOR CHIP 220
R559-560 055 ERJ3EKF2200V RESISTOR CHIP 220
R667-668 055 ERJ3EKF2202V RESISTOR CHIP 22K
R320-321,553-559 055 ERJ3EKF22R0V RESISTOR CHIP 22
R308 055 ERJ3EKF2400V RESISTOR CHIP 240R
R642-643,645-646,649-656 055 ERJ3EKF3301V RESISTOR CHIP 3.3K
R340-343,346,373,375,482-483, 055 ERJ3EKF3301V RESISTOR CHIP 3.3K
R485-486,492-493,498-499,504-505 055 ERJ3EKF3301V RESISTOR CHIP 3.3K
R510-511,533,535,538-539 055 ERJ3EKF3301V RESISTOR CHIP 3.3K
R312-317 055 ERJ3EKF3902V RESISTOR CHIP 39K
R580,582,584,586,588-589,606-607 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R610,613-614,618-620,624-627,631 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R634,636-637,648 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R324-329,348,352,353,359,364,371 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R376,378,412-413,415,417,442,444 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R488-489,525-532,551 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R330,333,335 055 ERJ3EKF4702V RESISTOR CHIP 47K
R350,356,366,369,387,391,393 055 ERJ3EKF47R0V RESISTOR CHIP 47
R398,400,404,406,411,431,439 055 ERJ3EKF47R0V RESISTOR CHIP 47
R445,447,540,542 055 ERJ3EKF47R0V RESISTOR CHIP 47
R638,640 055 ERJ3EKF5111V RESISTOR CHIP 5.11K
R689 055 ERJ3EKF56R0V RESISTOR CHIP 56
R490-491,494-497,500-503,506-509 055 ERJ3EKF6800V RESISTOR CHIP 680
R512-513 055 ERJ3EKF6800V RESISTOR CHIP 680
R622-623 055 ERJ3EKF75R0V RESISTOR CHIP 75
R307,309-311,319,484 055 ERJ3EKF75R0V RESISTOR CHIP 75
R639,641 055 ERJ3GEY0R00V RESISTOR CHIP 0
R322,382-383,392,405,418,522 055 ERJ3GEY0R00V RESISTOR CHIP 0
R574-579 055 ERJ3RQF2R2V RESISTOR CHIP 2.2
R422-425 055 EXB28V220JX RESISTOR CHIP NETWORK 22
R334,338,386,388-390,399,401-403 055 EXB28V470JX RESISTOR CHIP NETWORK 47
R436,487,523-524 055 EXB28V470JX RESISTOR CHIP NETWORK 47
R394-397,407-410 055 EXB28V560JX RESISTOR CHIP NETWORK 56
SW301 061 C-4679A03 TACT SWITCH 5MM GRY HV061050GS
JAK301-308 065 HSJ1002-016020 3.5F MINI JACK
JAK311-312 066 C-4859A01 2P PIN JACK
MOD301 066 C-5133A20 CNT SOCKET 20P
JAK310 066 C-5167A00 JACK
JAK309 066 SY010-8P/K RJ45 TERMINAL (8P)
IC302-305 066 TORX147L JACK
IC301 066 TOTX147L JACK
CP603 068 B11B-PH-KS CONNECTOR POST 11P
CP14 068 B14B-PH-KS CONNECTOR POST 14P
CP604 068 B15B-PH-KS CONNECTOR POST 15P
CP18 068 B3B-PH-KS CONNECTOR POST 3P
CP19,704 068 B4B-PH-KS CONNECTOR POST 4P
CP10 068 B5B-PH-KS CONNECTOR POST 5P
CP501,605 068 B8B-PH-KS CONNECTOR POST 8P
CNT700 068 C-4867A01 FPC CONNECTOR 17P
MOD302 501 E-1564A-6 TELE MODULE
7
Parts List 6/9 RSX-1562
SYMBOL PARTS NO. DESCRIPTION
501 E-1597A-1 PCB ASSY (AUDIO)
IC542 031 IC0005600 IC SMD (REG. +9VDC) KIA7809AF
IC501-507,509-517,519-521,525-529 031 IC0009200 IC SMD (OPE DUAL) NJM2068M
IC532-537,539-540 031 IC0009200 IC SMD (OPE DUAL) NJM2068M
IC541 031 IC0016501 IC SMD (SWITCH ALLEY) TC9162CFG
IC522 031 IC0016602 IC SMD (SWITCH ALLEY) TC9163CFG
IC523-524,530,538 031 IC0017401 IC SMD (VOLUME) TC9482BFG
IC518,531 031 IC0022100 IC SMD (AUDIO SWITCH) MM1631XJBE
Q502,507 032 KRA107S TRANSISTOR CHIP KRA107S-RTK/P
Q501,506 032 KRC107S TRANSISTOR CHIP KRC107S-RTK/P
Q503-505,508-515 032 KRC231S TRANSISTOR CHIP KRC231S-RTK/P
D501-503 034 DD0000500 DIODE CHIP KDS184RTK
C607-614,662-669,672,681-688,695 041 35ZA10MEFCTZ ELECTROLYTIC CAPACITOR 35V10UF
C698-699,702-703,706-707,710,741 041 35ZA10MEFCTZ ELECTROLYTIC CAPACITOR 35V10UF
C744-745,748,759-766,771,774-775 041 35ZA10MEFCTZ ELECTROLYTIC CAPACITOR 35V10UF
C778,802-805 041 35ZA10MEFCTZ ELECTROLYTIC CAPACITOR 35V10UF
C551,673-680,711-712,717,726-736 041 EEUFC1E221B ELECTROLYTIC CAPACITOR 25V220UF
C779-783,806-814 041 EEUFC1E221B ELECTROLYTIC CAPACITOR 25V220UF
C694,797 041 TUTES1C101-7TF ELECTROLYTIC CAPACITOR 16V100UF
C629-630,647-658,660-661,690-691 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47UF
C749-752,785-786,817 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47UF
C552-577,597-598,615-628,631-638 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C659,689,692,737-740,784,787,800 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C801,815-816 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C693,796 041 TUTES1H220-7TF ELECTROLYTIC CAPACITOR 50V22UF
C588-595,640-646,713-716,718-721 047 GRM2162C1H220JZ01D CERAMIC CAPACITOR CHIP 50V22PF
C753-756,789-791,793-795 047 GRM2162C1H220JZ01D CERAMIC CAPACITOR CHIP 50V22PF
C511-524,535-548,600-606,696-697 047 GRM2162C1H470JZ01D CERAMIC CAPACITOR CHIP 50V47PF
C700-701,704-705,708-709,722-725 047 GRM2162C1H470JZ01D CERAMIC CAPACITOR CHIP 50V47PF
C742-743,746-747,768-770,773,776 047 GRM2162C1H470JZ01D CERAMIC CAPACITOR CHIP 50V47PF
C777,798-799 047 GRM2162C1H470JZ01D CERAMIC CAPACITOR CHIP 50V47PF
C819,821-825,827-828 047 GRM2165C1H101JA01D CERAMIC CAPACITOR CHIP 50V100PF
C501-510,527-534,578-585,587,599 047 GRM2165C1H101JA01D CERAMIC CAPACITOR CHIP 50V100PF
C639,767,772,788,792 047 GRM2165C1H101JA01D CERAMIC CAPACITOR CHIP 50V100PF
C671,757-758 047 GRM2165C1H222JA01D CERAMIC CAPACITOR CHIP 50V0.0022UF
C586 047 GRM219B11H333KA01D CERAMIC CAPACITOR CHIP 50V0.033UF
C818,820,826,829-916 047 GRM219F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C596,670 047 GRM21BF11H224ZA01L CERAMIC CAPACITOR CHIP 50V0.22UF
R540,543-544,547-548,551-552,555-556 055 ERJ6ENF1000V RESISTOR CHIP 100
R559-560,563-564,567-568,571,606,609 055 ERJ6ENF1000V RESISTOR CHIP 100
R610,613-614,617-618,621-622,625-626 055 ERJ6ENF1000V RESISTOR CHIP 100
R629-630,633-634,637,666-667,684-693 055 ERJ6ENF1000V RESISTOR CHIP 100
R702-714,721-728,733-734,736-737,740 055 ERJ6ENF1000V RESISTOR CHIP 100
R741,745-746,749-750,752-754,763,768 055 ERJ6ENF1000V RESISTOR CHIP 100
R771,794,798-799,802-804,806,807,810 055 ERJ6ENF1000V RESISTOR CHIP 100
R811,817-818,824-825,827-828,833-834 055 ERJ6ENF1000V RESISTOR CHIP 100
R837-838,841-842,845-846,865,877-878 055 ERJ6ENF1000V RESISTOR CHIP 100
R881-882,903-905,918,921-922,925-931 055 ERJ6ENF1000V RESISTOR CHIP 100
R503,511-519,523-539,588-589,591,593 055 ERJ6ENF1001V RESISTOR CHIP 1K
R595,597,599,601,603,605,694-701,743 055 ERJ6ENF1001V RESISTOR CHIP 1K
R766-767,769-770,772-773,795-797,800 055 ERJ6ENF1001V RESISTOR CHIP 1K
R801,813,816,829-831,860,866-867,876 055 ERJ6ENF1001V RESISTOR CHIP 1K
R879-880,883,885,887-888,906,909,911 055 ERJ6ENF1001V RESISTOR CHIP 1K
R912,915-916,919,920,923-924,932-937 055 ERJ6ENF1001V RESISTOR CHIP 1K
R502,504-510,658-665 055 ERJ6ENF1002V RESISTOR CHIP 10K
R501,520-522,541-542,545-546,549-550 055 ERJ6ENF1003V RESISTOR CHIP 100K
R553-554,557-558,561-562,565-566,569 055 ERJ6ENF1003V RESISTOR CHIP 100K
R570,572,575-576,579-580,583-584,587 055 ERJ6ENF1003V RESISTOR CHIP 100K
R590,592,594,596,598,600,602,604,607 055 ERJ6ENF1003V RESISTOR CHIP 100K
R608,611-612,615-616,619-620,623-624 055 ERJ6ENF1003V RESISTOR CHIP 100K
R627-628,631-632,635-636,638-645 055 ERJ6ENF1003V RESISTOR CHIP 100K
R668-675,717-718,735,738-739,742,744 055 ERJ6ENF1003V RESISTOR CHIP 100K
R747-748,751,755-762,764-765,790,793 055 ERJ6ENF1003V RESISTOR CHIP 100K
R819-823,826,832,835-836,839-840,843 055 ERJ6ENF1003V RESISTOR CHIP 100K
R844,847,861-864,868-871,873-874,884 055 ERJ6ENF1003V RESISTOR CHIP 100K
R886 055 ERJ6ENF1003V RESISTOR CHIP 100K
R889-890 055 ERJ6ENF10R0V RESISTOR CHIP 10
R646,648 055 ERJ6ENF1202V RESISTOR CHIP 12K
R649 055 ERJ6ENF1801V RESISTOR CHIP 1.8K
R849-850,853-854,856,859,895,897,900 055 ERJ6ENF2001V RESISTOR CHIP 2K
R901 055 ERJ6ENF2001V RESISTOR CHIP 2K
R774,777-778,781,910,913-914,917 055 ERJ6ENF2201V RESISTOR CHIP 2.2K
R573,577,581,585,647,651,653,655,657 055 ERJ6ENF2702V RESISTOR CHIP 27K
R872,875 055 ERJ6ENF3300V RESISTOR CHIP 330
R676-683,716,720,729-732,805,808-809 055 ERJ6ENF3301V RESISTOR CHIP 3.3K
R812 055 ERJ6ENF3301V RESISTOR CHIP 3.3K
016 E-1597A00 PCB ASSY
8
Parts List 7/9 RSX-1562
SYMBOL PARTS NO. DESCRIPTION
R574,578,582,586,650,652,654,656,715 055 ERJ6ENF4701V RESISTOR CHIP 4.7K
R719,782-789,791-792,848,851-852,855 055 ERJ6ENF4701V RESISTOR CHIP 4.7K
R898-899,902 055 ERJ6ENF4701V RESISTOR CHIP 4.7K
R814-815,907-908 055 ERJ6ENF4703V RESISTOR CHIP 470K
R775-776,779-780,891-894 055 ERJ6ENF5601V RESISTOR CHIP 5.6K
R857-858,896 055 ERJ6ENF7501V RESISTOR CHIP 7.5K
JAK506-507 066 C-4784A01 4P PIN JACK
JAK501 066 C-4784A02 4P PIN JACK
JAK502,504-505 066 C-4792A01 6P PIN JACK
JAK503 066 C-4832A01 4P PIN JACK
CP201 068 B5B-PH-KS CONNECTOR POST 5P
501 X-1598A-1 PCB ASSY (ZONE/VIDEO)
IC701-703,705-707 031 IC0009200 IC SMD (OPE AMP) NJM2068M
IC704 031 IC0017401 IC SMD (VOLUME) TC9482BFG
Q701 032 KRA107S TRANSISTOR CHIP KRA107S-RTK/P
Q702 032 KRC107S TRANSISTOR CHIP KRC107S-RTK/P
Q703-708 032 KRC231S TRANSISTOR CHIP KRC231S-RTK/P
C713-714,727-732 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47UF
C701-712,715-720,739-744 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C748,751,754 047 GRM2162C1H100JZ01D CERAMIC CAPACITOR CHIP 50V10PF
C768-773,782-787 047 GRM2162C1H470JZ01D CERAMIC CAPACITOR CHIP 50V47PF
C756-767 047 GRM2165C1H101JA01D CERAMIC CAPACITOR CHIP 50V100PF
C733-738 047 GRM2165C1H101JA01D CERAMIC CAPACITOR CHIP 50V100PF
C745,755,774-781 047 GRM219F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
C721-726 047 GRM219F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
R790-801 055 ERJ6ENF1000V RESISTOR CHIP 100
R749,753 055 ERJ6ENF1000V RESISTOR CHIP 100
R711-716,741-746,748,750-752 055 ERJ6ENF1001V RESISTOR CHIP 1K
R754,757-758,761-762,765,784-789 055 ERJ6ENF1001V RESISTOR CHIP 1K
R717-722,730-731,734-735,738-739 055 ERJ6ENF1003V RESISTOR CHIP 100K
R747,755-756,759-760,763-764 055 ERJ6ENF1003V RESISTOR CHIP 100K
R778-783 055 ERJ6ENF1003V RESISTOR CHIP 100K
R701 055 ERJ6ENF10R0V RESISTOR CHIP 10
R729,732-733,736-737,740 055 ERJ6ENF1202V RESISTOR CHIP 12K
R766,769,770,773-774,777 055 ERJ6ENF1501V RESISTOR CHIP 1.5K
R704,707,710 055 ERJ6ENF2002V RESISTOR CHIP 20K
R723-728,767-768,771-772,775-776 055 ERJ6ENF4701V RESISTOR CHIP 4.7K
JAK702 066 C-4792A01 PIN JACK RCA6P
JAK701 066 C-4TR-2964#10 PIN JACK RCA3P GBR
CP602 068 B15B-PH-KS CONNECTOR POST 15P
501 E-1599B-1 PCB ASSY (SPEAKER TERMINAL)
JAK751-752,JAK754 067C-4761A01 4P SPEAKER TERMINAL
JAK753 067C-4762A01 2P SPEAKER TERMINAL
501 E-1601C-1 PCB ASSY (SEC-POWER)
Q201 032 TC3708-ST TRANSISTOR 2SC3708AA-ST
D201,206-207 034 DB0001000 POWER DIODE KBP206
D202-205 034 DD0000200 DIODE 1N4004
ZD201 034 DZ0100121 ZENER DIODE HZS12NB
ZD202 034 DZ0100241 ZENER DIODE HZS24NB
ZD203 034 DZ0105R11 ZENER DIODE HZS5.1NB
ZD204 034 DZ0107R51 ZENER DIODE HZS7.5NB
F201,202 036 5T4L-250V FUSE 250VT4AL
F203,204 036 5T5L-250V FUSE 250VT5AL
C201-202 041 TUTES1E102-0 ELECTROLYTIC CAPACITOR 25V1000UF
C206,214,218 041 TUTES1E472-0 ELECTROLYTIC CAPACITOR 25V4700UF
C207,210,219,223,229,234 041 TUTES1H010-7TF ELECTROLYTIC CAPACITOR 50V1UF
C204-205,226 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C237 041 TUTES1H220-7TF ELECTROLYTIC CAPACITOR 50V22UF
C203 041 TUTES1J471-7TS ELECTROLYTIC CAPACITOR 63V470UF
C233,225,228 041 UTES1C103-0 ELECTROLYTIC CAPACITOR 16V1000UF
C208-209,211,220,224,227,230 043 TC50V104 CERAMIC CAPACITOR 50V0.1UF
C235 043 TC50V104 CERAMIC CAPACITOR 50V0.1UF
C212-213,215-217,221-222,231 044 SC103J2A05 M.P CAPACITOR 100V0.01UF
C232,236 044 SC103J2A05 M.P CAPACITOR 100V0.01UF
R204 054 TMF1000 METAL RESISTOR 100
R208 054 TMF1001 METAL RESISTOR 1K
R207,210-212 054 TMF1002 METAL RESISTOR 10K
R213 054 TMF10R0 METAL RESISTOR 10
R201-202 054 TMF2200 METAL RESISTOR 220
R203 054 TMF2201 METAL RESISTOR 2.2K
R205-206,209 054 TMF4R70 METAL RESISTOR 4.7
CP304 068 B13B-PH-KS CONNECTOR POST 13P
CP17 068 B2B-EH CONNECTOR POST 2P
016 E-1599B00 PCB ASSY
016 X-1598A01-02 PCB ASSY
016 E-1601C00 PCB ASSY
9
Parts List 8/9 RSX-1562
SYMBOL PARTS NO. DESCRIPTION
CP18,19 068 B2B-PH-KS CONNECTOR POST 2P
CP6,401 068 B2P-VH CONNECTOR POST 2P
CP13 068 B6B-PH-KS CONNECTOR POST 6P
CP5 068 B8B-EH CONNECTOR POST 8P
501 X-1602C-1 PCB ASSY (PRIMARY POWER)
L2 021 2698200001 LINE CHOKE COIL
L1 021 TRL-356 LINE CHOKE COIL
T1 022 T-1118N01-V01 STBY TRANS SB-0236 5V-100mA
IC1 031 IC0031400 IC BA33BC0T 3V3 LDO.TO220FP-3
Q1 032 TC3708-ST TRANSISTOR 2SC3708AA-ST
D4 034 DB0001000 POWER DIODE KBP206(2A 600V)
D1-3 034 DD0000200 DIODE 1N4004-F(AMMO) RECTRON
ZD1 034 DZ0103R31 DIODE ZENER HZS3.3NB2-TD-E
F2 036 5T250ML-250V FUSE 250VT250mAL
(F1) 036 5T6.3L-250V FUSE 250VT6.3AL
(F1) 036 5T8L-250V FUSE 250VT8AL
C7 041 TUTES1A101-7TF ELECTROLYTIC CAPACITOR 10V100UF
C10 041 TUTES1C222-7TS ELECTROLYTIC CAPACITOR 6.3V2200UF
C6 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C5,C8 043 TC50V104 CERAMIC CAPACITOR 0.1UYF-F
C2,C4,C9 044 3549472109 AC CAPACITOR 400V0.0047UF
R1 054 MSR1/2W4M7J METAL SURGE RESISTOR 4.7M
R2,R5 054 TMF1001 METAL RESISTOR 1/4W 1K
R4 054 TMF1002 METAL RESISTOR 1/4W 10K
R3 054 TMF4R70 METAL RESISTOR 1/4W 4.7
RY1 063 DG1U-5-025W RELAY DG5D1-O(M)Ⅲ0.25W TV-5
CP2,CP4 068 4428503746 CONNECTOR POST P=7.92
CP1,CP3,CP5-8,CP14-15 068 B2P3-VH CONNECTOR POST VH P=7.92
501 X-1603C-1 PCB ASSY (FRONT)
XT10 023 CR0300202 RESONATOR CST16M0
IC14 031 IC0004104 IC CXP81120-127Q
IC10 031 IC0028600 IC SN65220DBVR USB port Transient Suppressor
IC11 031 IC0029100 IC TPS2553DBVR Adjustable current limite S/W
D10 031 IC0034900 IC PIN PHOTO DIODE MID-85A1C
IC12-13,15 031 IC0035900 IC SMD FL DISPLAY DRIVER 40BIT ML9272
RMC10 031 IC0036000 IC REMOCON SENSER RPM7238-H8
Q10,13 032 KRC107S TRANSISTOR CHIP KRC107S-RTK/P
Q12 032 KTA1504S TRANSISTOR CHIP KTA1504S-RTK/P
Q11 032 KTC3875S-Y TRANSISTOR CHIP KTC3875S-Y-RTK/P
D11-12 034 DD0000500 DIODE CHIP KDS184RTK/P
FL10 035 HNA22ML04 FL DISPLAY HNA-22ML04
C13 041 TUTES1A101-7TF ELECTROLYTIC CAPACITOR 10V100UF
C10 041 TUTES1A221-7TF ELECTROLYTIC CAPACITOR 10V220UF
C12 041 TUTES1H010-7TF ELECTROLYTIC CAPACITOR 50V1UF
C11 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10UF
C24-25,30-33 047 GRM1882C1H101JA01D CERAMIC CAPACITOR CHIP 50V100PF
C17 047 GRM1882C1H471JA01D CERAMIC CAPACITOR CHIP 50V470PF
C14-16,18-23,26-29 047 GRM188F11H104ZA01D CERAMIC CAPACITOR CHIP 50V0.1UF
R12,25 055 ERJ3EKF1001V RESISTOR CHIP 1K
R22,29-30,33-35,37,39,41 055 ERJ3EKF1002V RESISTOR CHIP 10K
R43-47 055 ERJ3EKF1002V RESISTOR CHIP 10K
R16,17,18 055 ERJ3EKF1200V RESISTOR CHIP 120
R58,59 055 ERJ3EKF1201V RESISTOR CHIP 1.2K
R21,60,61 055 ERJ3EKF1801V RESISTOR CHIP 1.8K
R26,28 055 ERJ3EKF2201V RESISTOR CHIP 2.2K
R13 055 ERJ3EKF2202V RESISTOR CHIP 22K
R62,64 055 ERJ3EKF2701V RESISTOR CHIP 2.7K
R23 055 ERJ3EKF2702V RESISTOR CHIP 27K
R24 055 ERJ3EKF3301V RESISTOR CHIP 3.3K
R63 055 ERJ3EKF4301V RESISTOR CHIP 4.3K
R50,51 055 ERJ3EKF4700V RESISTOR CHIP 470
R48,49 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R10-11,14,15,19-20,27,31-32 055 ERJ3EKF4702V RESISTOR CHIP 47K
R52,53 055 ERJ3EKF5600V RESISTOR CHIP 560
R54,55 055 ERJ3EKF7500V RESISTOR CHIP 750
R56,57 055 ERJ3EKF9100V RESISTOR CHIP 910
SW27 056 C-4678A01 VR MAIN ENCODER EC16B24304
SW38,SW43 056 C-5136A00 ROTARY ENCODER
SW10-13,15-26,28-37,39-42 061 4TR-3118 TACT SWICH H=7
SW44-45 061 4TR-3118 TACT SWICH H=7
SW14 061 C-4172A13 PUSH SWITCH
JK10 066 C-5131A00 USB JACK
CP11 068 B2B-PH-KS CONNECTOR POST 2P
CP16 068 S3B-PH-KS CONNECTOR POST 3P
016 X-1603C01-05 PCB ASSY
016 X-1602C01-02 PCB ASSY
10
Parts List 9/9 RSX-1562
SYMBOL PARTS NO. DESCRIPTION
CP15 068 S6B-PH-KS CONNECTOR POST 6P
505 HSRSX-1562 HEAT SINKER ASSY (with 501 E-1601C-1)
017AAE-06A00 HEAT SINK BOARD
IC204 031IC0010600 IC NJM7805FA(KIA7805API-U/P) (REG. +5VDC)
IC201 031IC0010900 IC NJM7812FA(KIA7812API-U/P) (REG. +12VDC)
IC202 031IC0011001 IC NJM7815FA (REG.+15VDC) 1.5A
IC203 031IC0011601 IC NJM7915FA (REG.-15VDC) 1.5A
IC207 031IC0029200 IC REG KIA378R033PI 3A WITH S/W
IC205, IC206 031IC0029300 IC REG KIA378R05PI 3A WITH S/W
D208,D209 034 DB0001100 DIODE BRIDGE POWER KBJ4J 4A 600V
011 FP-674-B BLACK PANEL ASSY
011 FP-674-S SILVER PANEL ASSY
012 C-5009B00 TACT BUTTON 8.3F (BLACK)
012 C-5009B01 TACT BUTTON 8.3F (SILVER)
012 C-5018B01 KNOB 43ΦNO MARK (BLACK)
012 C-5018B01S KNOB 43ΦNO MARK (SILVER)
012 RV4-09A00 PUSH BUTTON 14Φ(BLACK)
012 RV4-09A01 PUSH BUTTON 14Φ(SILVER)
014 C-5007C01 UPPER COVER (BLACK)
014 C-5007C01S UPPER COVER (SILVER)
014 YR3-05A00 SIDE CAP 4U (177H) (BLACK)
014 YR3-05A01 SIDE CAP 4U (177H) (SILVER)
015 RP-512D REAR CHASSIS
019 4TSH-19#2 PLASTIC FOOT 50Φ(BLACK)
019 C-5016A00 KNOB RING 46F (BLUE)
021 RLA172A00 AM LOOP ANT
022 T-1111N01 POWER TRANSFORMER
061 C-4838A00 ROCKER SWITCH SR1N6BB
069 18-24 F CONNECTOR (for US only)
069 C-4637A00 AC INLET 3P (0707-1-CW1)
071 MFH4X8BK MACHINE FLAT HEAD SCREW (BLACK)
071 MFH4X8NI MACHINE FLAT HEAD SCREW (SILVER)
072 4TR-3228 T TYPE ANTENNA
072 C-4392A04 AC CORD SET for U.S.A (3-Prong)
072 C-4393A04 AC CORD SET for EUROPE (3-Prong)
072 C-4423A04 AC CORD SET for AUSTRALIA (3-Prong)
072 C-4639A02 AC CORD SET for UK (3-Prong)
072 C-4786A00 COMPUTER I/O CABLE (4-P)
(CNT700) 072 C-4863A03 FLAT CABLE L=70MM 17PIN 1.25PITCH
081 AAE-10A00 INSIDE CARTON
081 AAE-11A00 SHIPPING CARTON
081 ZE-221 (T/B) ETHAFOAM MOULDING
082 OMRSX-1562 OWNER'S MANUAL
092 I-BTD-04C3-1 USB BLUETOOTH DONGLE
SL,SR,CB1,CB2 092 ICEPOWER200AC DIGITAL AMP PCB ASSY
FL,FR,C 092 ICEPOWER200ASC DIGITAL AMP PCB ASSY
092 MB114MA1-1B TUNER PACK
092 RR-CX94 REMOTE CONTROL UNIT
HEAT SINK ASSEMBLY (POWER)
O T H E R S
11
1. Main Software Upgrade Method
1. Connect RS232 Cable between RSP-1580 and PC.
And then RSP-1580 Power On.
2. Active “C:\Program Files\nec upgrade 2.8\ nec_flash2.8.exe”
3. Select Model Name : “HDMI Receiver -> Target MAIN
-> RSP-1580/15 Series Mark(II)”
4. Select COM Port (COM1 ~ COM6) and then “OPEN”
5. Click the “Connect” button
6. Click the “Load HEX” button and then select Hex file
* Main Software File : p1572x1562-Main-V1xx.hex
RSP-1572 /RSX-1562
Software Upgrade Method
12
7. Click the “Write” button. and then “YES” click.
8. Upgrade Complete.
9. RSP-1580 Power off.And then Power On.
2. Audio DSP Upgrade Method
1. Connect RS232 Cable between RSP-1580 and PC.
And then RSP-1580 Power On.
2. Active “C:\Program Files\ROTEL DSP Upgrade Manager\
AudioDspDualUp.exe”
3. Click the “Open” button and then select Bin file.
(Audio Software File : p1572x1562x1552_Audio_V1xx.bin)
4. Select COM port and Baud rate. (RSP-1580 Baud rate : 115200)
5. Click “Next” button for Com Port setting.
RSP-1572 /RSX-1562
13
6. Click “Next” button for Audio DSP status checking. 7. Click “Next” button for Audio DSP Upgrading.
8. Upgrade Complete.
9. RSP-1580 Power off.And then Power On.
3. Video Software Upgrade Method
1. Connect RS232 Cable between RSP-1580 and PC.
And then RSP-1580 Power On.
2. Active “C:\Program Files\nec upgrade 2.8\
nec_flash2.8.exe”
3. Select Model Name : “HDMI Receiver -> Target SCALER
-> RSP-1580/15 Series Mark(II)”
RSP-1572 /RSX-1562
14
4. Select COM Port (COM1 ~ COM6) and then “OPEN”
5. Click the “Connect” button 6. Click the “Load HEX” button and then select Hex file
* Video Software File : p1572x1552-VIDEO-V1xx.hex
7. Click the “Write” button. and then “YES” click. 8. Upgrade Complete.
9. RSP-1580 Power off.And then Power On.
4. Video Scaler Upgrade Method
1. Connect RS232 Cable between RSX-1562 and PC. And then RSX-1562 Power On.
2. RSX-1562 OSD Menu Select
: “OTHER” -> “SW UPGRADE : ENTER” -> “SCALER UPGRADE : YES” -> Enter
3. Active “C:\Program Files\Genesis Microchip\ISP Utility\ISPUtilityUI.exe”
4. Select “Connection : Serial”
5. Click the “Settings” button and then Select COM port and Baud rate. (RSP-1580 Baud rate : 115200)
A
M29LV320DT
6. Select “Chip : FLI30336” and “Flash Device : AM29LV320DT”
7. Select “Image” for Upgrade (Video Scaler Software File : Torino_rsp1580vxxx_xxxxxxxx.hex).
A
M29LV320DT
8. Click “Start”. If Pop-Up message, “OK” click.
12
RSP-1572 /RSX-1562
15
4. Video Scaler Upgrade Method
1. Connect RS232 Cable between RSX-1562 and PC. And then RSX-1562 Power On.
2. RSX-1562 OSD Menu Select
: “OTHER” -> “SW UPGRADE : ENTER” -> “SCALER UPGRADE : YES” -> Enter
3. Active “C:\Program Files\Genesis Microchip\ISP Utility\ISPUtilityUI.exe”
4. Select “Connection : Serial”
5. Click the “Settings” button and then Select COM port and Baud rate. (RSP-1580 Baud rate : 115200)
6. Select “Chip : FLI30336” and “Flash Device : SST39VF3201”
8. Click “Start”. If Pop-Up message, “OK” click.
12
RSP-1572 /RSX-1562
16
7. Select “Image” for Upgrade (Video Scaler Software File : p1580p1572x1562x1552-SCALER-V1xx.hex).
8. Click “Start”. If Pop-Up message, “OK” click.
13
9. Upgrade Complete.
10. RSX-1562 Power off.And then Power On.
RSP-1572 /RSX-1562
17
5. iPod Software Upgrade Method
1. Rename “FUSB-V1xxBT.rom” to “rotel.rom”
2. Copy “rotel.rom” to Root folder of USB Memory stick.
3. RSX-1562 Power On
4. Select Main Listen Function to “LISTEN : iPod/USB”
5. Insert USB Memory stick to RSP1580
IPod/USB UPGRADE
ARE YOU SURE?
Yes
No
6. Select “Yes” and then Enter.
IPod/USB UPGRADE
Upgrading…
0Min 14Sec
7. If Upgrade is completed, RSP1580 is loading again the USB memory stick.
7. Standby MCU Software Upgrade Method
1. Active Hyper Terminal
2. Type Name and then OK
3. Select Com Port at “Connect to”. And then OK
4. Select “115200, 8, None, 1, None” at “Com Port Properties”. And then OK
5. Select “File” -> “Properties” menu.
6. Select “Settings” Tab.And then Select “ASCII Setup…”
7. Check as bellow.
17
RSP-1572 /RSX-1562
18
4. Select “115200, 8, None, 1, None” at “Com Port Properties”.
And then OK 5. Select “File” -> “Properties” menu.
6. Select “Settings” Tab.And then Select “ASCII Setup…” 7. Check as bellow.
8. Connect RS232 Cable between RSP-1580 and PC. And then RSP-1580 Power On.
RSX-1562 have to Standby mode.
9. At Hyper Terminal Screen, Type “upgrade” and then Enter
10. Displayed as bellow. Type “1”
18
RSP-1572 /RSX-1562
19
11. Ready for sending file.
12. Select “Transfer” -> “Send File…”
13. Select the Upgrade File(p1572x1562x1552-STBY-V1xx-for_upgrade.bin)
14. Select “Protocol : Ymodem”. And then “Send”
15. Sending
16. Upgrade Complete.
17. RSP-1580 Power off.And then Power On.
RSP-1572 /RSX-1562
20
Other manuals for RSX-1562
2
Table of contents
Other Rotel Stereo Receiver manuals
