5 CO2 Sensor
1 INTRODUCTION
The CO2 Sensor measures CO2levels in an agricultural environment. Working in conjunction with a
controller, the CO2 Sensor sends a signal when the measured CO2 levels fall outside the user-defined
specifications. This signal activates the controller’s ventilation. Refer to Figure 1.

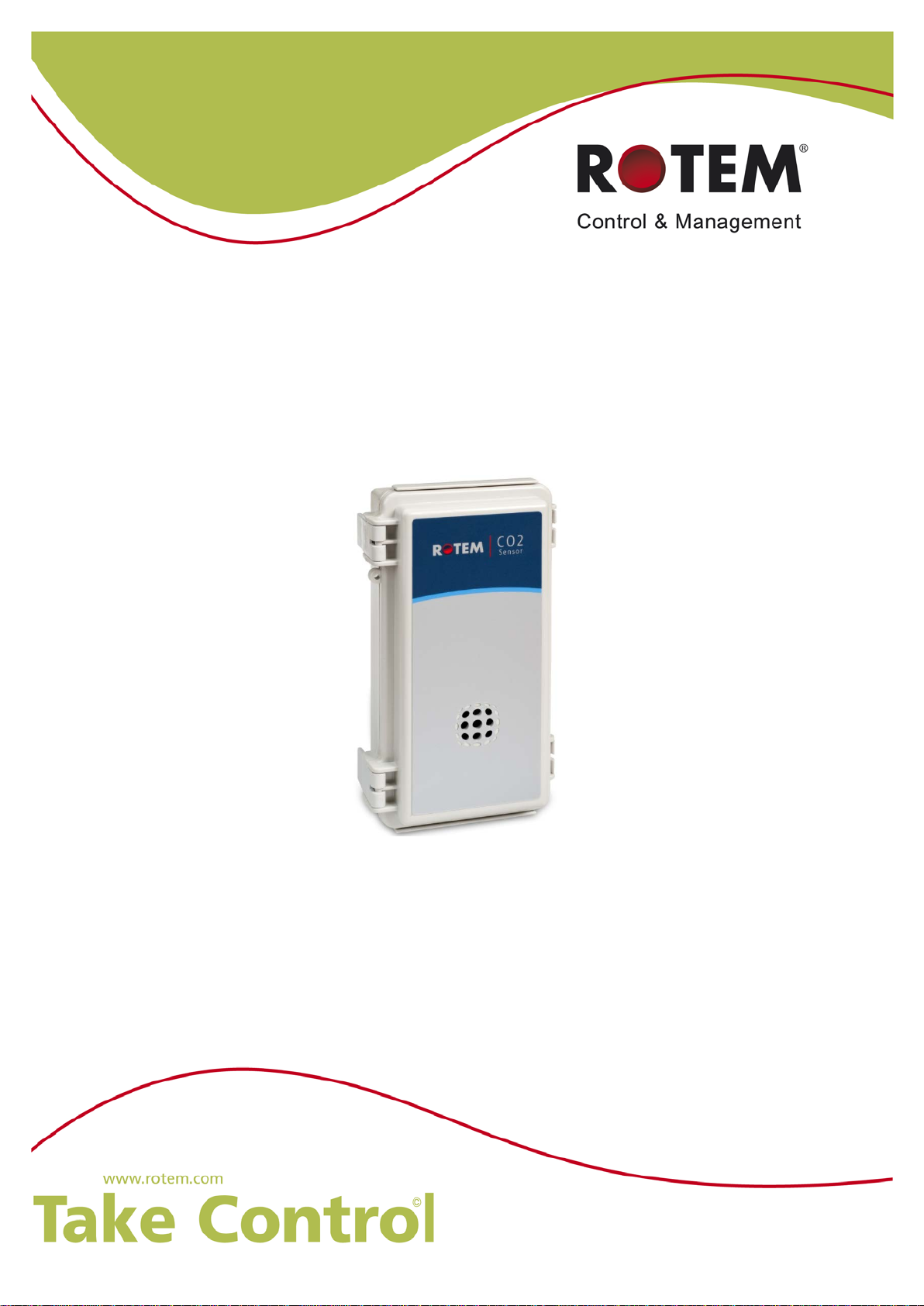

Figure 1: CO2 Sensor
NOTE: The unit comes supplied with a 12 VDC supply.
1.1 Features
•Self-contained environment and impact-resistant sealed box
•Quick open clasps
•Easy installation
•Simple to connect and configure
•Continuous uninterrupted CO2 sensing
•Diagnostic LEDs
•Door-mounted sensor
7 CO2 Sensor
2 INSTALLATION
This section details:
•Installing the Sensor
•Calibrating the Device
2.1 Installing the Sensor
The CO2 Sensor comes with an extension cable that is used to:
•Connect the sensor to a power source
•Connect the sensor to the Platinum Controller (Figure 10, page 9)
•Detach the unit from the house during cleaning and maintenance procedures (Disconnecting
the Sensor, page 11)
Figure 3: CO2 Sensor Attached to Connector
To install the unit:
1. Mount the sensor in place.
2. On the female plug, remove the retaining screw from the protective cover (Figure 4).
Figure 4: Protective Cover
3. Pull out the connector from the protective cover (Figure 5).
Figure 5: Remove the Connector
4. Place the cable through the protective cover (Figure 6).
CO2 Sensor 8
Figure 6: Threading the Cable
5. On the top of the connector are numbers (Figure 7. Each wire must be attached to the
corresponding port (Table 2). Connect the four wires to the connector Figure 8.
Figure 7: Connector Numbers
Table 1: Connecter Port Functions
Port Number Function Wire Color
1 +12 V Red
2 12 V Com (-) Black
3 SIG Out White
4 SIG Com Green
Figure 8: Wired Connector
6. Place the wired connector back into the protective cover and place the retaining screw in place
(Figure 9).
Figure 9: Wired Unit in Protective Cover
9 CO2 Sensor
2.2 Controller Connection
1. Attach the other end of the cable to the power supply and Platinum Analog Input Card as
indicated in Figure 10.
2. Connect:
•CO2 COM to COM
•CO2 output signal to the T5 or T6 terminal
3. Place a jumper on the T5 or T6 pins (sets the 4 – 20 mA mode).

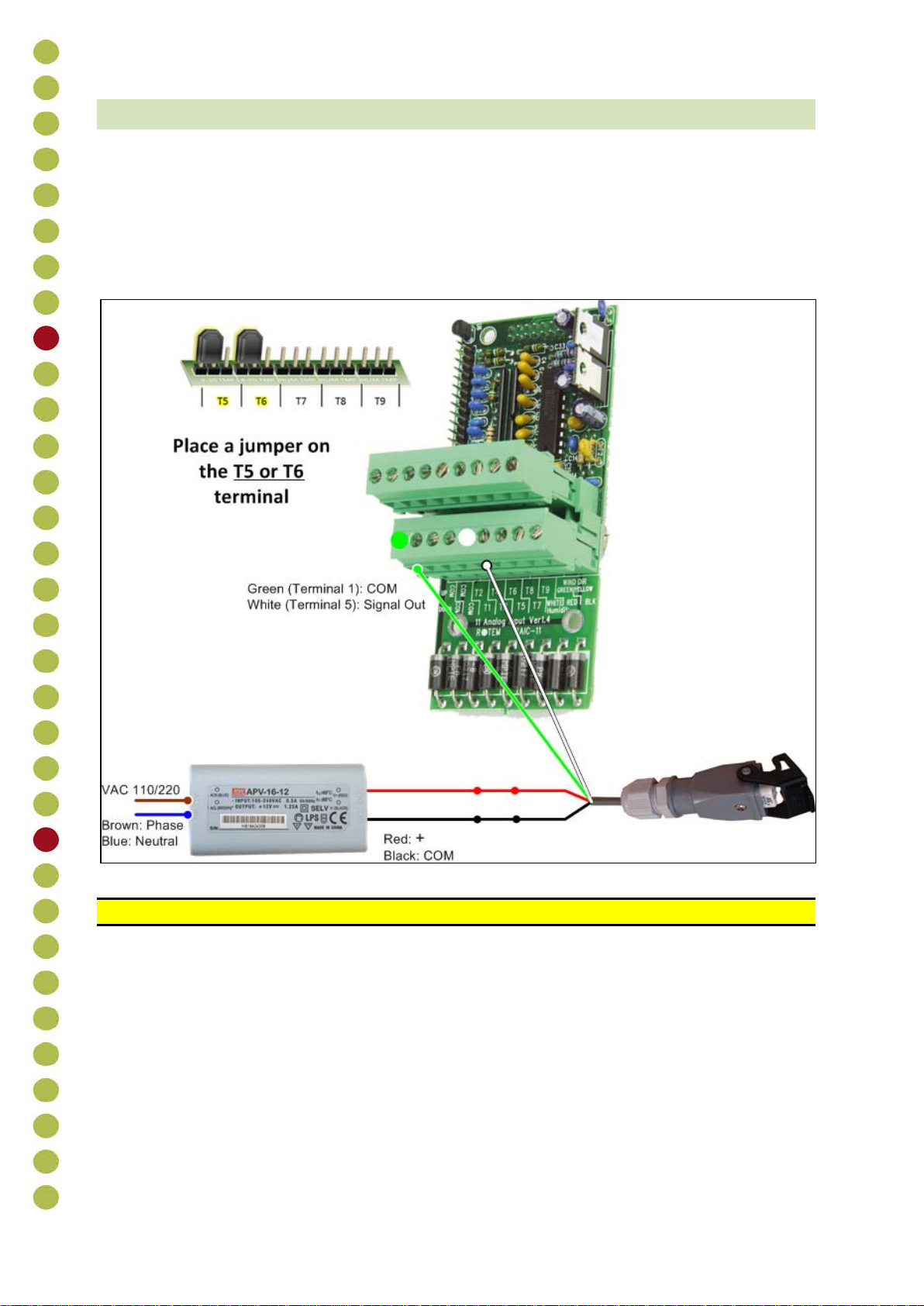

Figure 10: Power Supply Wiring
CAUTION Connect the shield to the safety ground.
CO2 Sensor 10
2.3 9BCalibrating the Device
Figure 11: Jumpers
The C02 sensor comes calibrated. In normal conditions fresh air should have approximately
350 - 450 ppm CO2. Calibrate the device if the following conditions are met:
•The CO2 sensor is exposed to fresh air or a room with open windows
•The sensor reading is above 550
To calibrate the sensor:
1. If connected, disconnect the device from the controller.
2. Place the sensor on a steady base (in an area with fresh air or in a room with open windows).
3. Apply 12V DC power.
4. Operate the CO2 sensor for five minutes to stabilize the device.
5. Using the supplied jumper, short the Background jumpers for 10 seconds as shown in
Figure 12.
Figure 12: Shorting the Background Jumpers
6. Remove the jumper.
7. Disconnect the power and (re)connect the sensor to the controller.
CAUTION Do not short the Zero jumpers; they are for factory-calibration only.
NOTE: If the device reading is still above 550 when exposed to fresh air, repeat the process.
11 CO2 Sensor
2.4 Disconnecting the Sensor
Before cleaning the poultry/animal house, disconnect the CO2 sensor.
To disconnect the sensor:
1. Dismount the sensor from the wall.
2. Separate the male and female plugs.

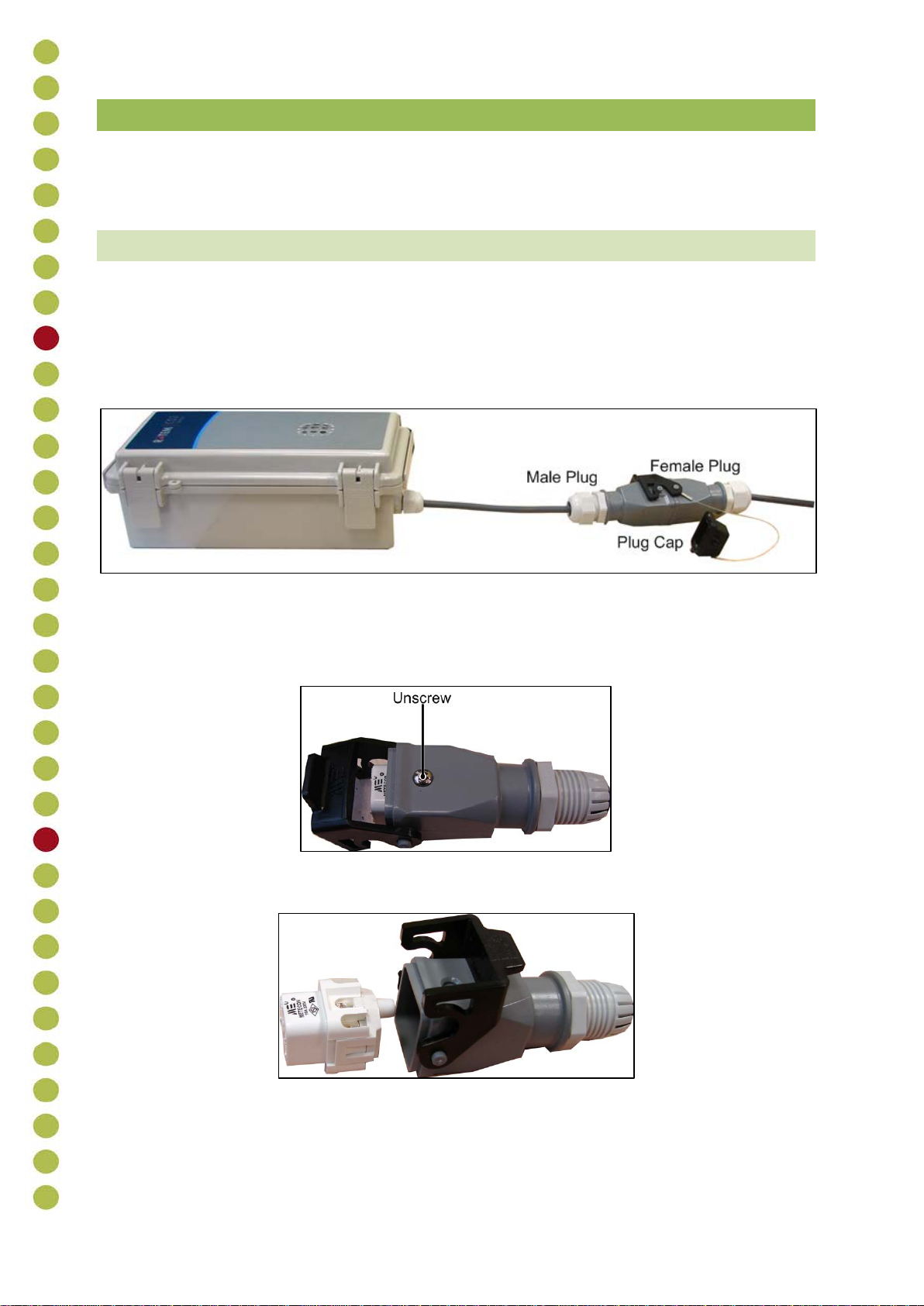

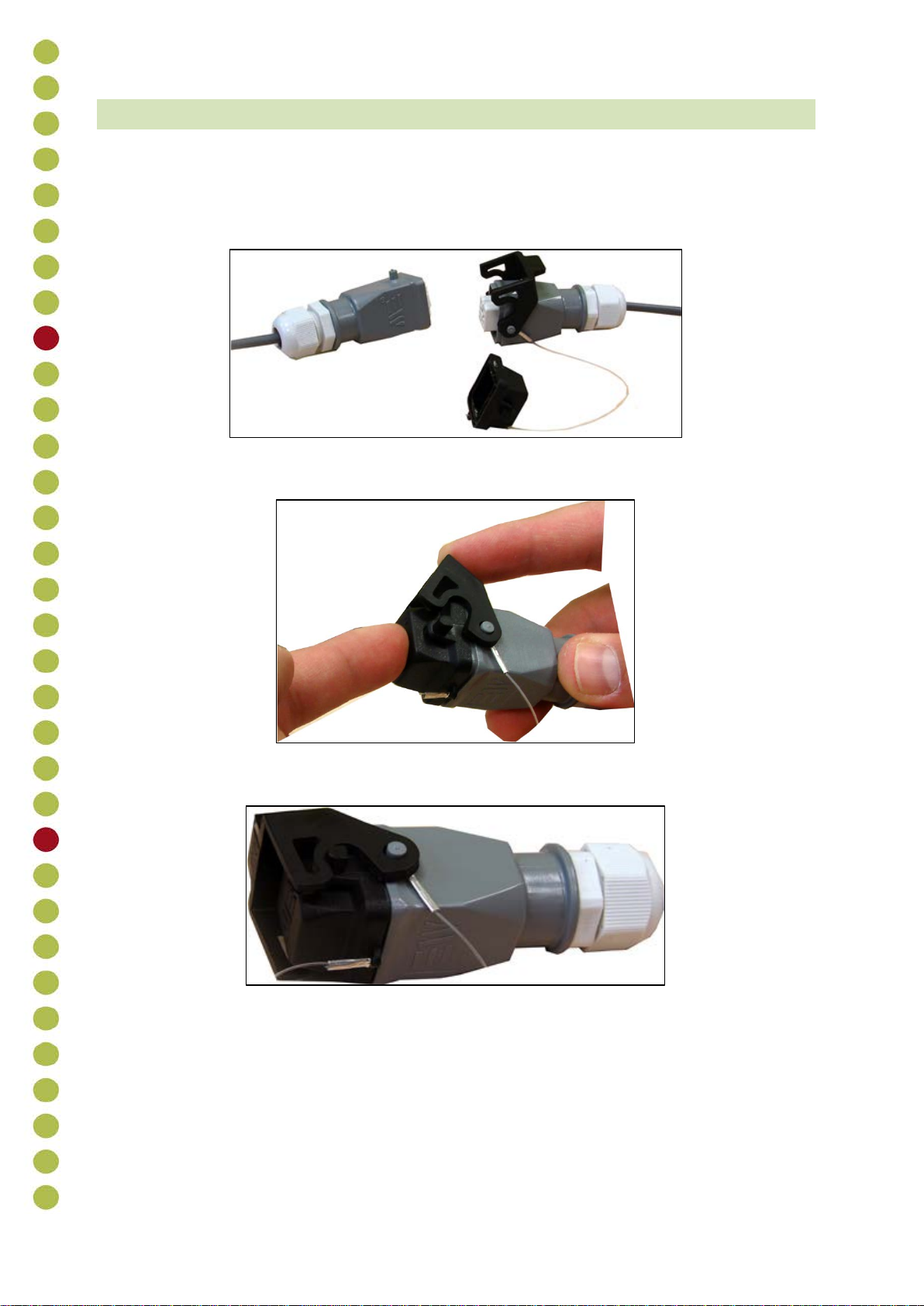

Figure 13: Plugs Separated
3. Place the plug cap on the female cap.
Figure 14: Cap in Place
4. Snap the cap into place.
Figure 15: Cap Snapped into Place
CO2 Sensor 12
3 2BMAINTENANCE AND CARE
The CO2 Sensor requires little or no maintenance.
The following are general maintenance rules:
•Avoid damaging the CO2 Sensor box
•Avoid contact with water or other fluids (when you clean the poultry house, remove
the box)
•Ensure sensor grill on front box panel is clean and clear of obstructions
NOTE: Water may damage the sensor; therefore minimize exposure while washing, or using
water for any purpose.
4 3BSPECIFICATIONS
Input signal12 VDC
Output signal 4 – 20 mAmp
Operating temperature 10 º - 70º C
CO2 range 0 – 5000 ppm
Accuracy 1%
Maximum cable length 300 meters
Minimum wire size 22 AWG
Power supply 12 VDC
5 4BTROUBLESHOOTING
The field technician diagnostic LEDs are visual diagnostic indicators for the field technician only. They
are not end-user serviceable parts or indicators.Table 2 details possible system failure issues.
Table 2: CO2 Sensor System Failure Issues
Problem Solution
The Sensor Fail LED is lit when CO2 sensing element fails. Replace CO2 sensing element
The Min.Fail or Max. Fail LED is lit: The sensor is out of
acceptable range. Replace CO2 sensing element
If the diagnostic LEDs are lit (D2, R12), indicates that the
circuit may be incomplete. Check circuitry for breaks
Readings are off the scale, even when fresh air is present. Verify that there is a jumper on the
Platinum Analog card, placed on T5 or
T6, set for 4 – 20 mA (refer to Figure
10).
Readings are lower than expected. Remove jumper from J2 terminal (refer
to Figure 2).
Power LED remains unlit Check if power/COM wiring has been
reversed (refer to Table 1).
