Roth AAV-ROTHDOCK - Roth Audio RothDock Wireless User manual

Wireless Dock / Receiver
ot
DMade for
@J iPod

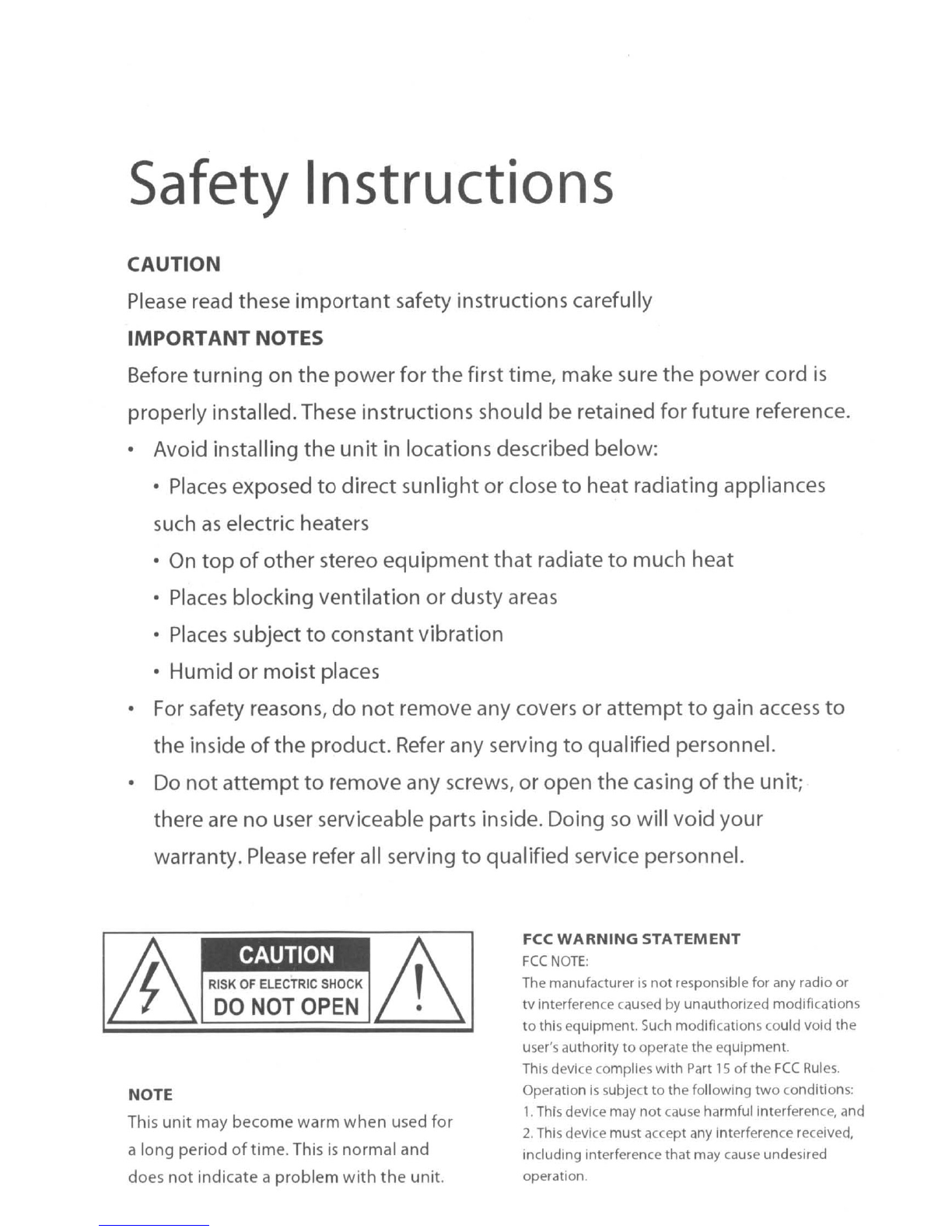

Safety Instructions
CAUTION
Please read these important safety instructions carefully
IMPORTANT NOTES
Before turning on the power for the first time, make sure the power cord is
properly installed. These instructions should be retained for future reference.
•
Avoid installing the unit in locations described below:
•Places exposed
to direct sunlight or close to heat radiating appliances
such as electric heaters
•
On top of other stereo equipment that radiate to much heat
•Places blocking ventilation or dusty areas
•Places subject
to constantvibration
•Humid or moist places
•
For safety reasons, do not remove any covers or attempt to gain access to
the inside of
the product. Refer any serving to qualified personnel.
•
Do not attempt to remove any screws, or open the casing of the un it;
there are no user serviceable parts inside. Doing so will void your
warranty. Please refer
all serving to qualified service personnel.
FCC WARNING STATEMENT
FCC NOTE:
The manufacturer is not responsible for any radio or
tv interference caused by unauthorized modifications
to this equipment.
Such modifications could vOid the
user's authority
to operate the equipment.
This device complies
with Part 15 of the FCC Rules.
Operation Is subject to the following two conditions:
1. ThIs device may not cause harmful Interference, and
2. This device must accept any interference received,
Including interference that may cause undesired
operation.
CAUTION
RISK OF ELECTRIC SHOCK !f\.
DO NOT OPEN ~
NOTE
This unit may become warm when used for
along period
of time. This is normal and
does not indicate aproblem
with the unit.

Thankyou
Thank you for choosing the Rothdock.
We
have tried to make this product as simple
and effective as possible, utilising wireless
technology for convenience of use. We
considered what people need and what people
want and we think this product is the answer.
We hope you agree.
Turn It Up.
James A. Roth, England, November 2008.
INTHE BOX
•Rothdock
•Receiver
•Remote Control
•PowerSupply Adapter(x2)
•Extension cable -3.5mm
Line-in
to RCA
•User Manual

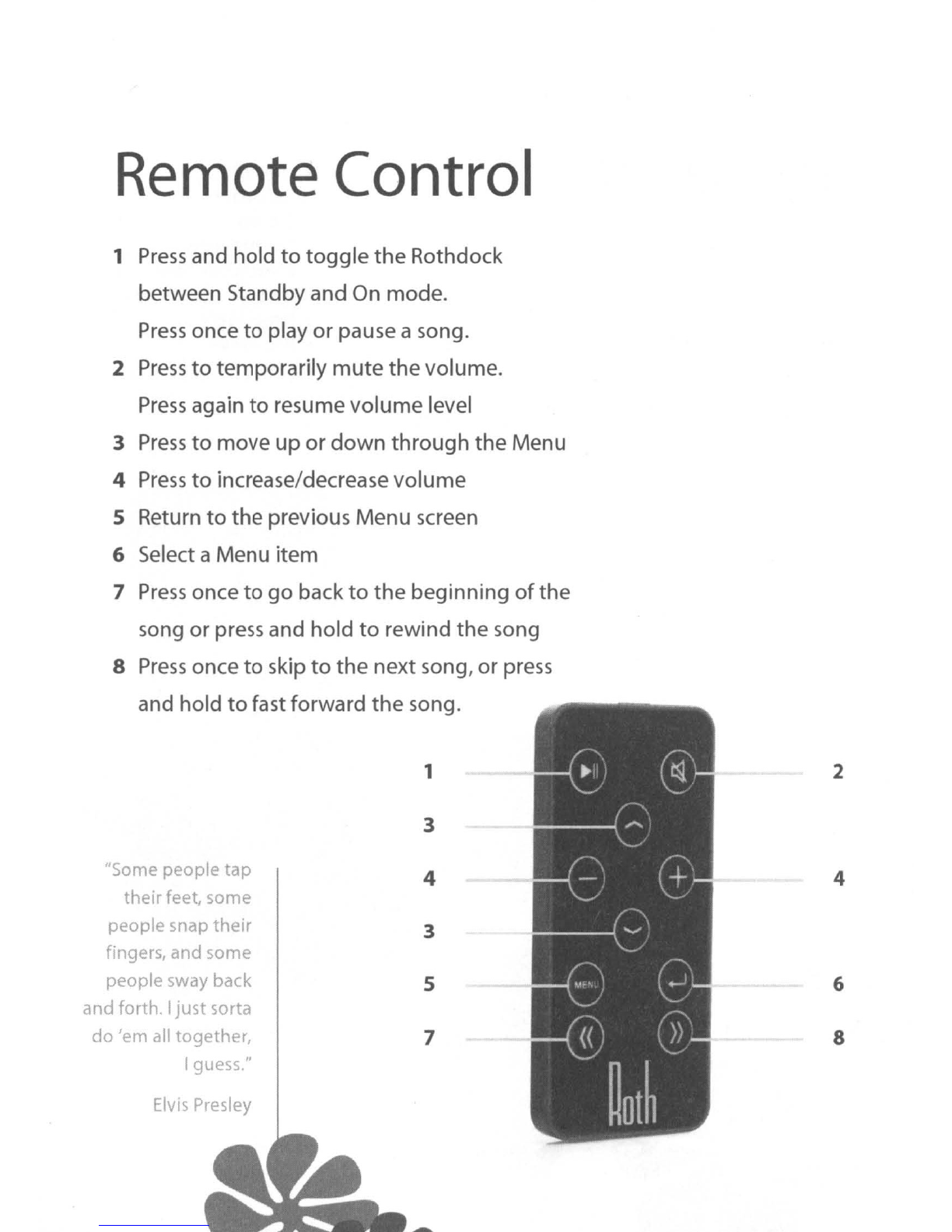

Remote Control
1 Press and hold to toggle the Rothdock
between Standby and
On mode.
Press once to play or pause asong.
2 Press to temporarily mute thevolume.
Press again to resume volume level
3
Press to move up or down through the Menu
4
Press to increase/decrease volume
5Return
to the previous Menu screen
6Select aMenu item
7
Press once to go back to the beginning of the
song or press and hold
to rewind the song
8
Press once to skip to the next song, or press
and hold to fast forward the song.
1 2
3
"Some people tap 4 4
their feet, some
people snap their 3
fingers, and some
people sway back 56
and forth. Ijust sorta
do 'em
all together, 78
Iguess."
Elvis Presley

Rear Connections
On/Off
Power 7V
700mA
Adapter
''The best revenge is
massive success"
Frank Sinatra
I
c
•••
•••
•••
For other audio devices such as MP3/
Mobile Phone or MiniDisk Player.
Plug-in via 3.5mm
mini Jack

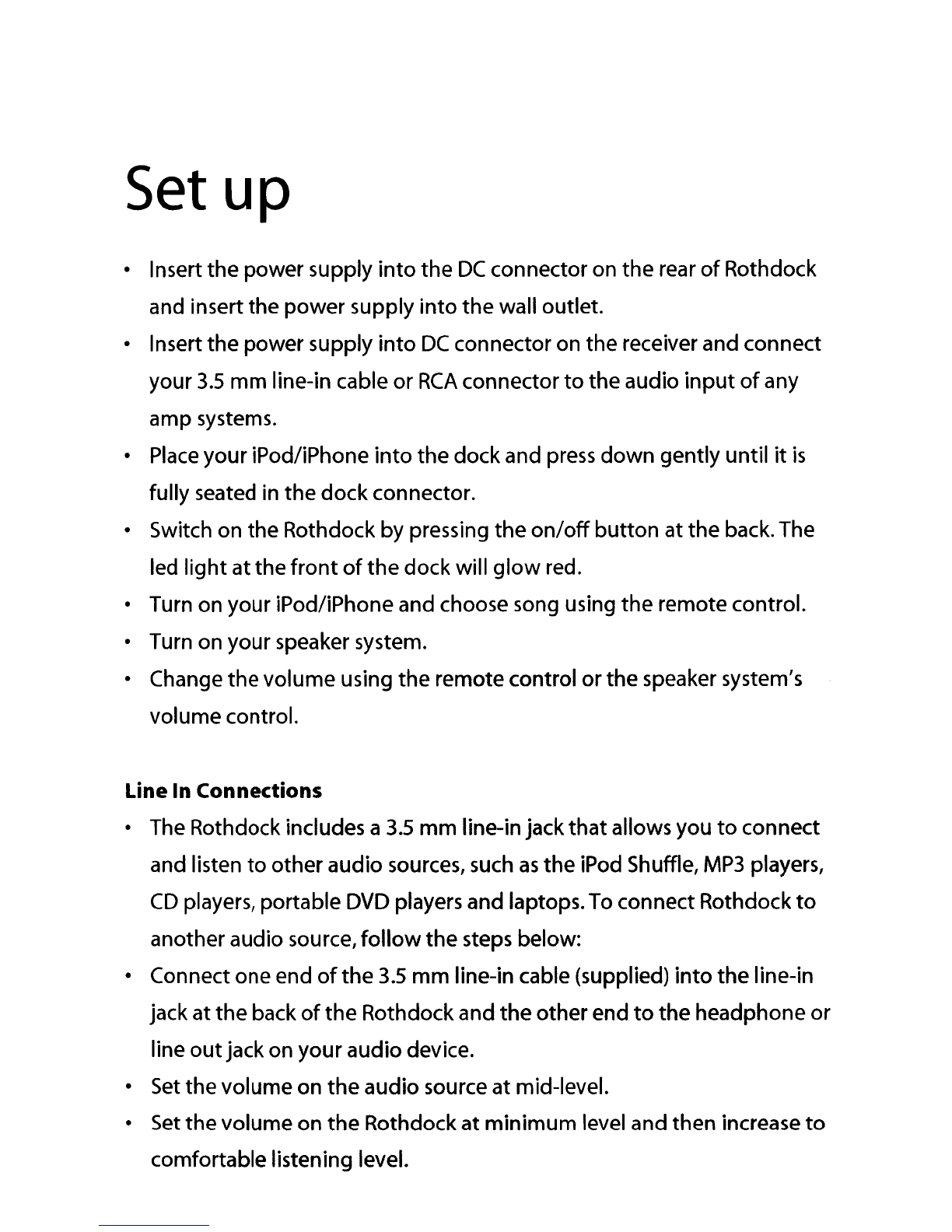

Set up
•Insert the power supply into the DC connector on the rear of Rothdock
and insert the power supply
into the wall outlet.
•Insert
the power supply into DC connector on the receiver and connect
your
3.5 mm line-in cable or RCA connector to the audio input of any
amp systems.
•
Place your iPod/iPhone into the dockand press down gently until it is
fully seated in the dockconnector.
•Switch on the Rothdock by pressing the
on/off button at the back. The
led
light at the front of the dock will glow red.
•Turn on your iPod/iPhone and choose song using
the remote control.
•Turn on your speaker system.
•Change
the volume using the remote control or the speaker system's
volume control.
Line In Connections
•The Rothdock includes a 3.5 mm line-injack that allows you to connect
and listen
to other audio sources, such as the iPod Shuffle, MP3 players,
CD players, portable DVD players and laptops.To connect Rothdock to
another audio source, follow the steps below:
•Connect one end
of the 3.5 mm line-in cable (supplied) into the line-in
jack at
the back of the Rothdock and the otherend to the headphone or
line out jackon your audio device.
•
Set the volume on the audio source at mid-level.
•
Set the volume on the Rothdock at minimum level and then increase to
comfortable listening level.

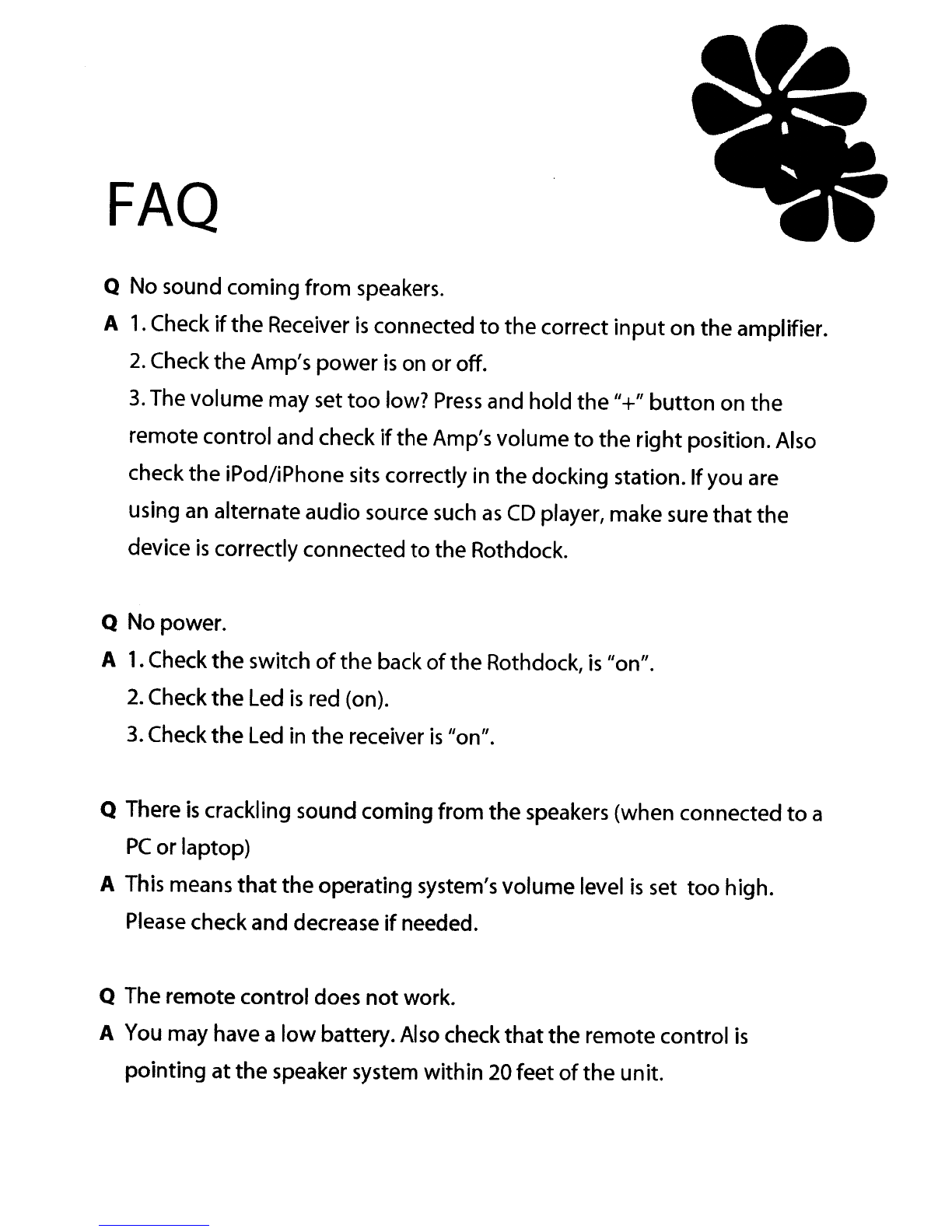

FAQ
Q No sound coming from speakers.
A 1. Check if the Receiver is connected to the correct input on the amplifier.
2. Check the Amp's power is on or off.
3. The volume may set too low? Press and hold the 11+" button on the
remote control and check if the Amp's volume to the right position. Also
check
the iPod/iPhone sits correctly in the docking station. If you are
using an alternate audio source such as CD player, make sure that the
device is correctly connected to the Rothdock.
Q No power.
A 1. Check the switch of the back of the Rothdock, is lion".
2. Check the Led is red (on).
3. Check
the Led in the receiver is lion".
QThere is crackling sound coming from the speakers (when connected to a
PC or laptop)
AThis means that the operating system's volume level is set too high.
Please check
and decrease if needed.
QThe remote control does not work.
A You may have alow battery.Also check that the remote control is
pointing at the speaker system within 20 feet of the unit.

Stream your music from your
iPod/iPhone,
MP3 Phone or
MiniDisk player
to your Hi-Fi
wirelessly
Plug in MP3/Mobile
Phone or MiniDisk Player ~
via 3.5mm mini Jack )}J"
o0
0(30
Plug receiver into any
Hi-Fi in
the house
''There is no dark
side of
the moon
really. Matter of
fact it's all dark."
Pink Floyd
www.rothaudio.co.uk
Apple, the Apple logo and iPod are trademarks of Apple Computer Inc, registered in the
u.s. and other countries Roth and the Roth brand are registered trademarks worldwide

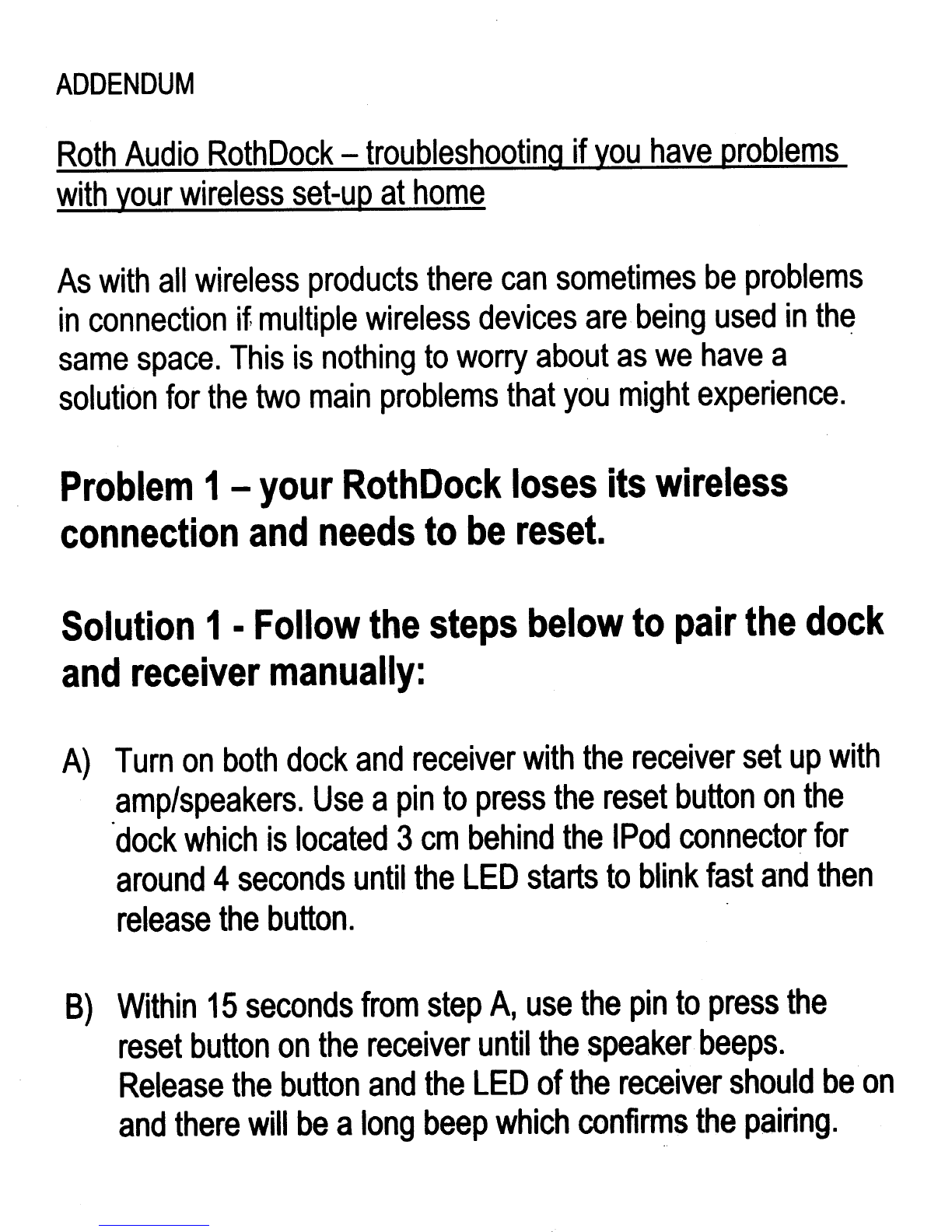

ADDENDUM
Roth Audio RothDock - troubleshooting if you have problems
with your wireless set-up at home
As with all wireless products there can sometimes be problems
in connection if multiple wireless devices are being used in th~
same space. This is nothing to worry about as we have a
solution for the two main problems that you might experience.
Problem 1- your RothDock loses its wireless
connection and needs to be reset.
Solution 1• Follow the steps below to pair the dock
and receiver manually:
A) Turn on both dock and receiver with the receiver set up with
amp/speakers. Use a pin to press the reset button on the
"dock which is located 3cm behind the IPod connector for
around 4 seconds until the LED starts to blink fast and then
release the button.
B) Within 15 seconds from step A, use the pin to press the
reset button on the receiver until the speaker beeps.
Release the button and the LED of the receiver should be on
and there will be a long beep which confirms the pairing.

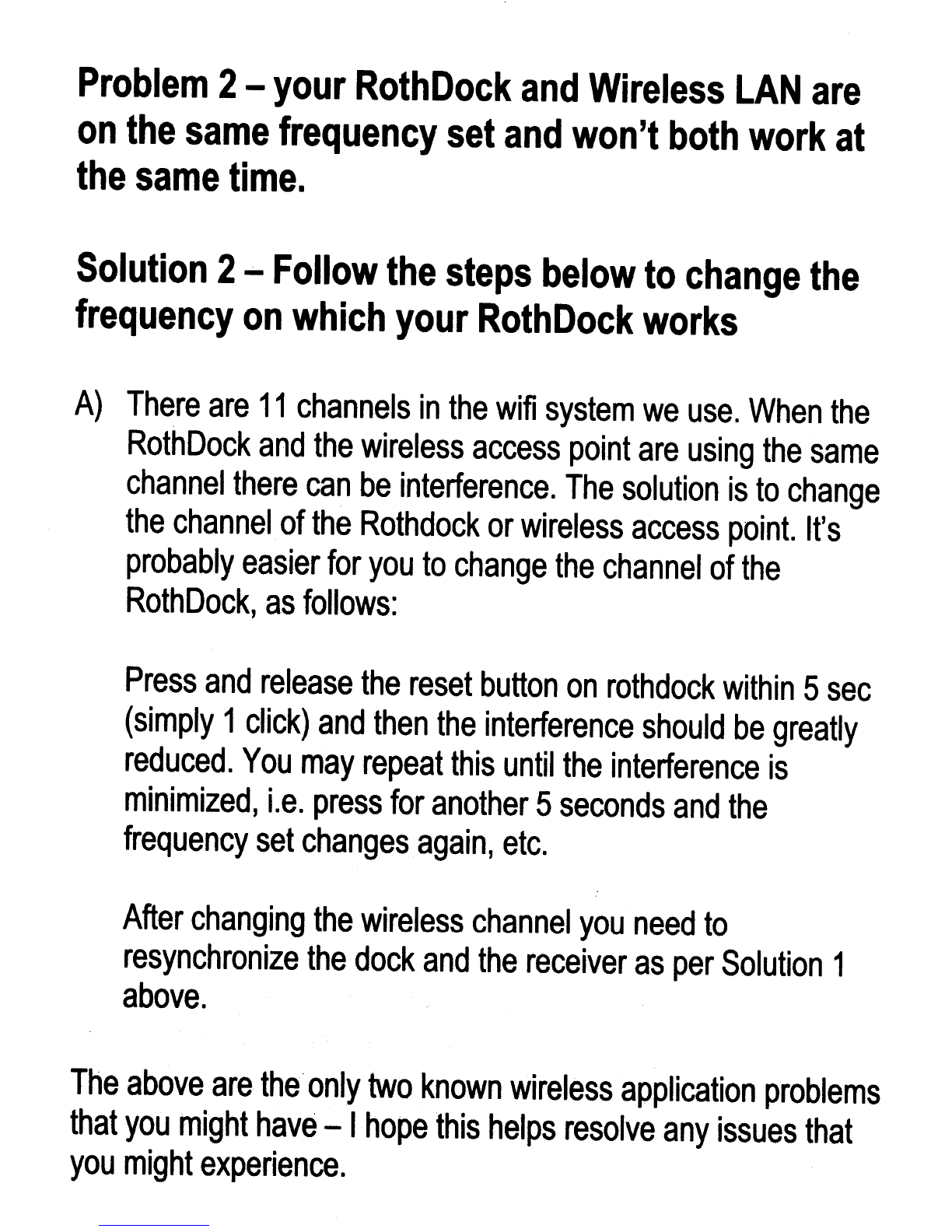

Problem 2- your RothDock and Wireless LAN are
on the same frequency set and won't both work at
the same time.
Solution 2 -- Follow the steps below to change the
frequency on which your RothDock works
A) There are 11 channels in the wifi system we use. When the
RothDock and the wireless access point are using the same
channel there can be interference. The solution is to change
the channel of the Rothdock or wireless access point. It's
probably easier for you to change the channel of the
RothDock, as follows:
Press and release the reset button on rothdock within 5 sec
(simply 1 click) and then the interference should be greatly
reduced. You may repeat this until the interference is
minimized, Le. press for another 5 seconds and the
frequency set changes again, etc.
After changing the wireless channel you need to
resynchronize the dock and the receiver as per Solution 1
above.
The above are the only two known wireless application problems
that you might have - I hope this helps resolve any issues that
you might experience.
