Roundup VCT-2000 User manual

VERTICAL CONTACT
TOASTER
Model VCT-2000
Owner’s Manual
P/N 1010768 Rev. B 03/03
Boston Market
MANUFACTURING
NUMBERS:
9210500
9210502
9210504
9210506




2
VERTICAL CONTACT TOASTER
3
VERTICAL CONTACT TOASTER
General
The Vertical Contact Toaster Model VCT-2000 is
designed for contact toasting of buns. The toaster
design allows the operator to place buns on both
sides of the heated platen at the same time. Buns are
placed into the top of the toaster and uniform, golden
brown, warm buns are then retrieved at the base of the
toaster.
This manual provides the safety, installation and oper-
ating procedures for the Vertical Contact Toaster. We
recommend that all information contained in this manu-
al be read prior to installing and operating the unit.
Your Vertical Contact Toaster is manufactured
from the finest materials available and is assembled to
Roundup’s strict quality standards.
This unit has been tested at the factory to ensure
dependable trouble-free operation.
OWNER INFORMATION
TABLE OF CONTENTS
IMPORTANT! Keep these instructions for future reference. If the unit changes owner-
ship, be sure this manual accompanies the equipment.
Warranty Information
Please read the full text of the Limited Warranty in this
manual.
If the unit arrives damaged, contact the carrier imme-
diately and file a damage claim with them. Save all
packing materials when filing a claim. Freight damage
claims are the responsibility of the purchaser and are
not covered under warranty.
The warranty does not extend to:
• Damages caused in shipment or damage as
result of improper use.
• Installation of electrical service.
• Normal maintenance as outlined in this manual.
• Malfunction resulting from improper maintenance.
• Damage caused by abuse or careless handling.
• Damage from moisture into electrical
components
• Damage from tampering with, removal of, or
changing any preset control or safety device.
Owner Information .....................................................2
General......................................................................2
Warranty Information.................................................2
Important Safety Information ....................................3
Service/Technical Assistance....................................3
Important Safety Information ....................................4
Electrical Specifications at Listed Voltages...............5
Specifications .............................................................5
Dimensions................................................................5
Electrical Cord & Plug Configurations .......................5
Weights......................................................................5
Model Designation.....................................................5
Installation and Setup ................................................6
Unpacking..................................................................6
Assembling the Unit ..................................................6
Equipment Setup.......................................................6
Operation.....................................................................7
Operating Instructions ...............................................7

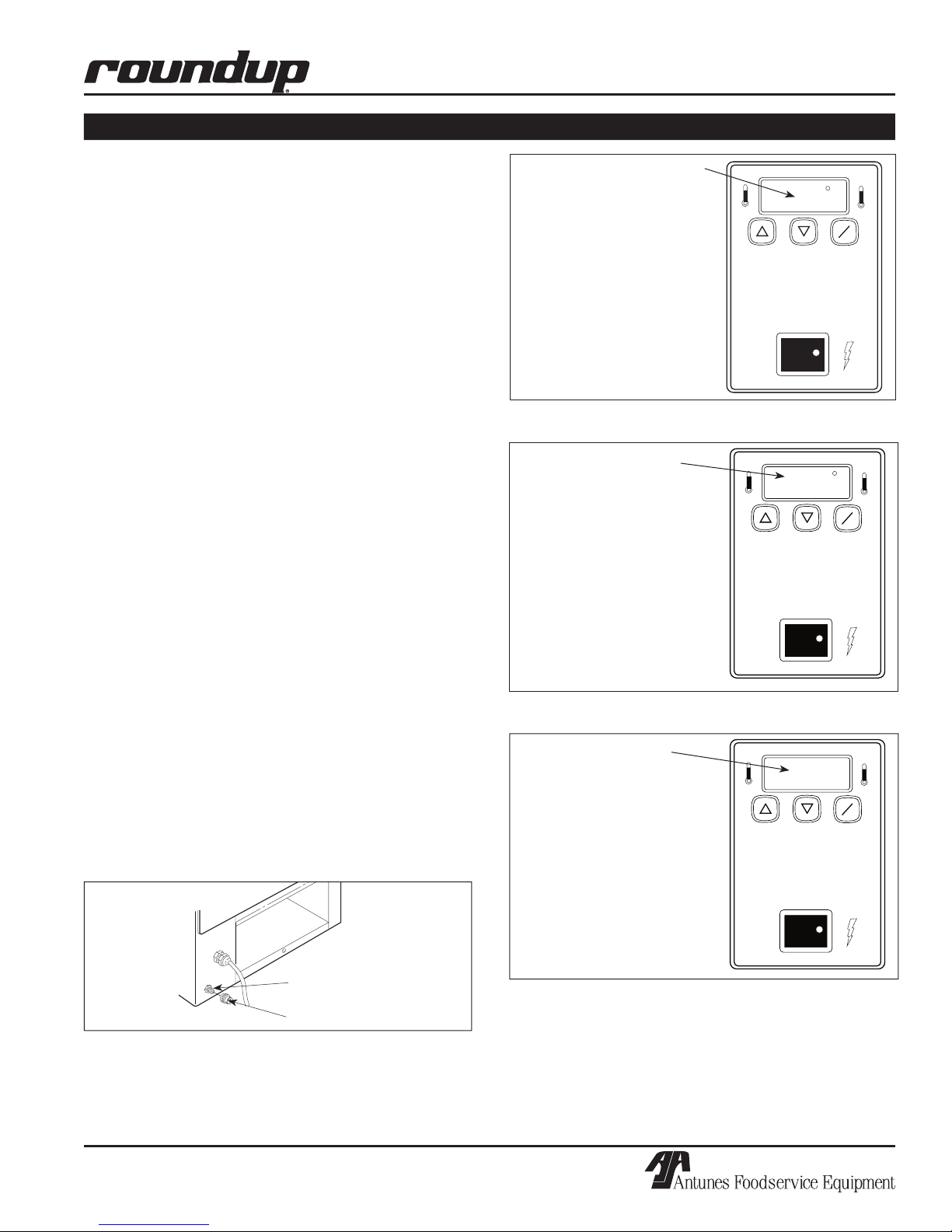

Temperature Adjustments .........................................7
Operation (continued)................................................8
Operation (continued)................................................9
Safety Features .........................................................9
Maintenance..............................................................10

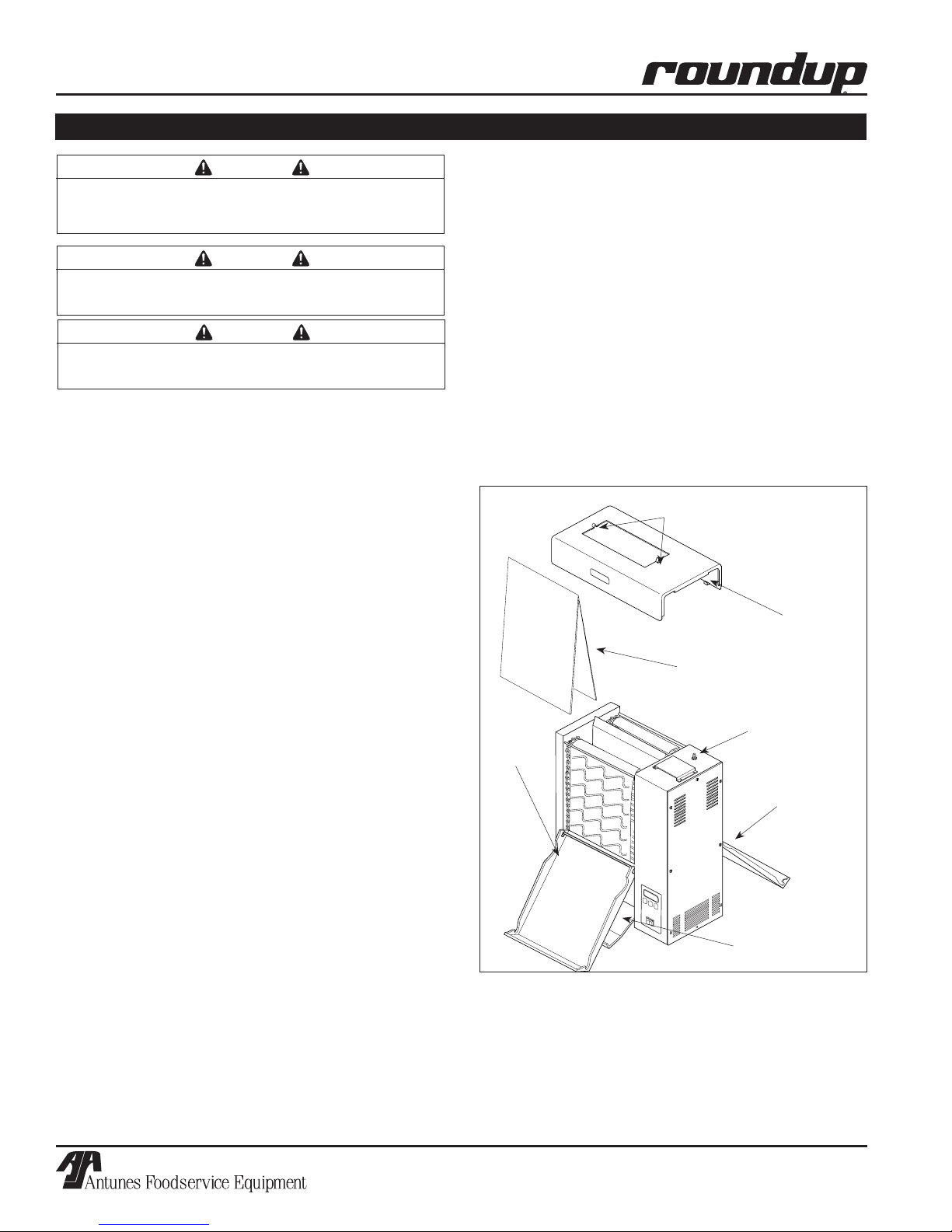

Daily Cleaning of the Release Sheet,
Belt Wrap and Toaster ........................................... 10

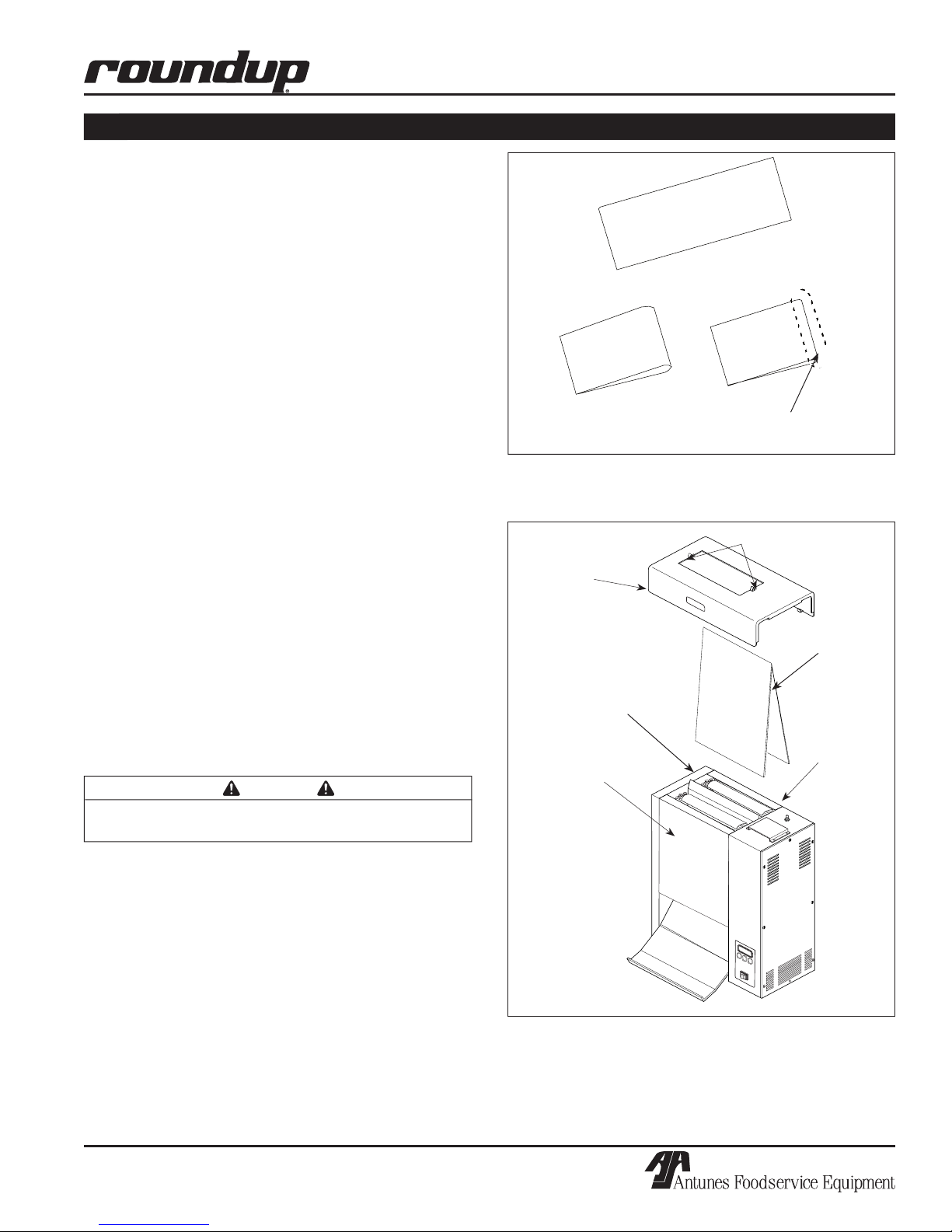

Replacing Release Sheet ...................................... 11

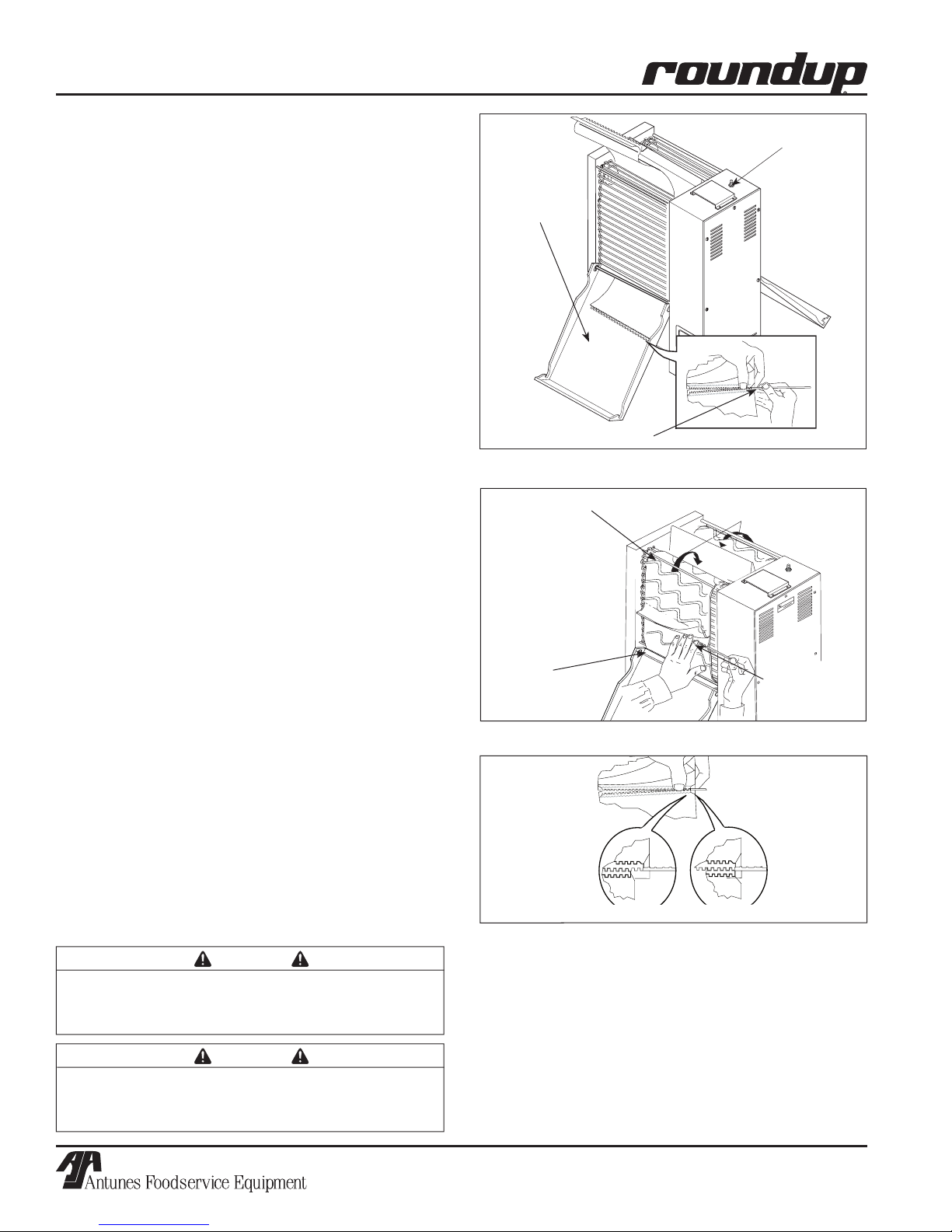

Replacing Belt Wraps............................................. 12

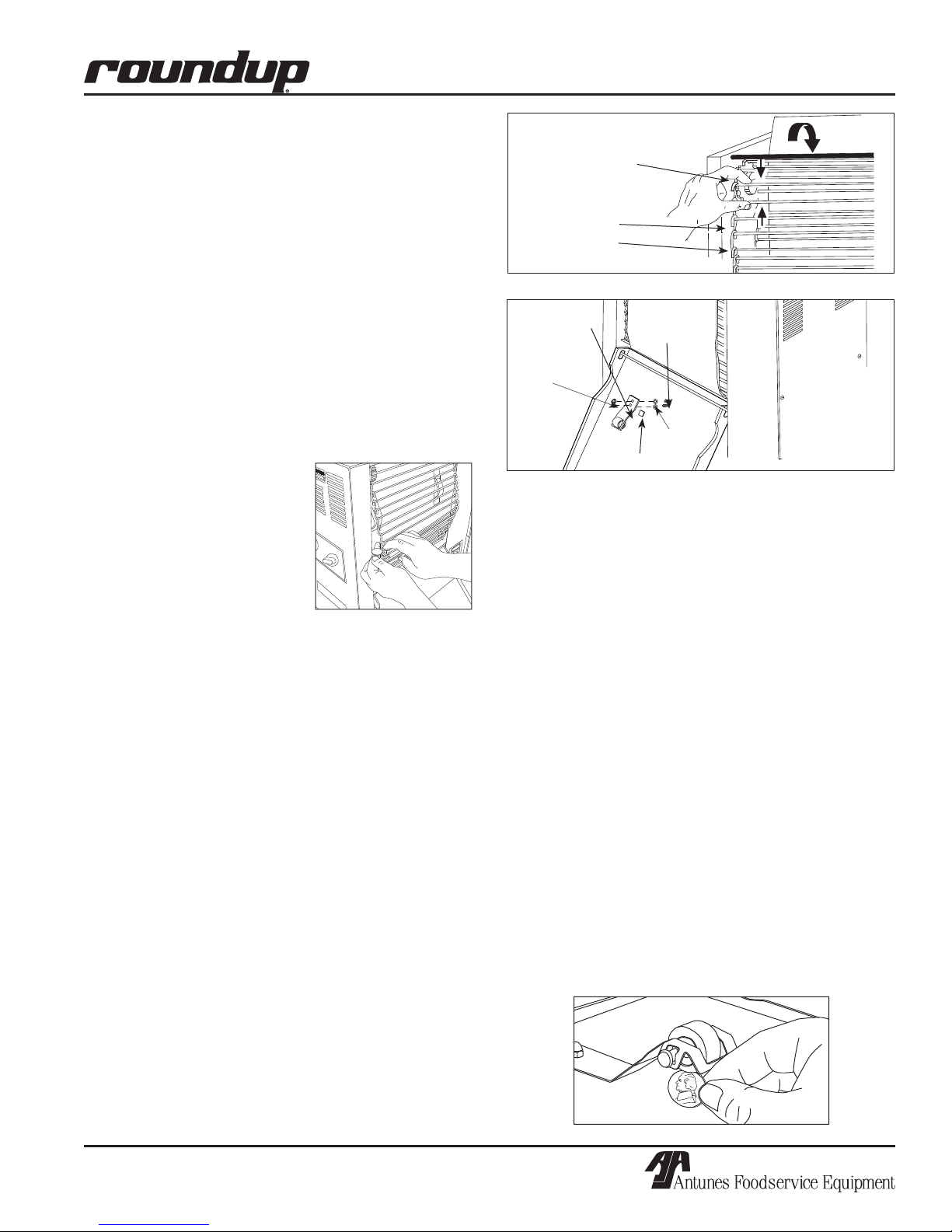

Measuring and Adjusting the Conveyor Belt Chains13
Replacing Bent or Damaged Roller Tensioners..... 13
Measuring Roller Tensioners ................................. 13
Troubleshooting .......................................................14
Replacement Parts ...................................................16
Wiring Diagram.........................................................21
LIMITED WARRANTY ...............................................22

2
VERTICAL CONTACT TOASTER
3
VERTICAL CONTACT TOASTER
Refer to the Service Agency Directory included along
with this owner’s manual for the nearest Authorized
Service Agency.
Name:
Phone No.:
Address:
Use only genuine Roundup replacement parts in this
unit. Use of replacement parts other than those sup-
plied by the manufacturer will void the warranty. Your
Authorized Service Agency has been factory trained
and has a complete supply of parts for this toaster.
You may also contact the factory at 1-877-392-7854
(North America only) or 630-784-1000 if you have trou-
ble locating your local Authorized Service Agency.
Throughout this manual, you will find the following safety words and symbols that signify important safety issues with
regards to operating or maintaining the equipment.
WARNING
GENERAL WARNING. Indicates informa-
tion important to the proper operation of
the equipment. Failure to observe may
result in damage to the equipment and/or
severe bodily injury or death.
WARNING
ELECTRICAL WARNING. Indicates infor-
mation relating to possible shock hazard.
Failure to observe may result in damage
to the equipment and/or severe bodily
injury or death.
CAUTION
GENERAL CAUTION. Indicates informa-
tion important to the proper operation of
the equipment. Failure to observe may
result in damage to the equipment.
WARNING
HOT SURFACE WARNING. Indicates
information important to the handling of
equipment and parts. Failure to observe
caution could result in personal injury.
IMPORTANT SAFETY INFORMATION
Service/Technical Assistance
If you experience any problems with the installation
or operation of your unit, contact your local Roundup
Authorized Service Agency.
Fill in the information below and have it handy when
calling your Authorized Service Agency for assistance.
The serial number is on the specification plate located
on the rear of the unit.
Purchased From:
Date of Purchase:
Model No.:
Serial No.:
Mfg. No.:
IMPORTANT
A.J. Antunes & Co. reserves the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment.
OWNER INFORMATION (continued)

4
VERTICAL CONTACT TOASTER
5
VERTICAL CONTACT TOASTER
In addition to the warnings and cautions which appear
throughout this manual, use the following guidelines for
safe operation of the unit.
• Read all instructions before using equipment.
• For your safety, the equipment is furnished with
a properly grounded cord connector. Do not
attempt to defeat the grounded connector.
• Do not operate this equipment if it has a dam-
aged cord or plug, if it is not working properly, or
if it has been damaged or dropped.
• If supply cord is damaged, it must be replaced by
the manufacturer or its service agent, or a simi-
larly qualified person.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow cord to hang over edge of table or
counter.
• Install or locate the equipment only for its intend-
ed use as described in this manual. Do not use
corrosive chemicals in this equipment.
• Do not block or cover any openings on the unit.
• All electrical connections must be in accordance
with local electrical codes and any other appli-
cable codes.
• Turn the unit off, disconnect the power source,
and allow unit to cool down before performing any
service or maintenance on the unit.
• Do not clean this appliance with a water jet.
• Bread may burn. Therefore toasters must not be
used near or below curtains or other combustible
walls and materials. Failure to maintain safe
operating distances may cause discoloration or
combustion.
• When installing the Conveyor Belt Wrap, be care-
ful not to wrap it over the upper and lower yellow
Support Rods or permanent damage to the Belt
raps will occur. Make sure the Belt Wraps are
positioned UNDER the upper and lower support
rods.
• Make sure both ends of the Belt Wrap are aligned
evenly before installing Belt Wrap Hinge Pin.
• Failure to use Release Sheets may result in dam-
age to the equipment and loss of warranty cover-
age.
• This equipment should be serviced by
qualified personnel only. Contact the nearest
Authorized Service Agency for adjustment or
repair.
WARNING
Electrical Shock hazard. Failure to
follow these instructions could result
in serious injury or death.
IMPORTANT SAFETY INFORMATION

4
VERTICAL CONTACT TOASTER
5
VERTICAL CONTACT TOASTER

 













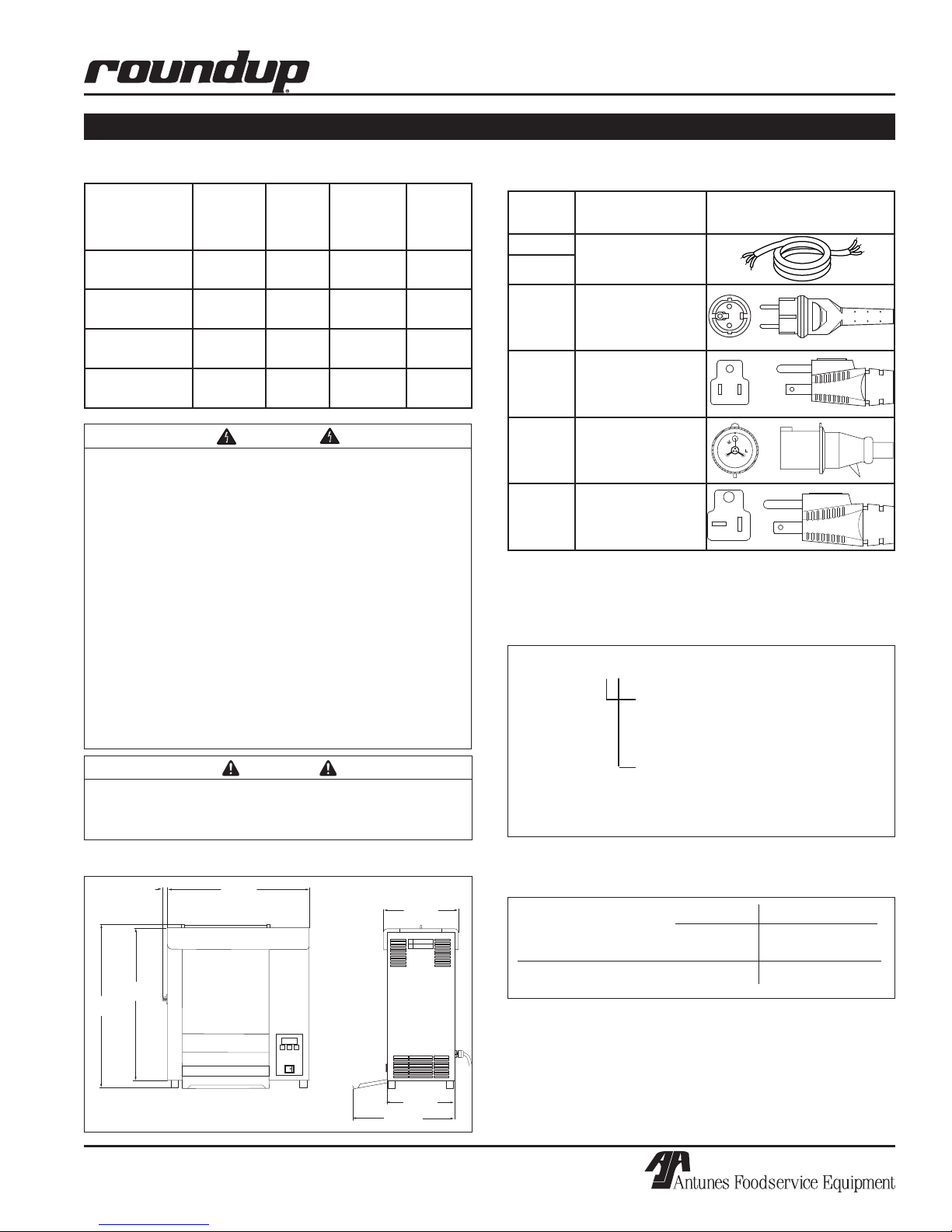

Dimensions
SPECIFICATIONS
Electrical Specifications at Listed Voltages
CAUTION
All electrical connections must be in accordance
with local electrical codes and any other appli-
cable codes.
WARNING
ELECTRICAL SHOCK HAZARD. FAILURE TO
FOLLOW THE INSTRUCTIONS IN THIS MANUAL
COULD RESULT IN SERIOUS INJURY OR DEATH.
• Electrical ground is required on this appli-
ance.
• Do not modify the power supply cord plug. If
it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Do not use an extension cord with this appli-
ance.
• Check with a qualified electrician if you are in
doubt as to whether the appliance is properly
grounded.
Model Designation
TYPE OF POWER CORD
C = COMMERCIAL
H = HARMONIZED
TYPE OF PLUG
C = CEE 7/7
I = IEC-309
F = NEMA 5-15P
T = NEMA 5-20P
VCT-2000XX
Electrical Cord & Plug Configurations
* Used in Model Designation
Weights
Net 95 43.1
Shipping 105 47.6
Lbs Kgs
Model and
anufacturing
Number
Voltage Watts Amps Hertz
VCT-2000CF
9210500
120 1760 14.6 60
VCT-2000HC
9210502
220-240 1785-
2123
8.1-8.8 50
VCT-2000HI
9210504
220-240 175-
2123
8.1-8.8 50
VCT-2000CT
9210506
120 1760 14.6 60
Letter
Code*
Description Configuration
C Commercial Cord
Harmonized Cord
H
(H)C CEE 7/7, 16 Amp.,
250 VAC (Assembly
Only).
(C)F 5-15P, 15 Amp.,
120 VAC., Non –
Locking (Assembly
Only).
(H)I IEC-309, 16 Amp.,
250 VAC., Pin &
Sleeve (Assembly
Only).
(C)T 5–20P, 20 Amp.,
120 VAC., Non –
Locking (Assembly
Only).
 

 


6
VERTICAL CONTACT TOASTER
7
VERTICAL CONTACT TOASTER

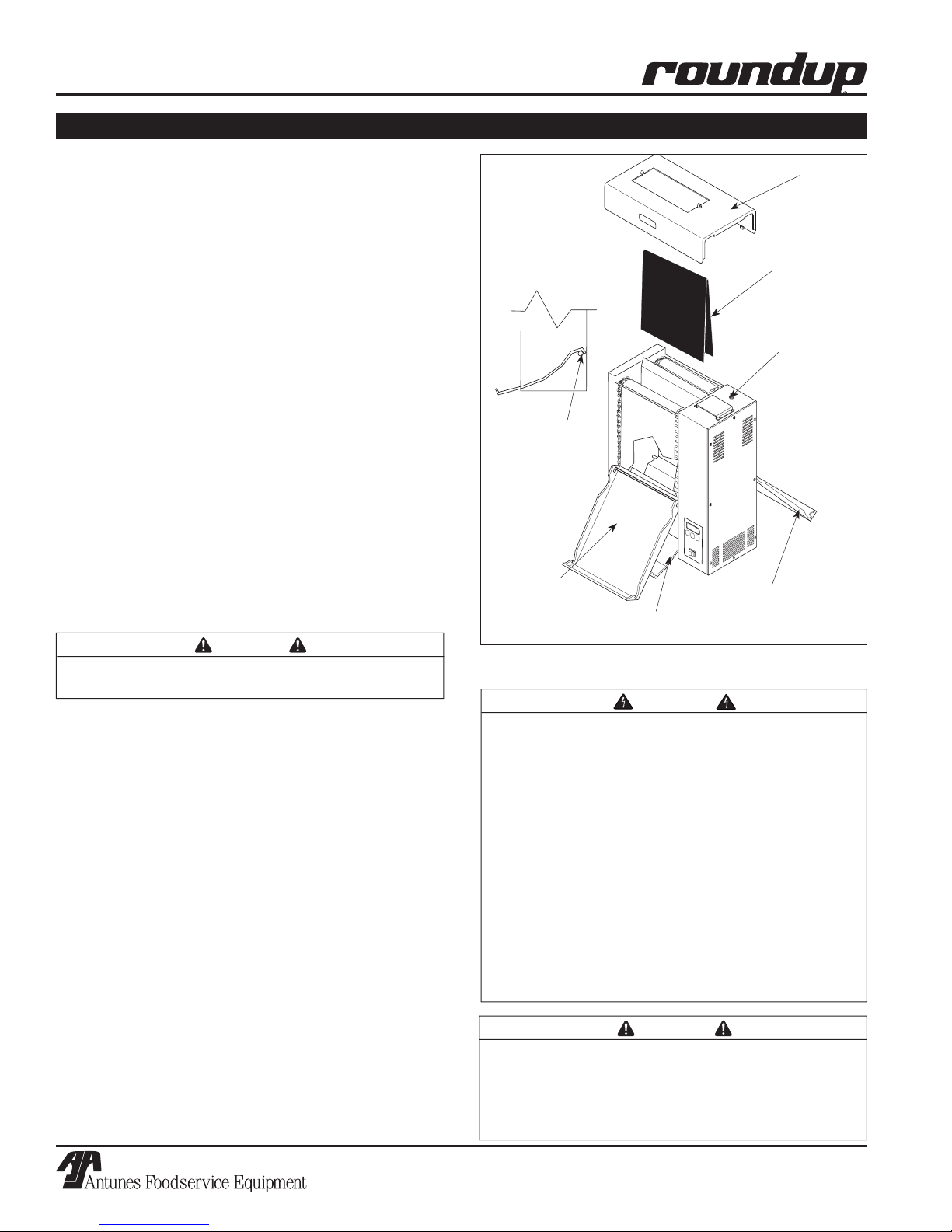

Figure 1. Installing Bun Chute
Bun Chute
Heat Shield
Conveyor
Cover Assy.
Conveyor
Cover Assy.
Unpacking
1. Remove unit and all packing materials from ship-
ping carton.
2. Open the included large box. It should contain
the following:
• Bun Chute (Figure 1)
• Release Sheets (Figure 1)
• Owner’s Manual
3. Remove all shipping tape and protective cover-
ings from the unit and parts.
NOTE: If any parts are missing or damaged, con-
tact Roundup Technical Service IMMEDIATELY at
1-877-392-7854 (North America only) or 630-784-
1000.
Assembling the Unit
NOTE: The factory has pre-installed a Release
Sheet over the Platen (Figure 1). Verify that it is
properly in place before proceeding.
1. Remove the Bun Chute from the additional box
and install (Figure 1).
IMPORTANT: Make sure Heat Shield assembly is
activating the Conveyor Safety Interlock Switch
(see Figure 1). The conveyors will not rotate
unless the Heat Shield is in place and Conveyor
Safety Interlock switch is activated.
INSTALLATION AND SETUP
Release Sheet
CAUTION
Failure to use Release Sheets may result in dam-
age to the unit and loss of warranty coverage.
Bun Chute Assy.
connected over
bottom rear
support rod
Conveyor
Interlock
Switch
Equipment Setup
When placing the toaster into service, pay attention to
the following guidelines.
• Make sure power switch is off and the toaster is
at room temperature.
• Do not block or cover any openings on the unit.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow cord to hang over edge of table or
counter.
• Connect the unit to the proper power supply.
Refer to the specification plate for the proper
voltage.
WARNING
ELECTRICAL SHOCK HAZARD. FAILURE TO
FOLLOW THE INSTRUCTIONS IN THIS MANUAL
COULD RESULT IN SERIOUS INJURY OR DEATH.
• Electrical ground is required on this appli-
ance.
• Do not modify the power supply cord plug.
If it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• The toaster should be grounded according to
local electrical codes to prevent the possibility
of electrical shock. It requires a grounded recep-
tacle with separate electrical lines, protected by
fuses or a circuit breaker of the proper rating.
CAUTION
Bread may burn. Therefore toasters must not be
used near or below curtains or other combustible
walls and materials. Failure to maintain safe oper-
ating distances may cause discoloration or com-
bustion.

6
VERTICAL CONTACT TOASTER
7
VERTICAL CONTACT TOASTER
OPERATION








 










Figure 3. Bun Thickness Compression Knobs










 








Figure 2. VCT-2000 Toaster
Bun Thickness
Adjustment Controls
Bun Landing
Area
Rocker Switch
Temperature Controls &
Temperature Display
(see Figure 3)
Operating Instructions
1. Set the Bun Thickness Compression Knobs
(Figure 3) to desired setting.
NOTE: Recommended settings are #2 for heel and
#6 for crown (See Figure 3).
2. Turn the Rocker Switch (power On/Off) to ON.
(Figure 2). Allow 30 minutes warm-up time
before proceeding.
NOTE: The temperature display (Figure 2) will flash
“LO” until preset operating temperature is reached.
When the toaster approaches the preset tempera-
ture of 570°F (299°C), “USE” will appear in the
temperature display and the unit is ready to toast
buns. If “USE” does not appear in the window after
warm-up period of approximately 30 minutes, con-
tact your Roundup Authorized Service Agency.
3. Drop buns into toaster (Figure 2). Cut sides of
heel and crown must face each other.
4. Toasted product will drop into the bun landing
area (Figure 2).
5. Test at least 4 buns before putting toaster into
service.
6. Turn the Rocker Switch (power On/Off) OFF
when finished toasting and proceed with the daily
cleaning as outlined in the Maintenance section
of this manual.
Temperature Adjustments
The VCT-2000 uses a Platen heater. This is an
aluminum casting with a built in heating element.
This assembly retains heat and provides consistent
temperatures when toasting the cut side of the bun.
RECOMMENDED TEMPERATURE
Recommended temperature setting for the Platen heat-
er is 570°F (299°C).
NOTE: The toaster is tested and shipped with the
heater set at the above recommended temperature.

8
VERTICAL CONTACT TOASTER
9
VERTICAL CONTACT TOASTER
TEMPERATURE CONTROL PANEL
NOTE: Setpoint Temperature refers to the desired
temperature setting.
Pressing the TEMP UP key will display the current plat-
en heater temperature providing the platen temperature
is over 440°F (227°C).
Pressing TEMP SCALE key will switch the temperature
display between Fahrenheit (°F) and Celsius (°C).
PLATEN TEMPERATURE ADJUSTMENT
1. Turn Rocker Switch (power On/Off) to ON and
wait for temperature display to finish the power
up sequence (Figure 4).
2. Press and hold both TEMP UP and TEMP DOWN
keys for over 1 second until the display flashes
the setpoint temperature, then release (Figure 5).
3. Press the TEMP UP key to raise the setpoint
temperature or press the TEMP DOWN key to
lower the setpoint temperature. The setpoint
temperature will adjust 1° every 0.1 seconds.
4. Release the key when the desired setpoint is dis-
played.
NOTE: If no change is made within 5 seconds, the
display will revert back to the previous setpoint.
TEMP
UP
TEMP
DOWN TEMP
SCALE
˚F
˚C
POWER
TEMP
UP
TEMP
DOWN TEMP
SCALE
˚F
˚C
POWER
SP - P 600
Figure 4. Temperature Power Up Sequence
1. SP-P (Setpoint Platen)
is displayed
“Heat On” LED will blink on/off during warm-up and when either
platen or auxiliary heaters are calling for heat.
2. Current Platen Temp.
Setting is shown
5. “LO” is displayed until
platen temperature rises
above 550°F (288°C)
6. USE is displayed when
Platen Setpoint Temp.
is reached
TEMP
UP TEMP
DOWN TEMP
SCALE
˚F
˚C
POWER
LO
TEMP
UP
TEMP
DOWN TEMP
SCALE
F
C
POWER
USE
*Platen setpoint temperature must be between
460°F (238°C) and 600°F (315°).
TEMP
UP TEMP
DOWN TEMP
SCALE
˚F
˚C
POWER
551
Figure 5. Adjusting Platen Heater
Temperature Setpoint
1. Press both keys at the same time
for 1 second to start adjustment
sequence.
2. Press TEMP UP key to raise
platen setpoint temperature.
3. Press TEMP DOWN key to lower
platen setpoint
temperature.
570
OPERATION (continued)

8
VERTICAL CONTACT TOASTER
9
VERTICAL CONTACT TOASTER
FAULT MESSAGES
• If the platen thermocouple is disconnected or
“open”, the display will flash “HI” (Figure 7). The
platen thermocouple must be reattached or
replaced.
• If the platen heater temperature exceeds 620°F
(327°C) the display will flash “HI” (Figure 7). After
the toaster has cooled down, the unit must be
turned off, then back on to restart. If this condition
repeats, contact your Roundup Authorized Service
Agency.
• When this occurs, the temperature display will flash
“CHEC” (Figure 8). To restart the unit, ambient
temperature must drop to 140°F (60°C) and the
cooling fan must be operating. The unit must be
turned off, then back on.
• If incoming power drops below 175 Volts, the
toaster will shut down and the display will flash
“PO” (Figure 9).
NOTE: This applies only to the 230V Model.
• To reset, power supply must be over 175 Volts,
then the unit must be turned off and back on.
TEMP
UP
TEMP
DOWN TEMP
SCALE
˚F
˚C
POWER
TEMP
UP
TEMP
DOWN TEMP
SCALE
˚F
˚C
POWER
HI 446
Figure 7. “HI” Fault Message
“HI” flashes if platen
temperature exceeds 620°F
(327°C) or if thermocouple is dis-
connected or “open”.
Figure 8. “CHEC” Fault Message
TEMP
UP TEMP
DOWN TEMP
SCALE
˚F
˚C
POWER
CHEC
“CHEC” flashes when
control compartment
ambient temperature is exces-
sive: 140°F (60°C) to 180°F
(82°C).
Figure 9. “PO” Fault Message
TEMP
UP TEMP
DOWN TEMP
SCALE
˚F
˚C
POWER
PO
“PO” flashes when
incoming power drops below 175
Volts. Toaster shuts down.
Hi-Limit Reset Switch
Protective Screw Cap
Figure 6. Hi-Limit Switch
Safety Features
HI-LIMIT RESET BUTTON
A hi-limit thermostat will turn off electrical power to the
heater circuits if the unit overheats. To reset this ther-
mostat, allow sufficient time (10-15 minutes) for the unit
to cool down, then locate the reset button at the rear
of the unit. Remove protective cap, depress the reset
button, and reinstall protective cap (Figure 6).
NOTE: If the unit requires continuous resetting,
contact your Authorized Service Agency.
OPERATION (continued)

10
VERTICAL CONTACT TOASTER
11
VERTICAL CONTACT TOASTER
Daily Cleaning of the Release Sheet, Belt
Wrap and Toaster
1. Turn Rocker Switch (power On/Off) to OFF, unplug
the power cord, and allow the unit to cool sufficiently
to handle.
2. Put on protective gloves. Remove Heat Shield
and Bun Chute and rinse with a clean, damp,
sanitized towel. Open the front and rear
Conveyor Covers by lifting the covers in an
upward motion, then tilting the tops away from the
unit.
3. Remove the Release Sheet. Firmly wipe both
sides with a clean dry towel dampened with
Exceed® Multi-Surface & Glass Cleaner.
Immediately clean the release sheet with a fresh,
dry towel, dampened with sanitizer solution and
allow to air dry.
NOTE: Do not remove belt from toaster to clean.
4. Firmly wipe the exterior of both conveyor Belt
Wraps with a clean, dry towel and a solution of
Exceed® Multi-Surface & Glass Cleaner. Clean
this solution off with a clean, dry towel dampened
with a sanitizing solution. Install both covers and
heat shield (Figure 10). Plug power cord into the
electrical outlet and turn the Rocker Switch to
ON. Count to 15. Turn the toaster off. Remove
Heat Shield, open the Conveyor Covers and
clean and rinse the newly exposed section of the
Belt Wraps; then close the Conveyor Covers.
5. Wipe down the outside of the toaster with a clean,
dry towel dampened with sanitizer solution and
allow to air dry.
6. Install the Release Sheet using its reverse side
MAINTENANCE
WARNING
Turn the unit off, disconnect the power source
and allow the unit to cool down before performing
any service or maintenance on the unit.
CAUTION
To prevent damage to the unit, do not use abra-
sive cleaners on the release sheet or belt wrap.
CAUTION
Failure to use release sheets may result in dam-
age to the unit and loss of warranty coverage.
Figure 10. Components
Front
Conveyor
Cover
Rear
Conveyor
Cover
Bun Chute
Heat Shield
Conveyor
Cover Assy.
Interlock Switch
Release Sheet
Heat Shield Clips
by draping it over both sides of the platen with the
crease centered directly over the platen (Figure
12).
NOTE: Check the release sheet to make sure it
is not caught in the conveyor. Additional release
sheets can be obtained through your Roundup
Authorized Service Agency.
7. Install the Bun Chute so the hooks are installed
over the lower rear yellow Support Rod.
8. Re-install the Heat Shield.
IMPORTANT! Make sure that the Heat Shield is acti-
vating the Conveyor Interlock Safety Switch. The
conveyors will not rotate unless the Heat Shield is
in place and the Interlock Switch is activated.
