Royal cnister ry3000 User manual

OWNER'S MANUAL
Operating and Servicing
Instructions
APPLIANCE MFG. CO.
Please read these
instructions carefully
before using your
RY3000 Cnister?
Let us help you put your
cleaner together or
answer any questions,call:
1-800-321-1134
(USA & Canada)
.We bsite:
www.royaIvacuums.com
02001 All rights reserved #I-113081-000
11 101
AWARNING:
Cleaner assembly may include
small parts. Small parts
can
presenta choking hazard.
For quick reference, please recordyour
vacuum information below.
Model
#:
Mfg. Code:
(M~Q. code locatedon the bottom of cleaner)

CONSUMER INFORMATION
THlS VACUUM IS INTENDED FOR HOUSEHOLD USE ONLY.
IMPORTANT SAFETY INSTRUCTIONS
When you use an appliance, basic precautions should always be
followed, including
the following:
READ ALL INSTRUCTIONSBEFORE USING THlS APPLIANCE
ALWAYS FOLLOWTHESE SAFETY INSTRUCTIONS
DO NOT LEAVE CLEANER UNATTENDED
WARNING - FULLY ASSEMBLE CLEANER BEFORE OPERATING
WARNING: THE CORDS, WIRES AND/OR CABLES SUPPLIED WITH
THlS PRODUCT CONTAINS CHEMICALS, INCLUDING LEAD OR
LEAD COMPOUNDS, KNOWN TO THE STATE OF CALIFORNIA TO
CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM. WASH HANDS AFTER USING.
WARNING: TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK OR INJURY:
Do not leave appliance when plugged in. Unplugfrom outlet when not in
use and beforeservicing.
Do not use outdoors or on wet surfaces.
Do not allow to be used as a toy. Close attention is necessarywhen used
by or near children.
Use only as described in this manual. Use only manufacturer's recom-
mended attachments.
Do not use with damaged cord or plug. If appliance is not working as it
should, has been dropped, damaged, left outdoors, or dropped into water,
return itto a service center for inspection. Call 1-800-321-1134 for the
nearest service center.
Do not pull or carry by cord, use cord as a handle, closea door on cord,
or pull cord around sharp edges or corners. Do not run appliance over
cord. Keep cord away from heated surfaces.
Do not unplug by pulling on cord. To unplug,graspthe plug, not the cord.
Do not handle plug or appliance with wet hands.
Do not put any object into openings. Do not use with any opening
blocked; keep free of dust, lint, hair and anything that may reduce air flow.
Keep hair, loose clothing, fingers, and all partsof body away from
openings and moving parts.
Turn off all controls before unplugging.
Use extra care when cleaning on stairs.

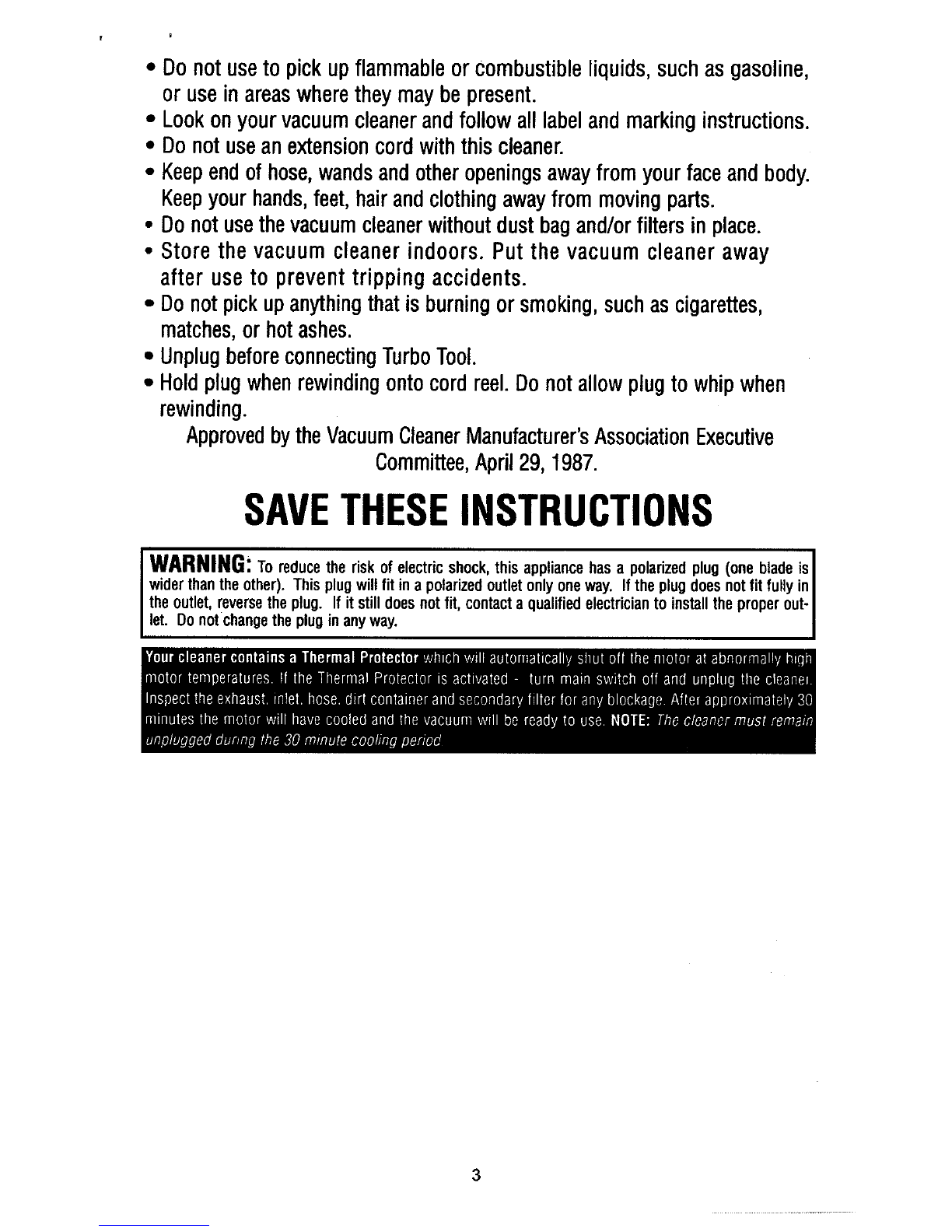

Do not use to pick up flammable or combustible liquids, such as gasoline,
or use in areas where they may be present.
Look on your vacuum cleaner and follow all label and marking instructions.
Do not use an extensioncord with this cleaner.
Keep end of hose, wands and other openings away from your face and body.
Keep your hands, feet, hair and clothing away from moving parts.
Do not use the vacuum cleaner without dust bag andlor filters in place.
Store the vacuum cleaner indoors. Put the vacuum cleaner away
after use to prevent tripping accidents.
Do not pick up anythingthat is burning or smoking, such as cigarettes,
matches, or hot ashes.
UnplugbeforeconnectingTurbo Tool.
Hold plug when rewinding onto cord reel. Do not allow plugto whip when
rewinding.
Approved by the Vacuum Cleaner Manufacturer'sAssociation Executive
Committee, April 29, 1987.
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of electric shock, this appliance has a polarized plug (one blade is
wider than the other). This plug will fit in a polarizedoutlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If itstill does not fit, contact a qualified electricianto installthe proper out-
let. Do not change the plug inany way.
1

CONGRATULATIONS
You are now the proud owner of the RoyaP RY3000. We trust your new pur-
chase will bring you many years of satisfaction.
We are very proud of our products and hope that you areequally satisfied
with
their quality and performance.
Thank you for your supportof ~o~al@products.
Visit our websiteat www.royalvacuums.com
TABLE OF CONTENTS
Safety Instructions ........................................................... Page 2 & 3
FeatureDescription .......................................................... Page 5
HowTo Assemble .............................................................. Page 6
Hose Installation .......................................................... Page 6
Attachment Installation ................................................ Page 6
How to Operate ................................................................ Page 7
To ReduceSuction ...................................................... Page 7
Bag: Removaland Replacement ....................................... Page 8
Filter: Removaland Replacement ..................................... Page 9
.............................................................................. Storage Page 9
Troubleshooting Guide ..................................................... Page 10
LIMITED WARRANTY
I
To the consumer, Royal Appliance Mfg. Co. warrants this vacuum cleaner to be free of defects in material or
workmanship for
2 years from the date of the original purchase. Save your original sales receipt to validate
start of warranty period.
I
Ifthe vacuum cleanershould becomedefectivewithin the warranty period, we will repairor replace any defec-
tive parts free of charge. The complete machine must be delivered to any ROYALaAuthorizedSales
&
Warranty ServiceStation. Please include complete description of the problem, day of purchase, copy of origi-
nal sales receipt and your name. address and telephone number. If you are not near a Warranty Station, call
the factory for assistanceinthe USA
& Canada: 1-800-321-1134. Useonly genuine Royalareplacementparts.
The warranty does not include unusual wear, damageresultingfrom accident or unreasonableuse of the vac-
uum cleaner. This warranty does not cover brushes, flat belts, filters, bulbs. This warranty does not cover
unauthorized repairs. This warranty givesyou specific legal rights andyou mayalso haveother rights. (Other
rights may vary from state to state inthe USA).

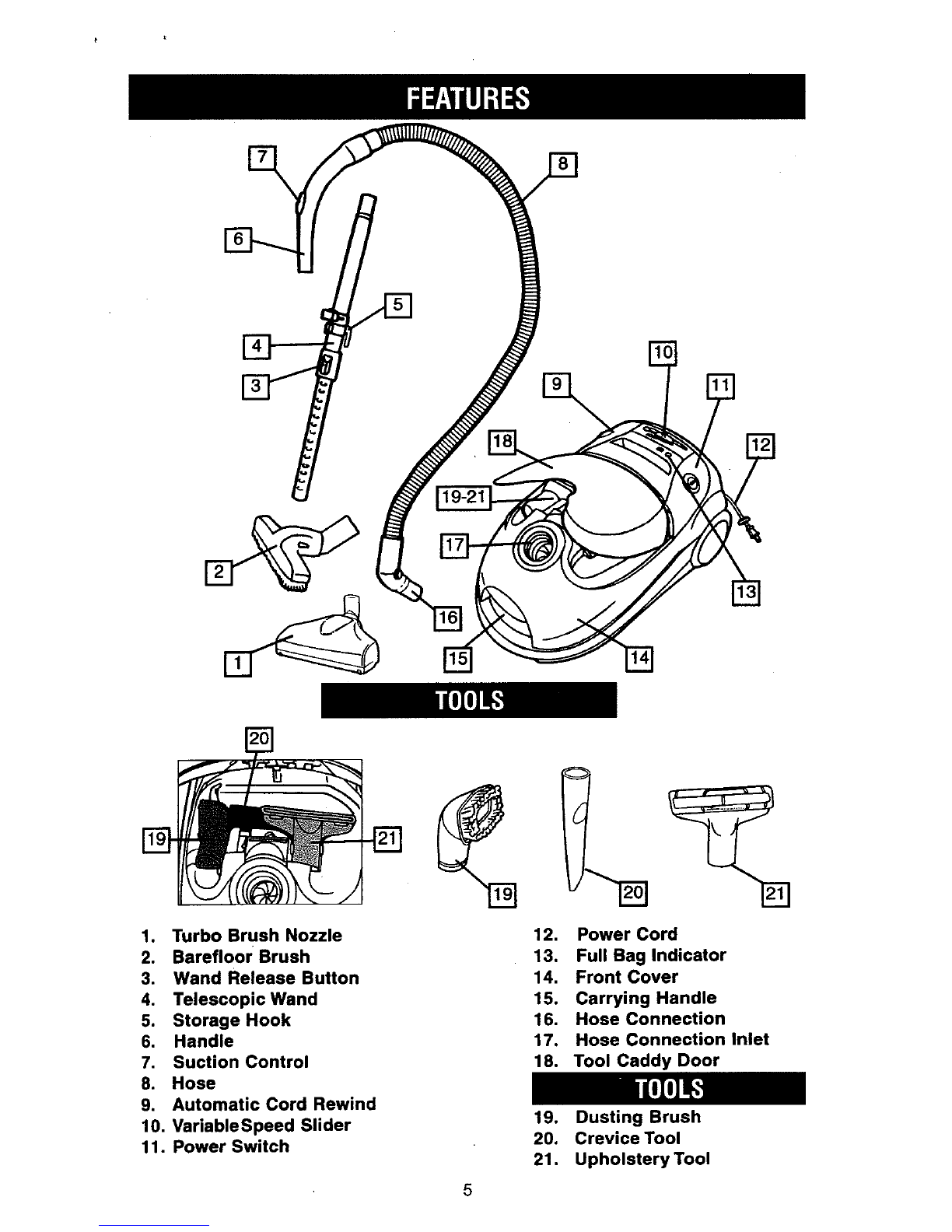

1. Turbo Brush Nozzle
2. Barefloor Brush
3. Wand Release Button
4. Telescopic Wand
5. Storage Hook
6. Handle
7. Suction Control
8. Hose
9. Automatic Cord Rewind
10. Variablespeed Slider
11. Power Switch
12. Power Cord
13. Full Bag Indicator
14. Front Cover
15. Carrying Handle
16. Hose Connection
17. Hose Connection Inlet
18. Tool Caddv Door
19. Dusting Brush
20. creviceTool
21. UpholsteryTool

or wand end until it is secured
in place (Diagram 3).
4.
To removethe tool, pull apart
gently. You maygently rotatethe
attachment baaand forth a lit-
tle to make the removal easier.

1. Connect metaltelescopic
wand to the hose handle.
Extendlengthby pressing
down on release buttonand
pullingthe bottom portionof
the wand down (Diagram 1).
2. Pushendof wand into
desiredcleaning nozzle.
-&
drivenbrushroll for clean-
-
attach. Dresswandonto
b. Barefloor Brush
- to be
used onall hard floor sur-
faces.To attach. ~ressonto
3. Pullcordfrom itsstorage
position and plug intoa
power outlet.
4. Pushpower switch to turn
unit on (Diagram
2).
NOTE: For cleaning drapes,
throw rugs, orother looseitems,
you
may needto reducethe sue-
tion topreventsuckingthe item
intothe cleaning tool.
1. Slidethe variable speed control
untildesiredsuction is achieved
(Diagram 1).
2. To reduce suctioneven further.
slide the suctioncontrol until
desiredsuctionisachieved
(Diagram2).

1. When the fullbagindicator
turns red, you must replace
your bag.
2. Removethe hoseby pressing
the 2 buttonsat the endof the
hoseandpullupward.
3. Pullup on the front cover
(Diagram 1).
4. Lift out bagchamber with bag
attached, by pullingon the bag
chamber handle (Diagram2).
5. Removefull bagfrom chamber
by pressing the releaselatch
(hinge) of the bag chamber
(Diagram
3).
1. Inserta new bag into bag
chamber by insertingthe THIS
SIDE
DOWN" portionof the
bag collar intothe bag guides
(Diagram 1). Secureinplace
by lockingthe bagcollar under
the release latch(hinge).
2. Returnbag andbagchamber
to the cleaner by sliding the
large tab of the bagchamber
intothe chamber guides
(Diagram
2).
3. Closefront cover. NOTE: If bag
isnotinstalledcorrectly - cover
willnotclose.
4. Beforere-connectinghose, be
sure the inletopeningof the
dustbagisproperlyalignedwith
the openingof hoseconnection
(Diagram
3).
5. Reconnecthose.

NOTE: The filtershouldbechanged 3 timesper year.
The Bag Chamber Filter islocated insidethe cleaner behindthe
paper bag.
1. Ooenfront cover.
2 Removebagchamber and paper bag.
3.
Pullupon the oldfilter and replacewith the new filter.
To turn power off, press power
switch again (Diagram
1).
Removeplug from the wall
power outlet.
To stow power cordin itsstor-
age placeautomatically, press
the cord rewindbutton
(Diagram
1).
When storingthe unit inaverti-
calor hortizontialposition,
accessories can
be docked on
board (Diagram
3 &4).
To store: retract telescopic wand
to storage position. Put the
turbo tool onto end of wand.
Line up storage hook of wand
or turbotool with slot on backor
bottom of cleaner. Pressthe
barefloor brushintoholder of
the wand (Diagram
3).

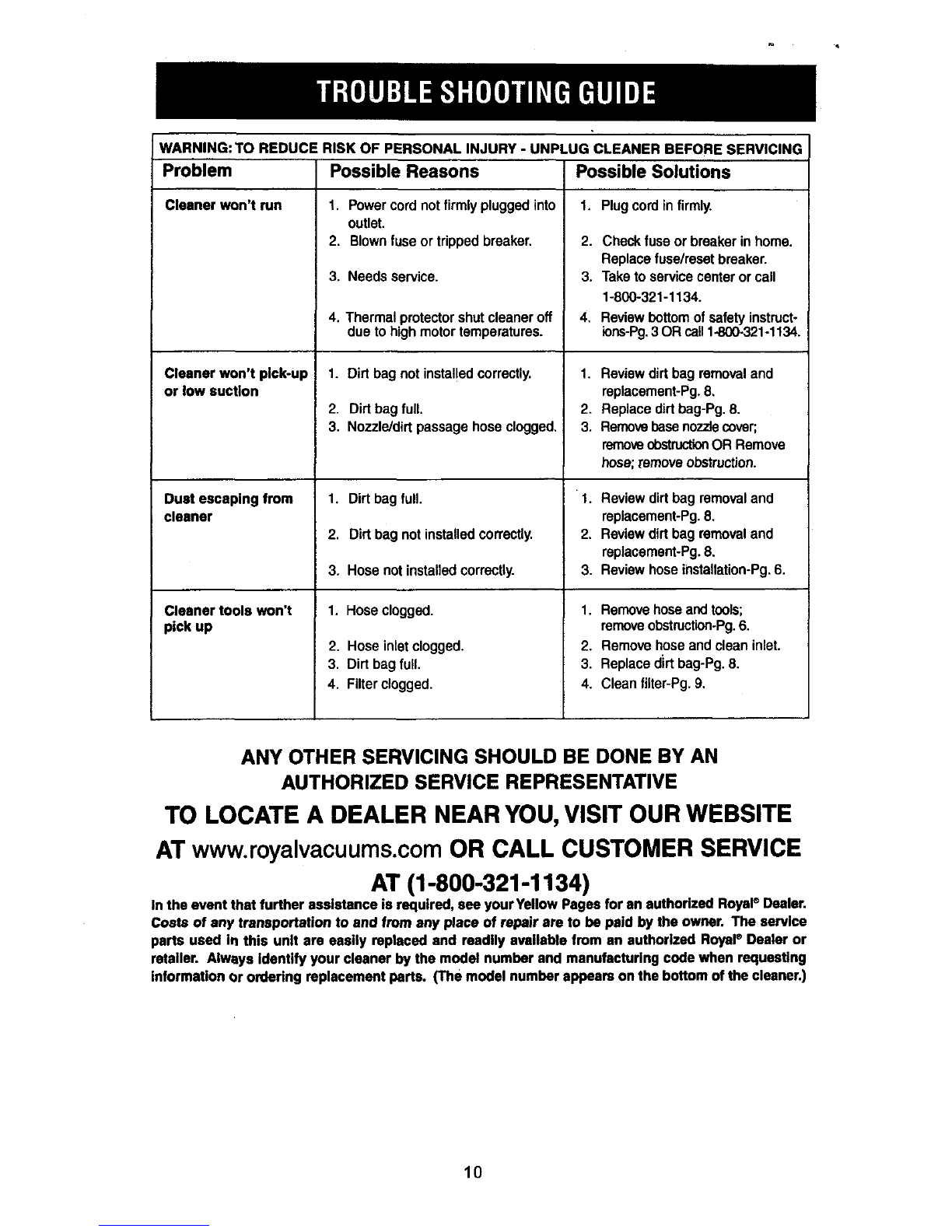

WARN1NG:TO REDUCE I
Problem
Cleaner won't pick-up
or lowsuction
Cleanertools won't
pick up
3ISK OF PERSONAL INJURY
- UNF
Possible Reasons
1. Power cord not firmly plugged into
outlet.
2. Blown fuse or tripped breaker.
3. Needsservice.
4. Thermal protector shut cleaneroff
due to highmotortemperatures.
1. Dirtbagnot installedcorrectly.
2. Dirtbagfull.
3. Nouleldirtpassagehoseclogged.
-
1. Dirtbagfull.
2. Dirtbagnotinstalledcorrectly.
3. Hose not installedcorrectly.
1. Hoseclogged.
2. Hose inletclogged.
3. Dirtbagfull.
4. Filterclogged.
JG CLEANER BEFORESERVICING
Possible Solutions
1. Plugcord infirmly.
2. Checkfuse or breakerinhome.
Replacefuselresetbreaker.
3. Take to service center or call
1-800-321-1134.
4. Review bottomof safety instruct-
ions-Pg.3OR call 1-800-321
-1 134.
1. Review dirt bag removal and
replacement-Pg.8.
2. Replace dirt bag-Pg.8.
3. Removebase no& cover;
remove
obstruction OR Remove
hose; removeobstruction.
1. Reviewdirt bag removaland
replacement-Pg.
8.
2. Review dirt bagremovaland
replacement-Pg.8.
3. Review hose installation-Pg. 6.
1. Remove hoseand tools;
removeobstruction-Pg.
6.
2. Removehose andclean inlet.
3. Replacedirt bag-Pg. 8.
4. Cleanfilter-Pg.9.
ANY OTHER SERVICING SHOULD BE DONE BY AN
AUTHORIZED SERVICE REPRESENTATIVE
TO LOCATE A DEALER NEARYOU, VISIT OUR WEBSITE
AT
www.royalvacuums.com OR CALL CUSTOMER SERVICE
AT
(1 -800-321-1134)
Inthe eventthat further assistanceisrequired,seeyourYellow Pagesfor anauthorizedRoyaPDealer.
Costsof any transportation toand
from any place of repairare to be paidby the owner. The service
parts used inthis unit are easily replacedand readily availablefrom an authorized RoyalBDealeror
retailer. Always Identify your cleaner
by the model numberand manufacturingcodewhen requesting
informationorordering replacement parts. (The modelnumberappearsonthe bottom of the cleaner.)
