RPB Z-LINK+ ADF User manual

EMPLOYERS: read this manual and the Z-LINK®instruction manual and
carry out the employer responsibilities.
PRODUCT USERS: read this manual and the Z-LINK®instruction manual
and follow the product user safety instructions..
Manuals are regularly updated. Make sure this manual is available to all
users for reference.
CURRENT VERSION OF MANUAL AND OTHER LANGUAGES:
rpbsafety.com/respirators/z-link-plus
The Respiratory Protection Brand®
INSTRUCTION MANUAL
Z87W
WELDING E Y E PROTECTION
EN379:2003
WELDING E Y E PROTECTION
2797
AS/NZS 1338.1:2012
BMP# 714305
WELDING E Y E PROTECTION
BSI Certified Product
ENGLISH 2
NEDERLANDS 21
EN
NL

2
+®
EXPLANATION OF SIGNAL WORDS AND SYMBOLS 2
INTRODUCTION 2
IMPORTANT SAFETY INFORMATION
PROTECTION PROVIDED AND LIMITATIONS 4
EMPLOYER RESPONSIBILITIES 5
PRODUCT USER SAFETY INSTRUCTIONS 6
SETUP AND CARE - Z-LINK+®(WELDING) CONFIGURATION 8
STORAGE 18

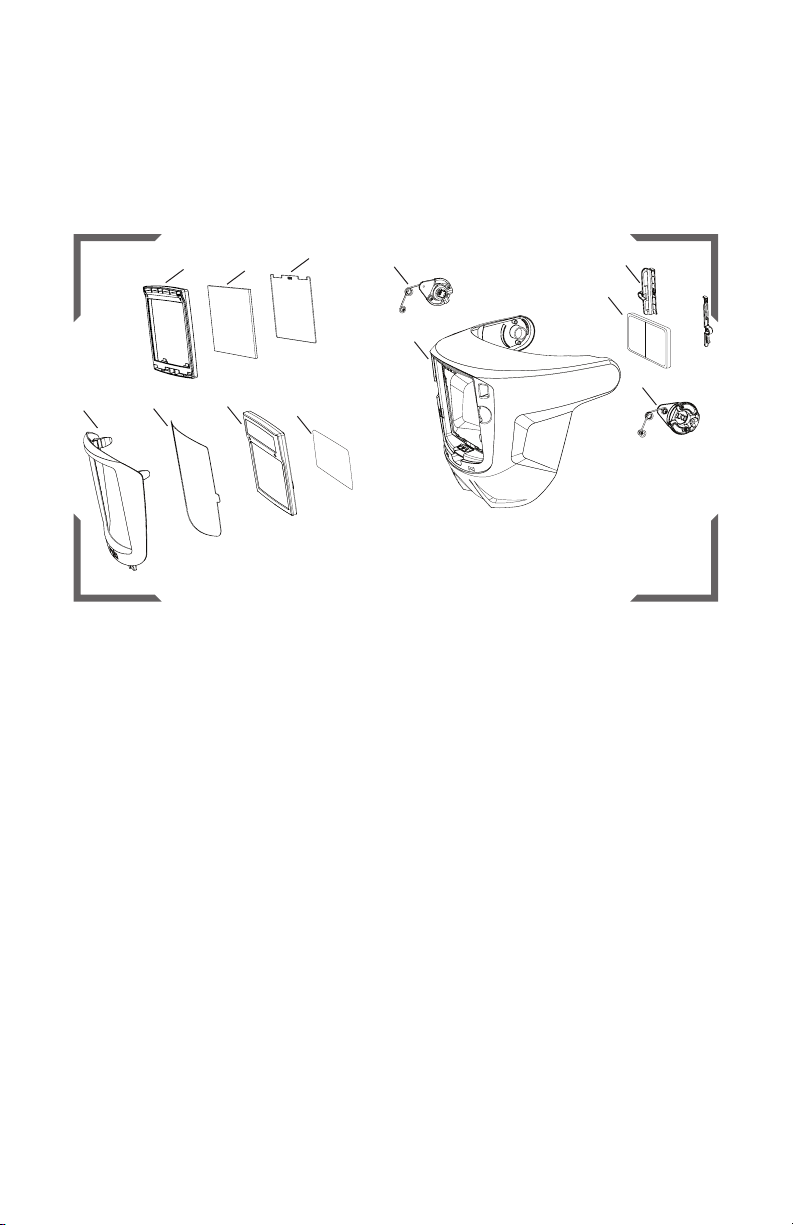

PARTS AND ACCESSORIES 19
WARRANTY AND LIABILITY STATEMENT 20
NEDERLANDS 21
CONTENTS
INTRODUCTION
The Z-LINK+® is an optional welding visor attachment. It allows the user to quickly switch
between the standard configuration and the welding configuration.
This product must be inspected and maintained in accordance with this instruction manual at
all times.
See PROTECTION PROVIDED AND LIMITATIONS (page 4) for details.
RPB®Safety LLC is an ISO9001 certified company.
The following signal word and safety symbols are used in this manual and product labeling:
WARNING indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Read the Instruction Manual.
Additional copies of RPB®manuals can be found at
www.rpbsafety.com.
EXPLANATION OF SIGNAL WORDS AND SYMBOLS
WARNING
CERTIFIED BY:
BSI Group The Netherlands B.V., Say Building, John M. Keynesplein 9, 1066 EP, Amsterdam, NL

3
RPB®SAFETY - GLOBAL HEADQUARTERS
2807 Samoset Rd, Royal Oak, MI 48073, USA.
T: 1-866-494-4599 F: 1-866-494-4509 E: [e-mail] rpbsafety.com
RPB®SAFETY - APAC
1 Ivan Jamieson Place, Christchurch Airport, Christchurch 8053 New Zealand.
T: [phone] F: [phone] E: [e-mail] rpbsafety.com
RPB®SAFETY - EMEA
T: [phone] E: [e-mail] rpbsafety.com
Copyright ©2019 RPB Safety, LLC. All rights reserved. All materials contained on this
website are protected by United States copyright law and may not be reproduced, distributed,
transmitted, displayed, published or broadcast without the prior written permission of RPB
Safety, LLC. You may not alter or remove any trademark, copyright or other notice from
copies of the content.
All trademarks, service marks, and logos used in this publication, both registered and
unregistered, are the trademarks, service marks, or logos of their respective owners. The
green and gray color combination is a registered trademark of RPB Safety, LLC. All rights in
the RPB Intellectual Property contained in this publication, including copyright, trademarks,
service marks, trade secret, and patent rights are reserved. RPB Intellectual Property means
any patent, patented articles, patent applications, designs, industrial designs, copyrights,
software, source code, database rights, moral rights, inventions, techniques, technical data,
trade secrets, know-how, brands, trademarks, trade names, slogans, logos, and any other
common law and proprietary rights, whether registered or unregistered anywhere in the
world, that are owned by, developed in whole or in part by, or licensed by RPB Safety, LLC.
For technical assistance contact our Customer Service Department at 1-866-494-4599 or
email: [e-mail]
Form #: 7.20.547
Rev: 1

4
+®
PROTECTION PROVIDED AND LIMITATIONS
The Z-LINK+®Welding Visor with Impact Lens and Auto-Darkening Welding Protection
Filter (ADF) or Fixed Shade Lens System meets ANSI/ISEA Z87.1 requirements and is
designed to protect the operator’s face and head against sparks and hazardous ultraviolet
and infrared rays emitted during the welding process. See “Auto-Darkening Welding
Protection Filter” (page 31) for information about ADF capabilities and use. Use an
approved RPB®welding cape for adequate protection from sparks, debris, and light flashes.
The Z-LINK®Visor with Safety Lens meets ANSI/ISEA Z87.1 requirements. Never use the
Z-LINK+® without the Z-LINK®Safety Lens in place, as this is part of the respiratory seal.
The Z-LINK+®is not designed or tested to provide protection against molten metals or
corrosive liquids.
Note: the Z-LINK+®does not protect against the potential transfer of impact to glasses worn
underneath the Visor. Z-LINK+®visors do not provide complete eye and face protection
against severe impact and penetration and are not a substitute for good safety practices
and engineering controls.
Improper selection, attachment, use, or maintenance of this product
can result in injury. This product is intended for occupational use in
accordance with applicable standards or regulations for your location, industry, and activity (see
Employer Responsibilities, page 5). Familiarity with standards and regulations related to the use
of this protective equipment is recommended, even if they do not directly apply to you. If self-
employed or if used in a non-occupational setting, refer to Employer Responsibilities and Product
User Safety Instructions. Go to rpbsafety.com/important-safety-information for helpful links to
OSHA and other content.
Employers: Read this manual and the Z-LINK®Instruction Manual and carry out the Employer
Responsibilities (page 5).
Product users: Read this manual and the Z-LINK®Instruction Manual and follow the Product User
Safety Instructions (page 6).
Check website for updates. Product manuals are regularly updated.
Visit www.rpbsafety.com/resources for the most recent version of this manual before using the
product.
IMPORTANT SAFETY INFORMATION
WARNING

5
EMPLOYER RESPONSIBILITIES
Your specific responsibilities may vary by location and industry, but in general RPB®expects that
employers will:
Follow all applicable standards and regulations for your location, industry, and activity.
Depending on your location and industry, a number of standards and regulations may apply
to your selection and use of respirators and other personal protective equipment. These may
include such things as federal (e.g., OSHA, MSHA, Canadian Occupational Health and Safety),
local (e.g., state, provincial), or military standards and regulations and consensus standards
such as ANSI and CSA. There are also requirements specific to particular contaminants, e.g.
silica (see rpbsafety.com/important-safety-information/ for more information), asbestos,
organic pathogens, etc. Know which requirements apply to your location and industry.
Have appropriate safety programs in place.
Have and follow:
A workplace safety program.
In accordance with the above,
Perform a hazard analysis and select appropriate equipment for each activity. A
hazard analysis should be performed by a qualified person. Controls should be in
place as appropriate and a qualified person should determine what kind of respiratory,
face and eye, head, and hearing protection is appropriate for the intended activities
and environments of use. (For example, select a respirator appropriate to the specific
airborne hazards, with consideration of workplace and user factors and with an Assigned
Protection Factor (APF) that meets or exceeds the required level for employee protection,
select welding face and eye protection appropriate to the type of welding to be done, etc.)
As applicable, check your workplace safety program, respiratory protection program, and
standards and regulations for your activity or industry for related protection requirements,
and see this manual (Protection Provided and Limitations, page 4) and the RPB®PAPR,
or the flow control device Instruction Manual for product specifications.
Be sure employees are medically qualified to use a respirator.
Have a qualified physician or other licensed health care professional (PLHCP) perform
medical evaluations using a medical questionnaire or an initial medical examination per
OSHA 29 CFR 1910.134.
Train employees in the Z-LINK+®’s use, maintenance, and limitations.
Appoint a qualified individual who is knowledgable about the RPB®Z-LINK+® per ANSI/
ASSE Z88.2 guidelines to provide training.
Train each Z-LINK+®user in the product’s use, application, inspection, maintenance,
storage, fitting, and limitations in accordance with the content of this Instruction Manual
and standard or regulatory requirements. Ensure that each intended user reads this
manual and that of the Z-LINK®Respirator.

6
+®
Ensure that equipment is properly set up, used, and maintained.
Make sure that equipment is properly set up, inspected, fitted, used, and maintained,
including selection of the appropriate welding filter shade adjustments, for the application.
If you have any questions, contact RPB®.
Call Customer Service Department at:
Tel: [phone]
Email: [e-mail]
Web: rpbsafety.com
PRODUCT USER SAFETY INSTRUCTIONS
BEFORE INITIAL USE - BE TRAINED AND MEDICALLY QUALIFIED
Do not use this accessory until you have read this manual and the Z-LINK®Respirator Instruction
Manual (additional copies available at www.rpbsafety.com/resources/) and have been trained
in the respirator’s use, maintenance, and limitations by a qualified individual (appointed by your
employer) who is knowledgable about the RPB®Z-LINK®Respirator.
Allergens: No known common allergens are used in this product.
Some materials could cause an allergic reaction in susceptible individuals. If you have a known
allergy or develop irritation, inform your employer. Irritation may occur from lack of cleaning.
Following all cleaning and care instructions provided in the instruction manuals for this and any
other RPB®products you are using.
MAKE SURE THE SYSTEM IS READY FOR USE
Use only authentic RPB®brand parts and components that are part of the approved respirator
assembly. Using incomplete or inappropriate equipment, including the use of counterfeit or
non-RPB®parts, can result in inadequate protection and will void the approval of the entire
respirator. Do not modify or alter any part of this product.
Inspect all components daily for signs of damage or wear and tear that may reduce the level
of protection originally provided. Remove any damaged component or product, including any
helmet or visor that has been subject to impact, from service until repaired or replaced. Scratched
or damaged safety lenses or other components should be replaced with genuine RPB®brand
replacement parts. When safety and impact lenses are replaced, make sure to remove any
additional protective film from both sides of the lens. If the film is left in place, it could affect the
optical clarity of the lens and cause eye strain.
Make sure that the helmet is correctly assembled in the configuration that suits your application.
Never use the respirator without all lenses in place. This includes the Z-LINK+®Impact Lens, the
ADF or fixed shade lens system, and the rear ADF Lens. An incomplete or improperly installed
lens system could provide inadequate impact and vision protection. See Setup and Use -
Z-LINK+®Welding Configuration (page 26).
EMPLOYER RESPONSIBILITIES CONTINUED

7
VERIFY THAT YOU HAVE THE APPROPRIATE EQUIPMENT FOR YOUR ACTIVITY
Verify that the Z-LINK+®provides appropriate protection for your activity. As applicable, check
your workplace safety program, respiratory protection program, and standards and regulations for
your activity or industry. (See PROTECTION PROVIDED AND LIMITATIONS, page 4.)
DO NOT ENTER THE WORK AREA if any of the following conditions exist:
The temperature is outside the range of 14°F to 140°F (-10°C to +60°C).
A flammable or explosive atmosphere is present when used with systems including
electrical parts that are not intrinsically safe, such as the ADF lens.
LEAVE THE WORK AREA IMMEDIATELY IF:
Any product component becomes damaged.
Vision is impaired.
You have any other reason to suspect that the Z-LINK+®is not providing adequate protection.
PRODUCT CARE
Never place the visor on hot surfaces. Do not apply paints, solvents, adhesives or self-adhesive
labels except as instructed by RPB®. This product may be adversely affected by certain
chemicals.
See the “Setup and Care” section for more specific cleaning instructions.
INSTRUCTIONS FOR SPECIFIC USES OR ENVIRONMENTS
Welding
See Setup and Use - Z-LINK+®Welding Configuration (page 8) and ADF Operation (page 13)
for important safety-related use and care information. Check the prescribed shade level for
your welding application and adjust your auto-darkening filter accordingly (see table with
recommended shade levels, page 16). Never place the auto-darkening welding filter (ADF) on hot
surfaces. Do not expose the ADF to liquids and protect it from dirt. See ADF storage, maintenance,
and cleaning information (page 14). Make sure the helmet completely blocks any accidental light.
Make sure light can only enter the front of the helmet through the viewing area of the auto-
darkening welding filter.
Welding and Grinding
For welding and grinding applications that produce sparks, be sure to use the FR (Fire Retardant)
specific model of the RPB®PAPR with the FR belt and spark arrestor in place, see the RPB®
PAPR Instruction Manual. Use a RPB®Zytec®face seal or shoulder cape for protection from
sparks, debris, and light flashes. Make sure all skin, such as the neck, is covered to prevent UV
radiation and burns.
Do not use the Z-LINK+®for welding without the Auto Darkening
Protection Filter or Fixed Shade Lens System in place. Do not weld with only the
grinding lens. Improper use may cause blindness or other permanent eye damage.
WARNING

8
+®
SETUP AND CARE - Z-LINK+®WELDING CONFIGURATION
To remove the ADF, push down on the tab at
the bottom of the ADF to release it and pull
the ADF out.
Push the tabs inside the weld visor apart to
release the ADF Retainer.
Remove the Impact Lens by squeezing
together the sides of the Impact Lens. If just
replacing the Impact Lens, then place the
new Impact Lens in and replace the green
ADF Retainer.
Remove the green ADF Retainer.
IMPACT LENS, ADF LENS AND REAR LENS REPLACEMENT
FIGURE 1.1 FIGURE 1.2
FIGURE 1.3 FIGURE 1.4

9

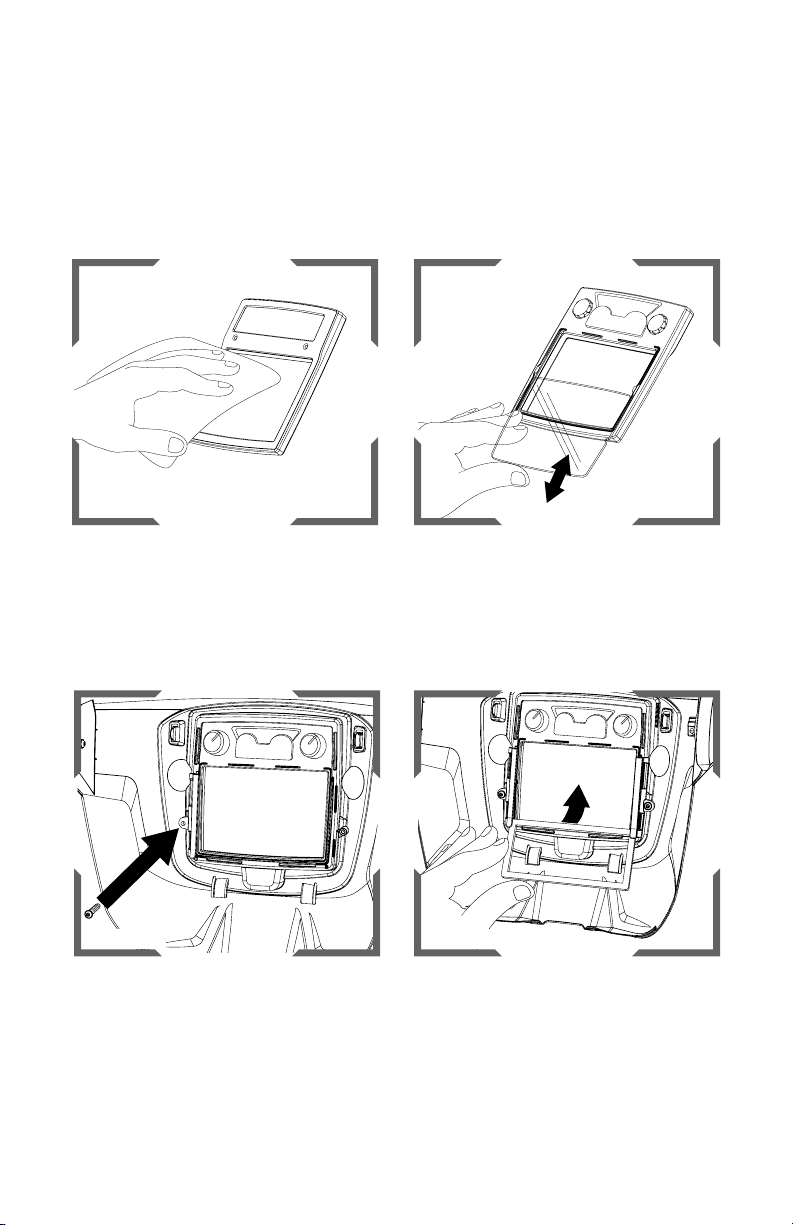

Once removed, the ADF can be cleaned
with a soft tissue or a cloth soaked in mild
detergent (or alcohol).
To replace the Rear ADF Lens, slide the lens
out and replace it with a new one.
MAGNIFYING LENS
To install the magnifying lens for welding,
slide the lens up into the brackets at an
angle until it is securely in the brackets.
With the screws supplied, screw the left
lens bracket into place by tightening the
screws firmly without over tightening. Then
screw in the right bracket.
FIGURE 2.1 FIGURE 2.2
FIGURE 3.2FIGURE 3.1
Note: Protection lenses, both internal and external, must be used in conjunction with the
auto-darkening filter in order to protect it against permanent damage.

10
+®
The Welding Visor can be rotated up
independently of the Visor or together with
the Visor.
To install the Z-LINK®Welding Visor,
remove the pivot pin caps on the Z-LINK®.
Line up the Welding Visor connection
sockets with the Pivot Pins on the Z-LINK®
and insert them into the Z-LINK®until they
snap in securely. This can be done while
wearing the Z-LINK®.
Insert the caps into the holding sockets on
the Head Harness Bracket so they don’t get
lost while using the Welding Visor.
INSTALL/REMOVE WELDING VISOR
FIGURE 4.1 FIGURE 4.2
FIGURE 4.3
FIGURE 4.4
SETUP AND CARE - Z-LINK+®WELDING CONFIGURATION
CONTINUED

11
To remove the Welding Visor from the
Z-L INK®, pull the sides of the Welding Visor
out until the connection sockets snap out of
the Pivot Pins in the Z-LINK®. This can also
be done while wearing the Z-LINK®.
If the Welding Visor is not going to be used
again for a while, the socket caps can be
snapped back into the Pivot Pins to keep the
area free of debris.
FIGURE 4.5 FIGURE 4.6
To install a fixed shade lens into the frame,
slide the lens into the long tab at an angle
from the back. Then rotate the lens down
until it securely clips into the frame. To
remove the lens, un-clip the bottom edge
and slide out.
FIGURE 5.1
INSTALL/REPLACE FIXED SHADE WELDING LENS
The fixed shade lens and frame can be used in place of the ADF for welding and other
applications requiring light filtering. Choose an appropriate shade lens depending on the
application. Install the lens frame with a lens installed into the Z-LINK+®the same way as
installing an ADF. Do not use the Z-LINK+®without and ADF or a fixed shade lens in place.
FIGURE 5.2
The inner protective lens can be placed into
the frame after the fixed shade lens to help
protect the inner surface when the weld
visor is lifted up to grind welds, etc.

12
+®
The flip-up mechanisms and springs can
be replaced if needed. Using a small screw
driver, remove the three screws that hold in
the mechanism being careful to not strip the
plastic they are threaded into.
Carefully align the replacement spring and
the flip-up mechanism onto the pegs in
the Welding Visor. Insert and screw in the
3 replacement screws to attach the spring
and mechanism without over tightening.
REPLACING THE WELDING VISOR FLIP-UP MECHANISM
Position the spring onto the new flip up
mechanism and secure it with the screw
provided.
When welding, be sure to install a RPB®
Zytec face seal or shoulder cape for
adequate protection from sparks, debris,
and light flashes. If using a face seal, make
sure all skin, such as the neck, is covered to
prevent UV radiation and burns. Follow the
cape installation instructions on page 23.
WELDING SHOULDER CAPE
FIGURE 6.1 FIGURE 6.2
FIGURE 6.3 FIGURE 7.1
SETUP AND CARE - Z-LINK+®WELDING CONFIGURATION
CONTINUED

13
AUTO-DARKENING WELDING PROTECTION FILTER
OPERATION
RPB®auto-darkening welding filters
operate on the basis of a liquid crystal
light shutter that protects the welder’s
eyes against intense visible light emitted
during the welding process. In combination
with the permanent passive IR/UV filter, it
protects against hazardous infrared (IR) and
ultraviolet (UV) light. The protection against
harmful radiation is present regardless of
the shade level or potential malfunction of
the filter, beyond the darkest shade number
marked on each specific model.
RPB®auto-darkening welding filters are
manufactured according to ANSI/ISEA
Z87.1, EN379 requirements and are CE
certified. They are not intended to be used
as a protection against impacts, flying
particles, molten metals, corrosive liquids
or hazardous gases.
Replace potentially malfunctioned or
damaged auto-darkening welding filters
(check that the auto-darkening filter turns
dark if you strike the welding arc).
USAGE
An auto-darkening welding filter built into
a Respirator is considered to be Personal
Protection Equipment (PPE) protecting the
eyes, face, ears and neck against direct
and indirect hazardous light of the welding
arc. There should be no tension on the
ADF filter caused by the mounting frame or
mounting system, as it could cause severe
damage to the filter. Make sure that solar
cells and photo-sensors are not covered by
any part of the helmet, as this could prevent
the proper operation of the filter. If any of
these conditions occur, the filter may not be
suitable for use.
FIELD OF APPLICATION
RPB®Auto darkening filters are suitable
for all types of electro-welding: covered
electrodes, MIG/MAG, TIG/WIG, plasma
welding, and cutting, except for gas welding
and laser welding.
FUNCTIONS
RPB®filters are supplied ready for use.
Check the degree of required protection for
specific welding procedure and select the
recommended shade, light sensitivity as
well as opening time delay.
SHADE ADJUSTMENT
Our model enables shade adjustment range
from 9 to 13. It can be adjusted by the knob
»Shade« which is located on the filter.
ADJUSTMENT OF SENSITIVITY
Most welding applications can be
performed with welding light sensitivity
set to maximum. The maximum sensitivity
level is appropriate for low welding current
work, TIG, or special applications. The
welding light sensitivity has to be reduced
only in some specific surrounding lighting
conditions in order to avoid unwanted
triggering. As a simple rule for optimum
performance, it is recommended to set
sensitivity to the maximum at the beginning
and then gradually reduce it, until the filter
reacts only to the welding light flashes
and without annoying spurious triggering
due to ambient light conditions (direct
sun, intensive artificial light, neighboring
welder’s arcs etc.)
OPENING TIME DELAY ADJUSTMENT:
The opening time delay can be adjusted
from 0.15 to 1.0 seconds. It is recommended
to use a shorter delay with spot welding

14
+®
applications and a longer delay with
applications using higher currents and
longer welding intervals. Longer delay can
also be used for low current TIG welding
in order to prevent the filter opening when
the light path to the sensors is temporarily
obstructed by a hand, torch, etc.
STORAGE
When not in use the Auto-Darkening Filter
should be stored in a dry place within the
temperature range of -4°F (-20°C) to +157°F
70°C). Prolonged exposure to temperatures
above 113°F (45°C) may decrease the
battery lifetime of the auto-darkening
welding filter.
It is recommended to keep the solar cells
of the auto-darkening welding filter in the
dark or not exposed to light during storage
in order to maintain power down mode. This
can be achieved by simply placing the filter
face down on a storage shelf.
MAINTENANCE AND CLEANING
It is always necessary to keep the
solar cells and the light sensors of the
auto-darkening welding filter free of dust
and spatters: cleaning can be done with
a soft tissue or a cloth soaked in mild
detergent (or alcohol).
Never use aggressive solvents such as
acetone. RPB®filters should always be
protected from both sides by protection
screens, which should also be only cleaned
with a soft tissue or cloth. If protection
screens are in any way damaged, they must
be immediately replaced.
PRODUCT CARE
Never place the ADF Lens or helmet on
hot surfaces. Do not apply paints, solvents,
adhesives or self-adhesive labels except as
instructed by RPB®. This product may be
adversely affected by certain chemicals. Do
not expose the ADF to liquids and protect it
from dirt. Make sure the helmet completely
blocks any accidental light. Make sure light
can only enter the front of the helmet through
the viewing area of the auto-darkening
welding filter.
See the “Setup and Care” section for more
specific cleaning instructions.
WARRANTY
The warranty period of RPB®Z-LINK®
ADF is three years. Failure to follow these
instructions may invalidate the warranty.
RPB®does not accept responsibility for any
issues, which may arise from applications
other than welding.
MARKINGS
AUTO-DARKENING WELDING PROTECTION FILTER
CONTINUED
The marking on the ADF indicates:
3 / 9-13 RPB 1 / 1 / 1 / 2 / EN379
Light Shade
Dark Shade Range
Manufacturer
Optical Class
Diffusion of light class
Homogeneity
Angular dependence
Number of the Standard

15
SETTINGS
Shade level: The shade level can be
selected between 9 and 13 by rotating the
shade level knob.
Sensitivity: With the sensitivity knob the
light sensitivity is adjusted according to
the welding arc and the ambient light.
The middle position corresponds to the
recommended sensitivity setting in a
standard situation.
Opening delay. The opening delay switch,
behind the battery cover, allows the
opening delay to be set from dark to light.
It is adjustable within a range of 0.15 to 1.0
second. The middle position corresponds
to the recommended delay in a standard
situation.
CHANGE THE BATTERIES
The automatic welding filter has replaceable
lithium button cell batteries, type CR2032.
The batteries must be replaced when the LED
on the cartridge f lashes.
1. Carefully remove battery cover.
2. Remove batteries and dispose of in ac-
cordance with the national regulations
for special waste.
3. Use type CR2032 batteries as depicted.
4. Carefully remount battery cover.
If the automatic welding filter does not darken
when the welding arc is ignited, please
check battery polarity. To check whether the
batteries still have sufficient power, hold the
shade cartridge against a bright lamp. If the
LED flashes, the batteries are empty and
must be replaced immediately. If the shade
cartridge does not operate correctly in spite
of correct battery replacement, it must be
declared unusable and must be replaced.
SLEEP MODE
The automatic welding filter has an automatic
switch-off function, which increases the
service life. If no light falls on the solar
cells for a period of approx. 15 minutes,
the cartridge automatically switches off.
To reactivate the automatic welding filter,
the solar cells must be briefly exposed to
daylight. If the cartridge cannot be reactivated
or does not darken when the welding arc is
ignited, it must be regarded as non-functional
and replaced.
EXPECTED LIFETIME
The automatic welding filter has no expiration
date. The product can be used as long as
no visible or invisible damage or functional
problems occur.
TROUBLESHOOTING
Shade automatic welding filter does not
darken:
Adjust sensitivity
Clean sensors and clean or change the
impact lens of the helmet shell
Check flow of light to the sensors
Replace batteries
ADF flickers:
Adjust sensitivity
Replace batteries
Poor vision:
Clean or change the impact lens of the
helmet shell and automatic welding filter
Adapt shade level to welding procedure
Increase amount of ambient light

16
+®
RECOMMENDED SHADE LEVELS FOR VARIOUS WELDING
APPLICATIONS FIGURE 8.1
DESCRIPTION OF RPB®FILTER FEATURES FIGURE 8.2
Welding Process 1.5 6 10 15 30 40 60 70 100 125 150 175 200 225 250 300 350 400 450 500 600
MMA 8 9 10 11 12 13 14*
MAG 8 9 10 11 12 13
TIG 8 9 10 11 12 13
MIG heavy
metals 9 10 11 12 13 14*
MIG light metals
Stainless, AIum. 10 11 12 13 14*
Plasma Cutting 9 10 11 12 13
Micro Plasma
Welding 4 5 6 7 8 9 10 11 12
Current Amperes
1. Solar Cells
2. Photo-sensors (Photo diodes)
3. Filter housing
IR - Detection
1.
2.
2.
3.
SETTING SHADE LEVEL
functions and settings
Choose Shade Number (SL 9-13)
Choose Sensitivity
SETTING SENSITIVITY
12
Fast
CR2032CR2032
Delay
Twi light
Sensitivity
9/3
Shade
3/9-13 RPB 1/1/1/2 EN379
AS/NZS 1338.1
ANSI Z87 RPB W3/W9-13
compl. with CSA Z94.3
4.
5.
6.
7.
4. Liquid crystal shutter viewing area
5. Shade adjustment
6. Sensitivity adjustment
7. Opening time delay adjustment
According to the perception of the welder it is possible to use the next higher or lower shade-
number.
*Shade 14 not achieved with this ADF.

17
TECHNICAL DATA FIGURE 8.3
Model RPB®ADF
Viewing Area 2.66 x 3.89 in.
(67.6 x 98.8 mm)
ADF overall dimensions 4.49 x 4.57 x 0.47 in.
(114 x 116.2 x 11.9 mm)
Weight 4.59oz (130g)
Open state shade 3 (Bright Mode)
Closed state shade 9-13 (Dark Mode)
Switching time from light to dark 0.1 ms (23°C / 73°F)
0.1 ms (55°C / 131°F)
Switching time from dark to light 0.15s / 1.0s
UV / IR protection Maximum protection in light and
dark modes
Operating temperature 23 °F – 131 °F (-5 °C – 55 °C)
Storage temperature -4°F – 157°F (-20°C – 70°C)
Power Supply Solar cells, 2 pcs. replaceable 3V LI
batteries (CR2032)
Classification in accordance with
EN379
Optical class = 1
Scattered light = 1
Homogeneity = 1
Viewing angle dependence = 2
Standard EN379:2003+A1:2009
Certifications CE, ANSI, compliance with CSA

18
+®
After use, store the visor by leaving it attached to the Z-LINK®in a clean, dry place, away
from the work area. If the Z-LINK+®isn’t going to be used for a longer period of time, clean the
unit with a damp cloth and mild detergent or a cleaning wipe. Be sure to not get the ADF wet.
Be sure the visor is clean, both inside and out. Store the Z-LINK+®in a container or a bag in a
cool dry place between -10°C to +45°C (14°F to 113°F) <90%rh.
STORAGE
CHANGE THE BATTERIES
The automatic welding filter has replaceable
lithium button cell batteries, type CR2032.
The batteries must be replaced when the LED
on the cartridge flashes.
1. Carefully remove battery cover.
2. Remove batteries and dispose of in ac-
cordance with the national regulations
for special waste.
3. Use type CR2032 batteries as depicted.
4. Carefully remount battery cover.
If the automatic welding filter does not darken
when the welding arc is ignited, please
check battery polarity. To check whether the
batteries still have sufficient power, hold the
shade cartridge against a bright lamp. If the
LED flashes, the batteries are empty and
must be replaced immediately. If the shade
cartridge does not operate correctly in spite
of correct battery replacement, it must be
declared unusable and must be replaced.
1
BATTERIES
FIGURE 9.1

19
Z-LINK+®PARTS AND ACCESSORIES
Item Number Description Part Number
1 Z-LINK+®Welding Visor 16-671
Z-LINK+®Welding Visor w/ADF Lens 16-670
2 Z-LINK+®Welding Lens Retainer 16-672
3 Z-LINK+® Welding Impact Lens 16-872
4 Z-LINK+®ADF Lens 16-871
5 Z-LINK+®Rear ADF Lens 16-873
6 Z-LINK+®Welding Visor Attachment Clip and Springs 16-673
7 Z-LINK+®Magnifying Lens Holder 16-875
8 Magnifying Lens 1.0 (107 x 51) 13-072-1
Magnifying Lens 1.5 (107 x 51) 13-072-1.5
Magnifying Lens 2.0 (107 x 51) 13-072-2
Magnifying Lens 2.5 (107 x 51) 13-072-2.5
9 Fixed Shade Lens Frame 16-877
10 Fixed Shade 5 Welding Lens 16-877-5
Fixed Shade 8 Welding Lens 16-877-8
Fixed Shade 9 Welding Lens 16-877-9
Fixed Shade 10 Welding Lens 16-877-10
Fixed Shade 11 Welding Lens 16-877-11
Fixed Shade 12 Welding Lens 16-877-12
11 Fixed Shade Rear Protective Lens 16-878
2345
67
1
FIGURE 10.1
8
6
910 11

20
+®
LIMITED WARRANTY
RPB®warrants that its Products will be free from defects in materials and workmanship for one (1)
year, subject to the terms of this limited warranty. The Products are sold only for commercial use,
and no consumer warranties apply to the Products. This limited warranty is for the benefit of the
original Product purchaser, and cannot be transferred or assigned. This is the sole and exclusive
warranty provided by RPB®, and ALL CONDITIONS AND IMPLIED WARRANTIES (INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE)
ARE EXCLUDED AND DISCLAIMED FROM WARRANTY COVERAGE. RPB’s®limited warranty
coverage does not apply to damage resulting from accident, improper use or misuse of the
Products, wear and tear resulting from the normal use of the Products, or the failure to properly
maintain the Products.
RPB’s®limited warranty coverage runs from the original date of purchase of the Products, and
applies only to warranted defects which first manifest themselves and are reported to RPB®within
the warranty period. RPB®retains the right to determine to its reasonable satisfaction whether
any claimed defect is covered by this limited warranty.
If a warranted defect occurs, RPB®will repair or replace the defective Product (or a component
of the Product), in its sole discretion. This “repair or replacement” remedy is the sole and
exclusive remedy under this limited warranty, and under no circumstances shall RPB’s®liability
under this limited warranty exceed the original purchase price for the Products (or the applicable
component). RPB®has no responsibility for incidental or consequential damages, including loss
of use, maintenance and other costs, and ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES
ARE EXCLUDED AND DISCLAIMED from this limited warranty. Contact RPB®to obtain warranty
service. Proof of purchase must be provided to obtain warranty service. All costs of returning the
Products to RPB®for warranty service must be paid by the purchaser.
RPB®reserves the right to improve its Products through changes in design or materials without
being obligated to purchasers of previously manufactured Products.
LIABILITY
RPB®Safety cannot accept any liability of whatsoever nature arising directly or indirectly from
the use or misuse of RPB®Safety products, including purposes that the products are not designed
for. RPB®Safety is not liable for damage, loss or expense resulting from the failure to give advice
or information or the giving of incorrect advice or information, whether or not due to RPB®
Safety’s negligence or that of its employees, agents or subcontractors.
