RSA Lighting Galleria CGCVI User manual

Adjustable double gimbal 
lamp holder accepts up to 
two optical accessories
90º
90º
Standard lamp back cover for
AR111 models hides lamp
terminals and connections.
Catalog #
Type
Project
.75"
1.75"
Lamp Group 1
14.70"
Lamp Group 2
17.70"
Lamp Group 1
5.90"
Lamp Group 2
7.40"
CGSHI Cable Suspension x 2 
or CGCHI Stem Suspension x 2
Specify Length
Power Cord
Integral Electronic
Low Voltage 
Transformer

CGSVI Mounting
4.63" Round J-Box 
Coverplate
1" Depth

4.75" x 6.00"
Stem
CGCVI Front View
DESCRIPTION:
Avertically suspended, grid style
multi-lamp fixture. Can be suspend-
ed with cable or .375” diameter
pipe stem.
CONSTRUCTION:
All aluminum construction. Grid is
made of .75” square aluminum tub-
ing with .062” wall thickness.
Perforated metal transformer enclo-
surefor cooler operation.
LAMP ASSEMBLY:
Two lamps mounted in adjustable
double gimbal lamp holders. Dual
axis 90º x 90º locking adjustability.
ELECTRICAL:
Configured with integral electronic
low voltage transformers. Fused and
shortcircuit protection. For remote
transformers, see spec sheets for
model number CGSV or CGCV. For
Metal Halide see spec sheets for
models CGSVM or CGCVM.
Dimmable.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Label: UL, CSA and New York
Calendar
This sheet represents a standard
configuration. Custom configura-
tions are available with Galleria
fixtures. Consult RSA for details.
SPECIFY -
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
A
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Stem
Suspension
Primary Leads in 
Mesh Cable Shield
Junction Box
120 Volt Primary Leads 120 Volt Primary Leads
Socket
Wires 
from
Lamp
Optional 12V 
Electronic 
Transformer
(Low Voltage 
models only)
Junction Box
Stem Mounting Detail (CGCVI)

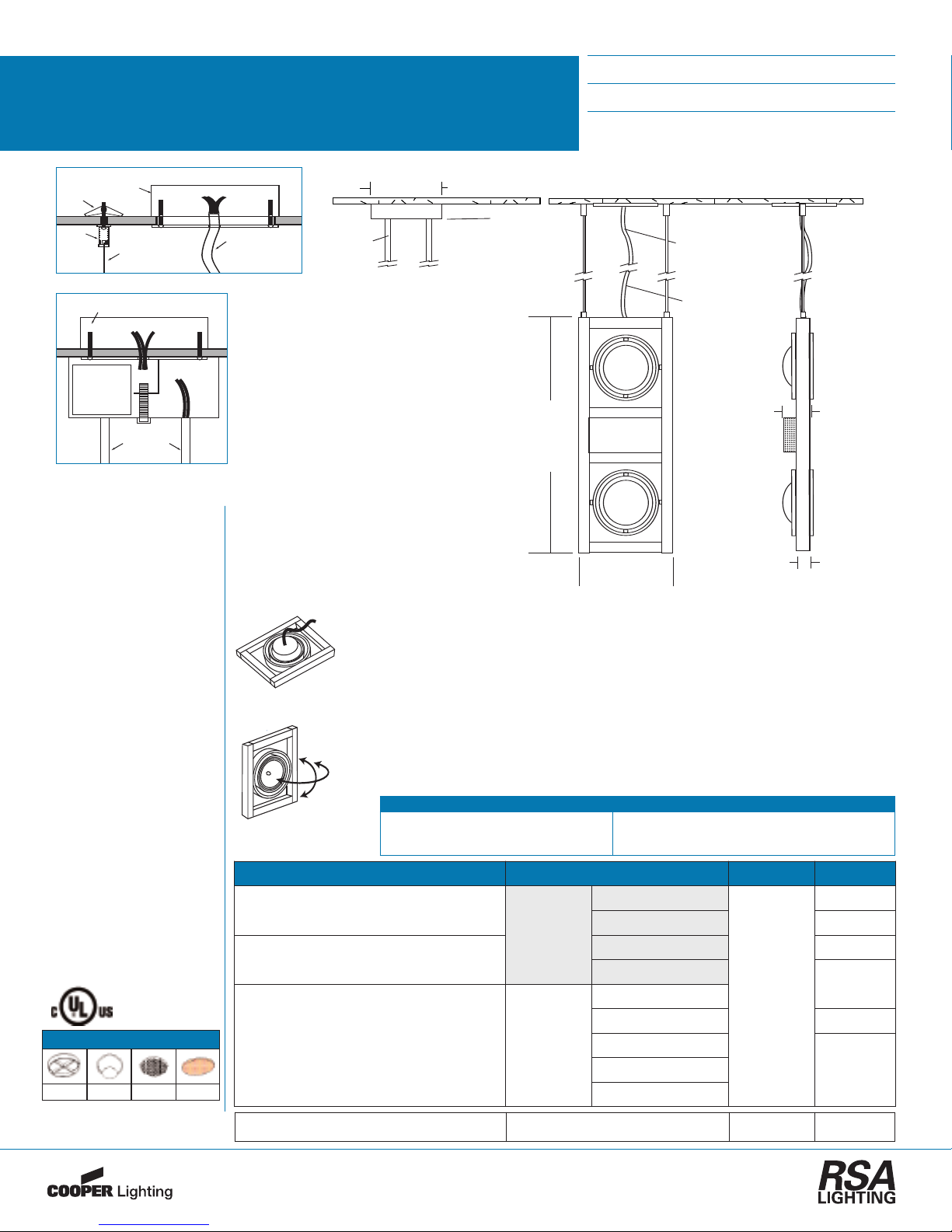

COMBOLIGHT®GALLERIA Series • CGSVI - CGCVI
TWO (2) Light Vertical Suspended
Grid Configuration “A” • Lamp Groups 1 & 2
Low Voltage w/ Integral Transformer
x 2
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device Primary Leads in 
Mesh Cable Shield
Junction Box
1 120 Volt Primary Leads
S
Cable Mounting Detail (CGSVII)
x 2
GRID CONFIGURATION “A” IMPORTANT: USING THIS SPEC SHEET
This sheet is for Grid Configuration “A”. To see
other grid configurations, consult other ComboLight
Galleria Series spec sheets.
This fixture is dimensioned according to lamp type. Please select
lamp from either Lamp Group 1 or 2 - and then refer to the appro-
priate dimensions of fixtureas shown above.
Cat. # / Description Lamp Type Grid Configuration Finish
CGSVI - Vertical Cable Suspension Lamp Group 1 11 - MR16 12V 50W A - Two Light BK - Black
12 - MR16 12V 75W WH - White
CGCVI - Vertical Stem Suspension 13 - AR70 12V 20W S - Silver
14 - AR70 12V 50W PC - Polished
Chrome
Lamp Group 2 21 - PAR36 12V 50W
22 - AR111 12V 35W PT - Custom
23 - AR111 12V 50W
24 - AR111 12V 75W
25 - AR111 12V 100W
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX [phone]
