RSA Lighting Machined Aluminum Fixtures User manual

MACHINED ALUMINUM FIXTURES
RSA offers a collection of leading edge precision
designed machined fixtures for use with:
• 60 Amp - 1 or 2 Circuit Busway
• 20 Amp - 1 or 2 Circuit Track
• 40 Amp - 2 Circuit / 2 Neutral Track.
MACHINED FIXTURES include such unique
high-tech features as lockable horizontal and
vertical aiming, auto-extending lamp holders,
bayonet-action accessory bezels and front loading
lamps and accessories.
Fixtures are offered in styles of open or closed
back cylinders with beveled edges. A full selec-
tion of low voltage halogen, line voltage halogen
and metal halide lamp types are available with the
Machined Fixtures. Low voltage models include
integral electronic transformers or can be ordered
for use with 12V Busway with remote transformer.
Metal Halide fixtures include an integral electronic
ballast.
These products are 100% machined 6000 series
aluminum construction and manufactured in
the U.S.A. Standard finishes include white,
black or natural aluminum which accents the
quality of the craftsmanship.
Profile Series Machined fixtures employ a revolutionary new
design to simplify the task of relamping. With the accessory
bezel removed, the lamp automatically extends to the opening
of the fixture for easy relamping.
All accessories are secured in the accessory bezel with a
threaded retainer ring. Once the accessories are secured, the
bezel is inserted into the opening of the fixture. With a slight
turn the bezel locks into place via two bayonet clips.
The lamp automatically retracts to the optimal position to
accommodate the accessories. When relamping is required,
the lamp will once again extend automatically when the bezel is
removed. The threaded retainer ring secures the accessories
within the bezel
Machined Fixtures are available in both closed back
and open back configurations. Both styles offer
the same superior features but with an individual
appeal. Low voltage and metal halide models are
offered with integral transformers / ballasts.
Closed Back Open Back
Holds up to 3
optical accessories.
Accessories secured in bezel.
Bezel attaches to fixture with
bayonet action - no threads.

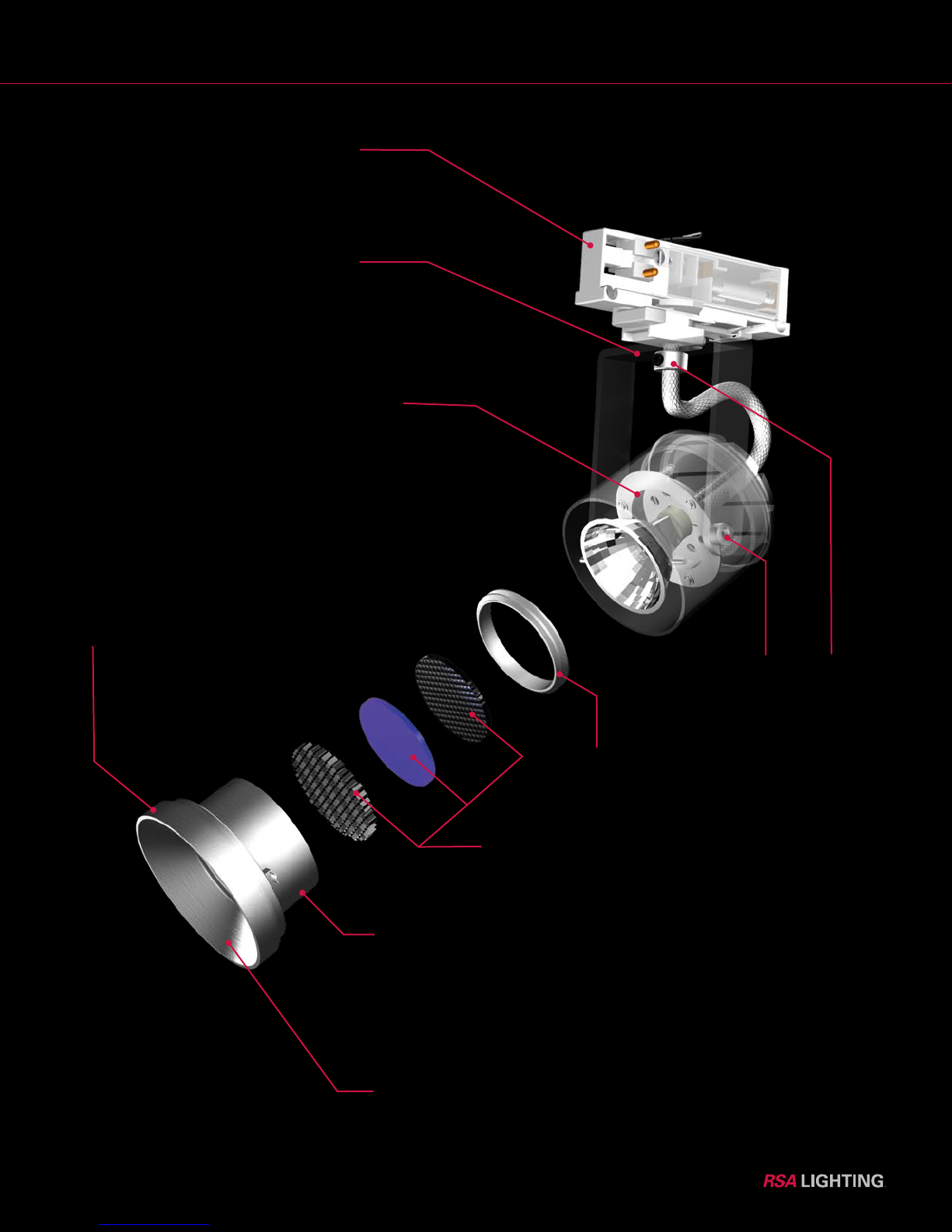

• YOKES CAN ROTATE UP TO 370º WITHOUT
REPOSITIONING THE FIXTURE DUE TO THE
OVERCENTER MECHANISM.
(BUSWAY ONLY)
• AUTO-EXTENDING / RETRACTING LAMP HOLDER.
LAMPS EXTEND FOR EASY RELAMPING AND
RETRACT TO OPTIMUM POSITION. THIS IS
EXTREMELY HELPFUL WHEN DEALING WITH
VARYING ACCESSORY OR LAMP DIMENSIONS.
• ACCESSORY RETAINER CAN ACCOMMODATE UP TO
THREE OPTICAL ACCESSORIES.
• BAYONET ACTION LENS / ACCESSORY BEZEL ENSURES A PRECISE LOCKING
FIT TO THE FIXTURE WITHOUT THREADS. ACCESSORIES ARE RETAINED WITHIN
THE BEZEL TO GUARD AGAINST ACCIDENTAL LOSS OF LENSES OR LOUVERS
DURING RELAMPING.
• SOLID MACHINED 6000 SERIES ALUMINUM CONSTRUCTION WITH STANDARD
ARCHITECTURAL FINISHES IN WHITE, BLACK AND NATURAL ALUMINUM.
CUSTOM FINISHES ARE ALSO AVAILABLE.
DESIGN AND FEATURES
• ACCOMMODATES ADAPTERS FOR 60 AMP
BUSWAY, 20 AMP 1 OR 2 CIRCUIT TRACK
OR 40 AMP 2 CIRCUIT 2 NEUTRAL TRACK.
• LOCKABLE AIMING ON BOTH
THE HORIZONTAL AND
VERTICAL PLANES.
• THREADED RETAINER RING SECURELY HOLDS
ACCESSORIES IN BEZEL
HEX LOUVER
COLOR FILTER
SPREAD LENS
• THE ALIGNMENT INDICATOR ENSURES THAT THE
BEZEL IS ALWAYS REPLACED IN THE PROPER
POSITION. THIS ELIMINATES THE POSSIBILITY OF
MISALIGNING ACCESSORIES SUCH AS
LINEAR LENSES AFTER RELAMPING.

32

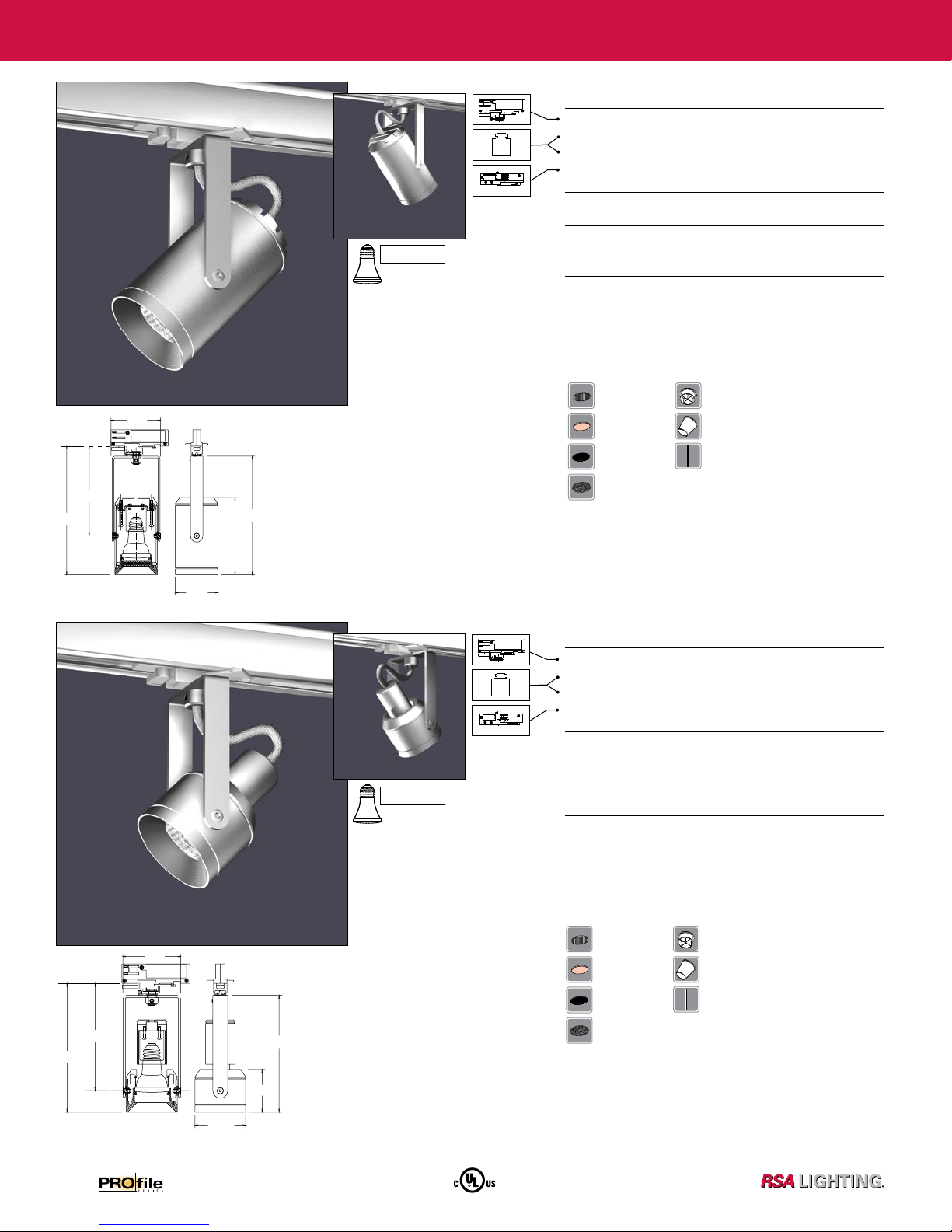

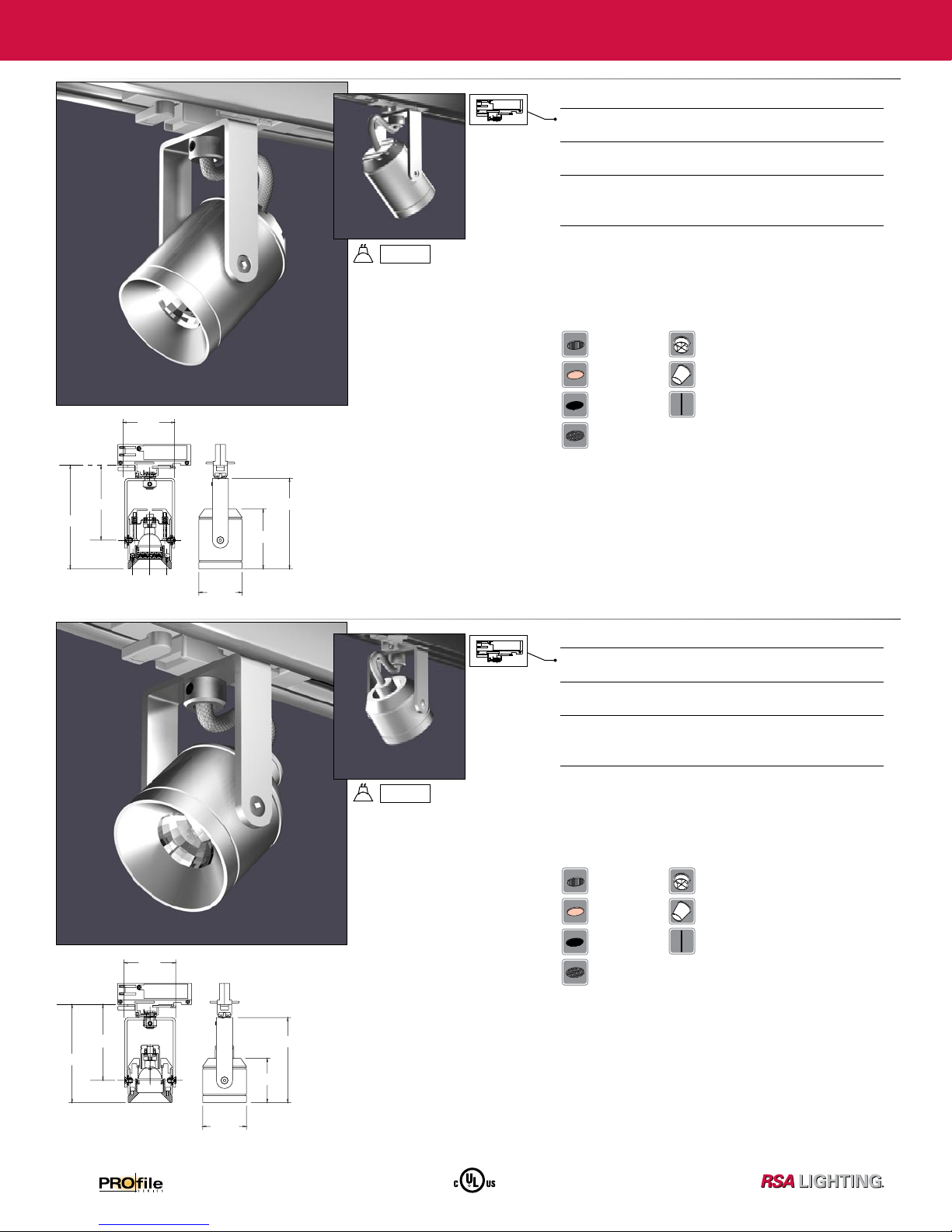

MR11 12V MACHINED FIXTURES - YOKE
For use with 12V
circuits only.
CLOSED BACK
OPEN BACK
4.95”
5.66”
4.09”
2.36”
3.27”
C
L
2.75”
BUSWAY
SURFACE
Closed Back Machined Fixture w/ Yoke
PM611 cb - MR11 for 60 Amp Busway
Wattage
20 watt | 35 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM611cb-20-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Includes a clear protective lens. Also available:
Open Back Machined Fixture w/ Yoke
PM611 ob - MR11 for 60 Amp Busway
Wattage
20 watt | 35 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM611ob-20-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Includes a clear protective lens. Also available:
5.29”
4.09”
2.75”
2.36”
4.57”
2.38”
C
L
BUSWAY
SURFACE
For use with 12V
circuits only.
MR11 12V
MR11 12V
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

33

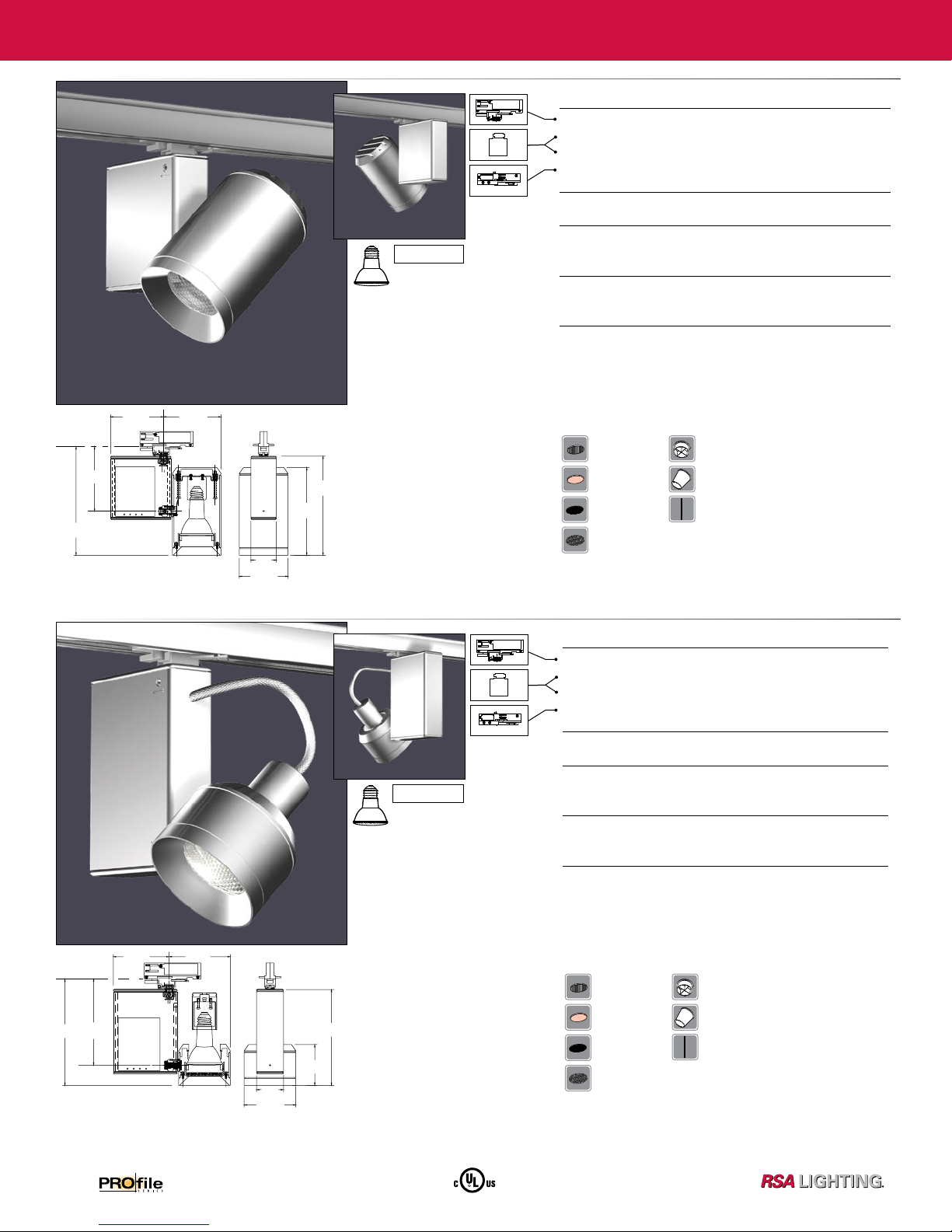

MR11 12V MACHINED FIXTURES - INTEGRAL TRANSFORMER
For use with 120V or
277V circuits only.
CLOSED BACK w/ INTEGRAL ELECTRONIC TRANSFORMER
OPEN BACK w/ INTEGRAL ELECTRONIC TRANSFORMER
2.36”
1.06”
3.27”
3.06”
2.17”
3.27”
4.83”C
L
4.12”
BUSWAY
SURFACE
Closed Back Machined Fixture w/ Integral Transformer
PM611 cbi - MR11 for 60 Amp Busway
PM111 cbi - MR11 for 20 Amp 1 circuit track
PM211 cbi - MR11 for 20 Amp 2 circuit track
PM411 cbi - MR11 for 40 Amp 2 cct / 2 ntrl track
Wattage
20 watt | 35 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Ordering Example
PM611cbi-20-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Includes a clear protective lens. Also available:
Open Back Machined Fixture w/ Integral Transformer
PM611 obi - MR11 for 60 Amp Busway
PM111 obi - MR11 for 20 Amp 1 circuit track
PM211 obi - MR11 for 20 Amp 2 circuit track
PM411 obi - MR11 for 40 Amp 2 cct / 2 ntrl track
Wattage
20 watt | 35 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Ordering Example
PM611obi-20-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Includes a clear protective lens. Also available:
2.38”
1.06”
2.36”
4.46” 3.27”
2.17” 3.06”
C
L
3.75”
BUSWAY
SURFACE
For use with 120V or
277V circuits only.
MR11 12V
MR11 12V
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

34

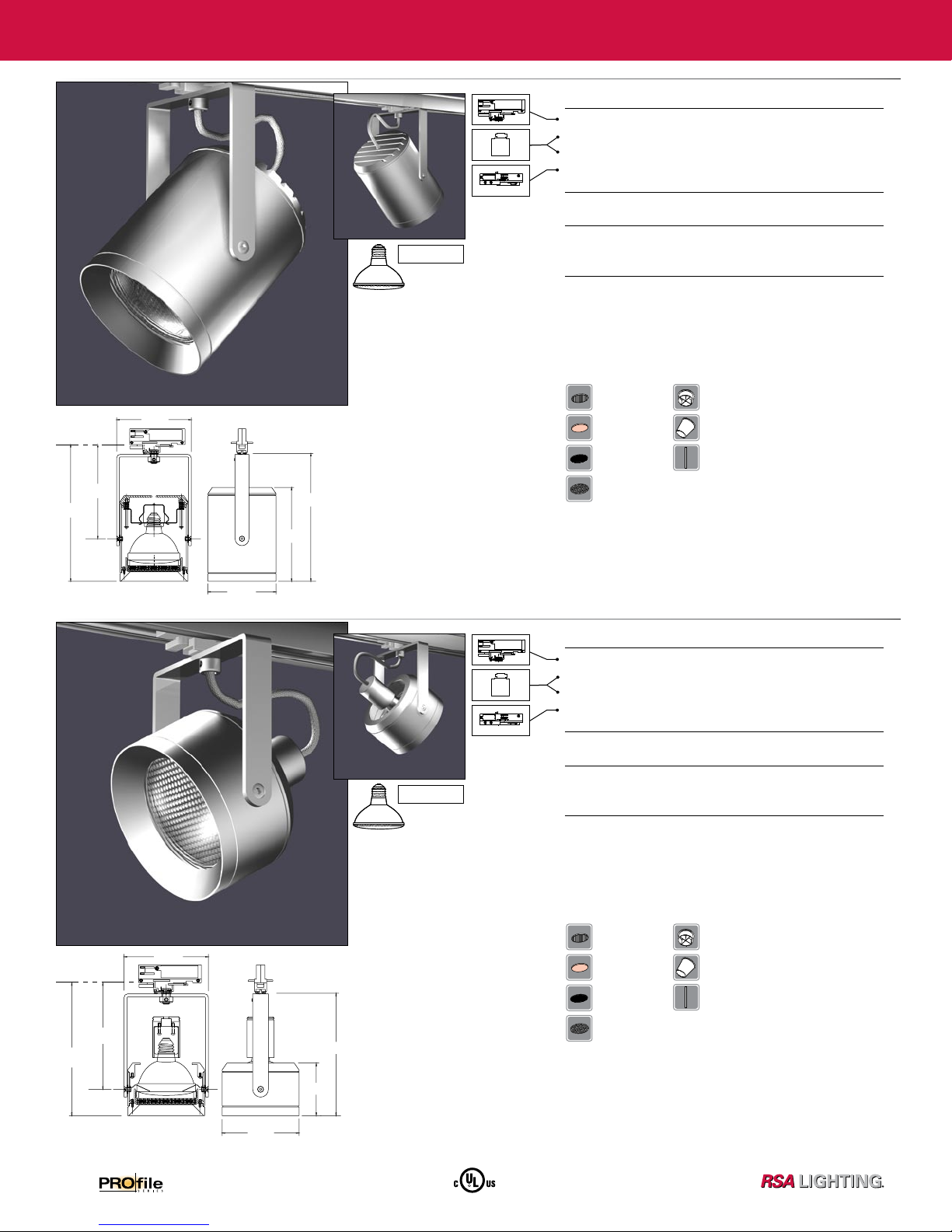

MR16 12V MACHINED FIXTURES - YOKE
For use with 12V
circuits only.
CLOSED BACK
OPEN BACK
3.35”
5.75”
3.72”
2.98”
6.46”
4.73”
C
L
BUSWAY
SURFACE
Closed Back Machined Fixture w/ Yoke
PM612 cb - MR16 for 60 Amp Busway
Wattage
20 watt | 37 watt | 42 watt | 50 watt | 71 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM612cb-50-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Includes a clear protective lens. Also available:
Open Back Machined Fixture w/ Yoke
PM612 ob - MR16 for 60 Amp Busway
Wattage
20 watt | 37 watt | 42 watt | 50 watt | 71 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM612ob-50-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Includes a clear protective lens. Also available:
3.35”
5.27”
2.50”
2.98”
5.99”
4.73”
C
L
BUSWAY
SURFACE
For use with 12V
circuits only.
MR16 12V
MR16 12V
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

35

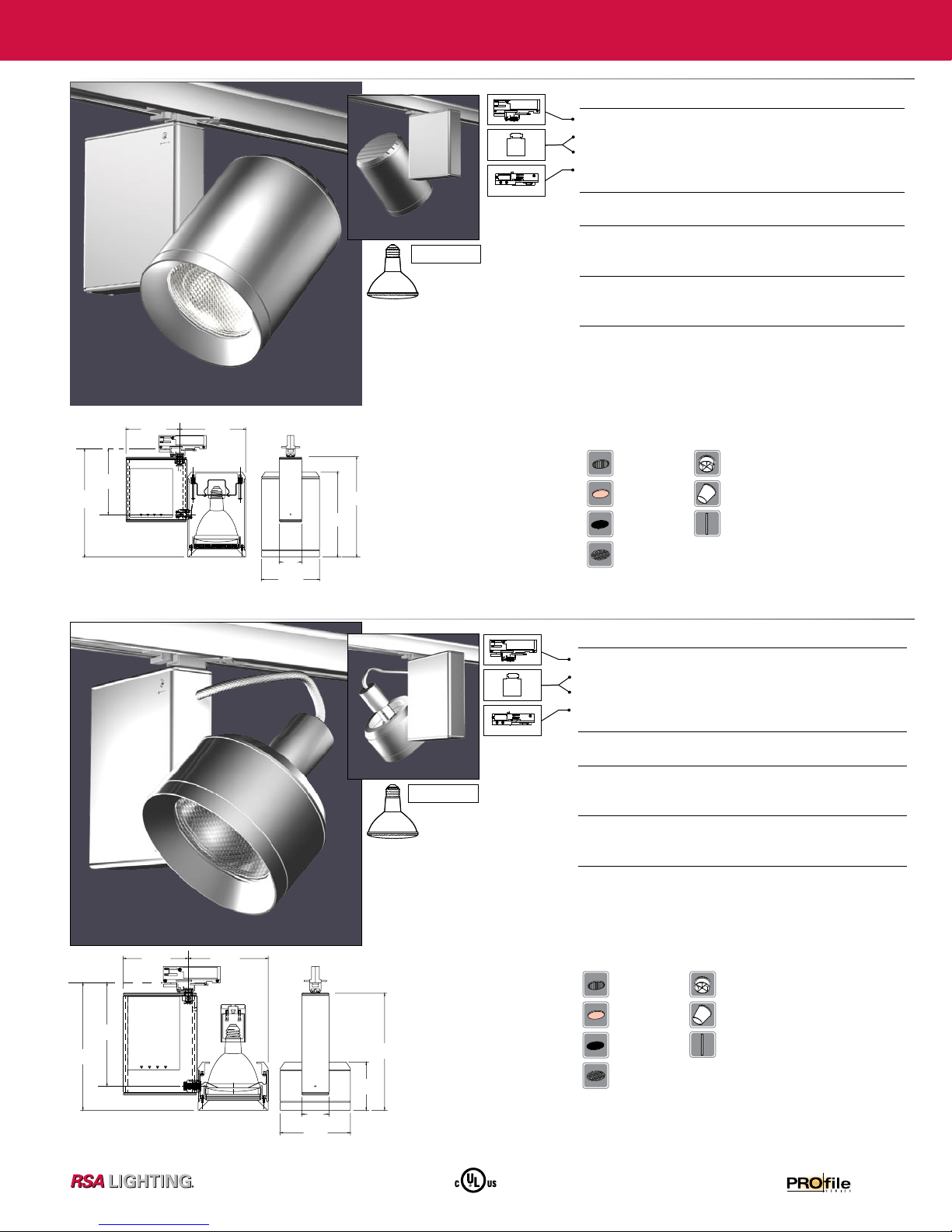

MR16 12V MACHINED FIXTURES - INTEGRAL TRANSFORMER
For use with 120V or
277V circuits only.
CLOSED BACK w/ INTEGRAL ELECTRONIC TRANSFORMER
OPEN BACK w/ INTEGRAL ELECTRONIC TRANSFORMER
3.68”
2.17”
4.99” 3.27”
2.98”
1.06”
3.72”
C
L
4.28”
BUSWAY
SURFACE
Closed Back Machined Fixture w/ Integral Transformer
PM612 cbi - MR16 for 60 Amp Busway
PM112 cbi - MR16 for 20 Amp 1 circuit track
PM212 cbi - MR16 for 20 Amp 2 circuit track
PM412 cbi - MR16 for 40 Amp 2 cct / 2 ntrl track
Wattage
20 watt | 37 watt | 42 watt | 50 watt | 71 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Ordering Example
PM612cbi-50-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Includes a clear protective lens. Also available:
Open Back Machined Fixture w/ Integral Transformer
PM612 obi - MR16 for 60 Amp Busway
PM112 obi - MR16 for 20 Amp 1 circuit track
PM212 obi - MR16 for 20 Amp 2 circuit track
PM412 obi - MR16 for 40 Amp 2 cct / 2 ntrl track
Wattage
20 watt | 37 watt | 42 watt | 50 watt | 71 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Ordering Example
PM612obi-50-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Includes a clear protective lens. Also available:
2.98”
1.06”
2.50”
3.68”
2.17”
4.52” 3.27”
C
L
3.81”
BUSWAY
SURFACE
For use with 120V or
277V circuits only.
MR16 12V
MR16 12V
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

36

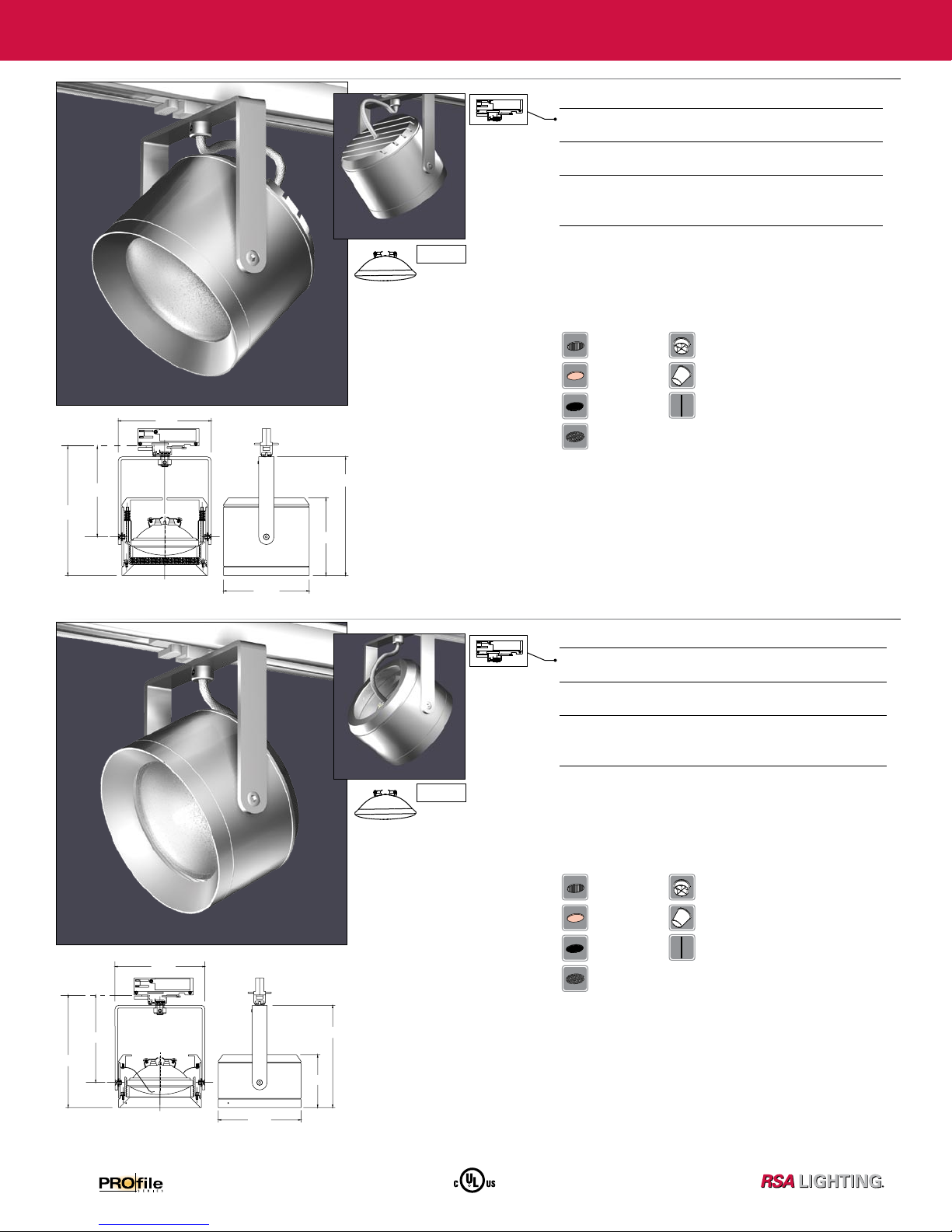

AR70 12V MACHINED FIXTURES - YOKE
For use with 12V
circuits only.
CLOSED BACK
OPEN BACK
7.51”
5.33”
4.34”
6.80”
4.59”
3.84”
C
L
BUSWAY
SURFACE
Closed Back Machined Fixture w/ Yoke
PM613 cb - AR70 for 60 Amp Busway
Wattage
20 watt | 50 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM613cb-50-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Includes a clear protective lens. Also available:
Open Back Machined Fixture w/ Yoke
PM613 ob - AR70 for 60 Amp Busway
Wattage
20 watt | 50 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM613ob-50-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Includes a clear protective lens. Also available:
5.96”
2.68”
4.34”
5.33”
6.67”
3.84”
C
L
BUSWAY
SURFACE
For use with 12V
circuits only.
AR70 12V
AR70 12V
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

37

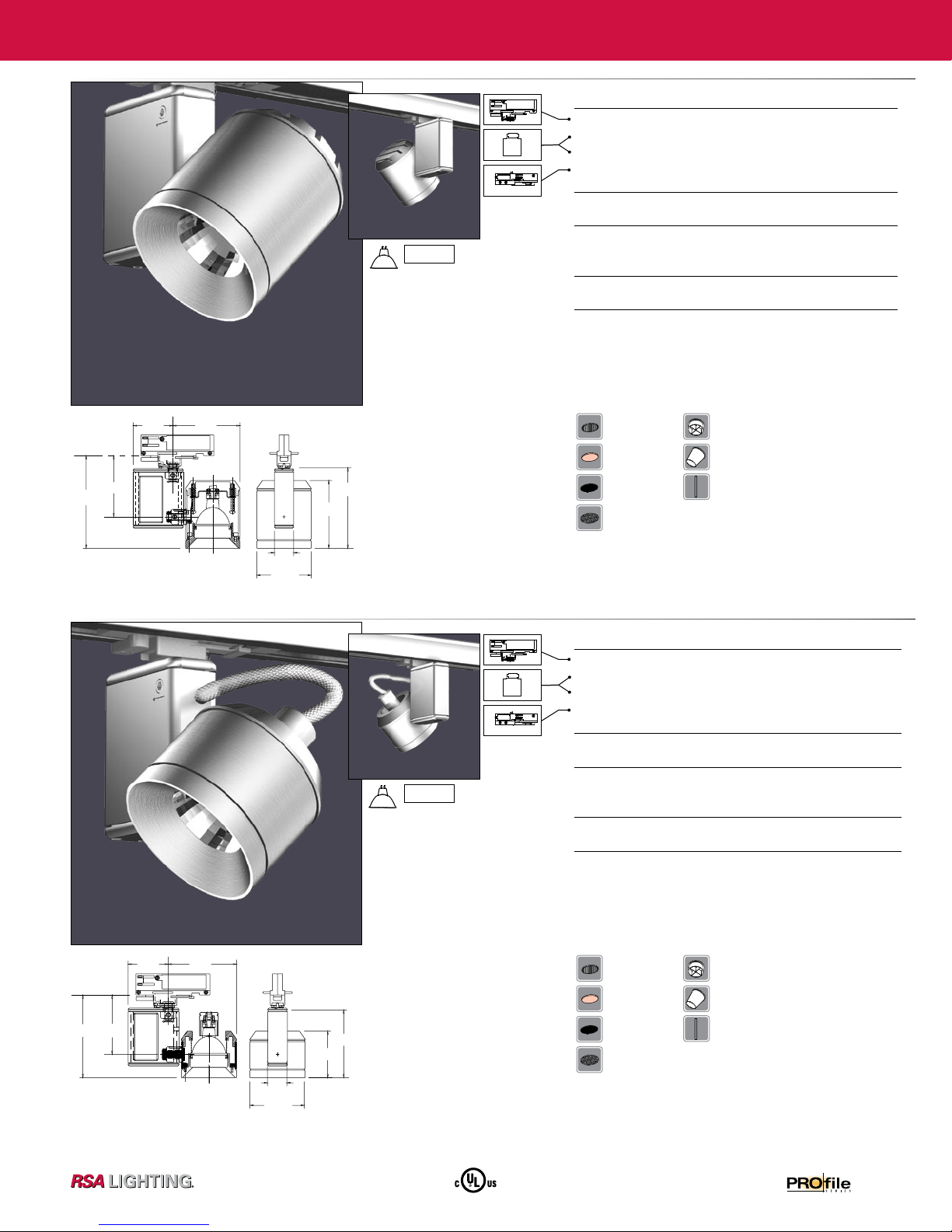

AR70 12V MACHINED FIXTURES - INTEGRAL TRANSFORMER
For use with 120V or
277V circuits only.
CLOSED BACK w/ INTEGRAL ELECTRONIC TRANSFORMER
OPEN BACK w/ INTEGRAL ELECTRONIC TRANSFORMER
5.84”
3.66”
2.17” 4.52”
4.59”
1.06”
3.84”
C
L
5.13”
BUSWAY
SURFACE
Closed Back Machined Fixture w/ Integral Transformer
PM613 cbi - AR70 for 60 Amp Busway
PM113 cbi - AR70 for 20 Amp 1 circuit track
PM213 cbi - AR70 for 20 Amp 2 circuit track
PM413 cbi - AR70 for 40 Amp 2 cct / 2 ntrl track
Wattage
20 watt | 50 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Ordering Example
PM613cbi-50-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Includes a clear protective lens. Also available:
Open Back Machined Fixture w/ Integral Transformer
PM613 obi - AR70 for 60 Amp Busway
PM113 obi - AR70 for 20 Amp 1 circuit track
PM213 obi - AR70 for 20 Amp 2 circuit track
PM413 obi - AR70 for 40 Amp 2 cct / 2 ntrl track
Wattage
20 watt | 50 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Ordering Example
PM613obi-50-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Includes a clear protective lens. Also available:
4.52”
2.17”
5.64”
4.30”
1.06”
2.68”
3.84”
C
L
4.93”
BUSWAY
SURFACE
For use with 120V or
277V circuits only.
AR70 12V
AR70 12V
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

38
AR111 12V MACHINED FIXTURES - YOKE
For use with 12V
circuits only.
CLOSED BACK
OPEN BACK
6.07”
7.76”
5.07”
5.59”
8.46”
5.93”
C
L
BUSWAY
SURFACE
Closed Back Machined Fixture w/ Yoke
PM614 cb - AR111 for 60 Amp Busway
Wattage
35 watt | 50 watt | 75 watt | 100 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM614cb-75-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
Open Back Machined Fixture w/ Yoke
PM614 ob - AR111 for 60 Amp Busway
Wattage
35 watt | 50 watt | 75 watt | 100 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM614ob-75-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
5.59”
6.91”
3.57”
6.07”
7.64”
5.95”
C
L
BUSWAY
SURFACE
For use with 12V
circuits only.
AR111 12V
AR111 12V
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

39

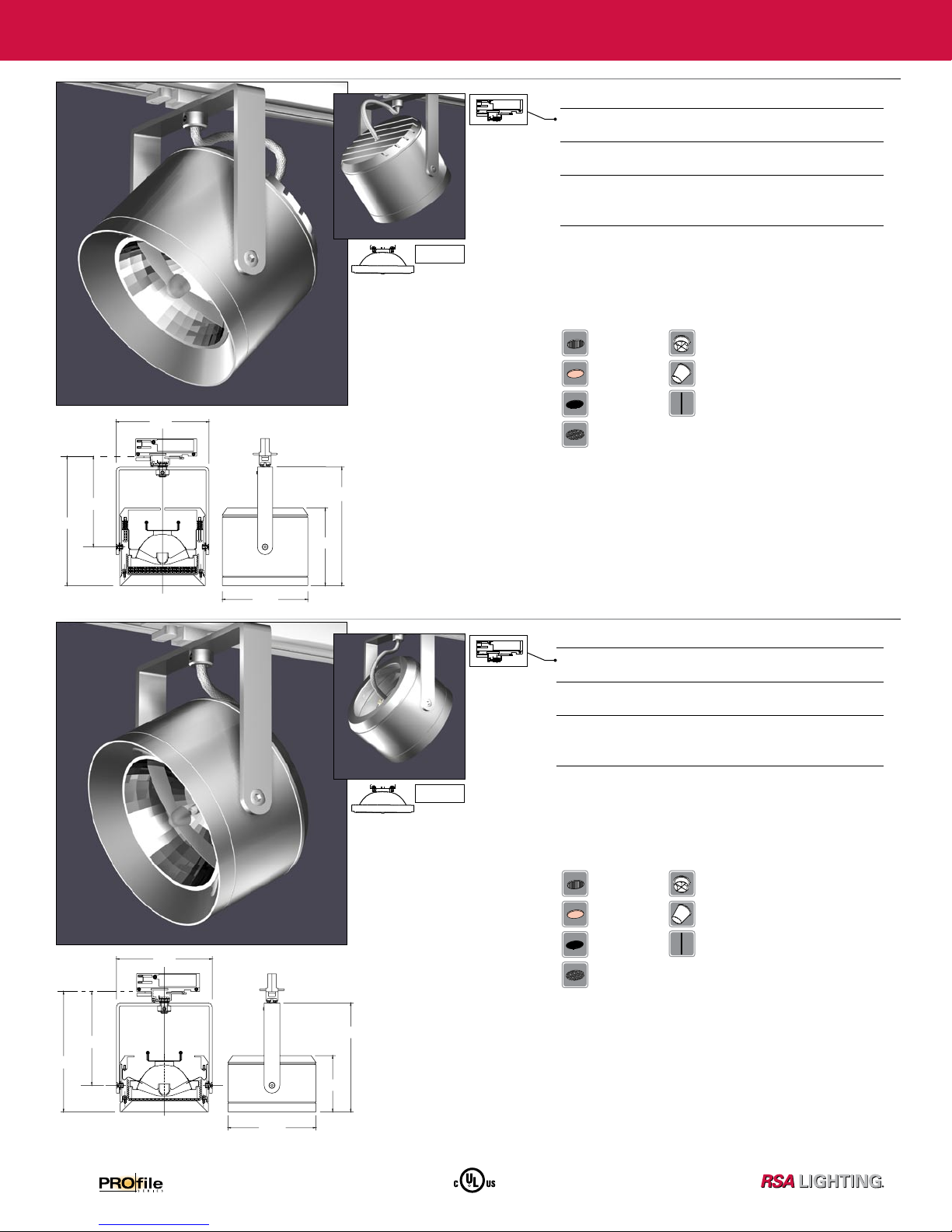

AR111 12V MACHINED FIXTURES - INTEGRAL TRANSFORMER
For use with 120V or
277V circuits only.
CLOSED BACK w/ INTEGRAL ELECTRONIC TRANSFORMER
OPEN BACK w/ INTEGRAL ELECTRONIC TRANSFORMER
2.17”
7.19”
4.66”
6.27”
1.06”
5.07”
5.59”
C
LC L
8.33”
BUSWAY
SURFACE
Closed Back Machined Fixture w/ Integral Transformer
PM614 cbi - AR111 for 60 Amp Busway
PM114 cbi - AR111 for 20 Amp 1 circuit track
PM214 cbi - AR111 for 20 Amp 2 circuit track
PM414 cbi - AR111 for 40 Amp 2 cct / 2 ntrl track
Wattage
35 watt | 50 watt | 75 watt | 100 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Ordering Example
PM614cbi-75-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
Open Back Machined Fixture w/ Integral Transformer
PM614 obi - AR111 for 60 Amp Busway
PM114 obi - AR111 for 20 Amp 1 circuit track
PM214 obi - AR111 for 20 Amp 2 circuit track
PM414 obi - AR111 for 40 Amp 2 cct / 2 ntrl track
Wattage
35 watt | 50 watt | 75 watt | 100 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Ordering Example
PM614obi-75-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
2.17”
5.98”
4.30”
6.27”
1.06”
3.57”
5.59”
C
L
5.28”
BUSWAY
SURFACE
For use with 120V or
277V circuits only.
AR111 12V
AR111 12V
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

40
PAR36 12V MACHINED FIXTURES - YOKE
For use with 12V
circuits only.
CLOSED BACK
OPEN BACK
7.76”
5.07”
5.59”
8.46”
5.93”
6.08”
C
L
BUSWAY
SURFACE
Closed Back Machined Fixture w/ Yoke
PM615 cb - PAR36 for 60 Amp Busway
Wattage
35 watt | 50 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM615cb-50-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
Open Back Machined Fixture w/ Yoke
PM615 ob - PAR36 for 60 Amp Busway
Wattage
35 watt | 50 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM615ob-50-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
BUSWAY
SURFACE
7.62”
5.93”
6.08”
6.91”
3.57”
5.59”
C
L
For use with 12V
circuits only.
PAR36 12V
PAR36 12V
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

41
PAR36 12V MACHINED FIXTURES - INTEGRAL TRANSFORMER
For use with 120V or
277V circuits only.
CLOSED BACK w/ INTEGRAL ELECTRONIC TRANSFORMER
OPEN BACK w/ INTEGRAL ELECTRONIC TRANSFORMER
7.19”
4.66”
2.17” 6.27”
5.07”
1.06”
5.59”
C
L
8.33”
BUSWAY
SURFACE
Open Back Machined Fixture w/ Integral Transformer
PM615 cbi - PAR36 for 60 Amp Busway
PM115 cbi - PAR36 for 20 Amp 1 circuit track
PM215 cbi - PAR36 for 20 Amp 2 circuit track
PM415 cbi - PAR36 for 40 Amp 2 cct / 2 ntrl track
Wattage
35 watt | 50 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Ordering Example
PM615ob-50-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
Open Back Machined Fixture w/ Integral Transformer
PM615 obi - PAR36 for 60 Amp Busway
PM115 obi - PAR36 for 20 Amp 1 circuit track
PM215 obi - PAR36 for 20 Amp 2 circuit track
PM415 obi - PAR36 for 40 Amp 2 cct / 2 ntrl track
Wattage
35 watt | 50 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Ordering Example
PM615obi-50-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
For use with 120V or
277V circuits only.
PAR36 12V
PAR36 12V
2.17”
5.98”
4.30”
6.27”
1.06”
3.57”
5.59”
C
L
5.28”
BUSWAY
SURFACE
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

42

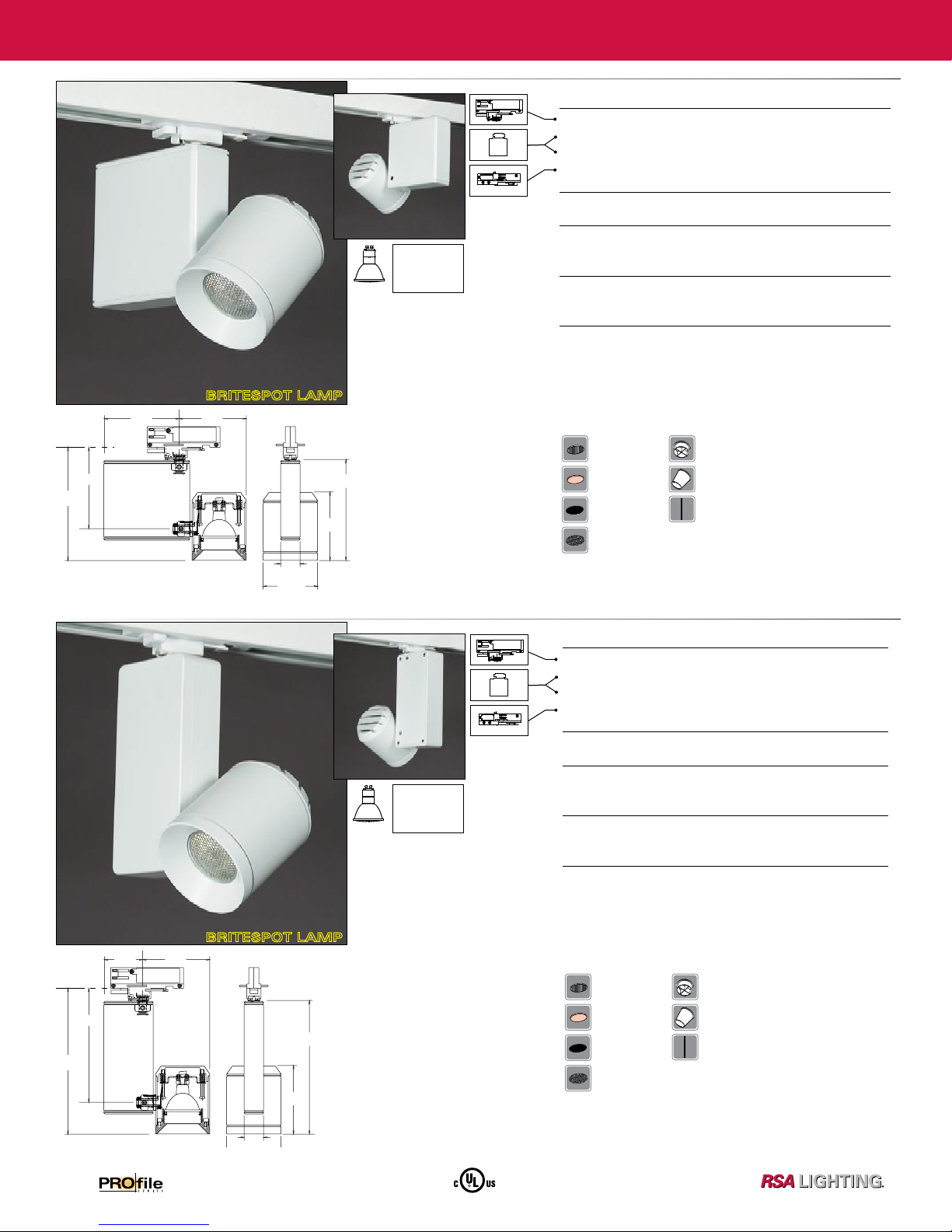

PAR16 120V MACHINED FIXTURES - YOKE
CLOSED BACK
OPEN BACK
Closed Back Machined Fixture w/ Yoke
PM621 cb - PAR16 for 60 Amp Busway
PM121 cb - PAR16 for 20 Amp 1 circuit track
PM221 cb - PAR16 for 20 Amp 2 circuit track
PM421 cb - PAR16 for 40 Amp 2 cct / 2 ntrl track
Wattage
75 watt max.
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM621cb-75-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
Open Back Machined Fixture w/ Yoke
PM621 ob - PAR16 for 60 Amp Busway
PM121 ob - PAR16 for 20 Amp 1 circuit track
PM221 ob - PAR16 for 20 Amp 2 circuit track
PM421 ob - PAR16 for 40 Amp 2 cct / 2 ntrl track
Wattage
75 watt max.
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM621ob-75-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
For use with 120V
circuits only.
PAR16 120V
PAR16 120V
9.02”
6.29”
3.35”
8.31”
5.41”
2.98”
C
L
BUSWAY
SURFACE
3.35”
7.55”
6.29” 6.84”
2.50”
2.98”
C
L
BUSWAY
SURFACE
For use with 120V
circuits only.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

43
CLOSED BACK
OPEN BACK
PAR20 120V MACHINED FIXTURES - YOKE
Open Back Machined Fixture w/ Yoke
PM622 ob - PAR20 for 60 Amp Busway
PM122 ob - PAR20 for 20 Amp 1 circuit track
PM222 ob - PAR20 for 20 Amp 2 circuit track
PM422 ob - PAR20 for 40 Amp 2 cct / 2 ntrl track
Wattage
50 watt max.
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM622ob-50-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
For use with 120V
circuits only.
For use with 120V
circuits only.
PAR20 120V
PAR20 120V
9.51”
6.55”
4.25”
5.90”
3.65”
C
L
8.80”
BUSWAY
SURFACE
4.25”
2.83”
3.65”
6.55”
7.99”
C
L
7.19”
BUSWAY
SURFACE
Closed Back Machined Fixture w/ Yoke
PM622 cb - PAR20 for 60 Amp Busway
PM122 cb - PAR20 for 20 Amp 1 circuit track
PM222 cb - PAR20 for 20 Amp 2 circuit track
PM422 cb - PAR20 for 40 Amp 2 cct / 2 ntrl track
Wattage
50 watt max.
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM622cb-50-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

44
PAR30 120V MACHINED FIXTURES - YOKE
CLOSED BACK
OPEN BACK
Closed Back Machined Fixture w/ Yoke
PM623 cb - PAR30 for 60 Amp Busway
PM123 cb - PAR30 for 20 Amp 1 circuit track
PM223 cb - PAR30 for 20 Amp 2 circuit track
PM423 cb - PAR30 for 40 Amp 2 cct / 2 ntrl track
Wattage
75 watt max. (Short neck lamp only)
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM623cb-75-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
Open Back Machined Fixture w/ Yoke
PM623 ob - PAR30 for 60 Amp Busway
PM123 ob - PAR30 for 20 Amp 1 circuit track
PM223 ob - PAR30 for 20 Amp 2 circuit track
PM423 ob - PAR30 for 40 Amp 2 cct / 2 ntrl track
Wattage
75 watt max. (Short neck lamp only)
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM623ob-75-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
For use with 120V
circuits only.
For use with 120V
circuits only.
PAR30 120V
PAR30 120V
9.87”
6.80”
5.38”
6.78”
4.90”
9.16”
BUSWAY
SURFACE
8.48”
6.80”
5.38”
3.35”
4.90”
7.77”
C
L
BUSWAY
SURFACE
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

45
CLOSED BACK
OPEN BACK
PAR38 120V MACHINED FIXTURES - YOKE
Closed Back Machined Fixture w/ Yoke
PM624 cb - PAR38 for 60 Amp Busway
PM124 cb - PAR38 for 20 Amp 1 circuit track
PM224 cb - PAR38 for 20 Amp 2 circuit track
PM424 cb - PAR38 for 40 Amp 2 cct / 2 ntrl track
Wattage
250 watt max.
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM624cb-250-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
Open Back Machined Fixture w/ Yoke
PM624 ob - PAR38 for 60 Amp Busway
PM124 ob - PAR38 for 20 Amp 1 circuit track
PM224 ob - PAR38 for 20 Amp 2 circuit track
PM424 ob - PAR38 for 40 Amp 2 cct / 2 ntrl track
Wattage
250 watt max.
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Ordering Example
PM624ob-250-AL
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
For use with 120V
circuits only.
For use with 120V
circuits only.
PAR38 120V
PAR38 120V
12.09”
8.39”
6.45”
7.63”
5.96”
C
L
11.38”
BUSWAY
SURFACE
10.08”
8.39”
6.45”
3.35”
5.96”
C
L
9.37”
BUSWAY
SURFACE
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

46
ES16 METAL HALIDE MACHINED FIXTURES
CLOSED BACK W/ STANDARD BALLAST ENCLOSURE
CLOSED BACK W/ TALL BALLAST ENCLOSURE
Closed Back Machined Fixture w/ Integral Ballast
PM636 cb - ES16MH for 60 Amp Busway
PM136 cb - ES16MH for 20 Amp 1 circuit track
PM236 cb - ES16MH for 20 Amp 2 circuit track
PM436 cb - ES16MH for 40 Amp 2 cct / 2 ntrl track
Wattage
20 watt | 39 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Integral electronic metal halide ballast
Ordering Example
PM636cb-39-WH-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
Closed Back Machined Fixture w/ Integral Ballast
PM636 cbix - ES16MH for 60 Amp Busway
PM136 cbix - ES16MH for 20 Amp 1 circuit track
PM236 cbix - ES16MH for 20 Amp 2 circuit track
PM436 cbix - ES16MH for 40 Amp 2 cct / 2 ntrl track
Wattage
20 watt | 39 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Integral electronic metal halide ballast
Ordering Example
PM636cbix-39-WH-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
For use with 120V or
277V circuits only.
ES16MH
BRITESPOT
LAMP
3.68”
4.00”
6.18”
5.00”
2.98”
1.06”
3.72”
C
L
5.50”
BUSWAY
SURFACE
3.68”
2.00”
7.88”
6.00”
2.98”
1.06”
3.72”
C
L
7.18”
BUSWAY
SURFACE
For use with 120V or
277V circuits only.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
ES16MH
BRITESPOT
LAMP
BRITESPOT LAMP
BRITESPOT LAMP

47
CLOSED BACK W/ INTEGRAL ELECTRONIC BALLAST
OPEN BACK W/ INTEGRAL ELECTRONIC BALLAST
CDMR111 METAL HALIDE MACHINED FIXTURES
Closed Back Machined Fixture w/ Integral Ballast
PM637 cb - CDMR111MH for 60 Amp Busway
PM137 cb - CDMR111MH for 20 Amp 1 circuit track
PM237 cb - CDMR111MH for 20 Amp 2 circuit track
PM437 cb - CDMR111MH for 40 Amp 2 cct / 2 ntrl track
Wattage
39 watt | 70 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Integral electronic metal halide ballast
Ordering Example
PM637cb-39-AL-120
• 370º horiz. x 270º vert. adjustment
Open Back Machined Fixture w/ Integral Ballast
PM637 ob - CDMR111MH for 60 Amp Busway
PM137 ob - CDMR111MH for 20 Amp 1 circuit track
PM237 ob - CDMR111MH for 20 Amp 2 circuit track
PM437 ob - CDMR111MH for 40 Amp 2 cct / 2 ntrl track
Wattage
39 watt | 70 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Integral electronic metal halide ballast
Ordering Example
PM637ob-39-AL-120
• 370º horiz. x 270º vert. adjustment
For use with 120V or
277V circuits only.
CDMR111MH
CDMR111MH
3.92”
8.03”
5.50”
6.23”
1.53”
5.07”
5.59”
7.31”
BUSWAY
SURFACE
3.92”
7.19”
5.50”
6.23”
1.53”
3.57”
5.59”
6.46”
For use with 120V or
277V circuits only.

48
PAR20 METAL HALIDE MACHINED FIXTURES
CLOSED BACK W/ INTEGRAL ELECTRONIC BALLAST
OPEN BACK W/ INTEGRAL ELECTRONIC BALLAST
Closed Back Machined Fixture w/ Integral Ballast
PM632 cb - PAR20MH for 60 Amp Busway
PM132 cb - PAR20MH for 20 Amp 1 circuit track
PM232 cb - PAR20MH for 20 Amp 2 circuit track
PM432 cb - PAR20MH for 40 Amp 2 cct / 2 ntrl track
Wattage
20 watt | 39 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Integral electronic metal halide ballast
Ordering Example
PM632cb-39-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
Open Back Machined Fixture w/ Integral Ballast
PM632 ob - PAR20MH for 60 Amp Busway
PM132 ob - PAR20MH for 20 Amp 1 circuit track
PM232 ob - PAR20MH for 20 Amp 2 circuit track
PM432 ob - PAR20MH for 40 Amp 2 cct / 2 ntrl track
Wattage
20 watt | 39 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Integral electronic metal halide ballast
Ordering Example
PM632ob-39-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
For use with 120V or
277V circuits only.
PAR20MH
PAR20MH
C
L
7.99”
4.68”
3.92” 4.33”
6.58”
1.53”
3.65”
7.27”
BUSWAY
SURFACE
C
L
7.55” 6.12”
3.92” 4.33”
2.88”
1.53”
3.65”
6.84”
BUSWAY
SURFACE
For use with 120V or
277V circuits only.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.

49
CLOSED BACK W/ INTEGRAL ELECTRONIC BALLAST
OPEN BACK W/ INTEGRAL ELECTRONIC BALLAST
PAR30 METAL HALIDE MACHINED FIXTURES
Closed Back Machined Fixture w/ Integral Ballast
PM633 cb - PAR30MH for 60 Amp Busway
PM133 cb - PAR30MH for 20 Amp 1 circuit track
PM233 cb - PAR30MH for 20 Amp 2 circuit track
PM433 cb - PAR30MH for 40 Amp 2 cct / 2 ntrl track
Wattage
20 watt | 39 watt | 70 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Integral electronic metal halide ballast
Ordering Example
PM633cb-39-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
Open Back Machined Fixture w/ Integral Ballast
PM633 ob - PAR30MH for 60 Amp Busway
PM133 ob - PAR30MH for 20 Amp 1 circuit track
PM233 ob - PAR30MH for 20 Amp 2 circuit track
PM433 ob - PAR30MH for 40 Amp 2 cct / 2 ntrl track
Wattage
20 watt | 39 watt | 70 watt
Finish
BK Black | WH White | AL Natural Aluminum
PT Custom Finish ( specify)
Voltage
120 volt | 277 volt
Integral electronic metal halide ballast
Ordering Example
PM633ob-39-AL-120
• 370º horiz. x 270º vert. adjustment
• Up to 3 optical accessories
• Accessories available:
For use with 120V or
277V circuits only.
PAR30MH
PAR30MH
9.10”
5.41”
3.92” 5.58”
7.22”
1.53”
4.90”
C
L
8.39”
BUSWAY
SURFACE
C
L
8.31”
6.63”
3.92” 5.58”
3.35”
1.53”
4.90”
7.60”
BUSWAY
SURFACE
For use with 120V or
277V circuits only.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
,ENSES
#OLOR&ILTERS
3CREENS
#ROSS"AFFLES
3NOOTS
vvhvORv
&IXTURE3USPENSION3TEMS
,OUVERS
See page 76 - 77 for accessory details.
