RSA Lighting COMBOLIGHT LV3003IS User manual

Catalog #
Type
Project
COMBOLIGHT®LV Series
THREE (3) Light Recessed
Next Generation Trimless
Multi-Lamp Luminaire
PAR30 Line Voltage
6.75"6.75"
A
B
C
ED
F
G
380º x 45º locking
angular adjustment

45º visual cut-off
Perforated mesh plaster 
frame adheres to ceiling 
compound for seamless 
trimless mounting.
Beveled housing interior and 
standard retractable yokes allow 
lamp holders to slide within the 
housing for added adjustability.
Trimless
Detail
Ceiling mudding 
compound is applied 
directly to the edge 
of the aperture.

Side mounted compartment
houses wiring and thermal
protector. Accessible 
through fixture opening.
Tabs for aircraft 
cable suspension
above ceiling Butterfly Brackets
for Black Iron mounting
Other Adders
CC - Two Circuit
CP - Chicago Plenum
RECESSED PAR30
LV TRIMLESS
Dimensions A
Housing
Length
B
Housing
Height
C
Aperture
Length
D
Aperture
Width
E
Plaster Frame
Width
F
Plaster Frame
Length
G
Above Ceiling
Width
Ceiling
Cut-Out
27.77” 8.40” 22.00” 7.00” 12.75” 27.75” 14.95” 25.25” x 10.25”
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
DESCRIPTION:
An adjustable PAR30 fixture suit-
able for multiple downlighting
applications with one point of
electrical entry. Powder coat fin-
ish on housing & lamp assembly.
Housing suitable for new con-
struction applications.
CONSTRUCTION:
All aluminum construction.
Perforated mesh plaster frame
adheres to ceiling compound for
seamless trimless mounting.
Beveled fixture opening provides
easy mudding compound applica-
tion. Can accommodate 0.50” or
0.625” drywall. Includes butterfly
brackets for black iron commer-
cial mounting.
LAMP ASSEMBLY:
3-PAR30 lamps mounted in
adjustable bezels. Each lamp can
accept up to two optical acces-
sories. 380º x 45º locking adjust-
ment. Fixture provides 45º visual
cut-off. Lamp holders retract for
added internal adjustment.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
aroundfixture.Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Junction box is UL listed for
through branch wiring, (access
above ceiling not required) for 8
#12, 90°C supply conductors or
60°C for end of run. J-Box and
wiring accessible through ceil-
ing opening via access door on
housing sidewall.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
SPECIFY -
ORDERING EXAMPLE:
=Three Light Trimless Recessed PAR30 - White Interior
LV3003IS WH
Cat. # / Description Interior Finish
LV3003IS : 3Light Recessed Next Generation Trimless Combo Fixture120V PAR30 BK - Black
WH - White
S - Silver
PT - Custom (Specify)
LV3003IS
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031

This manual suits for next models

1

Other RSA Lighting Light Fixture manuals

RSA Lighting ACCURUS TRIM ACT1685 User manual

RSA Lighting

RSA Lighting ACCURUS TRIM ACT1685 User manual

RSA Lighting COMBOLIGHT LV Series LV220MH User manual

RSA Lighting

RSA Lighting COMBOLIGHT LV Series LV220MH User manual

RSA Lighting Combo Mini User manual

RSA Lighting

RSA Lighting Combo Mini User manual

RSA Lighting Combolight 12V MR16 User manual

RSA Lighting

RSA Lighting Combolight 12V MR16 User manual

RSA Lighting QCT-2075BK User manual

RSA Lighting

RSA Lighting QCT-2075BK User manual

RSA Lighting COMBOLIGHT GR230MH User manual

RSA Lighting

RSA Lighting COMBOLIGHT GR230MH User manual

RSA Lighting Combolight LV Series LV310MH User manual

RSA Lighting

RSA Lighting Combolight LV Series LV310MH User manual

RSA Lighting Combolight Galleria Series CGSV-CGCV User manual

RSA Lighting

RSA Lighting Combolight Galleria Series CGSV-CGCV User manual

RSA Lighting LYNX LX3002TR User manual

RSA Lighting

RSA Lighting LYNX LX3002TR User manual

RSA Lighting COMBOLIGHT GR416 User manual

RSA Lighting

RSA Lighting COMBOLIGHT GR416 User manual

RSA Lighting Galleria Series CGCV User manual

RSA Lighting

RSA Lighting Galleria Series CGCV User manual

RSA Lighting Combolight LV270 User manual

RSA Lighting

RSA Lighting Combolight LV270 User manual

RSA Lighting COMBOLIGHT Recessed Multi-Lamp Fixture User manual

RSA Lighting

RSA Lighting COMBOLIGHT Recessed Multi-Lamp Fixture User manual

RSA Lighting COMBOLIGHT T4 GU6.5 User manual

RSA Lighting

RSA Lighting COMBOLIGHT T4 GU6.5 User manual

RSA Lighting LYNX LX3001TRMH User manual

RSA Lighting

RSA Lighting LYNX LX3001TRMH User manual

RSA Lighting Combolight GR Series GR220 User manual

RSA Lighting

RSA Lighting Combolight GR Series GR220 User manual

RSA Lighting Combolight LV250MH User manual

RSA Lighting

RSA Lighting Combolight LV250MH User manual

RSA Lighting Combolight 12V MR11 User manual

RSA Lighting

RSA Lighting Combolight 12V MR11 User manual

RSA Lighting Combolight Galleria Series PAR20 120V User manual

RSA Lighting

RSA Lighting Combolight Galleria Series PAR20 120V User manual

RSA Lighting Combolight LV1250 User manual

RSA Lighting

RSA Lighting Combolight LV1250 User manual

RSA Lighting Combolight LV Series LV2005ISSQ User manual

RSA Lighting

RSA Lighting Combolight LV Series LV2005ISSQ User manual

RSA Lighting PAR20 User manual

RSA Lighting

RSA Lighting PAR20 User manual

RSA Lighting MINI ACCURUS RECESSED TRIM ACM5004 User manual

RSA Lighting

RSA Lighting MINI ACCURUS RECESSED TRIM ACM5004 User manual

RSA Lighting Accurus Round Trim Based ACT1785 User manual

RSA Lighting

RSA Lighting Accurus Round Trim Based ACT1785 User manual

Popular Light Fixture manuals by other brands

HAMPTON BAY 201-014 instruction manual

HAMPTON BAY

HAMPTON BAY 201-014 instruction manual

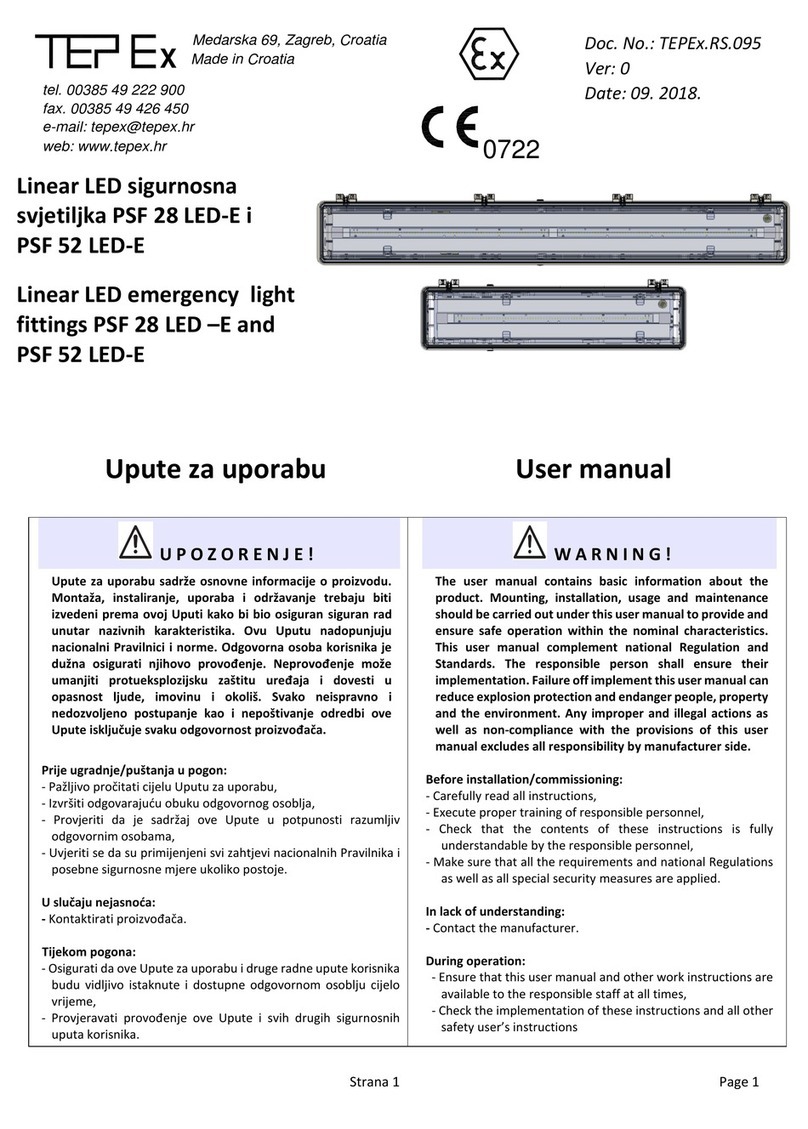

Tepex PSF 28 LED-E user manual

Tepex

Tepex PSF 28 LED-E user manual

Show Tec ACT PC 60 RGBW user manual

Show Tec

Show Tec ACT PC 60 RGBW user manual

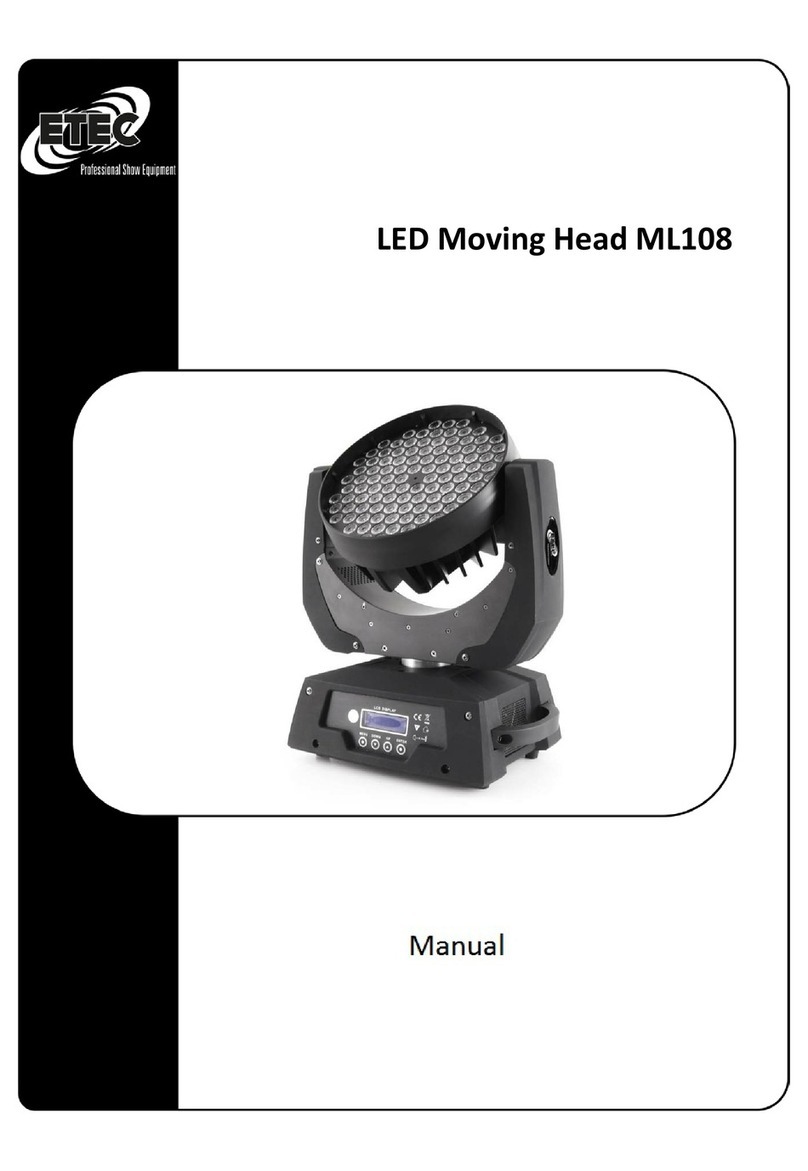

Etec ML108 manual

Etec

Etec ML108 manual

HAMPTON BAY 18020 Installation instruction

HAMPTON BAY

HAMPTON BAY 18020 Installation instruction

Show Tec 40072 manual

Show Tec

Show Tec 40072 manual

PULSE+ PLS00572 manual

PULSE+

PULSE+ PLS00572 manual

HAMPTON BAY SKU 704-064 instruction manual

HAMPTON BAY

HAMPTON BAY SKU 704-064 instruction manual

Inlite MINI SCOPE installation manual

Inlite

Inlite MINI SCOPE installation manual

Heath Zenith Motion Sensing Halogen Fixture SH-5525 owner's manual

Heath Zenith

Heath Zenith Motion Sensing Halogen Fixture SH-5525 owner's manual

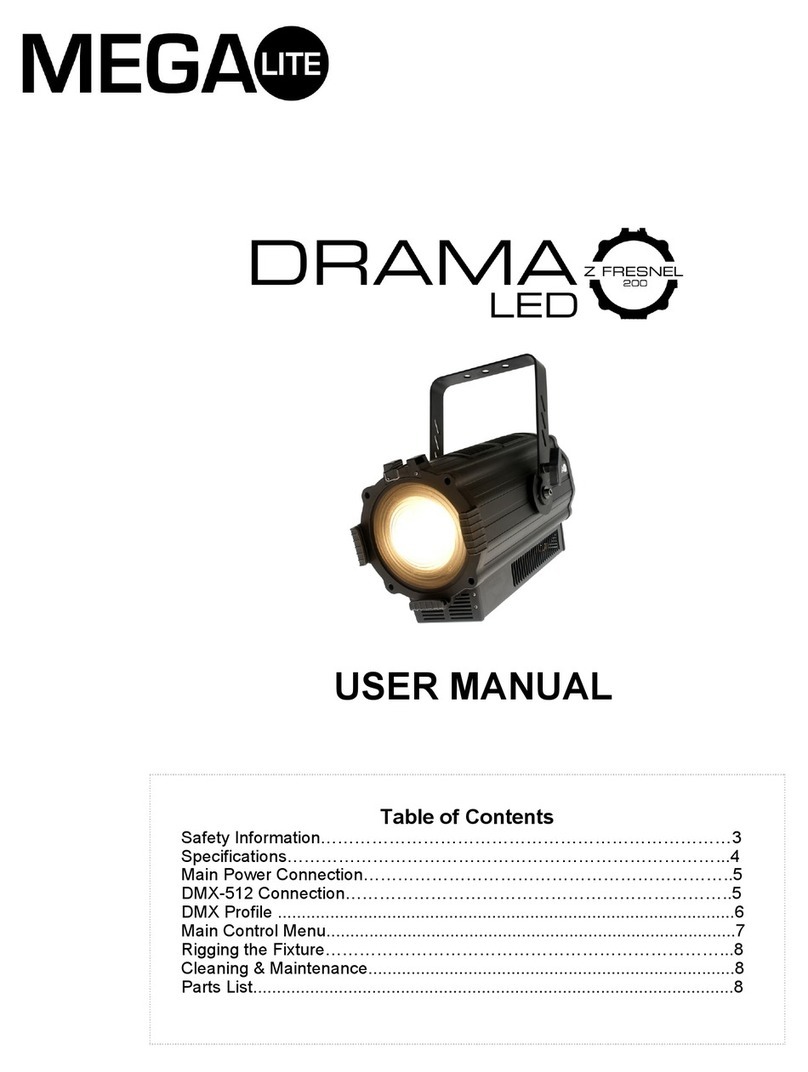

MegaLite drama z fresnel 200 user manual

MegaLite

MegaLite drama z fresnel 200 user manual

Bebe Sounds NL041 Easy to Use

Bebe Sounds

Bebe Sounds NL041 Easy to Use

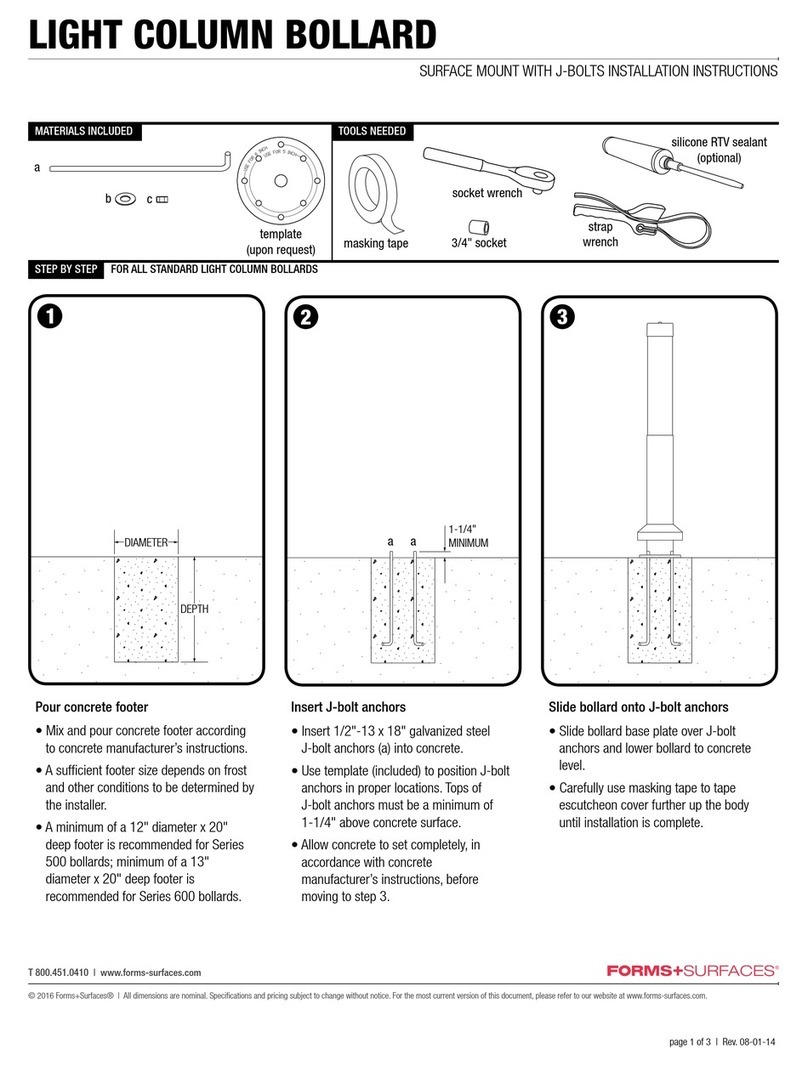

Forms + Surfaces LIGHT COLUMN BOLLARD installation instructions

Forms + Surfaces

Forms + Surfaces LIGHT COLUMN BOLLARD installation instructions

afx light 9BEAM-FX user manual

afx light

afx light 9BEAM-FX user manual

afx light 6CUBE-FX user manual

afx light

afx light 6CUBE-FX user manual

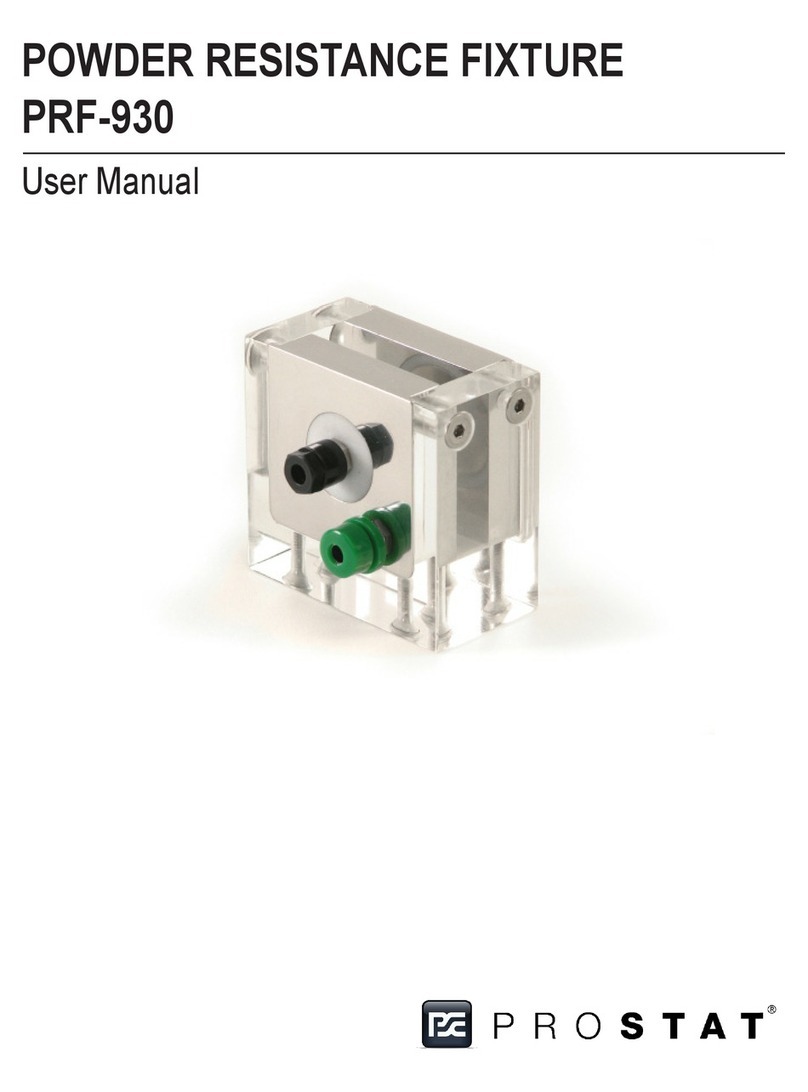

Prostat PRF-930 user manual
