RSI SMARTCANOPY User manual

FORD RANGER SINGLE CAB
FITMENT INSTRUCTIONS
FORD RANGER DOUBLE CAB
LIKE SHARE FOLLOW
FORD RANGER SUPER CAB
PLEASE ENSURE TO READ FITMENT INSTRUCTIONS CAREFULLY
BEFORE ATTEMPTING TO INSTALL.

1
BOLTS
Set Screw M8 x 30
DESCRIPTION QTY EXAMPLE
23
NUTS
M8 Nyloc Nut 8
WASHERS
M6 X 16 Flat Washers 2
M6 Spring Washer 2
M8 X 20 Fender Washers
M8 Spring Washer
28
12
FITMENT KIT CONTENT (HARDWARE)
RUBBER
5mm Foam Strip 1
4.5mm Rubber Pad (Front) 2
FITMENT KIT CONTENTS
Set Screw M6 x 20 2
4.5mm Rubber Pad (Rear) 2
M8 Stainless Steel Weld Nuts 8

2
BRACKETS
Front Mount Bracket Left
DESCRIPTION QTY EXAMPLE
1
FITMENT KIT CONTENT (COMPONENTS)
CATEGORY TOOLS EXAMPLE
TOOLS
Socket Wrench & Accessories
Flat Spanners
REQUIRED TOOLS
Torx Keys
NO. 10 Socket
NO. 13 Socket
Socket Wrench
NO. 10 FLAT
NO. 13 FLAT
FULL SET
FITMENT KIT CONTENTS & REQUIRED TOOLS
Front Mount Bracket Right
Rear Mount Bracket Left
Rear Mount Bracket Right
Front Load Spreader Plate
1
1
1
2
Torque Wrench FULL SET

3
FITMENT OF THE RSI SMARTCANOPY TO VEHICLE
PLEASE ADHERE TO BELOW TO PREVENT DAMAGE TO VEHICLE AND RSI SMARTCANOPY DURING FITMENT
WARNING
!
1. ONL Y USE THE RECOMMENDED TOOLS AS INDICATED IN THE FITMENT INSTRUCTION ABOVE
2. ONL Y USE THE HARDW ARE PROVIDED IN THE FITMENT KIT OUTLINED ON THE PAGE BEFORE
3. HANDLE ALL RSI SMARTCANOPY FITMENT COMPONENTS WITH CARE UPON UNPACKING.
4. IT IS RECOMMENDED THAT THE MINIMUM OF FOUR PEOPLE ARE USED TO LIFT THE RSI SMARTCANOPY.
5. NEVER USE ACETONE ON PAINTWORK
STEP
ONE
STEP
TWO
1. UNPACK ALL COMPONENTS & THE HARDWARE KIT FROM PACKAGING; ENSURE THAT EVERYTHING IS
ACCOUNTED FOR AS INDICATED ON PAGE BEFORE
2. WHEN UNPACKING COMPONENTS, PLEASE PLACE THEM ON A PROTECTED SURFACE (E.G. FOAM) TO
ENSURE THAT THE PAINT IS NOT DAMAGED OR SCRATCHED
1. REMOVE ANY CAB GUARD, ROLL BAR, TONNEAU COVER ETC.
2. REMOVE THE SPECIFIED TORX SCREWS.
3. APPLY 5MM FOAM STRIP ALONG TOP SURFACE OF FRONT LIP OF LOAD BIN
STEP
THREE

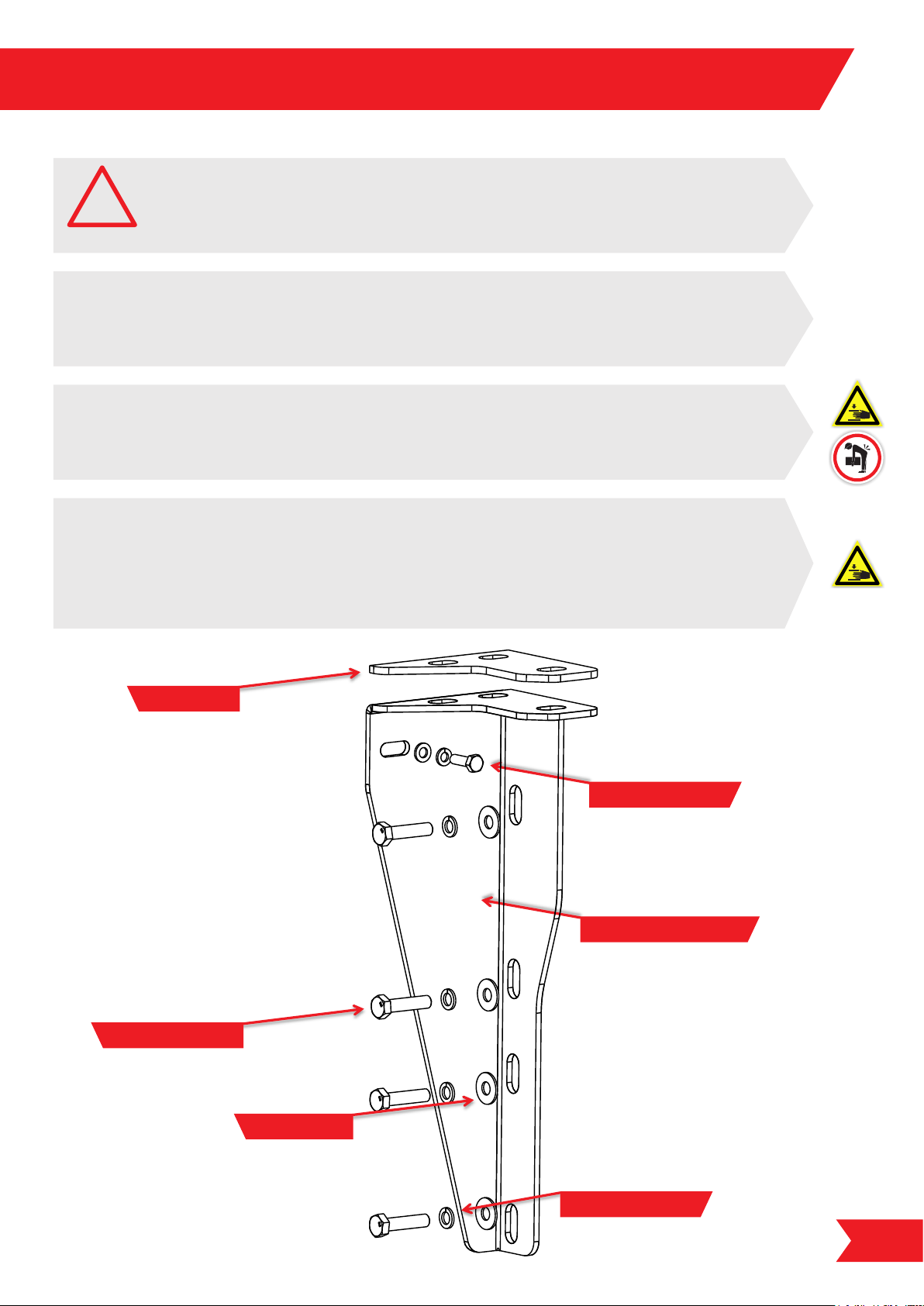

1. POSITION THE FRONT MOUNT BRACKET IN THE FRONT LEFT HAND CORNER OF THE LOAD BIN.
2. USE TWO M6 X 20 SET SCREWS WITH M6 SPRING WASHERS AND M6 X 16 FENDER WASHERS
TO LOOSELY SCREW THE BRACKET TO THE FRONT OF THE LOAD BIN.
3. USE FOUR M8 X 30 SET SCREWS WITH FOUR M8 SPRING WASHERS AND M8 X 25 FLAT WASHERS
TO FASTEN THE BRACKET TO THE SIDE OF THE LOAD BIN
4. ONCE THE BRACKET IS IN THE CORRECT POSITION, FASTEN ALL THE SET SCREWS TO 25NM.
5. REPEAT THIS PROCESS IN THE FRONT MOUNT BRACKET RIGHT HAND SIDE IN THE FRONT RIGHT HAND
CORNER OF THE LOAD BIN.
Mounting Pad
M6 X 20 Set Screws
Front Mount Bracket Left
M8 X 30 Set Screws
M8 Flat Washer
M8 Spring Washer

4
FITMENT OF THE RSI SMARTCANOPY TO VEHICLE
STEP
FIVE
1. PLACE THE FRONT MOUNTING RUBBER PAD ONTO THE FRONT MOUNT BRACKET LEFT HAND SIDE
& FRONT MOUNT BRACKET RIGHT HAND SIDE.
2. PLACE THE REAR MOUNTING RUBBER PAD ONTO THE REAR MOUNT BRACKET LEFT HAND SIDE
& REAR MOUNT BRACKET RIGHT HAND SIDE.
STEP
FOUR
1. POSITION THE REAR MOUNT BRACKET LEFT HAND IN THE REAR LEFT HAND CORNER OF THE LOAD BIN.
2. USE TWO M8 X 30 SET SCREWS WITH M8 SPRING WASHERS AND M8 X 20 FLAT WASHERS
TO LOOSELY SCREW THE BRACKET TO THE FRONT OF THE LOAD BIN.
4. ONCE THE BRACKET IS IN THE CORRECT POSITION, FASTEN ALL THE SET SCREWS TO 25NM.
5. REPEAT THIS PROCESS IN THE REAR MOUNT BRACKET RIGHT HAND SIDE IN THE REAR RIGHT HAND
CORNER OF THE LOAD BIN.
Mount Pad
STEP
SIX
1. PLACE THE CANOPY ONTO THE LOAD BIN.
2. MAKE SURE THE CANOPY IS IN ITS CORRECT POSITION BY LINING UP THE SLOTS ON THE CANOPY WITH
THE SLOTS ON THE MOUNTING BRACKETS.
3. PLEASE LIFT WITH CAUTION TO PREVENT POSSIBLE INJURY. IT IS RECOMMENDED THAT A MINIMUM OF
FOUR PEOPLE ARE USED TO LIFT THE CANOPY.
Rear Mount Bracket (Left)
M8 X 30 Set Screws
M8 X 20 Fender Washer
M8 Spring Washer

5
FITMENT OF THE RSI SMARTCANOPY TO VEHICLE
STEP
SEVEN
1. PLACE THE 2 LOAD SPREADER PLATES OVER THE 3 HOLES ON BOTH FRONT END BRACKETS AS
INDICATED BELOW.
2. USE SIX M8 X 30 SET SCREWS WITH TWELVE M8 FLAT WASHERS AND SIX M8 NYLOC NUTS TO LOOSELY
FASTEN THE RSI SMARTCANOPY TO THE FRONT MOUNT BRACKETS THROUGH THE LOAD SPREADER PLATES.
3. USE TWO M8 X 30 SET SCREWS WITH FOUR M8 FLAT WASHERS AND TWO M8 NYLOC NUTS TO LOOSELY
FASTEN THE RSI SMARTCANOPY TO THE REAR MOUNT BRACKETS.
4. ONCE ALL THE SET SCREWS ARE IN THEIR CORRECT POSITIONS, FASTEN TO 25NM.
Repeat process for the opposite side.
M8 Flat Washer
M8 Nyloc Nut
M8 Flat Washer
M8 X 30 Set Screws
M8 Flat Washer
M8 Nyloc Nut
Load Spreader Plate
M8 X 30 Set Screws
M8 Flat Washer

RSISMARTCANOPY SMARTCANOPY
DBN 031 700 5925 CPT 021 981 2301
JHB 011 974 0370
THANK YOU FOR PURCHASING A RSI SMARTCANOPY.
SHOULD YOU HAVE ANY ENQUIRIES ABOUT THE FITMENT, FEEL FREE TO CONTACT US
6
FITMENT OF THE RSI SMARTCANOPY
STEP
EIGHT
1. SLIDE M8 WELDNUTS INTO ROOF RAILS.
2. BOLT ROOF MOUNTED ACCESSORIES TO THE WELDNUTS CLAMPING THE ACCESSORIES DOWN.
ONLY REQUIRED WHEN FITTING ROOF MOUNTED ACCESSORIES
M8 WELD NUTS SLIDE INTO ROOF RAILS WHEN BOLTING ROOF MOUNTED ACCESSORIES.
