Rubarth Apparate RUMED 3001 Manual

Apparatus for Phone: ++49/511/824015
Scientific and ++49/511/824016
Industrial Research Fax: ++49/511/824017
e-mail: [email protected]
Rubarth Apparate GmbH
Mergenthalerstrasse 8, D-30880 Laatzen, Germany
OPERATING AND
MAINTENANCE INSTRUCTIONS
FOR
COOLED INCUBATORS
TYPE 3001 - 3601
Version E/30-36/01-97

-3-
E/30-36/01-97
Table of Contents
Page
1 General View 4
2 General 5
3 Transportation and Storage 5
4 Installation 5
5 Power Supply 6
6 Operation 6
7 Temperature Control 8
7.1 Temperature Controller 8
7.2 Setpoint Control 8
7.3 Programme Control 8
7.4 Programmable Timer for Alternating Temperatures 9
7.5 Example for a Dual Setponit Daily Programme 12
7.6 Example for a Dual Setpoint Weekly Programme 14
8 Temperature Protection 18
8.1 Specimen Protection 18
8.2 Unit Protection 19
9 Lighting 20
10 Adjustment of lighting intensity 21
11 Humidification 22
11.1 Evaporative Humidification 22
11.2 Ultrasonic Humidification 23
11.3 Dehumidification 26
12 Service and Maintenance 27
Concerning the basic unit, please refer to the extra-bold printed chapters.
All further chapters are belonging to options.
Deutsch Diese Bedienungsanleitung ist erhältlich in Deutsch. Version D/30-36/01-97
Français Ce mode d'emploi est disponible en Français. Sur demande!

-4-
E/30-36/01-97
ON
dhm
Prog.
1 2 3 4 5 6 7
% rel.F.
C
o
W2
Gruppe I
Light-Intensity
Helligkeitssteuerung
Befeuchtung Entfeuchtung Temperaturwählbegrenzer Kühlung
Cooling
Umluft
Air-circulation
Heizung
Heating
Steckdose
Plug socket
Luftumwälzung
Temperature Unit cut-out
Aircirculation
DehumidificationHumidification
Hand/Auto Gruppe II
Zeitschaltuhr Beleuchtung
Timer Light
Group I Group II Manual/Auto
40
45
11
12
13
14
15
16
17
18
19
20
21
22
23
0
10
9
8
7
6
5
20
10
0
10
20
3040
50
60
C
-
+
Rubarth Apparate GmbH
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
1
2
3
Lighting
(Chapter 9) Specimen Protection (Chapter 8.1) Temperature Control (Chapter 7)
Control of Lighting
Intensity (Chapter 10) Humidification and Dehumidification (Chapter 11) Adjustable Air Circulation (Chapter 6) Safety cut-out (4 Amps) for test room socket (Chapter 6)
Programmable Timer
(Chapter 7.4)
Vor Reparaturen am Apparat diesen vom Stromnetz trennen
Prior to repairs disconnect unit from mains
Made in Europe
Typ
Type
Refrigerant
Kältemittel
Nr.
Zul. Betriebsüberdruck
Admissible working
overpressure
No.
Filling Weight
Füllgewicht
Volt
kg
kW A
bar
Hz
Model
Baujahr
Rubarth Apparate GmbH
Mergenthalerstraße 8, D-30880 Laatzen, Germany
12
1 General View

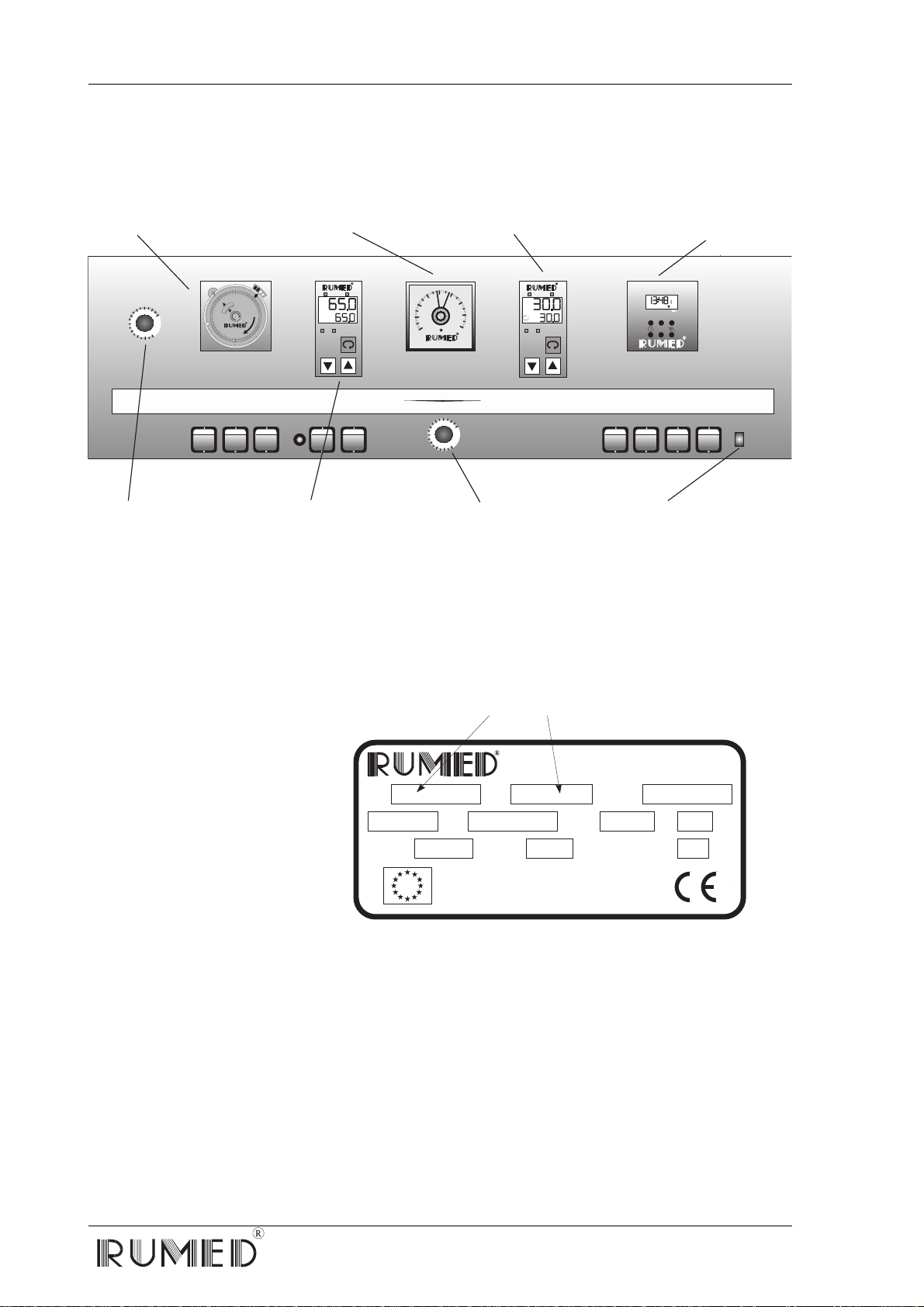

Control Panel
Nameplate
The nameplate is located in the
upper left edge of the door
frame. In case of failures or for
spare-part orders, please indi-
cate the unit type (1) and the
serial no. (2).

-5-
E/30-36/01-97
2 General
RUMED cooled incubators are producing ideal thermal conditions for quality control and research in science
and industry. Experiences of almost 50 years stand for a maintenance-free construction and result in longevity.
Cooled incubators are fabricated for two different temperature ranges and three unit sizes each can be chosen
from. The options alternating temperature control and programme control, lighting and humidification increase
the unit's universal applicability. Depending on equipment, the units are applicated in zoology, botany,
microbiology, bacteriology, medicine as well as in the artificial aging and testing of electric and electronic
components.
3 Transportation and Storage
The standard domestic shipment of the unit will be effected unpacked in a van. The unit should be
transported carefully in standing position. In case a short-time tilting of the unit should be unavoida-
ble, for reasons of f. ex. passing doors, it might be possible that oil of the cooling machine will enter
into the evaporator. This oil must flow back to the cooling machine. For this reason take care that
after transportations the unit should not be started before expiration of 4 hours. The unit is recommen-
ded to be stored in dry rooms at temperatures between +10°C and +30°C. The shipment within
European countries is mostly effected in stable cartons on a palette. Seaworthy and air-freight cases
are generally conserved for 12 months and the units are welded in an aluminium wrapping. Conden-
sation due to passing of different climatic zones is avoided by drying agent bags which are to be
removed prior to initial starting of the machine.
4 Installation
Model Volume
[l]
Exterior Dimensions [mm] Maximum load per
Insertion Grid (kg)
Height Width Depth
3001 180 1440 (1540)* 610 640 40
3101 250 1810 (1910)* 610 640 40
3201 390 1725 (1825)* 760 750 50
3301 200 1120 760 850 (1020)** 25
3401 320 1600 (1700)* 760 850 (1020)** 25
3501 530 2100 (2050)* 730 800 (970)** 25
3601 1060 2100 (2050)* 1470 800 (970)** 25
* changed height with option movable design
** changed depth with option ultrasonic humidification

-6-
E/30-36/01-97
22
17
Foot adjustment
to the bottom
Foot adjustment
to the top
block
break release break
• Installation places being exposed to direct sunlight, radiators and other thermal sources are to be avoided.
Insufficiently ventilated rooms and room temperatures exceeding +25°C are also unsuitable.
• The distance between the wall and the backside of the unit should be at least 10 cm. Do not cover the
ventilation slots; even a partial covering of the slots may lead to a heat accumulation.
Uncovered ventilation slots are very important for a faultless operation of the cooling machine!
• The floor of the installation place should be even and horizontal. Slight unevennesses can be balanced by
the adjustable foots of the unit.
• Units being equiped with the option "Ultrasonic Humidification" must be installed in such a way, that the test
room bottom is in level position to ensure a correct drain of water.
Model Type of foots Tool
3001/3101/3201 2 adjustable foots
on the front
fork wrench SW22
(width: 22mm)
3301/3401 4 adjustable foots fork wrench SW17
(width: 17mm)
3501 4 adjustable foots turn foot by hand
Option movable
design
not adjustable

-7-
E/30-36/01-97
The unit is not explosionproof!
Do not store explosive or easily inflammable substances in the test room!
5 Power Supply
• Current (A.C.) and voltage at the installation place must coincide with the indications on the name-plate of
the unit. The name-plate can be found at the upper part in the door frame on the left side.
• Connection is to be made to a duly earthed socket (a separately secured socket is recommended).
A multitude of units are equiped with combined universal plugs according to the German or French
standard.
6 Operation
It is recommended to clean the interior of the unit before starting. Refer to the details described in "Defrosting"
and "Cleaning" (chapter 12).
Open the door widely for removal of the insertion grids. The grids must be charged in such a way that a
circulation of the air will not be hindered.
The white rocker switch "Circulating Air" starts the fan and the unit at the same time. Cooling machine and
heating are locked by means of this switch and will be only started when the fan is in operation. On operation
of the fan the white pilot lamp is lighting.
In case the fan is fitted with a potentiometer, the air quantity can be reduced by turning the control knob to the
left.
The red rocker switch "Heating" and the blue rocker switch "Cooling" are to be switched-on.
The refrigerating machine will only start when cooling capacity is requested. On demand of cooling, the
temperature controller switches to the cooling circuit by means of a solenoid valve, and when there is no
request for cooling, it switches to the bypass-circuit. Should the period where no cooling is requested
exceed 3 minutes, the refrigerating machine will be switched-off. The blue pilot lamp will only light-up on request
of cooling capacity (cooling circuit is switched-on), the pilot lamp "heating" will only light-up on request of
heating capacity.
The test room socket (option) is switched-on by means of the yellow rocker switch ("plug socket") and the pilot
lamp is lighting. The test room socket can be charged by max. 4 Amps. In case of an overload or a failure of the
connected unit, the safety cut-out being located next to the switch on the right side will be released. Upon
repair of the failure, the pin of the safety cut-out shall be pressed down again.

-8-
E/30-36/01-97
C
o
W2
Heating ON Cooling ON
Setpoint
Increase Value
Selector Key
Actual Value
Decrease Value
Programme Runs
(if W2 is lighting)
7 Temperature Control
7.1 Temperature Controller
Functioning
The digital temperature controller
can be used as constant value
controller or, with optional acces-
sories, as programme controller.
Temperature sensor is a Pt 100
resistance thermometer, class A.
Further technical details can be
drawn from the PHILIPS Operating
Instructions No. 9499 040 21601.
7.2 Setpoint Control
The temperature controller keeps the test room temperature constant on an adjusted value. Actual value and
setpoint are displayed simultaneously on two different digital displays being located upon another. The upper
digits indicate the actual value, the lower digits the setpoint. The setpoint value can be decreased or increased
by pressing the keys and .
7.3 Programme Control
The option dual setpoint daily programme is achieved by configuration of the temperature controller as
programme controller. This option offers the possibility of a change between two temperatures with
programmable values for the temperature variation speed (ramps). The programme can be started at any
desired moment by the switching command (1 ON) of the timer. The switching command (1 OFF) terminates the
programme. The moment for the switching command OFF results from the running time of the programme.
During the programme cycle "W2" is displayed.
The timer can be operated in the switching modes "Auto", "Permanent ON" and "Permanent OFF". For
programme control, the timer must be switched to position "Auto". For a commutation to setpoint control, the
timer must be switched to "Permanent OFF". The controller will then be operated as setpoint controller and all the
programmed parameters will be kept in the controller as well as in the timer.
As soon as the timer is commutated again to "Auto", the programme control is reactivated (See chapter 7.4
"Programme Timer for Alternating Temperature" -> "Change of Switching Status").

-9-
E/30-36/01-97
ON
dhm
Prog.
Time/Response time
Weekday (7=Sunday)
Hours setting
Weekday setting
Time setting
Program entry/recall
Response time number of
the weekday indicated
(1 ON, 1 OFF, 2 ON usw.)
The point indicates
permanent Control
ON or OFF
Indication of actual
switch position/
switching command
Minutes setting
Override control and
permanent control
1234567
7.4 Programmable Timer for Alternating Temperatures
General
The digital timer can be operated in the operating modes "daily programme" and "weekly programme". It is
recommended to programme the daily reiterating day-/night temperature change in the operating mode "daily
programme". (The small triangle in the display must aim to 1->7; if not, the "weekly programme" of the timer is
activated. Change of the operating mode is effected by a reset of the timer.
Reset of the Timer and Selection of the Mode "Daily Programme"
Please observe the following four steps exactly for starting the timer in the daily programme mode.
+++
d
m
ON
OFFOF
F
1234567

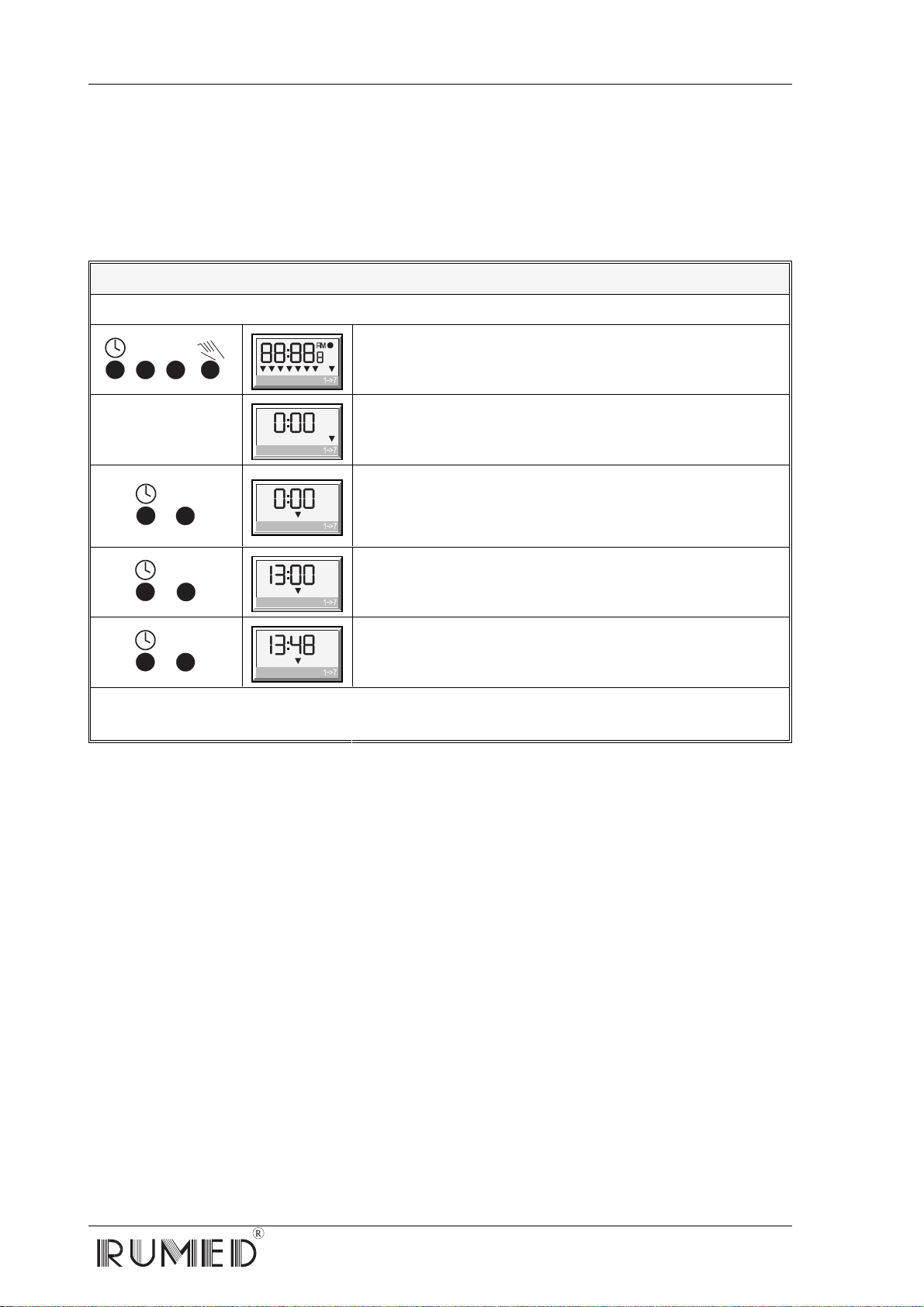

Press the four keys simultaneoulsy to reset the timer (can be read
at the display)
- none -
OFFOF
F
1234567
Let the keys loose, and the display test will be finished
+
h
OFFOF
F
1234567
Press and hold the key with the clock sign and set the actual
hour by means of the key h.
(our example: 13)
+
m
OFFOF
F
1234567
Press and hold the key with the clock sign and set the actual
minutes by means of the key m.
(our example: 48)
After having entered the actual time, let the key with the clock sign loose and the timer will run.
Change-over from Summer- to Winter Time
+
d
h
press keys simultaneoulsy, and time is put on by an hour (summer time)
+
d
m
press keys simultaneously, and time is put back by an hour (winter time)

-10-
E/30-36/01-97
Change of the Switching Status
OFFOF
F
1234567
Clock indicates the actual time
(f. ex. 13.48 h) Switching status is "Automatic OFF"
+
m
ON
1234567
Press and hold key m and press key Hand once. The switching
status will change-over to "PERMANENT ON"
(display indicates a point above ON)
OFFOF
F
1234567
Press and hold key m and press key Hand once. The switching
status will change-over to "PERMANENT OFF"
(display indicates a point above OFF)
OFFOF
F
1234567
Press and hold key m and press key Hand once. The switching
status will again change-over to "AUTOMATIC" (point disappears)
Daily Programme
When the mode "daily programme" is activated, maximum 6 ON- and 6 OFF-commands can be
programmed. However, for one programme cycle only 1 ON- and 1 OFF-command is required. The
command ON starts the programme, the command OFF terminates the programme. At the same time,
a programme reset is effected in the temperature controller, which is the only possibility for a further
programme start.
Correspondingly, the time delay between an OFF-command and the next ON-command must be at
least 1 minute, otherwise the programme reset cannot be effected and the programme controller will
not change to the next programme cycle (i. e. in the operating mode "daily programme" it is possible to
run a four-hour programme cycle six times per day maximum).
The following table shows the programming of the response times for our dual setpoint programme
example.
Programming On- and Off-Commands (Operating Mode "Daily Programme")
OFFOF
F
1234567
Clock indicates the actual time
(f. ex. 13.48 h)
Prog.
ON
1234567
Press once, to call the programming mode
(Here: f. ex. not yet programmed)
or
h
m
ON
1234567
Enter time for the command 1 ON by means of the keys h
and m(Here: f. ex. 6.00 h)
Prog.
OFFOF
F
1234567
Press once, to call the command 1-OFF
(Here: f. ex. not yet programmed)
or
h
m
OFFOF
F
1234567
Enter time for the command 1 OFF by means of the keys h
and m(Here: f. ex. 21.00 h)
Prog.
There are no further switching commands required for our example
programme! If requested, all other switching commands can be called
successively on pressing the key Prog.
(2 OFF, 3 ON, 3 OFF, 4 ON, 4 OFF, 5 ON, 5 OFF, 6 ON, 6 OFF ☛after 6 OFF, 1 ON 1 OFF etc. will be repeated)
OFFOF
F
1234567
Press once, to terminate the programming mode and to
return to the normal display (If there will be no entry within 30 sec., the
display will automatically return to actual time).
