Rubine FORTE Series User manual

FORTE SERIES (F191D / F192A /F190N)
USER MANUAL / PANDUAN PENGGUNA
MODEL / MODEL
WATER HEATER / PEMANAS AIR
Engery Saving
Inverter DC Silent Pump
Penjimatan Tenaga
Pam Senyap Inverter DC
LOW NOISE AC PUMP
INVERTER TECHNOLOGY
TEKNOLOGI INVERTER PAM AC
OPERASI SENYAP

2
Please read this manual thoroughly and understand the content before use.
Sila baca panduan ini dengan teliti dan memahami isi kandungannya sebelum penggunaan.
SAFETY PRECAUTION
LANGKAH–LANGKAH KESELAMATAN
1. Do not install reverse INLET & OUTLET and Stop Valve of heater.
Jangan memasang “INLET & OUTLET” dan Injap Hentian pemanas dalam keadaan
songsang.
2. Do not install the heater where there is consistent spray directly over the unit.
Jangan memasang pemanas air dimana terdapat semburan konsisten terus ke atas unit.
3. Do not connect the OUTLET to any tap or fitting that is not recommended
by the manufacturer.
Jangan sambungkan “OUTLET” pada mana-mana paip atau pemasangan yang tidak
disyorkan oleh pengeluar.
4. Do not block the heater OUTLET in any way.
Jangan menghalang “OUTLET” pemanas dalam apa jua cara.
5. Do not attempt to repair the heater without qualified technician.
Jangan cuba untuk membaiki pemanas tanpa juruteknik yang berkelayakan.
6. This appliance is not intended for use by person (including children) with reduced
physical, sensory or mental capablities, or lack of experience and knowledge, unless
they have been supervision or instuction concerning use of the appliance by a person
responsible for their safety.
Perkakas ini tidak digalakkan untuk digunakan oleh orang (termasuk kanak-kanak)
kurang upaya darisegi fizikal, deria atau mental, atau kurang berpengalaman atau
pengetahuan, kecuali mereka diawasi atau diberi arahan mengenai penggunaan
perkakas ini oleh orang yang bertanggungjawab keatas keselamatan mereka.
7. Children should be supervised to ensure that they do not play with the appliance.
Kanak-kanak hendaklah diselia untuk memastikan mereka tidak bermain dengan
perkakas ini.

3
8. Engage qualified electrician for installation.
Gunakan juruelektrik yang berkelayakan untuk pemasangan.
9. Test water temperature with hand before using the shower.
Uji suhu air dengan menggunakan tangan sebelum menggunakan pemanas air .
10. Check the ELCB once a month (please refer to the Test Run of Heater) and consult
professional for repair if there is any malfunction.
Pastikan ELCB diperiksa setiap bulan (sila rujuk Pengujian Pemanas) dan hubungi
juruteknik untuk sebarang pembaikian.
11. Metallic / chrome flexible hose and conductive control valve shall not be used.
Saluran getah logam / krom dan injap kawalan konduktif tidak boleh digunakan.
12. Do not leave the hand shower idle in the pail. (refer below)
Jangan meninggalkan alat pancuran terbiar di dalam baldi. (rujuk dibawah)
RESETTEST
–+
–+

INTERNAL PARTS IDENTIFICATION
PENGENALAN BAHAGIAN DALAMAN
4
1. WATER HEATER PARTS IDENTIFICATION
PENGENALAN BAHAGIAN – BAHAGIAN PEMANAS AIR
EXTERNAL PARTS IDENTIFICATION
PENGENALAN BAHAGIAN LUARAN
Heater LED (Red)
LED Pemanas (Merah)
Power LED (Green)
LED Kuasa (Hijau)
Stop Valve (INLET)
Injap Hentian (INLET)
ELCB Reset Button
Butang Reset ELCB
ELCB Test Button
Tombol Uji ELCB
Temperature Control Knob
Tombol Pengawal Suhu
ABS Front Cover
Penutup Hadapan ABS
Inverter Pump Control Knob
(for Inverter Silent DC Pump Model &
Inverter AC Pump Model only)
Tombol Pengawal Pam
(untuk model Pam Senyap Inverter DC &
model Pam Inverter AC sahaja)
ABS Heater Base
Tapak Pemanas ABS
ELCB Control Board
Papan Kawalan ELCB
LED Display Board
Papan Paparan LED
Thermal Cut Out
Pemotongan Haba
Heater Tank
Tangki Pemanas
Water OUTLET Connection
Penyambungan Air“OUTLET”
Water INLET Connection
Penyambungan Air“INLET”
Test & Reset PCB
PCB“Test & Reset”
Triac
Triac
Flow Sensor Assembly
Pemasangan Sensor Aliran
Heater Control Unit
Unit Kawalan Suhu
Terminal Block
Blok Terminal Cable Entry
Kemasukan Kabel
Inverter Pump Control Board
Papan Kawalan Inverter Pam
LN
Brown
Blue
Green
Electriacal cable (Recommended
conductor size: 4.0mm2not included)
Kabel elektrik(saiz konduktor yang
disyorkan 4.0mm2tidak termasuk)
Inverter Pump
(for Inverter Silent DC Pump Model &
Inverter AC Pump Model only)
Pam Inverter
(untuk model Pam Senyap Inverter DC &
model Pam Inverter AC sahaja)
RESETTEST
–+
–+

5
2. CHROME ACCESSORIES
AKSESORI KROM
SHOWER SET ACCESSORIES IDENTIFICATION
PENGENALAN AKSESORI PANCURAN
1. WHITE / BLACK ACCESSORIES
AKSESORI PUTIH/ HITAM
150mm Fleible Hose
Hos fleksibel 150mm
Wall Bracket
Pendakap dinding
Shower Holder
Pemegang alat pancuran
Hand Shower
Alat pancuran
Wall Bracket
Pendakap dinding
Sliding Rail
Bar mandian

6

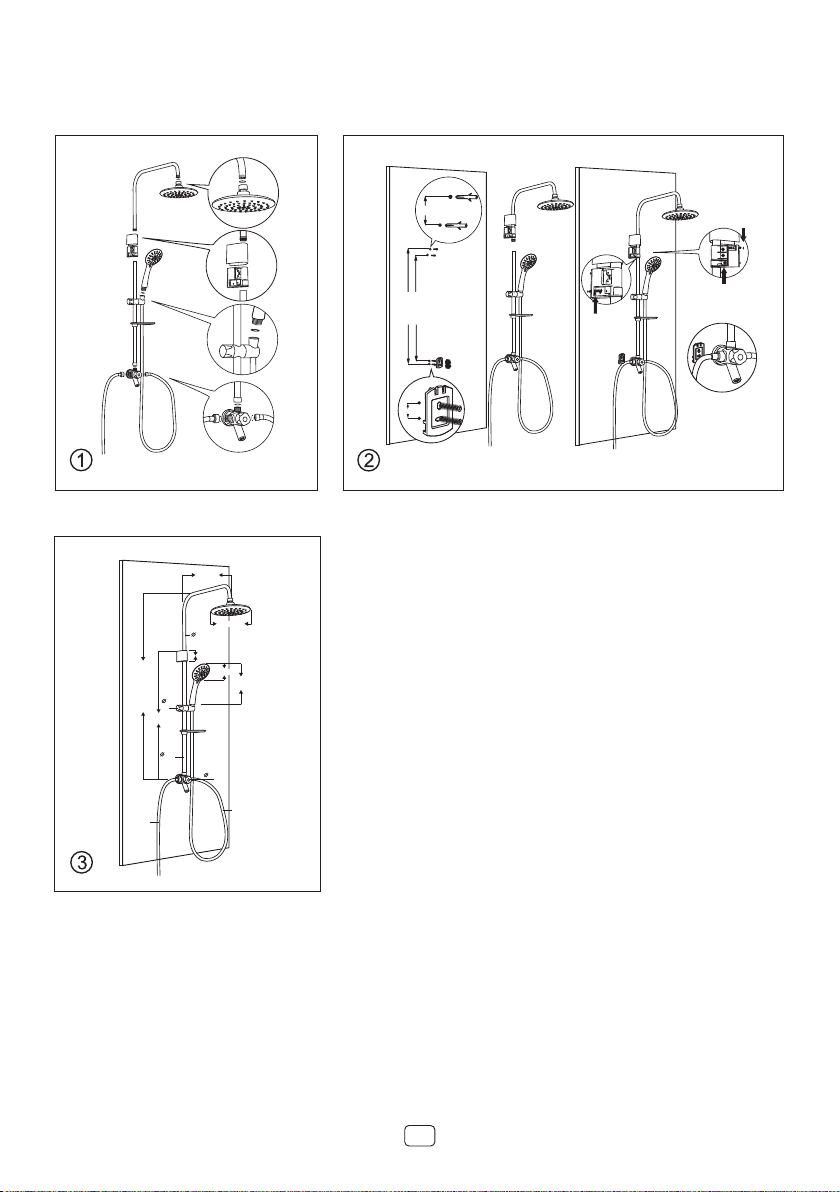

3. RAIN SHOWER SET (Optional Features)
SET PANCURAN MANDIAN HUJAN (Ciri-ciri pilihan)
680mm
630mm
35mm
15mm
Screw right
Screw left
Tighten all three screws
after adjusting the rail bar
750~970mm
600mm
400mm
200mm
17mm
55mm
105mm
247mm
30mm
19mm
40mm
1500mm
750mm

7
2. GENERAL INFORMATION
MAKLUMAT UMUM
CAUTION:
AWAS:
THIS APPLIANCE MUST BE EARTHED
PERKAKAS INI MESTI DIBUMIKAN
INSTALLATION
PEMASANGAN
1. All the plumbing work should be completed before proceeding to electrical wiring
connection. (Table 1)
Semua pemasangan paip perlu diselesaikan sebelum memulakan kerja-kerja penyambungan
wayar elektrik. (Jadual 1)
2. Installation must be carried out by qualified electrician with close reference to this manual
and in compliance with the local regulations.
Pemasangan mestilah dilakukan oleh juruteknik yang berkelayakan dengan merujuk pada
panduan ini dan mengikut akta-akta tempatan.
3. The unit works at minimum water flow rate of 2 litre/min, which then would trigger the
built-in pump (only for pump model), boostering a stronger shower spray.
Unit ini berfungsi pada kadar aliran air minima 2 liter/min, yang mengaktifkan pam dan kemudi-
annya meningkat pancuran semburan.
4. The built-in electronic Earth Leakage Circuit Breaker (ELCB) would cut-off the power supply to
heater in the event of current leakage of as low as 15mA.
“Earth Leakage Circuit Breaker (ELCB)” akan memutuskan bekalan kuasa sekiranya berlaku
kebocoran tenaga serendah 15mA.
5. The Thermal Cut-Off would automatically shut off the power supply shall there is any
abnormal rise of showering temperature.
Pemotongan haba berfungsi secara automatik akan memutuskan bekalan kuasa jika terdapat
kenaikan suhu secara tidak normal.
6. The unit only operates when there is sufficient water flow to trigger the flow switch.
Unit hanya akan beroperasi apabila terdapat aliran air yang cukup untuk mengaktifkan suis
aliran.

8
1. INLET and OUTLET connection of the heater unit should not be
reversed, with stop valve installed on INLET. (Diagram 1)
Sambungan unit pemanas “INLET” dan “OUTLET” tidak boleh
songsang dan injap hentian mestilah di pasang pada “INLET”.
2. It is recommended that the unit should be mounted above
1.5m above the floor to bottom of the heater. (Diagram 1)
Pemasangan unit digalakkan mempunyai jarak 1.5m antara
lantai dengan bahagian bawah pemanas. (Rajah 1)
2
3. INSTALLATION PROCEDURES
TATACARA PEMASANGAN
8. Instantaneous water heater shall be equipped with a 2-pole control switch and own residual
current device.
Pemanas air segera hendaklah dilengkapi dengan kawalan suis 2-kutub dan memiliki peranti arus
berbaki.
9. Water heaters exceeding 3kW shall be permanently connected to a 20A/30A rated circuit
breaker/fuse with an isolator switch and residual current device.
Pemanas air yang melebihi 3kW hendaklah disambung secara tetap pada 20A/30A nilai arus
pemutus litar/fius dengan suis pengasing dan peranti arus berbaki.
Diagram 1
Rajah 1
7. Electrical loading Table 1:
Pendawaian elektrik Jadual 1:
Floor/ Lantai
OUTLET
INLET
stop valve
injap hentian
RESETTEST
–+
–+

3. Mounting position
Penetapan tapak pemanas
• Remove screw at the bottom of the heater
Keluarkan skru dari bawah pemanas
• Lift the plastic cover upward (Refer Diagram 2)
Buka penutup plastik pemanas dari bahagian
bawah. (Rujuk Rajah 2)
• Mark mounting position on the wall for all 4 screws
Tandakan posisi semua 4 skru pada dinding
• Drill the holes with 5.0mm diameter drill bit
(Refer Diagram 3)
Gerudi lubang dengan meggunakan bit gerudi
berdiameter 5.0mm (Rujuk Rajah 3)
• Install the unit to the wall with plug
Pasang unit pada dinding bersama plug
4. Installation of Heater INLET and OUTLET
connection. (Diagram 4)
Pemasangan “INLET” dan “OUTLET”
pemanas. (Rajah 4)
WARNING !
To prevent vibration,
all 4 screw must
be tightened fully.
Untuk mengelakkan
getaran,semua 4 skru
hendaklah diketatkan
sepenuhnya.
Diagram 2
Rajah 2
12
34
Diagram 3
Rajah 3
Lift upward
Buka ke atas
Inlet
Diagram 4
Rajah 4
Correct installation
Pemasangan yang betul
Connect flexible hose
to heater OUTLET.
Pasangkan hos fleksibel pada
bahagian“OUTLET”.
Stop Valve
injap hentian
Connect the stop valve
to INLET
Pasangkan injap hentian
pada bahagian “INLET”
Incoming water
Air masuk
RESETTEST
–+
–+
RESETTEST
–+
–+
inlet - outlet reverse
(wrong installation)
inlet - outlet songsang
(pemasangan yang salah)
stop valve reverse
(wrong installation)
inlet - outlet songsang
(pemasangan yang salah)
stop
valve
Inlet
Outlet
stop
valve
Inlet Outlet
Outlet
9
RESETTEST
–+
–+

10

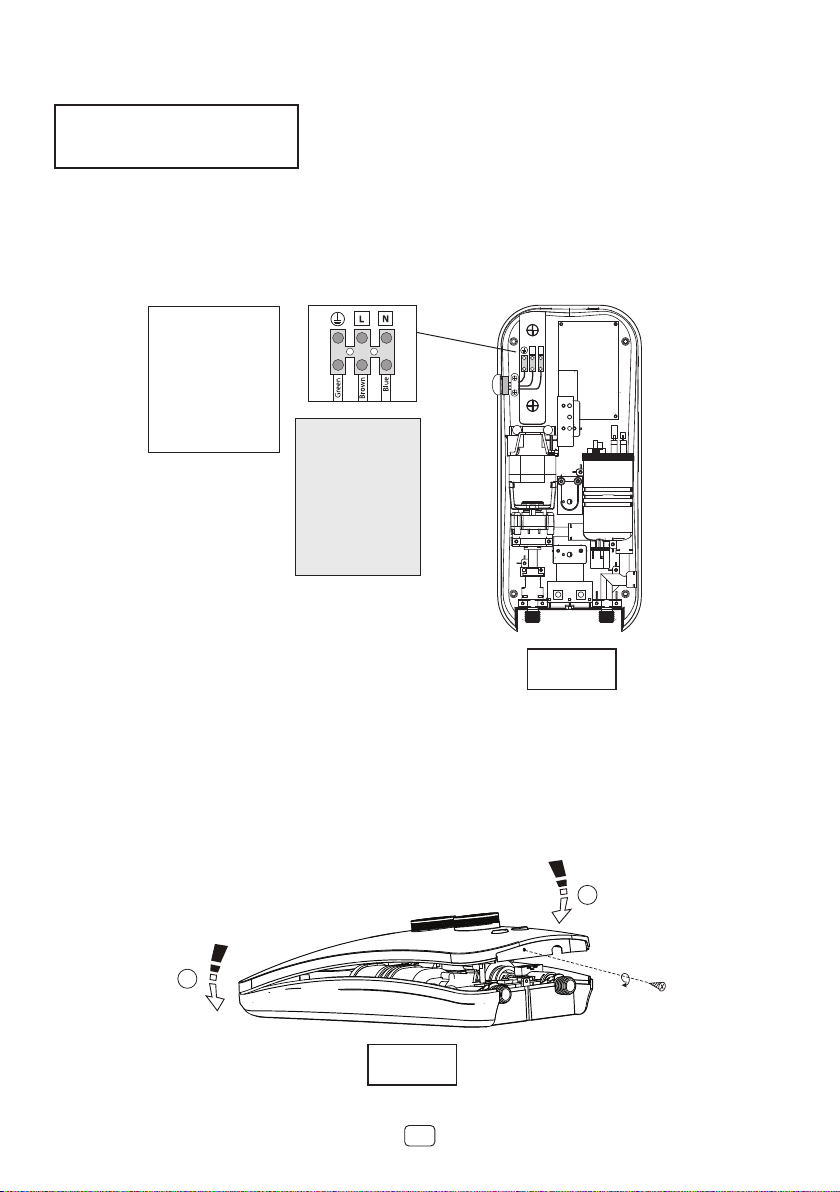

5. Electrical Connection
Penyambungan elektrik
a) Insert electrical cable through the rubber grommet as (Diagram 5).
Masukkan kabel elektrik melalui grommet getah seperti yang ditunjukkan pada (Rajah 5).
b) Connect the cable to the terminal block and fully tighten as below :
Sambungkan kabel ke blok terminal dan ketatkan sepenuhnya seperti berikut:
c) Restore the cover. (Diagram 6)
Pasangkan penutup pemanas. (Rajah 6)
To install cover:
Pemasangan penutup:
1) Place top part into position & fit in nicely.
Posisikan penutup & ketatkan bahagian atas dahulu.
2) Press firmly the bottom part until “click” to secure the cover.
Tekan bahagian bawah penutup sehingga bunyi “klik”.
3) Install screw at bottom to lock in position.
Selepas penutup dipasang dengan ketat,
pasangkan skru di bahagian bawah.
SWITCH OFF THE MAIN SUPPLY BEFORE ELECTRICAL WORK
PADAMKAN SUIS UTAMA SEBELUM MELAKUKAN KERJA-KERJA
PENDAWAIAN ELEKTRIK
IMPORTANT NOTE !
NOTA PENTING !
Diagram 5
Rajah 5
Electrical cable
(Recommended
conductor size
4.0mm2 )
Kable elektrik
(saiz konduktor
yang disyorkan
4.0mm2 )
Ensure all wiring
connection is
completely
TIGHTEN!
Pastikan semua
penyambungan
wayar telah
diketatkan!
Diagram 6
Rajah 6
LN
Brown
Blue
Green
2
1

11
Stop Valve knob
position during off
Posisi injap hentian
ketika dipadamkan
Turn on stop valve (anti - clockwise).
Hidupkan injap hentian (arah lawan jam).
1
Make sure water flow starts after stop valve
had been turned on.
Pastikan pancuran air bermula selepas injap hentian
dihidupkan.
2
Switch on the main power supply the yellow “EARTH LINE
INDICATOR” LED and green “POWER” LED would light up.
Refer below “EARTH LINE INDICATION” for more detail.
Hidupkan bekalan kuasa utama ,”EARTH LINE INDICATOR” LED
kuning dan “POWER” LED hijau akan bernyala. Sila rujuk kepada
“EARTH LINE INDICATION” untuk maklumat lanjuk.
3
Temperature
control knob
during off
Posisi tombol
pengawal suhu
ketika dipadamkan
Turn on temperature control knob and red “HEATER” LED
would light up.
Pusing tombol pengawal suhu dan “HEATER” LED merah
akan bernyala.
4
4. OPERATION PROCEDURES / TEST RUN OF HEATER
TATACARA OPERASI / PENGUJIAN PEMANAS
OFF
ON • • MAX
Always
On
EARTH LINE
POWER
HEATER
INDICATOR
Heater functions well but“EARTH LINE
INDICATOR”LED continuously blinking.
Unit pemanas berfungsi tetapi “EARTH LINE
INDICATOR” LED berkelip berterusan.
WARING!
Could be Earth wire connection errorl !
Contact professional technician
immediately.
Wayar Bumi berkemungkinan bermasalah!
Hubungi jurulelnik segara.
Always
On
EARTH LINE
POWER
HEATER
INDICATOR
GOOD AND SAFE
LED LIGHT
FAILED
LED LIGHT
BLINKING
EARTH LINE INDICATION
PETUNJUK PENGGERA “EARTH LINE INDICATION”
RESETTEST
–+
–+
RESETTEST
–+
–+

TEST RESET
TEST RESET
“TEST” button
Butang “TEST”
“RESET” button
Butang “RESET”
–+
–+
12
Press reset button to resume power connection.
Tekan butang “RESET” untuk penyambungan
kuasa semula.
6
The heater is now ready for use.
mperature will be increased accordingly as
e knob being turned clockwise from “–” to “+”.
Pemanas kini sedia digunakan.
Suhu air akan meningkat sewajarnya apabila tombol
dipusing mengikut arah jam dari “–” ke “+”.
7
Turn the pressure control knob “ Inverter Silent Pump”/
“Booster Pump” (only for pump model) clockwise from
“–” to “+” for boostering a stronger shower spray.
Pusing tombol kawalan tekanan” Inverter Silent Pump”/
“Booster Pump” mengikut arah jam dari “–” to “+” untuk
meningkat pacuran semburan.
8
Test the ELCB by pressing “TEST” button.
The unit should be tripped. “POWER” LED light and
“HEATER” LED light would turn off.
Uji ELCB dengan menekan butang “TEST”.
Unit akan diputuskan bekalan kuasa. “POWER” dan
“HEATER” LED akan terpadam.
5
–+
–+
–+
–+
RESETTEST
–+
–+
RESETTEST
–+
–+
RESETTEST
–+
–+
RESETTEST
–+
–+

RESETTEST
–+
–+
13
Knob position
during off
–+
Switch off the heater and main power supply
when not in use.
Padamkan suis pemanas dan bekalan kuasa
apabila tidak menggunakannya.
9
5. GENERAL MAINTENANCE
PENYELENGGARAN AM
damp cloth
Kain lembap
CLEAN FILTER
MESH REGULARLY
ALAT PENAPIS MESTI
KERAP DIBERSIHKAN
stop valve
injap hentian Filter Mesh
Alat penapis
Agen
penghakis
&
alkohol
Agen
penghakis
&
alkohol
RESETTEST
–+
–+

14
6. TECHNICAL SPECIFICATIONS
SPESIFIKASI TEKNIKAL
7. SCHEMATIC WIRING DIAGRAM
RAJAH PENDAWAIAN SKEMATIK

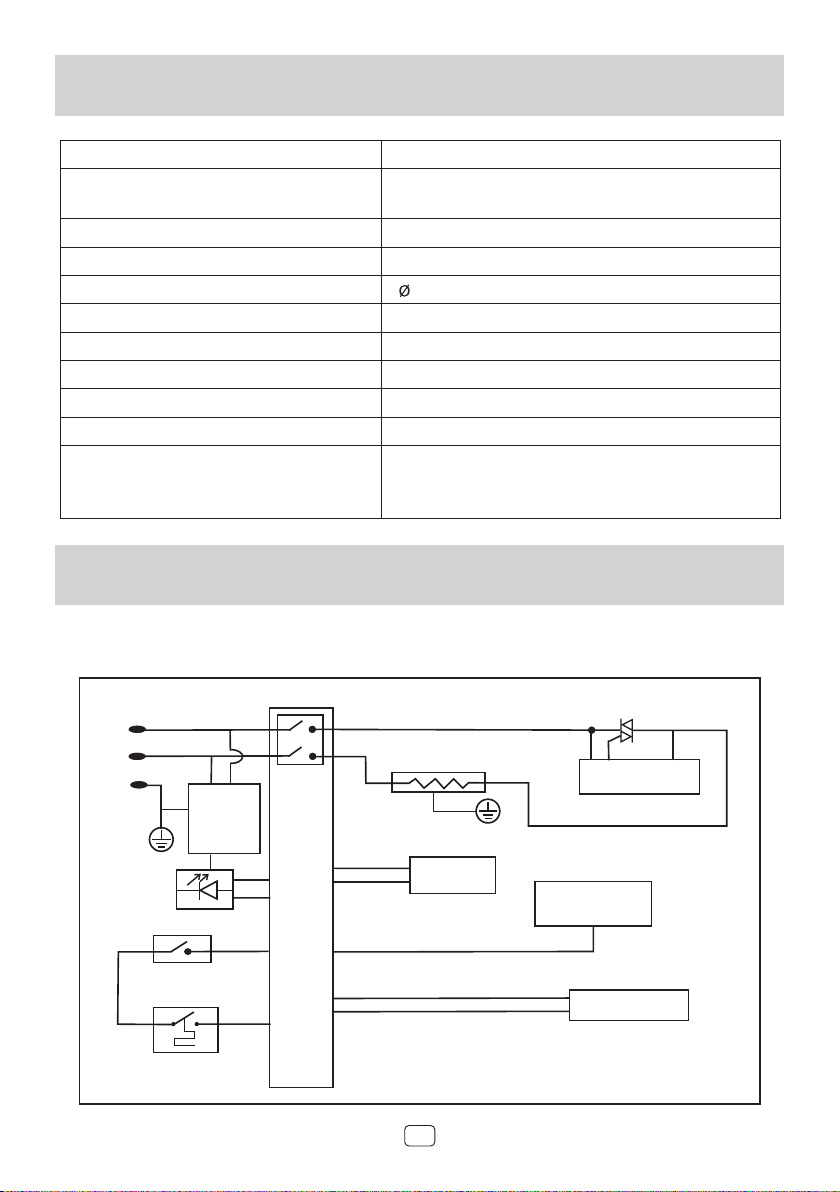

INVERTER SILENT DC PUMP (F191D)
PAM SENYAP INVERTER DC
Electrical loading / Muatan elektrik 3.6kW 240V 50/60Hz
Other loading / Muatan lain Please refer Electrial loading table
Rujuk jadual pendawaian elektrik
ELCB sensitivity / Sensitiviti ELCB 15 mA
Operating condition / Keadaan berfungsi Open system (Open outlet) / Sistem terbuka
Water connection / Sambungan air 15mm (1/2” BSP)
Degree of protection / Tahap perlindungan IP25
Min water flow rate / Kadar aliran air min 2 litre/ min
Min water pressure / Tekanan air min 0.2 bar ( 20kPa / 2.9psi )
Max water pressure / Tekanan air max 4 bar ( 400kPa / 58psi )
Heater dimension (mm) / Ukuran pemanas 440 (H) x 190 (W) x 87 (D)
Heater nett weight / Berat bersih pemanas Non pump / Tanpa pam : 1.3kg
Inverter Silent DC Pump / Pam Senyap Inverter DC : 1.8kg
Inverter AC pump / Pam Inverter AC : 2.0kg
Relay
Live Hidup
Neutral Neutral
Earth Bumi L
N
L
N
E
LED
Heating Element
Elemen Pemanas
Pump
Pump Control
Kawalan Pam
Test / Reset
Temperature
Control
Kawalan Suhu
Triac
T2 T1
ELCB
15mA
Flow Sensor
Sensor Aliran
Thermal Cut Out
Pemotong Haba
Earth
Sensor
Sensor
Bumi

15

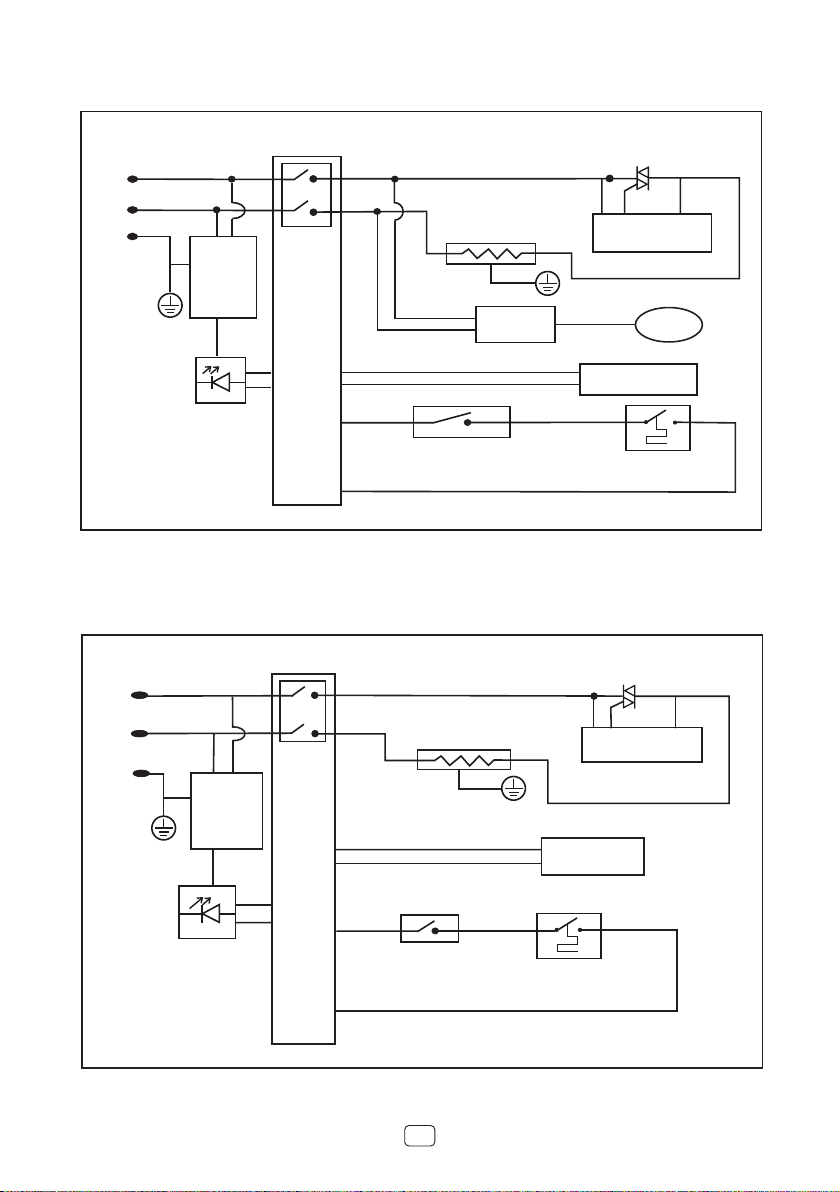

NON-PUMP (F190N)
TANPA PAM
INVERTER AC PUMP (F192A )
PAM INVERTER AC
Live Hidup
L
L
Neutral Neutral
N
N
Sensor
Bumi
Earth Bumi
Pump
Control
Test / Reset
Pump
Pam
ELCB
15mA
LED
Flow Sensor
Temperature
Control
Relay Triac
T2 T1
G
Heating Element
Elemen Pemanas
Kawalan Suhu
Kawalan Pam
Sensor Aliran Thermal Cut Out
Pemotong Haba
Relay
Live Hidup
Neutral Neutral
Earth Bumi L
N
L
N
E
LED
Earth
Sensor
Sensor
Bumi
Heating Element
Elemen Pemanas
Test / Reset
Temperature
Control
Kawalan Suhu
Triac
T2 T1
ELCB
15mA
Flow Sensor
Sensor Aliran Thermal Cut Out
Pemotong Haba
Earth
Sensor
Sensor
Bumi

Our Warranty
Customer Care
on Internal Parts
pada Bahagian Dalaman
6mths Warranty Extension
1
Year
Warranty
on Inverter AC Pump
pada pam Inverter AC
1.5
Year
Warranty
on Inverter DC Silent Pump
pada pam Senyap Inverter DC
5
Years
Warranty
on Heating Element
pada Unsur Pemanas
7
Years
Warranty
on Anti-tank Leakage
pada Pencegahan Tangki Bocor
10
Years
Warranty
Online Registration
1. Log on to www.rubine.com.my
2. Click on ‘Support’, followed by ‘Product
Warranty Registration’to proceed. You’re
required to sign up as a member.
3. You’ll receive a notification of
warranty reqistration confirmation
via email.
4. Please keep your online
warranty certificate for
reference / future warranty claim.
Pendaftaran Di Laman Web
1. Layari www.rubine.com.my
2. Klik pada ‘Support’, diikuti dengan
‘Product Warranty Registration’.
Anda dikehendaki mendaftar sebagai
ahli Rubine.
3. Anda akan menerima e-mel sijil
pengesahan dengan data pendaftaran
jaminan.
4. Pastikan anda simpan e-mel sijil
pengesahan untuk tuntutan jaminan.
AFTER - SALES SERVICE:
Tel : [phone]
Email : [email protected]
OPERATION HOURS:
09:00am – 05:00pm
(Monday – Friday, except public holiday)
This specification is subject to change without prior notice,
FIAMMA TRADING SDN. BHD. will not be held responsible for the use of superseded or voided specification.
