RugGear RG160 Instruction manual

RG160
Quick Start Manual
2

2

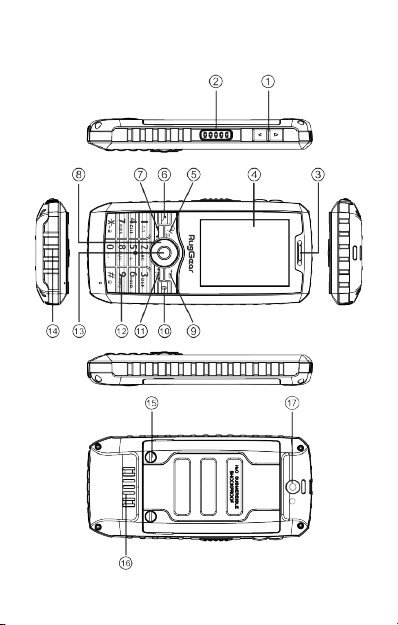

Overview

3
Orders Keys Orders Keys
1 Volume key 10 Delete
2 PTT key 11 Hold key/Power key
3 Receiver 12 Keypad
4 Window area 13 Оk key
5 Menu/Home key 14 USB/Headset jack
6 Mouse key 15 Screw
7 Answer key 16 Speaker
8 Navigation key 17 Camera
9 Back

4
Keys Introductions
Volume key Adjust the volume
Customizable key Quickly set up a key to enter the
application, PTT key used with
customizable key
Menu/Home key Short press is for menu key
opening the system or application
menu; long press for home key
back to the standby interface.
Back Back to the parent menu
Mouse key Short press to operate
Answer key Call and answer the phone
Navigation key Move the position of cursor
Delete Delete characters in input eld
Hold key/Power key Power on:
You can hang up at the status of
calling
You can wake up at the standby
status
Power o:
There is no reaction for short press.
Long press to switch on.
Numeric keypad 1~9Numeric key, *#key

5
SIM card/ MicroSD card installation and remov-
al, locking and unlocking the back cover
The device supports two big SIM cards and one MicroSD
card. Both card slots support GSM and WCDMA.
Warning:
Unauthorized installation of SIM cards or MicroSD card
may result in damaging the card slots.

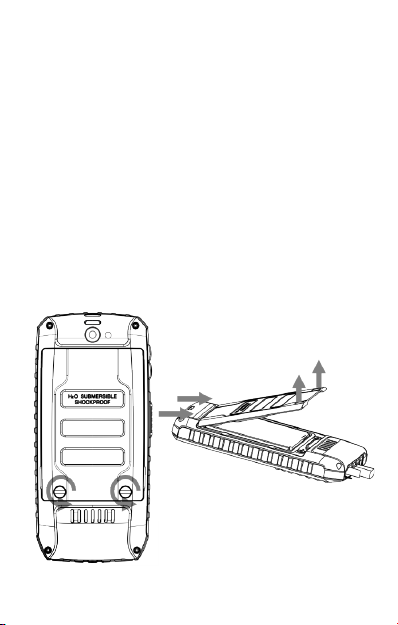

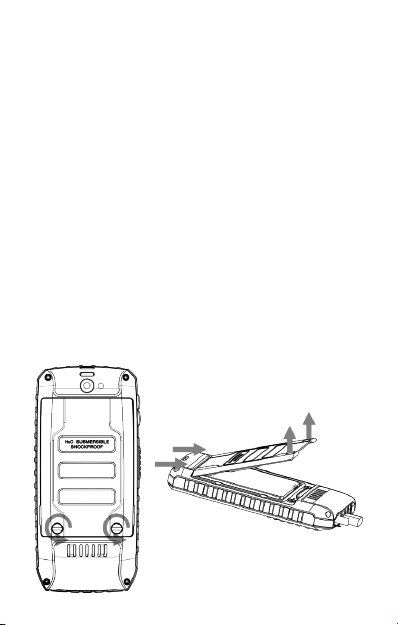

1. Turn the screw latch to the left to open the back cover.

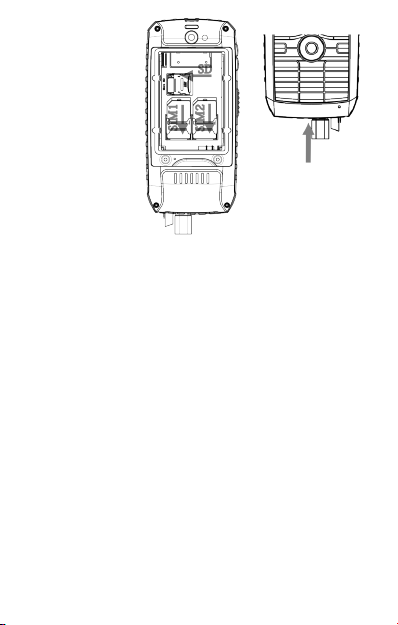

2. The left slot is for SIM 1 and the right one is for SIM 2.
MicroSD slot is above SIM 2 slot.
3. Close the back cover tightly, compress the battery
cover and turn the screw lock from left to right.

6
Warning:
Turn o the phone and remove the SIM cards and the SD
card in the reverse direction. Do not remove the SD card
when the phone is in the process of data transfer due to
possible data loss.
Precautions:
When the installation is complete, close the battery cover
tightly and tighten the screw lock so that water or dirt
cannot enter the phone.
Please only use battery covers and accessories approved
by RugGear.
Installation and removal of the memory
card
To store additional multimedia information, you should
insert a memory card. The device supports MicroSD cards
up to 32GB.
Precautions:
The phone does not support hot swap. Please replace the
SIM card and the SD card after turning o the device.

7
Please follow the steps below:
1. Please make sure the back cover screw lock, head-
phones and USB plug and all rubber cover are tightly
closed, in order to have perfect dustproof and water-
proof eect. Be sure to close the battery cover (specic
reference in front of the battery back cover installation
method).
2. Do not immerse the phone in water.
3. Do not expose your phone to water dynamics such as
waves or waterfalls.
4. Do not expose the equipment to salt water, ionized
water or soapy water,
5. Do not use the phone in the spa or hot water because
waterproof rubber is easily aected by high tempera-
tures.
6. Please do not use wet hands to open the battery cover.
When opening it, you must put the cover down in case
water goes into the cover slot.
7. Do not immerse the phone in water or in extremely
wet conditions when opening the back cover (such as
swimming or shower).
8. Do not open the battery cover when the body is not
completely dry.
9. Do not use detergent cleaning products and other
chemicals.
10. Rubber seal stoppers in the battery cover are an
important part of the device. Please be careful to avoid
damaging them when you open or close the battery
cover. Also, make sure there is no debris, such as sand or
dust on the rubber seal.

8
11. If the device is dropped or subjected to impact, the
battery cover and multifunction jack covers may be
loose. Ensure that all covers are properly aligned and
tightly closed.
12. Under certain conditions, such as high volume levels,
the device may vibrate slightly. It is normal due to water-
proof design and does not aect the performance.
13. If you accidentally drop your phone in the quagmire,
do not worry, just ush it with clean water and dry it.
14. If you accidentally drop your phone on the beach, do
not worry, just ush it with clean water and dry it.
15.If the device is immersed in water or the microphone
or the speaker get wet during a call, the other party may
not be able to hear your voice, so wipe the device with a
dry cloth to make sure the microphone or speakers are
clean and dry. Hair dryer is not permitted.
16. If water droplets are found on the screen, it may aect
the perception of the touch screen resulting in errors.
Please continue using the phone after drying the water
droplets.
Charging the battery
The rst time you use the phone, please run out of power
rst and then charge the battery until full.
Warning:
Please use the original data cable and adapter or Rug-
Gear approved data cable for the phone to charge. Unau-
thorized charger or USB cable may lead to the explosion
of the device.
Precautions:
When the battery is low, the device will emit a warning

9
tone and a low battery prompt. The battery icon will ap-
pear blank. If the battery is next to empty, the phone will
automatically shut down. To use the phone, please con-
tinue charging the battery. If the battery is completely
discharged, the device will not turn on immediately even
if connected to the charger. Please charge for a few min-
utes before turning on the phone.
Extend battery life:
To save power, you can:
1. When not using Bluetooth, Wi-Fi or GPS, please close
these wireless communication function.
2. Lowering the phone screen brightness and setting a
shorter sleep time can save power. You can press the pow-
er button to turn o the screen when not using the device.
3. Close e-mail, calendar and contacts and other appli-
cations of automatic synchronization. Long press the
HOME main menu button, select the icon and drag it left
or right to disappear.
4. Your installation and use of some of the applications
may shorten battery life, please exit applications that
are not in use or long press the menu button to view the
used application list and slide left/right to exit.
Charging with a travel charger
1.Please open the waterproof rubber plug in the right
direction before inserting the headset or the data cable.
Warning:
If the charger is not connected properly, the phone can
be seriously damaged. Misuse related damages are not
within the warranty scope.
2. Voltage instability will lead to mal-operation of the

10
touch screen. The phone might warm up while charging.
It will not aect service life or performance of the phone.
3. When the battery is full, please remove the charger from
the device and then remove the plug from the socket.
Precautions:
To save power, please remove the charger from the socket
when not in use. The charger has no switch so you have
to remove it directly from the socket to save power. The
charger should be closely connected to the socket while
charging the phone.
4. Please make sure to turn on your computer before using
the USB data cable to charge the phone.
Insert the microUSB port into the multi-jack, then insert
the other side of the cable into the USB port on the com-
puter. When the battery is full, rst remove the USB cable
from the phone and then unplug it from the computer.
Improper connection may result in phone damage which
is not in the warranty scope.
Precautions:
Depending on the type of USB cable you use, you may
need to wait a little before the charging starts after the
cable is plugged.
Specic Absorption Rate(SAR)
Your equipment radiation standard unit of measurement
is known as specic absorption rate (SAR). The SAR limit
of Europe is 2.0 W/kg. Device types RG160 has also been
tested against this SAR limit. The highest SAR value re-
ported under this standard during product certication for
use at the ear is 0.880 W/kg and when properly worn on
the body is 0.393 W/kg. This device was tested for typical
body-worn operations with the back of the handset kept

11
To protect yourself and others from
harm, please read the information below
before using your mobile phone.
• Do not put the device in hot or cold places.
• Do not put the phone inside the heater, microwave,
cooking equipment or high pressure vessel.
• Do not touch the phone or charger when the phone is
charging with wet hands.
• Do not use the phone in outdoor thunderstorm weather
• In a potentially explosive environment, gas station, etc.,
please turn o the phone.
• When using the phone at a restricted area, please ob-
serve all safety warnings and regulations.
• Please abide by all the relevant safety warnings and
regulations of using mobile phones while driving.
• Please turn o the phone while ying.
• Do not use the phone in the area where is easily aected
by radio frequency interference like hospitals and so on.
• If possible, avoid the use of mobile phones within 15cm
range from the pacemaker. The reason is the phone may
interfere with pacemakers.
1.0 cm from the body. To maintain compliance with RF ex-
posure requirements,use accessories that maintain a 1.0 cm
separation distance between the user’s body and the back
of the handset.The use of belt clips, holsters and similar
accessories should not contain metallic components in its
assembly. The use of accessories that do not satisfy these
requirements may not comply with RF exposure require-
ments, and should be avoided.

12
• If you must use the phone, please keep a distance of
at least 15cm with a pacemaker. Please, use the phone
at the other side of the body or opposite the pacemaker
in order to reduce the interference with the pacemaker.
• If you use a hearing aid, please contact with the manu-
facturer about radio interference information.
• If you use other medical devices, please contact with the
device manufacturer before using this medical device to
determine whether the equipment will be aected by
this phone emitted radio frequencies.
• Do not allow children or animals bite, chew, or suck the
phone or battery.
• Do not touch the multifunction jack and battery elec-
trode with conductive elements of metal or liquids.
• Do not use the ash or lights when approaching human
or animals’ eyes.
• Do not use high-volume to listen to long conversation
or music, so as not to damage your hearing.
• Do not disassemble, modify or repair the phone.
Do not approach other handset manufacturers for any
changes or modications or this will void the warranty.
For service, please contact with after-sales service de-
partment of RugGear or your local dealer.
• Only qualied service personnel can repair RugGear
phones.
Operating temperature: -5°C~45°C
The product contains a re-changer battery with the
charging voltage of 4.2V. The device contains a power
adapter, charging temperature is 0°C~+45°C

13
Disclaimer
All content and services available through this device
belong to third parties and are protected by copyright,
patent, trademark and other intellectual property laws,
such content and services can be exploited for personal,
non-commercial use only. In the absence of obtaining li-
cense from content owner or service provider, you may
not use any content or services.
In addition to the above limitations, unless expressly
permitted by the application content or service provid-
ers, you may not modify, copy, republish, upload, post,
transmit, translate, sell, create derivative works, exploit,
or distribute in any way any content or service this equip-
ment displays.
Third-party content and services are provided as is. Re-
gardless, for any purpose, RugGear does not provide any
express or implied warranties for the provided content
or service. RugGear explicitly states that it does not un-
dertake any implied warranty and terms or conditions ac-
cepted by laws and regulations, including but not limited
to the applicability of the merchantability or for a specic
purpose.
The third-party service may at any time stop or interrupt,
RugGear is not responsible for any period of time when
the content or services is available. Content and services
Caution: there is risk of explosion if battery is replaced
by an incorrect type. Dispose used batteries according to
the instructions.
Excessive sound pressure from earphones and head-
phones can cause hearing loss.

14
are transmitted by third parties through the network and
transmission equipment outside of control of RugGear. In
addition to the generality of this exception clause, Rug-
Gear makes it clear that our company is not responsible
for any interrupt and delay of any content or service ap-
plicable for this device.
RugGear involving content and services are neither re-
sponsible nor liable. Any content or service related inqui-
ries should be made directly to the content and service
providers.

RG160
Краткое руководство пользователя

16
Обзор

17
Номер Клавиши Номер Клавиши
1 Регулировка громкости 10 Удаление
2 Режим PTT 11 Клавиша удержания
вызова/включения/вы-
ключения
3 Динамик 12 Клавиатура
4 Дисплей 13 Клавиша
выбора/подтверждения
5 Возвращение к главному
меню
14 Разъем для наушников и
кабеля USB
6 Клавиша вкл./выкл.
режима мыши
15 Шурупы-фиксаторы
задней панели
7 Принятие вызова 16 Динамик
8 Навигация 17 Камера
9 Возвращение к предыду-
щей функции
Клавиши Функции
Клавиша громкости Регулировка громкости
Настраиваемая клавиша Настройте клавишу для входа в при-
ложение и работы в режиме PTT
Клавиша перехода
к главному меню
Короткое нажатие – открытие меню с
приложениями, долгое нажатие – воз-
вращение к резервному интерфейсу
Клавиша возврата Возвращение к головному меню
Клавиша вкл./выкл. режима
мыши
Активизируется коротким нажатием
Клавиша ответа на вызов Отправка и прием звонков
Смена положения курсора/
выбор другого пункта меню
Смена положения курсора
Клавиша удаления Удаление символов из поля ввода
Клавиша удержания вызова/
включения/выключения
Отмена вызова в процессе набора
номера, активация телефона от резерв-
ного интерфейса, включение (долгое
нажатие)
Клавиатура Нумерическая клавиатура

18
Установка SIM-карты и карты памяти
microSD, установка и снятие задней панели
телефона
Телефон поддерживает две большие SIM-карты и
одну карту памяти формата microSD. Оба слота для
SIM-карт поддерживают режим GSM и WCDMA.
Предупреждение:
Некорректная установка SIM-карты или карты памяти
может повлечь за собой повреждения слотов для карт.
Чтобы установить карту памяти, пожалуйста, выпол-
ните следующие действия:
1. Откройте заднюю крышку, отвинтив шурупы по
бокам влево, как показано на картинке ниже.
2. Вставьте карту памяти и SIM-карту в соответствии
с изображением. Левый слот предназначен доя SIM-
карты 1, правый – для SIM-карты 2. Слот для карты
памяти находится над слотом для SIM-карты 2.
3. Установите заднюю крышку на месте и зафиксируй-
те шурупы, повернув их вправо.

19
Внимание:
Перед тем, как устанавливать SIM-карты и карту памя-
ти, убедитесь, что телефон выключен и не подключен
к сети во избежание поломок телефона или утери ин-
формации. Не отсоединяйте карту памяти, если теле-
фон находится в процессе передачи информации с нее.
Меры предосторожности
После того, как установка карт завершена, убедитесь,
что вы правильно установили заднюю крышку. Тща-
тельно закрутите шурупы, чтобы батарея не подверга-
лась воздействию влаги или пыли извне.
Для зарядки телефона, используйте только кабель и
адаптер из комплекта поставки, или аксессуары, одо-
бренные компанией RugGear.
Советы по установке и извлечению кар-
ты памяти
Чтобы хранить в телефоне дополнительный объем ин-
формации, необходимо вставить в него карту памяти.
Телефон поддерживает карты памяти объемом до 32Гб.
Внимание
Горячее подсоединение не поддерживается. Устанав-
ливайте и извлекайте SIM-карты и карты памяти, пред-
варительно выключив телефон.

20
Рекомендации по безопасности:
1. Следите, чтобы все заглушки телефона, включая
заднюю крышку, порты для наушников и USB-кабеля,
были тщательно закрыты. Чтобы до конца закрыть за-
днюю крышку телефона, следуйте инструкциям, изо-
браженным на ней.
2. Не погружайте телефон в воду. Однако, телефону не
будет нанесено вреда, если на него попадают струйки
воды с любых сторон.
3. Не подвергайте телефон воздействию направлен-
ных и мощных водяных потоков (волны, водопады).
4. Не подвергайте телефон и его аксессуары воздей-
ствию соленой воды, ионизированной или мыльной
воды.
5. Не используйте телефон в спа или сауне, так как во-
донепроницаемое покрытие телефона может постра-
дать под влиянием высоких температур.
6. Не открывайте заднюю крышку телефона мокрыми
руками. Сразу кладите крышку на горизонтальную
поверхность, чтобы влага с нее не попадала внутрь
телефона.
7. Не подвергайте телефон воздействию воды или вла-
ги в тот момент, когда вы открываете заднюю крышку.
8. Не открывайте заднюю крышку телефона, если его
корпус все еще влажный.
9. Не подвергайте телефон воздействую моющих
средств и прочих химикатов.
10. Резиновые прокладки на крышке батареи являют-
ся важной деталью телефона. Аккуратно открывайте
заднюю крышку, чтобы не повредить их. Не подвер-
гайте их воздействию пыли или песка.
