SafEty inStructionS
1_introDuction
This document contains information and safety regulations
which are to be observed without fail for safe operation of the
mobile phone RG300 under the described conditions.
The current EC declaration of conformity, EC certicate of
conformity, safety instructions and manual can be found
at www.ruggear-europe.com, or requested from
RugGear Europe GmbH.
NOTE
This document contains only the instructions necessary for setting
up and safe use of your phone. A complete Quick Start Manual can
be found at www.ruggear-europe.com.
To ensure the IP protection of the phone please make sure that the
seals of the battery, the USB port cover and all the screw covers are
in their correct place.

6SafEty inStructionS
2_faultS anD DaMaGES
If there is any reason to suspect that the safety of the phone has
been compromised, it must be withdrawn from use immediately.
Measures must be taken to prevent any accidental restarting
of the phone.
The safety of the phone may be compromised if, for example:
malfunctions occur.
the housing of the phone or the battery shows damage.
the phone has been subjected to excessive loads.
the phone has been stored improperly.

7
EN
SafEty inStructionS
3_furtHEr SafEty aDviSES
Do not touch the screen of the phone with sharp objects.
Dust particles and dirt may scratch the screen. Please maintain
the screen clean. Remove dust on the screen with a soft cloth
gently and do not scratch the screen.
Charge the phone under indoor conditions only.
Please do not put the phone in environments with excessive
temperatures as this could lead to heating of the battery,
resulting in re or explosion.
Do not charge the phone near any ammable or explosive
substances.
Do not charge the phone in environments with much
dust, humidity, or excessively high or low temperatures
(the permitted charging temperature range is 0 °C – 45 °C).
Do not use the phone in areas where regulations or legislatives
prohibit the use of a mobile phone.
Do not expose the phone, the battery or the charger to strong
magnetic elds, such as are emitted from induction ovens or
micro-waves.
Do not attempt to open or repair the phone. Improper repair
or opening can lead to the destruction of the phone, re or
explosion. Only authorized personnel are allowed to repair
the phone.
Only use accessories approved by RugGear Europe GmbH.
Please do not connect the poles of the battery directly, to avoid
short-circuiting the battery.
Power o the phone in hospitals or other places where the use
of mobile phones is prohibited. This phone may aect proper
work of medical equipment, like pacemakers, so always keep a
distance of at least 15 cm between the phone and these devices.

8SafEty inStructionS
Observe all corresponding laws that are in force in the
respective countries regarding the use of mobile phones
while operating a vehicle.
Please power o the phone and disconnect the charging cable
before cleaning the phone.
Do not use any chemical cleaning agents to clean the phone or
the charger. Use a damp and anti-static soft cloth for cleaning.
Do not discard old and abandoned lithium batteries into
the trash, send them to designated waste disposal locations
or return them to RugGear Europe GmbH.
The user alone is responsible for any and all damages and
liabilities caused by malware downloaded when using the
network or other data-exchange functions of the phone.
RugGear Europe GmbH cannot be held responsible for any
of these claims.
WARNING
RugGear Europe GmbH will not assume any liability for damages
caused by disregarding any of these advices or by any inapprop-
riate use of the phone.

9
EN

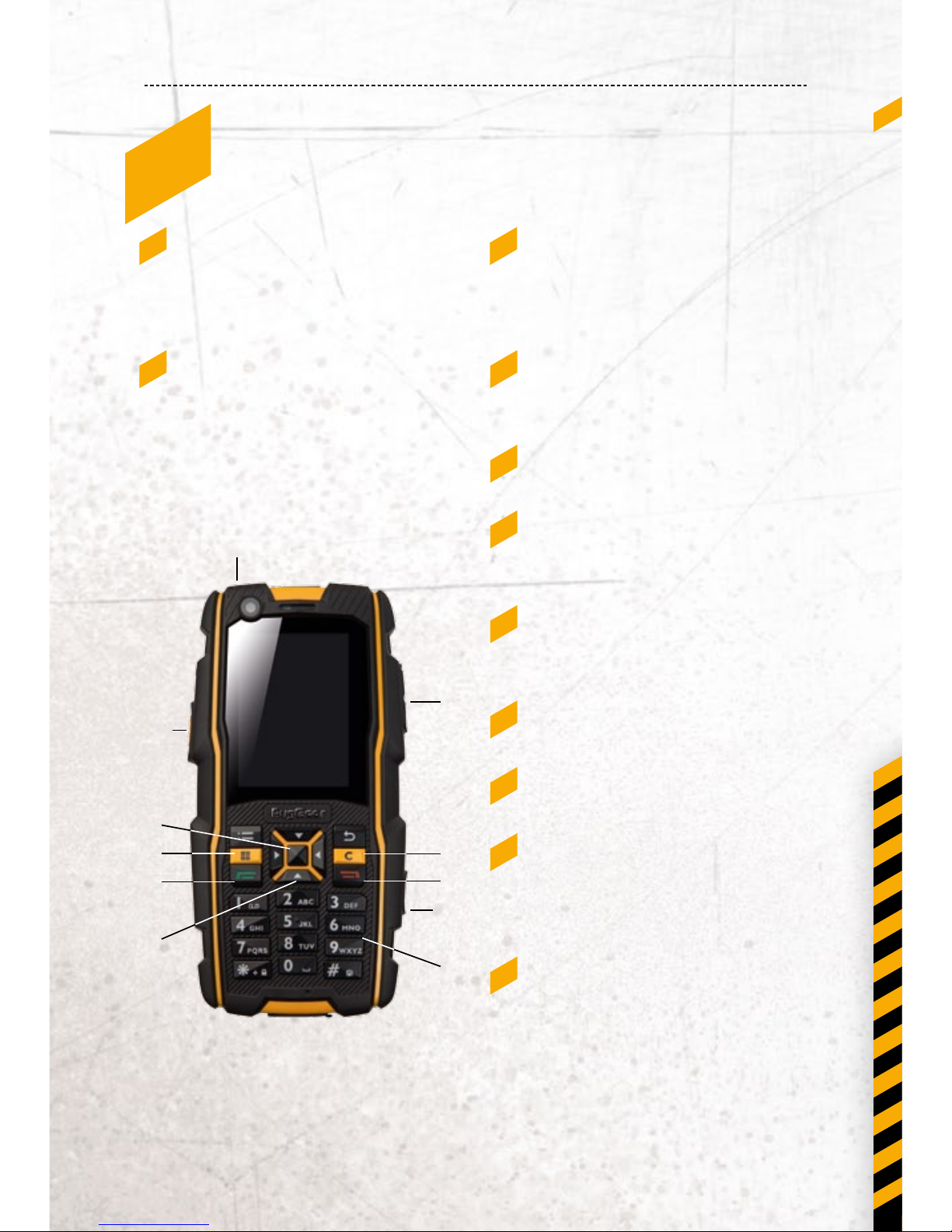

4_kEyS
1_Power:
Lock the phone. Long
press to power on and
o the phone.
2_Send:
Bring up the call log
or answer a call when
the phone is ringing.
3_End:
Return to homescreen
from any menu.
End or reject a call.
4_Menu:
While on the homescreen:
enter settings.
5_Clear:
Deletes your selection.
6_Navigation:
4-way navigation
through menus.
7_OK:
Conrm the selected
item or function.
8_Keypad:
Use for text or number entry.
9_Volume:
Adjust the volume.
10_Camera:
Take a photo when in
camera mode (only valid
for ADVANTAGE 1.0).
11_SOS button:
SOS button with
emergency call function.
10
1
4
7
2
6
9
5
3
8
11
Quick Start

10 Quick Start
5_firSt StEpS
5.1_BATTERY
The battery is inserted into the back of the mobile phone. The
battery is not fully charged when the mobile phone is purchased,
but it contains enough energy to power on the phone.
To obtain best battery performance and battery life, let the battery
discharge completely before charging it completely for the rst
three charging cycles.
5.1.1_INSTALLING AND EXTRACTING THE BATTERY
When installing the battery, insert the teeth at the top of the battery
into the corresponding notches of the mobile phone, then press
the battery down and secure it by turning the two screws with the
delivered screw driver. Ensure that the battery is safely in place
before powering on the phone.

11
EN
Quick Start
5.1.2_CHARGING THE BATTERY
Connect the USB-cable with the phone as
indicated in the picture.
Connect the plug with the socket of the
power supply.
After charging, remove the USB-cable from
the charger.
5.1.3_BATTERY USE
In actual use, the standby time and talk time of the phone varies
with the network status, working environment and usage.
When the power of the battery is lower than normal, the phone
will prompt you to charge it. Please charge the battery; otherwise
you may lose any les which have not been saved.
If you do not charge for a long time, the phone will be powered o
automatically.
WARNING
The phone may only be charged at ambient temperatures in
a range from 0 °C – 45 °C. Please do not use charging equipment
if the temperature exceeds this range. Only use the RugGear
approved USB-cable and charger. Using any other cable may
cause danger and will void the warranty.

12 Quick Start
5.2_INSTALLATION OF
THE SIM CARD
The SIM card holder (1) is placed in the
battery compartment. Please remove
the battery to gain access to the holder.
Unlock the SIM card holder by sliding
it forward as indicated on the holder.
Open the holder and insert the SIM card.
Close the holder and lock it again to
safely retain the SIM card.
5.3_INSTALLATION OF THE MICROSD CARD
The SD card holder (2) is placed in the battery compartment.
Please remove the battery to gain access to the holder.
Unlock the SD card holder by sliding it forward as indicated on
the holder. Open the holder and insert the SD card. Close the
holder and lock it again to safely retain the SD card.
WARNING
Do not try to insert or remove the SIM card when any external
power supply is connected, otherwise the SIM card or the mobile
phone may be damaged.
21

13
EN
Quick Start
Current Signal Strength
Battery power level
indicator
GPRS Connectiont
EDGE Connection
UMTS Connection
Bluetooth® active
Call in progress
Missed calls
Airplane mode
Vibration only
Vibration and ringtone
Mute
New SMS
New MMS
Alarm clock active
MP3 playing
FM radio active
Ringtone only

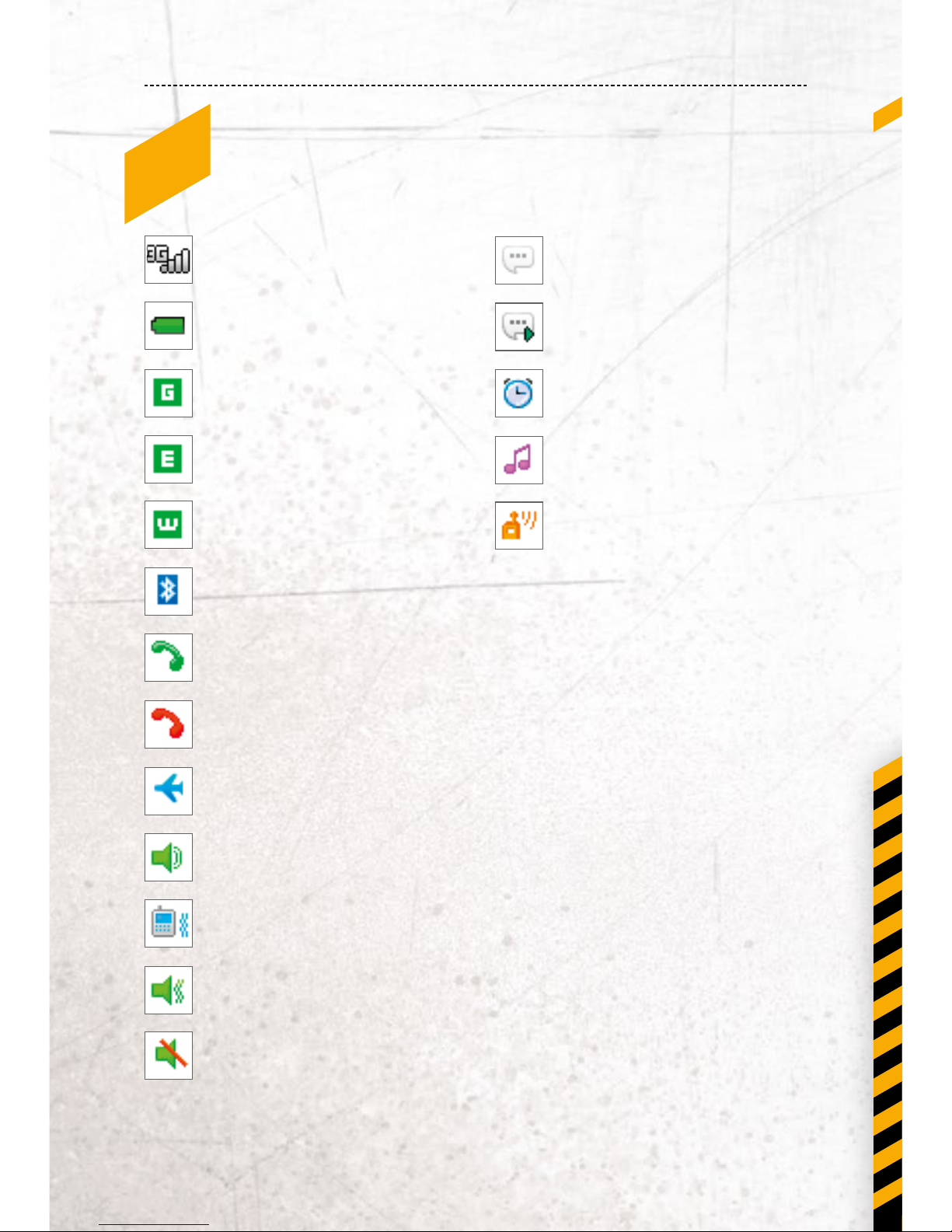

6_StatuS iconS

14 MEnu naviGation
7_MEnu naviGation
7.1_PHONEBOOK
Search contact
Add new contact
Send SMS
Send MMS
Edit before call
Group
Delete
Mark (Mark one or all contacts)
Import from SD card
Settings
Send as vCard
Voice call
Move to phone/SIM
Video call
Copy to phone/SIM
Add to blacklist
Export to SD card
(reference: File manager -> SD card ->
contacts -> 20121024.csv/20121024_Alert.csv)
Memory status
(All contacts, Phone contacts, SIM contacts, Group)
By the english initials or name, digital search contacts,
(long press the arrow keys up and down for fast search)
View a contact Options
OK
Back
Send SMS
Send MMS
Edit
Voice call
Video call
Edit before call
Send as vCard
Delete
Move to
Copy to
Duplicate contact
Add to speed dial
Add to blacklist
Export to SD card
Voice call
Video call
Send SMS
Send MMS
Edit before call
Speed dial
Contacts to display
(Phone + SIM card)
Default storage location
7.3_ JAVA APPS
Download the application (Connection network download relevant JAR format of the game,
or can be automaticly install format matching JAVA games and applications)
7.2_FILE MANAGER
Delete more
Through the MMS/Bluetooth® send
Rename
Delete
Manage (To move or copy a le to another folder, of create a new folder)
List by
Properties (Check the selected les detailed information)
Memory status (Check mobile phone memory and storage condition)
The cell phone or the card‘s les: such as photo, video, audio and so on management)

15
EN
MEnu naviGation
7.4_MESSAGES
Add from contacts (one of all)
Save to drafts
Insertpicture,video,sound,other,MMScontrols,Addsubject,AddCc/Bcc
Reply
Forward
Voice call sender
Download/Play
Delete
Extract adress
Extract Details
Attachement
Edit before call
Save to contacts
Settings
Accounts (press Up/Down key to select the account you want)
Memory status
E-Mail,
Opt.
MMS
New SMS,
Options
Add from contacts (one or all)
Save to drafts
Save as template
Insert (contact info, text template, calender event)
Check
the
message
from
inbox
Reply
Voice call sender
Edite Before call
Delete
Move to phone/(U)SIM card
Export to SD card
Extract details
Add to blacklist
View by location
Sent,
Draft,
Outbox,
Options
Resend
Delete
Delete all
Settings
SMS Settings (Service Center,
Deliver report, SMS type, Validity
period, Save sent SMS)
Text template
Cell BroadcastStorage status
Forward
SMS
New contact
Existing contact
New MMS,
Otions
Sent, Draft, Outbox, Options
Rename, Delete
Edit
Create new account
(details plese check below instructions)
User information
Connection
Msg preerence
Signature
Send
Save to contacts
Send
New contact
Existing contact
Check
the
message
from
inbox

16
7.5_CAMER A
Switch, Snapshot Scenes (Normal, MMS, Continuous, Night, Sunset, Text)
Flashlight
EV
Settings
Album
Resolution, Timer, White balance, Eects, ISO,
Image quality, Schutter Sound, Storage
(All photos are stored in Photos of File
Management)
Slideshow Back, Delete, MMS or Bluetooth®
Send, Use as wallpaper, Options
(Rename, Slideshow, Details)
Delete all
(mark)
Switch, Record Scenes
Flashlight
EV
Settings
Album
Resolution, White balance, Eects,
Video quality, Audio recording, Storage
Slideshow Back, Delete, MMS or Bluetooth®
Send, Play, Options (Rename,
Slideshow, Details)
Delete all
(mark)
Normal, MMS
7.6_PROFILES
Active (In the screen, the icons are dierent for dierent user proles)
General Call alert type
Volume level
Keypad tone
Silence Call alert type
Meeting, Outdoor, Headset, Customised (with general menu settings and check)
Reset default
Reset default
Flight Keypad tone
Reset default
Standby (state long press the # key can switch over the choice model)
MEnu naviGation

17
EN
7.7_MEDIA PLAYER
Options Settings
Update
Now playing Now playing list
Music main menu
Settings
Add to playlist
Send via (MMS/Bluetooth®)
Set as
Listen via Bluetooth®
Play mode
Sleeping mode
Equalizer settings
Lyrics display
Contact ringtone
Prole ringtone
All tracks
Artists
Albums
Playlists
Videos Play (Play in the * key can switch over the playback modes)
Options Delete
Delete more
Rename
Send via (MMS/Bluetooth®)
Set as (Prole ringtone, Contact ringtone
Settings (Equalizer settings, Play Mode)
Details
Update
7.9_CALL LOG
All calls,
Missed calls,
Dialled,
Answered calls
Send SMS
Send MMS
Voice call
Edit before call
Delete
Add to blacklist
Delete more
Save to contacts New contact
Existing contact
7.8_FM R ADIO
All channels (Search and manage all can receive channel)
Manual tuning
Fine-tune
My channels (Display a collection of channel)
Add to my channels
Scan channels
Rename (According to "My channel" named after the channel)
Activate or deactivate loudspeaker
Please to connect the headphones
Volume keys can be in play interface increase or decrease volume
MEnu naviGation

18
7.10_SETTINGS
Emergency Call SOS on
Numbers list
Display
Edit SMS
Theme
Wallpaper
Shortcuts (Up key, Down key, Left key, Right key, OK key)
Ringtone Call default ringtone
SIM voice call
Message ringtone
Phone settings Time and date
Language
Backlight
Input settings
Auto power on/o
Call settings Call control
Voice call
Voice mail
Send my number
Reject message text
Call connect tone
Minute remider
Call end tone
Answer mode
Call duration
Blacklist (Default password: 0000)
Call diverting
Call barring
Call waiting
Auto redial
Networks Network mode
Operator selection
Connectivity
Security Phone lock (Default password: 0000)
Keypad autolock
Data lock (Default password: 0000)
Change phone code (Default password: 0000)
Security Lock PIN
Change PIN code
Change PIN2 code
Reset default (Default password: 0000)
Time Zone, Time, Use 24-hour format,
Date, Date format
Brightness, Backlight duration
Default, Browser, Java, MMS, Data account
MEnu naviGation

19
EN
7.11_EXTRA
Bluetooth® On/O
Device list
My phone‘s visability
My phone‘s name
Service
Calendar options New
View (All events, All meetings, All To-Do, All anniversary)
Weekly view/Monthly view
Delete
Go to date
Settings Calendar alarm ring
Alarm snooze time
Week starts on
Default view
Notes
Calculator
Recorder
Settings (Record mode, Storage location)
Voice clips
Clock
Alarm
World time
Stopwatch
Countdown
Converter
GPS (GPS location)
Pedometer
7.12_BROWSER
Forward
Go to
Refresh
Enter adress
Home
Bookmarks
History
Safe as bookmark
Set as homepage
Show address
Push message
Settings
Save image
Exit
MEnu naviGation

20 inforMation
8_SpEcificationS
Frequencies
Quad band
GSM 850/900/1800/1900 MHz
WCDMA 850/1900/2100 MHz
(850/1700 AWS/2100 MHz
optional)
Dimension
weight: 168 g,
size: 127.5 x 63 x 21.5 mm
Screen
2.2" (5.58 cm) RugDisplay-
Glass with a resolution of
240 x 320 pixel
Camera
5 MP rear camera
SOS button
with emergency call function
Wireless technologies
Bluetooth® 2.1, GPS,
G-Sensor
Battery
1500 mAh, standby 300 hrs.,
talktime 2G/3G:
300 min./240 min.
Memory
internal memory 256 MB
ROM, 128 MB RAM, external
memory microSD up to 8 GB
Processor
Qualcomm QSC6270
Temperature
operation range from
-20 °C to 60 °C
IP68
waterproof: 30 min. up
to 2 m, impervious to dust
and microparticles
MIL-STD-810G
2 m drop-protection,
impervious to dust and
microparticles
