Rugged Interactive GSM60B12 User manual

©Rugged Interactive 2021
Freedom Gaming
Order and Installation Manual
For models from November 2020 onwards
Rugged Interactive
Unit 1, Callywith Court
Callywith Industrial Estate, Bodmin
Cornwall, UK
PL231 2RQ
[phone]
www.rugged-interactive.co.uk
[e-mail]
Updated: 17/02/2022

Rugged Interactive
Unit 1, Callywith Court
Callywith Industrial Estate, Bodmin
Cornwall, UK
PL31 2RQ
[phone]
www.rugged-interactive.co.uk
[e-mail]
©Rugged Interactive 2021
Contents
Section 1 – Ordering Process
1.1 Need to Know
1.2 Order and Installation Checklist
1.3 Product Overview
1.4 Ordering and Installation Timeline
1.5 Getting Started
1.6 Place Order
Section 2 – Safety Guidelines
2.1 Installation Safety Guidelines
2.2 In Play Safety Guidelines
Section 3 – Installation
3.1 Parts List
3.2 Tools and Components List
3.3 Installation Overview
3.4 Detailed Installation
Section 4 – How to Use
Section 5 – Programs Guide
Freedom Gaming System Specifications
Freedom Gaming Installation Checklist
Next Steps

Rugged Interactive
Unit 1, Callywith Court
Callywith Industrial Estate, Bodmin
Cornwall, UK
PL31 2RQ
[phone]
www.rugged-interactive.co.uk
[e-mail]
Freedom Gaming – Section 1 – Ordering Process
©Rugged Interactive 2021
Section 1 – Ordering Process
1.1 - Need to Know
Installation manual purpose and limitations
This manual is intended to provide guidance only, the installation of the Rugged Interactive product will be
under your control. You will be responsible for making sure, upon completion of the installation, it is safe to
use. As always, we are here to support you, please get in touch if you are in any doubt.
Regulations
Some countries and states have regulations which may be applicable to the Rugged Interactive products, it
is your responsibility to check that the product complies with such regulations. This should be conducted
during the planning phase for the installation location.

Rugged Interactive
Unit 1, Callywith Gate
Callywith Industrial Estate, Bodmin
Cornwall, UK
PL31 2RQ
[phone]
www.rugged-interactive.co.uk
[e-mail]
Freedom Gaming – Section 1 – Ordering Process
©Rugged Interactive 2021
1.2 - Order and Installation Checklist
Contact the Rugged Interactive sales team or a partner / distributor to begin the process.
☐
Confirm the invoice and delivery address along with date required (lead time is at least 5 weeks),
VAT number required for export customers.
☐
Complete site survey.
☐
Send purchase order or confirm order.
☐
Make first payment.
☐
Discuss graphic requirements and provide logos and branding guidelines.
☐
Approve graphics.
☐
Make second payment (required a week before dispatch).
☐
Schedule time and team members for installation.
☐
Before install, confirm all tools and components are prepared.
☐
Organise shipment (Customer collection or delivery organised by Rugged Interactive).
☐
Receive your order.
☐
Install the product.
☐
Test and complete installation checklist.
☐
Train the team on how to use the product.
☐
Reveal your new Rugged Interactive product to your guests and customers!
☐

Rugged Interactive
Unit 1, Callywith Gate
Callywith Industrial Estate, Bodmin
Cornwall, UK
PL31 2RQ
[phone]
www.rugged-interactive.co.uk
[e-mail]
Freedom Gaming – Section 1 - Ordering Process
©Rugged Interactive 2021
1.3 – Freedom Gaming Overview
A large area interactive game that can be played in teams or as individuals. Scale obstacles and crawl
through tunnels to find the Freedom Gaming pods illuminated in your team’s colour. Pods can be awarded
different values to make the harder to reach ones more enticing. Live leader boards keep players up to date
with the score and at the end of the game time, the winning team is revealed. With daily, weekly and all-time
leader boards, can your team take the top spot?
Great for events and parties. Available in a variety of pod quantities to suit any size of area.

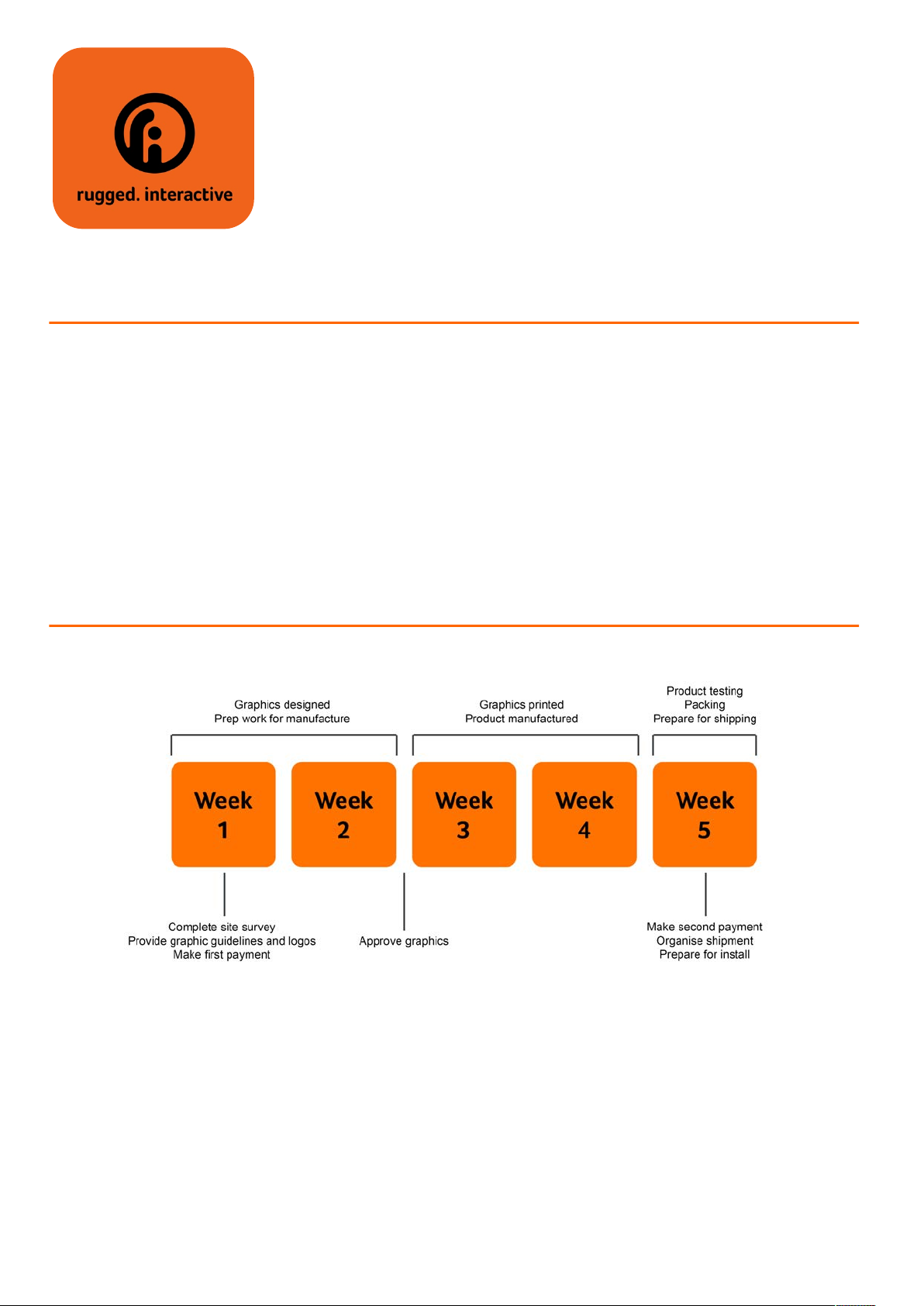

1.4 - Order and Installation Timeline
*We do our best to ensure orders are ready on a five-week lead time, however during busy periods
or for large orders, the lead time may be longer than outlined here. Lead time will also be affected
by graphics guidelines, approval and payment delays.

Rugged Interactive
Unit 1, Callywith Court
Callywith Industrial Estate, Bodmin
Cornwall, UK
PL31 2RQ
[phone]
www.rugged-interactive.co.uk
[e-mail]
Freedom Gaming – Section 1 – Ordering Process
©Rugged Interactive 2021
1.5 - Getting Started
New Parks
During the design process for the new park, incorporate the intended products into the design, product
specifications can be found within this manual for the relevant product and CAD files can be supplied upon
request.
Existing Parks
When retrofitting existing parks, all specifications can be found within this manual or CAD files are available
at request. If further information is required, please get in touch and we will be able to provide further
information and guidance.
1.6 - Place Order
To begin the order process with Rugged Interactive:
Email:
[e-mail]
Or call the Sales Office:
[phone]
Sales Office Address:
Rugged Interactive,
Future Space,
UWE North Gate,
Filton Road,
Bristol,
UK
BS34 8RB
HQ/Production Address:
Unit 1 Callywith Court
Callywith Ind. Estate,
Bodmin,
Cornwall
UK
PL31 2RQ

Rugged Interactive
Unit 1, Callywith Court
Callywith Industrial Estate, Bodmin
Cornwall, UK
PL31 2RQ
[phone]
www.rugged-interactive.co.uk
[e-mail]
Freedom Gaming – Section 2 - Safety Guidelines
©Rugged Interactive 2021
Section 2 - Safety Guidelines
2.1 Installation Safety Guidelines
Before installing any Rugged Interactive product, please read the following:
Dos:
§ Ensure that a Site Survey form has been completed prior to installation.
§ Have ready suitable equipment, tools and/or man power.
§ Observe correct manual handling techniques whilst moving and installing the equipment.
§ If being installed onto a wall, the product MUST be mounted onto a wall of a construction capable of
supporting its weight and gameplay. If possible, avoid stud walls or unsupported portal infills. If in
doubt always contact a suitably qualified surveyor to check.
§ Visually check the product for any signs of damage, component failure and/or missing parts.
§ To prevent electric shock, keep all electric components away from contact with water.
§ Ensure to take anti-static precautions.
§ Wear appropriate clothing: do not wear loose clothing or jewellery.
§ Long hair should be tied back.
§ Tidy back loose cables that could become a tripping hazard.
§ Ensure that the playing area is clear.
§ Immediately inform Rugged Interactive for maintenance advice if you have concerns.
Don’ts:
§ Do not wear shoes with leather soles or high heels.
§ Do not use any tools that are not specifically recommended by the manufacturer.
§ Do not use the surface of the trampoline to balance ladders or alike.
§ Do not distract others while they are installing the product.

Freedom Gaming Installation and Instruction Manual: Safety Guidelines
Freedom Gaming – Section 2 - Safety Guidelines
©Rugged Interactive 2021
2.2 In Play Safety Guidelines
Please ensure you read the following points before using the equipment:
This activity can be great fun, but it can also be dangerous. There is a risk of serious injury if care is
not taken when using the equipment. Use of this equipment is physically demanding: this is a high-
impact, full body activity which requires intense focus, awareness of your body’s strengths and
limitations, awareness of the environment around you and extreme caution.
Dos:
§ Before beginning any exercise program, it is recommended that you consult with your doctor.
§ Children under the age of 7 years must always be supervised by an adult (over 16 years) when
using the equipment and/or recommended accessories.
§ Visually check the equipment before using it for any signs of damage, component failure or loose
cables that could become a tripping hazard. Report any concerns, e.g. loose or damaged
equipment, to a member of staff immediately.
§ Ensure you familiarise yourself with any additional facility rules that may apply.
§ Ensure that the play area is clear before attempting to participate.
§ Only participate if you are in good physical condition. Participate only within your capabilities /
recommended exercise level.
§ Wear appropriate clothing.
§ Remove all items from your pockets prior to participation.
§ Long hair should be tied back.
§ Before use, loosen up with warm up exercises and stretches.
§ Always remain in control. Uncontrolled jumps or falls are likely to result in injuries to yourself and/or
others.
§ Only those participating are allowed in the activity area. If waiting to participate, stand back at a safe
distance from the equipment.
§ Make sure you have control before leaving the trampolines, obstacles or activity equipment.
§ Report any unusual or inappropriate behaviour to a member of staff immediately.
§ If you get tired, leave the equipment / activity area and take a break.
§ If you feel any pain, dizziness, nausea or any other abnormal symptoms, STOP YOUR WORKOUT
IMMEDIATELY. Consult your doctor immediately. Incorrect or excessive training may lead to
injuries.

Freedom Gaming Installation and Instruction Manual: Safety Guidelines
Freedom Gaming – Section 2 - Safety Guidelines
©Rugged Interactive 2021
Don’ts:
§ No more than one active user on a single trampoline at any one time.
§ Do not attempt to use any of the equipment without undertaking instruction / training carried out by
an appropriate instructor.
§ Do not participate if you are unwell or have any pre-existing medical conditions including heart,
back, neck, bone and/or muscle conditions.
§ Do NOT work to exhaustion.
§ Do not participate if you are or maybe pregnant.
§ Do not wear loose clothing or jewellery (including studs and watches). Clothing should not have any
hard or sharp points (such as buckles, studs, toggles or alike).
§ Do not wear shoes with leather soles, high heels, sandals, boots or bare feet.
§ No food, drink or chewing gum during participation.
§ No phones or cameras in the activity area.
§ Do not leave clothing or personal belongings around the activity areas.
§ Do not participate under the influence of alcohol and/or drugs.
§ Do not attempt any move beyond your own skill level.
§ Never attempt flips or other extreme moves unless you know you are capable and have had the
appropriate training.
§ No double flips, triple flips, diving or gainers, even if you are capable.
§ Do not distract others while they are using the equipment.
§ Do not attempt to catch anyone who may fall.
§ Do not sit, lie, stand or rest under the activity equipment and/or surrounding padding/mats.
§ Never lean on, jump on, climb, grab, or lift any safety pads or safety nets.
§ Do not use any accessories that are not specifically recommended by the manufacturer. These
might cause injuries or cause the equipment to fail.

Rugged Interactive
Unit 1, Callywith Gate
Callywith Industrial Estate, Bodmin
Cornwall, UK
PL31 2RQ
[phone]
www.rugged-interactive.co.uk
[e-mail]
Freedom Gaming – Section 2 - Installation
©Rugged Interactive 2021
Section 3 - Installation
3.1 - Parts List
Please check off the received parts for the installation and alert us immediately if anything is
missing. Below list is for a 45 pod system, get in touch if an accurate list for your order is required.
45 x Freedom Gaming pods. *
☐
45 x Pod back plates. *
☐
180 x M8 x 20mm Screws for back plates. *
☐
180 x M8 Washers for back plates. *
☐
5 x Spare pods.
☐
1 x Main control box.
☐
3 x Remote control box (15 outputs). *
☐
1 x 3m USB cable.
☐
1 x 3m HDMI cable.
☐
2 x Audio cables.
☐
45 x 20m Network cables. *
☐
1 x Small screen mount.
☐
4 x HDMI extender modules.
☐
4 x 30m Network Cables (HDMI extension).
☐
4 x 1m HDMI cable (large screen to extender module).
☐
3 x 30m Network cables (main control to remote control). *
☐
2 x Speaker mounts.
☐
2 x Speakers.
☐
4 x Large screen mounts. *
☐
4 x Large screens. *
☐
1 x 15” Touch screen.
☐
1 x Manual.
☐
* Adjust quantities to suit order. Contact Rugged Interactive for an accurate list for your order if
required.
A
d

Freedom Gaming Order and Installation Manual: Installation
Freedom Gaming – Section 2 - Installation
©Rugged Interactive 2021
3.2 - Tools and Components List
Arrange the necessary tools and the team to install the product.
Ladder.
☐
Jigsaw.
☐
Hole saw.
☐
Industrial vacuum cleaner.
☐
Dustpan and brush.
☐
SDS impact drill.
☐
Cordless drill – with torque adjuster to avoid over-tightening the screws.
☐
A set of No.2 Pozi bits.
☐
A set of screwdrivers.
☐
A set of Hex keys
☐

Rugged Interactive
Unit 1, Callywith Court
Callywith Industrial Estate, Bodmin
Cornwall, UK
PL31 2RQ
[phone]
www.rugged-interactive.co.uk
[e-mail]
Freedom Gaming – Section 2 - Installation
©Rugged Interactive 2021
3.3 - Installation Overview
Below is an overview of the steps needed to install Freedom Gaming. More detail for the process is
provided in the following pages. Please read through ALL of this prior to beginning the installation
and if you are in any doubt, contact Rugged Interactive.
If you have any concerns on how or what the product is installed to, contact a structural engineer
prior to beginning the installation.
STEP 1: Assign positions for Pods, Hubs, Control Box and Screens.
STEP 2: Install Hub boxes in suitable positions.
STEP 3: Install Control Box in suitable position, a position near the entrance is recommended.
STEP 4: Install all pods and connect via CAT5 cables to designated Hub.
STEP 5: Install display screens.
STEP 6: Install touch screen, this will need to be within 3m of the Control Box.
STEP 7: Connect all cables all elements are connected to the Control Box.
STEP 8: Check all is secured, stress relief cables.
STEP 9: Turn on and test.
STEP 10: Enjoy Freedom Gaming!

Rugged Interactive
Unit 1, Callywith Court
Callywith Industrial Estate, Bodmin
Cornwall, UK
PL31 2RQ
[phone]
www.rugged-interactive.co.uk
[e-mail]
Freedom Gaming – Section 3 - Installation
©Rugged Interactive 2021
3.4 – Detailed Installation
Read this manual before installing Freedom Gaming.
Installation Guidelines:
§ Complete the Site Survey form prior to delivery and/or installation.
§ Send a completed Installation Checklist after any installation to Rugged Interactive.
§ A typical installation should take 2 days.
§ No obstructions or protrusions in the installation area: e.g. skirting boards, pipes, cables and wiring
conduits.
§ Avoid trapped and/or pinched cables.
§ Use good practice when running data cables to and from products, external pods and sensors.
Support long cables at least every 50 cm and provide adequate strain relief for connection points.
§ To prevent electric shock, keep all electric components away from contact with water.
§ Do not run power cables along or inside metal structures.
§ Ensure the install complies with any national electricity regulations.
§ IMPORTANT: Take anti-static precautions.
Structure:
§ Mount onto a suitable surface. Pods should be installed to round or square metal poles, prior to
vinyl or padding being added. Screens and Hubs should be installed to a suitable surface, 18 mm
plywood (12 mm minimum) mechanically mounted to a steel framework (50 mm box minimum) is
recommended. The plywood should be covered with foam-backed vinyl.
§ Avoid clashing the steel uprights with the fixing holes.
§ Do not fix to plasterboard faced partition. Avoid stud walls or unsupported portal infills.
§ The layout of the Freedom gaming pods is at the discretion of the installer.
Fixings:
§ The manufacturer will supply fixings and plugs.
§ All fixings must be tight and secure.
Installation Heights:
§ Take into consideration the primary user groups when determining the installation height.
§ Display screens should be out of reach of users but easily visible.
§ The touchscreen will be required to set up and start games so an appropriate position will be
necessary to allow this without obstructing the current game being played.
§ IMPORTANT: the pods must be within 20m of the Hub box they service.

Freedom Gaming Order and Installation Manual: Installation
Freedom Gaming – Section 3 - Installation
©Rugged Interactive 2021
Operating Environment:
§ Keep out of direct sunlight; bright sunlight can affect the LED pod sensors.
§ Keep indoors and dry.
§ Optimum ambient temperature: 5°C to 30°C. Avoid extreme fluctuations of temperature.
Other Recommendations:
§ Instruction / training carried out by an appropriate instructor to all new users.
§ A waiting / spectating area positioned nearby is advised.
IF YOU ARE IN ANY DOUBT, CALL RUGGED INTERACTIVE DIRECTLY ON [phone].

Freedom Gaming Order and Installation Manual: Installation
Freedom Gaming – Section 3 - Installation
©Rugged Interactive 2021

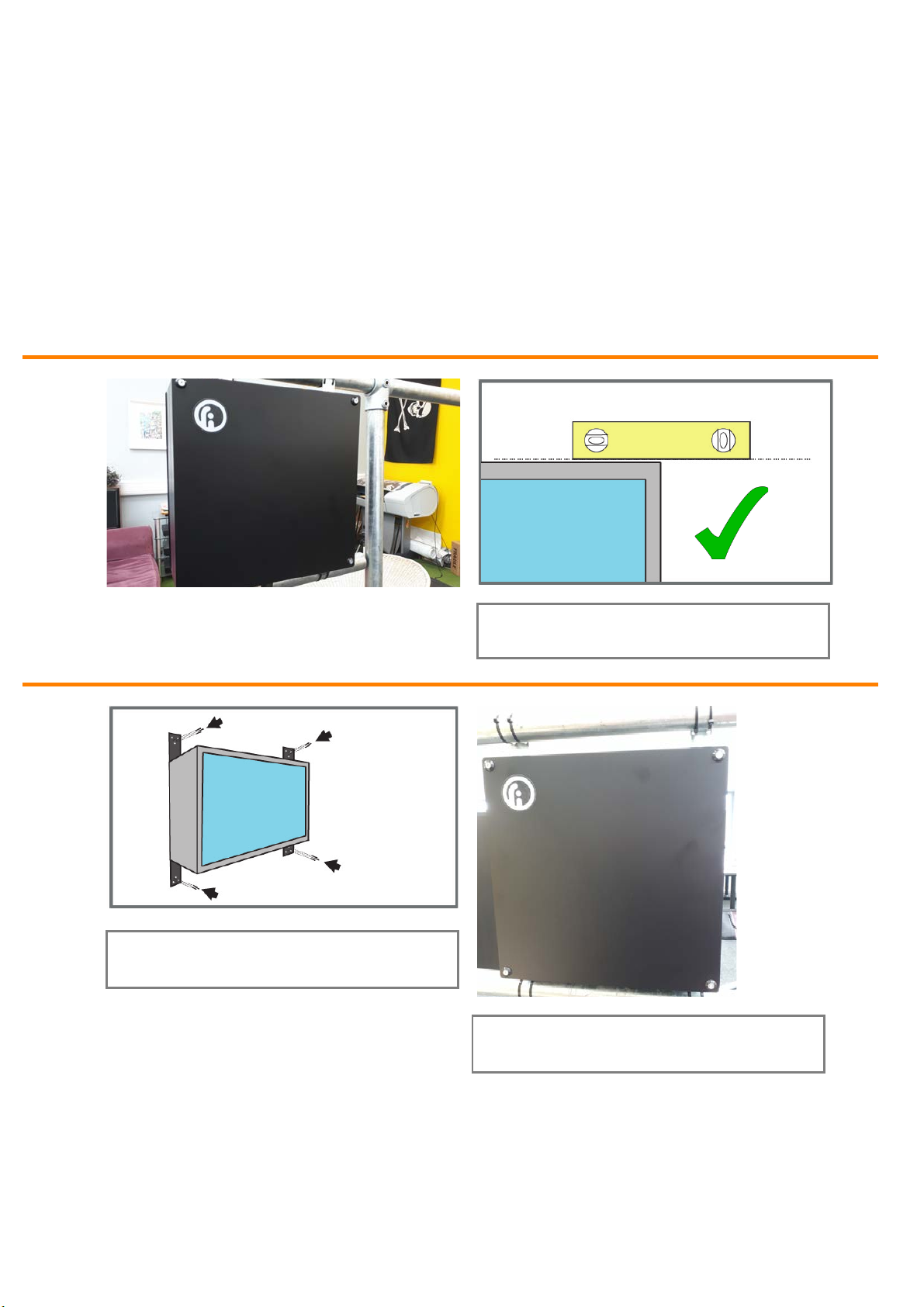

Freedom Gaming HUB Box Installation
§ The HUB Box contains the HUB that controls a set of 15 pods (requires 1 power socket per HUB
box).
§ Each Pod cable is numbered 1-15 and each HUB numbered A, B, C etc.
§ Fix HUB using any suitable self-tapping or wood screws into the surface material or strong cable
ties if suspending outside of the arena play area.
§ The HUB does not need to be visible so a position to assist the installation is recommended.
§ The HUB will need to connect to the Control Box via a CAT5 Cable.
§ Note: Cables exit is at the rear of the box.
01
02
Hold the main body in place, and ensure it is
level.
Use appropriate fixings and mount the Hub box
to an appropriate position.
Note: Make sure everything is tight and secure
and that no cables are trapped.

Freedom Gaming Order and Installation Manual: Installation
Freedom Gaming – Section 3 - Installation
©Rugged Interactive 2021
Note: The rear box can be used to coil and hide cable excess.
All cables will be numbered 1 – 15 and each HUB box assigned a letter (A,B,C …), the installer
should record on an illustration of the equipment the position and number of each pod, i.e A12, B5,
C15 etc. A copy should then be submitted to Rugged Interactive as well as a second copy being
left with the park manager. This will assist with future updates such as changing pod score values
or service issues / fault diagnosis.

Freedom Gaming Order and Installation Manual: Installation
Freedom Gaming – Section 3 - Installation
©Rugged Interactive 2021
Freedom Gaming Control Box Installation
§ The control box contains the NUC which controls the whole system and a splitter for the display
screens (requires two power sockets).
§ The control box is installed in the same way as the Hub Box; however, this should be installed
locally to the touch screen registration area.
§ Fix the control box using any suitable self-tapping or wood screws into the surface material.
§ Note: Cables exit is at the rear of the box.
01
02
Hold the main body in place, and ensure it is
level.
Use appropriate fixings and mount the display
box to the wall.
Note: Make sure everything is tight and secure
and that no cables are trapped.

Freedom Gaming Order and Installation Manual: Installation
Freedom Gaming – Section 3 - Installation
©Rugged Interactive 2021
Freedom Gaming Pod Installation
§ The pods should be installed prior to padding and vinyl being added to the piping.
§ The pods can be installed to either box or round piping and feature a cut out on the rear for each.
§ Pods are connected to the HUBs via CAT5 cables.
01
02
Each pod will be supplied with the pod, a
backplate with adhesive pads, bolts and
washers.
Position pod on the exposed pole in the desired
orientation for gameplay.
Remove cover from adhesive pad and align to
the rear of the pod.

Freedom Gaming Order and Installation Manual: Installation
Freedom Gaming – Section 3 - Installation
©Rugged Interactive 2021
03
04
05
Attach bolts and tighten until firmly in place.
Connect appropriate length CAT5 cable to the
pod’s hanging cable that will return to the Hub
box. Pods must be within 20m of the hub that
services them.
Tuck the hanging cable and head of the CAT5
cable inside the recess in the pod. Cable
excess can be fed into this recess too.
Push the supplied stopper into the hole being
sure the cable is sitting in the small recess to
the side of the main hole.

Freedom Gaming Order and Installation Manual: Installation
Freedom Gaming – Section 3 - Installation
©Rugged Interactive 2021
Freedom Gaming Screen Installation
§ The screens are to be installed in suitable positions around the event, these screens will display the
in-game scores and leader boards.
§ Screens should be positioned in easily visible positions that users will not make contact with.
§ The screens are connected to a small splitter via HDMI, the splitter will need to connect via CAT5
cable to the Control Box.
01
02
Install the supplied screen mount to a suitable
position around the event area. Use suitable
screws. Ensure it is firmly attached and level.
Line the screen to the mount and connect.
Ensure it is securely mounted in place.
Attach the second part of the screen mount to
the screen.
