Ruida Technology RDC6445G User manual

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
RDC6445G
Control System manual
Read this manual before operation
The content include of electric connections and operating steps
Read the manual to operate the systems
RuiDa Technology Co., Ltd
Addr: 3th floor,Technology Building,NO.,1067 Nanhai
Avenue,Nanshan District,Shenzhen city,Guangdong
Province,P.R.China
Tel: [phone]
Fax: [phone]
E-mail: sale[email protected]om
Web: www.rd-acs.com

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
COPYRIGHT
All rights reserved.You may not reproduce, transmit, store in a
retrieval system or adapt thispublication, in any form or by any means,
without the prior written permissionof RuiDa, except as allowed
under applicable copyright laws. We have identifiedwords that we
consider as trademarks. Neither the presence or absence oftrademark
identifications affects the legal status of any trademarks.

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
CERTIFICATION DECLARATION
CE
The product has been certified by the CE (Commutate European) safety certification. It has
passed the corresponding conformity assessment procedure and the manufacturer's
declaration of conformity, in accordance with the relevant EU directive.
ROHS
This product has been certified by EU legislation (Restriction of Hazardous Substances)
Safety certification; comply with relevant EU environmental regulations.
FCC
This product has been certified by the Federal Communications Commission for safety,
Comply with us electronic safety regulations.

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
SAFETY INFORMATION
When using this system, please make sure the operation is correct and the usage is safe.
Some signs or text will be used to remind you to pay attention to the dangerous matters and
some important information.
Dangerous：
Indicates a serious danger. In the process of use, if the operation is
improper or the way of use is wrong, it may cause serious injury or even
death to the user. Please do not operate it easily until you have made sure
that the operation method is correct and the way of use is correct.
Warning：
Danger.n the process of use, if the operation is improper or the use is
wrong, which may lead to the injury of the personnel, please do not
operate the personnel and related personnel easily, until ensure the correct
operation method and use method is correct before use.
Cautious：
Represents the potential risk of the product. In the process of use, if the
use method is wrong or improper operation, it may cause damage to the
product or some parts. Please do not use it until you have made sure that
the operation method is correct and the usage is correct.
Important：
Represents important information to be paid attention to during the use of
the product.Please do not ignore this information, this information will
provide effective operational help.
This sign indicates laser radiation, which is usually posted on products with
laser output. Please be careful with laser and pay attention to safety when
using this kind of equipment.

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
Sign in、Devanning、Examine cargo
The product itself with plastic or metal shell, can protect the external electrical components
from damage. The products are packed in foam bags and anti-static bags. If there is any
external damage to the package, check the equipment and notify the carrier and carrier in
writing of the damage.
Inportant:
After receiving the product, please check whether the outer package is intact,
check whether the product is complete after unpacking and whether all parts
are intact. If any damage is found, please contact ruida immediately.
Remove all cargo from package and keep packing material and wiring parts. Please take care
of the safety of the goods when unpacking them.After taking out the goods, please check
whether the parts are complete and intact. If any missing parts or damaged parts are found,
please contact ruida technology immediately.Do not install or debug the equipment if any
obvious damage is found.

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
Contents
Chapter 1 Overview......................................................................................................................................1
1.1 Briefing............................................................................................................................................... 2
1.2 Description of Controller Model........................................................................................................ 2
1.3 Comparison of Controller Performance.............................................................................................2
Chapter 2 Installation Size........................................................................................................................... 5
2.1 Installation Size of MainBoard........................................................................................................... 6
2.2 Size of Panel........................................................................................................................................6
Chapter 3 Object Pictures and Interfaces....................................................................................................6
3.1 Object Pictures of MainBoard............................................................................................................8
3.2 Object Pictures of Panel.....................................................................................................................9
3.3 Electric connection...........................................................................................................................10
3.4 Lamp instruction.............................................................................................................................. 10
Chapter 4 Description of Interface Signal for MainBoard...........................................................................8
4.1 Interface of Main Power Source CN0...............................................................................................14
4.2 Panel Signal-Cable Interface HMI.....................................................................................................14
4.3 Udisk Interface................................................................................................................................. 14
4.4 PC-USB Interface.............................................................................................................................. 14
4.5 Ethernet Interface............................................................................................................................ 14
4.6 General Output Port CN1.................................................................................................................14
4.7 General Input Port CN2....................................................................................................................15
4.8 4-axle Spacing Input Interface CN3/CN4......................................................................................... 16
4.9 X/Y/Z/U axle Motor Driver Interface AXIS_X~AXIS_U..................................................................... 16
4.10 Laser Power Control Interface CN5/CN6....................................................................................... 17
Chapter 5 Examples of Laser Power Interface...........................................................................................19
5.1 Brief.................................................................................................................................................. 20
5.2 Examples of Glass tube Laser Power............................................................................................... 21
5.3 Examples of RF-Laser....................................................................................................................... 22
Chapter 6 Examples of Driver Interface for Step-servo Motor................................................................. 23
6.1 Brief.................................................................................................................................................. 24
6.2 Examples of Motor Driver Connection............................................................................................ 25
Chapter7 Examples of IO-port Wiring........................................................................................................26
7.1 Input................................................................................................................................................. 27
7.2 Output.............................................................................................................................................. 28
Chapter 8 Operating Instruction of Panel..................................................................................................20
8.1 Brief.................................................................................................................................................. 30
8.1.1 Overview................................................................................................................................... 31
8.1.2 Introduction to the Keys........................................................................................................... 31
8.2 Speed Setting................................................................................................................................... 33
8.3 Max/Min Power Setting................................................................................................................... 34
8.4 Set the layer parameters..................................................................................................................34
8.5 Menu Function................................................................................................................................. 35

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
8.5.1 User parameters........................................................................................................................36
8.5.2 Vender parameters................................................................................................................... 39
8.5.3 Origin Setting.............................................................................................................................40
8.5.4 Backup parameters................................................................................................................... 41
8.5.5 Restore parameters...................................................................................................................42
8.6 Controller setting............................................................................................................................. 42
8.6.1 Language................................................................................................................................... 42
8.6.2 Screen origin............................................................................................................................. 43
8.6.3 Wireless panel...........................................................................................................................44
8.6.4 IP Setting................................................................................................................................... 44
8.6.5 System Info................................................................................................................................45
8.7 Funtions............................................................................................................................................45
8.7.1 Axis reset................................................................................................................................... 46
8.7.2 Keyboard lock............................................................................................................................46
8.7.3 Manual setting.......................................................................................................................... 47
8.7.4 Laser Setting..............................................................................................................................48
8.7.5 Diagnose....................................................................................................................................49
8.7.6 Laser power infomation............................................................................................................49
8.8 File Management............................................................................................................................. 50
8.8.1 Memory File.............................................................................................................................. 50
8.8.2 Memory operation....................................................................................................................51
8.8.3 Format memery........................................................................................................................ 52
8.8.4 U disk file...................................................................................................................................53
8.9 Password input and settings............................................................................................................ 54
8.9.1 Password Input..........................................................................................................................54
8.9.2 Password Setting.......................................................................................................................54
8.10 Prompt and alarm information......................................................................................................55
8.11 Auto Focus......................................................................................................................................55
Chapter 9 Manufacturer/User Parameters Explanation........................................................................... 56
9.1 Manufacturer parameters................................................................................................................57
9.2 User parameters...............................................................................................................................60

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
1
Section 1 Overview
CONTENTS:
Briefing
Description of
Controller Model
Comparison of
Controller Performance

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
2
1.1 Briefing
RDC6445G system is a new generation system for control of laser engraving and cutting,
which is developed by RD Co., Ltd. In addition to high hardware stability, high voltage or static
electricity rejection, and friendly 5’’ TFT man-machine display. This system is provided with
stronger software function including perfect 4-axle motion control function, large-capacity file
storage, two-channel adjustable digits laser power control interface, USB driver of stronger
compatibility, multi-channel general/special IO control, and, this system can communicate with
PC by USB2.0 or Ethernet, and the communication mode is automatically checked by the system.
1.2 Description of Controller Model
1.3 Comparison of Controller Performance
RDLC
420
RDC6332G
RDC6342G
RDC644XG
Power
Feature
One-way 5V,
one-way
24V,
independen
t
Only one-way
24V (compatible
with 36V for
power supply,
but not
recommended)
Only one-way
24V (compatible
with 36V for
power supply,
but not
recommended)
Only one-way 24V
(compatible with
36V for power
supply, but not
recommended)
Laser Port
Feature
One-way
digit and
one-way
analog
Two-way digits
and two-way
analog port,
settable
independently
and
Two-way digits
and two-way
analog port,
settable
independently
and
Two-way digits port,
settable
independently and
non-interacted

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
3
non-interacted
non-interacted
USB
Feature
Copying
Speed
Common
Quick
Quick
Very Quick
Compatibili
ty
Support USB
disks with
small
capacity
Support all USB
disks with
different
capacities
Support all USB
disks with
different
capacities
Support all USB
disks with different
capacities
Mem
ory
Feature
Capacity
64M
256M
256M
128M
Fault
Tolerance
Common
Capable of
checking
defective track
and formatting
and good in fault
tolerance
Capable of
checking
defective track
and formatting
and good in fault
tolerance
Capable of checking
defective track and
formatting and
good in fault
tolerance
Gener
al IO
Feature
Input Port
Two ways
4 ways (two for
general, two for
specialties)
4 ways (two for
general, two for
specialties)
4 ways (two for
general, two for
specialties)
Output Port
1-way (low
current, so
additional
drive is
needed)
4-ways (500mA
high current for
each, OC output,
no reverse
current
protection)
4-ways (500mA
high current for
each, OC output,
no reverse
current
protection)
4-ways (500mA high
current for each, OC
output, reverse
current protection
included)
Software
Feature
Power-off
restart for
Engraving
YES
YES
YES
YES
Multi-origin
Logics
NO
YES
YES
YES
Parameter
Backup
Logics
NO
YES
YES
YES
Work time
Preview
NO
YES (the work
time accurate to
1ms)
YES (the work
time accurate to
1ms)
YES (the work time
accurate to 1ms)
Online
Update
Mainboard
Program
NO
YES
YES
YES
Display
Feature
Online
Modificatio
n Laser
Power/Spe
ed
YES
YES
YES
YES
Offline
Modificatio
n Layer
parameters
NO
YES
YES
YES
Online
Update
Startup
Display
NO
YES
YES
NO
File
dynamic/st
atic preview
NO
YES
YES
YES

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
4
Run
progress
bar display
NO
NO
NO
YES
Modifi
cation
Factory/Use
r’s para on
display
NO
YES
YES
NO
Display
type
128*64, dot
display
320*240 TFT
display
320*240 TFT
display
320*480 TFT display
Motion-axl
e Feature
Soft
Spacing
YES
YES
YES
YES
Hard
Spacing
NO
YES
YES
YES
Z-axle
Linkage
NO
YES
YES
YES
Feeding
Feature
Single
direction
Single/double
direction for
option
Single/double
direction for
option
Single/double
direction for option
Power-on
Resetting
Fixed
Configurable for
each axes
Configurable for
each axes
Configurable for
each axes
Key Speed
Fixed
Configurable
Configurable
Configurable
Axles
4
3 (Z axes is
configurable to
flat or feedin
axes）
3 (Z axes is
configurable to
flat or feedin
axes）
4
Encryption
Feature
Encryption
based on
the PC time
Realtime clock
and battery
integrated for
hardware
encryption
Realtime clock
and battery
integrated for
hardware
encryption
No realtime clock,
but encryption
included
Communic
ate
Mode
USB2.0
10/100MHZ
Ethernet or
USB2.0
10/100MHZ
Ethernet or
USB2.0
10/100MHZ
Ethernet or USB2.0,
communication
mode is
automatically
checked

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
5
Section 2 Installation
Size
CONTENTS:
Installation Size of
MainBoard
Size of Panel

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
6
2.1 Installation Size of MainBoard
The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm (the four holes are
symmetrical)
2.2 Size of Panel
The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm.
Figure
Figure

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
7
Section 3 Object
Pictures and Interfaces
CONTENTS:
Object Pictures of
MainBoard
Object Pictures of
Panel
Electric connection
Lamp instruction

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
8
3.1 Object Pictures of MainBoard
For more detailed pin description, see the Chapter 4: Description of Interface Signal for
MainBoard.
Figure: 3.1-1 Object Picture of
MainBoard

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
9

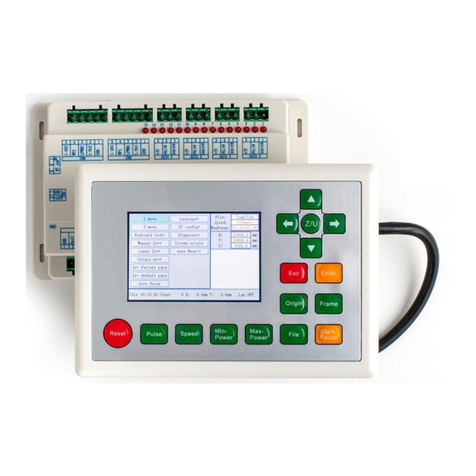

3.2 Object Pictures of Panel
Figure: 3.2-1 Object Picture of Panel

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
10
3.3 Electric connection
3.4 Lamp instruction
RDC6445G have fifteen red lamps:
LED NUMBER
NAME
SENSE
LED1
LmtX-
Xnegative limit indicator
LED2
LmtX+
Xpositive limit
LED3
LmtY-
Ynegative limit
LED4
LmtY+
Ypositive limit
LED5
LmtZ-
Znegative limit
LED6
LmtZ+
Zpositive limit
LED7
LmtU-
Unegative limit
Figure 3.3-1 electric
connection

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
11
LED8
LmtU+
Upositive limit
LED9
Wp1
Indication for water protect 1
LED10
Wp2
Indication for water protect 2
LED11
Act
Ethernet communication
LED12
Link
Ethernet connection
LED13
Err
error in controller hardware
LED14
Run
the normal running status
LED15
+5V
+5V power supply

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
12
Section 4 Description
of Interface Signal for
MainBoard
CONTENTS:
Interface of Main
Power Source CN0
Panel Signal-Cable
Interface HMI
Udisk Interface
PC-USB Interface
Ethernet Interface
General Output Port
CN1

RDC6445G Control System manual V1.2
SHENZHEN RUIDA TECHNOLOGY
13
General Input Port
CN2
4-axle Spacing Input
Interface CN3/CN4
X/Y/Z/U axle Motor
Driver Interface
AXIS_X~AXIS_U
Laser Power Control
Interface CN5/CN6
