ENGLISH
INSTALLATION AND OPERATING MANUAL
Before operating the heater, please read these instructions thoroughly to avoid damage and
hazardous situations. Any use of this heater other than that stipulated in this instruction manual may
cause fire, electric shock or injury, and voids all warranties.
Warranty does not apply to any defect, deterioration, loss, injury or damage caused by, or as a result of, the
misuse or abuse of this heater. The rights dictated by State law are not prejudiced. None of the terms of this
warranty are to be taken as excluding any conditions or warranties implied by State law, which cannot be
excluded or modified.
Before any operation remove the packaging and check product integrity. In case of defects or damages do
not try to repair it yourself but contact your dealer.
Do not let children play with the packaging and protect the environment by disposing of the packaging in
accordance with the national regulations for waste processing.
Please retain these instructions in a safe place for future reference.
1. For your safety
 This appliance is intended for normal household use and
not for use in commercial/industrial enviroment, in vehicles
or on board ships or aircrafts.
 This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children without supervision.
 Children of less than 3 years should be kept away unless
continuously supervised.
 Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed
or installed in its intended normal operating position and
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children aged from 3 years and less than
8 years shall not plug in, regulate and clean the appliance
or perform user maintenance.
 CAUTION — Some parts of this product can become
very hot and cause burns. Particular attention has to
be given where children and vulnerable people are
present.
 Make sure that your supply rating corresponds to what
specified on the rating plate: 230V~, 50Hz.
 This heater is water resistant to IPX4. It can therefore be
used in bathrooms or other areas subject to humidity AS
LONG AS IT IS NOT INSTALLED WITHIN THE
PERIMETER OF BATH TUBS OR SHOWERS. This
means that it cannot be installed in the areas marked as

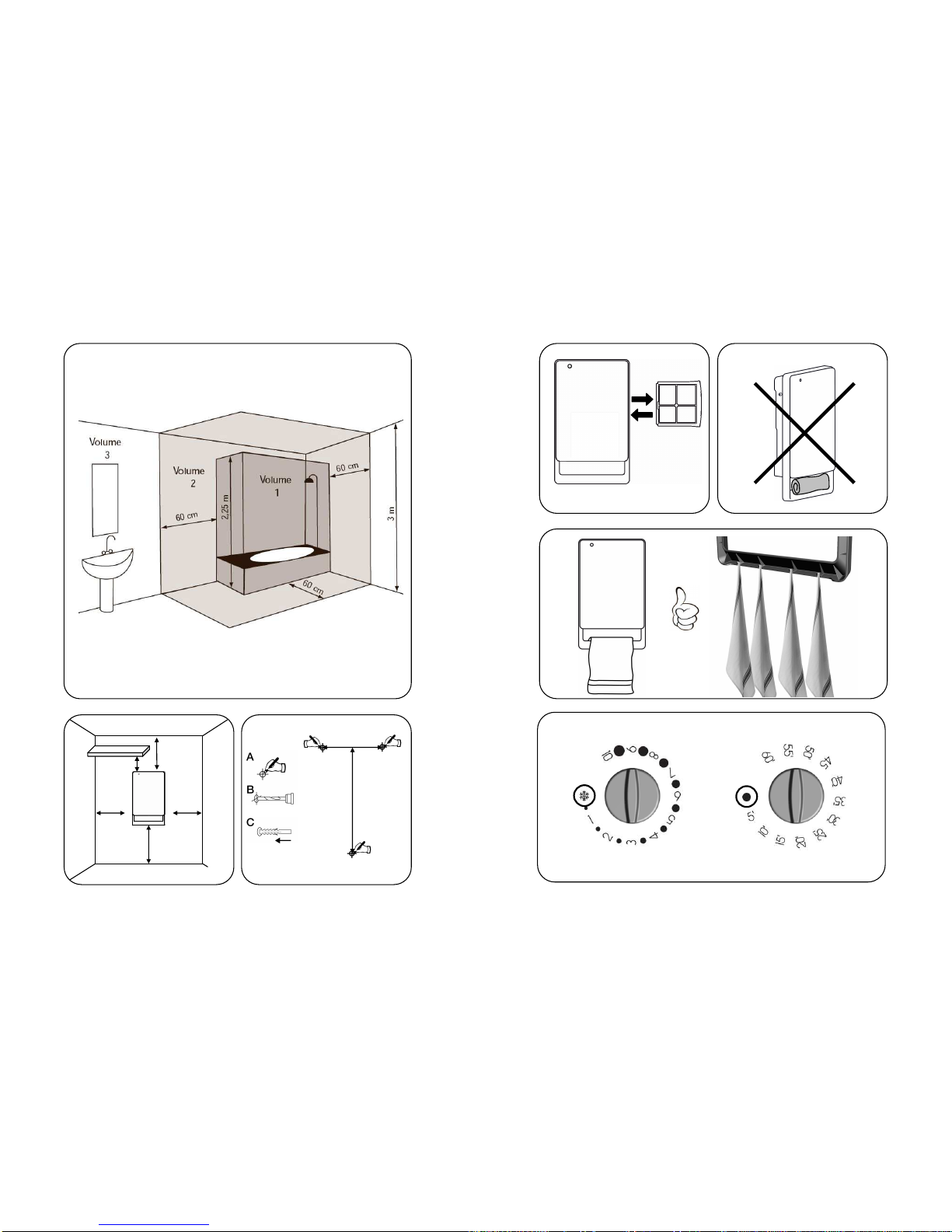

VOLUME 1 in picture 1.
 During function, place the heater in a safe position:
-at least 1m far from inflammable objects or furnitures;
-leaving not less than 1m of free space in front of the
heater;
-not located immediately below a socket-outlet.
 Do not leave animals or children touch or play with the
appliance. Pay attention! The air outlet grille gets hot during
operation (more than 90°C)
 WARNING: In order to avoid overheating, do not cover
the heater. Do not hang anything on the heater and do not
cover it while it’s working. This is clearly written on the
cover of the product or shown by the symbol
 Do not use the heater in rooms with explosive gas or while
using inflammable solvents or varnish or glues.
 If the cordset is damaged and you have to change it, do not
do the job yourselves! Take the product to an after sales
authorised repair centre or to a person with similar skill and
knowledge, in order to avoid any risk of danger.
 The appliance must be positioned so that the plug is
always accessible.
 Do not mount the product on walls made of synthetic
material.

2. Wall mounting
 Only fix the heater in vertical position with the air outlet grid downward;
 This heater is fitted with a double electrical insulation circuit (class II) and therefore does not require an
earth connection.
 It must never be possible for people in the bath tub or shower to reach the adjustment knobs.
 This heater must be correctly installed in compliance with the regulations in force in the country of
installation.
 In wet spaces like bathrooms or kitchens, the connection terminal must be installed at least 25 cm
above the floor. The electrical connection to the power supply must also be fitted with a two-pole switch
with a minimum gap between the contacts that allows complete disconnection according to excess
voltage III category conditions.
 Always make observe the minimum distances from walls, furniture and/or objects, as indicated in
picture 2. Never install the product so that the distance between the floor and the lower side of the
product is less than 600 mm:
-Drill three 6 mm diameter holes in the wall, as shown in picture 3
-Insert the three wall plugs supplied with the product
-Insert the 2 upper screws, contained in the same bag, taking care to leave a distance of 8 mm between
the head of the screws and the wall;
-Gripping the heater firmly, hook it onto the two screws; CAUTION! Before releasing the heater make
sure it is attached to the 2 screws.
-Then secure the product with the lower screw.
3. Filter
 This product is fitted with a filter to protect the heating element from dust and dirt.
 The filter is removable to be easily cleaned with water (picture 4).
 To keep the heater in perfect condition, clean the filter once every six months REMEMBERING TO
PUT IT BACK AGAIN AFTERWARDS.
4. Towels
 The product is equipped with a towel rail and n. 4 additional hooks placed on rail's back side.
 Please do not push or embed towel close to the air outlet grid (picture 5) but place them as shown in
picture 6.
5. Using the fan heater
The heater is fitted with the controls shown in figure 7
Using the thermostat
 In a room with a temperature in excess of 35°C, the thermostat does not turn on the fan heater even if it
is at maximum.
 Vice-versa, in a room with a very low temperature (below 5°C), the thermostat keeps the heater
constantly on, even if it is at minimum.
 To optimise use of the thermostat, proceed as follows:
-turn the thermostat knob to maximum and wait until a comfortable temperature is reached;
-then turn the thermostat knob anti-clockwise until you hear a “ click” and the heater turns off;
-turn the thermostat knob clockwise just a little;
-in this position, the thermostat will maintain the selected ambient temperature.
Model with thermostat and 60’ timer
 This model of fan heater is fitted with two knobs, one for the 60’ timer and the other for the thermostat.
 2 different operating modes are available:
A Maintenance of ambient temperature:
Starting from the anti-freeze position “*”, turn the thermostat knob clockwise until you hear a
“click”: the fan heater starts working at 1000W and the indicator LED lights up.
The thermostat maintains the required ambient temperature byautomatically turning the heater on
and off. The more the knob is turned clockwise to a higher number, the higher the ambient
temperature will be. The highest position of the thermostat corresponds to approximately 35°C,
the bottom one (*) to about 5°C.
To adjust the thermostat, see the USING THE THERMOSTAT section above.
B Rapid heating
Adjust the ambient thermostat to the required temperature and then turn the timer knob to select
the required operating time. The product rapidly heats the room 1800W for the set time and then
reduces power to 1000W to maintain the ambient temperature selected with the thermostat.
 When the heater is working under timer control at 1800W the thermostat doesn't control the room
temperature. In this condition, do not use the heater in small rooms when they are occupied bypersons
not capable of leaving the room on their own, unless constant supervision is provided by a person
responsible for their safety.
6. Troubleshooting
 In the event of overheating, the safety device on the appliance automatically disabled the heating
elements and motor. In this case:
- Turn off the fan heater and allow it to cool down for about 15/20 minutes.
- Make sure the dust filter is not totally obstructed and clean if necessary. Remember to put it back
again afterwards.
- Eliminate any other possible reasons for overheating (e.g.: obstructions in front of the air inlet/outlet
grilles, build-ups of dirt).
- Turn on the fan heater again and check it works correctly.
7. Maintenance
 This product does not require any special maintenance.
 Clean the product with a dry cloth once every6 months.
 If the product requires repairing, contact an authorised technical service centre.
 When replacing the power cable, use a 2x1,00mm2H05VV-F HAR type. This operation must be
performed by qualified personnel and never by the end user in order to avoid damaging the appliance
and jeopardising personal safety.
8. Legal notice
Environment and recycling
Please help us to protect the environment by disposing of the packaging in accordance with the
national
regulations for waste processing.
Recycling of obsolete appliances
Appliances with this label must not be disposed off with the general waste. Theymust be
collected separatelyand disposed off according to local regulations.
