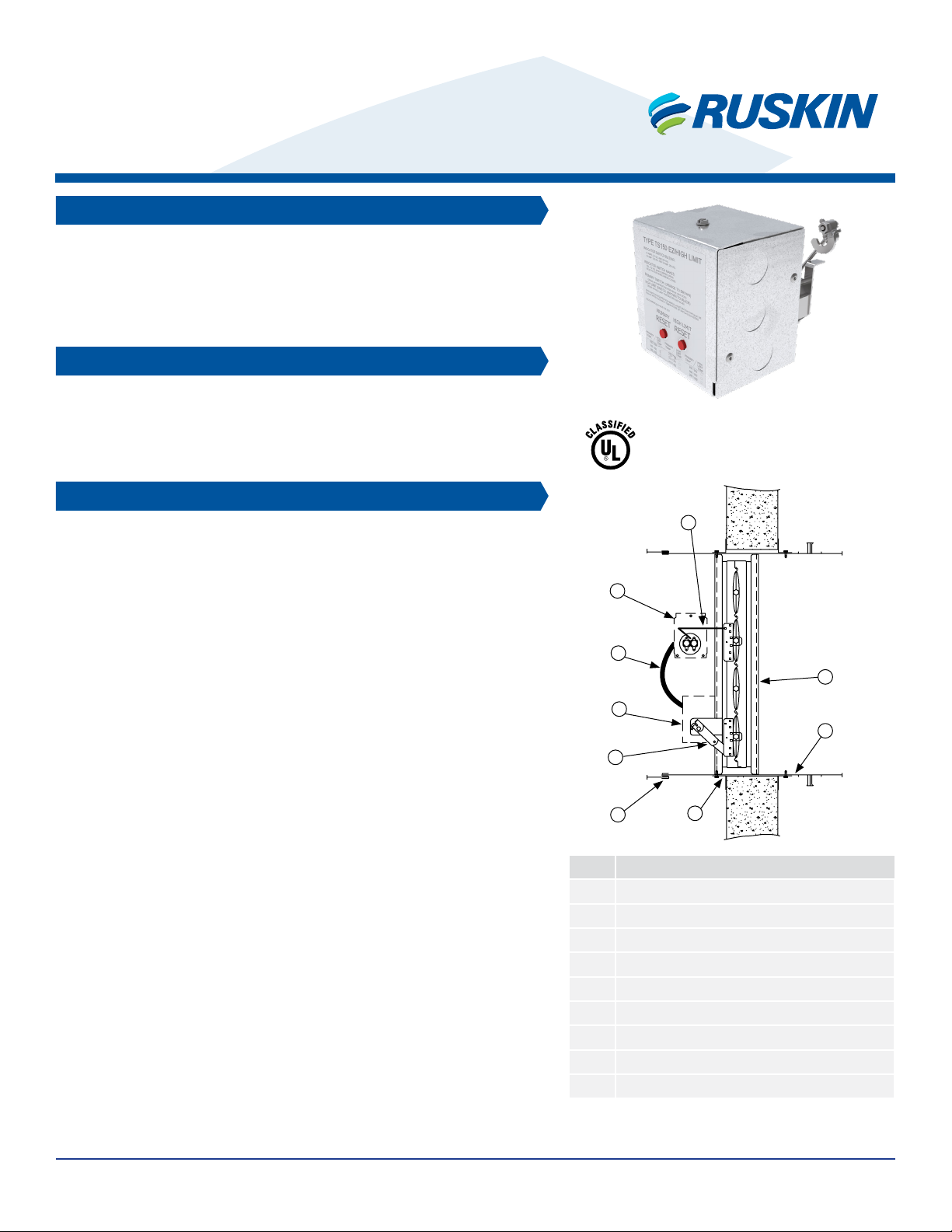

Ruskin TS150 User manual

II-TS150-0121/Replaces II-TS150-514 ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © Ruskin January 2021
Page 1
AUTHORITY IN AIR CONTROL
The TS150 is a UL Classified heat responsive device which is used in conjunction with
Ruskin fire/smoke dampers. The TS150 is an optional device which can be ordered
with electric actuators or pneumatic actuators and EP (electro/pneumatic) switches.
The TS150 allows the dampers to be reopened after the initial closure for dynamic
smoke control. The TS150 must be installed at the factory and cannot be added
in the field. Replacement TS150’s may be field installed with the approval of the
local authority.
If smoke is detected, or during testing, or if power failure occurs, the damper will
close and lock. When the smoke signal ceases (or smoke detector resets) , the test
is complete or power is restored the SYSTEM will automatically REMOTE RESET the
damper to the open position. The damper automatically resets if nuisance alarms
occur and the SYSTEM is reset. The damper may be closed at any time by placing the
MCP1 (optional) or other control switch (by others) in the CLOSED position.
When the switch of a control panel (MCP) is in the NORMAL position and temperatures
in excess of 165°F/74°C (212°F/100°C optional) are detected, the damper will close and
lock and the damper CLOSED indicator light on the control panel will light.
The damper remains closed until the override signal for smoke management from
a remote command station is present and the duct temperature has not exceeded
the high limit. The high limit temperature sensor prevents the damper from reopening
when duct temperature is above the damper’s UL555S degradation test temperature
of 250°F/121°C or 350°F/177°C. Upon cessation of the fire condition, the damper can
be reopened by pressing the RESET button on the TS150 assembly. At no time will the
damper disengage from the actuator. The integral SP100 will positively communicate
to the fire commander via the control panel the position of the damper for smoke
management purposes.
Refer to the appropriate damper installation instructions for details on damper
installation. All electrical wiring and connections to the Fire-Stat must be in accordance
with the standards of the authorities having jurisdiction.
S1 and S2 Switch AMP Ratings: 15 AMPS, @ 24, 125 or 250 VAC 1/2 AMP, @ 125 VDC,
1/4 AMP, @ 250 VDC
APPLICATION
SMOKE DETECTION/TEST/POWER FAILURE OPERATION
FIRE OPERATION
SEE COMPLETE
MARKING ON PRODUCT
TS150
Operation Instructions Supplement
Firestat For “Reopenable” Fire And Smoke Dampers
7
4
6
5
3
1
2
98
ITEM DESCRIPTION
1TS-150 Fire Stat
2Adjustable Connecting Rod
3Flex Conduit
4Damper Frame
5Actuator or EP Switch
6Over-Center Lock
7Damper Sleeve
8FAST, PFMA or conventional mounting angles
9Sleeve to Duct Connection (by others)

II-TS150-0121/Replaces II-TS150-514 ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © Ruskin January 2021
Page 2
3900 Doctor Greaves Road
Grandview, MO 64030
Website: www.ruskin.com
Phone: [phone]
AUTHORITY IN AIR CONTROL
LINKS TO IMPORTANT DOCUMENTS
Document Title
Limited Warranty Document
WIRING DIAGRAM
White
L2L1
BlackBrown M
Brown
Orange
By Others Or
By Others
Damper
Indicator
Light
Off
On
Blue S1
No
No
S2
HL= High light Sensor
P= Primary Temp Sensor
OR= Override
Electric Damper
Actuator or Pneu.
Solenoid Valve
Yellow
Blue
Yellow
Blue Yellow
Yellow
Brown
FS Primary
Heat Sensor
Manual Reset
Black
Orange
HL High Limit
Temp. Sensor
Manual Reset
Brown
Blue
AVAILABLE TEMPERATURE SETTINGS
Primary Hi-Limit
165°F/74°C 250°F/121°C
165°F/74°C 350°F/177°C
212°F/100°C 250°F/121°C
212°F/100°C 350°F/177°C
250°F/121°C 350°F/177°C
