Russell Hobbs RH60EDOEH6001 B User manual

Model number:
RH60EDOEH6001 (B) (S)
Multifunctional Electric Fan Double
Oven Instruction Manual
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
For Customer Services & Spare Parts please call 0345 208 8750
or visit us at https://mda.russellhobbs.com

CONTENTS
Page(s)
Safety instructions 3-7
Installation & Positioning 8-13
Product Overview 14
How To Use Your Oven 15-27
Cleaning & Maintenance 28-33
Trouble shooting 34-35
Guarantee 36
Product Information 37
Disposal information 37
Notes 38
Customer Service Information 39
2

3
Important Note:
Please read this booklet before installing and switching on this appliance.
The manufacturer assumes no responsibility for incorrect installation and
usage as described in this booklet.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
Electric ovens and hobs must be hard-wired to a suitably rated electrical
cooker power point –it is recommended that you consult a qualified
electrician. Failure to do so will invalidate your guarantee, liability claims,
and could lead to criminal prosecution.
•Children should be supervised to ensure that they do not play with the
appliance. Please keep children and animals away from this appliance.
•If the supply lead is damaged it must be replaced by a qualified person
using the correct lead, which is available from our customer helpline on
0345 208 8750.
•Packaging material is dangerous to children. Never allow children to play
with packaging material.
•Check the appliance for damage after unpacking it. Do not connect the
appliance if it has been damaged in transport.
•The appliance can only be used safely if it is correctly installed according
to the safety instructions. The installer is responsible for ensuring that
the appliance works correctly after installation.
•All operations relating to installation and regulation must be carried out
by an authorised installation engineer, respecting applicable regulations,
standards and the specifications of the local electricity providers.
SAFETY INSTRUCTIONS

4
•This appliance can only be installed in a well-ventilated place in
accordance with existing regulations and ventilation specifications.
•This appliance is intended for domestic use and the household
environment only. The appliance is not intended for use outside.
•Do not tamper with the appliance's interior. If necessary, call our
customer helpline.
•Do not switch on the appliance if it is damaged in any way. Contact our
customer helpline at the number on the front of the booklet.
•This appliance is only intended for cooking purposes, not as a heating
system.
•The manufacturer is not liable for damage which is caused by improper
use or incorrect operation.
•Combustible items stored in or on top of the appliance may catch fire.
Never store combustible items in or on top of the appliance. Never
open the appliance doors if there is smoke inside. Switch off the
appliance and unplug it from the mains or switch off the circuit breaker
in the fuse box.
•A draught is created when the appliance doors are opened.
Greaseproof paper may come into contact with the heating element
and catch fire. Do not place greaseproof paper loosely over accessories
during preheating. Always weigh down greaseproof paper with a dish or
a baking tin. Only cover the surface required with greaseproof paper.
Greaseproof paper must not protrude over the accessories.
•Always slide accessories into the cooking compartment.
•The appliance and its accessible parts become very hot when in
operation. Never touch the interior surfaces of the cooking
compartments or the heating elements while hot. Always allow the
appliance to cool down first. Keep children at a safe distance.
•Accessories and ovenware become very hot. Always use oven gloves to
remove accessories or ovenware from the cooking compartment.
•Shelves must only be placed and used between the side supports.
•The grill pan must only be placed on the shelves.
SAFETY INSTRUCTIONS

5
•The grill pan or any other kind of baking tray should not be placed on the
bottom of the oven cavities.
•Alcoholic vapours may catch fire in the hot cooking compartments. Never
prepare food containing large quantities of drinks with a high alcohol content.
Only use small quantities of drinks with a high alcohol content. Open the
appliance doors with care.
•When you open the appliance doors, hot steam may escape. Open the
appliance doors with care. Keep children at a safe distance.
•Water in a hot cooking compartment may create hot steam. Never pour water
into the hot cooking compartments.
•Scratched glass in the appliance doors may develop into a crack. Do not use a
glass scraper, sharp or abrasive cleaning aids or detergents when cleaning your
appliance. Never use strong and abrasive cleaning agents as they will cause
surface damage.
•The appliance gets hot. Do not keep combustible objects or aerosol cans in
drawers and cupboards directly besides the appliance.
•A defective appliance may cause electric shock. Never switch on a defective
appliance. Disconnect the appliance from the mains or switch off the circuit
breaker in the fuse box. Contact the customer services.
•The cable insulation on electrical appliances may melt when touching hot parts
of the appliance. Never bring electrical appliance cables into contact with hot
parts of the appliance.
•Penetrating moisture may cause an electric shock. Do not use any high
pressure cleaners or steam cleaners.
•When replacing the cooking compartment bulb, the bulb socket contacts are
live. Before replacing the bulb, disconnect the appliance from the mains or
switch off the circuit breaker in the fuse box.
•Incorrect repairs are dangerous. Repairs may only be carried out by a qualified
electrician.
•In the event of a malfunction, turn off the appliance’s electricity supply. For
repairs, call customer services.
•Carrying the appliance: do not carry or hold the appliance by the door handles.
Please use the handles present on the side casing.
SAFETY INSTRUCTIONS

6
•This cooker is intended for heating food and beverages only. The drying of food
or clothing, and heating of warming pads, wheat bags, slippers, sponges, damp
cloths and similar is extremely dangerous & may lead to risk of injury, ignition
or fire.
•Never put objects into the openings on the outer case.
•Food containing a mixture of fat and water (e.g. stock), should stand for 30 to
60 seconds in the oven after it has been turned off. This is to allow the mixture
to settle and to prevent it from bubbling when a spoon is placed in it, or a stock
cube is added.
•When heating or cooking food or liquid, remember that there are certain
foods (such as jam, Christmas pudding, and mincemeat), which heat up very
quickly.
•Do not cook any food surrounded by a membrane in the oven cavities, such as
egg yolks, potatoes, chicken livers,sausages, ready meals and so on without
piercing them several times with a fork.
•Do not overcook food.
•When heating food in plastic or paper containers, keep an eye on the oven due
to the possibility of ignition.
•If materials inside the oven smoke or catch fire, keep the oven doors closed to
stifle the flames, and turn the oven off at the wall switch or shut the power off
at the fuse or circuit-breaker panel. If smoke is emitted , switch off or unplug
the appliance and keep the doors closed in order to stifle any flames.
•Please remember that as food or liquids heat up, they will release steam or
may be spitting. Never cover any container fully, always leave a gap for steam
to escape.
•Do not use plastic containers when heating or cooking foods that contain a lot
of fat or sugar.
•When using the shelves and baking tray, be aware that these will become HOT
during cooking as they aren’t heatproof. Please use suitable oven gloves when
removing these.
•WARNING: Danger of fire - Do not store items on the cooking surfaces.
SAFETY INSTRUCTIONS

7
SAFETY INSTRUCTIONS
WARNING: The appliance and its accessible parts become hot during use. Care
should be taken to avoid touching heating elements. Keep children less than 8
years of age away unless they are continually supervised.
WARNING: Unattended cooking on a hob zone with fat or oil can be dangerous
and may result in fire. NEVER try to extinguish such a fire with water. Instead,
switch off the appliance and cover the flame with a lid or a fire blanket.
WARNING: If the hob surface is cracked, switch off the appliance to avoid the
possibility of electric shock.
•Do not operate the appliance with an external timer or separate remote-
control system.
•Under no circumstances should the oven be lined with aluminium foil as
overheating may occur.
•Always position pans over the centre of the cooking zone, and turn the handles
to a safe position so they cannot be knocked.
•Make sure the appliance control knobs are always in the “0” (stop) position
when the appliance is not in use.
•The trays incline when pulled out. Take care not to spill or drop hot food when
removing it from the oven.
•Do not remove the control knobs to clean the control panel.
•To maintain the efficiency and safety of your appliance, we recommend you
always use original spare parts and to call our authorised service agents when
needed.
WARNING: To prevent the appliance tipping, the stabilising brackets must be
installed. (For detailed information refer to the anti-tilting kit set guide.)
•Before connecting your appliance, make sure that the local distribution
conditions (electricity voltage and frequency) and the specifications of the
appliance are compatible. The specifications for this appliance are stated on
the label.

Preparation & Installation
WARNING : This appliance must be installed by an authorised service person or
qualified technician, according to the instructions in this guide and in
compliance with the current local regulations.
WARNING : Ensure that there are no electric wires, gas or water pipes in the
area where holes are to be made.
WARNING : Components of the appliance may have sharp edges. Wear
protective gloves.
Preparing for installation:
•After removing the packaging material from the appliance and its
accessories, ensure that the appliance is not damaged. If you suspect any
damage, do not use it and contact an authorised service person or qualified
technician immediately.
•Make sure that there are no flammable or combustible materials in the
close vicinity, such as curtains, oil, cloth etc. which may catch fire.
•The worktop and furniture surrounding the appliance must be made of
materials resistant to temperatures above 100°C.
•The appliance should not be installed directly above a dishwasher, fridge,
freezer, washing machine or clothes dryer.
•The appliance can be placed close to other furniture on condition that, in
the area where the appliance is set up, the furniture’s height does not
exceed the height of the cooktop.
Electrical Connection Instructions:
WARNING : This appliance must be installed by an authorised service person or
qualified technician, according to the instructions in this guide and in
compliance with the current local regulations.
8
INSTALLATION & POSITIONING

WARNING : THIS APPLIANCE MUST BE EARTHED.
•Before connecting the appliance to the power supply, the voltage rating of the
appliance (marked on the rating label), must be checked for correspondence to
the available mains supply voltage, and the mains electric wiring should be
capable of handling the appliance’s power rating (also indicated on the rating
label).
•During installation, please ensure that isolated cables are used. An incorrect
connection could damage your appliance. If the mains cable is damaged and
needs to be replaced this should be done by a qualified personnel.
•Do not use adaptors, multiple sockets and/or extension leads.
•The supply cord should be kept away from hot parts of the appliance and must
not be bent or compressed. Otherwise the cord may be damaged, causing a
short circuit.
•If the appliance is not connected to the mains with a plug, an all-pole
disconnector (with at least 3 mm contact spacing), must be used in order to
meet the safety regulations.
•The appliance is designed for a power supply of 220-240 Vac. If your supply is
different, contact the authorized service personnel or qualified electrician.
•The power cable (H05VV-F) must be long enough to be connected to the
appliance.
•The fused switch must be easily accessible once the appliance has been
installed.
•Ensure all connections are adequately tightened.
•Fix the supply cable in the cable clamp and then close the cover.
•The terminal box connection is placed on the terminal box.
ENSURE THE WIRES ARE CONNECTED ACCORDING TO BELOW:
•For this connection, a ‘Twin and Earth 6242Y’ type cable should be used.
9
INSTALLATION & POSITIONING
Green/Yellow (Earth) wire to the terminal marked "E".
Brown (Live) wire to the terminal marked "L".
Blue (Neutral) wire to the terminal marked "N".

WARNING : THIS APPLIANCE MUST BE EARTHED.
10
INSTALLATION & POSITIONING
Green/Yellow (Earth) wire to the terminal marked "PE".
Brown (Live) wire to the terminal marked "L".
Blue (Neutral) wire to the terminal marked "N".

11
INSTALLATION & POSITIONING
A (mm) Cupboard 420
B (mm) Cooker Hood 650/700
C (mm) Product Width 594
D (mm) 50
Installing the appliance:
1. Ensure that there will be an electrical power point within adequate distance of
the oven after it has been installed.
2. Ensure the space where the appliance will be situated measures at least
(W)594 x (D)650mm, and is in compliance with the instructions on the previous
page.
3. Install the anti-tilting bracket to the wall following the directions given on the
next page, and then carefully and gently put the oven into the space, making
sure that the power cable can still be accessed.
4. Connect the oven to the electrical power point before attaching the oven to
the anti-tilting bracket fully. Your oven is now installed.
NOTE:
•If the kitchen furniture is higher than the cooktop, the kitchen furniture must be
at least 10 cm away from the sides of appliance for air circulation.
•If a cooker hood or cupboard is to be installed above the appliance, the safety
distance between cooktop and any cupboard/cooker hood should be as shown
below.

Anti-Tilting Kit:
•The appliance comes with an anti-tilting kit
in the document bag.
•This is to ensure that the oven is secure and
will not fall over due to poor balance.
•Loosely attach the anti-tilting bracket (1) to
the wall using the screw (2) and wall plug
(3), following the measurements and
directions shown below.
12
INSTALLATION & POSITIONING
1
A (mm) 297.5
B (mm) 52
Directions:
1. Adjust the height of the anti-tilting bracket
so that it lines up with the slot on the cooker and tighten the screw.
2. Push the appliance towards the wall making sure that the anti-tilting
bracket is inserted into the slot on the rear of the appliance.

Adjusting the Feet:
•Your product stands on four adjustable feet.
•For safe operation, it is important that your appliance is correctly balanced.
•Make sure the appliance is level prior to cooking.
•To increase the height of the appliance, turn the feet anti-clockwise. To
decrease the height of the appliance, turn the feet clockwise (as seen in the
diagram below).
•It is possible to raise the height of the appliance up to 30 mm by adjusting
the feet.
•The appliance is heavy and we recommend that a minimum of 2 people lift
it.
•Never drag the appliance.
13
INSTALLATION & POSITIONING

14
1. Ceramic hob with 4 zones
2. Control panel
3. Grill compartment
4. Oven Compartment
5. Door handle
6. Large hob zone
7. Small hob zone
8. Hob heat warning lights
9. Adjustment Dials
10.Clock/Programmer
11.3 x Wire shelf
12. Anti-tilting kit
13.Vitroceramic Glass Scraper
14.Grill pan with handle
15.Adjustable feet
Unit & Spare Parts
If any of the above parts are missing please contact the customer service team on
0345 208 8750 or visit https://mda.russellhobbs.com
PRODUCT OVERVIEW

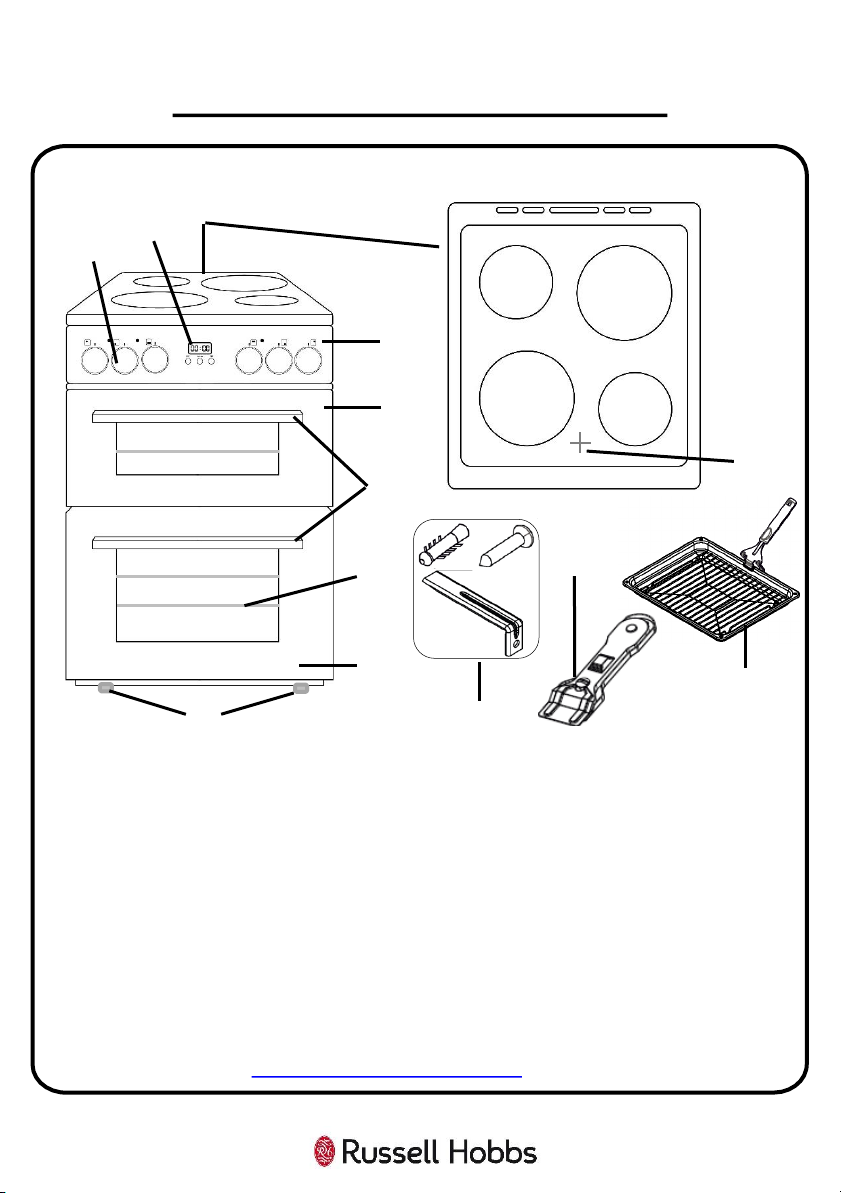

Front View: Top View:
1
2
3
4
5
9
11
12 14
15
7
67
6
10
8
13

Control Panel
The appliance has six dials and clock/digital timer. See explanations below:
HOW TO USE YOUR OVEN
1Top Left Hob Zone Dial Turn to change the temperature of the hob zone
2 Bottom Left Hob Zone Dial Turn to change the temperature of the hob zone
3 Bottom Oven Cavity Dial Dial to change the function of the bottom oven
4 Clock/Digital Timer Displays the time, and can be used to set various
cooking timers.
5 Top Oven Cavity Dial Dial to change the function of the top oven
6 Bottom Right Hob Zone Dial Turn to change the temperature of the hob zone
7 Top Right Hob Zone Dial Turn to change the temperature of the hob zone
8 Hob Zone Warning Light This will be lit whenever any of the hob zones are
switched on, or if they are still hot after use
9 Oven Cavity Warning Light Light will be on when function and temperature has
been set
10 Grill Cavity Warning Light Light will be on when the grill is on
15
1234567
10
9
8

Clock/Digital Timer
This display has multiple functions. See explanations below:
HOW TO USE YOUR OVEN
16
Function Descriptions
Auto cooking Minute minder
Manual cooking Mode function
Cooking time Decrease timer
Cooking end time Increase timer
Dot Timer display
Time Adjustment
The time MUST be set before you start using the oven. After the oven has been
connected to the power supply, both the symbol and “000” will flash on the
display.
1. Press the and
buttons simultaneously.
The symbol will
appear, and the dot in the
middle of the display will
start to flash.
2. Adjust the time whilst
the dot is flashing by using
the and buttons.
3. After a few seconds, the
dot will stop flashing and
will remain illuminated. The
time you set should also be
illuminated. The time is
now set.
Setting a Timer
Your appliance has a built in timer, which is to be used for warning purposes only.
The timer can be set for any time period between 0:00 and 23:59 hours. The oven
will not be activated with this function.

HOW TO USE YOUR OVEN
17
1. Press the button.
The symbol will begin
to flash and “000” will be
displayed.
2. Select the desired time
period using the and
buttons while the
symbol is flashing.
3. The symbol will remain
illuminated. This means that
the time is saved and the
warning is set.
When the timer reaches zero, an audible warning will sound and the symbol
will flash on the display. Press any button to stop the audible warning and to make
the symbol will disappear.
Setting a Fixed Cooking Period
This function helps you to cook for a fixed period of time. A time range between 0
and 10 hours can be set. Prepare the food for cooking and put it in the oven. Then,
set the desired cooking function and temperature using the control dials.
1. Press the button
until you see “dur” and the
symbol is displayed on the
screen. The symbol will
flash.
2. Select the desired
cooking time period using
the and buttons.
3. The current time will
reappear on the screen, and
the , , and
symbols will remain
illuminated.
When the timer reaches zero, the oven will switch off and an audible warning will
sound. The symbol and will flash. Turn both control dials to the “0” position and
press any button on the timer to stop the warning sound. The symbols will
disappear and the timer will switch back to the regular function.

HOW TO USE YOUR OVEN
18
Setting a Cooking Finishing Time
This function automatically starts the oven so that cooking will finish at a set time.
You can set an end time of up to 10 hours after the current time of day. Prepare
the food for cooking and put it in the oven. Then, set the desired cooking function
and temperature using the control dials.
1. Press the button
until you see the “end” and
symbol on the display screen.
The symbol and the
current time of day will flash.
2. Select the desired
finishing time using the
and buttons.
3. The current time will
reappear on the screen,
and the , , and
symbols will remain
illuminated
When the timer reaches zero, the oven will switch off and an audible warning will
sound. The and symbols will flash on the display. Turn both control dials to
the “0” position and press any button to stop the audible warning and to make the
symbol will disappear. The timer will switch back to the regular function.
Setting a Delayed Cooking Timer
This function is used to start cooking after a certain period of time and for a certain
duration. A time of up to 10 hours after the current time of day can be set. Prepare
the food for cooking and put it in the oven. Then, set the desired cooking function
and temperature using the control dials.
1. Press the button
until you see “dur” and the
symbol is displayed on the
screen. The symbol will
flash.
2. Select the desired
cooking time period using
the and buttons.
3. The current time will
reappear on the screen,
and the , , and
symbols will remain
illuminated.

HOW TO USE YOUR OVEN
19
4. Press the button until you
see “end” and symbol on the
screen. The time and the and
symbols will flash.
5. Select the desired finishing time
using the and buttons.
The operating time will be calculated and the oven will automatically start so that
cooking will finish at the set finishing time. When the timer reaches zero, the oven
will switch off, an audible warning will sound and the and symbols will flash.
Turn both control dials to the “0” position and press any button to stop the sound.
The symbols will disappear and the timer will switch back to the regular function.
Adjusting the Volume of the Warning Sound
To adjust the volume of the audible warning sound, while the current time of day is
displayed, press and hold the button for 1-2 seconds until an audible signal
sounds. After this, each time the button is pressed, a different signal will
sound. There are three different types of signal sounds. Select the desired sound
and do not press any other buttons. After a short time, the selected sound will be
saved.
6. Add the cooking period to the
current time of day. You can set a
time of up to 23 hours and 59
minutes after this.
7. The current time will reappear on
the screen, and the , , and
symbols, will remain illuminated.

Hob Zones
•The hob zones are controlled by dials with 6 positions, and can be operated by
switching a control dial to one of these positions.
•Near each hob control dial, there is a small symbol that shows which hob zone
is controlled by that dial.
•Please follow the chart below to advise what position to turn a dial to for
cooking different foods:
WARNING: When operating the hob zone for the first time, or after it has not been
used for a prolonged period of time, it is necessary to eliminate any humidity
which may have accumulated around the electrical elements of the hob zone. To
do this, operate the hob zone on its lowest setting for about 20 minutes.
WARNING: Never operate a hot zone without pans on. Otherwise, form defects
may occur on the cooktop.
WARNING: Only use flat-bottomed pans with thick bases.
WARNING: Make sure the bottom of the pan is dry before placing it on a hob zone.
20
HOW TO USE YOUR OVEN
Dial Position Function
0Off position
1To melt butter etc. and to warm small
quantities of liquid
2To warm bigger quantities of liquid & to
prepare creams and sauces
3To defrost food for cooking
4To cook delicate meat and fish
5To roast meat and steak
6To boil big quantities of liquid or to fry
