Russell Hobbs RHTGC1 User manual

STAINLESS STEEL FREESTANDING
60CM X 60CM TWIN CAVITY GAS
OVEN
Model num
ber: RHTGC1
Please read these instructions carefully and
keep them for future reference
For Customer Services, Spare Parts & Warranty Information
please call 0845 683 8717
Opening times: Monday - Friday 8am
until 8pm
Saturday & Sunday 10am until 4pm

Before operating your new appliance please read this instruction
manual carefully. It contains important information concerning the safe
installation and operation of the appliance.
Please keep these operating instructions for future reference. Make
sure that the instructions are kept with the appliance if it is sold, given
away or moved.
Gas cookers must be disconnected and installed by a Gas Safe
register engineer. This scheme has replaced the Corgi registration
scheme. For details visit www.gassaferegister.co.uk or call 0800 408
550.
The appliance must be installed by a qualified professional according
to the instructions provided.
Any necessary adjustments or maintenance must be performed after
the cooker has been disconnected from the electricity supply.
The producer is not responsible for any damage that might be caused
by defective placement and installation by an unauthorised person.
CE Declaration of conformity
This appliance has been designed to be used only for home cooking.
Any other use (such as heating a room) is improper and dangerous.
This appliance has been designed, constructed, and marketed
incompliance with:
• Safety requirements of the "Gas" Directive 2009/142/EC;
• Safety requirements of the "Low voltage" Directive 2006/95/EC;
• Safety requirements of the "EMC" Directive 2004/108/EC;
• Requirements of the Directive 93/68/EC.

For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
RHTGC1
Height (Adjustable Feet max. +3.5cm) cm 90
Width cm 60
Depth cm 60
Hob Enamel
Rapid Gas Burner Ø10cm W 3000
Semi-rapid Gas Burner Ø7.5cm W 1750
Auxiliary Gas Burner Ø5.5cm W 1000
Burner Safety Valves Yes
Button Ignition Yes
Enamel Pan Supports Standard
Gas Conversion Kit Standard
Oven Type Gas
Oven Volume (without fan) lt 57,3
Cavity Dimensions (without fan) mm 430 x 310 x 430
Oven Light (25W) Yes
Easy to Clean Enamel Standard
Thermostat Yes
Oven Safety Standard
Oven Burner (Thermostat Controlled) W 2400
Minute Minder Yes
Chromed Grid with Stoper 1
Grill Pan with Handle Set Yes
Oven Type Gas
Oven Volume lt 30
Cavity Dimensions mm 432 x 160 x 430
Oven Light (25W) Yes
Easy to Clean Enamel Standard
Thermostat Yes
Oven Safety Standard
Oven Burner (Thermostat Controlled) W 2400
Total Power (Depends on Model) Maximum kW 12,3
Voltage V 230
Energy consumption according to the EN50304
Standards
(Depends on Model)
kWh -
RoHS Compliance Standard
CE Compliance Standard
Depth with Door Open cm 105
Nominal Dimensions
Hob Features
Oven Features
Others
FREESTANDING 60CMX60CM
TWIN CAVITY GAS OVEN SPECIFICATION
SHEET
Gas Cooker
Main Oven
Oven Features
Top Oven

CONTENTS:
1. PRESENTATION AND SIZES OF PRODUCT
2. WARNINGS
3. INSTALLATION AND PREPARATIONS FOR USE
3.1
3.2 Installation of oven

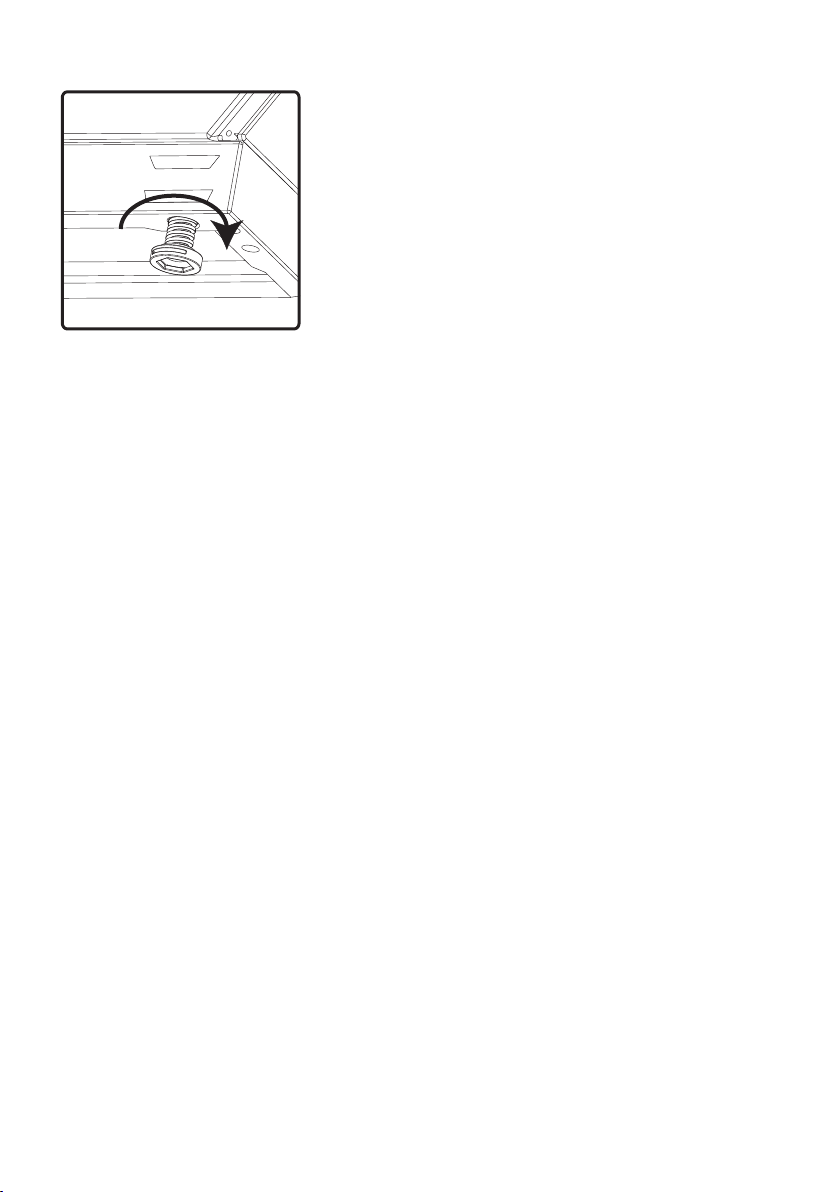

3.3 Adjustment of feet
3.4 Gas connection

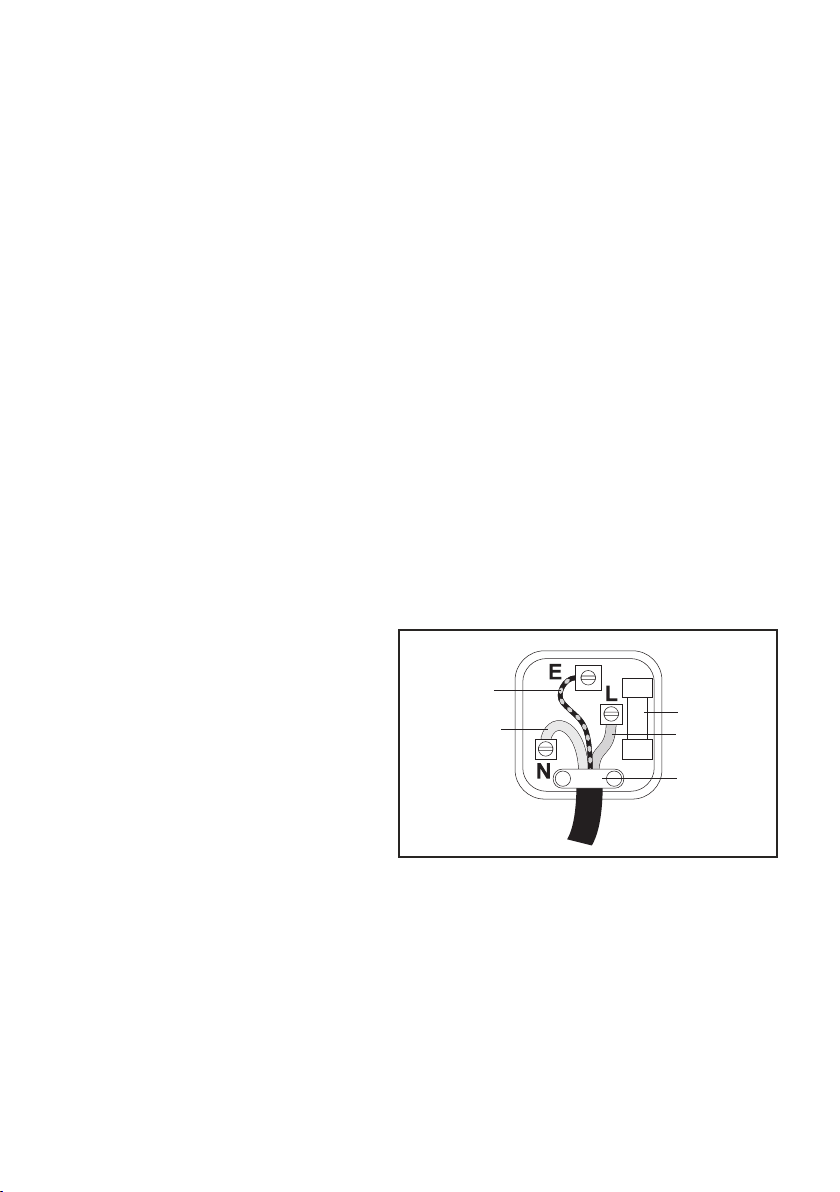

3.5 Electric connection (UK only)
3.6 General warnings and measures

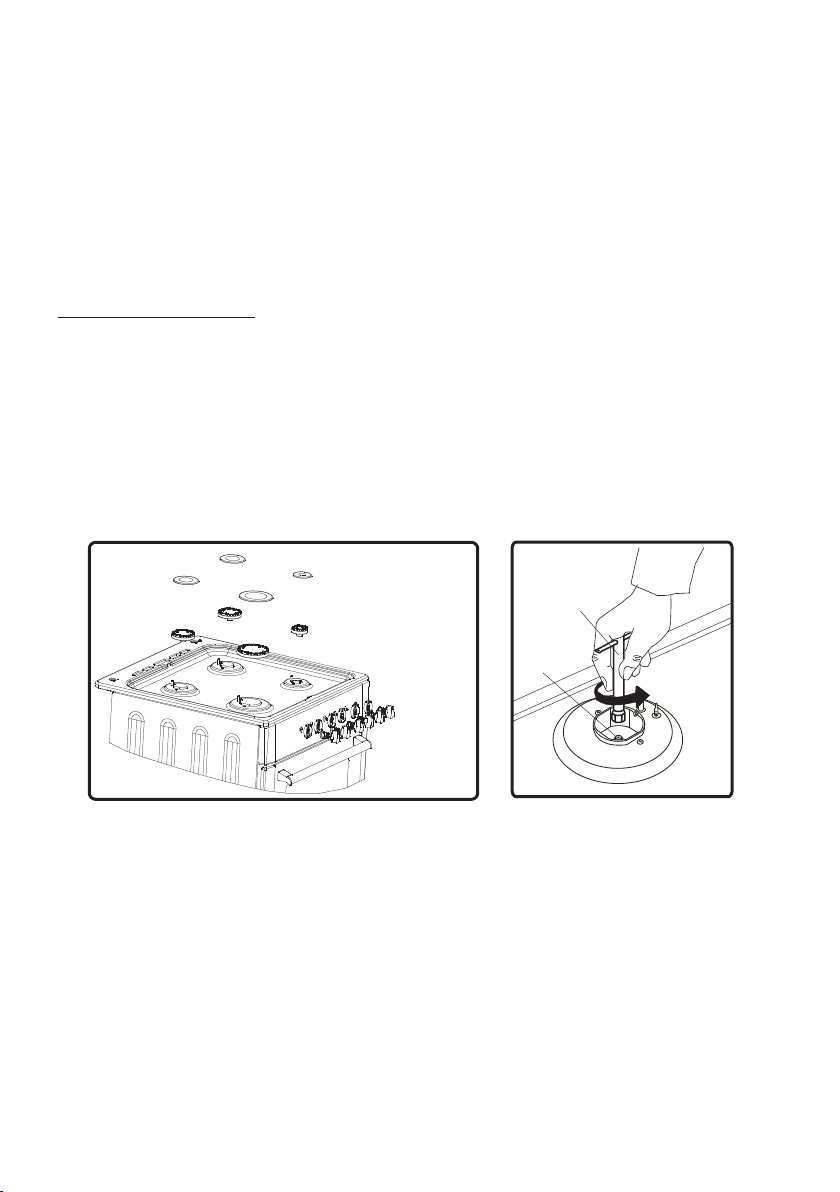

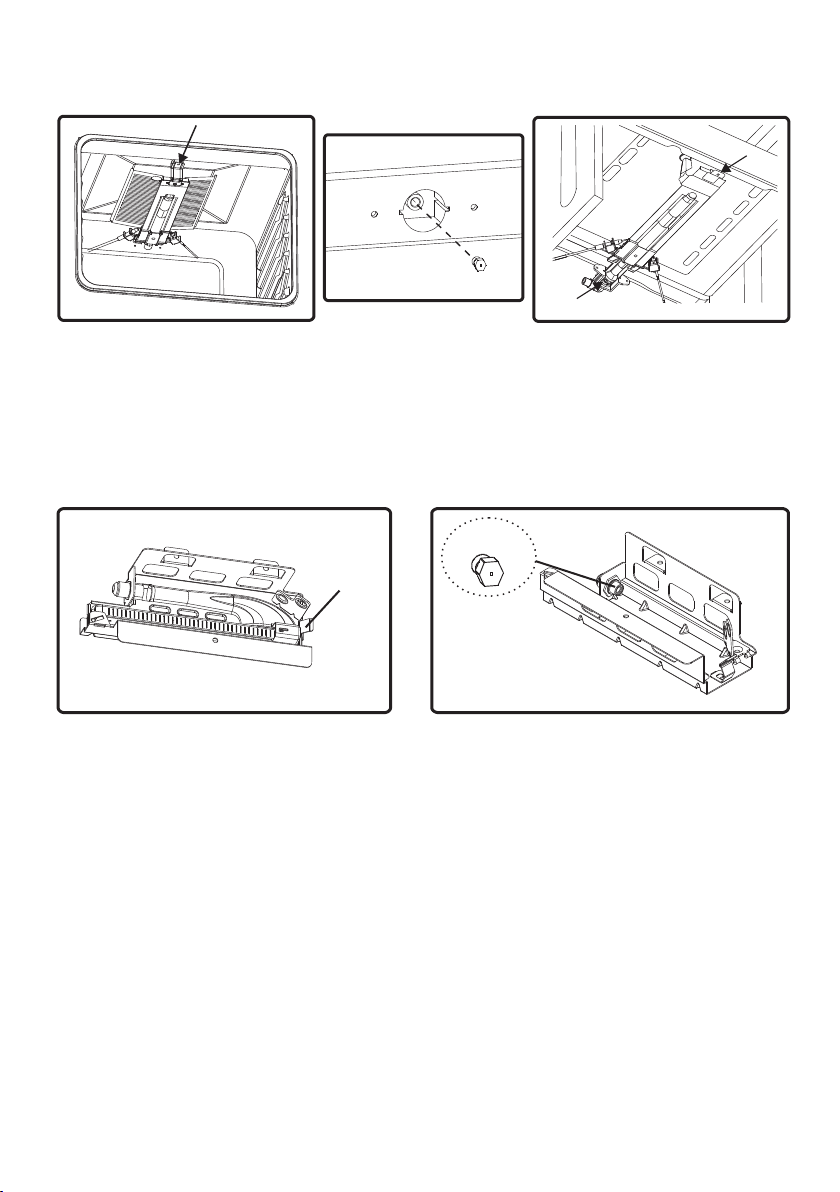

3.7 Gas conversions
4. USING YOUR OVEN

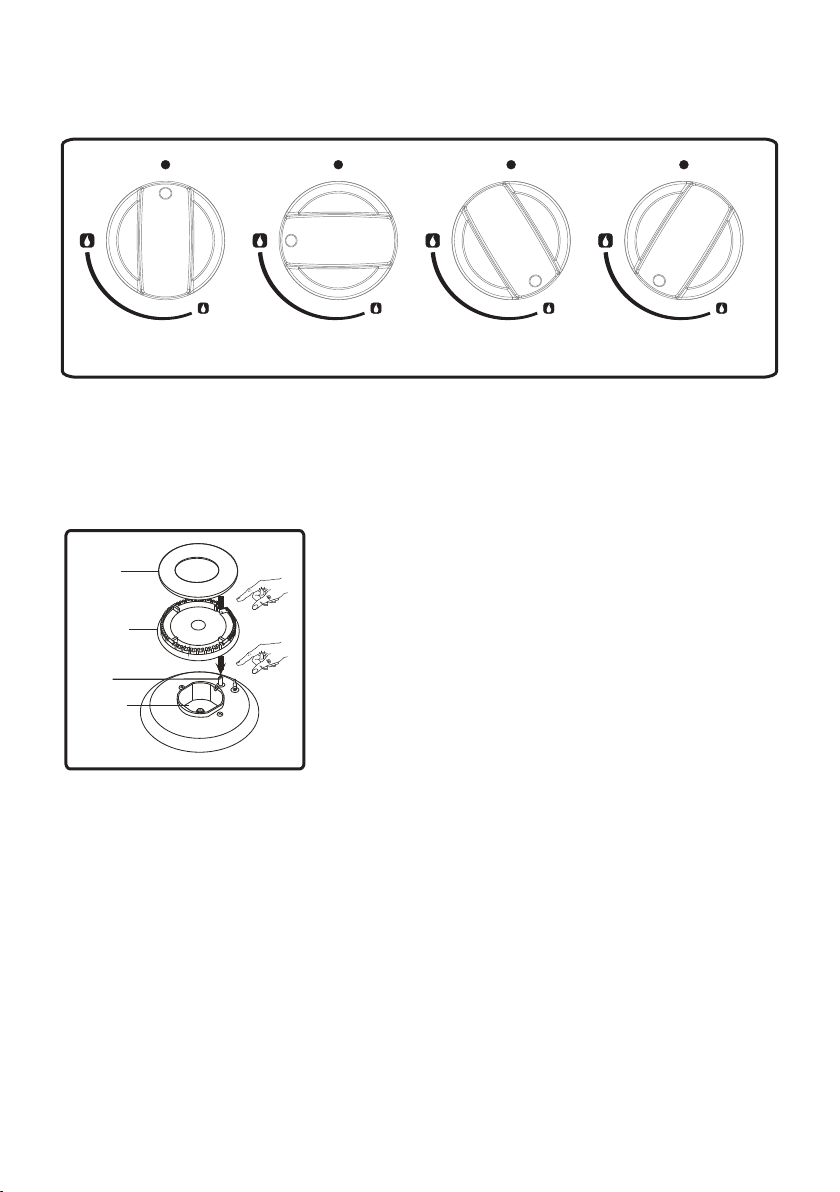

4.1 Use of gas burners
4.1.1 Control of oven burner
4.1.2 Control of grill burner
4.2 Using the digital minute timer
4.3 Digital timer sound adjustment
4.4 Accessories used in oven
5. CLEANING AND MAINTENANCE
5.1 Cleaning
5.2 Maintenance
6. SERVICE AND TRANSPORT
6.1
6.2 Information related to the transport
Installing your appliance
Basic troubleshooting before contacting service
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-1-

1. PRESENTATION AND SIZES OF PRODUCT
PRESENTATION:
List of Components:
1- Cooktop Cover
2- Cooktop
3- Control Panel
4- Oven Door Handle
5- Support Leg
6- Oven Door
7- Wire Grid
8- Grill
9- Oven Lamp
10- Semi-Rapid Burner
11- Rapid Burner
12- Auxillary Burner
13- Hob Grids
14- Semi-Rapid Burner
10
11
12 13
14
1
2
3
4
5
6
9
8
7
2. Rack
2. Rack
3. Raf3. Rack
4. Rack
5. Rack
1. Rack
1. Rack
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-2-

2. WARNINGS
TAKE ALL IMPORTANT SAFETY MEASURES AND READ THE MANUAL
COMPLETELY BEFORE USING THE APPLIANCE
This appliance has been designed for non-professional, domestic use only
When you unpack the appliance, make sure that it is not damaged during
transportation. In case of any defect; do not use the appliance and contact
the authorized maintenance service immediately. As the materials used for
package (nylon, stapler, strafoam...etc) may cause harmful effects to
children, they should be collected and removed immediately
The appliance must be installed by an authorized technician. The producer is
not responsible for any damage that might be caused by defective
placement, and installation by unauthorized personnel
Compare the features of the electricity network with the technical
information on the rating label before plugging the appliance in
Prior to installation, ensure that the local distribution conditions (nature of
the gas and gas pressure) and the adjustment of the appliance are
compatible. The adjustment conditions for this appliance are stated on the
label
This appliance is not connected to a combustion product evacuation device.
It should be installed and connected in accordance with current installation
regulations. Particular attention should be given to the relevant
requirements regarding ventilation
If you do not use the appliance for a long time, un plug it. Keep the main
control switch off.Also when you do not use the appliance, keep the gas tap
off
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard
Turn the appliance off before operations such as cleaning or maintenance.
You can do it after un plugging or turning the main switches off
Some parts of the appliance may hold its heat for a long time, allow it to
cool before touching the points that are exposed to heat directly
Do not keep flammable materials close while the appliance is operating
Pay attention to the cables of the other electrical devices operating near the
appliance,so as not to touch to hot points
Pay attention the switches to be "0", when the appliance does not operate.
"0" when not using the appliance.
• .
•
.
•
.
•
.
•
.
•
.
•
.
•
.
•
.
•
.
• .
•
.
•
• Ensure power switches are turned to
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-3-

•
•
• .
•
.
•
.
•
.
.
;
•
•
•
•
.
FOR EFFICIENCY AND SAFETY OF APPLIANCE, WE RECOMMEND YOU ALWAYS
TO USE THE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR AUTHORIZED
SERVICES IN CASE OF NEED.
CAUTION: The use of a gas cooking appliance results in the production of
heat, moisture and products of combustion in the room in which it is
installed. Ensure that the kitchen is well ventilated especially when the
appliance is in use, keep natural ventilation holes open or install a
mechanical ventilation device(mechanical extractor hood).
CAUTION: This appliance is for cooking purposes only. It must not be used
for other purposes, for example room heating.
Turn off all burners before shutting the lid
This manual is prepared for more than one model. Your appliance may not
have some of the features that are explained in manual. Pay attention to the
expressions that have figures, while you are reading the operating manual
While using the grill burner, keep the oven door open and always use the
grill deflector shield supplied with the product. Never use the grill burner
with the oven door closed
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety
WARNING: Ensure that the appliance is switched off before replacing
the lamp to avoid the possibility of electric shock
WARNING: If your appliance has a hob plate made of glass and
If the surface is cracked, switch off the appliance to avoid the
possibility of electric shock.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
shattering of the glass.
CAUTION: Accesible parts may be hot when the grill is in use. Young
children should be kept away. Keep children away from the oven
CAUTION: Glass lids may shatter when
heated. Turn off all the burners before
shutting the lid.
Any spillage should be removed from the lid before opening.
The hob surface should be allowed to cool before closing the lid.
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-4-

For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-5-
For authorised people;
• Compare the features of the electricity network with the technical
information on the rating label before plugging the appliance in.
• Prior to installation, ensure that the local distribution conditions (nature of
the gas and gas pressure) and the adjustment of the appliance are
compatible. The adjustment conditions for this appliance are stated on the
label.
• This appliance is not connected to a combustion products evacuation
device. It shall be installed and connected in accordance with current
installation regulations. Particular attention shall be given to the relevant
requirements regarding ventilation.

For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-6-
3. INSTALLATION AND PREPARATIONS FOR USE
?
?
?
?
?
?
?
³. If it is installed in a room of volume less than 5m³ an air vent of
effective area of 110cm² is required, if it is installed in a room of volume
between 5m³ and 10m³ a supplementary airvent area of 50cm² is required, if
the volume exceeds 11m³ no airvent is required. However, if the room has a
door or a window which opens directly to the outside no air vent is required
even when the volume is between 5m³ and 11m³.
?
?
Before operating your new appliance please read this instruction manual
carefully. It contains important information concerning the safe installation and
operation of the appliance.
Please keep these operating instructions for future reference. Make sure that
the instructions are kept with the appliance if it is sold, given away or moved.
Gas cookers must be disconnected and installed by a Gas Safe register
engineer. This scheme has replaced the Corgi registration scheme. For details
visit www.gassaferegister.co.uk or call 0800 408 550.
The appliance must be installed by a qualified professional according to the
instructions provided.
Any necessary adjustments or maintenance must be performed after the
cooker has been disconnected form the electricity supply.
The producer is not responsible for any damage that might be caused by
defective placement and installation by an unauthorised person.
3.1 Environment where your appliance will be installed
! This unit may be installed and used only in permanently ventilated rooms
according to the British Standards Codes Of Practice: B.S. 6172/B.S. 5440, Par.
2 and B.S. 6891 Current Editions. The following requirements must be
observed:
The cooker should not be installed in a bed sitting room with a volume of less
than 20m
During prolonged use of the appliance you may consider it necessary to open
a window to the outside to improve ventilation.
If there are other fuel burning appliances in the same room, B.S.5440 Part 2
Current Edition, should, be consulted to determine the requisite air vent
requirements.
Emptying of the Burned Gases from Environment
The cooking appliances that operate with gas, throw the burned gas wastes out
directly to the outside or through the cooker hoods that are connected to the a
chimney that opens directly to the outside. If it seems that it is not possible to
install a cooker hood, it is required to set an electric fan on the window or wall
that has access to fresh air. This electric fan must have the capacity to change
the air of the kitchen environment 4-5 times of its own volume of air per hour.

For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-7-
The appliance can be installed next to furniture units which are no taller than
the top of the cooker hob. The wall in direct contact with the back panel of the
cooker must be made of non-flammable material. During operation the back
panel of the cooker could reach a temperature of 50
The appliance can be placed in a kitchen, dining room or bedsit, but not in a
bathroom.
All furniture around the appliance must be placed at least 200mm from the
top of the cooker, should the surface of the appliance be higher than the
worktop of this furniture. Curtains should not be placed behind the cooker or
less than 200mm away from the sides of the appliance.
Any hoods must be installed according to the requirements in the installation
manual for the hoods themselves.
If the cooker in installed beneath a wall cabinet, the latter must be situated
at a minimum of 420mm above the hob. The minimum distance between the
worktop and kitchen units made of combustible material is 700mm (Fig.5).
The wall in direct contact with the back panel of the cooker must be made of
non-flammable materials.
Pay attention not to place the cooker near the refrigerator, there must be no
flammable or inflammable materials such as curtain, waterproof cloth, etc. that
will begin to burn quickly.
It is required that there must be least a 2cm blank space around the product
for air circulation.
The furniture close to product must be manufactured resistant to
temperatures up to 80
If the kitchen furniture are higher than the cooktop, it must be at least 10cm
away from the cooker's side.
°C above room
temperature. For proper installation of the cooker, the following precautions
must be taken:
●
●
●
●
●
●
●
●°C.
●
Figure 5
Min. 60cm
COOKER HOOD
Min. 42cm
Min. 42cm
Min. 65cm(with hood)
Min. 70cm(without hood)

For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-8-
3.2 Adjustment of feet
.
3.3 Gas connection
the hose must never be at any point in its length in contact with the 'hot'
parts of the cooker;
the hose must never be longer than 1.5 metre;
the hose must not be subject to any tension or torsional stress and it must
not have any excessively narrow curves or bottlenecks;
the hose must be easy to inspect along its entire length to check its
condition;
the hose must always be in good condition, never attempt to repair.
! The installation must comply with gas safety (installation and use) regulations
1984. In all cases for the above, by law, a qualified, corgi approved engineer
must be called for installation.
Your stands on 4 adjustable feet. When
the product is placed where it is to be used,
check if the product is balanced. If it is not
balanced, you can make the adjustment by
turning the feet clockwise if required. It is
possible to raise the appliance maximum 35mm
by the feet. If the feet are adjusted do not move
the appliance by dragging, it should be moved
by lifting it up
Assembly of gas supply and leakage check
The cooker should be connected to the gas-supply by a gas safe registered
installer. During installation of this product it is essential to fit an approved gas
tap to isolate the supply from the appliance for the convenience of any
subsequent removal or servicing. Connection of the appliance to the gas mains
or liquid gas must be carried out according to the prescribed regulation in force,
and only after it is ascertained that it is adaptable to the type of gas to be used.
You can find the information related to appropriate gas types and appropriate
gas injectors on technical data table. If the pressure of used gas is different
than these values stated or not stable in your area, it may be required to
assemble an available pressure regulator on the gas inlet. It is certainly
required to contact to the authorised service to make these adjusments.
The points that must be checked during flexible hose assembly
Connecting the gas supply
To make the connection, a flexible hose should be used corresponding to the
current gas regulations which are:
●
●
●
●
●
product
Figure 6

As gas is turned on, all connection parts and hose must be checked with soapy
water or leakage fluids. Do not use naked flame to check gas leakage. All metal
components used during gas connection must be clear of rust. Also check the
expiry dates of components used.
Fixed gas connection assembly
To assemble a fixed gas connection (gas connection made by threads, e.g. a nut),
there are different methods used in different areas. The most common parts are
already supplied with your appliance. Any other part can be supplied as a spare
part.
During connections always keep the nut on the gas manifold fixed, while rotating
the counter-part. Use spanners of appropriate size for safe connection. For all
surfaces between different components, always use the seals provided in the spare
set. The seals used during connection should also be approved to be used in gas
connections. Do not use plumbing seals for gas connections.
Remember that this appliance is prepeared to be connected to gas supply in the
country for which it has been produced. The main country of destination is
marked on the rear cover of the appliance. If you need to use it in another
country, any of the connections in the figure below can be required. In such a
case, learn the appropriate connection parts and obtain those parts to perform
a safe connection.
It is required to call the authorized service to be able to make the gas
connections appropriately and in compliance with safety standards..
o not use any match and lighter for control of gas
leakage
ATTENTION! D
.
Figure 6
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-9-

3.4. Electrical connection
For your safety please read the following information.
WARNING: This appliance must be earthed.
• The appliance must be connected to a 240 volts 50 Hz AC supply by means
of a three pin socket, suitably earthed and should be protected by a 3 amp
fuse in the plug.
• The appliance is supplied with a 13-amp 3-pin mains plug fitted with a 3
amp fuse. Should the fuse require replacement, it must be replaced with a
fuse rated at 3 amp and approved to BS1362.
• The plug contains a removable fuse cover that must be refitted when the
fuse is replaced. In the event of the fuse cover being lost or damaged, the
plug must not be used until a replacement cover has been obtained. If the
mains plug is unsuitable for the socket outlet in your home or is removed for
any other reason, then the fuse should be removed and the cut off plug
disposed of safely to prevent the hazard of electric shock.
• There is a danger of electric shock if the cut off plug is inserted into any 13
amp socket outlet.
IMPORTANT: How to wire a 13 amp plug
The wires in the mains lead on this
appliance are colored in accordance with
the following code:
• Green and Yellow – Earth
• Blue – Neutral
• Brown – Live
As the colours may not correspond with the markings identifying the terminals
in your plug proceed as follows. The green and yellow wire must be connected
to the terminal in the plug, which is marked with the letter E, or with the earth
symbol or coloured green and yellow. The blue wire must be connected to the
terminal marked N. The brown wire must be connected to the terminal marked
L.
Figure 7
Fuse (3 Amp)
Live (Brown)
Earth
(Green-Yellow)
Neutral (Blue)
Cord Clamp
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-10-

3.5 General warnings and safety measures
•
•
.
•
.
•
.
•
•
.
•
• Unp
•
•
3.6 Gas conversions
:
Your appliance is produced in accordance with the local and international
standards and regulations applicable.
The maintenance and repair works must be made only by authorized service
technicians. Installation and repair works without sufficient knowledge may
endanger you
While your appliance operates, its outside surfaces heat up. The interior
surfaces of your oven, and the flue outlets are quite hot. Even if the
appliance is turned off, these parts keep its heat for a period of time. Do not
touch hot surfaces, and keep children away
Do not leave the cooker while cooking with solid or liquid oils. They may
catch fire in conditions of extreme heating. Never pour water to the flames
that are caused by oil. Cover the saucepan or frying pan with a damp towel
in order to choke the flame that has occured in this case and turn the cooker
off
The oven and heat adjustment switches must be adjusted for cooking in your
oven. Otherwise the oven does not operate.
When the door of oven is open do not leave anything on it . You may
unbalance your appliance or break the cover
Do not put heavy things or flammable or ignitable goods (nylon, plastic
bag,paper,cloth...etc) into the lower drawer. This includes cookware with
plastic accessories (e.g. handles).
lug the appliance when you do not use the appliance and keep the gas
valve off.
Protect your appliance against atmospheric effects. Do not expose to sun,
rain, snow, powder etc.
Remember that this appliance is designed for indoor use.
Caution : The following procedures must be undertaken by authorized
service personnel.
Your appliance is adjusted to be operated with LPG gas. The gas burners can be
adapted to different types of gas, by replacing the corresponding injectors and
adjusting minimum flame length suitable to the gas in use. For this purpose,
following steps should be performed
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-11-

Gas conversion
:
Changing injectors:
:
• .
•
•
•
Caution : The following procedures must be undertaken by authorized
service people.
Your appliance is adjusted to be operated with LPG/NG gas. The gas burners
can be adapted to different types of gas, by replacing the corresponding
injectors and adjusting minimum flame length suitable to the gas in use. For
this purpose, the following steps should be performed
Hob Burners
Cut off the main gas supply and unplug from the electric mains
Remove the burner cap and the adapter(Figure 8).
Unscrew the injectors. For this, use a 7mm spanner(Figure 9).
Replace the injector with the ones from the gas conversion kit, with
corresponding diameters suitable to the type of gas that is going to be used,
according to the information chart (which is also supplied in the gas
conversion kit).
Oven/Grill Injectors
Grill Injector
The oven and grill injectors are assembled by a single screw that is placed on
the tip of the burner. For grill burners, this screw is already visible(Figure 10).
Remove the screw, pull the grill burner to yourself and you will see the injector
revealed on the rear surface of the oven cavity (Figure 11).
Oven Injector
For oven burners, open the drawer compartment and you will see the assembly
screw below the burner (Figure 12). Remove the screw, move the burner
diagonally and the injector will be revealed on the rear side of the burner box
(Figure 11).
:
:
:
Figure 8 Figure 9
Injector
Spanner
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-12-

Oven Injector:
The oven burner is fixed in its cradle by a single clip that is placed on the left-
hand side of the burner. Pull the clip (Figure 13) further left, and with your
other hand, lift the burner up holding from the thermocouple/spark plug holder.
The injector is placed on the right side of the burner cradle (Figure 14). Repeat
the same procedure for both Main and Top Oven (if present) burners.
Remove the injectors with a 7mm spanner and replace the injector with the
ones from the spare set, with corresponding diameters suitable to the type of
gas that is going to be used, according to the information chart (which is also
supplied in the gas conversion kit).
Figure 11
Figure 10
Screw
Figure 12
Screw
Injector
Figure 13 Figure 14
Clip
Injector
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-13-

Adjusting The Reduced Flame Position
The flame length in the minimum position is adjusted with a flat screw located
on the valve. For valves with FFD, the screw is located on the side of the valve
spindle. For valves without FFD, the screw is located inside the valve spindle.
For easier reduced flame adjustment, we advise to remove the control panel
(and microswitch, if present) during adjustment.The position the by pass screw
must be loosened in transformation from LPG to NG. In transformation from NG
to LPG, the same screw must be fastened. Make sure that the appliance is
unpluged from the electric current and the gas feed is open.
To determine the min. position, ignite the burners and leave them on in minimum
position. Remove the knobs because the screws are accesible only when the knobs
are removed. With the help of a small screwdriver fasten or loosen the by pass
screw around 90 degrees. When the flame has a length of at least 4mm, the gas is
well distributed. Make sure that the flame does not die out when passing from the
maximum position to the minimum position. Create an artificial wind with your
hand toward the flame to see if the flames are stable. For oven burner, operate the
oven burner at min. position for 5 minutes, then open and close the oven door for 2-
3 times to check the flame stability of the burner.
For some countries, the gas inlet type can be different for NG/LPG gases. In
such a case, remove the current connection components and nuts (if any) and
connect the new gas supply accordingly. In all conditions, all components used
in gas connections should be approved by local and/or international authorities.
In all gas connections, refer to the “ASSEMBLY OF GAS SUPPLY AND LEAKAGE
CHECK” clause explained before.
:
Changing the gas inlet:
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-14-

4. USE OF YOUR PRODUCT
4.1 Use of gas burners
•
Ignition of the burners
To determine which knob controls which burner, check the position symbol
above the knob.
Electrical Ignition
Ignition Through Hob Valve (micro switch): Press the valve of the
burner you want to operate and turn the valve in the counterclockwise
direction (clockwise for the grill burner) so that the knob is in max. position
while keeping the knob pressed. The spark plugs will generate sparks as long
as you keep the control knob pressed. The micro switch placed under the
knob will automatically create sparks through the spark plug of the burner.
Continue pressing the knob until you see a stable flame on the burner.
•
:
Manual Ignition of the Gas Burners
If your appliance is not equipped with any ignition aid or in case there is a
failure in the electric network, follow the procedures listed below
For Hob Burners: To ignite one of the burners, press and turn its knob
counter-clockwise so that the knob is in maximum position, then press the
ignition button immediately, because if you wait there will be a build up of gas
and this may cause the flame to spread. If the flame does not ignite continue to
press the ignition button until you see a stable flame on the burner.
For Oven Burner: To ignite the oven burner, press and turn the oven/grill control
knob counter-clockwise so that the knob is in maximum position, then press the
ignition button immediately, because if you wait there will be a build up of gas and
this may cause the flame to spread. If the flame does not ignite continue to press
the ignition button until you see a stable flame.
For Grill Burner: To ignite the grill burner, turn the oven/grill knob in the clockwise
position until the marker on the knob points at the grill sign . Then, keep the
knob pressed and press the ignition button immediately, because if you wait there
will be a build up of gas and this may cause the flame to spread. If the flame does
not ignite continue to press the ignition button until you see a stable flame.
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-15-

For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-16-
Flame safety device:
.
Oven / Grill Burners
.
Hob Burners
Hobs equipped with flame failure device provide safety in case of accidentally
extinguished flame. If such a case occurs, the device will block the burners gas
channels and will avoid any accumulation of unburned gas. Wait 90 seconds
before re-igniting an extinguished gas burner
Regardless of the model of your appliance, all oven burners are equipped with a
gas safety device. For this reason, during ignition, keep the oven knob pressed
until you see stable flames. If the flames are cut out after you release the knob,
repeat the procedure again. If the oven burner does not ignite after you keep
the burner knob pressed for 30 seconds, open the oven door and do not
attempt re-ignition for at least 90 seconds. When oven flames go out
accidentally, repeat the same procedure

Controlof the hob burners
The knob has 3 positions: Off (0), maximum (big flame symbol) and minimum
(small flame symbol). After you ignite the burner in maximum position; you can
adjust the flame length between maximum and min. positions. Do not operate
the burners when the knob position is between maximum and off positions.
After the ignition, check the flames visually. If
you see yellow tip, lifted or unstable flames; turn
the gas flow off, and check the assembly of
burner caps and crowns (Figure 16). Also, make
sure that no liquid has flown into the burner
cups. If the burner flame goes out accidentally,
turn the burner off, ventilate the kitchen with
fresh air, and do not attempt re-ignition for 90
sec.
When turning the hob off, turn the knob in the
clockwise direction so that the knob shows "0"
position or the marker on the knob points
upwards.
Your hob has burners of different diameters. The most economic way of using
gas is to choose the correct size gas burners for your cooking pan size and to
bring the flame to minimum position once the boiling point is reached. It is
recommended to always cover your cooking pan.
In order to obtain maximum performance from the main burners, use pots with
the following flat bottom diameters. Using smaller pots than the minimum
dimensions stated below will cause energy loss.
Rapid Burner: 22-26cm
Semi-rapid Burner: 14-22cm
Auxiliary Burner: 12-18cm
MAX. position
OFF position
Figure 15
MODULATE
MIN. position
Figure 16
Cap
Crown
Spark
Plug
Burner
Cup
For Customer Services, Spare parts & Warranty Information please call 0845 683 8717
-17-
