Russell Hobbs RHCV30AS11 User manual

Atlas Cylinder Vacuum Cleaner
For Customer Services & Spare Parts please call0345 2097461
Opening times: Monday -Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
PLEASE RETAIN
FOR FUTURE REFERENCE
Model Number: RHCV30AS11
220-240V~, 50-60Hz, 800W

Page(s)
Safety instructions
3-6
Energy
performance label 7
Technical data
8
Vacuum
feature diagram 9
Vacuum cleaner
assembly 10-11
Using your vacuum
cleaner 12-14
Cleaning and care
15-17
Problem solving
18
Guarantee and customer services
19
Spare
parts 20
Connection to the mains supply
21
Disposal information
24
CONTENTS
2
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
Thank you for purchasing your Russell Hobbs Atlas Cylinder Vacuum Cleaner.
To get the best from your new cleaner, take a few moments to read these
instructions and keep them in a safe place for future reference.
Should you require any further assistance, our friendly Product Care team will
be happy to help.

3
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•It is hazardous for anyone other than a competent person
to carry out any service or repair operation that involves
the removal of a cover which gives protection against
exposure to electrical parts.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•This product is intended for household use only.
Do not use outdoors.
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
•Do not operate this appliance for anything other than its
intended use.
•Do not immerse in water or other liquids for cleaning.

4
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
•Do not direct at people, animals, electrical outlets, or
equipment containing electrical components.
•Unplug from outlet when not in use. Do not leave the
cleaner unattended while plugged in.
•Do not use with damaged cord or plug.
•Do not use vacuum cleaner if it has been dropped,
damaged, left outdoors or dropped into water.
•Keep the vacuum cleaner away from water; do not allow
it to get wet. If unit is wet, do not plug unit into wall
socket or turn unit on.
•Do not handle the vacuum cleaner with wet hands.
•Do not pull or carry by cord, use cord as a handle, close
door on cord, pull cord around sharp corners or edges, or
expose cord to heated surfaces.
•Do not unplug by pulling on cord.
•To protect against electrical shock do not immerse cord,
plug, or appliance in water or other liquid.
•Unplug from the mains outlet when not in use, before
putting on and taking off parts, and before cleaning.
•The use of accessory attachments not recommended by
the appliance manufacturer may cause fire, electric shock
or injury. Only use the accessories supplied by the
manufacturer.

5
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•Do not let the cord hang over the edge of the worktop, or
touch hot surfaces.
•Do not use this vacuum to pick up water or any other
liquids, combustible substances or hot/burning objects.
•Only use the unit when fully assembled.
•Never place your fingers or other objects into any part of
the cleaner. Be aware that loose clothing or hair may
become trapped in the cleaner if improperly used.
•Before use, ensure that all of the air vents of the cleaner
are clear and there is no restriction of air flow.
•When cleaning stairs, ensure the cleaner is on a step
below you. NEVER place the cleaner above.
•Caution: Exhaust air discharged from the rear of the
cleaner may extinguish a gas fire, pilot light, or disturb
ashes in an open fire. Always avoid directing the cleaner
toward naked flames.

6
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
•Important: This cleaner has a thermal safety device which
automatically cuts off the power supply in case of over
heating. If the safety device has switched the cleaner off,
unplug from the mains, allow the cleaner to cool down
and check for any blockages. Once the cleaner has cooled
it can be plugged back in to the mains and used as
normal.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk

7
ENERGY PERFORMANCE LABEL
The purpose of the energy label is to help you understand a
vacuum cleaner’s energy efficiency performance.
1. Energy rating –
based primarily on
energy consumption
and pick-up.
2. Annual energy
usage –the amount of
energy used over a
year.
3. Emissions –the
amount of dust in the
air emitted from the
machine’s exhaust.
4. Noise –the noise
level produced by the
machine, measured in
decibels.
5. Pick up (carpets) –
the rating of how much
dust the machine picks
up from carpets.
6. Pick-up (hard
floors/crevices) –the
rating of how much
dust the machine picks
up from hard floors and
crevices.
1
3
2
4
56

8
TECHNICAL DATA(PRODUCT FICHE)
Trade mark
Russell Hobbs
Model
RHCV30AS11
Energy
efficiency class
A
Indicative annual energy
consumption (kWh per year),
based on 50 cleaning tasks. Actual
annual energy consumption will
depend on how the appliance is
used.
26.6
Carpet cleaning performance class
D
Hard floor cleaning
performance
class
A
Dust re
-emission class
A
Sound power
level
78 dB
Rated
input power
800W
Spec Code:
15A.09.18.189

9

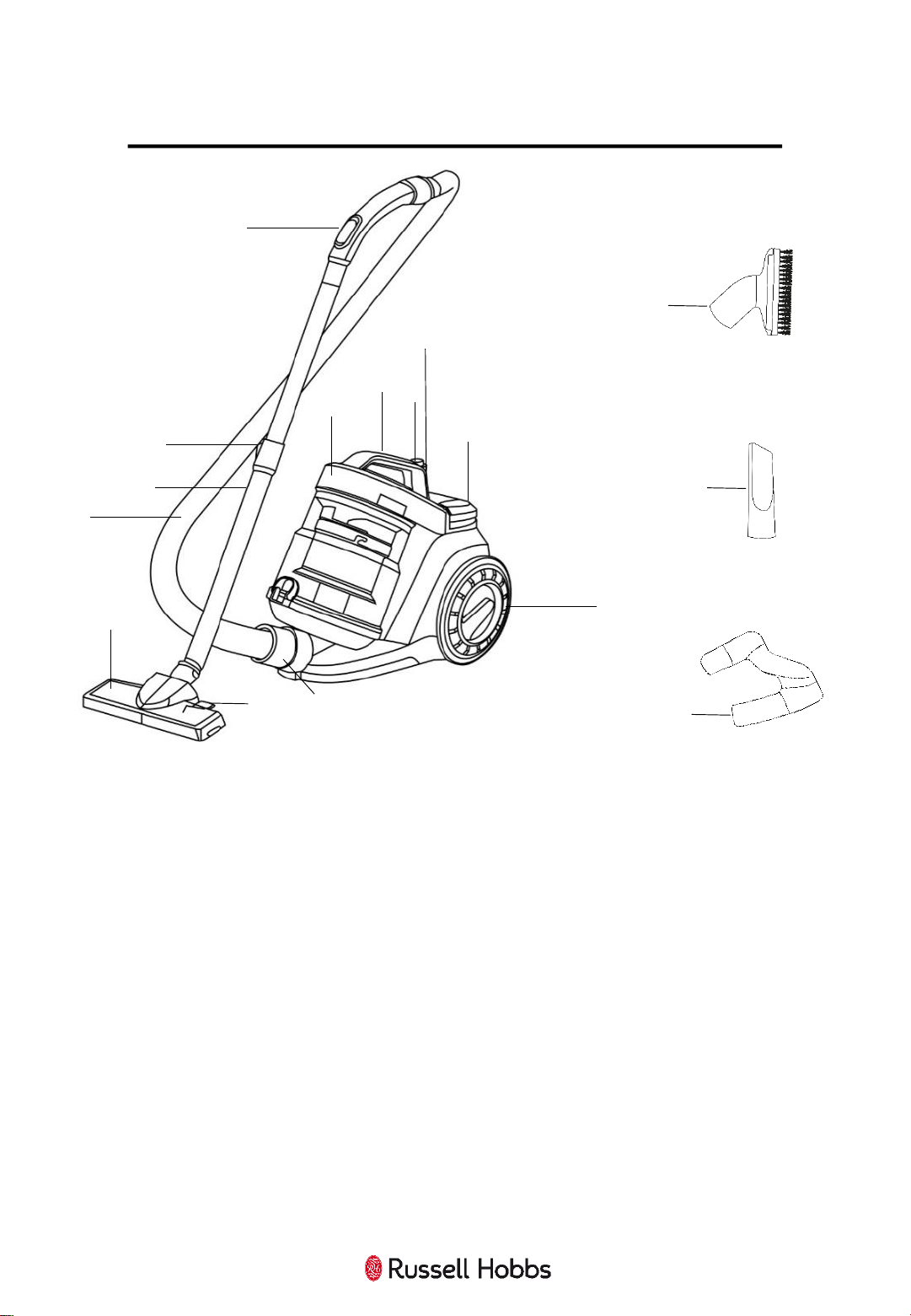

VACUUM FEATURE DIAGRAM
1Hose suction control 7Hose connector 13 Wheel
2Extension lock 8Dust container 14 Brush tool
3Extension tube 9Carry handle 15 Crevice tool
4Hose 10 Container release
button
16 On board tool
holder
5Floor head 11 Cord release button
6Floor surface selector 12 Power button
1
2
4
6
8910
12
13
5
315
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
14
16
11
(Not visible
on diagram)
7

10
VACUUM CLEANER ASSEMBLY
Before using your vacuum cleaner
Remove all packaging and lay out the separate components.
Check the unit after unpacking for any visual damage such as:
•Misaligned or damaged parts
•Damage to the main body and separate components
•Damage to the plug or cable.
If you can see any damage do not use the vacuum cleaner and
contact customer services.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk

11

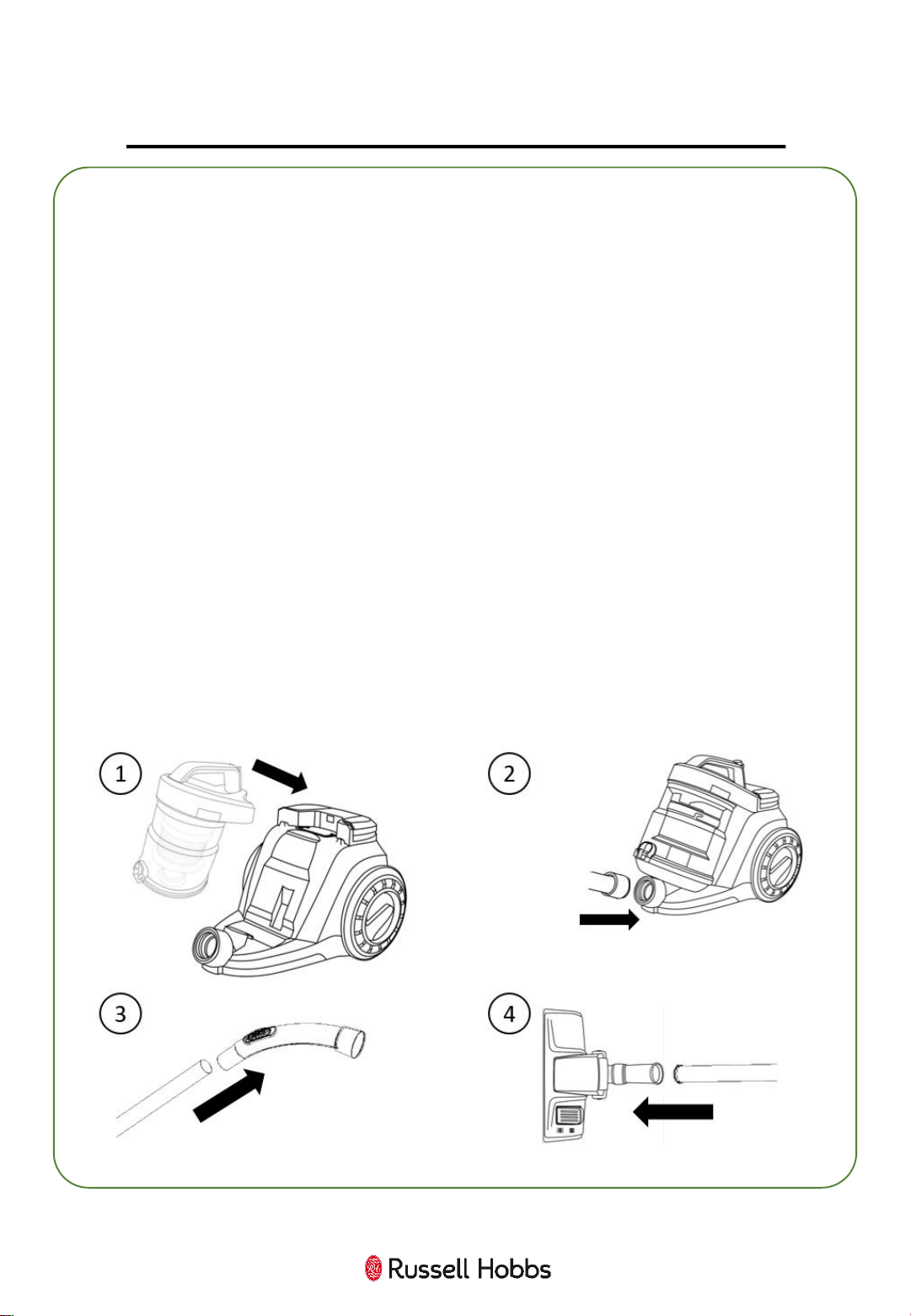

VACUUM CLEANER ASSEMBLY
Ensure the unit is unplugged before assembling.
1. Place the dust container onto the unit, base first, then tilt forward
to engage the top.
2. Insert the hose connector into the hose outlet, aligning the
grooves in the outlet and rotate clockwise to secure the hose
connector.
3. Insert the extension tube into the hose connector and push
together.
4. Insert the extension tube into the floor head and rotate if
necessary.
5. To attach the on board tool holder, align the two connectors on
the hose handle into the slots of the on board tool holder and press
to secure.
1 2
3 4

12

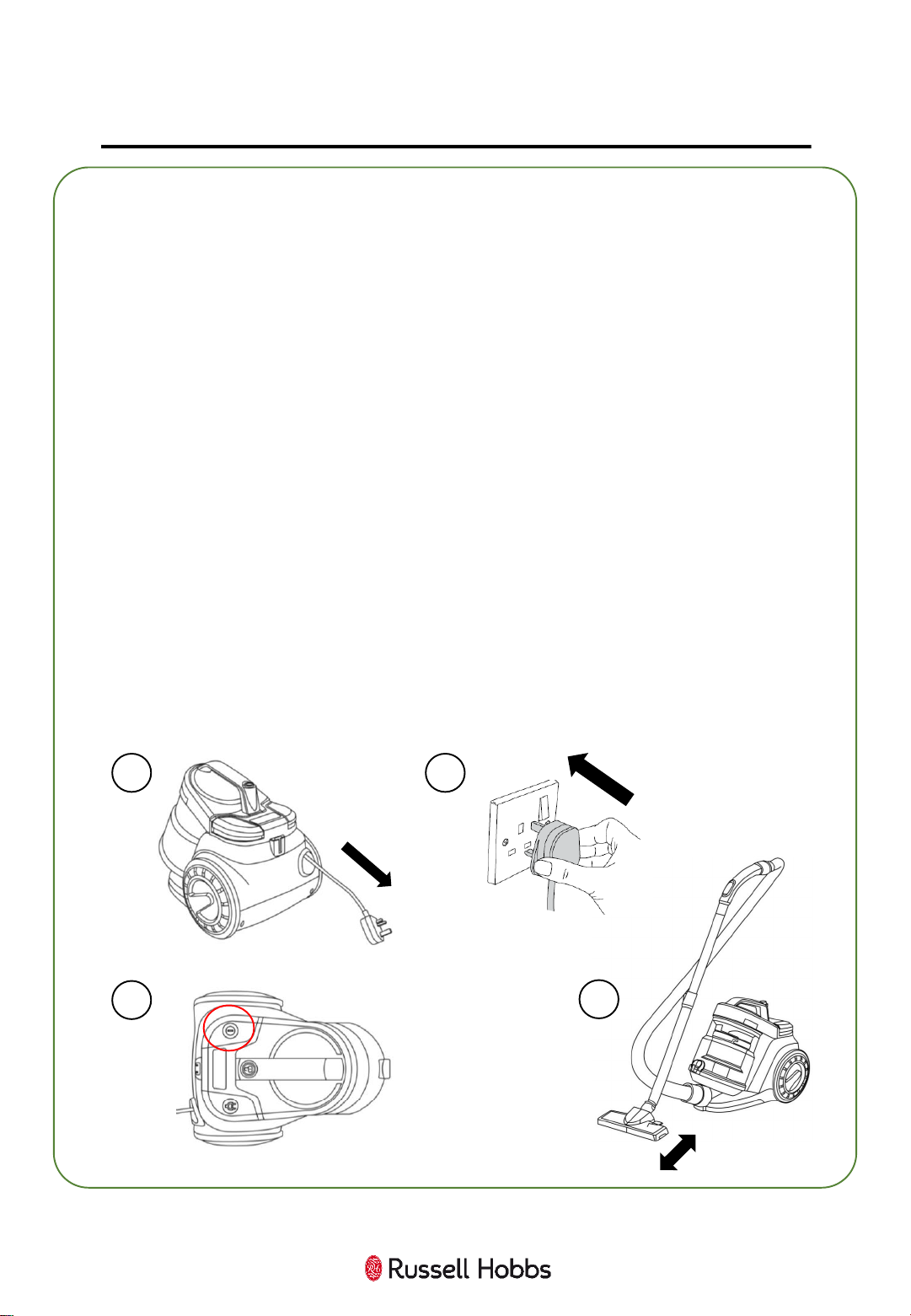

USING YOUR VACUUM CLEANER
1 2
34
Once assembled:
1. The cord is stored inside the unit. Pull the power cord out of the
machine to as long as you require and stop when you see the yellow
tab. Do not over-extend. If the red tab is visible, then wind the cord
back until only the yellow tab is visible.
2. Plug the cable into a wall socket and press the switch on.
3. Press the power button to start vacuuming.
4. Move the vacuum cleaner floor head in a forwards and backwards
motion over the areas you would like to clean.
Note: Large items can get trapped in the brush/floor head which
could cause the unit to overheat. Make sure you pick up larger items
that could get trapped before vacuuming.

13
USING YOUR VACUUM CLEANER
78
a)
b)
56
9
5. You can adjust the extension tube length to a comfortable cleaning
height. To alter the length of the telescopic handle,
a) Press and hold the extension lock in the direction indicated.
b) Slide the steel pole, up or down, to the correct length.
6. Another adjustment you can make is to the suction power of the floor
head. To use less suction power, move the suction control tab in the
direction indicated. For maximum suction power, close the tab.
* The crevice tool is for narrow gaps and hard to reach places. *The brush
tool can be used to sweep dust away from shelving and skirting boards *
7. All tools attach to either the extension tube or the hose connector in
the same manner as the floor head.
8. When using the floor head you can adapt the brush depending on floor
type. To clean on hard floors, push the surface selector down so that the
brush is showing (refer to diagram.)
9. To clean on carpets, push the surface selector up so the brush is hidden
(refer to diagram.)

14
USING YOUR VACUUM CLEANER
1 2
3 4
Emptying the dust container
When the dust container starts to fill it will need to be emptied.
1. To remove the dust container, press the release button located at
the top of the lid handle.
2. Lift the container away from the unit base.
3. Locate the bin release clip at the back of the container.
4. Over a bin, unclip the base of the container to empty - you may
need to tap the sides to empty all of the dirt. Close the base to
secure.
Important:
You may wish to empty the dust container outdoors as emptying may
create a dust cloud.
Place the dust container onto the unit, base first, then tilt forward to
engage the top.

15
CLEANING AND CARE:
CLEANING THE FILTER
Before you clean the appliance, disconnect the mains plug from the
wall socket.
Remove the wheel filter cover, located on the wheel the same side
as the power button, by turning the cover to the left to unlock and
pulling the cover away.
Turn the HEPA filter to the left to unlock and pull out of the
vacuum, tap over a bin to remove any excess dust. Wash in warm
water and allow to dry for 24 hours.
Once completely dry, put the filter back into the vacuum and turn
to the right to lock. Refit the cover to the wheel and turn to the
right to secure in the lock position.

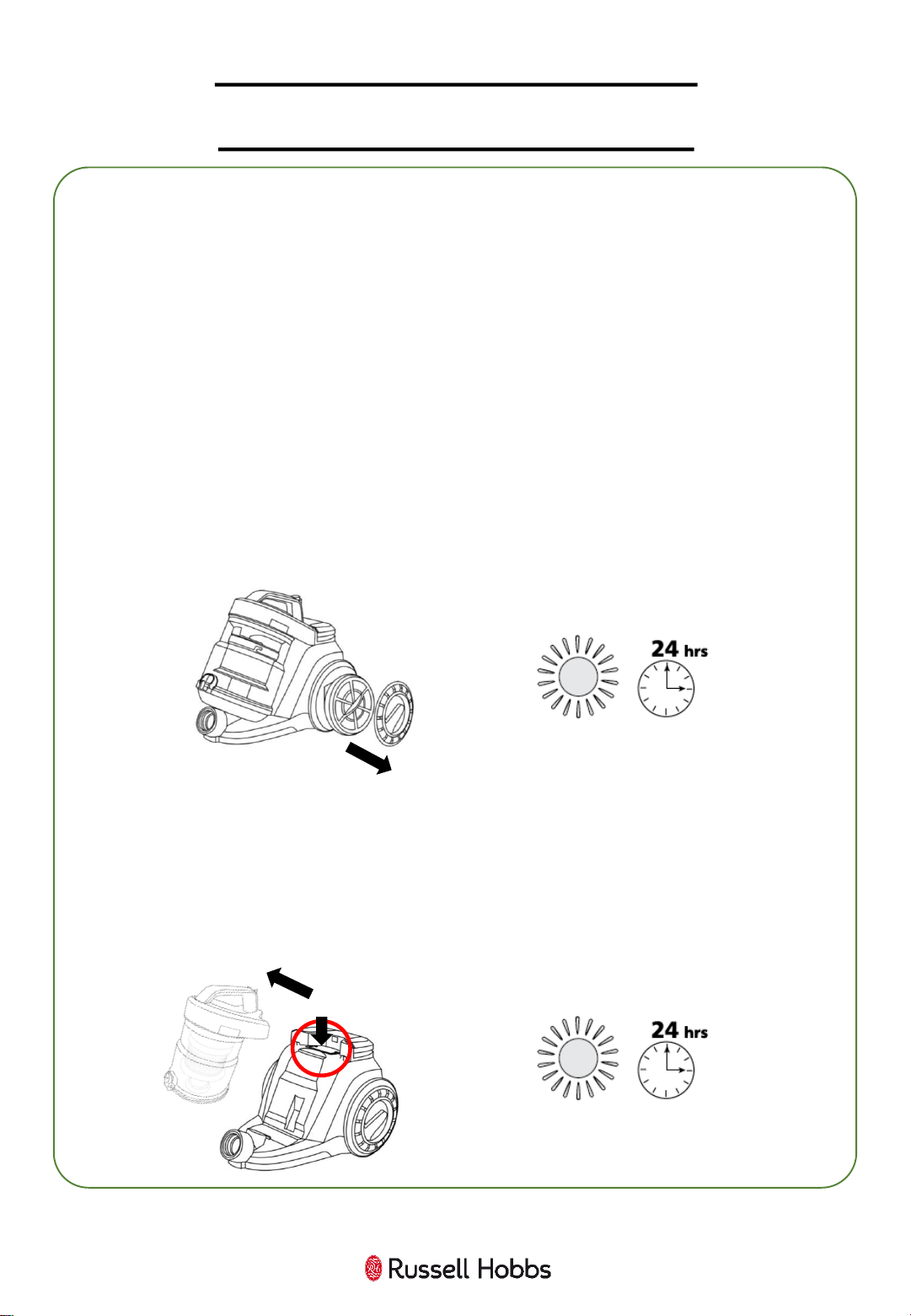

To clean the motor filter, start by lifting the dust container off the
main vacuum cleaner unit as the filter is located underneath it
shown in the diagram below. Wash it in warm water and allow to
dry for 24 hours. Once completely dry, put the filter back and
refit the dust container to the main unit

16
CLEANING AND CARE:
CLEANING THE FILTER
1. To clean the dust container filter, remove the dust container from the
main vacuum cleaner unit and unclip the bottom of the container
empting the contents over a bin.
2. Remove the HEPA filter by twisting anti clockwise.
3. Remove the Velcro cover from around the filter by pulling on the blue
tab.
4. Remove the lid by rotating anti clockwise so that the arrow is pointing
to the unlock symbol.
5. Wash all parts including the container in water and allow to
thoroughly dry for 24 hours before reinserting.
6. Once all parts are dry, wrap the Velcro cover around the filter and
insert it into the dust container twisting clockwise to lock into place.
Once secure, close the bottom of the dust container.
7. Attach the lid onto the container twisting it clockwise to the lock
position.

17
CLEANING AND CARE
Disassembly
To clean the exterior of the device, use a damp, soft cloth and mild detergent.
NEVER IMMERSE THE VACUUM IN WATER.
Wash non-electrical removable accessories in warm soapy water and allow to
dry thoroughly before next use.
If the vacuum is damaged, contact the customer service helpline using the
details at the bottom of this page.
Storage
Store in a clean and dry environment.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
1 2 3 4
Before you clean the appliance, disconnect the mains plug
from the wall socket.
1. Press the cord rewind button to automatically bring the cord back inside
the unit for storage.
2. To remove the extension hose, manoeuvre it away from the hose
connector.
3. To remove the floor head/accessory, pull the extension tube/hose
connector away from the head/accessory –you may need to ease it off.
4. To remove the hose, rotate the hose connector anti clockwise to unlock
and pull the hose away from the unit.

18
PROBLEM SOLVING
PROBLEM POSSIBLE PROBLEM POSSIBLE SOLUTION
The vacuum cleaner is
plugged in but does
not work
Power cord/plug damage
Check the
power cord and plug for signs of damage.
Fuse is damaged
Check and replace the fuse in the plug.
The suction
is
decreasing and the
vacuum is not picking
up dirt
Dust container
Check if
the dust container is full, if so, empty it.
Filters are dirty
Clean the filters.
Hose/head blockages
Check that there are no blockages in the hose or cleaning
head.
Vacuum cleaner is
over heating
Filters are dirty
Check that the filters are not blocked,
if so, clean them
following the instructions in this booklet.
Automatic power cord
rewind does not fully
rewind the power
cord
Pull the power cord fully out and press the rewind button
again.
Dust is coming out of
the vacuum cleaner
Dust container fitting
The dust container has not been fitted correctly. Refit the
container following the instructions in this booklet.
The air coming out of
the vacuum cleaner
smells
Filters are dirty
Clean the filters. Also clean the
hose and dust container
Filters are not dry
Ensure the filters have been left to dry for 24 hours before
refitting back into the vacuum cleaner and using.
We’re here should you need us.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk

19
GUARANTEE AND CUSTOMER SERVICES
At Russell Hobbs, we take all our customer feedback seriously.
Feel free to contact our Product Care Team, on 0345 209 7461
Monday –Friday: 8am-8pm & Saturday: 9am –1pm,
who will be more than happy to assist you.
This product is guaranteed for 12 months from the date of the
original purchase. If any defect arises due to faulty materials or
workmanship, the faulty product must be returned to the place of
purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
•The product must be returned to the retailer with the original
proof of purchase.
•The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which are supplied.
•It must be used for domestic purposes only and for its intended
use.
•This warranty does not cover wear and tear, damage, misuse
or consumable parts.
This does not affect your statutory rights.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk

20
SPARE PARTS
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
To check the availability of the following spare parts, simply contact
our friendly Customer Services team using the details provided at the
bottom of this page.
1. Hose
2. Extension tube
3. Air driven floor head
4. Crevice tool
5. Brush tool
6. HEPA filter
7. Wheel filter cover
8. Internal HEPA filter
9. Motor filter
