MedeaWiz DV-66 User manual

For Powerful Digital Marketing and Total Multimedia Solution
DV-66
User’s Guide

Acknowledgements
The MedeaWiz logo and DV-66 are trademarks of MedeaWiz
Corporation. All other trademarks or registered trademarks are
acknowledged as the exclusive property of their respective owners.
Notice
The information contained in this document is subject to change
without notice.
MedeaWiz Corporation makes no warranty of any kind with regard to
this material, including, but not limited to, the implied warranty of
merchantability and fitness for a particular purpose.
MedeaWiz shall not be liable for any errors or for incidental or
consequential damages in connection with the furnishing,
performance, or use of this material.
All rights reserved. Reproduction, adaptation, or translation of this
manual is prohibited without prior written permission of MedeaWiz
Corporation, except as allowed under copyright laws.
No part of this document may be photocopied, reproduced, or
translated to another language without the prior written consent of
MedeaWiz Corporation.
Edition 1, 08/2003
MedeaWiz Corporation 2003

Table of Contents
Chapter 1 Introduction …………………………………………………………………….. 1
Package Contents …………………………………………………… 1
Features ……………………………………………………….………… 2
Finding More Information …………………….………………… 2
Chapter 2 Setting Up Your DV-66 ………………………….………………………… 3
Connect to Any Display with A/V Inputs …. 5
Plug in the Power …………………………………………………… 7
Play a Video …………………………………………………………… 8
Additional Setup Information ………………………………… 8
Chapter 3 Accessories for Your DV-66 …………………………………..……….. 9
DV-36K Keypad Controller ……………………………………. 10
Chapter 4 Specifications …………………………………………………………………… 11

1
Congratulations on the Purchase of
Your DV-66!
Carefully examine the contents of the package as shown below.
• DV-66 MPEG-2 Digital Player
• Power Adapter
• Audio/Video Cable
Chapte
r
1 Introduction
Package Contents

- 2 -
Your new DV-66 is equipped with special features that improve playing
quality, giving you a competitive edge.
• Digital MPEG-2 Media Player
• Also supports multiple formats including MPEG-1, MP3 and JPEG
• Multiple track selection (up to 99 tracks)
• Supports Compact Flash Cards
• Audio/Video capability
• Instant track selection response
• Private labeling available
This User’s Guide shows how to operate and install the DV-66, and it contains
additional information about the DV-66. You can also get more information
by contacting MedeaWiz retailer or representative.
Features
Finding More Information

- 3 -
DV-66 can be connected to Any Video
Display with A/V Inputs. Simply follow a
few instructions in this chapter to find
out how!
Setup procedure to program content
Content Integration:
In order to setup your content to work with the DV-66 you must have a high speed
Compact FLASH media card. To integrate your media content (MPEG-1, MPEG-2,
MP3, or JPEGs) you will need to use a Compact FLASH reader with your computer to
load the appropriate files and setup; see programming below for more details.
Connect your card reader to your PC (note: be sure that the card reader driver is
installed) and insert the Compact FLASH card (we recommend 128 MB minimum)
into the reader. To program your multimedia content on to the FLASH card, open the
file manager and copy the files to the card reader drive.
The DV-66 utilizes a three digit numeric ID system for programming your content
tracks, so you will need to number your tracks using this system; please note that
you can keep your track descriptions as well. There are two types of play modes,
MENU and REPEAT, which determine what number is the first track.
Chapte
r
2 Setting Up the
DV-66

- 4 -
For instance, in the MENU mode the first track is 000, which is the looping track. For
the REPEAT mode the first track is 001.
Menu mode: This is the factory default mode. Track 000 is the looping
track for your menu file and it will continue to play until another track is
selected from a push button or touch screen input device.
To switch from Repeat mode back to Menu mode, please depress & hold
switch button #1, then plug in the power until the unit start initialing,
then the unit will be setup to play files as “menu mode”. Switch button
#1 can be located either on the touch screen (if used) or on the DV-36K
(keypad controller, sold separately).
Repeat mode: To change to repeat mode, please depress & hold switch
button #2 then plug in the power until the unit start initialing. Repeat
mode will play in sequence, one track at a time in numeric order, and
after the last track it will start with track 001 again.
NOTE:
Setup changes will be saved on the flash memory, so the selection made
will not change when the power is off.
Connect to Any Video Display with A/V Inputs –Simply connect
DV-66 to any video display such as a PC monitor or TV with A/V
inputs, and you can start watching the video clips stored on your
Compact Flash Card. You can control the track selection with the
optional DV-36K Keypad Controller, and it gives you the ability to
control up to 99 tracks on the DV-66 player.
Note: The DV-36K Keypad Controller is not supplied with the DV-66
package. You must purchase this item separately. Contact MedeaWiz
retailer or representative for ordering information.

- 5 -
Connect to Any Display with A/V Inputs
Step 1: Unpack Your DV-66
Remove the packing material and the plastic bag from outside
of DV-66.
Caution: DO NOT plug in the power before Compact Flash Card is inserted
into DV-66 card slot. MedeaWiz recommends that Compact Flash Card to
be inserted into the slot first, and then the power can be applied to the
unit as described later.

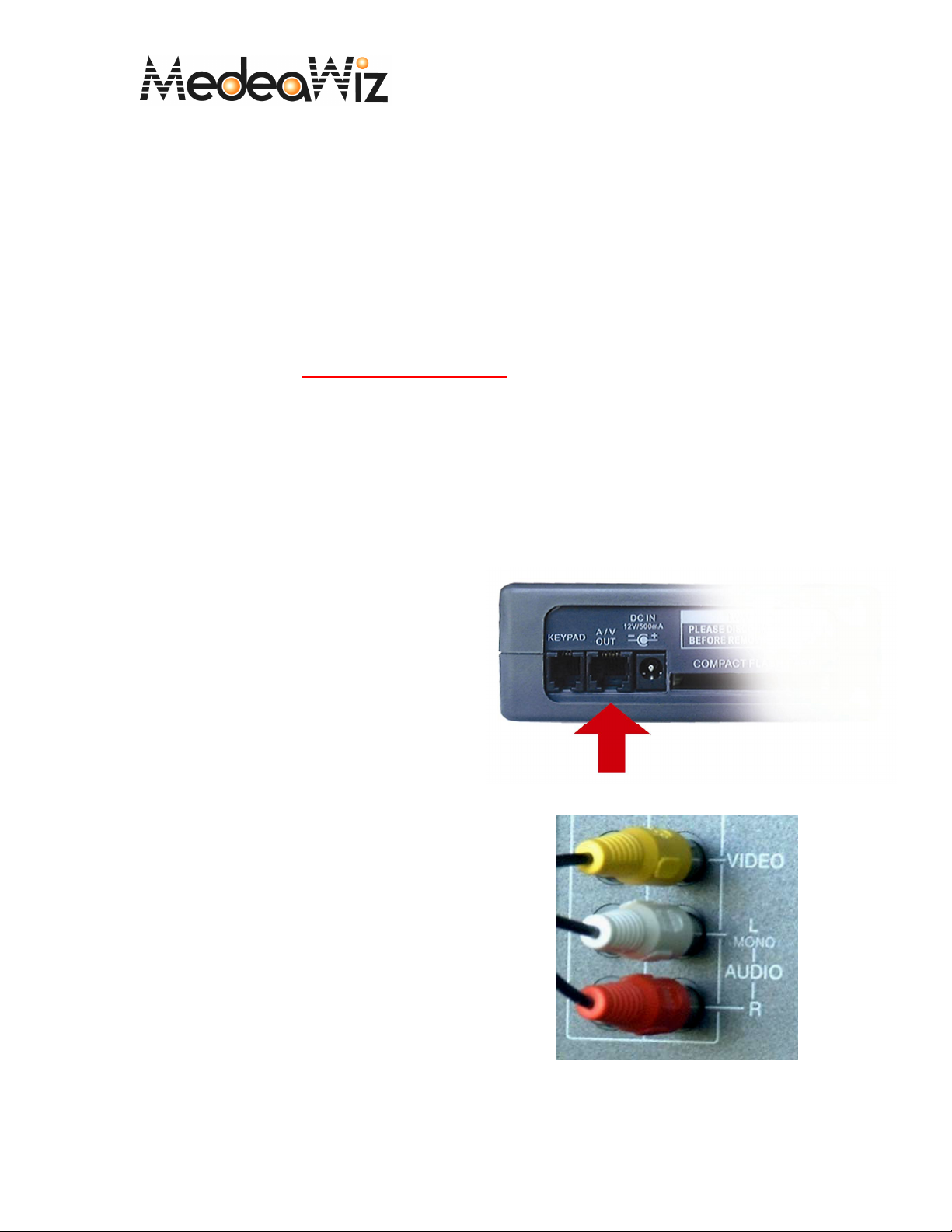

Step 2: Setting Up the A/V Cable
1 Plug in the modular end of
A/V cable to the jack located at
the side of DV-66.
2 Plug in the yellow end of the A/V
cable to “Video In,” white end to
“Audio L,” and red end to “Audio R”
of your display.
Note: Normally the A/V inputs are
located in the back of a TV or monitor.
For more instructions on how to use
A/V input on your display,
consult the manual for the device.
3 Turn on the power of the display,
and change the channel to
the corresponding A/V input channel
if necessary.

- 6 -
Note: For more detailed instructions
on how to switch to the corresponding
A/V input channel on the display,
consult the manual for that device.
Step 3: Insert Compact Flash Card
The Compact Flash Card must be a High Speed CompactFlash Card which
are available through your local dealer or your MedeaWiz dealer.
1 Insert the Compact Flash Card into
the card slot on the side of DV-66.
2 Proceed to “Plug in the Power”
on page 7.

- 7 -
Plug in the Power
You are ready for the final step in setting up your DV-66: plug in the included
power adapter and the DV-66 will automatically start playing the first video
clip on the Compact Flash Card!
Note: Make sure that you have inserted the Compact Flash Card correctly,
and its content meets DV-66’s specifications.
Make sure that the A/V cable is set up correctly.
1 Plug the power adapter’s cord into
the “DC IN” on the side of DV-66.
2 Plug the other end of the power
adapter into an electrical outlet.

- 8 -
Play a Video Clip!
If everything is setup correctly, you should be watching the video clips stored
on the Compact Flash Card playing on the display. Depending on how the
tracks on the Compact Flash Card are programmed, the DV-66 player will
play accordingly
Note: The unit is designed for "Auto-run" on power up, and it will start
playing the contents on the Compact Flash Card when power is supplied.
For instructions, tips, and some fun suggestions, read on!
Additional Setup Information
If You Have Problems Playing
• Check that the Compact Flash Card is inserted into the slot correctly;
see Chapter 2, Step 3.
• Make sure that the Compact Flash Card has the content recorded in
the correct format. The video clip on the Compact Flash Card has to
meet MPEG-2 DVD specifications
• Make sure that the Compact Flash Card format meets DV-66’s
specifications. Make sure that the power is supplied by the proper DC
adapter and that the plug is plugged into the power jack.

- 9-
Control the Playback of Video Clip
Tracks with DV-36K, and Program The
Compact Flash Card Quickly with the
standard Compact Flash Card Reader
• DV-36K –The DV-36K is an optional accessory to the DV-66
MPEG-2 Digital Player. Its allows complete control over playback.
It is as simple as plug and play - just plug connect to the DV-66
player and you will have a dynamic interface with the video
presentation.
Chapte
r
3 Accessories for
Your DV-66

- 10 -

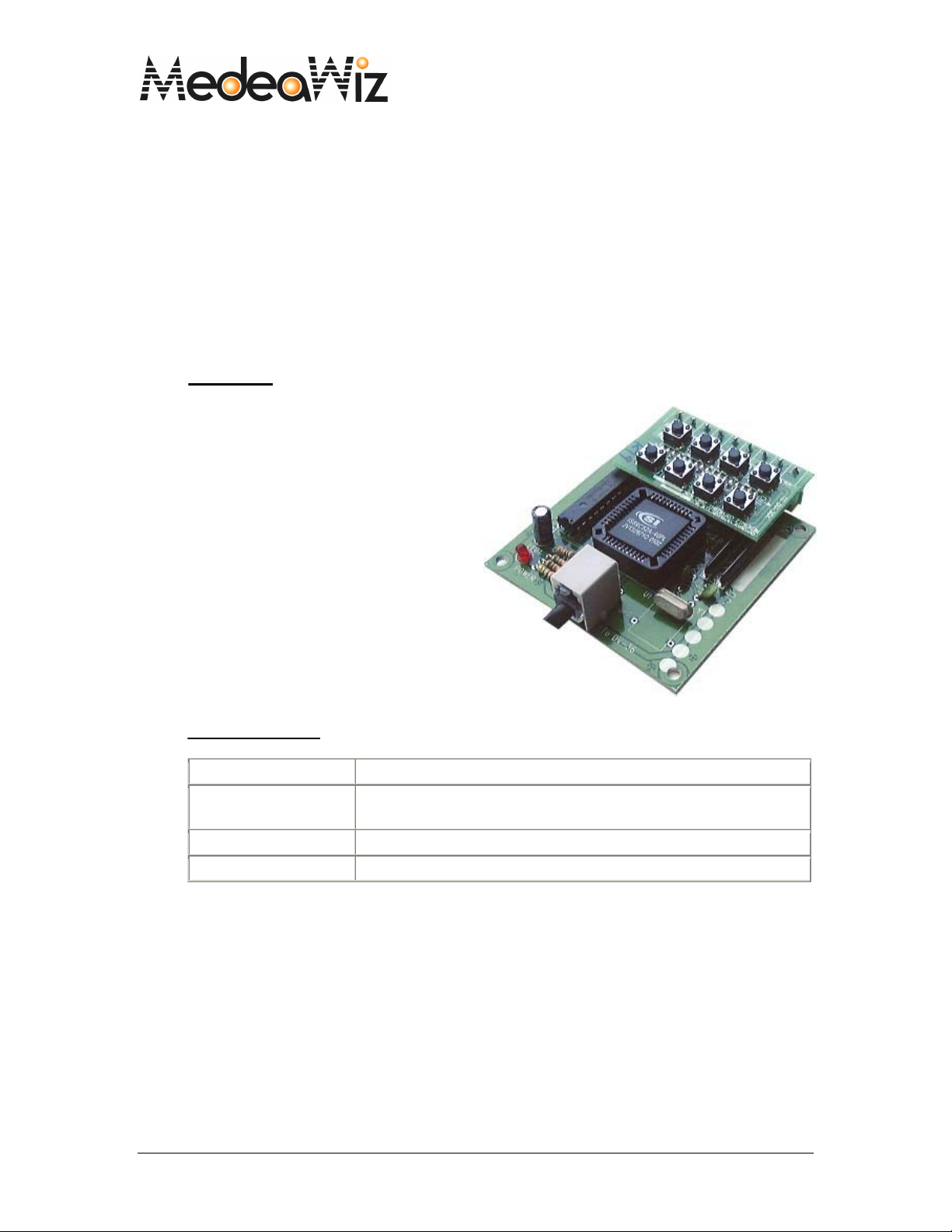

Introducing DV-36K Keypad Controller
The DV-36K is a great companion for DV-66 MPEG-2 digital player. It lets
you have your own choice of keypad and can control up to 255 tracks. Order
one now today from a MedeaWiz retailer or representative.
Features:
•Control DV-66 with up to
99 tracks.
•Low cost addition to unit
with a high value return.
•Expand the Functionality
of the DV-66 from looping
to interactive thus
increasing customer
attentiveness
Specifications:
Operating Voltage 4 - 5.5V
Operating
Temperature 0 - 70°C
Serial port specs Baud rate 4000 bits/sec, Null check, 8 bits, 1 stop bit
Dimensions 2.06"(L) x 2.56"(W) x 0.62"(H)
.
Note: DV-36K8 offers 8 push-button switches for easy track control.
The DV-36K can be wired to control up to 255 tracks through the 34-
pin connector. For more information, see the DV-36K user’s manual.

- 11-
System Type Digital Video Playback
Dimension 6.25"(L) x 4.25"(W) x 1.25"(H)
Power Consumption 6 W
Operating Current 12V 500mA
Operating Voltage 9 to 15V DC
Video Output NTSC/PAL
Audio Output MPEG-1 Level 2 Stereo
Media Format
MPEG-1 (VCD)
MPEG-2 (DVD)
JPEG
MP3
Storage Format Compact Flash Card
File Format FAT
Max. Memory Subject to size of available CF card
Chapte
r
4
Specifications
Specifications
