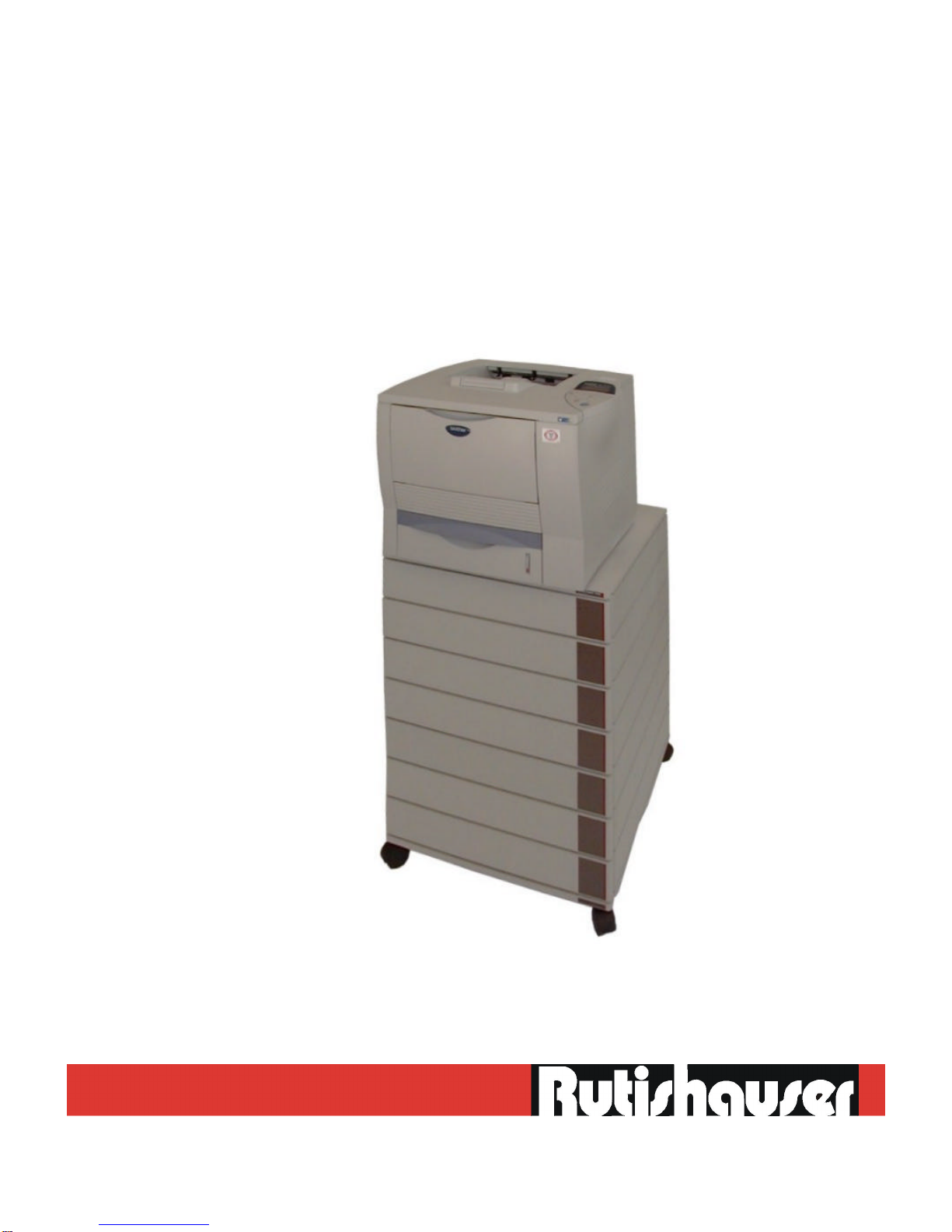

Rutishauser TowerFeed HL-7050 User manual

Installation and
User's Guide
TowerFeed
TM
for Brother HL-7050
IU 683 / 0402

IU 683 / 0404 1TowerFeedTM for Brother Printers
TABLE OF CONTENTS
USER'S MANUAL
TowerFeedTM 444 for Brother HL-7050
TABLE OF CONTENTS 1
PREFACE 3
UNPACKING 4
BOX CONTENTS 6
INSTALLATION
Hardware Installation 7
TowerFeed Setup 9
Printer Setup 9
Software Installation 10
OPERATING
Loading Paper 12
Reloading Paper 13
Out of Paper 13
Paper Jam 13
PAPER QUALITY GUIDELINES 14
APPENDIX A -Printer Specific Notes 15
APPENDIX B -Tips & Hints 16
APPENDIX C -Troubleshooting 20
TowerFeed Beep Types 21
APPENDIX D -TowerFeed Control Commands 22
APPENDIX E -Multi-Part Form Programming 24
APPENDIX F -TowerFeed Seltest 25
APPENDIX F -Cleaning and Maintenance 26
APPENDIX H -TowerFeed Specifications 27

IU 683 / 0404 2TowerFeedTM for Brother Printers
PREFACE
Thank you for selecting a Rutishauser product. TowerFeed is a superior sheet feeder specifically designed to
extend the paper handling capabilities of your Brother laser printer. We encourage you to read this manual carefully
to ensure correct installation and satisfactory operation.
TowerFeed is a demand feeder that makes it possible to have multiple types and sizes of paper available “on-line."
In Windows 3.1, paper selections are made with TowerFeed Windows Software. For non–Windows environments,
the control is done within the application software through the use of feed commands.
For print jobs without feed commands, the printer will receive paper from the top-most TowerFeed tray (Default
Paper).
Communication between the printer and TowerFeed is through the RS-232 port, thus offering the following
characteristics: •The installation is made easy. "Plug and Play"
•The printer can have internal or external network cards.
•Port switching is possible
•There is no reduction of the speed of data flow from the computer to the printer.
While installing TowerFeed, or whenever an unclear situation arises, please also consult the user's manuals of the
printer, your host computer system and your application software.
The name TowerFeed is generic to the TowerFeed family of feeders and is used throughout this manual.
TowerFeed has this model number scheme:
TowerFeed 444/xx.18.1y
Printer Model and Version
16 = HL-7050
International (220V, DIN A4 paper trays)
17 = HL-7050
Swiss (220V, DIN A4 paper trays)
Printer Manufacturer
18 = Brother
Configuration
33 = Desktop Model, 3 x 500 sheets
44 = Combined Model, 4 x 500 sheets
77 = Floor Model, 7 x 500 sheets
For
example: TF 444/77.18.16 is an international version with 7 DIN A4 paper trays.
A plate showing type, designation and serial number is located besides of the power inlet of TowerFeed. Please
refer to this designation and the serial number whenever you call your service organization.
Rutishauser Data AG, Switzerland, reserves the right to make changes to its products or services without
prior notice and without incurring any obligations to incorporate such changes in units or publications
shipped. Rutishauser shall in no event be liable for incidental or consequential damages arising from
the use of its equipment.
TowerFeed™ is a registered trademark of Rutishauser Data AG.
Windows™ is a registered trademark of Microsoft Corp.
Other products and brand names mentioned are trademarks or registered trademarks of their respective companies.

IU 683 / 0404 3TowerFeedTM for Brother Printers
UNPACKING
Note:
Prior to delivery, your TowerFeed was thoroughly tested and carefully packaged.
Please check your unit for transportation damage and/or missing parts immediately upon receipt.
It is advisable to get a second person to help you unpack the unit.
Warning:
TowerFeed may weigh up to 36 kilograms (80 pounds) depending on configuration.
To prevent back strain or injury, bend your knees when lifting the unit, and get help if you need.
To unpack the TowerFeed unit, proceed as follows:
•Cut the packing strips and remove the top of the shipping container (Fig. 1).
•Remove the four blue shock absorbers from the unit corners.
•Desktop unit: Carefully lift the TowerFeed from the lower container.
Floor model: Lay the unit on its side and carefully pull off the lower part of the shipping container (Fig. 2).
•Remove the accessories box. It contains the rollers (floor and combined models only), the power and data
cable, a CD Rom and the start instructions.
•Floor model: Insert the rollers from the accessories box with some force onto the shafts on the TowerFeed
bottom plate until they snap into position with an audible click (Fig. 3).
•Combined model: If you prefer to use your TowerFeed as desktop model, remove (unscrew) the roller shafts
underneith the bottom plate. There are already 4 rubber feet installed for this purpose.
For floor use insert the rollers from the accessories box with some force onto the shafts on the TowerFeed
bottom plate until they snap into position with an audible click (Fig. 3).
•Stand up the TowerFeed unit (Fig. 4).
•Remove the plastic from TowerFeed.
Warning:
For reshipping TowerFeed, you must use the original packing to avoid shipping damage of the unit.
Re-packing (Fig.5)
It is recommended that you keep the packaging material and inserts for proper protection of the unit and its parts in
case of reshipment.
To repack TowerFeed, follow the above steps in reverse. Be sure that all accessories including manuals and
diskettes are packed in the box. Remove the trays and insert the transportation inserts as shown in Fig. 8, page 7
(It is important to secure the trays to avoid possible shipping damage). Place items according to Fig. 5. Ensure
TowerFeed is correctly seated and cushioned. Insert the four blue shock absorbers and close the container.

IU 683 / 0404 4TowerFeedTM for Brother Printers
UNPACKING

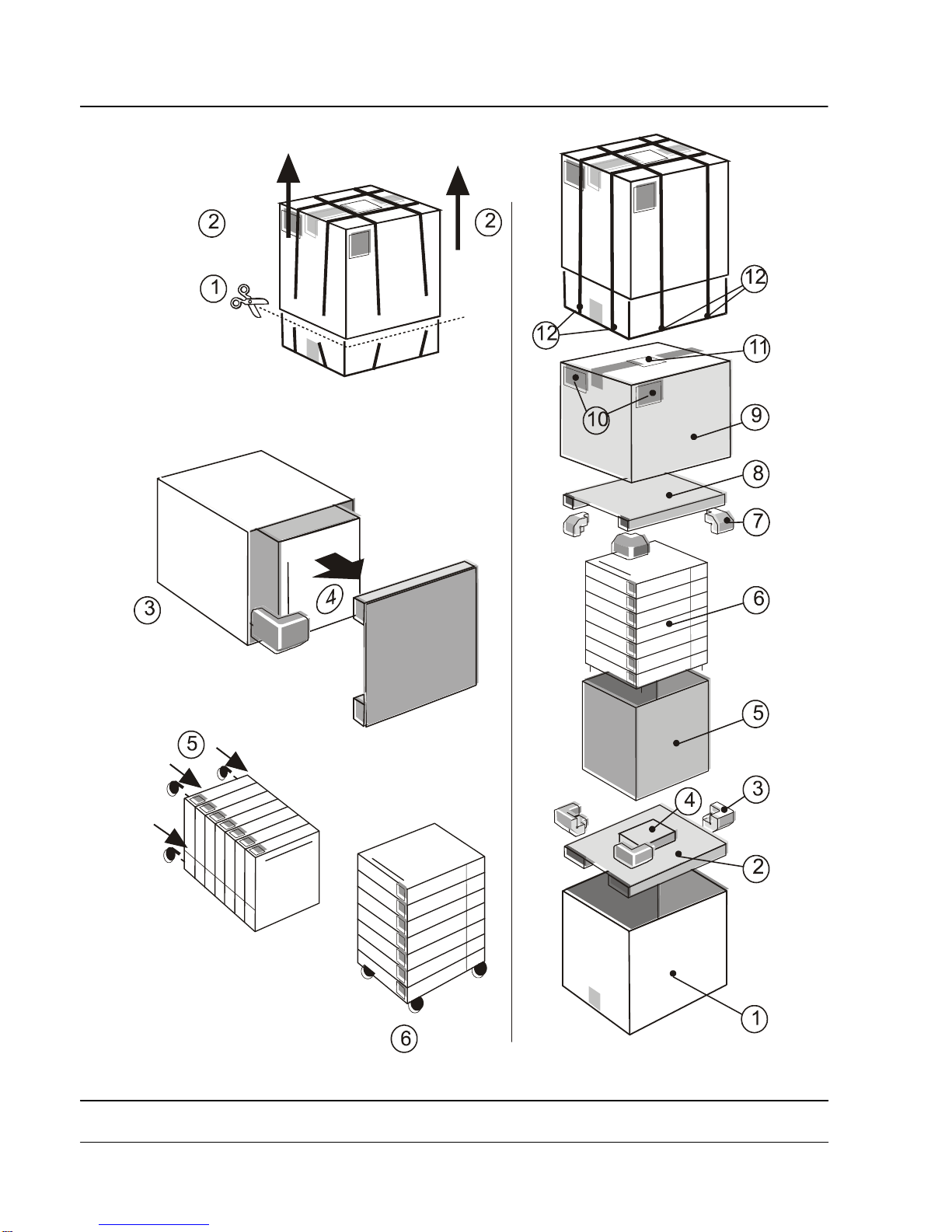

Fig. 1 Cut the packing
strips and lift away the
top of the shipping container.
Fig. 2 Lay unit on side
and carefully pull out
TowerFeed from the bottom
part of the shipping container.
Fig. 3 Insert rollers
(floor and combined models only)
Fig. 4 Stand up TowerFeed
and remove wrapping Fig. 5 Re-packing

IU 683 / 0404 5TowerFeedTM for Brother Printers
BOX CONTENTS
Note:
Prior to delivery, your TowerFeed was thoroughly tested and carefully packaged.
Please check your unit for transportation damage and/or missing parts immediately upon receipt.
Box Contents
(1) TowerFeed unit with
drawers
(2) Accessories box
Accessories
Box Contents
(1) Power Cable
(2) Data Cable
(3) ‘Getting started’ and
instructions how to get a
TowerFeed manual
(4) TowerFeed CD:
-User’s Guide
-Windows drivers
(5)
Rollers (Floor and Combined
model only)
Fig. 6 Box Contents
Fig. 7 Accessories Box Contents

IU 683 / 0404 6TowerFeedTM for Brother Printers
INSTALLATION
Warning:
POWER OFF your printer and TowerFeed and disconnect all power and interface cables before you
proceed with the installation.
Hardware Installation
Remove Transportation Inserts
•Pull out, lift upwards and remove the trays from TowerFeed so
as to remove the transportation inserts (Fig. 8). There are two
at each side (keep the inserts for reshipment).
•Re-insert and close the trays.
Note:
Located on the right side of each tray you will find coding pins
for the paper size. They are set by the factory and must not be
changed.
Position and Connect Printer
Warning:
The printer may weigh up to 25 kilograms (55 pounds). Enlist the
help of a second person to lift the unit. To prevent back strain or
injury, bend your knees when lifting the unit.
•Place the TowerFeed unit at the location you wish.
If your TowerFeed is a desktop model, be sure the table or cabinet
is level and sturdy enough to carry the load.
If your TowerFeed is a floor model, be sure to place it on a flat
location. Floor model TowerFeeds especially must be level!
Note:
If TowerFeed is not level, paper jams and/or left margin deviation
may occur. This is indicated if the left corner of the paper
is 'dog eared' or the left edge of the paper is shredded, or the
left margin is shifted and the printout skewed.
•Carefully lift the laser printer onto TowerFeed. Place its
positioning holes on the positioning pins of the TowerFeed top
(Fig. 9).
Fig. 8 Removing Transportation Inserts
Fig. 9 Positioning the Printer

IU 683 / 0404 7TowerFeedTM for Brother Printers
INSTALLATION
•Your printer has a centered paper path. Therefore the paper paths of printer and TowerFeed have not to be
adjusted like for previous Brother printers.
Electrical Connections
•Connect the RS-232 data cable to the serial port of the printer and
to the rear of TowerFeed (Fig. 10).
Note:
Secure the connectors with the screws to ensure proper
connection of the systems.
•Connect the power cables to printer and TowerFeed (Fig. 10).
Note:
When you power on the system, power on FIRST TowerFeed and
then the printer.
Caution:
When rolling TowerFeed and printer to another place, take care
when crossing doorsteps to not have the unit tipping over or
TowerFeed trays sliding open.
Fig. 10 Connecting the Cables and
Location of the Power Switch

IU 683 / 0404 8TowerFeedTM for Brother Printers
INSTALLATION
TowerFeed Setup
TowerFeed is factory preset for the Brother HL-7050 printer. Therefore, it is not necessary to run the TowerFeed
setup program for this printer type.
Printer Setup
The TowerFeed Option must be selected using the printer panel as following:
•Press and hold the GO button and press the Set button once. The Display will now show HIDDEN PANEL
TOWERFEED ON/OFF.
•Press the + or –buttons as many times until the display shows 'TowerFeed ON/OFF'.
•Press SET to enter into this menu item and press + or -until 'TowerFeed=ON' appears.
•Press SET.
•Press GO.
Now the printer performs a selftest and after this TowerFeed should do a short beep (reset beep of
TowerFeed). The option TowerFeed is activated now.
The Interface should be checked/selected using the printer panel (standard setting):
•Press the + button as many times until the display shows --MENU-- INTERFACE
•Press SET once (SELECT INTERFACE)
•Press SET once
•Navigate to the display SELECT =AUTO using the buttons + or -.
•Press SET once
•Press the button BACK twice, the display should show READY.

IU 683 / 0404 9TowerFeedTM for Brother Printers
INSTALLATION
Software Installation
Installation of Printer Driver
Basically the original Windows drivers of Brother for the HL-7050 can be used (revision 1.59 or later). This except
the PostScript driver, which has no TowerFeed extension. Prior to the standard driver installation, an enclosed file
has to be copied into your system which allows the driver to show the additional TowerFeed trays.
Note: On the enclosed CD you will find the file hl705ini.dat
Insert the CD into your host system, it will start automatically. Navigate according the instructions to the
informations of the Brother HL-7050 drivers. Copy the mentioned file into the directory of your host system as
indicated on the CD.
Now install the original Brother printer driver which is required for your Windows operating system. You will find the
Brother Windows drivers on the CD as well, they were the latest at manufacturing time. If you are looking for later
versions please visit www.brother.com .

IU 683 / 0404 10 TowerFeedTM for Brother Printers
INSTALLATION
After successful installation of the printer driver, you will find in Printer -Properties -Accessories in the field
available Options all available TowerFeed models. Select your model (e.g. TF444/77 for the 7-bin model). Hit the
Add button to install this option to field at the right (Fig.11).
Note: If the TowerFeed models do not appear in the field available Options,check the previous step.
Standard Paper Tray
Now switch to the Printer Properties -Standard Settings and select in the Basic tab the standard paper tray which
should be active when no tray selection is done while printing in an application.
Fig. 12 Printer Standard Tray
Fig. 11 Printer Properties

IU 683 / 0404 11 TowerFeedTM for Brother Printers
INSTALLATION
Paper Allocation in the Application Program
The application program usually has a Page Setup screen which can be accessed via File -Page Setup.... In the
Paper Source tag you will find the paper source settings for First page: and Other pages:
The paper source settings in this window are the finally relevant definitions when printing the document.
Note:
For further information on Tray and Media Type definition please also refer to Appendix B -Tips & Hints
of this manual.
Fig. 13 Page Setup –Paper Source (Word)

IU 683 / 0404 12 TowerFeedTM for Brother Printers
OPERATING
Loading Paper
•Pull open the tray you wish to load until it reaches the
stop or remove it completely for more convenient loading.
•Obtain a fresh ream of paper. Best results will be
obtained using regular copier or laser printer paper (see
"Paper Quality Guidelines").
Hold the ream on the long edge and bend it in and out.
Repeat on the short edge. Square it off properly (Fig. 14).
•Load letterhead paper face down, with the letterhead
towards the front panel.
Note:
Duplex printing requires different loading of pre-printed
paper (please also refer to the instructions in the printer
manual).
An additional TowerFeed tray will allow to have the same
(preprinted) paper in two different trays and available
online for regular and duplex printing.
•Insert approx. one third of the ream in the tray and
ensure that all paper is lined up with the rear stop.
Repeat two more times for the rest of the ream (Fig. 15).
•Push down the stack, such that all sheets are under the
separation corners (Fig. 16).
•The right paper guide can be adjusted by pushing the
separation corner tab to the left to ensure proper guiding
of the paper.
•Push down on the paper stack a few times. The paper
must move up and down freely.
Note:
For your convenience, you may insert a sample piece
(about 1 inch/28 mm) of the loaded paper type into the
extrusion as a reference when reloading the tray
(Fig. 17).
•Close the tray. Repeat the procedure for all trays to be
loaded
•TowerFeed is now ready for operation.
TowerFeed will light the indicators on all feed modules:
Green: with paper and drawer closed.
Yellow: no paper or drawer not completely closed. Fig. 17 Marking the Tray
Fig. 14 Fanning the Paper
Fig. 15 Filling in Paper
Fig. 16 Correct Paper Loading
Paper Sample

IU 683 / 0404 13 TowerFeedTM for Brother Printers
OPERATING
Reloading Paper
While feeding occurs from a higher tray, lower ones may be reloaded without interrupting feeding and printing. To
reload paper, please refer to "Loading Paper ". Once the tray is replenished with paper and closed, TowerFeed will
resume feeding.
Out of Paper
•If a TowerFeed tray runs out of paper, the yellow indicator on its front panel is lit.
•TowerFeed will also indicate the Paper-Out condition by beeping as soon as the empty tray is selected.
Paper-Out beeping can only be cleared by opening the selected empty tray, reloading paper and closing the
tray. Closing the empty tray will activate the Paper-Out beeping again (see Appendix C –Troubleshooting).
•TowerFeed will stop feeding and the printer will stop printing until the selected empty tray is replenished with
paper.
Paper Jam
Paper Jam in the Printer
In case of a paper jam in the printer, please refer to the printer operating manual on how to clear the jam in the
printer. After closing the printer cover, TowerFeed will automatically feed another sheet and the printer will resume
printing.
Paper Jam in TowerFeed (TowerFeed generates beeps in regular intervals)
If a paper jam TowerFeed occurs in the TowerFeed, the printer panel shows a respective error message and
TowerFeed will generate beeps in regular intervals (see page 21, TF Beep Types). It will stop feeding and wait for
operator intervention. Beeping will continue until a TowerFeed tray is opened.
Note:
First open the top-most TowerFeed tray for at least 5 cm (2") to stop TowerFeed beeping and prevent
additional feed cycles.
•Open each of the TowerFeed trays to locate the jammed paper.
•Remove the jammed paper.
•Do not close the top-most tray until the paper jam has been cleared.
•Close now the top-most tray to indicate that feeding can restart.
TowerFeed will automatically re-feed the same kind of paper as requested before the jam.

IU 683 / 0404 14 TowerFeedTM for Brother Printers
PAPER QUALITY GUIDELINES
General
These paper quality guidelines are general recommendations. Paper beyond these specifications may work as
well, however it should be tested before use. Paper is a material that reacts intensively to adverse temperature and
humidity conditions. The observance of proper conditions as defined below is therefore essential for trouble-free
operation of TowerFeed. Please also refer to the corresponding guidelines in the printer manual.
Paper Quality and Surface
Bond type papers and papers with slight rag content are recommended. For papers with high rag content, as well
as very light and air mail papers, feeding tests must be conducted to check for satisfactory performance before
regular use. Paper with embossed or heavy printing should be tested in TowerFeed before use, as well. Papers
with glossy or structured surface are not recommended. Individual sheets in a stack must not be damaged, warped
more than 3 mm (0. 12") at an angle of max. 20° or creased, since all these may reduce the feeding performance.
Paper Weight
60 -95 g / m2(16 -24 lb.). Other paper weights must be tested before use.
Tolerance
Paper must be cut to the appropriate size dimension within a tolerance of +/-1.0 mm (+/-0.04"). The paper stack
must be cut square to within a tolerance of 90° +/-0.1°.
Recommended Storage Environment
Temperature: 18°C -24°C (64°F -75°F)
Relative humidity: 40% -60%

IU 683 / 0404 15 TowerFeedTM for Brother Printers
APPENDIX A -Printer Specific Notes
Printer Firmware Revision
HL-7050: Every printer firmware version supports the TowerFeed option.
Duplex Option
The printer's duplexing capabilities remain fully supported with the TowerFeed paper handling option installed.
When loading the paper please also refer to the printer's user manual for correct tray loading.
In duplex mode, the printer prints the pages in a different order. This requires preprinted paper to be loaded in a
different way into the printer's tray.
When using a preprint for both, simplex and duplex printing, an additional paper tray solves the problem. Load one
tray for simplex printing and another tray with the preprint loaded for duplex printing.
Now you can select the tray for simplex printing or the one for duplex printing according to your needs. There is no
reloading of trays required. Scrap prints and frustrations belong to the past.
Brother Optional 500-Sheet Tray
This option is not supported when the TowerFeed paper handling option is installed.
Paper Selection Command
When receiving a print job without paper selection command, the print job will be printed on paper from the top-
most TowerFeed tray. The Windows driver sends a selection command with every page. For 'non-WINDOWS
applications' the respective paper selection commands need to be added to the respective programs (see
APPENDIX D -TowerFeed Control Commands).
PostScript
The BrotherScript driver allows for the selection of the printer paper sources plus the optional 500-sheet cassette.
When selecting paper from the optional 500-sheet tray, TowerFeed will supply paper from its 1st paper tray (top-
most drawer). The other TowerFeed paper trays cannot be selected when using the BrotherScript driver.

IU 683 / 0404 16 TowerFeedTM for Brother Printers
APPENDIX B -Tips & Hints
Power ON Sequence
Power On TowerFeed first!
When powering on the printer, it will scan its option bus for available options. In case TowerFeed would not be
ready at that point in time, the printer shows an error message (Check TF). In this case make sure that the printer
and TowerFeed are connected properly. If necessary, power on TowerFeed, wait for the short acoustic TowerFeed
signal (Reset Beep) and go on pressing GO on the printer panel.
Note:
When the printer was not successful to connect with TowerFeed after trying it three times it will auto-
matically deactivate the TowerFeed option. Now the TowerFeed option has to be reactivated via printer
panel (see Printer Setup –page 9).
Creating Paper Sequences for a Word Document
It is widely known that in Page Setup you have the possibility to enter different paper sources for First Page and
Other Pages. If there are other pages in the document, which have to be printed on another paper, this can be
defined in the same Page Setup window. In this window there is a pull-down bar Apply to: which is used for that
purpose. The default setting is Whole document but there are also the options This point forward and Selected
text, which can be selected.
The option Apply to: allows to force a change of the paper source for a specific page or from a specific page
onwards and thus to define paper sequences for a whole document.
Fig. 18a Page Setup –This point forward Fig. 18b Page Setup –Selected text

IU 683 / 0404 17 TowerFeedTM for Brother Printers
APPENDIX B -Tips & Hints
Printing a Document with copies on the Brother Laser Printer with TowerFeed
When printing a document you get either an original copy (copies = 1), or, if you set copies = n, you will get n times
the same printout. Usually you want the original document to distinguish from its copies. An elegant method for that
purpose is to print the copies on different (color) paper. This can be done by sending the print job several times to
the printer but with different page settings. Using a Macro makes this an easy task.
On the next page you find an example of a macro used with a Word document. The macro starts with 'Sub Makro'
and ends with 'End Sub'. It consists of several modules (one per copy) which contain the paper definitions for each
copy (FirstPageTray = xx; OtherPagesTray = yy).
You can use the Macro Recording function of Word (Extra-Macro-Record) to produce the first module by
performing the steps for Page Setup and Print. Then, in Macro Edit mode, you copy/paste this module to have one
for each copy to print (one module per copy). Finally you edit the entries in FirstPageTray = xx; OtherPagesTray =
yy to the desired paper sources.
This will produce a macro, which prints the document in multiple copies and with the respective page settings.
Such a macro can be incorporated into a Menu item or added as icon into the Toolbar.
Hint: When creating and adding a Macro to the Toolbar for automatic printing of the final document with its copies,
it might be useful to also create and add a second Macro for easy printing of document drafts on cheap paper.

IU 683 / 0404 18 TowerFeedTM for Brother Printers
APPENDIX B -Tips & Hints
The following table shows the internal denominations of the paper sources:
Brother HL-Laser Printer Paper Type
Tray Denomination
Upper Paper Cassette wdPrinterUpperBin e.g. Letterhead
MP Tray wdPrinterMiddleBin
Manual Paper Tray wdPrinterManualFeed
TowerFeed 1 257 e.g. Plain
TowerFeed 2 258 e.g. Bond
TowerFeed 3 259 e.g. Color
TowerFeed 4 260
TowerFeed 5 261
TowerFeed 6 262
TowerFeed 7 263
Example:
The following Word Macro will produce an original document (on company paper) incl. 2 copies (plain and color).
Page Original (Copy 1) 1st Copy (Copy 2) 2nd Copy (Copy 3)
First Page Letterhead Plain Color
Other Pages Bond Plain Color
Macro Start
Sub Macro1 ()
Macro1 Macro
Macro recorded 30.01.98 by ...
With ActiveDocument.PageSetup
.LineNumbering.Active = False
.Orientation = wdOrientPortrait
.TopMargin = CentimeterToPoints (2.5)
.BottomMargin = CentimeterToPoints (2)
.LeftMargin = CentimeterToPoints (3)
.RightMargin = CentimeterToPoints (1.5)
.Gutter = CentimeterToPoints (0)
.HeaderDistance = CentimeterToPoints (1.25)
.FooterDistance = CentimeterToPoints (1.25)
.PageWidth = CentimeterToPoints (21)
.PageHeight = CentimeterToPoints (29.7)
.FirstPageTray = wdPrinterUpperBin
.OtherPagesTray = 258
.SectionStart = wdSectionNewPage
.OddAndEvenPagesHeaderFooter = False
.DifferentFirstPageHeaderFooter = False
.VerticalAlignment = wdAlignVerticalTop
.SuppressEndnotes = False
.MirrorMargins = False
End With
ActiveDocument.PrintOut
