Rutland ESM401 User manual

Energiser Installation Guide
Thank you for purchasing a Rutland mains powered electric fence energiser.
We believe this unit is the best of its kind for ease of use, reliability and
durability. This guide provides instruction to properly install, operate and
maintain your unit, ensuring the most effective performance.
For Mains Powered Energisers
ESM401, ESM402,
ESM602 & ESM902
ESM2500, ESM3500i
ESM4500i & ESM5500i
Installation of Energiser and Fence
Electric fences should be installed and operated so that they cause no
danger to persons, animals or surroundings and as far as is reasonably
practicable, they are out of reach of children and not subject to
mechanical damage. Never connect more than one energiser to the
same single or multi-wire fence. Any other fence systems powered
by a different energiser should be at least 2.5 metres apart. If this
gap is to be closed, use non-conductive material or an isolated metal
barrier. Any electric fence or part thereof installed along a public road
or pathway should be identified by warning signs at regular intervals.
The warning sign should have a yellow background and be
at least 100 mm x 200 mm. The words “Caution Electric
Fence” or symbol should appear in black, permanent
marking on both sides of the sign and be at least 25mm
in height.
• Barbed wire must not be electrified.
• If an electric fence has to be installed in the vicinity of overhead
power lines it should not cross above it or run in parallel to it for any
great distance. If it is necessary to pass under overhead powerlines it
should be done at right angles and the vertical distance between any
fence wire and the surface of the earth should not exceed two metres.
• If an electric fence has to be installed near any communication lines,
the distance from the lines and the fence or any part of it should be
more than two metres.
• If the energiser is installed in the vicinity of any building, care must
be taken to ensure that the earth for the electric fence is more
than 10 metres away from any domestic electricity board earth or
telecommunications system earth.
• Follow the manufacturer’s directions for proper earthing of your
electric fence.
• Use insulated cable for connecting leads that run inside buildings
or underground. Take care to avoid damage from animal hooves or
vehicle wheels and use a conduit of insulating material if needed.
• Do not install connecting leads in the same conduit as the mains
supply wiring, communication cables or data cables.
• Low output energisers provide satisfactory and safe performance for
deterring birds, household pets and training animals such as cows.
Before You Start

- 2 - - 3 -
• If the electric fence is intended to deter birds from roosting on
buildings, do not connect the fence wire to the earth terminal. Use a
warning sign at any point where a person may access the fence wire.
Manufacture Standard
Built to Comply with CE, IPX4, EN60355-2-76
Health & Safety Standards and EN55014, EMC
Safety
• Keep combustible materials away from the connection to the fence
energiser.
• Mains energisers are for indoor use only.
• For mains energisers, ensure that all electric fence components
provide adequate insulation between the fence circuit and the supply
mains.
• Unless certified as being suited for outdoor use, protect the energiser
from the weather.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified person in order
to avoid a hazard.
Warning: Avoid touching electric fence wires, especially with the head,
neck or torso. Do not climb over, through or under multi-wire electric
fence. Use a gate or a specially designed crossing point. Incorporate a
non-electrified gate or crossing stile where an electric fence crosses a
public pathway. At any such crossing the adjacent electric fence should
carry warning signs.
Tools Required
• Wire cutter/stripper (recommend part no. 24-909 or 24-809)
• Flathead screwdriver
• Adjustable spanner
Other Required Components
• Two lengths of lead-out cable (one long enough to connect energiser
to earth system and one long enough to connect energiser to fence
line) (part no. 17-125)
• Fence line connector (part no. 18-172 for steel or poly wire;
30-125 for poly rope; or 30-158 for poly tape)
• Earth stake(s) (part no. 18-179M; includes line clamp)
Earth
connection
(green)
Mains power plug
Overview of Installed Energiser
Fence
connection
(red)
Energiser Installation

- 4 - - 5 -
STEP 1: Mount Energiser
IMPORTANT: Mount in an inside location or in a waterproof enclosure
Single screw mounting
Double screw mounting
STEP 2: Connect Earth and Fence Terminals
Connect lead-out cable to
FENCE (red) terminal
Connect lead-out cable to
EARTH (green) terminal
4cm
Lead-out cable

- 6 - - 7 -

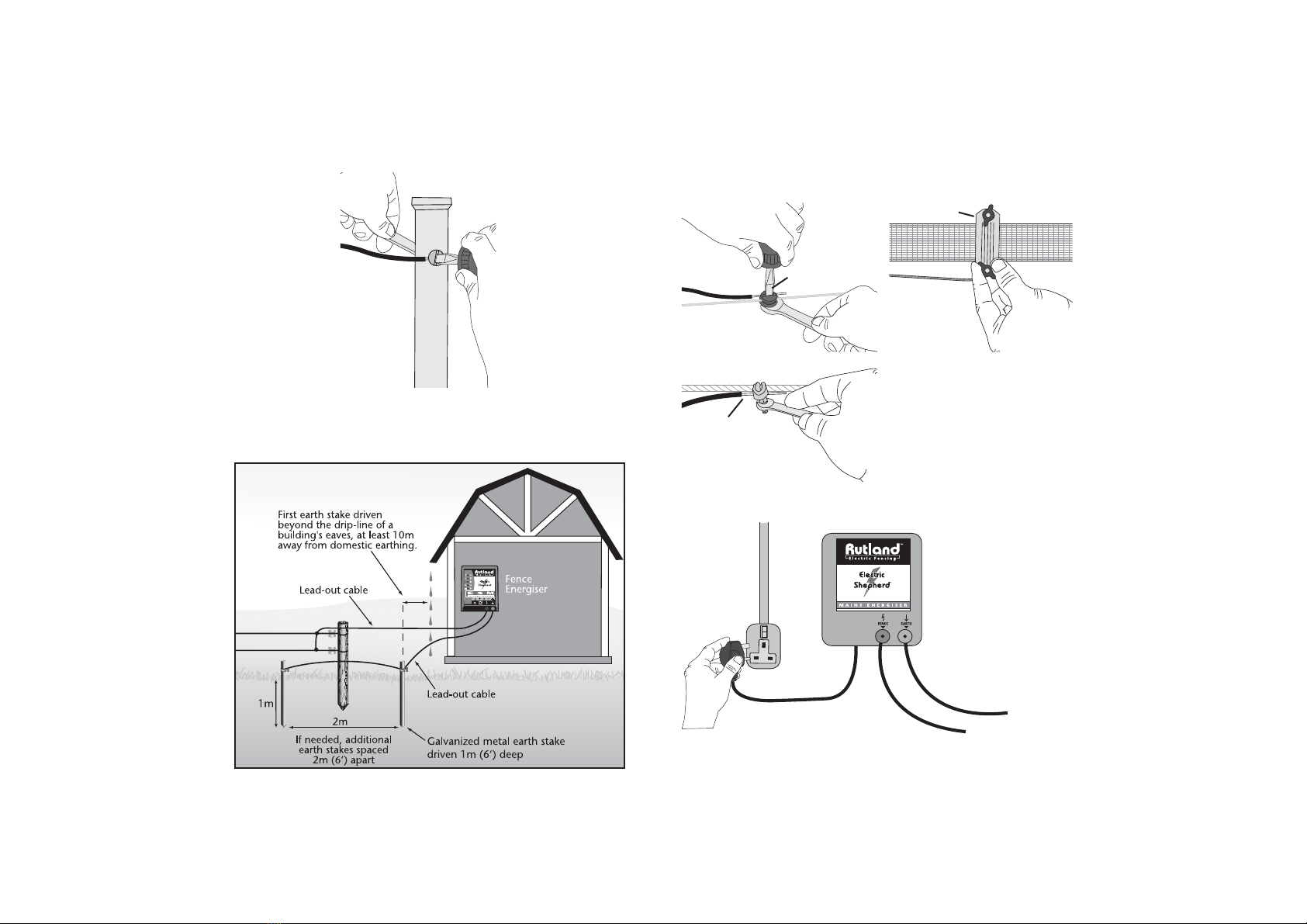

STEP 3: Connect Earth System
Earth connection
Ensure Earth System is Sound
NOTE: Connect additional earth stakes with lead-out cable if required
STEP 4: Connect Lead-Out Cable to Fence Line
Ensure Fence System is
Sound
• Ensure all connection points
such as joiners and insulators
are sound and secure
• IMPROPER CONNECTION
POINTS WILL AFFECT THE
PERFORMANCE OF YOUR
ENERGISER
Poly tape connection
Part no.30-158
Poly rope connection
Part no. 30-125
Poly wire connection
Part no.18-172

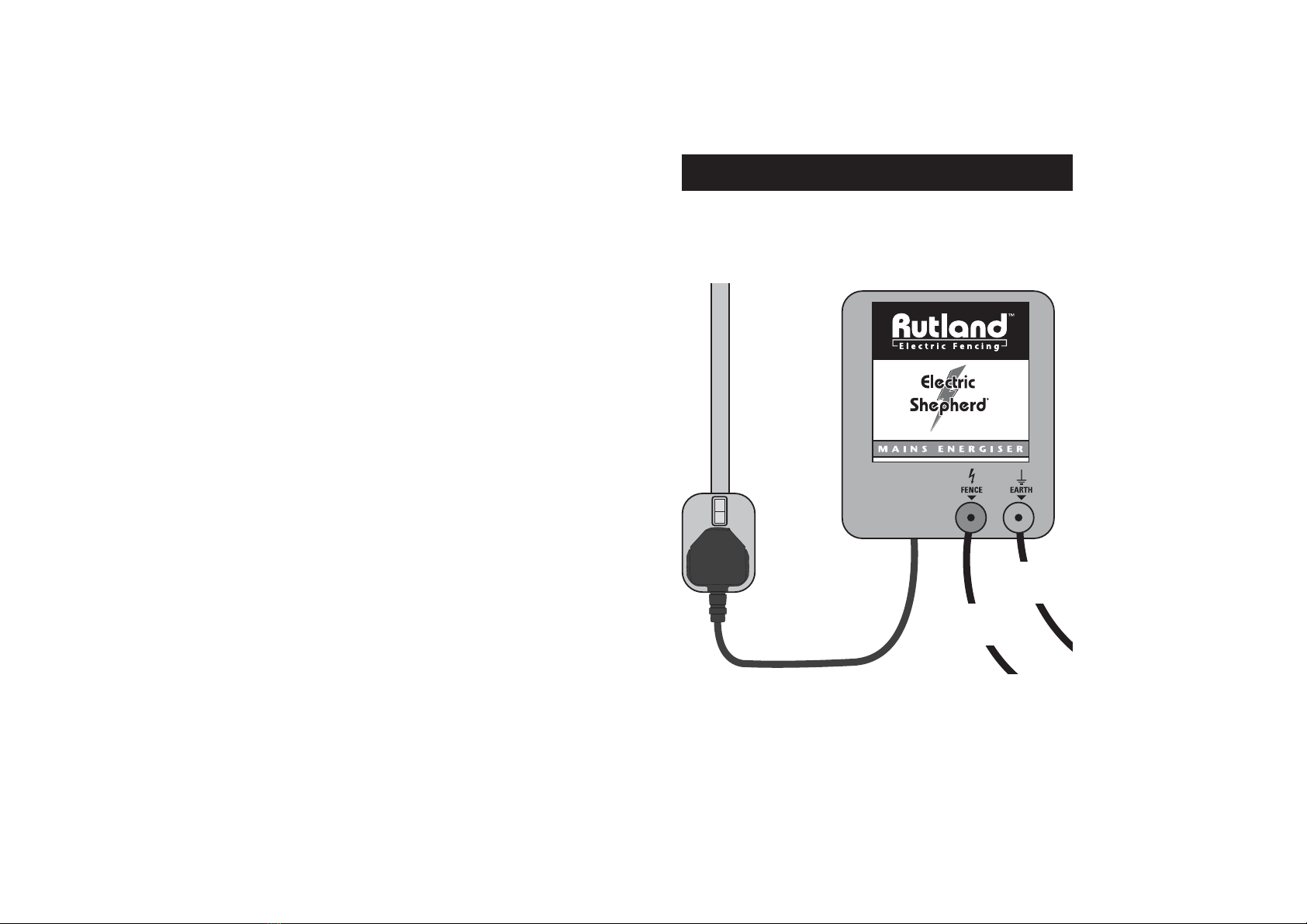

STEP 5: Power Energiser
NOTE: When connected and switched on do not touch fence terminal
or fence wire.

- 8 - - 9 -
Earth terminal (green)
• connect to earth stake
Fence terminal (red)
• connect to fence line
Power indicator
• flashes to show
energiser has
power
Pulse indicator
• flashes to indicate
voltage output
Energiser Operation
For Models: ESM401, ESM402, ESM602, ESM902
Earth fault alarm
• Flashes red and
an alarm sounds
when an earth fault
is detected. Refer
to pages on Earth
testing and Trouble
Shooting for advice.
(4) Boost Mode
indicator
(3) Pulse indicator
low output
(1) Pulse indicator–high output
(2) Pulse indicator
medium output
Fence terminal low power (red)*
• for short fences or paddocks
Fence terminal high power (red)*
• for long fences
Earth terminal (green)
• connect to earth stake
Intelligiser®Operation
For Models: ESM3500i, ESM4500i, ESM5500i
* Both low and high power terminals can be used singly
or simultaneously; more than one lead-out cable can be
attached to each terminal
Alarm indicator
• Flashes red and
an alarm sounds
when the fence
load increases. Only
after the time delay.
Important to check
the fence
Time Delayed Symbol
• This symbol shows that the energiser
conforms to BSEN60335-2-76-A12.
When there is a change in the fence load
the energiser will increase the power out-
put automatically but only after a delay
time of 15 seconds (Approx. 15 pulses)

- 10 - - 11 -
Intelligiser®Operation
For Models: ESM3500i, ESM4500i, ESM5500i
Intelligiser® Features
The Intelligiser® is a new type of electric fence energiser that conforms to
the latest European safety standards. The standard sets out to improve the
performance and safety of an electric fence energiser. The Intelligiser® uses
a microprocessor which continually monitors the fence output and reacts
in different ways depending on what it finds. In the unlikely event that the
Intelligiser® fails it also has in built diagnostics which will enable you to
decide what the problem is.
(1) Pulse indicator–high output
• flashes green if over 5,000 volts output. Fence in good condition. A good
fence can have 8,000 volts or more on it.
(2) Pulse indicator–medium output
• flashes yellow if between 3,000 & 5,000 volts output. The energiser
might have gone into boost mode due to heavy vegetation on the fence
line. However it is a good idea to check the fence as it might be another
problem.
(3) Warning low output
• flashes red and alarm sounds if output drops below 3,000 volts. The
alarm will continue to sound until the voltage goes above 3,000 volts.
The fence must be checked for faults.
(4) Boost Mode
• Blue indicator is on when the output power increases. This is a safety
feature. When the energiser detects a heavy load on the fence (usually
caused by wet vegetation) The energiser will attempt to increase the out-
put power so that the voltage on the fence can be maintained. However
this will only happen after a delay time and the alarm has sounded (the
alarm will stop after 10 minutes) During the delay time the energiser
will pulse slowly (approximately every 3 seconds) then return to normal
speed.
Energiser Fault indication
• If the high voltage & medium voltage indicators are flashing at the same
time and the energiser is not giving an output, switch the energiser off
for a short period of time, then switch it back on again. If the high volt-
age & medium voltage indicators continue to flash the energiser needs
repairing. DO NOT ATTEMPT REPAIRS. Take the energiser to your dealer
or return to the manufacturer.
Earth fault alarm
• flashes if an earth
fault is detected.
Refer to pages on
Earth testing and
Trouble Shooting
for advice.
Power indicator
• continuous light
shows energiser
has power
Warning low output
• flashes and alarm
sounds if output drops
below 3,000 volts
Pulse indicator–high output
• flashes if over 5,000 volts output
Pulse indicator–
medium output
• flashes if over 3,000
volts are being output
Fence terminal low power (yellow)*
• for short fences or paddocks
Fence terminal high power (red)*
• for long fences
Earth terminal (green)
• connect to earth stake
Energiser Operation
For Models: ESM2500
* Both low and high power terminals can be used
singly or simultaneously; more than one lead-out
cable can be attached to each terminal

- 12 - - 13 -

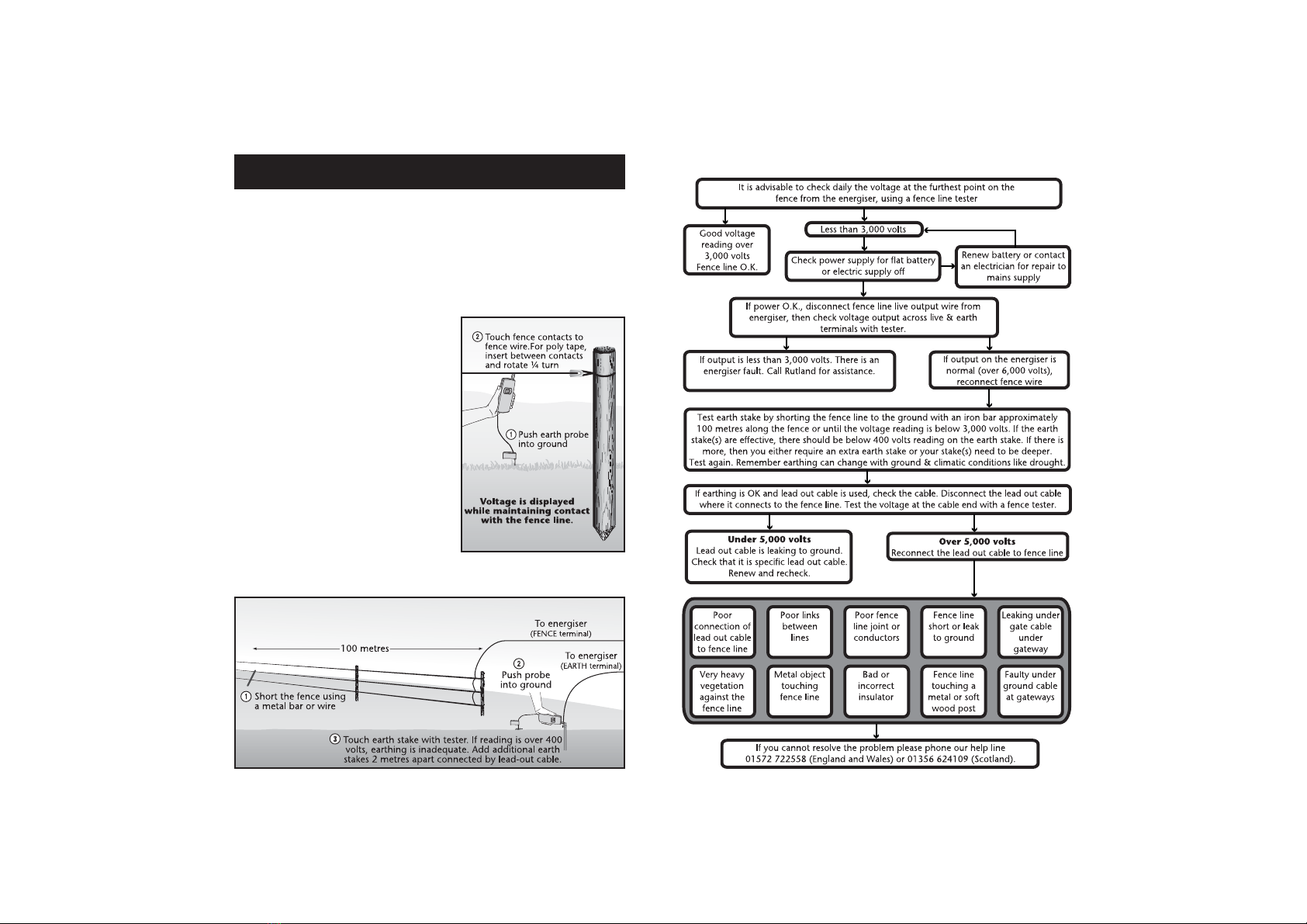

Fence Line Maintenance
• Regularly test voltage at the furthest point on the fence line from the
energiser – we recommend Rutland Digital Tester 14-172 or 8-Light
Tester 14-173
• Routinely check all fence and earth connections to ensure they are
sound
• For best performance, keep
fence line free of vegetation
• Keep insulators free from dirt,
dust and cobwebs
How To Test Earthing
Maintenance/Testing
How To Test Fence
Energiser Troubleshooting

- 14 - - 15 -
Warranty
This energiser is warranted to be free from manufacturing defects for two years from the
date of purchase by the end user. Proof of purchase is required for warranty consideration. If
no sales receipt is available, the date of manufacture will be used to determine the warranty
period.
The warranty does not apply to any defect in the product caused by improper installation,
misuse, tampering, neglect, moisture or any other reason not related to defects in material or
workmanship of the product.
Warranties are not assignable or transferable. It is for the benefit of and given only to the
first consumer purchaser of the product, and shall not be for the benefit of nor given to any
subsequent owners or any other user or to any person.
The obligation of Rutland Electric Fencing Co. Ltd. under warranty is limited only to repairing
or replacing, at its discretion, any part of the product that is defective and is covered by the
terms of this warranty. If any covered defect occurs during the warranty, return the product
to the retailer for rectification who will either undertake the repair or forward the energiser
to ourselves. In no case shall Rutland Electric Fencing Co. Ltd. be liable for incidental,
consequential, third party, special or indirect damages of any kind.
LIMITATION OF DAMAGES
The directions for use of this product should be followed carefully. It is impossible to eliminate
all risk inherently associated with use of the product. The effectiveness of Rutland brands
of fence energisers may depend on the effectiveness of connections, interruption of power
source, accidental shorting of wires, weather conditions, or the manner of use or application,
all of which are beyond the control of Rutland Electric Fencing Co. Ltd. or the seller. The buyer
shall assume all such risks.
Rutland Electric Fencing Co. Ltd. warrants that this product is fit for the purposes for which
it was designed and referred to in the directions for use, subject to the inherent risks referred
to above. Rutland Electric Fencing Co. Ltd. makes no other expressed or implied warranty
of fitness or merchantability or any other expressed or implied warranty. IN NO CASE SHALL
RUTLAND ELECTRIC FENCING CO. LTD., OR THE SELLER, BE LIABLE FOR CONSEQUENTIAL,
SPECIAL OR INDIRECT DAMAGES RESULTING FROM THE USE OR HANDLING OF THIS
PRODUCT. RUTLAND ELECTRIC FENCING CO. LTD. AND THE RETAILER OFFER THIS PRODUCT,
AND THE BUYER AND USER ACCEPT IT, SUBJECT TO THE FOREGOING CONDITIONS OF SALE
AND WARRANTY WHICH MAY BE VARIED ONLY BY AGREEMENT IN WRITING SIGNED BY AN
AUTHORISED OFFICER OF RUTLAND ELECTRIC FENCING CO. LTD.
SAVE THIS INSTALLATION AND USERS MANUAL
WEEE (Waste Electrical & Electronic Equipment directive) This instruction
applies to any product which displays the bin symbol on it or its packaging.
If your electrical product is beyond repair and you wish to dispose of it
please DO NOT dispose of it with your normal household waste. Either
return it to your point of purchase (retailer) for collection by Rutland Electric
Fencing Co. Ltd. or take to any authorised recycling centre. Your local
council/authority will have information available. This notice refers only to
products manufactured or distributed by Rutland Electric Fencing Co. Ltd.
To request a Rutland Electric Fencing Co Ltd. catalogue or
for information on any Rutland product, please contact us at:
Rutland Electric Fencing Co Ltd.
Fencing House
8 Lands End Way
Oakham, Rutland
LE15 6RF UK
Web: www.Rutland-Electric-Fencing.co.uk
Email: [email protected]
Phone: (44) 0 1572 722558 – UK and EU
(44) 0 1356 624109 – Scotland
(44) 0 7817 396776 – N. Ireland
Part # 7002486.001 Rev2
Other manuals for ESM401
1
This manual suits for next models
7
Table of contents
Other Rutland Power Supply manuals
