RVS systems G Series User manual

Reverse With Condence ™ 1
G-SERIES Rear View Replacement Mirror Monitor with
Auto-Dimming, Compass and Temperature
RVS-M628
Instruction Manual
RVS Systems, Inc. © 2016

RVS Systems
2
Introduction...............................03
SafetyInformation..........................04-06
Before Beginning Installation. . . . . . . . . . . . . . . . . . . . . . . 07
InstallationGuide.......................... 08-09
AdjustableGridLine...........................10
InstallationandWire.........................11-13
MonitorSpecications..........................14
Troubleshooting.............................15
Warranty&Disclaimer........................ 16-17
TABLE OF CONTENTS

Reverse With Condence ™ 3
NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a RearView Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with aTV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION

RVS Systems
4
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
• The Rear View Camera System is
designed to help the driver safe-
ly detect people and/or objects
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System.Ifyoubackupwhilelooking
only at the monitor, you may cause
damage or injury. Always back up
slowly.
•The Rear View Camera System is
not intended for use during exten-
sive back-up maneuvers or backing
into cross trac or pedestrian walk-
ways.
•Please, always remember, the area
displayed by the Rear View Camera
Systemis limited.It doesnotdisplay
the entire panorama that is behind
you.
USAGE:
SAFETY INFORMATION

Reverse With Condence ™ 5
•Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
• Take special care when
cleaning the monitor.
•Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
a metal case, cover the cable with a
friction tape. A short circuit
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The Rear View System should only
be used when the vehicle is in
reverse.
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
• Dropping the unit may cause
possible mechanical failure.
INSTALLATION:
SAFETY INFORMATION

RVS Systems
6
If you have questions about this product, contact:
RVS Systems
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
SAFETY INFORMATION

Reverse With Condence ™ 7
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot or moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system. If the
system seems to not be operating properly see troubleshooting (page
15).
BEFORE YOU BEGIN

RVS Systems
8
Replacement Monitor
The mirror monitor replaces the existing car mirror. Carefully remove
the mirror o the“pin”. Slide the replacement mirror on to the pin and
secure it with the screw provided (already in the screw hole).Dier-
ent cars have dierent brackets, depending on your vehicle make and
manufacturer. There are many methods to remove the original rear-
view mirror, however, please don’t force the mirror o the bracket.
The manufacturer will not be responsible for damage caused to your
car by wrong installation of the mirror. Figure 1.1
Clip-On Monitor
1. The Mirror Monitor attaches to the existing rear view mirror in
vehicle with the pressurized clips on the back of the monitor.
2. Attach monitor to existing mirror, and adjust mounting angle to
allow optimum driver viewing comfort.
Camera & Cable
Be sure to position the cable properly. The aviation camera cable uses
aircraft grade connectors which means the camera cable can be ex-
posed to all weather elements. Do not run the cable over sharp edges,
do not kink the cable and keep away from HOT and rotating parts.
Fasten all cables and secure all excess cable. Connect camera to the
camera extension cable which runs inside the vehicle. Figure 1.2
INSTALLATION GUIDE

Reverse With Condence ™ 9
Wiring
After connecting the camera to the“camera cable”the camera should
be plugged into AV2 input. Connect the RED 12V power wire to a an
ignition power source and the BLACK 12V ground wire to a chassis
ground.The GREEN wire is the REVERSE trigger wire. Connect this wire
to the vehicle’s backup light circuit to activate the rear-view image
whenever the vehicle shifts into reverse. To connect a second camera,
connect it to AV1 and it can be turned on by pressing the power button
on the monitor. Figure 2.1, Figure 2.2
Precautions for use of Mirror Monitor
I. The Mirror Monitor is made of glass. Do not subject it to a
mechanical shock by dropping it from a high place, etc.
II. Do not apply excessive force to the monitor surface or the
adjoining areas since this may cause the color tone to vary.
III. Clean with a soft dry cloth and/or Windex only.
IV. Do not attempt to disassemble the mirror monitor.
Safety
• Before drilling, be sure no cable or wire is on the other side.
• Feed as much cable as possible into vehicle & clamp securely.
This reduces the possibility of cable being hooked or snagged.
INSTALLATION GUIDE + TIPS

RVS Systems
10
Generally, to help drivers estimate the distance from obstacles, there are
three lines for reference- red, yellow, and green. Those three lines are dis-
played on the monitor when car is reversing. The green line is 3M from the
back of the car and the yellow line is 6.5 ft. The distant red line is 1M from
the backside of car while the closed red line is 0.4M. Both reference lines
on the left and right should leave 0.2M space from the car.
The accuracy of the grid-lines can vary based on how you angle your cam-
era.Thereforetoconpensateforinaccurancies, youcan adjust thegrid-lines
to your camera angle.
ADJUSTABLE GRID LINE
Accuracy
Grid Lines

Reverse With Condence ™ 11
FIGURE 1.1
FIGURE 1.2
INSTALLATION AND WIRE

RVS Systems
12

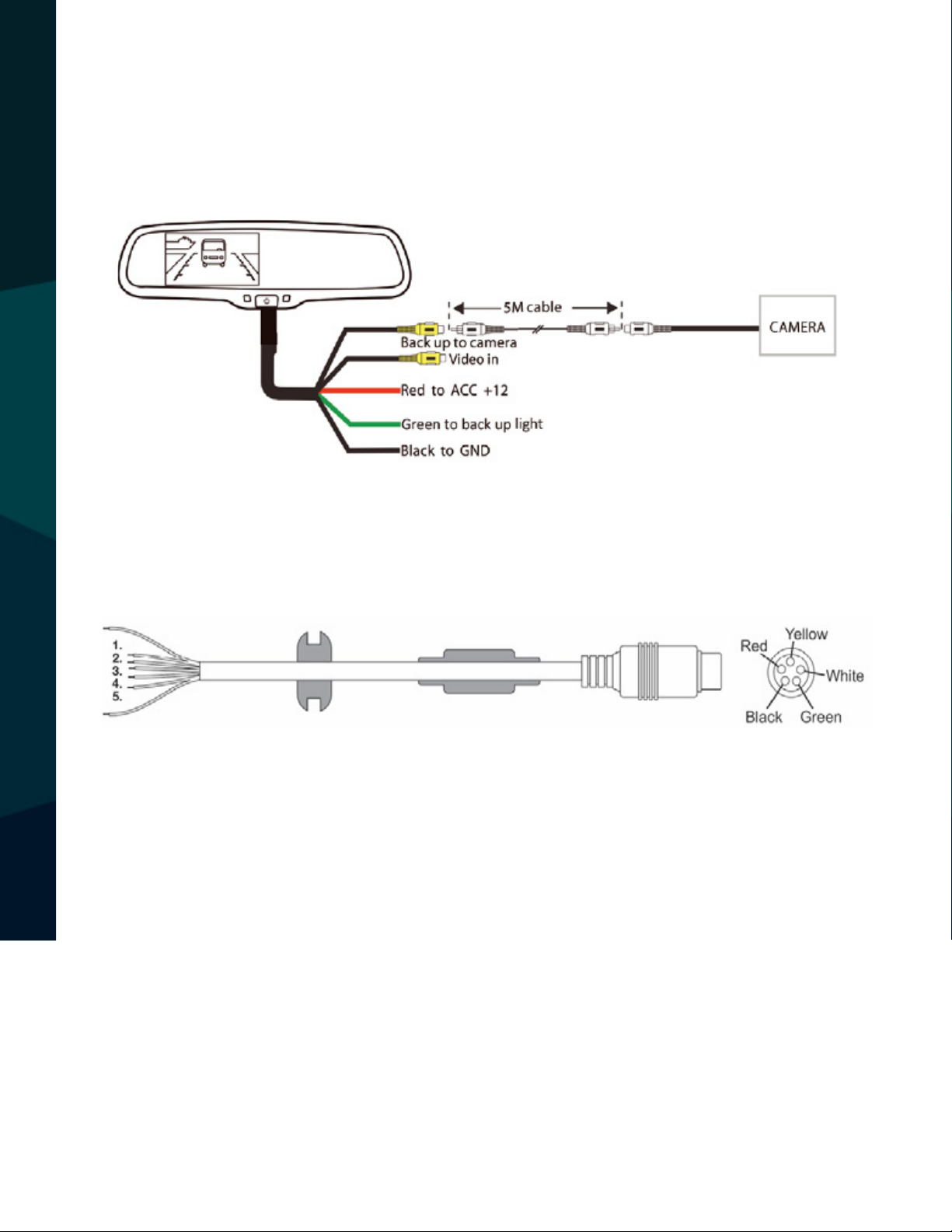

1. RED- Power (+)
2. YELLOW- Video
3. GREEN- Mirror / Normal Imaging
4. WHITE- Audio
5. BLACK- Ground (-)
HOW TO WIRE + SPLICING
FIGURE 2.1

Reverse With Condence ™ 13
HOW TO WIRE + SPLICING
FIGURE 2.2

RVS Systems
14
DIGITAL COMPASS CALIBRATION
Digital Compass Calibration
The compass can be calibrated by driving your vehicle in several complete circles. See
gures below. If the vehicle’s compass headings become inaccurate, the compass
can also be manually calibrated:

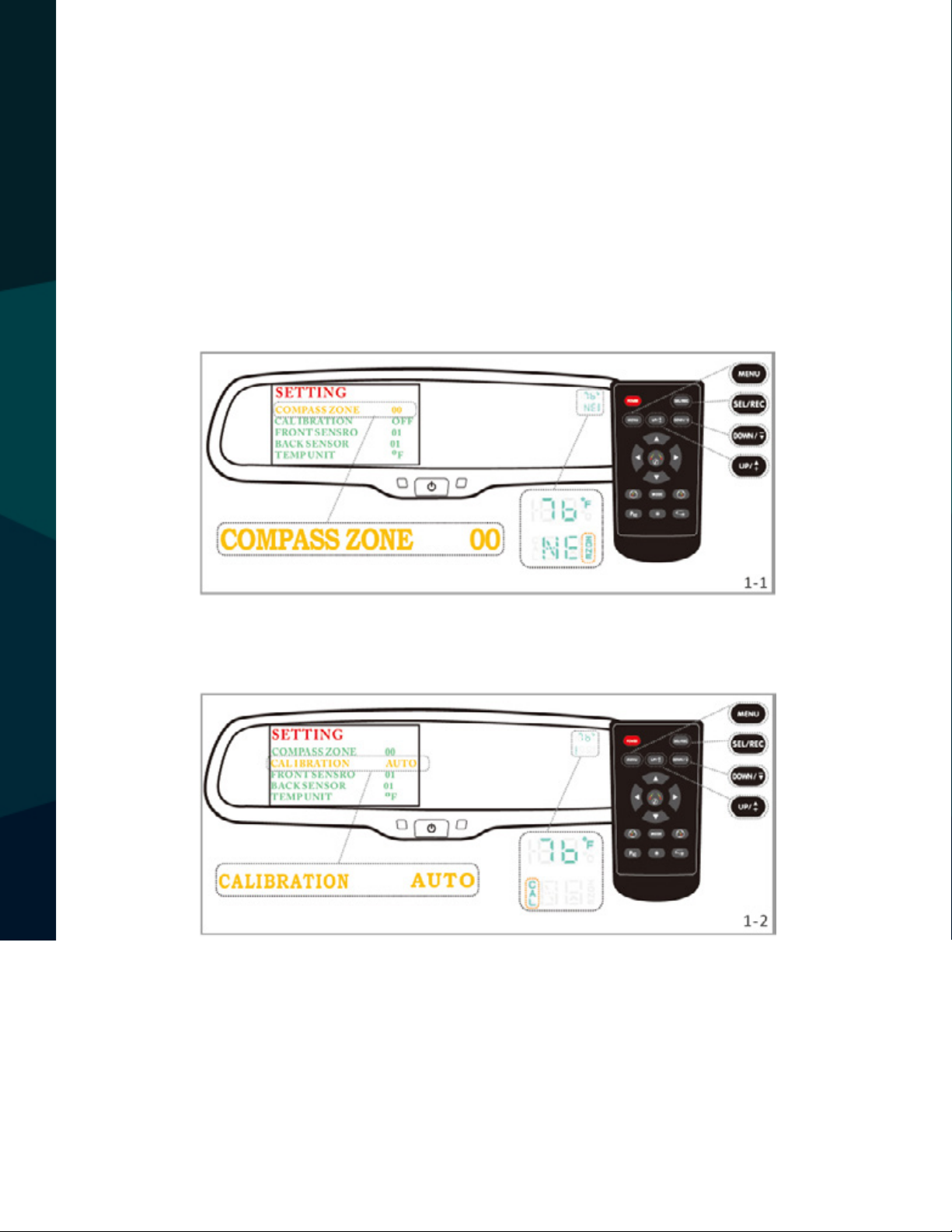

1.Press the “MENU” three times to enter into“SETTING”menu, and press“SEL/REC”
button to choose the“ANGLE”. you can press“UP”“DOWN” to adjust the angle.
Please visit: http://magnetic-declination.com/ to nd out the compass angle
of your area. 5-1.
2. Press“ SEL/REC”to select the“CALIBRATION”, the default mode is“OFF”, press“DOWN”
select the“AUTO”1-2
3. Drive your vehicle in at least 2 circles counterclockwise, allowing 90 seconds
to complete one circle.
4. Keep your circle radius close to 5 meters and your speed less
than 10km/h for the most accurate calibration. 1-3.

Reverse With Condence ™ 15
Caution
1. Make sure the rear view mirror is clearly visable to the driver before calibration.
2. Do not calibrate the compass near a large truck.
3. Make sure that you drive in several complete circles, the steering wheel needs to reach a cer-
tain angle for calibration to function properly. The diameter of the driving circle should be close
to 5 meters.
4. Do not drive too fast when calibrating, your pace should be equal to one third normal adult
walking speed. Complete 2-3 circles to nish the calibration.
5. After a new car audio system is installed, the compass needs to be recalibrated. This is be-
cause the car’s magnetic eld has changed.
5. Press“SEL/REC” to select the“CALIBRATION”, press“UP”“DOWN”, select the“OFF”1-4
DIGITAL COMPASS CALIBRATION

RVS Systems
16
TEMPERATURE SETTING
Q&A
Temperature Setting (Option)
Q: Why does the compass need to be calibrated?
A: The magnetism of a car is stronger than the magnetism of the Earth. The compass will only
function properly if it is calibrated to the magnetic conditions of Earth.
Q: Why is compass not accurate in some areas?
A: In some areas, such as iron mines, high-intensity magnetic elds change the Earth’s
magnetism.
Q: Why are old cars more dicult to calibrate than new cars?
A: The older a car is, the more magnetized it will be. More magnetized cars are more dicult
to calibrate and may still have problems after calibration.
How switch the temperature unit.
Press the“MENU” enter into“SETTING”menu, and press“SEL/REC”button to choose the
“TEMP UNIT”. press“UP”“DOWN”you can switch °F to °C 4-1.

Reverse With Condence ™ 17
Temperature Sensor Installation
The Distribution Of Magnetic Fluxline
Locate the temperature sensor between the front of the radiator and the front
bumper. Slide the metal clip over the edge of the sheet metal or plasic shield until it is secure.
Do not install the temperature sensor near the engine.
We do not recommend using the compass in an area with high magnetic
lines of ux. For example, in the north of Canada.
MAGNETIC FLUXLINE DISTRIBUTION

RVS Systems
18
MAGNETIC FLUXLINE DISTRIBUTION

Reverse With Condence ™ 19
MAGNETIC FLUXLINE DISTRIBUTION

RVS Systems
20
10.25”
3”
About Our Monitor
SPECIFICATIONS:
MONITOR SPECIFICATIONS
Screen Size:
Display Screen:
Display Resolution:
Aspect Ratio:
Color Depth:
Pixel Pitch (mm)
Power Consumption:
Working Voltage:
Video Input:
Signal System:
4.3”
TFT-LCD
400(H)x234(V)
16:9
16.7M dithering
0.219x0.219
8W
DC12V
VIDEO-IN to GPS/DVD
(Default) Camera to backup camera
PAL/Auto/NTSC
