RVS systems RVS-082612 User manual

1
TM

What’s in the Box?
RVS SYSTEMS
2
Monitor
Licence plate camera with built in sensors
2 - Wireless transmitters with RCA connections.
4 pin Camera input with sensor speaker attached
1. Integrated parking sensors, control box, camera function
2. With the OSD function, can make the parking sensors sig-
nal and the video camera image superposition, output one
standard video signal to DVD or other display
3. Installed on the vehicle license plate frame, not destroy
body structure; easy to install
Congratulations on purchasing a Rear View Backup
Camera System. With this manual you will be able to
properly install and operate the unit.
To insure the best performance and avoid any false alarm
or function failure, please read this manual carefully and
install it accordingly.
TO OUR LOYAL CUSTOMERS:
Packing list:
Function Description:

3
Installation Instructions
Reverse With Confidence
5.3 Cable connection instruction
Red to ba k light +12
Red to ba k light +12
Bla k to GND
Bla k to GND
Note:
Before installing system let the components of the exhaust system cool down. This will make the
installation safer and preclude heat damage to the backup sensor wiring or components.
5.4 Installation Instructions:
Monitor:
- Attach the monitor to the dash with the 3M
sticker.
- Connect the wireless transmitter to the YELLOW
RCA input labeled AV2 and connect the power wires
on both the monitor and the transmitter to a 12V
power source.
Camera:
- Use a screwdriver to remove the screws of the
licence plate. Line up the screw holes on the camera
with the holes on the license plate and attach the
camera using the license plate screws.
- Plug the anti-dismounting cap into the screw
hole.
Option A
Back Light
Sensors
Camera
Sensors
Option B
Display

RVS SYSTEMS
4
Installation Instructions
- Connect the 4 pin connection on the camera to the 4 pin connection on the camera wiring
harness.
- Attach the wireless transmitter to the YELLOW RCA port labeled AV-OUT.
- Connect both the camera and the transmitter to a 12V power source from the reverse lights.
NOTE:
When connecting the power wires, connect the RED to power and the BLAC to ground.
3. Align the host bracket screw groove and the
plate screw holes, Locking screw.
4. Plug the anti dismounting cap into the screw
hole. Connect the cable.
5.5 Display Installation
Monitor

5
Reverse With Confidence
Installation Instructions
Tools Needed
Small flat-tip Screwdriver #2 Phillips Screwdriver Tape Measure
Black Electrical Tape Masking Tape Multimeter
Pliers Pencil/Marker
Testing the system:
After installing the system, test the sensors.
Warning:
Do not stand behind a moving vehicle death or injury could occur. Prior to testing, set the
parking brake on, ignition key on (do not start), step foot on brake and shift the vehicle into
reverse. Ensure that the engine is not running while proceeding with the following tests:
Test the system operation with a large object (piece of wood (60*30*1cm) or other
object (not too small). Start with the object more than 1m away from the vehicle.
Then move the object closer the vehicle and ensure that the buzzer, LED, and distance
indicators display correctly.

RVS SYSTEMS
6
Specifications
Awareness
Safe mode
Alarm mode
Dange mode
Alarm mode
Dange mode
Distan e
130-150 m
90-130 m
60-90 m
40-60 m
0-40 m
Sound
Bi...Bi...
Bi..Bi..
Bi.Bi.
BiBi
Biiii
Digital Display
1.3m-1.5m
0.9m-1.3m
0.6m-0.9m
0.4m-0.6m
0.0m
Control box
Sensors Camera Sensors
Operating voltage
Operating urrent
Dete ting distan e
Camera Angle
Ultrasoni frequen y
Working temperature
Store temperature
DC9~16V
40KHz
0.3~1.50m
120 degree
-20°C ~ 85°C
-30°C ~ 85°C
≤150mA
Specifications
Alarm MODE

7
Reverse With Confidence
Installation Instructions / Splicing

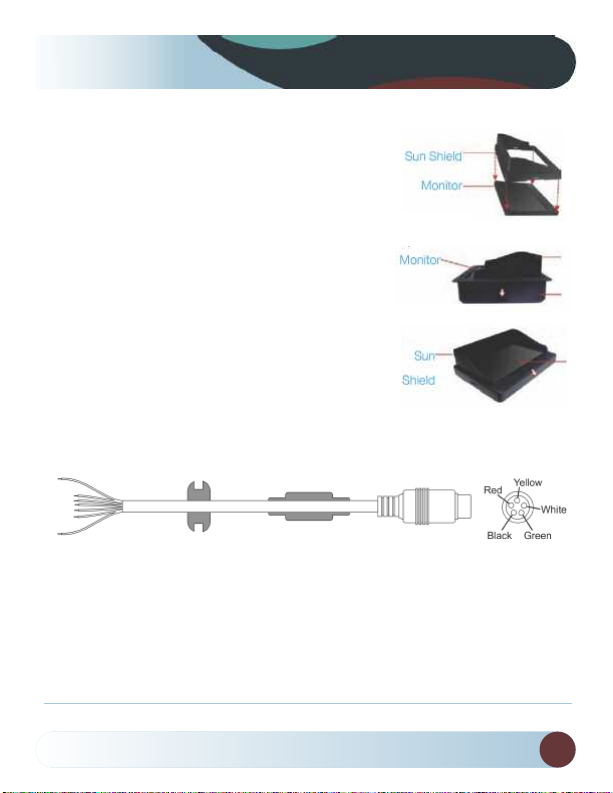

Installing & Splitting Embedded Monitor
Installing sun shield: Put shade cover on
the display. Installing back cover: Put the
monitor with shade cover in the back cover
(only for embedded monitor)
Splitting back cover: Hold monitor with 2
hands and detach with fingers, as indicated
by arrows. (only for embedded monitor)
Splitting sun shield: Take the monitor with
the left hand and detach with right hand as
indicated by the white arrow. (see below)
Splicing
1. Red - Power (+)
2. Yellow - Video
3. Green - Mirror / Normal Imaging
4. White - Audio
5. Black - Ground (-)
1.
2.
3.
4.
5.

RVS SYSTEMS
8
Limitations
If the vehicle is equipped with
high-power radio antenna.
If another vehicle bumper is too high
When backing up downhill If there is a very small object.
The rear 45° oblique to the obstacle If there is a wire fence.
Backing up in heavy rain or snow. If it’s a smooth slope
If is smooth round object Objects absorbing wave, e.g. Cotton
The sensors may not work if an object does not reflect the ultrasonic waves or it has an unusual
shape. This may apply to a pole, cardboard carton, bicycle tire, small or slender tree or a low curb.
The sensor may not detect another vehicle bumper if it is too high.
Also note: This system has different detection distance to different objects. To a wall, the max de-
tection distance is 1.8m. To the human body, the max detection distance is 1.0m. In some special
cases, the display may not be the same as the real condition due to the sensor position,
obstacle shape, reflection condition and so on. Some examples are given below:
Limitations:

9
Reverse With Confidence
Troubleshooting
No buzzer or display at power up.
1. Is power wire connected to control unit correctly?
2. Verify(+)12V at control unit when vehicle is in reverse.
3. Verify the ground connection.
4. Have you connected to the correct reversing indicator wire?
5. Do you have a minimum of (+)12V and ground at the display?
No reverse image.
1. Is the connection of camera power cable and AV cable are right or not?
2. Is AV cable connected to AV2?
Guarantee time:12 months.
The guarantee will be effective with the stamp/signature of the dealer.
Please keep the guarantee form well to ensure 12 months guarantee.
Troubleshooting:

RVS SYSTEMS
10
Warranty
One Year Warrant
RVS Systems, Inc. warrants this product against material defects for a period
of one year from date of purchase. We reserve the right to repair or replace
any such defective unit at our sole discretion. RVS Systems, Inc. is not re-
sponsible for a defect in the system as a result of misuse, improper installa-
tion, damage or mishandling of the electronic components. RVS Systems, Inc.
is not responsible for consequential damages of any kind.
This warranty is void if: defects in materials or workmanship or damages re-
sult from repairs or alterations which have been made or attempted by oth-
ers or the unauthorized use of nonconforming parts; the damage is due to
normal wear and tear, this damage is due to abuse, improper maintenance,
neglect or accident; or the damage is due to use of the RVS Systems, Inc.
system after partial failure or use with improper accessories.
Warrant Performance
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR RVS SYSTEMS
PRODUCT EXHIBIT A DEFECT IN MATERIAL OR WOR MANSHIP, SUCH DEFECT
WILL BE REPAIRED WHEN THE COMPLETE RVS SYSTEMS, INC. PRODUCT IS
RETURNED, POSTAGE PREPAID AND INSURED, TO RVS SYSTEMS, INC. OTHER
THAN THE POSTAGE AND INSURANCE REQUIREMENT, NO CHARGE WILL BE
MADE FOR REPAIRS COVERED BY THIS WARRANTY.
Warrant Disclaimers
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THE
ABOVE WARRANTY IS MADE WITH REGARD TO THIS RVS SYSTEMS, INC. RVS
SYSTEMS, INC. DISCLAIMS ANY IMPLIED WARRANTY OR MERCHANT-ABILITY
OR FITNESS FOR A PARTICULAR USE OR PURPOSE AND ALL OTHER WAR-
RANTIES IN NO EVENT SHALL RVS SYSTEMS, INC. BE LIABLE FOR ANY INCI-
DENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR ANY
COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PROD-
UCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.

11
Reverse With Confidence
Disclaimer
RVS Systems and/or its affiliates does not guarantee or promise that
the user of our systems will not be in/part of an accident or other-
wise not collide with an object and/or person. Our systems are not a
substitute for careful and cautious driving or for the consistent ad-
herence to all applicable traffic laws and motor vehicle safety regu-
lations. The RVS Systems products are not a substitute for rearview
mirrors or for any other motor vehicle equipment mandated by law.
Our camera systems have a limited field of vision and do not provide
a comprehensive view of the rear or side area of the vehicle. Always
make sure to look around your vehicle and use your mirrors to con-
firm rearward clearance and that your vehicle can maneuver safely.
RVS Systems and/or its affiliates shall have no responsibility or lia-
bility for damage and/or injury resulting from accidents occurring
with vehicles having some of RVS Systems products installed and
RVS Systems and/or its affiliates, the manufacturer, distributor and
seller shall not be liable for any injury, loss or
damage, incidental or consequential, arising out of the use or
intended use of the product. In no event shall RVS Systems and/or
its affiliates have any liability for any losses (whether direct or indi-
rect, in contract, tort or otherwise) incurred in connection with the
systems, including but not limited to damaged property, personal in-
jury and/or loss of life. Neither shall RVS Systems and/or its affiliates
have any responsibility for any decision, action or inaction taken by
any person in reliance on RVS Systems systems, or for any delays, in-
accuracies and/or errors in connection with our systems functions.

If you have any questions
about this product, contact:
RV ystems, Inc.
1797 Atlantic Avenue
Brooklyn, NY 11233
888.881.2601
BETTER CAMERA . BETTER ERVICE.
IT’ OUR GUARANTEE.
