RVS RVS-129 User manual

Advanced Blind Spot Sensor System
RVS-129
Instruction Manual
VEHICLE SAFETY -
IT'S ALL WE DO.
TM

Rear View Safety
2
ItemList....................................02
TechnicalSpecication..............................03
Wiring Diagram...............................03-04
WireConnectionDiagram.......................... . 04
InstallationGuide.. ............................05-07
AlertConditions.................................07
Alert Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 09
SafetyInformation........................ . . . . . 09
Warranty........................... . . . . . 10
Disclaimer........................... . . . . . 11
TheRVSDierence......................... . . . . . 12
TABLE OF CONTENTS

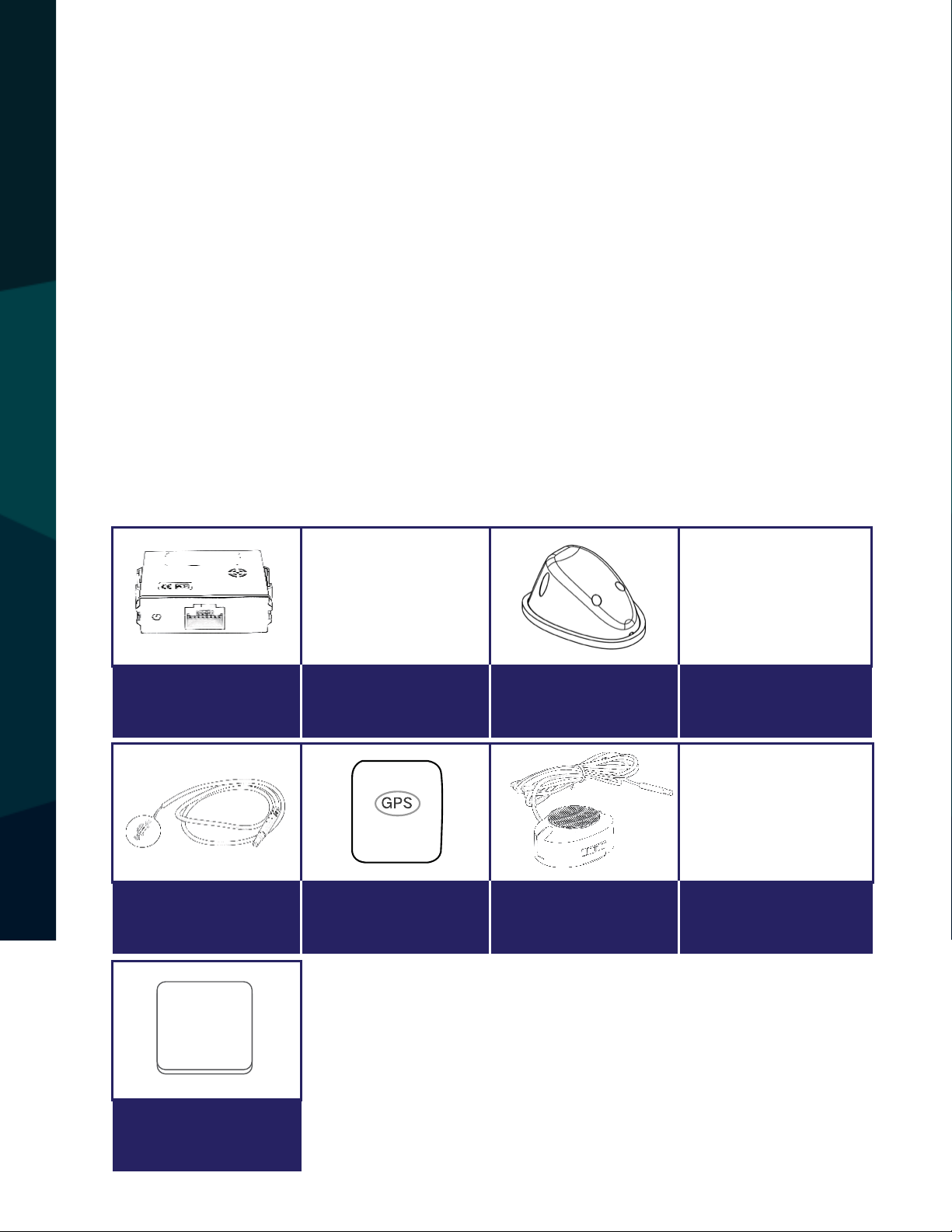

Radar Sensor
2PCS
Sensor Extension Cable
2PCS
GPS Antenna
1PCS
LED Extension Cable
3PCS
LED Indicator
2PCS
Buzzer
1PCS
Main Unit
1PCS
Main Harness
1PCS
3M Velcro
4PCS
Item List
Tools for installation: insulation tape,
multi-meter, screwdriver, cleaning cloth, tape.

Reverse With Condence ™ 3
TECHNICAL SPECIFICATION
Technical Specication
Wiring Diagram
Operating frequency
Transmit power
Detection range
Detection ability
24.0 ----24.25GHZ
15dbm
40 degree (Horizontal )
5 targets can be detected at the same time
Speed range 0.35mph---137mph
Speed accuracy < 0.35mph
Direction of movement
Speed Restriction
Detection range
Approached or overtaken by vehicles
Truck : 1ft-82ft
Car: 1ft-50ft
Motorcycle:1ft-33ft
Pedestrian:1ft-23ft
Operating voltage
cables waterproof
9---35V
Radars: IP 67 / Cables: waterproof
Working current
Working temperature
< 200mA
-40℃~ + 85℃
1.The GPS Antenna when connected activates
notications over 20mph (Example LED + Speaker)
2.If No GPS signal is detected or satellites not found,
the system will give notications at any speed.
LED
Buzzer
LED
R-SENSOR
L-SENSOR
M ain Unit

Rear View Safety
4
LED
LED
R-SENSOR
L-SENSOR
M ain Unit
LED
LED
R-SENSOR
L-SENSOR
M ain Unit
WIRE CONNECTION DIAGRAM
Buzzer
Buzzer
Wire Connection Diagram

Reverse With Condence ™ 5
INSTALLATION GUIDE
Installation Guide
Step 1. Sensor Installation
Installation requirements: sensors should be mounted to the front corner of the
vehicle, Using screws to x the sensor on the front of the vehicle.
Step 2. Installation of the left/right turn signal
Using the voltage Multi-meter, locate the left
and right turn signal trigger wires behind the
tail lamp. Once veried, connect the left and
right signal wires of the RVS-129 wire harness
to the correct signal wires.
Please note.
Letters R and L on the rub-
ber gasket, stands for right
sensor and left sensor.
SCREW
SENSOR HOUSING
RUBBER GASKET
L - Left Sensor
R - Right Sensor

Rear View Safety
6
Step 3. LED Indicator Installation
Place the LED indicators where it is visible for the driver. Ideally on the A-pillar
or in eld view side mirrors.
Step 4. Buzzer Location
While installing the speaker, make sure it is not obstructed by any panels inside
the vehicle.
L - Left LED R - Right LED
Buzzer
Step 5. Tuck the wires neatly to hide and prevent wire pinch.
INSTALLATION GUIDE

Reverse With Condence ™ 7
ALERT CONDITIONS
Illumination of the LED indicator on the control box:
1.The LED comes on solid when the system is rst powered up;
2.The LED blinks slowly while the GPS module is connected to the satellite;
3.The LED blinks quickly while sensing moving objects approaching in the blind spot
(same frequency as to the alarm LED indicators & the buzzer);
4.The LED maintains the last blinking status after the alerts have ended
(the last blinking status of alarming is o / on randomly)

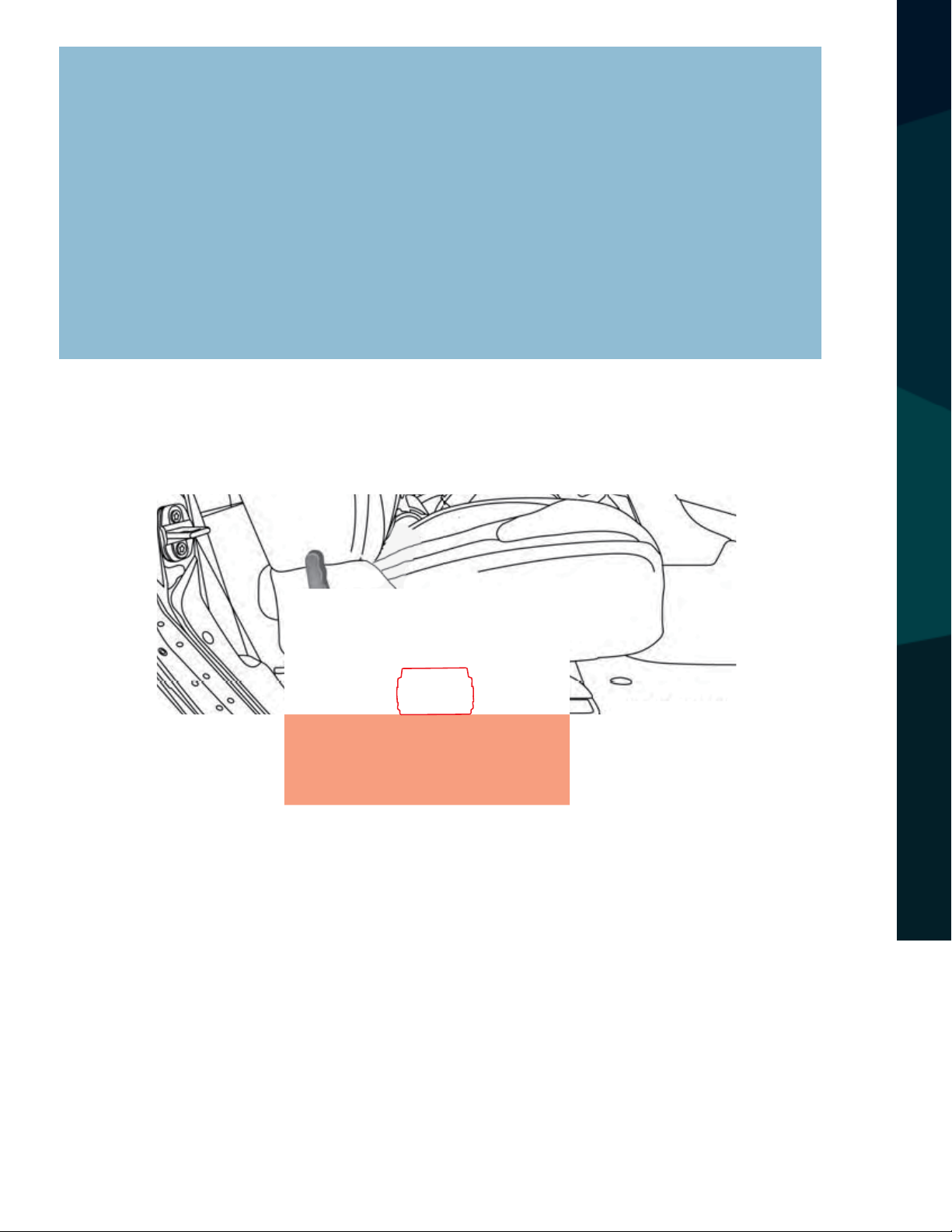

Step 6. Man Box Location
While installing the main box, use tape to mount it on the cab
1.When the vehicle is on, the system
would start detecting objects in the
blind spot area in the lane next to
and behind the vehicle 50 feet.
2. When vehicles are approaching
and their speed is faster than our
own speed.
NOTE!
Alert Conditions

Rear View Safety
8
A. Blind detection on right side:
1. R-LED indicator will be activated when there is an object approaching to the
right side blind area of your vehicle (see Fig.16).
2. If the right turn signal of your vehicle is triggered at the same time, the R-LED
indicator will be blinking and the buzzer will be beeping as well (with the same
frequency).
B. Blind detection on left side:
1. L-LED indicator will be activated when there is an object approaching to the
left side blind area of your vehicle (see Fig.16).
2. If the left turn signal of your vehicle is triggered at the same time, the L-LED
indicator will be blinking and the buzzer will be beeping as well (with the same
frequency).
C.The LED and buzzer will standby (no activity) if there is no object approaching
to the blind area of your vehicle.
D. During reversing, the R & L LED will be blinking according to the approaching
object detection of each side.
INSTALLATION GUIDE
Alert Characteristics

Reverse With Condence ™ 9
TROUBLESHOOTING
Troubleshooting
Issue Reason Solution
LED light does not
work
Opposite LED
indicator
Buzzer does not work
Unit does not work
after GPS is connected
Sensors or GPS does
not work
Incorrect connection or pins not
making contact
LED light is broken
Microwave sensor or LED
indicators are plugged in to the
opposite connector
Defective buzzer speaker
Sensors or GPS module are
covered by the metal bumper or
other metal
Sensors or GPS module are
covered by the metal bumper or
other metal
Blind spot system does not
trigger the sensors if the speed is
less than 20mph
Find the best location where the
GPS antenna cannot be blocked
by any metal
Replace buzzer
Wrong connection or pins not
making contact
Check the harness and make sure
connection is correct
Make sure RED is driver side and
YELLOW is passenger side.
Replace LED light
Check the harness and make sure
connection is correct
8

Rear View Safety
10
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot/moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to ensure that all components are working properly.
SAFETY INFORMATION

Reverse With Condence ™ 11
WARRANTY
ONE YEAR WARRANTY
REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A
PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR
REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC.
IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER
INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. REAR VIEW
SAFETY, INC. IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THIS WARRANTY IS VOID IF: DEFECTS IN MATERIALS OR WORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONSWHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC.
SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
WARRANTY PERFORMANCE
DURING THE ABOVEWARRANTY PERIOD, SHOULD YOUR REAR VIEW SAFETY PRODUCT
EXHIBIT A DEFECT IN MATERIAL ORWORKMANSHIP, SUCH DEFECTWILL BE REPAIREDWHEN
THE COMPLETE REAR VIEW SAFETY, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND
INSURED,TO REAR VIEW SAFETY, INC. OTHERTHAN THE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGEWILL BE MADE FOR REPAIRS COVERED BYTHIS WARRANTY.
WARRANTY DISCLAIMERS
NOWARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THE ABOVEWARRANTY
IS MADEWITH REGARDTOTHIS REARVIEW SAFETY, INC.REARVIEW SAFETY, INC. DISCLAIMS
ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR
PURPOSE AND ALL OTHER WARRANTIES IN NO EVENT SHALL REAR VIEW SAFETY. INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.

Rear View Safety
12
DISCLAIMER
REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE
USER OF OUR SYSTEMSWILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE
WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL
AND CAUTIOUS DRIVING OR FORTHE CONSISTENT ADHERENCETO ALL APPLICABLETRAFFIC
LAWS AND MOTOR VEHICLE SAFETY REGULATIONS. THE REAR VIEW SAFETY PRODUCTS ARE
NOT A SUBSTITUTE FOR REAR VIEW MIRRORS OR FOR ANY OTHER MOTOR VEHICLE
EQUIPMENT MANDATED BY LAW. OUR CAMERA SYSTEMS HAVE A LIMITED FIELD OF VISION
AND DO NOT PROVIDE A COMPREHENSIVEVIEW OFTHE REAR OR SIDE AREA OFTHEVEHICLE.
ALWAYS MAKE SURETO LOOK AROUNDYOURVEHICLE AND USEYOUR MIRRORSTO CONFIRM
REARWARD CLEARANCE AND THATYOUR VEHICLE CAN MANEUVER SAFELY. REARVIEW
SAFETY AND/OR ITS AFFILIATES SHALL HAVE NO RESPONSIBILITY OR LIABILITY
FOR DAMAGE AND/OR INJURY RESULTING FROM ACCIDENTS OCCURRING WITH VEHICLES
HAVING SOME OF REAR VIEW SAFETY PRODUCTS INSTALLED AND REAR VIEW SAFETY AND/
OR ITS AFFILIATES, THE MANUFACTURER, DISTRIBUTOR AND SELLER SHALL NOT BE LIABLE
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE
USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR
ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES WHETHER DIRECT OR INDIRECT, IN
CONTRACT,TORT OR OTHERWISE INCURRED IN CONNECTION WITH THE SYSTEMS,
INCLUDING BUT NOT LIMITED TO DAMAGED PROPERTY, PERSONAL INJURY AND/OR LOSS OF
LIFE. NEITHER SHALL REARVIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY
RESPONSIBILITY FOR ANY DECISION, ACTION OR INACTION TAKEN BY ANY PERSON IN
RELIANCE ON REAR VIEW SAFETY SYSTEMS, OR FOR ANY DELAYS, INACCURACIES AND/OR
ERRORS IN CONNECTION WITH OUR SYSTEMS FUNCTIONS.
DISCLAIMER

Reverse With Condence ™ 13
THE RVS DIFFERENCE
THE RVS DIFFERENCE
COMPETITION
Sensors mounted
in rear corners
THE RVS DIFFERENCE
Our sensors mounted in the
front of the vehicle
82FT
RANGE!

If you have any questions
about this product, contact:
Rear View Safety, Inc.
1797 Atlantic Avenue
Brooklyn, NY 11233
800.764.1028
Better Cameras. Better Service.
IT’S OUR GUARANTEE.
