RVS RVS-77555 User manual

1080P HD 360° CAMERA SYSTEM
WITH BUILT-IN RECORDING
RVS-77555
Instruction Manual
VEHICLE SAFETY -
IT'S ALL WE DO.
TM

Rear View Safety
2
1. Precautions....................................................................................................................... 3
2. Features............................................................................................................................ 5
3. Standard Conguration................................................................................................... 6

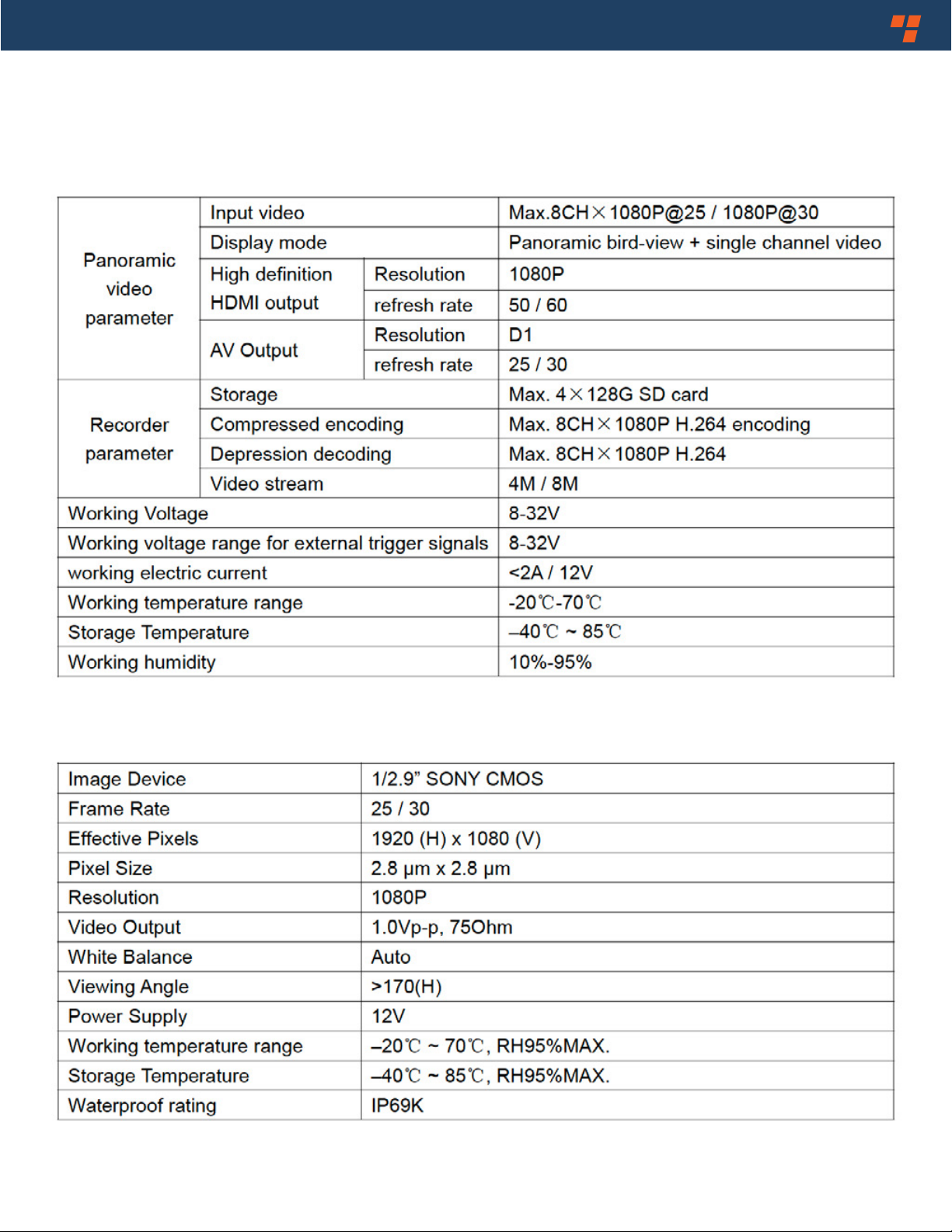

4. Specications.................................................................................................................... 7
5. Wiring Diagram............................................................................................................... 8
6. Operation Instruction....................................................................................................... 9
6.1 RemoteControl...............................................................................................................9

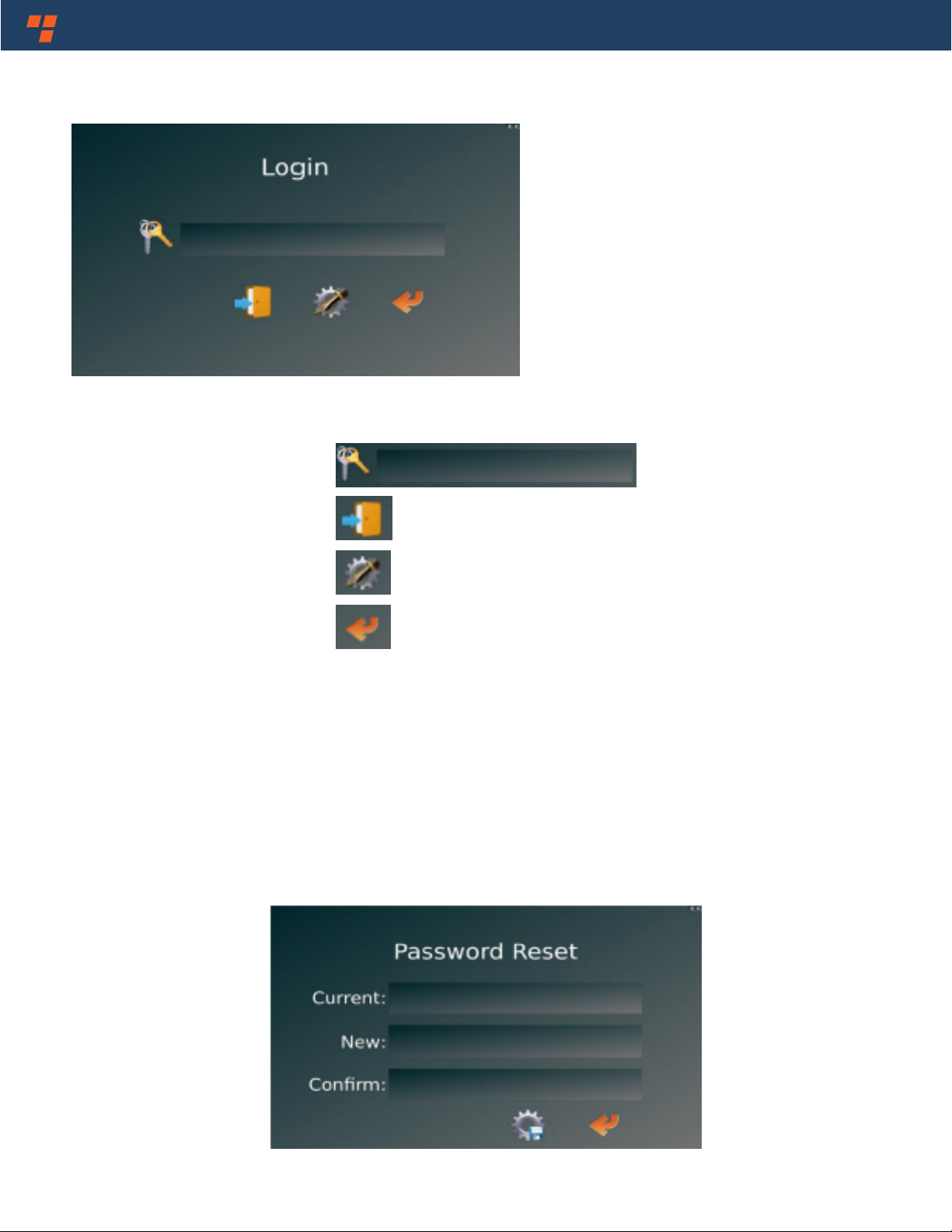

6.2UserInterface Setup.......................................................................................................10
7. System Contents............................................................................................................. 25
8. Installation/Calibration....................................................................................................26
9. WebApp Operating Instructions...................................................................................... 35
10. FAQs.............................................................................................................................. 40
Table of Contents

Vehicle Safety - It's All We Do.TM 3
1. Precautions
Storage and Keeping
1. Do not expose the System to excessive heat or cold.The storage temperature of this device is
-30~+80°C, and the operating temperature is -20~+70 °C.The humidity is RH 90%.
2. Never use this device near a bathtub, wash basin, kitchen, damp basement, swimming pool
or similar places.
3. Never use this device in environments with excessive moisture, dust or smoke.
4. Avoid dropping or striking this device.
5. Avoid using this device in enclosed spaces, areas with excessive vibration or subject to
severe impacts.
6. Never puncture, scratch or use abrasive cleaning materials on this device.
7. Do not place cables where they may be pinched or stepped on.
8.The Control Box is not designed to be waterproof.
Operating Precautions
1.The device may be powered by a 12 or 24 volt automotive battery or vehicle electrical system.
2. Make sure all cables are connected properly. Observe polarity. Improper cable connections
may damage the system. Remove the power cable connections when you do not intend to use
the unit.
Warning!
1. The opening of the case should be by professionals.
2. Do not watch the video while driving unless you are monitoring the
rear view camera display.

Rear View Safety
4
Maintenance
1. Remove all the cable connections from the control box before cleaning the device.
2. Use a mild household detergent and clean the unit with a slightly damp, soft cloth.
3. Never use strong solvents such as thinner or benzine, as they might damage the nish of
the device.
This symbol is intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sucient magnitude to
constitute risk of electric shock to persons.
This symbolis intended toalert theuser tothe presence of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
This symbol is intended to alert the user not to dispose of electrical and electronic
equipment.
CAUTION
You are cautioned that any changes or modications not expressly approved in this manual
could void your warranty and necessitate expensive repairs.

Vehicle Safety - It's All We Do.TM 5
2.1 Basic Features
1. 4 pcs. 190° Full HD 1080P wide-angle sh-eye cameras, horizontal view angle>170°,
Maximum of 8CH inputs.
2.Techniques of dual-core ARM Cotex-A9 and SOC development of built-in high performance
H.264 video encoding / decoding engineer core make it ecient to composite high accuracy
seamless images.
3. Supports 4 pcs. x 128G SD cards for recording storage.
4. Low-cost calibration tools, simplied calibration procedures.
5. Maximum 4CH 1080P / 30 FPS video resolution.
6. High denition 1080P HDMI video output.
7. Simplied installation steps, easy auto stitching.

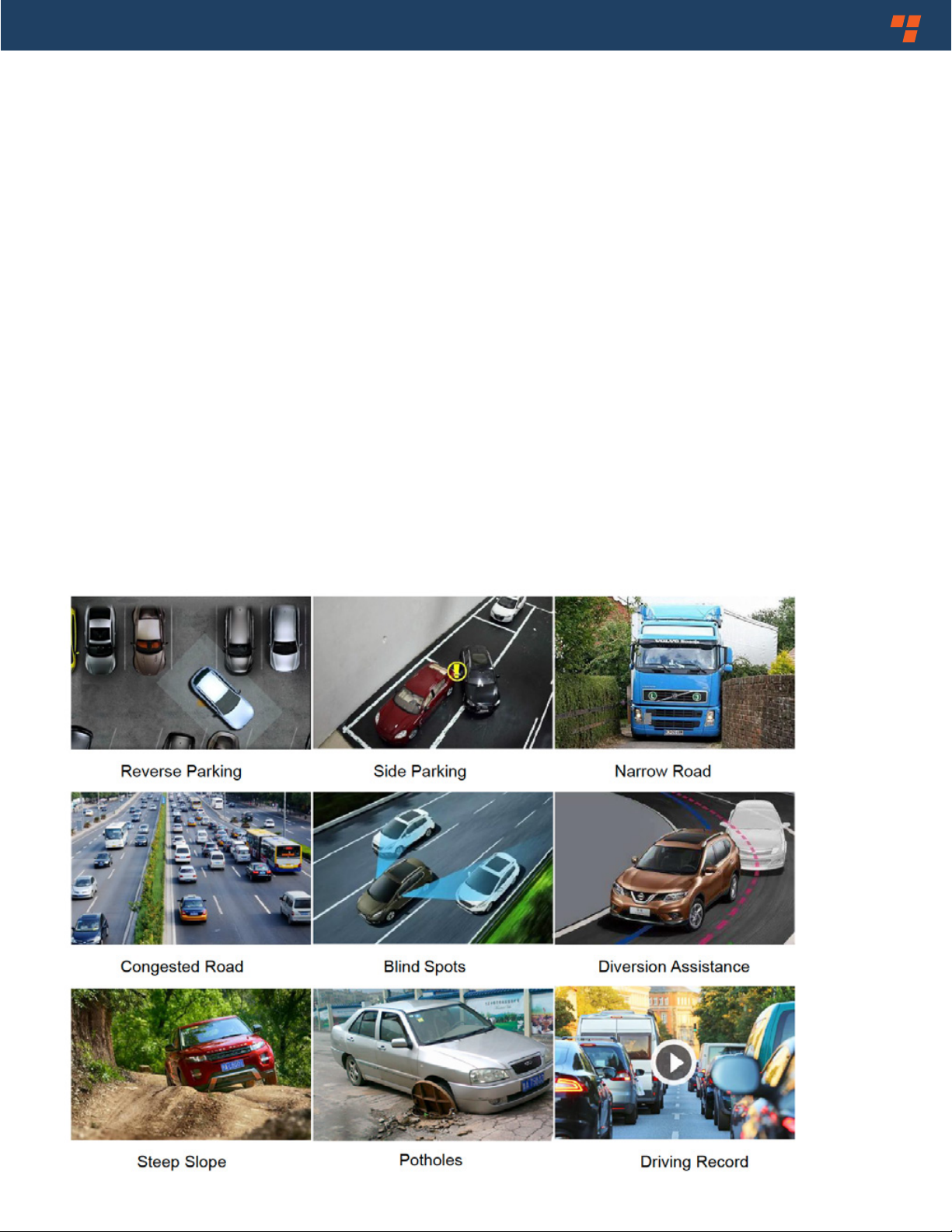

2.2 Application
2. Features
