Ryobi EAG750RB User manual

 USER’S MANUAL 1
 MANUEL D’UTILISATION 5
 BEDIENUNGSANLEITUNG 9
 MANUAL DE UTILIZACIÓN 13
 MANUALE D’USO 17
 GEBRUIKSHANDLEIDING 21
 MANUAL DE UTILIZAÇÃO 25
 BRUGERVEJLEDNING 29
 INSTRUKTIONSBOK 33
 KÄYTTÄJÄN KÄSIKIRJA 37
 BRUKSANVISNING 41
  45
  49
 NÁVOD K OBSLUZE 53
 HASZNÁLATI ÚTMUTATÓ 57
 MANUAL DE UTILIZARE 61
  65
 NAUDOJIMO VADOVAS 69
 KASUTAJAJUHEND 73
  
  
  
  
TR KULLANiM KILAVUZU 93
EAG750RB/EAG750RS
GB ORIGINAL INSTRUCTIONS | FR TRADUCTION DES INSTRUCTIONS ORIGINALES | DE ÜBERSETZUNG DER ORIGINALANLEITUNG | ES TRADUCCIÓN DE LAS
INSTRUCCIONES ORIGINALES | IT TRADUZIONE DELLE ISTRUZIONI ORIGINALI | NL VERTALING VAN DE ORIGINELE INSTRUCTIES | PT TRADUÇÃO DAS INSTRUÇÕES
ORIGINAIS | DK OVERSÆTTELSE AF DE ORIGINALE INSTRUKTIONER | SE ÖVERSÄTTNING AV DE URSPRUNGLIGA INSTRUKTIONERNA | FI ALKUPERÄISTEN
OHJEIDEN SUOMENNOS | NO OVERSETTELSE AV DE ORIGINALE INSTRUKSJONENE | RU  PL !""!#$%&"
ORYGINALNEJ | CZ '(%)*+$","!-)!./'+%0!1 HU $*"234+$*.-# RO$*$"!#$5"!")+$+$","!) LV TULKOTS
!++$"6"!7)7#"!#$%"&# LT +$","!)"8"!#$%"&89$"# EE ORIGINAALJUHENDI TÕLGE | HR PRIJEVOD ORIGINALNIH UPUTA | SI PREVOD
ORIGINALNIH NAVODIL | SK '$%)*'+%0!+99+$","!-)" | GR :;<=>?=@Q<WX[?W<\<][WX\^Q_`WX | TR ORIJINAL TALIMATLARIN TERCÜMESI
750W 125MM/115MM ANGLE GRINDER
MEULEUSE D'ANGLE 125MM/115MM 750W
750W 125MM/115MM WINKELSCHLEIFER
REBARBADORA 125MM/115MM 750W
SMERIGLIATRICE ANGOLARE DA 750W 125MM/115MM

AFIADORA ANGULAR 125MM/115MM DE 750W
750W 125MM/115MM VINKELSLIBER

750 W 125MM/115MM KULMAHIOMAKONE




750 W-OS 125MM/115MM-ES SAROKCSISZOLÓ



KETASLÕIKUR 125MM/115MM 750 W
KUTNA BRUSILICA 125MM/115MM OD 750 W
750 W 125MM/115MM KOTNI BRUSILNIK



All manuals and user guides at all-guides.com
all-guides.com

4
5
3
1
11
2
5
Fig. 2
Fig. 1
Fig. 3
All manuals and user guides at all-guides.com

Fig. 4
Fig. 6
Fig. 5
Fig. 7
10
10
7
7
1
1
4
6
8
9
2
2
90˚ 90˚
All manuals and user guides at all-guides.com

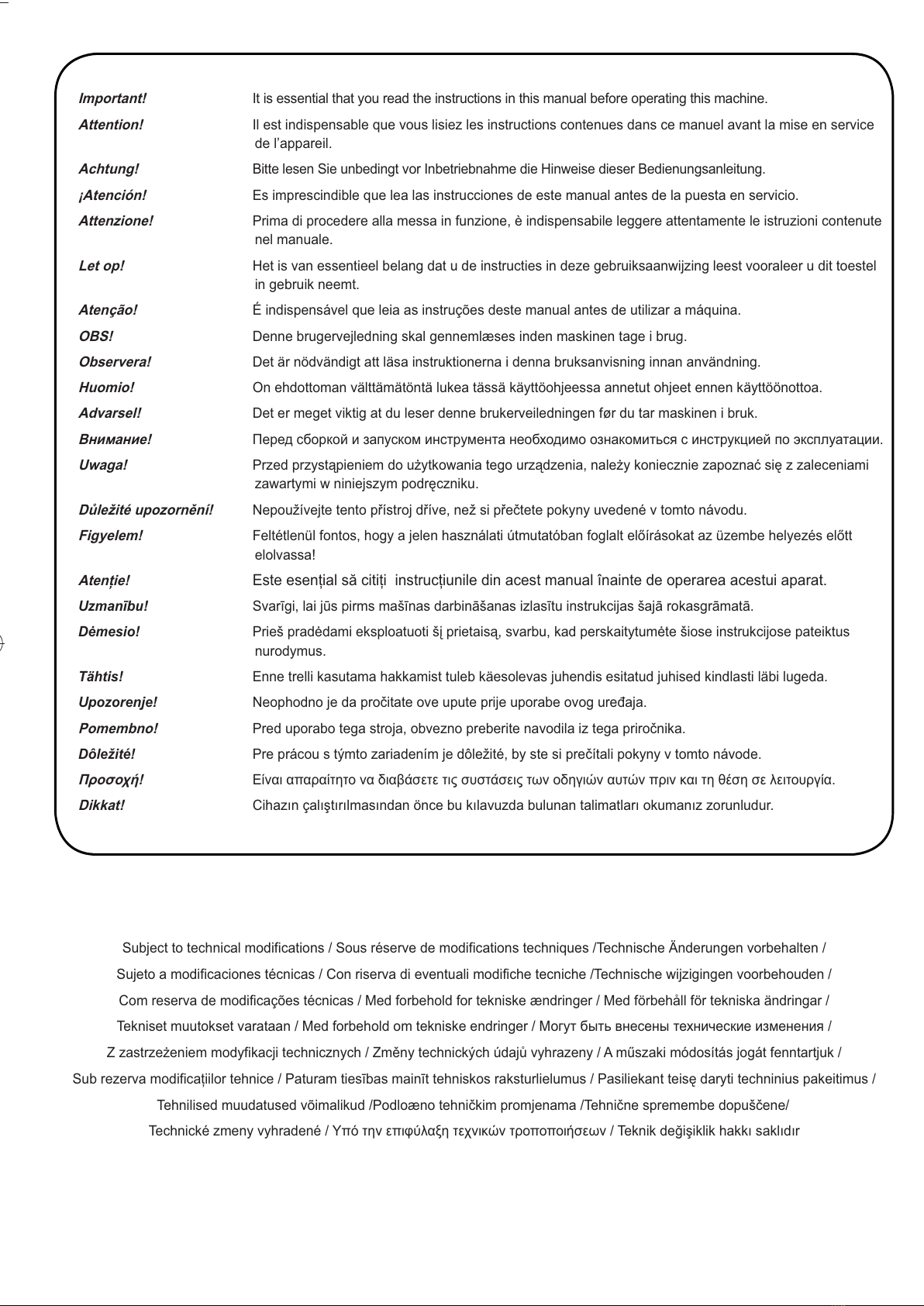

Important! It is essential that you read the instructions in this manual before operating this machine.
Attention! Il est indispensable que vous lisiez les instructions contenues dans ce manuel avant la mise en service
de l’appareil.
Achtung! Bitte lesen Sie unbedingt vor Inbetriebnahme die Hinweise dieser Bedienungsanleitung.
¡Atención! Es imprescindible que lea las instrucciones de este manual antes de la puesta en servicio.
Attenzione! Prima di procedere alla messa in funzione, è indispensabile leggere attentamente le istruzioni contenute
nel manuale.
Let op! Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest vooraleer u dit toestel
in gebruik neemt.
Atenção! É indispensável que leia as instruções deste manual antes de utilizar a máquina.
OBS! Denne brugervejledning skal gennemlæses inden maskinen tage i brug.
Observera! Det är nödvändigt att läsa instruktionerna i denna bruksanvisning innan användning.
Huomio! On ehdottoman välttämätöntä lukea tässä käyttöohjeessa annetut ohjeet ennen käyttöönottoa.
Advarsel! Det er meget viktig at du leser denne brukerveiledningen før du tar maskinen i bruk.
 
Uwaga!  

  
Figyelem!  
elolvassa!
  
8]PDQƯEX 
'ơPHVLR 
nurodymus.
7lKWLV Enne trelli kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
8SR]RUHQMH 
Pomembno!  
'{OHåLWp 
 
Dikkat!  



 /
 

Podloæno tehniþkim promjenama 
 
All manuals and user guides at all-guides.com

1
English
GB
FR DE ES IT NL PT DK SE FI NO RU PL CZ HU RO LV LT EE HR SI SK GR TR

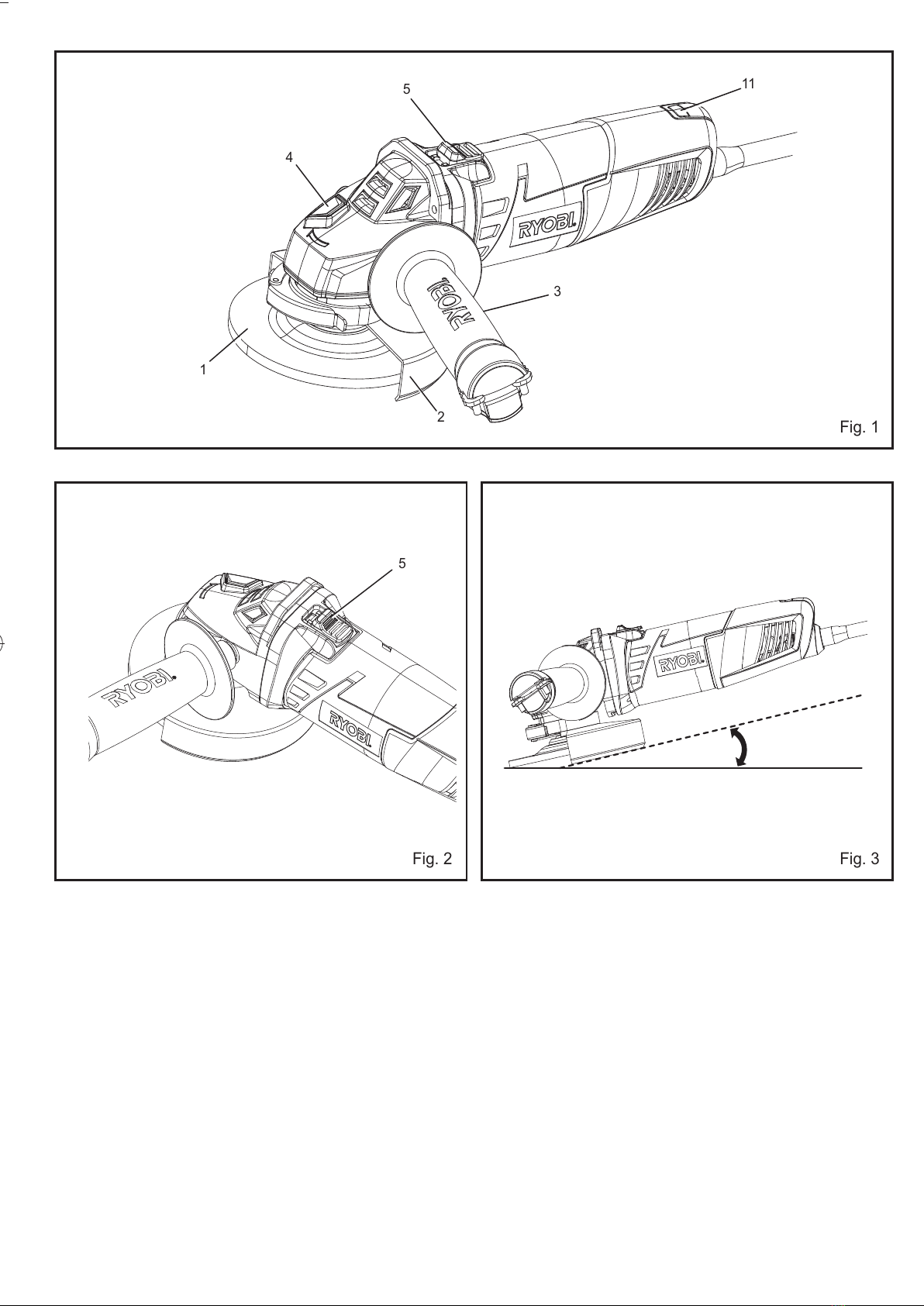

DESCRIPTION
1. Grinding wheel
2. Tool-less wheel guard
3. Auxiliary handle
4. Spindle lock button
5. Switch
6. Disc ange
7. Clamp nut
8. Spindle shaft
9. Wrench
10. Wheel guard lock lever
11. Live tool indicator
SAFETY INSTRUCTIONS FOR ALL OPERATIONS
SAFETY WARNINGS COMMON FOR GRINDING OP-
ERATIONS:
This power tool is intended to function as a grinder
tool. Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious
injury.
Operations for which the power tool was not
designed may create a hazard and cause personal
injury.
Do not use accessories which are not specifically
designed and recommended by the tool
manufacturer. Just because the accessory can be
attached to your power tool, it does not assure safe
operation.
The rated speed of the accessory must be at least
equal to the maximum speed marked on the power
tool. Accessories running faster than their rated speed
can break and fly apart.
The outside diameter and the thickness of your
accessory must be within the capacity rating of
your power tool. Incorrectly sized accessories cannot
be adequately guarded or controlled.
The arbour size of wheels, flanges, backing pads
or any other accessory must properly fit the
spindle of the power tool. Accessories with arbour
holes that do not match the mounting hardware of the
power tool will run out of balance, vibrate excessively
and may cause loss of control.
Do not use a damaged accessory. Before each use
inspect the accessory such as abrasive wheels for
chips and cracks, backing pad for cracks, tear or
excess wear, wire brush for loose or cracked wires.
If power tool or accessory is dropped, inspect for
damage or install an undamaged accessory. After
inspecting and installing an accessory, position
yourself and bystanders away from the plane of
the rotating accessory and run the power tool at
maximum no-load speed for one minute. Damaged
accessories will normally break apart during this test
time.
Wear personal protective equipment. Depending
on application, use face shield, safety goggles
or safety glasses. As appropriate, wear dust
mask, hearing protectors, gloves and workshop
apron capable of stopping small abrasive or
workpiece fragments. The eye protection must
be capable of stopping flying debris generated by
various operations. The dust mask or respirator must
be capable of filtrating particles generated by your
operation. Prolonged exposure to high intensity noise
may cause hearing loss.
Keep bystanders a safe distance away from work
area. Anyone entering the work area must wear
personal protective equipment. Fragments of
workpiece or of a broken accessory may fly away and
cause injury beyond immediate area of operation.
Hold power tool by insulated gripping surfaces
only, when performing an operation where the
cutting accessory may contact hidden wiring or its
own cord. Cutting accessory contacting a “live” wire
may make exposed metal parts of the power tool “live”
and shock the operator.
Position the cord clear of the spinning accessory.
If you lose control, the cord may be cut or snagged
and your hand or arm may be pulled into the spinning
accessory.
Never lay the power tool down until the accessory
has come to a complete stop. The spinning
accessory may grab the surface and pull the power
tool out of your control.
Do not run the power tool while carrying it at your
side. Accidental contact with the spinning accessory
could snag your clothing, pulling the accessory into
your body.
Regularly clean the power tool’s air vents. The
motor’s fan will draw the dust inside the housing
and excessive accumulation of powdered metal may
cause electrical hazards.
Do not operate the power tool near flammable
materials. Sparks could ignite these materials.
Do not use accessories that require liquid
coolants. Using water or other liquid coolants may
result in electrocution or shock.
NOTE: The above warning does not apply for power
tools specifically designed for use with a liquid system.
All manuals and user guides at all-guides.com

2
English
GB
FR DE ES IT NL PT DK SE FI NO RU PL CZ HU RO LV LT EE HR SI SK GR TR
FURTHER SAFETY INSTRUCTIONS FOR ALL OPERA-
TIONS
Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged
rotating wheel, backing pad, brush or any other accessory.
Pinching or snagging causes rapid stalling of the rotating
accessory which in turn causes the uncontrolled power tool
to be forced in the direction opposite of the accessory’s
rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched
by the workpiece, the edge of the wheel that is entering
into the pinch point can dig into the surface of the material
causing the wheel to climb out or kick out. The wheel may
either jump toward or away from the operator, depending
on direction of the wheel’s movement at the point of
pinching. Abrasive wheels may also break under these
conditions.
Kickback is the result of power tool misuse and/or incorrect
operating procedures or conditions and can be avoided by
taking proper precautions as given below.
Maintain a firm grip on the power tool and
position your body and arm to allow you to resist
kickback forces. Always use auxiliary handle, if
provided, for maximum control over kickback or
torque reaction during start-up. The operator can
control torque reactions or kickback forces, if proper
precautions are taken.
Never place your hand near the rotating accessory.
Accessory may kickback over your hand.
Do not position your body in the area where power
tool will move if kickback occurs. Kickback will
propel the tool in direction opposite to the wheel’s
movement at the point of snagging.
Use special care when working corners, sharp
edges etc.. Avoid bouncing and snagging the
accessory. Corners, sharp edges or bouncing have
a tendency to snag the rotating accessory and cause
loss of control or kickback.
Do not attach a saw chain woodcarving blade or
toothed saw blade. Such blades create frequent
kickback and loss of control.
ANGLE GRINDER SAFETY PRECAUTIONS
Check that the speed marked on the grinding wheel
is equal to or greater than the rated speed of the tool.
Ensure that the dimensions of the grinding wheel are
compatible with the tool and that the wheel fits the
spindle.
Grinding wheels must be stored in a dry place.
Do not store objects on top of the grinding wheels.
Grinding wheels must not be used for any operation
other than grinding.
Grinding wheels must be stored and handled with care
in accordance with the manufacturer’s instruction.
Inspect the grinding wheel before use to ensure that it
is not chipped or cracked. Chips or cracks can cause
the wheels to shatter, resulting in possible serious
injury.
Ensure that the wheel is fitted in accordance with this
manual.
Ensure that the grinding wheel is correctly mounted
and tightened before use and run the tool at no-
load speed for 30 seconds in a safe position. Stop
immediately if there is considerable vibration or if other
defects are detected. If this condition occurs, check
the tool to determine the cause.
Do not use separate reducing bushings or adapters to
adapt large hole grinding wheels.
Check that the work piece is properly supported.
Use only recommended accessories.
Ensure that sparks resulting from use do not create
a hazard, e.g., do not hit people, or ignite flammable
substances.
Always use protective safety glasses and ear
protectors.
Use other personal protective equipment such as
gloves, apron and helmet when necessary.
Never place the tool on the floor or other surfaces
while it is running. Grinding wheels continue to rotate
after the tool is switched off. Never touch the wheel or
place it on the floor or other surfaces while it is rotating.
The flange and clamp nut must have same outer
diameter.
Use the tool only for approved applications. Never use
coolants or water or use the tool as a fixed tool.
Grip the tool securely with both hands while operating.
SPECIFICATIONS
Model EAG750RS EAG750RB
Wheel
diameter 115 mm (4.5 in) 125 mm (5 in)
Thickness 6 mm 6 mm
Voltage 230 V - 240 V
50 Hz
230 V - 240 V
50 Hz
Input 750 W 750 W
Spindle thread M14 M14
All manuals and user guides at all-guides.com
all-guides.com

3
English
GB
FR DE ES IT NL PT DK SE FI NO RU PL CZ HU RO LV LT EE HR SI SK GR TR

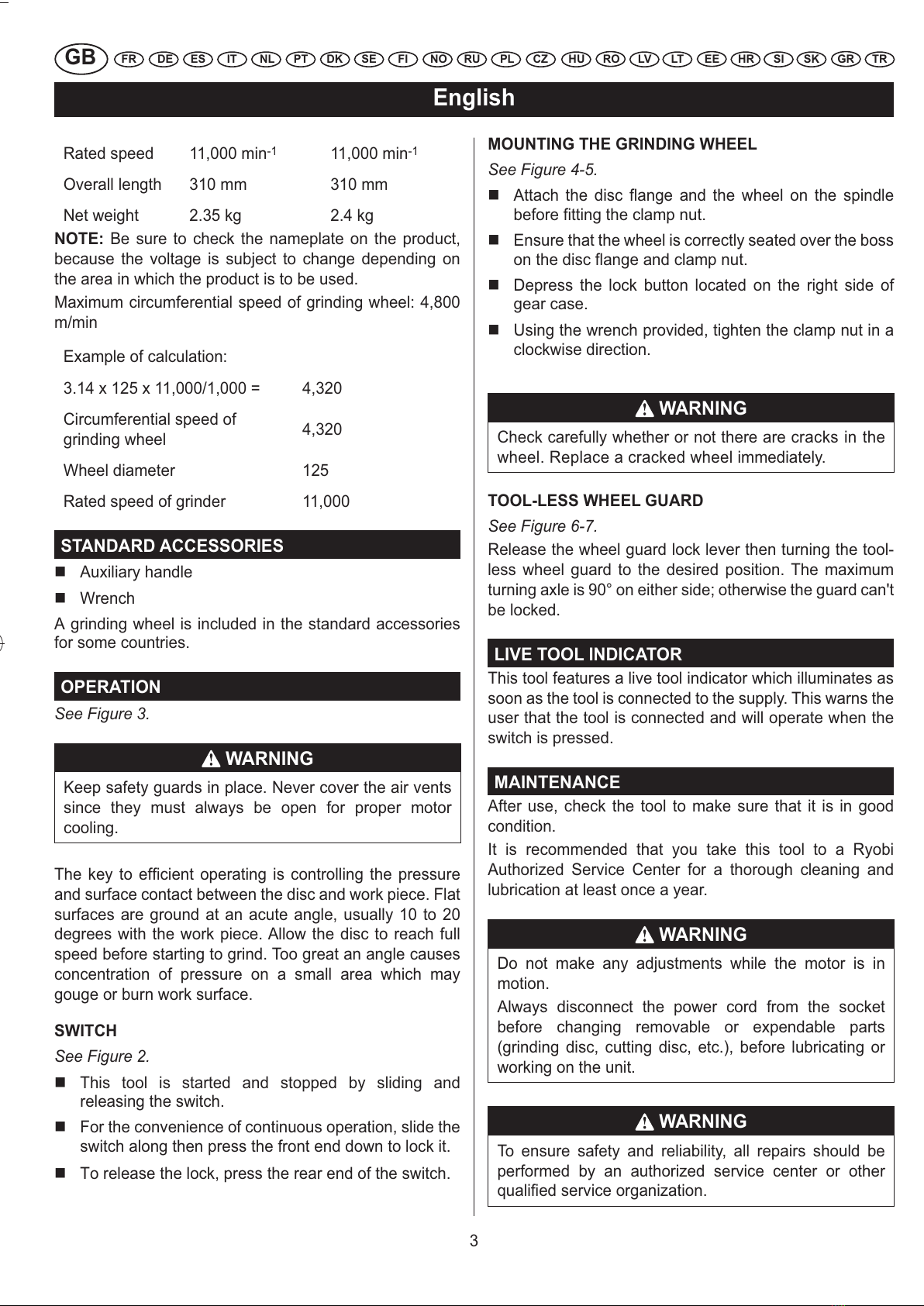

Rated speed 11,000 min-1 11,000 min-1
Overall length 310 mm 310 mm
Net weight 2.35 kg 2.4 kg
NOTE: Be sure to check the nameplate on the product,
because the voltage is subject to change depending on
the area in which the product is to be used.
Maximum circumferential speed of grinding wheel: 4,800
m/min
Example of calculation:
3.14 x 125 x 11,000/1,000
= 4,320
Circumferential speed of
grinding wheel 4,320
Wheel diameter 125
Rated speed of grinder 11,000
STANDARD ACCESSORIES
Auxiliary handle
Wrench
A grinding wheel is included in the standard accessories
for some countries.
OPERATION
See Figure 3.
WARNING
Keep safety guards in place. Never cover the air vents
since they must always be open for proper motor
cooling.
The key to efcient operating is controlling the pressure
and surface contact between the disc and work piece. Flat
surfaces are ground at an acute angle, usually 10 to 20
degrees with the work piece. Allow the disc to reach full
speed before starting to grind. Too great an angle causes
concentration of pressure on a small area which may
gouge or burn work surface.
SWITCH
See Figure 2.
This tool is started and stopped by sliding and
releasing the switch.
For the convenience of continuous operation, slide the
switch along then press the front end down to lock it.
To release the lock, press the rear end of the switch.
MOUNTING THE GRINDING WHEEL
See Figure 4-5.
Attach the disc flange and the wheel on the spindle
before fitting the clamp nut.
Ensure that the wheel is correctly seated over the boss
on the disc flange and clamp nut.
Depress the lock button located on the right side of
gear case.
Using the wrench provided, tighten the clamp nut in a
clockwise direction.
WARNING
Check carefully whether or not there are cracks in the
wheel. Replace a cracked wheel immediately.
TOOL-LESS WHEEL GUARD
See Figure 6-7.
Release the wheel guard lock lever then turning the tool-
less wheel guard to the desired position. The maximum
turning axle is 90° on either side; otherwise the guard can't
be locked.
LIVE TOOL INDICATOR
This tool features a live tool indicator which illuminates as
soon as the tool is connected to the supply. This warns the
user that the tool is connected and will operate when the
switch is pressed.
MAINTENANCE
After use, check the tool to make sure that it is in good
condition.
It is recommended that you take this tool to a Ryobi
Authorized Service Center for a thorough cleaning and
lubrication at least once a year.
WARNING
Do not make any adjustments while the motor is in
motion.
Always disconnect the power cord from the socket
before changing removable or expendable parts
(grinding disc, cutting disc, etc.), before lubricating or
working on the unit.
WARNING
To ensure safety and reliability, all repairs should be
performed by an authorized service center or other
qualied service organization.
All manuals and user guides at all-guides.com

4
English
GB
FR DE ES IT NL PT DK SE FI NO RU PL CZ HU RO LV LT EE HR SI SK GR TR

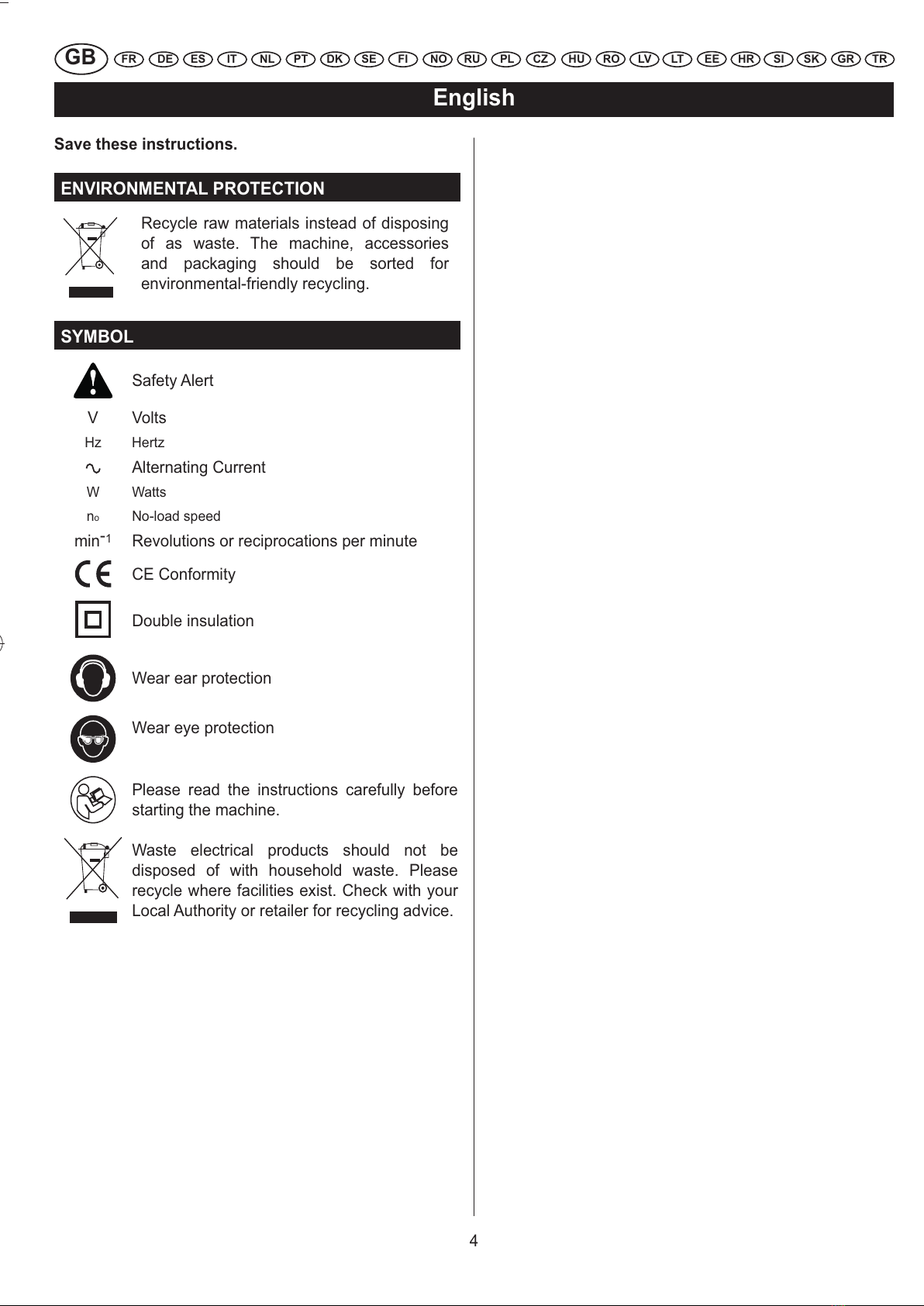

Save these instructions.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
of as waste. The machine, accessories
and packaging should be sorted for
environmental-friendly recycling.
SYMBOL
Safety Alert
V Volts
Hz Hertz
Alternating Current
W Watts
noNo-load speed
min-1Revolutions or reciprocations per minute
CE Conformity
Double insulation
Wear ear protection
Wear eye protection
Please read the instructions carefully before
starting the machine.
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
All manuals and user guides at all-guides.com
