Ryobi EBG2515 Instructions for use

EBG2515 / EBG3720
N197
BENCH GRINDER
OWNER'S OPERATION MANUAL
01

Table of Contents 1
1
5
5
6
6
7-8
9
10
11
Product Specifications
Rules for Safe Operation 2-4
Unpacking
Loose Parts List
Tools Needed
Features
Assembly
Operation
Maintenance
Trouble Shooting
EBG2515
Wheels:
Look for this symbol to point out important safety precautions.
It means attention!!! Your safety is involved.
No Load Speed
Rating
Power input
Net Weight
2850 RPM
240V, AC, 50Hz Only
250W
10.2 Kg
-Diameter
-Width
-Arbor Hole
6in. ( 150 mm )
3/4 in. (19mm)
1/2 in. (13mm)
2850 RPM
240V, AC, 50Hz Only
375W
16.5 Kg
8in.(200 mm )
1in.(25mm)
5/8 in. ( 16 mm )
EBG3720
13
Parts Ordering / Service
TABLE OF CONTENTS
PRODUCT SPECIFICATIONS
Page 1

Safe operation of this power tool requires that you read and
understand this operator's manual and all labels affixed to
the tool. Safety is a combination of common sense, staying
alert, and knowing how your bench grinder works.
READ ALL INSTRUCTIONS
KNOW YOUR POWER TOOL. Read the operator's manual
carefully. Learn the applications and limitations as well
as specific potential hazards related to this tool.
GUARD AGAINST ELECTRICAL SHOCK by preventing
body contact with grounded surfaces. For example:pipes,
radiators, ranges, refriqerator enclosures.
KEEP GUARDS IN PLACE and in working order. Never
operate the tool with any guard or cover removed. Make
sure all guards are operating properly before each use.
REMOVE ADJUSTING KEYS AND WRENCHES. Form habit
of checking to see keys and adjusting wrenches are
removed from tool before turning it on.
KEEP THE WORK AREA CLEAN. Cluttered work areas
and work benches invite accidents.
AVOID DANGEROUS ENVIRONMENTS. Do not use power
tools near gasoline or other flammable liquids, in damp
or wet locations or expose them to rain. Keep work area
well lighted.
KEEP CHILDREN AND VISITORS AWAY. All visitors should
wear safety glasses and be kept a safe distance from
work area.
MAKE WORKSHOP CHILD PROOF with padlocks, master
switches, or by removing starter keys.
DON'T FORCE THE TOOL. It will do the job better and safer
at the rate for which it was designed.
USE THE RIGHT TOOL. Do not force the tool or attachment
to do a job for which it was not designed.
USE THE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to
carry the current your product will draw. An undersized
cord will cause a drop in line voltage resulting in loss of
power and overheating . A wire gauge size (A.W.G.) of at
least 16 is recommended for an extension cord 8 metres
or less in length. If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
INSPECT EXTENSION CORDS PERIODICALLY and
replace if damaged.
WEAR PROPER APPAREL. Do not wear loose clothing,
neckties, or jewelry that can get caught in the tool's
moving parts and cause personal injury, Nonslip footwear
is recommended when working outdoors. Wear
protective hair covering to contain long hair.
ALWAYS WEAR SAFETY GLASSES WITH SIDE
SHIELDS. Everyday eyeglasses have only impact-
resistant lenses; they are NOT safety glasses.
PROTECT YOUR LUNGS. Wear a face or dust mask
if the cutting operation is dusty.
PROTECT YOUR HEARING. Wear hearing protection during
extended periods of operation.
DON'T ABUSE CORD. Never carry tool by the cord or yank
it to disconnect from receptacle. Keep cord away from
heat, oil, and sharp edges.
DO NOT OVERREACH. Keep proper footing and balance
at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean
for best and safest performance.Follow instructions for
lubricating and changing accessories.
NEVER LEAVE TOOL RUNNING UNATTENDED.TURN POWER
OFF. Disconnect all tools when not in use, before
servicing, or when changing attachments, wheels, etc.
AVOID ACCIDENTAL STARTING. Be sure switch is off when
plugging in.
USE RECOMMENDED ACCESSORIES. The use of improper
accessories may cause risk of injury.
USE ONLY GRINDING WHEELS that comply with SAA and
rated greater than 2850 RPM.
DO NOT use wheels with incorrect size bore. NEVER
use wheel washers or wheel screws that are defective
or incorrect and NEVER touch grinding wheel or other
moving parts.
NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped or if the wheel is unintentionally contacted.
DIRECTION OF FEED. Be aware of wheel rotation direction;
never grind without the workrest being properly set.
NEVER grind more than one workpiece at a time.
CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting and any other conditions that may affect its
operation. A guard or other part that is damaged must be
properly repaired or replaced by an authorised service
centre to avoid risk of personal injury.
KEEP TOOL DRY, CLEAN, AND FREE FROM OIL AND
GREASE. Always use a clean cloth when cleaning. Never
use brake fluids, gasoline, petroleum-based products, or
any solvents to clean tool.
INSPECT TOOL CORDS AND EXTENSION CORDS
PERIODICALLY and, if damaged, have repaired by a
qualified service technician. Stay constantly aware of cord
location and keep it well away from the rotating wheel.
NEVER USE IN AN EXPLOSIVE ATMOSPHERE. Normal
sparking of the motor or sparking from grinding metal
could ignite fumes.
RULES FOR SAFE OPERATION
WARNING: Wheel coasts after turn off.
Page 2

USE OUTDOOR EXTENSION CORDS. Use only extension
cords with approved ground connection that are intended
for use outdoors and so marked.
NEVER reach to pick up a workpiece, a piece of scrap,
or anything else that is in or near the grinding path of the
wheel.
AVOID AWKWARD OPERATIONS AND HAND POSITIONS
where a sudden slip could cause your hand to move
into the wheel. ALWAYS make sure you have good balance.
NEVER stand or have any part of your body in line with
the path of the wheel.
DO NOT USE TOOL IF SWITCH DOES NOT TURN IT ON AND
OFF. Have defective switches replaced by an authorised
service centre.
DO NOT TURN THE MOTOR SWITCH ON AND OFF RAPIDLY.
This could cause the wheel to loosen and could create
ahazard. Should this ever occur, stand clear and allow
the wheel to come to a complete stop. Disconnect your
grinder from the power supply and securely retighten
the wheel nut.
USE ONLY FLANGES furnished with this bench grinder.
IF ANY PART OF THIS GRINDER IS MISSING or should
break, bend, or fail in any way, or should any electrical
component fail to perform properly, shut off the power
switch, remove the machine plug from the power source
and have damaged, missing, or failed parts replaced
before resuming operation.
MAKE SURE THE GRINDER IS SECURELY MOUNTED as
described in the operating instructions before connecting
the tool toapowersupply.
DO NOT OVERTIGHTEN THE WHEEL NUT. Excessive
tightening can cause the wheel to crack during operation.
INSPECT GRINDING WHEEL for visible defects. Check
the wheel for fissures and cracks, and test for normal
operation prior to use.
ADJUST distance between wheel and work rest to
maintain 1.6mm. or less separation as the diameter
of the wheel decreases with use. The value of
separation used in the marking is to be the separation
recommended by the manufacturer but shall not be
more than 3.2mm.
ALWAYS EASE THE WORKPIECE AGAINST THE
ABRASIVE WHEEL when starting to grind. A harsh
impact can break the wheel. Use light pressure
when starting to grind; toomuchpressureonacold
wheel can cause the wheel to crack.
RISK OF INJURY DUE TO ACCIDENTAL STARTING. Do not
use in an area where children may be present.
NEVER START THE GRINDER when the wheel is in contact
with the workpiece.
SECURE WORK. Always hold workpiece firmly against
the work rest.
DO NOT USE THE BENCH GRINDER if the flange nut or
clamp nut is missing or if the spindle shaft is bent.
FREQUENTLY clean grinding dust from beneath grinder.
DO NOT OPERATE THIS TOOL WHILE UNDER THE
INFLUENCE OF DRUGS, ALCOHOL, OR ANY MEDICATION.
ALWAYS STAY ALERT. Do not allow familiarity (gained
from frequent use of your grinder) to cause a careless
fraction of a second is sufficient to inflict severe injury.
STAY ALERT AND EXERCISE CONTROL. Watch what you
are doing and use common sense. Do not operate tool
when you are tired. Do not rush.
SAVE THESE INSTRUCTIONS. Refer to them frequently
and use them to instruct other users, If you loan someone
this tool, loan them these instructions also.
RULES FOR SAFE OPERATION
WARNING:
When servicing use only identical Ryobi replacement
parts. Use of any other parts may create a hazard
or cause product damage.
WARNING:
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains
chemicals know to cause cancer, birth defects or
other reproductive harm. Some examples of these
chemicals are:
.lead from lead-based paints.
. crystalline silica from bricks and cement and other
masonry products, and
.arsenic and chromium from chemically-treated timber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to filter
out microscopic particles.
Page 3
DOT NOT EXPOSE
TO RAIN OR USE IN
DAMP LOCATIONS

PCN 3335_17 lgs 29/12/03 10:38 Page A5
RULES FOR SAFE OPERATION
SAFETY ALERT SYMBOL:
Indicates danger, warning, or caution. May be used in conjunction with other symbols or pictographs.
DANGER: Failure to obey a safety warning will result in serious injury to yourself to others. Always
follow the safety precautions to reduce the risk of fire, electric shock and personal injury.
WARNING: Failure to obey a safety warning may result in property damage or personal injury to
yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and
personal injury.
CAUTION: Failure to obey a safety warning may result in property damage or personal injury to
yourself ro to others. Always follow the safety precautions to reduce the risk of fire, electric shock and
personal injury.
IMPORTANT
Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. For
service we suggest you return the tool to your nearest RYOBI
AUTHORISED SERVICE CENTRE for repair. When servicing,
use only identical Ryobi replacement parts.
WARNING:
Do not attempt to operate this tool until you have read
thoroughly and understand completely all instructions,
safety rules, etc. contained in this manual. Failure to
comply can result in accidents involving fire, electric
shock, or serious personal injury. Save this operator's
manual and review frequently for continuing safe
operation and instructing others who may use this tool.
The operation of any grinder can result in foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool operation,always wear safety goggles
or safety glasses with side shields and a full face shield when needed. We recommend Wide
Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.
NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the
explanations with them, deserve your careful attention and understanding. The safety warnings do not by
themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper
accident prevention measures.
SYMBOL MEANING
WARNING:
Page 4

Carefully remove all parts from the shipping carton.
Lift the bench grinder from the carton and place it on a
level work surface.
Do not discard the packing materials until you have
carefully inspected the machine, identified all loose parts,
and satifactorily operated your bench grinder.
Examine all parts to make sure no breakage or damage
has occurred during shipping.
If all parts have been included, proceed to assembly.
If any parts are damaged or missing, do not attempt to
plug in this tool or turn it on until the damaged or
missing parts are obtained and installed correctly.
Contact your nearest Ryobi dealer for assistance if an parts
are missing or damage.
UNPACKING
LOOSE PARTS LIST
WARNING:
If any parts are missing do not operate this machine
until the missing parts are replaced. Failure to do
so could result in possible serious injury.
Left Work Rest
LOOSE PARTS LIST - EBG2515
The following items are included with your Bench Grinder:
1
1
1
1
2
1
Right Work Rest
Plain Eyeshield
Magnifying Eyeshield
Eyshield Fixing Knob (M4x12)
Hex Socket Spanner S=4 (Blacked)
2
2
2
1
2
Eyeshield Assy. Mounting Bolt M6 x 30 (Zinc-Plated)
Eyeshield Assy. Mounting Washer D6 (Blacked)
Eyeshield Assy. Mounting Lock Washer D6 (Blacked)
Wheel Dresser w/ Handle
Eyeshield Mounting Rod - one left, one right 2
Adjustable Knob
2
Adjustable Knob
2
Washer (D5)
2
Washer (D5)
Left Work Rest 1
1
1
1
2
1
Right Work Rest
Plain Eyeshield
Magnifying Eyeshield
Eyshield Fixing Knob (M4x12)
Hex Socket Spanner S=4 (Blacked)
Eyeshield Mounting Rod - one left, one right 2
2
2
2
1
Eyeshield Assy. Mounting Bolt M6 x 30 (Zinc-Plated)
Eyeshield Assy. Mounting Washer D6 (Blacked)
Eyeshield Assy. Mounting Lock Washer D6 (Blacked)
Wheel Dresser w/ Handle
LOOSE PARTS LIST - EBG3720
The following items are included with your Bench Grinder:
Page 5

TOOLS NEEDED
The following tools (not included) are needed for assembly and alignment:
FEATURES - EBG2515 / EBG3720
7mm, 10mm, and 12mm
COMBINATION WRENCH
PHILLIPS SCREWDRIVER
ADJUSTABLE WRENCH
KNOW YOUR BENCH GRINDER
See Figure. 3
Before attempting to use your new tool, familiarise yourself
with all operating features and safety requirements.
Carefully read this operator's manual before using your
grinder.
POWER SWITCH
Your EBG2515 / EBG3720 Bench Grinder features
an easy access On/Off switch for convenience and safety.
MOTOR
Powered by a precision-built electric induction motor, your
bench grinder has sufficient power to handle tough
grinding jobs.
GRINDING WHEEL
Equipped with coarse and fine grinding wheels to suit most
applications.
NOTE: New wheels sometimes require dressing to true
up the face of the wheel.
SAFETY EYE SHIELD AND SPARK DEFLECTOR
The safety shields and spark deflectors are adjustable
for operator convenience. Operating the grinder without
these features attached could result in serious injury.
Do not grind with the safety shield raised ; always wear
safety glasses for personal protection.
WORK REST
The work rests are independently adjustable to compensate for
wheel wear. Before grinding, make certain the work rests
are adjusted properly. Generally the object being ground
is done slightly above centre of the grinding wheel.
Adjust the distance between the wheel and the work rest to
maintain 1.6mm. or less separation as the diameter of the
wheel decreases with use.
WHEEL DRESSING TOOL
Abuildup of metals, dirt, rust, etc. will become embedded
in the grinding wheel as it wears. Using the Wheel Dressing
Tool to clean the wheel of these ground-in particles will help
improve the grinder's performance.
AUTO-ON WORKLIGHT
Your EBG2515/EBG3720 Bench Grinder comes equipped
with a permanently mounted worklight that automatically
lights the work area for safer, more accurate grinding and
sharpening.
COOLANT TRAY
When grinding, metal objects become heated quickly. It
is important to keep moving the object back and forth across
the grinding wheel and to cool the object frequently using the
grinder's Cooltant Tray.
Page 6

FEATURES - EBG2515 / EBG3720
ASSEMBLY
MOUNTING SAFETY EYE SHIELDS
See Figure. 4~5.
Mount the left and right eye shield mounting arm to the inside
of the wheel guards using the clamp brackets, hex bolts
(M6 x 30 mm), and washers (6mm).
Use the illustration as a guide to determine which eye shield
mounting arm is mounted on the left and which eye shield
mounting arm is mounted on the right of the grinder.
Once eye shield mounting arms are firmly in place, slide the
shield bracket onto the eye shield mounting arm. Tighten
the adjustable knob leaving it loose enough to allow the
safety eye shield to be raised and lowered easily.
WARNING:
To prevent personal injury, never operate the bench
grinder unless the safety eye shields and spark deflectors
are properly installed and in place.
01
MODEL EBG2515/ EBG3720
SAFETY
EYE SHIELD
ADJUSTABLE
KNOB
SPARK
DEFLECTOR
(LEFT) AUTO-ON
WORKLIGHT
WORK REST
(LEFT)
WORK REST
(RIGHT)
POWER
SWITCH
ADJUSTMENT
KNOB
WHEEL
GUARD
OFF ON
COOLANT
TRAY
SPARK
DEFLECTOR
(RIGHT)
SAFETY EYE SHIELD
WITH MAGNIFYING GLASS
Fig.4
Fig.3
HEX BOLT
WASHER
EYE SHIELD
MOUNTING ARM
ADJUSTABLE
KNOB
SAFETY
EYE SHIELD
Page 7
Fig. 5
01
HEX BOLT
WASHER
SHIELD ROD
ADJUSTABLE KNOB
SAFETY
EYE SHIELD

ASSEMBLY
OPERATION
WORK REST-EBG2515/EBG3720
See Figure. 6
Mount the work rests to the work rest bracket using the
knob, washer, and one hex nut.
Before tightening the bolts, adjust the gap between the
grinding wheel and the work rest to a maximum of 1.6mm.
Tighten securely.
Keep the object in constant motion, moving it at an
even pace.
BASIC OPERATION
To be efficient and work as designed, your tools should
be kept sharp. Dull tools can and will cause accidents.
Bench Grinders are ideal for sharpening tools such as
chisels, planer blades, scissors, etc., and for removing
rust or corrosion.
Grinders remove material rapidly so pressure is the key
to efficient grinding.
The proper way to sharpen a tool and avoid overheating is:
WARNING:
Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing dust.
If operation is dusty, wear a dust mask.
WARNING:
Excessive pressure on a cold wheel may cause the wheel
to crack.
WARNING:
Never sharpen or grind anything made of aluminium.
Never force a tool against the grinding wheel.
Keep the tool cool by using either a cooling tray, or a
pan of water.
The grinding wheel should rotate "into" the object being
sharpened.
Fig. 6
The following recommendations will help you sharpen
specific tools:
TWIST DRILL BITS
see Figure 7.
Drill bits are best sharpened on a sharpening jig ( available
at most hardware stores). Begin on one side of the point
at the existing angle, then twist the bit while maintaining
contact with the grinding surface. Sharpen only the tip.
Note: Excessive pressure may damage the tool, cause
the motor to overheat, and prematurely wear down the
grinding wheel.
01
HEX NUT
WORK REST
BRACKET
WASHER
KNOB
Page 8
This technique requires considerable practice, so take your
time and make a few " dry runs" first with the grinder off.
Be sure to maintain the original cutting edge angle as this
is important to the efficiency of your bits. One work rest
has a V-groove angled to fit most drill bits.
Fig. 7
BIT SHARPENING
V-GROOVE

OPERATION

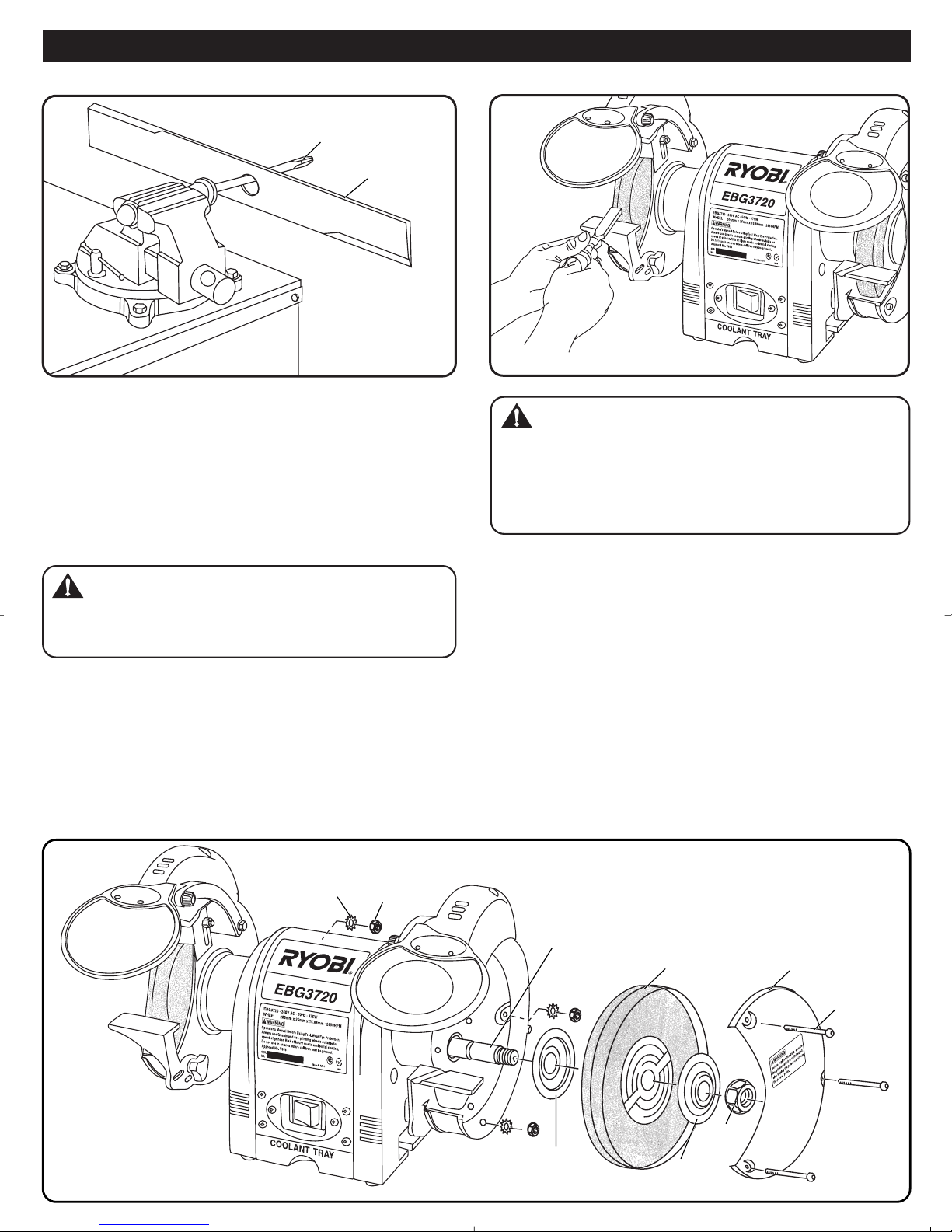

LAWN MOWER BLADES
See Figure 8.
Lawn mower blades are usually sharpened on only one
edge and dressed up slightly on the other. Perform this
sharpening process on both cutting ends of the blade.
After sharpening, be sure to balance the blade by
removing additional material. WHEEL REPLACEMENT
See Figure 10.
If you must replace a grinding wheel, be sure to obtain
one with a safe rated speed at least as high as the "no
load speed" RPM marked on the data plate of the grinder
and which is marked to comply with SAA.
To replace the grinding wheel, remove the wheel cover
by loosening the screws, Loosen the wheel nut in a
clockwise direction for the left side and a counterclockwise
direction for the right side. Remove the outer flange and
grinding wheel. To install a new grinding wheel. reverse
the above procedure. Be sure the grinding wheel and outer
flange are properly seated on the spindle shaft.
CHISELS AND SCREWDRIVER BLADES
See Figure 9.
When sharpening chisels and screwdrivers, work rest should
support the chisel at the correct angle against the wheel.
WARNING:
Always disconnect the bench grinder from the power
source before performing any assembly or adjustment.
Failure to do so could result in accidental starting resulting
in possible serious personal injury.
CAUTION
An unbalanced lawn mower blade may cause excessive
vibration which will damage the lawn mower
CHISEL SHARPENING Fig. 9
Fig. 8
01
01
GRINDING
WHEEL
SPINDLE
SHAFT
STAR
WASHER(S) HEX NUT(S)
SCREW(S)
WHEEL
NUT
OUTER
FLANGE Fig. 10
page 9
INNER
FLANGE
WHEEL
GUARD COVER
LAWN MOWER
BLADE
SCREW DRIVER

MAINTENANCE
GENERAL
Keep the bench grinder clean. Remove dust from working
parts and beneath the grinder frequently.
Make sure the bench grinder operates properly. Check
screws, nuts, and bolts for tightness.
EXTENSION CORDS
The use of any extension cord will cause some loss of
power. To keep the loss to a minimum and to prevent tool
overheating, use an extension cord that is heavy enough
to carry the current the tool will draw.
Awire gauge size (A.W.G.) of at least 16 is recommended
for an extension cord 8 metres or less in length. When
working outdoors, use an extension cord that is suitable
for outdoor use. The cord's jacket will be marked WA.
WHEEL DRESSING TOOL
Dressing a wheel is done to renew sharpness or to true
up the face of the wheel.
Set the work rest of the bench grinder at a slight angle and
brace the wheel dressing tool against it. Do not make
contact with the grinding wheel until after you have turned
on the motor and the wheel is rotating at full speed. Press
the dressing tool slightly against the rotating wheel until
you get a bite, then move slowly from side to side across
the wheel. A small bite and many passes is better than a
big bite and one pass. Work cautiously, hold the dresser
with force on the work rest. Do not use excessive pressure
against the grinding wheel. Proceed slowly until you master
the technique.
WARNING:
When servicing, use only identical Ryobi replacement
parts. Use of any other part may create a hazard of cause
product damage.
WARNING:
Check extension cords before each use. If damaged,
replace immediately. Never use tool with a damaged
cord since touching the damaged area could cause
electrical shock resulting in serious injury.
Page 10
WORKLIGHT BULB REPLACEMENT
When the light bulb is worn out and will no longer work,
unfasten the screws which fix the lamp cover, then gently
remove the bulb from the holder by pushing in and turning
anticlockwise. Contact your dealer for replacement part.
To replace, gently push the light bulb into the insert and
turn clockwise, then fix the lamp cover in the revise order.
WARNING:
Do not use excess force as this could lead to the
globe breaking and serious injury.

TROUBLESHOOTING
This section covers the most common problems encountered during operation and what to do about them. Do not make any
adjustments until machine is unplugged and moving parts have come to a complete stop.
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
Motor will not start; fuses or
circuit breakers blow
1, Short circuit in line cord or plug
2, Short circuit in motor or loose
connections.
3, Incorrect fuses or circuit break-
ers in power line.
1, Inspect cord or plug for damaged insulation and
shorted wires.
2, Inspect all connections on motor for loose or
shorted terminals or worn insulation.
3, Install correct fuses or circuit breakers.
Motor stalls (resulting in blown
fuses or tripped circuit)
1, Short circuit in motor or loose
connections
2, Low voltage.
3, Incorrect fuses or circuit breakers
in power line.
4, Motor overloaded.
1, Inspect connections on motor for loose or shorted
terminals or worn insulation
2, Correct the low voltage conditions.
3, Install correct fuses or circuit breakers.
4. Reduce load on motor.
Wavy condition on surface of
workpiece.
1, Machine virbrating
2, Workpiece not being held firmly.
3, Wheel face uneven.
4, Wheel is too hard.
1, Make sure machines is securely mounted on
a solid surface.
2, Useaholding device to firmly reatin the workpiece.
3, Dress the grinding wheel.
4. Use softer wheel, or reduce the feed rate.
Burning spots or cracks in the
workpiece.
1, Improper type of grinding wheel
2, Improper feed rate.
3, Coolant required.
1, Try a wheel which is softer style or a coarser grit.
2, Slow down the rate of movement of the workpiece
into wheel.
3, Add optional coolant system or introduce coolant
by hand.
Wheel clogs and workpiece
shows burn marks
1, Wheel is too hard.
2, Feed rate too slow.
3, Bad wheel dress.
4. Coolant required.
1, Wheel too hard for the material being ground,
select softer bond.
2, Increase the rate of movement of the workpiece
into wheel.
3, Dress the wheel.
4, Add optional coolant system or introduce
coolant by hand
Wheel dulls quickly, grit falls
off.
1, Depth ofcuttoo great.
2, Wheel is soft.
3, Wheel diameter too small.
4, Bad wheel dress.
5, Defective wheel bonding.
1, Slow down the rate of movement of the workpiece
into wheel.
2, Wheel too soft for the material being ground, select
harder bond.
3, Replace the wheel.
4, Dress the wheel.
5, Consult manufacturer of grinding wheel.
Motor overheats. 1, Motor overloaded. 1, Reduce load on motor
Machine slows when operating 1, Depth of cut too great. 1, Slow down the rate of movement of the workpiece
into wheel.
Lines on surface of workpiece. 1, Impurity on wheel surface.
2, Workpiece not being held tightly.
1, Dress the grinding wheel.
2. Use a holding device to firmly retain the workpiece.
Motor will not start 1, Low voltage.
2, Open circuit in motor or loose
connections.
1, Check power line for proper voltage.
2, Inspect all lead connections on motor for loose
or open connections.
Page 11

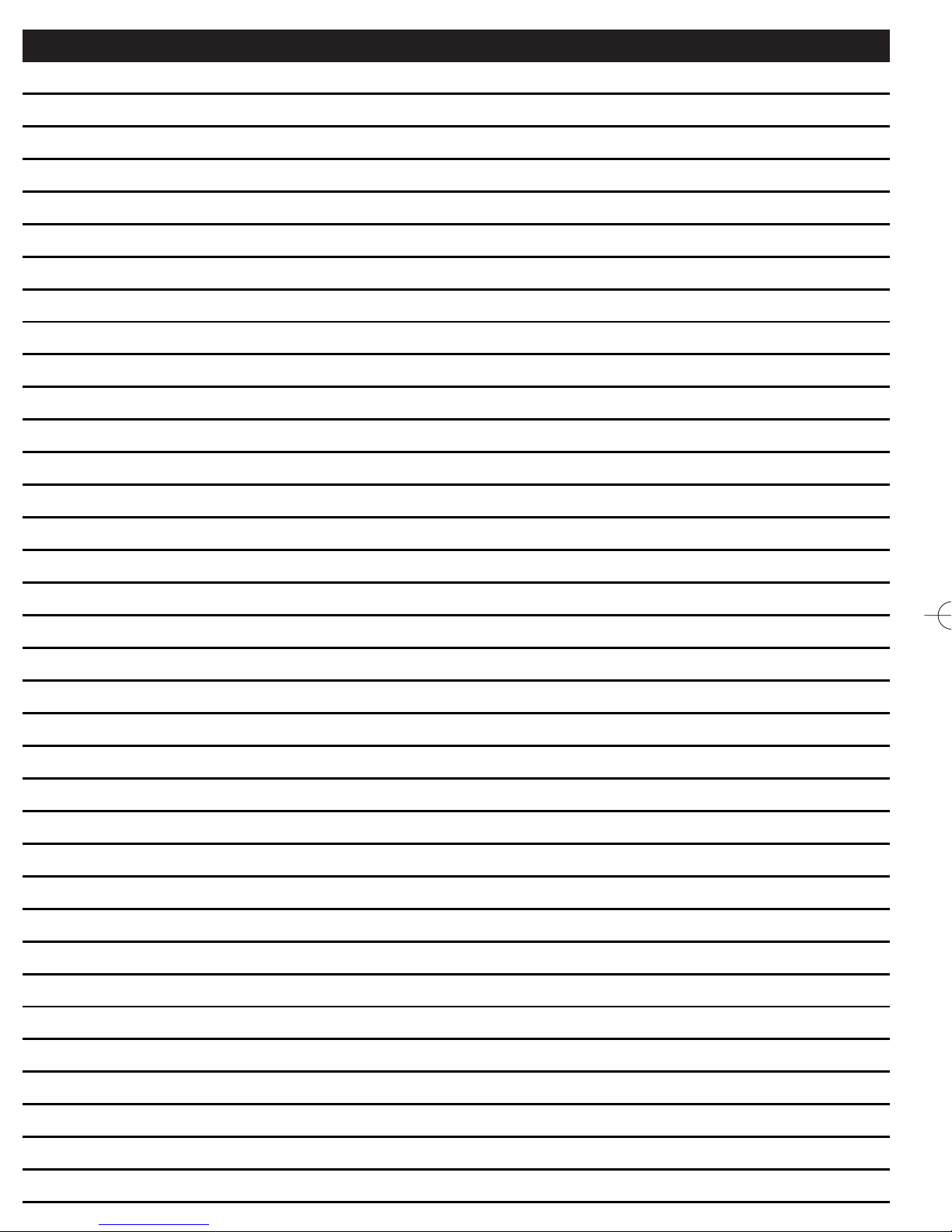

NOTES
Page 12

RYOBI TECHNOLOGIES AUSTRALIA PTY. LTD.
GUARANTEE
RYOBI TECHNOLOGIES AUSTRALIA PTY. LTD.
A.B.N. 98 002 277 509
SYDNEY: 359-361 Horsley Road, Milperra, N.S.W. 2214.
Contact during normal business hours.
Tel: [phone] - Fax: [phone] - www.ryobi.com.au
RYOBI NEW ZEALAND PTY. LTD.
AUCKLAND: 27 Clemow Drive, Mt Wellington, N.Z.
Tel: [phone] - Free Call: 0800 279 624 - Fax: [phone] - www.ryobi.co.nz
Contact during normal business hours.
Subject to the guarantee condition below, this Ryobi tool
(hereinafter called “the product”) is guaranteed by Ryobi
(hereinafter called “the Company”) to be free from
defects in material or workmanship for a period of 24
months from the date of original purchase covering
both parts and labour. Under the terms of this
guarantee, the replacement shall be the opinion of
the Company or its authorised agent. Should service
become necessary during the warranty period, the
owner should contact the Ryobi helpline 1300 361505,
or the Ryobi retailer from where the product was
purchased. In order to obtain guarantee service, the
owner must present the sales docket and Guarantee
Certif cate to confirm date of purchase. This product
is sold by the dealer or agent as principal and the
dealer has no authority from the company to give any
additional guarantee on the Company's behalf except
as herein contained or herein referred to.
This guarantee only applies provided that the Product
has been used in accordance with the manufacturer’s
recommendations under normal use and reasonable
care (in the opinion of the Company) and such
guarantee does not cover damage, malfunction or
failure resulting from misuse, neglect, abuse, or
used for a purpose for which it was not designed
or is not suited and no repairs, alterations or
modif cations have been attempted by other than
an Authorised Service Agent. This guarantee will not
apply if the tool is damaged by accident or if repairs
arise from normal wear and tear.
The Company accepts no additional liability pursuant to
this guarantee for the costs of travelling or
transportation of the Product or parts to and from the
service dealer or agent-such costs are not included
in this guarantee.
Certain legislation, including the Trade Practices Act,
1974 (as amended) and other state and territorial laws
give rights to the buyer and impose liability on the seller
in certain circumstances. Nothing herein shall have the
effect of excluding, restricting or modifying any
condition, guarantee, right or liability imposed, to the
extent only that such exclusion, restriction or
modification ould render any term herein void.
All enquiries Tel : [phone]
TOWNSVILLE: All enquiries Tel : [phone]
MELBOURNE:
BRISBANE:
960 Stud Road, Rowville,Vic. 3178
Te l:[phone]
HOBART: All enquiries Tel : [phone]
ADELAIDE: All enquiries Tel : [phone]
PERTH:
33-35 Sorbonne Cres., Canning Vale,W.A. 6155.
Te l:[phone]
Purchased From
Address Of Dealer
Date Model No Serial No
This Guarantee Form Should Be Retained By The Customer At All Times
Foryour record and to assist in establishing date of purchase (necessary for in-guarantee service)
please keep your purchase docket and this form completed with the following particulars.
Present This Form With Your Purchase Docket When Guarantee Service Is Required.
