Ryobi RPW130SC User manual

ORIGINAL INSTRUCTIONS
High Pressure Washer
RPW130SC

Important!
It is essential that you read the instructions in this manual before operating
this machine.
Subject to technical modifications.

Safety
1
GENERAL POWER TOOL SAFETY WARNINGS
This product has many features for making its use more
pleasant and enjoyable. Safety, performance, and
dependability have been given top priority in the design of
this product making it easy to maintain and operate.
When using power tools, basic safety precautions should
DOZD\V EH WDNHQ WR UHGXFH WKH ULVN RI ¿UH HOHFWULF VKRFN
and personal injury. Also, please read and heed the advice
given in the additional safety instructions.
The product is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the product by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the product.
WARNING
Read and understand all instructions. Failure to follow all
LQVWUXFWLRQVOLVWHGEHORZPD\UHVXOWLQHOHFWULFVKRFN¿UH
and/or serious personal injury.
ŶLearn the product’s applications and limitations as
well as the specific potential hazards related to this
tool by studying this manual. Follow the maintenance
instructions specified in this manual.
ŶNever operate the product with any guard or cover
removed or damaged.
ŶDo not operate the product while under the influence of
drugs, alcohol, or any medication.
ŶDo not wear loose clothing, gloves, neckties, or
jewellery. They can get caught and draw you into
moving parts. Rubber gloves and non-skid footwear
are recommended when working outdoors. Also wear
protective hair covering to contain long hair. Wear
footwear that will protect your feet and improve your
grip on slippery surfaces.
ŶAlways wear safety glasses with side shields and
hearing protection.
ŶDon’t overreach or stand on unstable support. Keep
proper footing and balance at all times.
WARNING
High pressure jets can be dangerous if subject to
misuse.Thejetmustnotbedirectedatpersons,animals,
electrical devices, or the machine itself.
WARNING
When using the product, basic safety precautions should
DOZD\VEHWDNHQWRUHGXFHWKHULVNRI¿UHHOHFWULFVKRFN
and personal injury.
WARNING
This product has been designed for use with the cleaning
agent supplied or recommended by the manufacturer.
The use of other cleaning agents or chemicals may
adversely affect the safety of the appliance.
WARNING
Do not use the product within range of persons unless
they wear protective clothing.
CIRCUIT DIAGRAM
Micro-switch
Motor
Power cord
On/off switch
Capacitor
TP
ŶOnly connect this product to a supply circuit protected
by a residual current device (RCD) with a tripping
current of not more than 30 mA.
ŶUse only extension cords that have watertight
connections and are intended for outdoor use. Use
only extension cords having an electrical rating not
less than the rating of the product. Examine extension
cord before using and replace if damaged. Do not
abuse extension cord and do not pull on any cord to
disconnect. Keep cord away from heat and sharp
edges. Always disconnect the extension cord from the
receptacle before disconnecting the product from the
extension cord.
ŶDo not direct the jet against yourself or others in order
to clean clothes or foot-wear.
ŶDisconnect from the electrical power supply before
carrying out user maintenance.
ŶTo ensure product safety, use only original spare parts
fromthemanufacturerorapprovedbythemanufacturer.
ŶDo not use the product if a supply cord or important
parts of the product are damaged, e.g. safety devices,
high pressure hoses, trigger gun.
If an extension cord is used, the plug and socket must be of
watertight construction.
WARNING
Inadequate extension cords can be dangerous

Safety
2
WARNING
To reduce the risk of electrocution, keep all connections
dry and off the ground. Do not touch plug with wet hands.
ŶTo reduce the risk of injury, the product shall not be
used by children or untrained personnel. Keep children
and visitors away. All visitors should wear safety
glasses and be kept a safe distance from work area.
ŶUse correct product. Don’t force product or attachment
to do a job it was not designed for. Don’t use it for a
purpose not intended.
ŶUse only recommended accessories. The use of
improper accessories may cause risk of injury.
ŶNever leave product running unattended. Turn power
off. Don’t leave product until it comes to a complete
stop.
ŶKeep the motor free of grass, leaves, or grease to
reduce the chance of a fire hazard.
ŶKeep product dry, clean, and free from oil and grease.
Always use a clean cloth when cleaning. Never use
brake fluids, gasoline, petroleum-based products, or
any solvents to clean product.
ŶDo not use product if switch does not turn it off. Have
defective switches replaced by an authorized service
centre.
ŶAvoid dangerous environments. Don’t expose to rain.
Keep work area well lit.
ŶDo not abuse the cord. Never use the cord to carry the
product or to disconnect the plug from the outlet. Keep
cord away from heat, oil, sharp edges, or moving parts.
Replace damaged cords immediately by an authorised
service agent. Damaged cords increase the risk of
electric shock.
ŶInspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil
or grease.
ŶBefore starting any cleaning operation, close doors and
windows. Clear the area to be cleaned of debris, toys,
outdoor furniture, or other objects that could create a
hazard.
ŶDo not use acids, alkaline, solvents, flammable
material, bleaches, or industrial grade solutions in this
product. These products can cause physical injuries to
the operator and irreversible damage to the product.
ŶKeep the motor away from flammables and other
hazardous materials.
ŶCheck bolts and nuts for looseness before each use.
A loose bolt or nut may cause serious motor problems.
ŶBefore storing, allow the motor to cool.
ŶWhen servicing use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
ŶOnly use cold water.
ŶMake sure minimum clearance of 1 metre is maintained
from combustible materials.
ŶConnect the product only to an individual branch circuit.
ŶHold the gun and lance securely with both hands.
Expect the gun to move when the trigger is pulled due
to reaction forces. Failure to do so could cause loss of
control and injury to yourself and others.
ŶWater that has flown through backflow preventers is
considered to be non-potable.
ŶSave these instructions. Refer to them frequently and
use them to instruct other users.
ŶAlways operate the product on a level surface.
ŶClean the water inlet filter regularly once a month or
more frequently according to use. Carefully loosen the
filter with a screwdriver and clean it. Check that it is
intact before re-mounting it.
ŶTheinletfiltermust always be fitted inside thewaterinlet
pipe to filter out sand, limestone and other impurities, as
they will damage the pump valves.
ŶCheck and Clean the nozzle with the tool provided each
start.
INTENDED USE
ŶTheproductis intended only forthecleaningof vehicles,
boats, buildings, etc, by the removal of stubborn dirt
using clean water and chemical detergents.
ŶFor domestic use only, not for professional use, and
only for operation at temperatures above 0°C.
OVERLOAD PROTECTION
The product has an overload protection device that is
activated when overheating or a current spike occurs,
automatically shutting down power within the product. To
resume operation, disconnect the product from the power
supply, wait for about 15 minutes, and re-connect the
product to the power supply.
WARNING
+LJKSUHVVXUHKRVHV¿WWLQJVDQGFRXSOLQJVDUHLPSRUWDQW
IRUWKHVDIHW\RIWKHSURGXFW8VHRQO\KRVHV¿WWLQJVDQG
couplings recommended by the manufacturer.
CAUTION
This product must not be used on the drinking water
VXSSO\ ZLWKRXW D EDFNÀRZ SUHYHQWHU EHLQJ LQVWDOOHG
which corresponds to EN 12729 Type BA. Water
ÀRZLQJWKURXJKDEDFNÀRZSUHYHQWHULVFRQVLGHUHGQRQ
drinkable. Always observe the regulations of your local
water utility company when connecting the product to a
water supply line.

Safety
3
SYMBOL
Warning
Double-insulated construction
To reduce the risk of injury, user must
read and understand operator’s manual
before using this product.
Wear eye and hearing protection.
Remove plug from the mains
immediately if cable is damaged or cut.
Electrical shock hazard.
Wear non-slip, heavy-duty protective
gloves when handling.
Appliance not suitable for connection
to the drinking water mains without
EDFNÀRZSUHYHQWHU
Never point the gun to human, animals,
the machine body, power supply or any
electric appliances
Regulatory Compliance Mark (RCM).
Product meets applicable regulatory
requirements.
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or retailer
for recycling advice.
95 dB
77 dB
Guaranteed sound power level is 95
dB. Guaranteed sound pressure level
is 77 dB.

4
Unpacking
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1 x 1 x 1

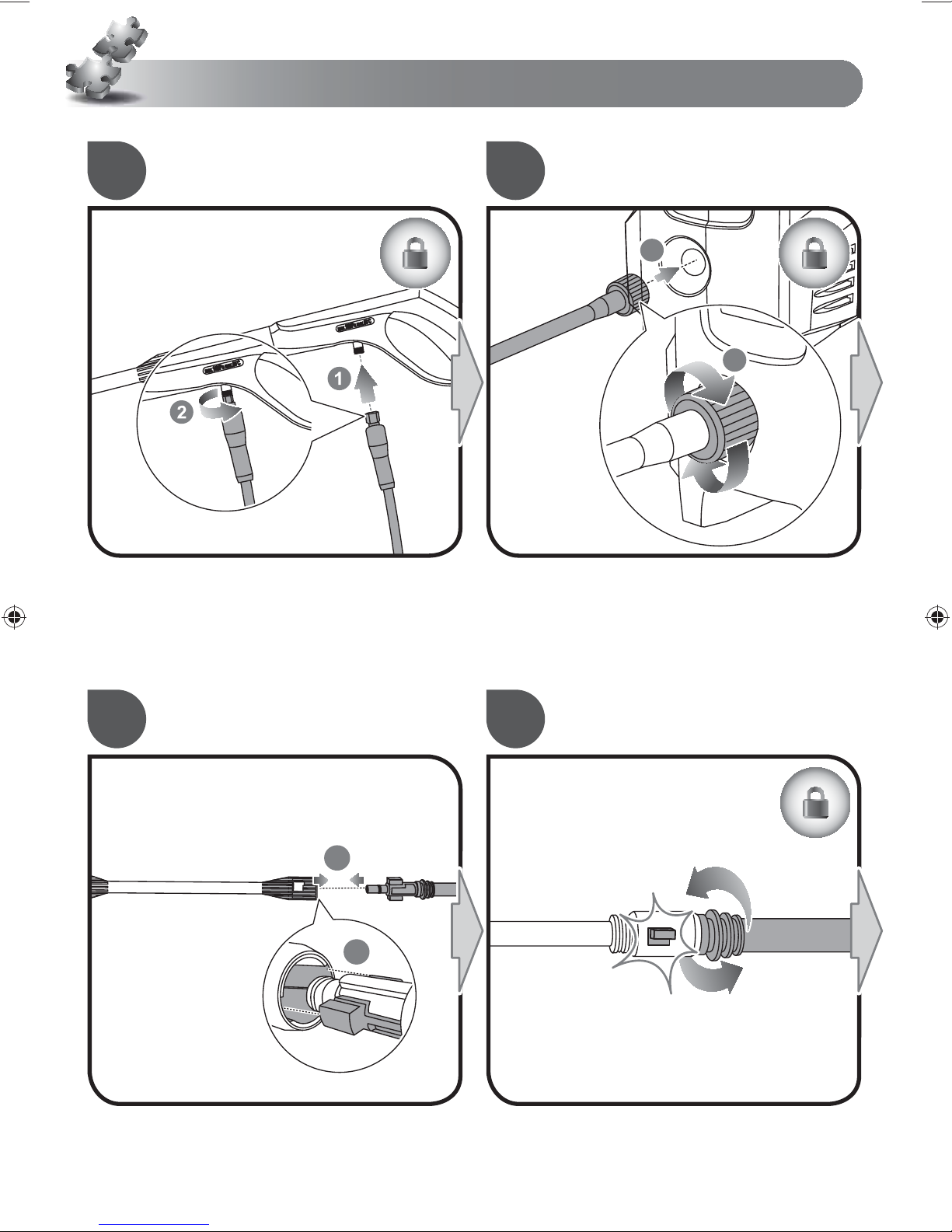

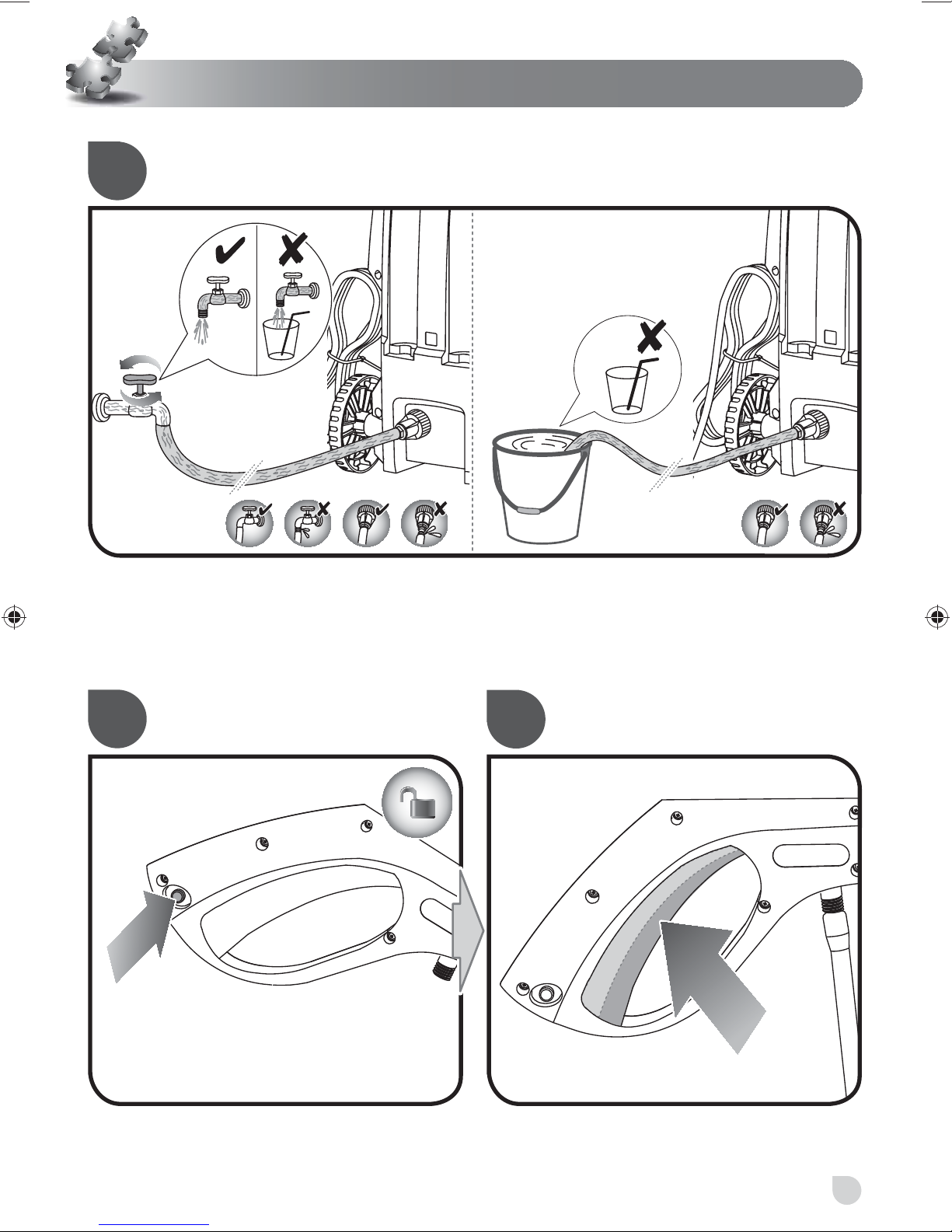

Getting Started
1
1
2
6
2
1
2
7

Getting Started
1
2
3
8
4
9

Getting Started
5
5
10 11

6
Overview
p.7 p.8 p.9
p.10 p.11

7
Operation
2
1
1
2
3
2
1
1
3
2
4

8

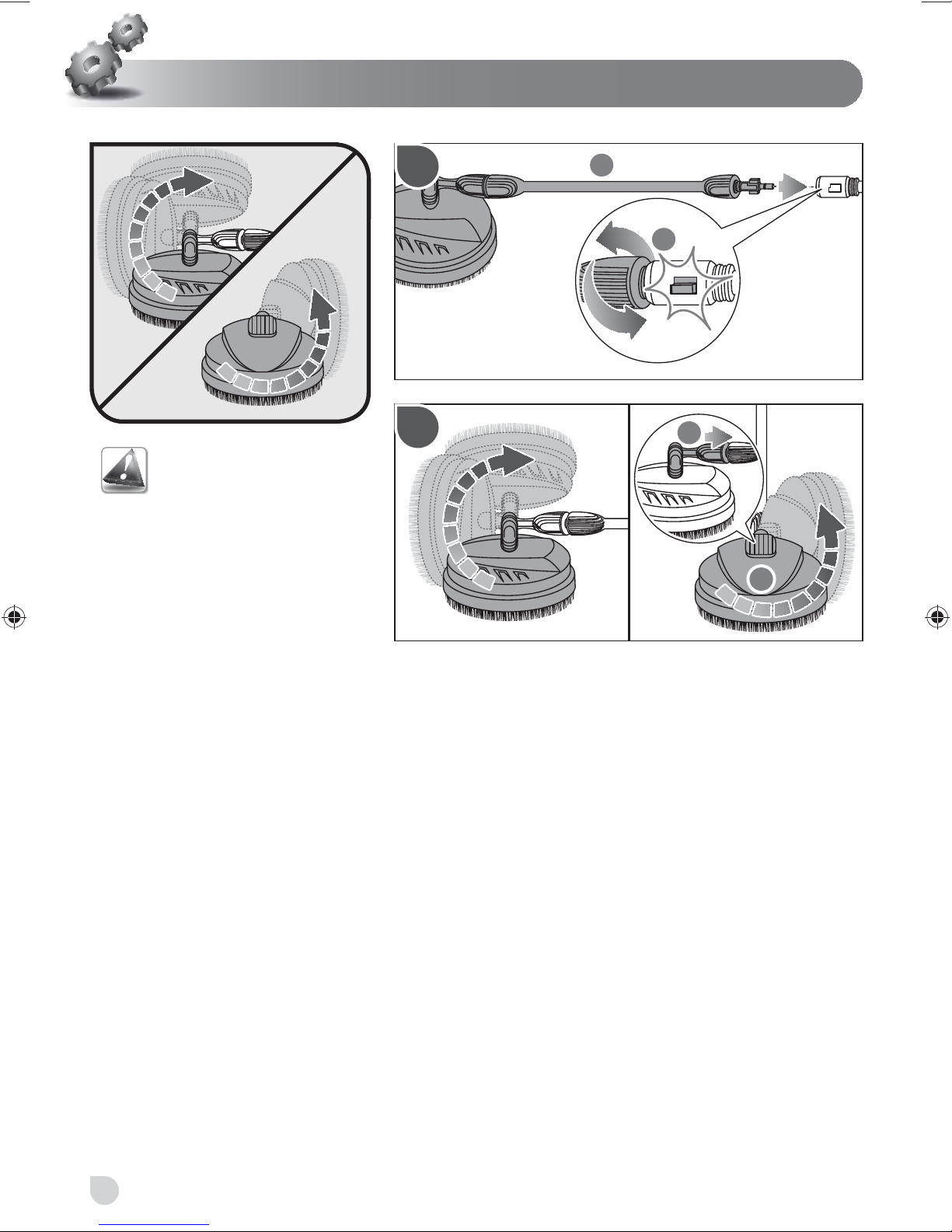

Operation
1
2
2
1
1
2

9
Operation
1
2
1
2

10

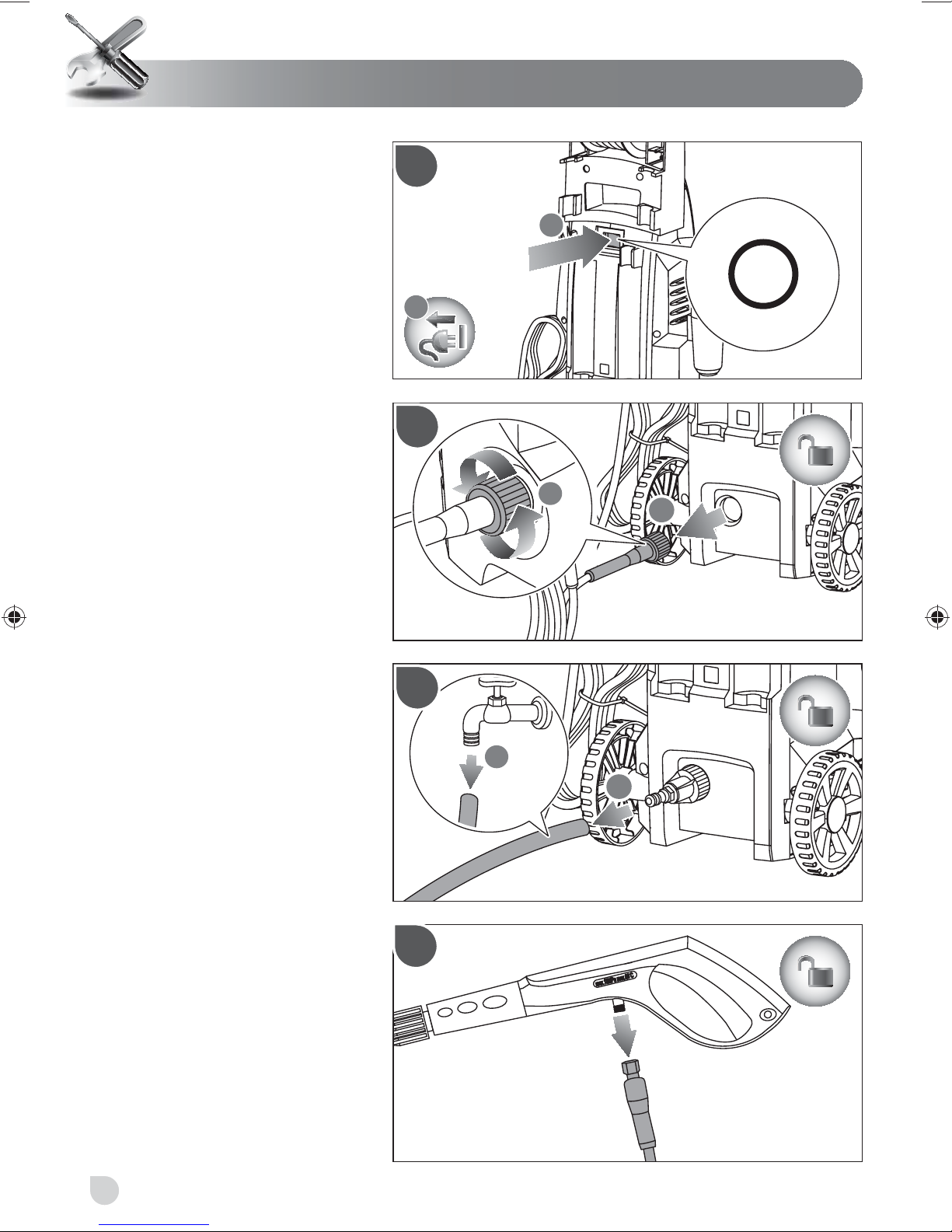

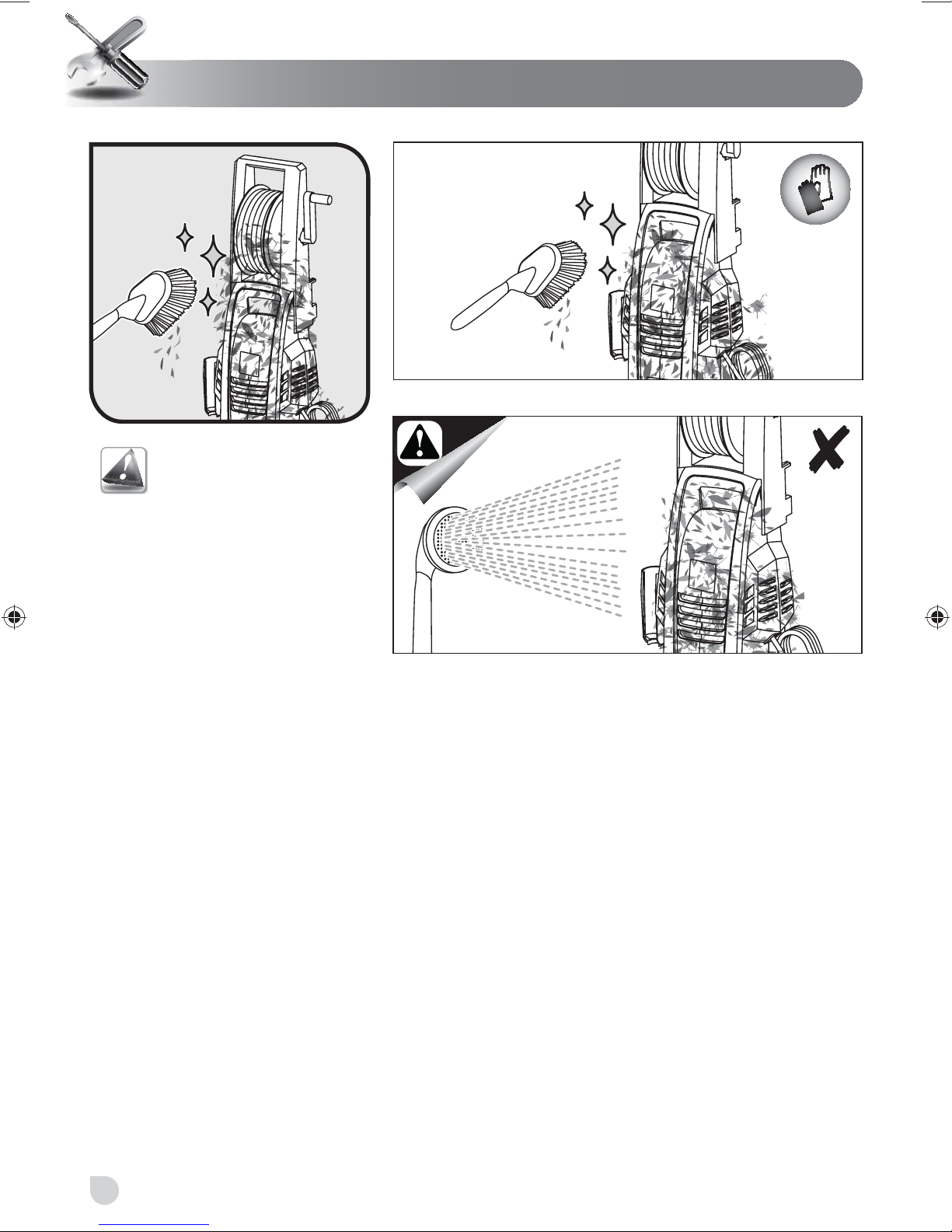

Maintenance

11
Maintenance
1
3
4
2

12
Maintenance
1
2
1
2
6
8
7
1
2
5

13
Maintenance
9
20121119v1

TROUBLESHOOTING
Problem
Possible causes Solution
Machine refuses to start
Machine not plugged in Plug in machine.
Defective socket Try another socket.
Fuse has blown Replace fuse. Switch off other machines.
Defective extension cable Try without the extension cable.
Fluctuating pressure
Pump sucking air Check that hoses and connections are air tight.
Valves dirty, worn out or stuck
Clean and replace or refer to local distributor .
Pump seals worn out
Clean and replace or refer to local distributor.
Motor busses
Low voltage or low temperature Activate the trigger of the spay handle.
Machine stops
Fuse has blown Replace fuse. Switch of other machines.
Incorrect mains voltage
&KHFN WKDW WKH PDLQV YROWDJH FRUUHVSRQGV WR VSHFL¿FDWLRQ RQ WKH PRGHO
tag.
Thermal sensor activated
Leave the washer for 15 minutes to cool down.
Nozzle partially blocked
Clean the nozzle.
Fuse blows
Fuse too small Change to an installation higher than the amp. Consumption of the
machine. You may try without the extension cable.
Machine pulsating
Air in inlet hose/pump Allow machine to run with open trigger until regular working pressure
resumes.
Inadequate supply of mains water &KHFN WKDW WKH ZDWHU VXSSO\ FRUUHVSRQGV WR VSHFL¿FDWLRQV UHTXLUHG VHH
model tag) NB! Avoid using long, thin hoses.
Nozzle partially blocked Clean the nozzle.
:DWHU¿OWHUEORFNHG &OHDQWKH¿OWHU
Hose kinked Straighten out hose.
Machine often starts
and stops by itself
Pump/spray handle is leaking Contact your nearest.
Machine starts, but no
water comes out
Pump/hoses or accessory frozen Wait for pump/hoses or accessory to thaw.
No water supply Connect inlet water.
:DWHU¿OWHUEORFNHG &OHDQWKH¿OWHU
Nozzle blocked Clean the nozzle.

PRODUCT SPECIFICATIONS
Rated voltage
220-240 V
Frequency
50 Hz
Power
1550 W
Maximum pressure
13 Mpa
Rated pressure
9 Mpa
Degree of protection
IPX5
5DWHGÀRZ
6 L/min
0D[ÀRZ
7 L/min
Max. inlet water pressure
0.7 Mpa
Sound pressure level,
Uncertainty
LpA = 77 dB(A),
KpA = 3 dB
Sound power level,
Uncertainty
LwA = 95 dB(A),
KwA = 3 dB
Vibration value
ah= 1.8 m/s2
K.n= 0.05 m/s2
Weight
8 kg

Techtronic Product Development Limited
24/F, CDW Building, 388 Castle Peak Road,
Tsuen Wan, Hong kong
Techtronic Industries Australia & New Zealand
Doncaster Victoria/Mt. Wellington, Aukland
