Ryobi R18CWS10 User manual

FRONT PAGE
R18CWS10

2
Original Instructions
IMPORTANT!
It is essential that you read the instructions in this manual
before assembling, operating, and maintaining the
product.
Subject to technical modication.
Safety, performance, and dependability have been given top
priority in the design of your cordless compact sprayer.
INTENDED USE
The cordless compact sprayer is intended for outdoor use in
a well-ventilated area.
The product is designed for spraying consumer-grade home
and garden chemicals, such as insecticides, fungicides,
weed killers, and fertilizers. The product may also be used
to water plants.
The product is not to be used by children or by persons who
are not wearing adequate personal protective equipment
and clothing.
Do not use the product for any other purpose.
GENERAL PRODUCT SAFETY WARNINGS
WARNING! Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, re, and/or serious injury.
Save all warnings and instruction for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) product or battery-operated (cordless)
product.
WORK AREA SAFETY
■Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
■Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
■Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
■Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
■Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
■Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
■Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
■When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
■If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
■Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
■Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce
personal injuries.
■Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on
invites accidents.
■Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
■Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
■Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
■If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
■Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
■Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
■Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with switch is dangerous and must be repaired.
■Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting
the power tool accidentally.
■Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.

3
Original Instructions
■Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
■Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
■Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a hazardous
situation.
■Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
BATTERY TOOL USE AND CARE
■Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
■Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
■When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause burns
or a fire.
■Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from
the battery may cause irritation or burns.
■Do not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or
risk of injury.
■Do not expose a battery pack or tool to fire or
excessive temperature. Exposure to fire or temperature
above 130°C may cause explosion.
■Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specified in the instructions. Charging
improperly or at temperatures outside the specified
range may damage the battery and increase the risk of
fire.
SERVICE
■Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
■Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
CORDLESS COMPACT SPRAYER SAFETY
WARNINGS
■Always check for and repair leaks before using the
product.

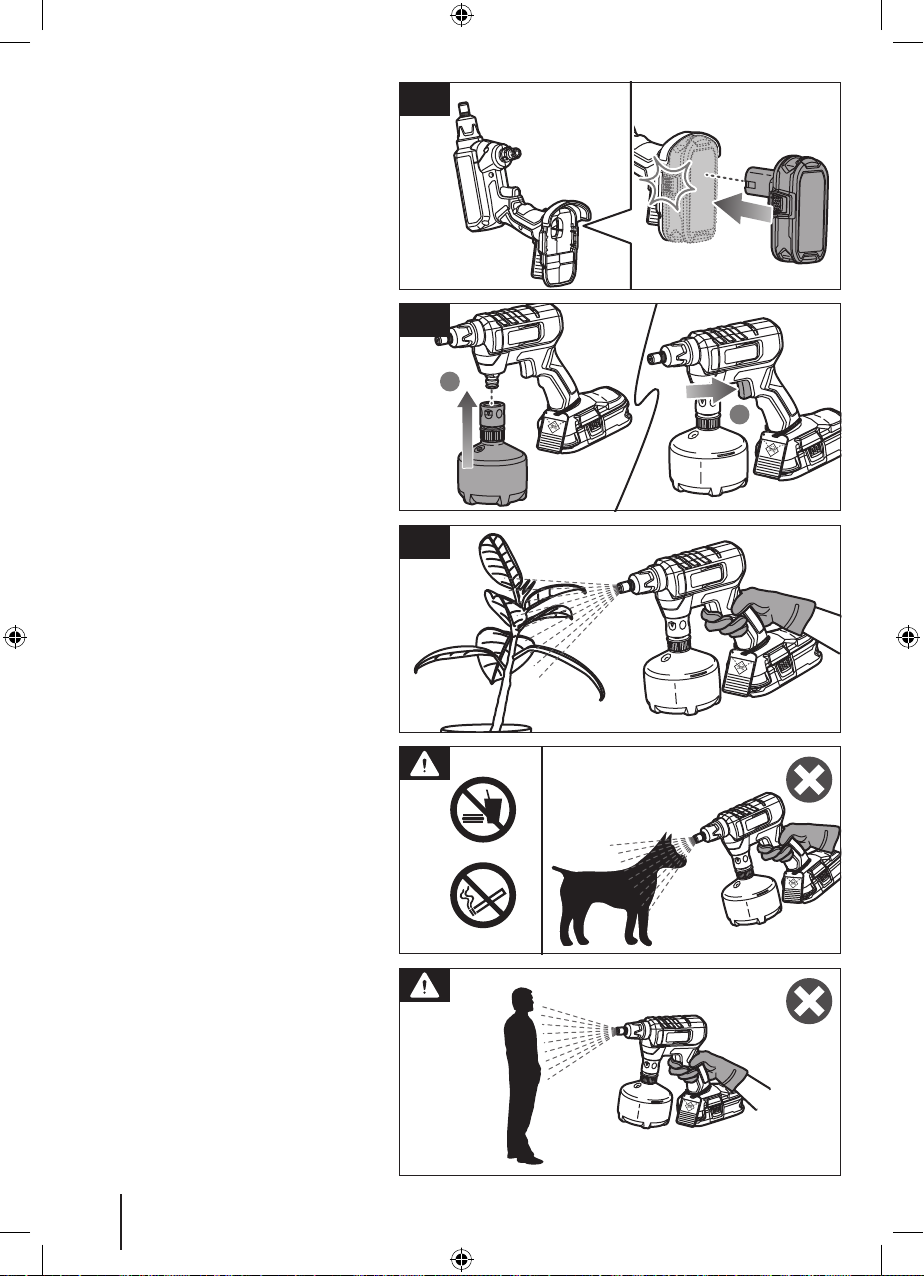

■Do not spray in the direction of people or animals.
Always spray downwind.
■To reduce the risk of fire or explosion, do not use the
product with flammable liquids, such as gasoline or other
chemicals with a flashpoint below 55°C.
■Be aware of any hazard presented by the chemical
solutions. Always follow the chemical manufacturer’s
instructions on usage, handling, and storage.
■Do not use the product with any material where the
hazard is not known.
■To help reduce the risk of injury, wear personal protective
equipment, such as face mask, gloves, safety footwear,
and upper-body protection, when doing the following:
●operating the product
●handling chemicals
●performing maintenance
■Do not use flammable solvents or abrasive cleaning
agents to clean the product.
■Operate the product only in temperatures between 0°C
and 40°C.
■Store the product in a location where the ambient
temperature is between 0°C and 40°C.
■Injuries may be caused, or aggravated, by prolonged use
of the product. When using any product for prolonged
periods, ensure to take regular breaks.

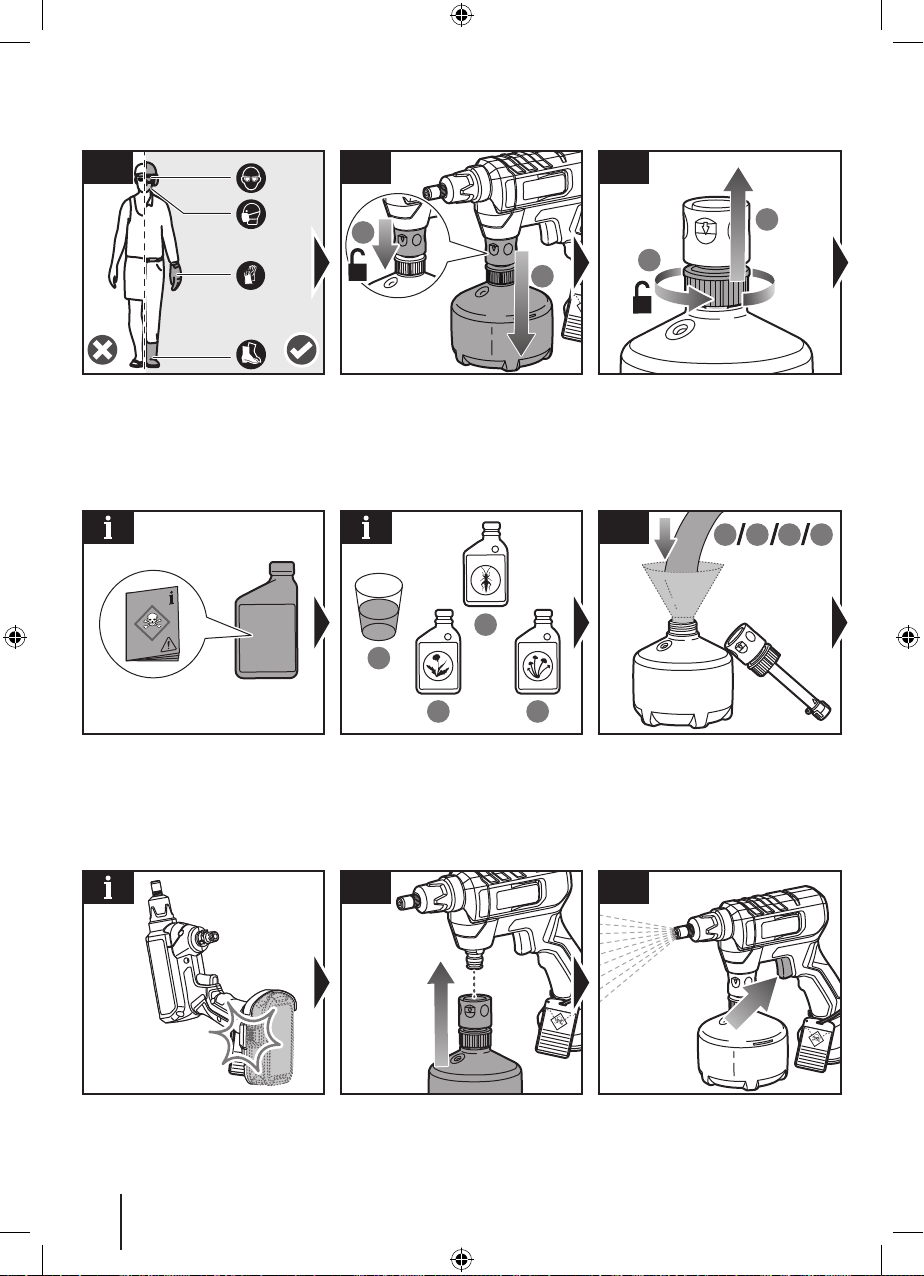

MIXING THE SOLUTION
■Mix the chemicals strictly in accordance with the
manufacturer’s instructions. Incorrect mixtures may
produce toxic fumes or explosive solutions.
■Never use undiluted liquid plant control chemicals.
■Prepare the solution and fill the container outdoors or in
well-ventilated areas only.
■Prepare only sufficient solution for the job in hand so that
nothing is left over.
■Do not mix different chemicals unless such mixture is
approved by the manufacturer.

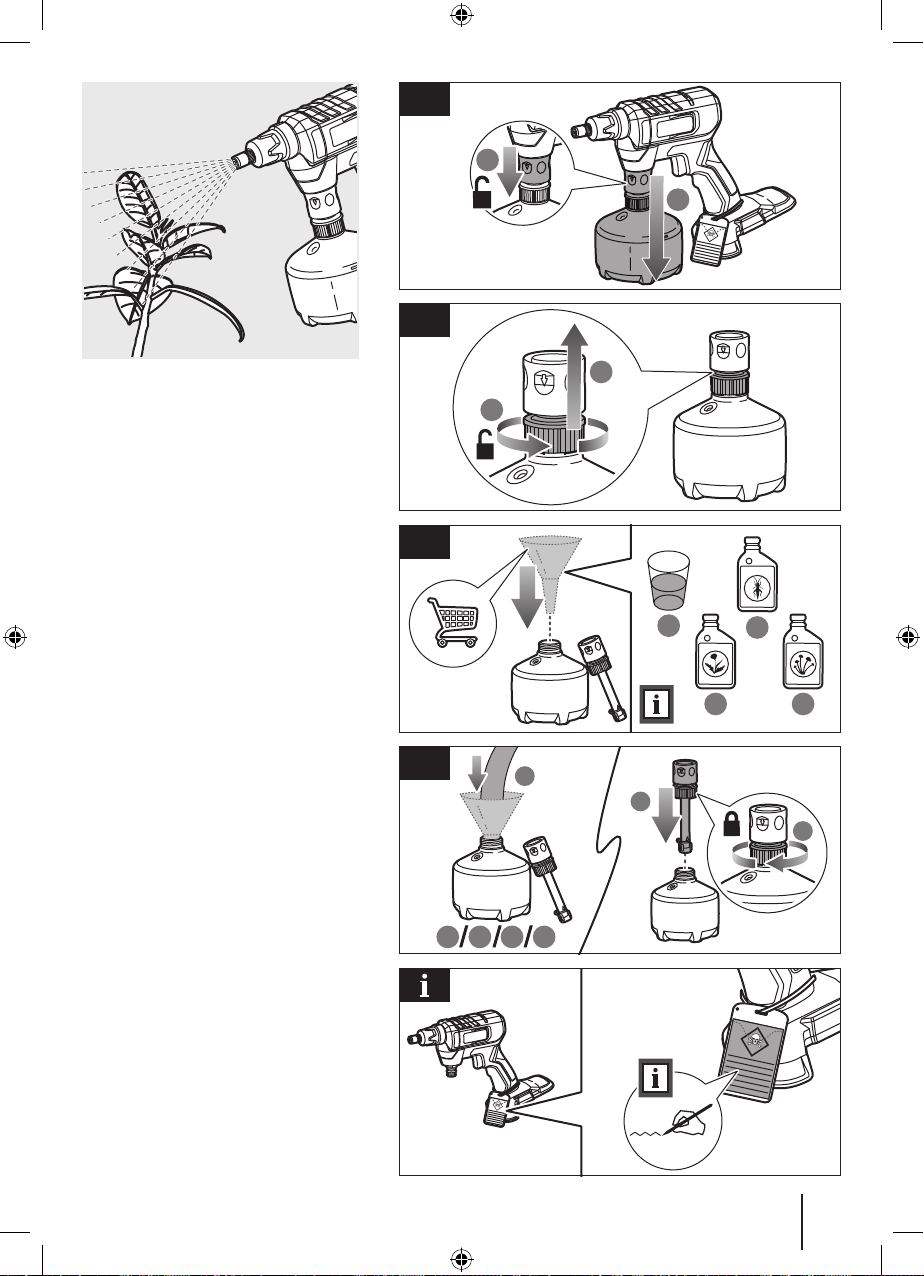

FILLING THE CONTAINER
■Before filling the container with solution, carry out a test
run with fresh water, and check all parts of the product
for leaks.
■Stand the product on a level surface, and do not fill the
container above the maximum mark.
■When filling from the tap, do not immerse the end of
the hose in the chemical solution. Sudden low pressure
in the system may cause the chemical solution to be
sucked back into the water supply.
■Make sure that the tank cap is properly closed after
filling.
■Hang a tag on the product to note the chemical solution
being used.
APPLICATION
■Work only in the open or in well-ventilated locations,
such as in open greenhouses.

4
Original Instructions
■Never blow through nozzles or other components by
mouth.
■Avoid contact with chemicals. Immediately change
clothing that are contaminated with plant control
chemicals.
■Do not aim the nozzle towards persons, animals, and
electrical equipment.
■Do not operate the product in windy conditions. Always
aim downwind.
■Avoid using the product in freezing weather because the
solution may freeze.
■Too high or too low pressure or unfavorable weather
conditions can result in the wrong solution concentration.
Overdosing may damage plants and the environment.
Underdosing may result in unsuccessful plant treatment.
■To reduce the risk of damage to the environment and
plants, do not operate the product:
●if pressure is too high or too low
●in windy conditions
●in direct sunlight
■To reduce the risk of accidents and damage to the
product, never operate with:
●flammable liquids
●viscous or sticky liquids
●caustic or corrosive chemicals
●liquids hotter than 50°C
■Clean the product after each use.
ADDITIONAL BATTERY SAFETY WARNINGS
■To reduce the risk of fire, personal injury, and product
damage due to a short circuit, never immerse the tool,
battery pack, or charger in fluid or allow fluid to flow
inside them. Corrosive or conductive fluids, such as
seawater, certain industrial chemicals, and bleach or
bleach-containing products, etc., can cause a short
circuit.
■Charge the battery pack in a location where the ambient
temperature is between 10°C and 38°C.
■Store the battery pack in a location where the ambient
temperature is between 0°C and 20°C.
MAINTENANCE
■Use only original manufacturer’s replacement parts,
accessories, and attachments. Failure to do so can cause
possible injury, can contribute to poor performance, and
may void your warranty.
■Servicing requires extreme care and knowledge
and should be performed only by a qualified service
technician. Have the product serviced by an authorised
service centre only.
■To avoid serious personal injury, always remove
the battery pack from the product when cleaning or
performing any maintenance.
■After each use, check all parts of the product for leaks.
Return the product to an authorised service centre for
repair if necessary.
■Drain and empty the spray tank before cleaning.
■Drain the spray materials through the fill area.
NOTE: Drain all of the spray materials from the spray
tank into a container approved for chemicals. Do not store
chemicals in the spray tank.
■Use clean water to clean and rinse the spray tank. A
small amount of mild household detergent may be
added.
■Wipe the product with a clean, dry cloth.
■It may be necessary to rinse the spray tank more than
once.
DISPOSAL
■Never dispose of residual chemicals or contaminated
rinsing solutions in waterways, drains, sewers, street
gutters, or manholes.
■Dispose of residual chemicals, contaminated rinse
water, and used containers in accordance with local
waste disposal regulations.
TRANSPORTATION AND STORAGE
■Turn off the product, remove the battery pack, and allow
both to cool down before storing or transporting.
■Drain all spray materials from the spray tank before
storing and transporting.
■After each use, check all parts of the product for leaks.
Return the product to an authorised service centre for
repair.
■Ensure that all parts of the product are clean and dry.
■Remove all foreign materials from the product.
■The spray wand can be stored in the cradle.
■For transportation, secure the product against movement
or falling to prevent injury to persons or damage to the
product.
■Store the product in a cool, dry, and well-ventilated place
that is inaccessible to children. Keep the product away
from corrosive agents, such as garden chemicals and
de-icing salts. Do not store the product outdoors.
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local and national
provisions and regulations.
Follow all special requirements on packaging and labelling
when transporting batteries by a third party. Ensure that
no batteries can come in contact with other batteries
or conductive materials while in transport by protecting
exposed connectors with insulating, non-conductive caps or
tape. Do not transport batteries that are cracked or leaking.
Check with the forwarding company for further advice.
SYMBOLS ON THE PRODUCT
Safety alert
Regulatory Compliance Mark (RCM).
The product meets applicable
regulatory requirements.
Read and understand all instructions
before operating the product. Follow all
warnings and safety instructions.

5
Original Instructions
Wear eye protection.
Wear appropriate respiratory mask.
Do not expose the product to rain or
damp conditions.
Wear non-slip, heavy-duty protective
gloves.
Wear non-slip safety footwear when
using the product.
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or
retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Parts or accessories sold separately
Note
Warning
Unlock
Lock

6
Original Instructions

7
Know your product
R18CWS10
Nozzle
O-ring
Nozzle cap
Operator’s manual
Battery port
On/off trigger
Quick-connect collar
Coupling nut
Handle
Duck bill valve
Hang tag
Spray tank
Battery pack
Charger
Flathead screwdriver
Funnel

8
Getting started
Install the spray tank.NOTE: Make sure that the latches on
the battery pack click into place.
B C D
A
5
A
H2O
B D
C
NOTE: The product can be used for
spraying water or consumer-grade
home and garden chemicals, such as
insecticides, fungicides, weed killers,
and fertilizers.
1
2
3
Turn the coupling nut counterclockwise
to loosen and remove it.
1
2
1 2
Always wear eye and ear protection.
Wear an appropriate respiratory mask.
Wear heavy-duty protective gloves.
Wear non-slip safety footwear when
using the product.
Pull down the quick-connect collar to
remove the spray tank.
NOTE: Make sure to read the
instructions that come with the
chemical to be used with the product.
Squeeze the on/off trigger to spray the
water or chemical in the spray tank.
Fill the spray tank with either water or
the chemical to be sprayed.
98

9
Getting started
2
1
Install the battery pack.NOTE: The battery port is under the
handle of the product.
NOTE: The hang tag on the product
indicates the chemical inside the spray
tank.
4
Place a funnel into the spray tank.
Install the suction assembly and turn
the coupling nut clockwise to tighten.
7
NOTE: Make sure to write the name of
the chemical to be used while operating
the product.
6

10
40°C

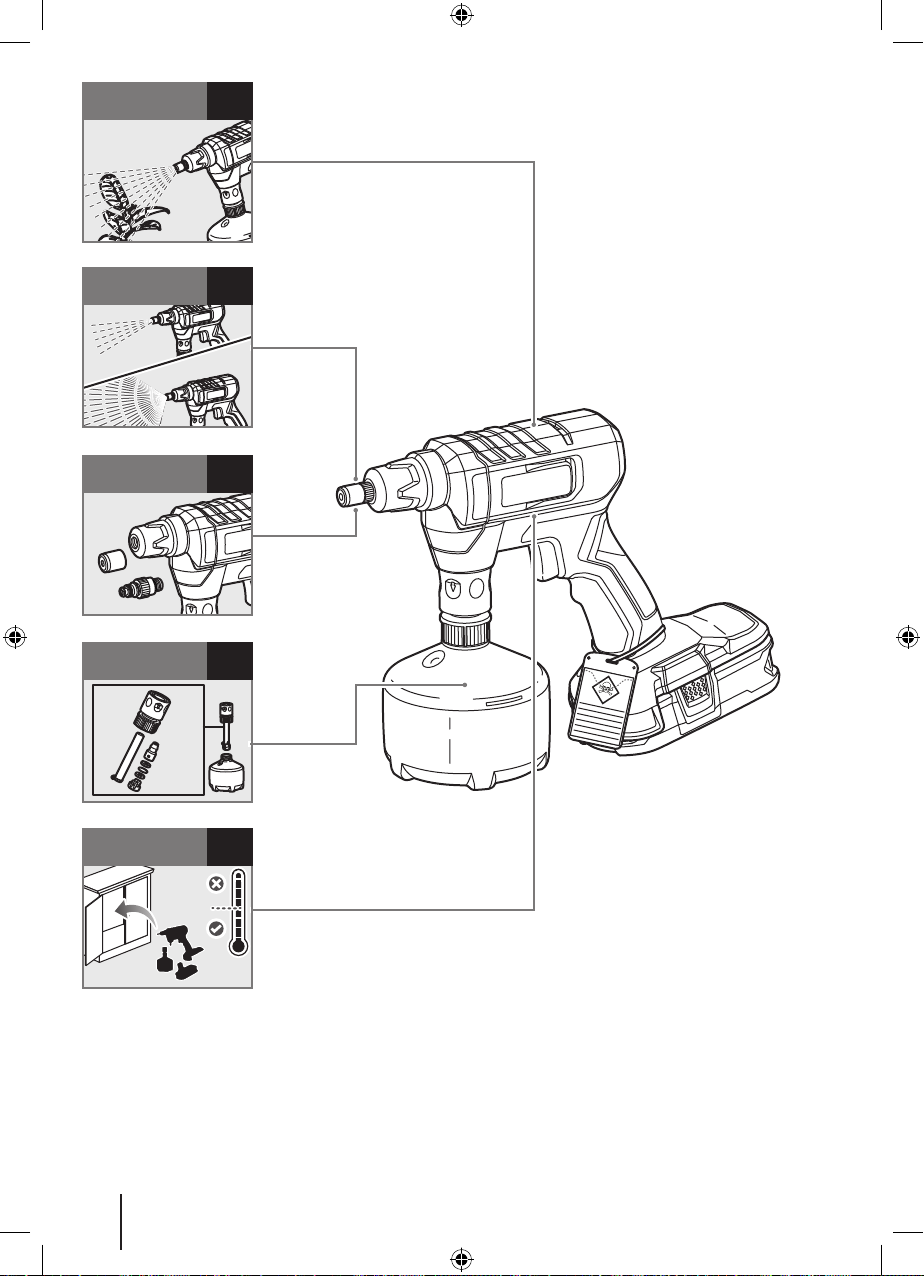

p.11
Operating the
product
Adjusting the
nozzle cap
Clearing a blockage
in the nozzle
Clearing a blockage in
the suction assembly
Storing the product p.19
p.16
p.14
p.13

11
Operation
1
2
1
1
2
2
A
H2O
B D
C
3
3
2
B C D
A
1
4
OPERATING THE PRODUCT
1. Pull down the quick-connect collar to
remove the spray tank.
2. Turn the coupling nut counterclockwise to
loosen and remove the suction assembly
from the spray tank.
3. Place a funnel into the spray tank.
NOTE: The product can be used for
spraying water or consumer-grade
home and garden chemicals, such as
insecticides, fungicides, weed killers, and
fertilizers.
4. Fill the spray tank with either water or
the chemical to be sprayed. Install the
suction assembly and turn the coupling
nut clockwise to tighten.
NOTE: The hang tag on the product indicates
the chemical inside the spray tank. Make
sure to write the name of the chemical to be
used while operating the product.

12
Operation
5
1
2
6
7
5. Install the battery pack. Make sure the
latches on the battery pack click into
place.
6. Install the spray tank. Squeeze the on/off
trigger to spray the water or chemical in
the spray tank.
7. Use the product to water plants or spray
consumer-grade home and garden
chemicals.
WARNING: Do not smoke, eat, or drink
while using the product. Do not spray in the
direction of animals.
WARNING: Do not spray in the direction of
people.

13
Operation
1
2

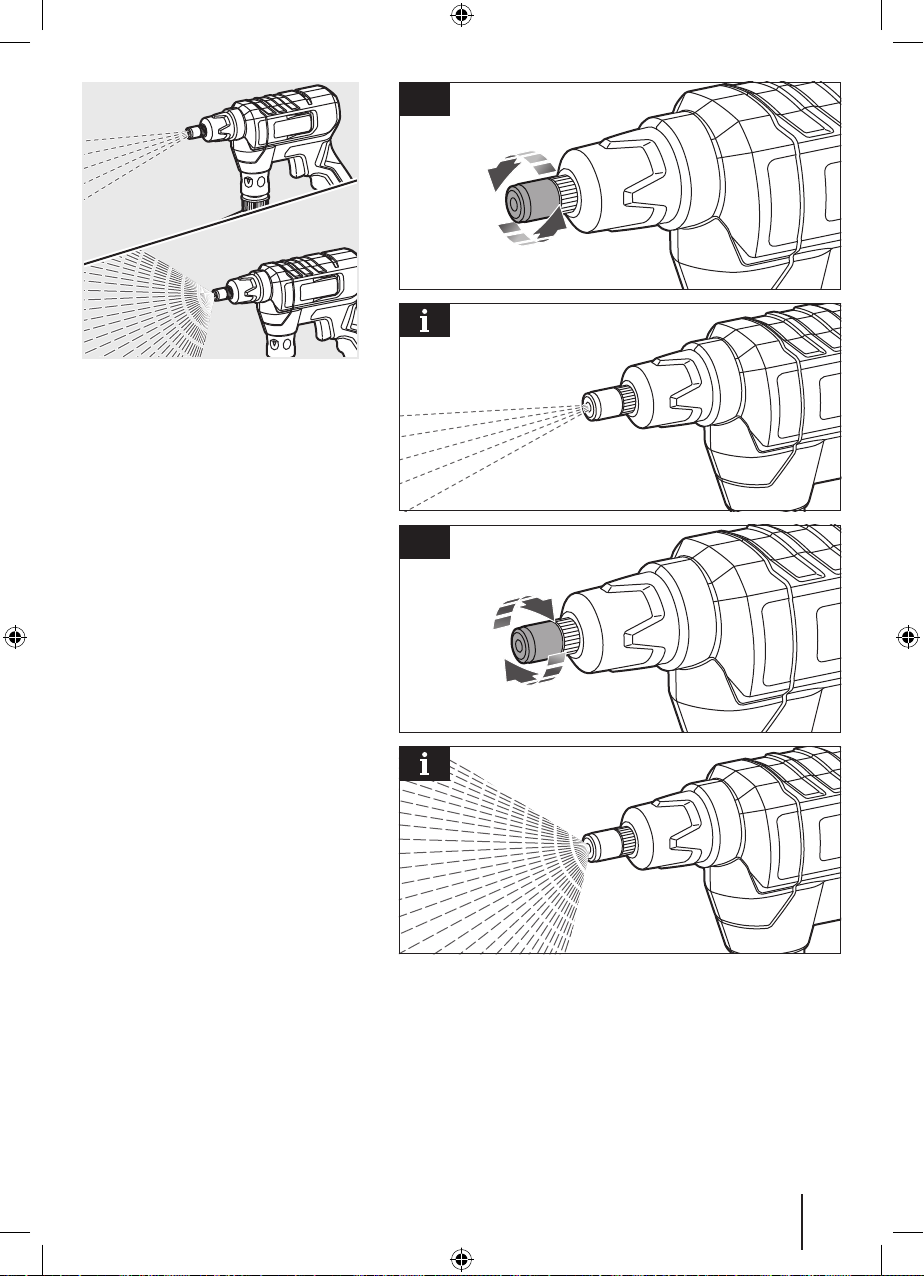

ADJUSTING THE NOZZLE CAP
1. Turn the nozzle cap counterclockwise.
NOTE: The product produces a stream
spray.
2. Turn the nozzle cap clockwise.
NOTE: The product produces a cone spray.

14
Maintenance
12
1
1
2
1
2
x2
3
4
2
CLEARING A BLOCKAGE IN THE
NOZZLE
NOTE: The nozzle cap is attached to the
nozzle.
1. Press the latches on the battery pack and
remove it from the product.
2. Turn the nozzle cap counterclockwise to
loosen and remove it from the nozzle.
3. Turn the nozzle counterclockwise to
loosen and remove it from the product.
4. Insert a fine needle into the thread hole
of the nozzle to clear out any blockage or
residue buildup.
NOTE: There is an o-ring on each side
of the nozzle. Make sure they are not
removed while cleaning the nozzle.

15
Maintenance
5
6
7
8
9
5. Clean the nozzle cap with water and
insert a fine needle into its opening to
clear out any blockage or residue buildup.
6. Install the nozzle into the product.
7. Turn the nozzle clockwise to tighten.
8. Install the nozzle cap into the nozzle.
9. Turn the nozzle cap clockwise to tighten.

16
Maintenance
12
1
1
2
2
1
2
1
2
3
4

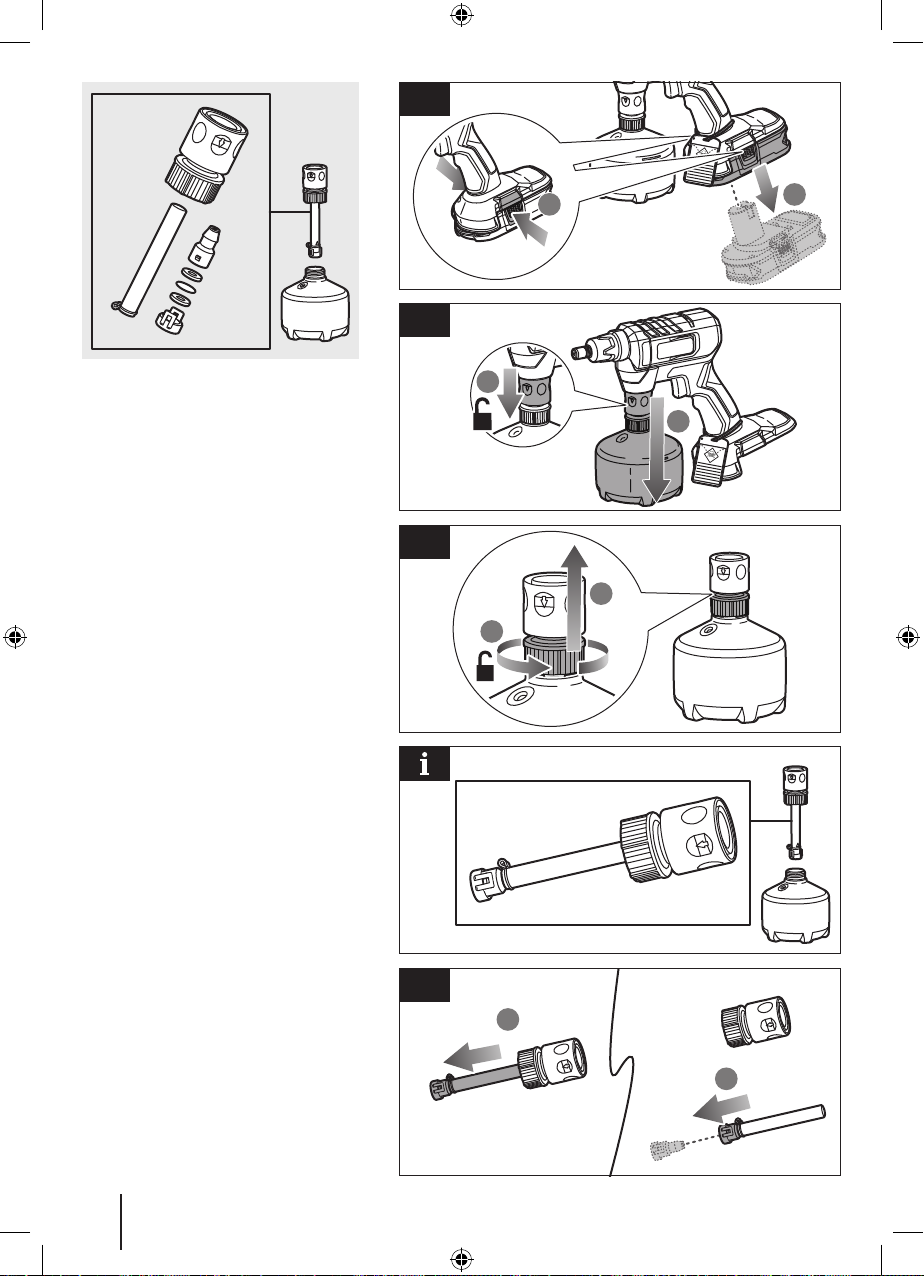

CLEARING A BLOCKAGE IN THE
SUCTION ASSEMBLY
1. Press the latches on the battery pack and
remove it from the product.
2. Pull down the quick-connect collar to
remove the spray tank.
3. Turn the coupling nut counterclockwise to
loosen and remove the suction assembly
from the spray tank.
NOTE: The suction assembly is inside the
spray tank.
4. Remove the suction tube from the quick-
connect collar. Remove the filter from the
suction tube.

17
Maintenance
1
2
5
1
2
2
1
6
7
NOTE: The filter is part of the suction
assembly and is located at the end of the
suction tube.
5. Set the filter upright and turn it to the left.
6. Use a flathead screwdriver to wedge the
left tab from the groove.
7. Use a flathead screwdriver to wedge the
right tab from the groove.
WARNING: Make sure not to damage the
tabs of the filter cap while removing them.

18
Maintenance
8
9
1
2
10
11

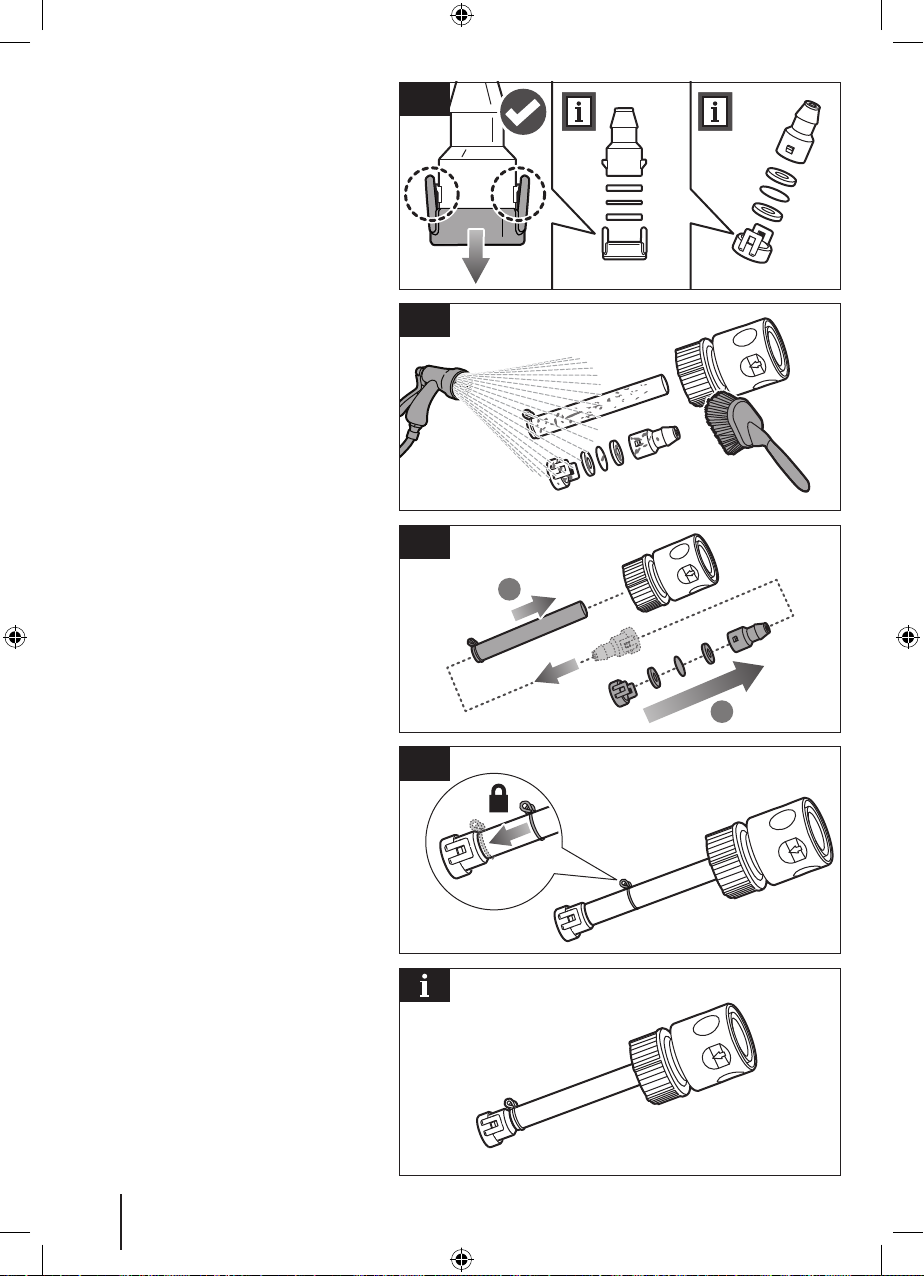

8. Remove the filter cap.
NOTE: The seals and filter screen are in
between the filter cap and the filter.
9. Clean the suction tube, filter cap, filter
screen, seals, and filter with water and a
stiff brush.
10. Attach the suction tube to the quick-
connect collar. Install the filter cap, one
seal, filter screen, and another seal to the
filter and attach the filter to the suction
tube.
11. Slide down wire clamp to secure the filter.
NOTE: Make sure to assemble the suction
assembly properly.

19
Storage
40°C
1
p.16
STORING THE PRODUCT
1. Clean the suction assembly before
storing the product.
WARNING: Do not store water or chemicals
in the spray tank.
WARNING: Make sure that the spray tank is
empty before storing.
WARNING: Clean the spray tank only with
water, a clean, dry cloth, and a stiff brush.
WARNING: Do not clean the body of the
product with water.

20
Storage
40°C
2
3
p.14
202206061v1
WARNING: Clean the body of the product
only with a clean, dry cloth and a sti brush.
2. Clean the nozzle before storing the
product.
3. Store the product in a cool, dry, and
well-ventilated place that is inaccessible
to children. Keep the product away
from corrosive agents such as garden
chemicals and de-icing salts. Do not store
the product outdoors. Store the product in
a location where the ambient temperature
is between 0°C and 40°C.
Table of contents
Other Ryobi Pressure Washer manuals

Ryobi
Ryobi RY141802 User manual

Ryobi
Ryobi RY803600 User manual

Ryobi
Ryobi HydroSurge RPW150HS User manual

Ryobi
Ryobi RPW110B User manual

Ryobi
Ryobi 3200 PSI User manual

Ryobi
Ryobi RACPWS2 User manual

Ryobi
Ryobi RPW130XRB User manual

Ryobi
Ryobi RY803000 User manual

Ryobi
Ryobi RPW3200 User manual

Ryobi
Ryobi RACPWS4 User manual

Ryobi
Ryobi RPW080S User manual

Ryobi
Ryobi RPW110B User manual

Ryobi
Ryobi RY40306 User manual

Ryobi
Ryobi RPW36X120HI5 User manual

Ryobi
Ryobi PS803152 User manual

Ryobi
Ryobi EHP-371 User guide

Ryobi
Ryobi RY31092 User manual

Ryobi
Ryobi RY80588 User manual

Ryobi
Ryobi RPW150XRB User manual

Ryobi
Ryobi RPW36X50 User manual
