RYOBI
7-1/4 in. COMPOUND MITER SAW
MODEL NUMBER TS1141
REPAIR SHEET

2
RYOBI 7-1/4 in. COMPOUND MITER SAW – MODEL NUMBER TS1141
24
25
26
27
28
29
27
30 33
31
32
34 35
37
36
38
42
39
41
40
43
45 44
46 47
48
50
49
52
51
54
53
57
58
59
60
61
55
56
62
62
56
55
63
64
65
67
68
69
71
72
73
78
77
76
74
75
79
70
66
1
2
456
7
8
9
10
11
12
13
14 15
1
16
17 18
9
19
20
21
22
23
63
3
FIGURE A

3
RYOBI 7-1/4 in. COMPOUND MITER SAW – MODEL NUMBER TS1141
The model number will be found on a label attached to the motor housing. Always mention the model number in all correspondence regarding your
7-1/4 in. COMPOUND MITER SAW or when ordering parts.
PARTS LIST FOR FIGURE A
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
1 080006014061 Screw (M4 x 10 mm)..................................... 1
2 080006014062 Battery Box Cover ........................................ 1
3 089240001708 Lower Blade Guard Assembly
(Inc. Key Nos. 66-67 and 70-78 ).................. 1
4 080009004037 Battery Compartment ................................... 1
5 089240001065 Laser Switch ................................................. 1
6 089240001052 Screw (M5 x 30 mm)..................................... 2
7 089240001093 Screw (M4 x 16 mm)..................................... 7
8 089240001054 Screw (M5 x 22 mm)..................................... 2
9 089240001711 Handle Assembly.......................................... 1
10 080006014904 Cord Wrap Warning Label ............................ 1
11 089240001055 Power Cord................................................... 1
12 588004100 Bend Relief (D16 x 24 x 75 mm) ................... 1
13 080006014059 Screw (M4 x 12 mm)..................................... 2
14 578313006 Cord Clamp .................................................. 1
15 089240001027 Screw (M5 x 8 mm)....................................... 1
16 089240001061 Trigger ........................................................... 1
17 588313100 Compression Spring (Trigger) ....................... 1
18 580302000 Switch ........................................................... 1
19 089240001060 Compression Spring ..................................... 1
20 089240001059 Screw (M3 x 10 mm)..................................... 1
21 089240001057 Safety Buckle................................................ 1
22 089240001058 Safety Buckle Cover ..................................... 1
23 089240001702 Upper Blade Guard w/Gear Box Assembly
(Inc. Key Nos. 28, 39 & 42) ........................... 1
24 080006014027 Dust Bag Assembly ...................................... 1
25 089240001041 Screw (M4 x 8 mm)....................................... 2
26 089240001037 Laser Cover .................................................. 1
27 089240001038 Screw (M4 x 18 mm)..................................... 3
28 089240001905 Logo Label (Large) ........................................ 1
29 089240001703 Spindle Assembly
(Inc. Key Nos. 31-38) .................................... 1
30 089240001044 Bearing Holder Plate..................................... 1
31 089240001042 Spindle.......................................................... 1
32 080009002055 C-Ring........................................................... 1
33 080009002056 Ball Bearing (6002 TU/TZ/CM/5C)................ 1
34 A63020000320 O-Ring .......................................................... 1
35 080009005104 Bearing Cover ............................................... 1
36 080009002913 Gasket........................................................... 1
37 080006014043 Lock Ring...................................................... 1
38 089240001077 Gear .............................................................. 1
39 080009002050 Needle Bearing ..............................................1
40 080006014026 Screw (M4 x 12 mm)......................................1
41 589032207 Stop Block .....................................................1
42 089240001907 Warning Label................................................1
43 080006014038 Spindle Lock Pin............................................1
44 A47000040006 E-Ring ............................................................1

4
RYOBI 7-1/4 in. COMPOUND MITER SAW – MODEL NUMBER TS1141
The model number will be found on a label attached to the motor housing. Always mention the model number in all correspondence regarding your
7-1/4 in. COMPOUND MITER SAW or when ordering parts.
PARTS LIST FOR FIGURE A
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
45 089100207065 Compression Spring ......................................1
46 080009002053 O-Ring .......................................................... 1
47 089240001040 Baffle............................................................. 1
48 080009002086 Ball Bearing (6200 TU/TZ/CM/5C)................ 1
49 089240001706 * Armature Assembly
(Inc. Key Nos. 48 and 50).............................. 1
089240001713 ** Armature Assembly
(Inc. Key Nos. 48 and 50).............................. 1
50 080009002085 Ball Bearing (608 2RS C3) ............................ 1
51 089240001092 * Screw (M5 x 60 mm)..................................... 2
089240001086 ** Screw (M5 x 50 mm)..................................... 2
52 089240001705 * Field Assembly.............................................. 1
089240001714 ** Field Assembly.............................................. 1
53 089240001046 Motor Housing ............................................. 1
54 089240001902 Warning Label............................................... 1
55 080009005116 Screw (M5 x 5 mm)....................................... 2
56 080009002080 Screw (M5 x 6 mm)....................................... 2
57 080009002078 Brush Holder................................................. 2
58 080009002077 Brush ............................................................ 2
59 080006014048 Brush Cap..................................................... 2
60 089240001901 Data Label .................................................... 1
61 089240001704 * Motor Housing Assembly
(Inc. Key Nos. 51-60) .................................... 1
089240001715 ** Motor Housing Assembly
(Inc. Key Nos. 51-60) .................................... 1
62 080006014046 Screw (M5 x 35 mm)..................................... 4
63 080009002060 Flange Washer .............................................. 2
64 089240001909 Blade (7 1/4 in. x 24t).................................... 1
65 089240001071 Blade Bolt (5mm, Hex Head) ........................ 1
66 581410003 Shoulder Bolt ................................................ 1
67 089240001063 Pivot Plate..................................................... 1
68 A19001040091 Screw (M4 x 9 mm)....................................... 1
69 089240001064 Screw (M5 x 5 mm)....................................... 1
70 089100207051 Blade Direction Labe .................................... 1
71 089240001066 Torsion Spring............................................... 1
72 089100207097 No Hands Warning Label.............................. 1
73 089240001062 Lower Blade Guard....................................... 1
74 089240001094 Guide Roller .................................................. 1
75 089100207102 Retaining Ring .............................................. 1
76 089100207028 Nut (M6) ........................................................ 1
77 089240001070 Washer (D6 × D10 × 1t) ................................ 1
78 089240001069 Linkage Assembly......................................... 1
79 589015108 Screw (M3).................................................... 1
Not Shown:
987000952 Operator’s Manual ........................................ 1
2-3-11
(Rev:05)
* Use these parts for tools built prior to Serial Number BK102323802.
** Use these parts for tools built after Serial Number BK102323802.
Single asterisk parts (*) and Double asterisk parts (**) will not interchange with each other.

5
RYOBI 7-1/4 in. COMPOUND MITER SAW – MODEL NUMBER TS1141
37
38
39
40
41
42
44
59
52
53
55
43
45
46
47
48
47
43
44
54 56
57
58
51
53
52
50
50
49
1
2
34
5
6
6
11
12 13
14
15
18 17
16
27
28
29
30
31 32
33
34
36
36
35
7
8
10
26
7
9
20
19
21
25
24
22
23
FIGURE B

6
RYOBI 7-1/4 in. COMPOUND MITER SAW – MODEL NUMBER TS1141
The model number will be found on a label attached to the motor housing. Always mention the model number in all correspondence regarding your
7-1/4 in. COMPOUND MITER SAW or when ordering parts.
PARTS LIST FOR FIGURE B
1 089240001090 Bevel Handle................................................ 1
2 089240001030 Bolt (M8) ...................................................... 1
3 080001020014 Bowl Washer (D18 x D8.5 x 0.5t) ................. 1
4 080001020015 Flat Washer (D23 x D8.2 x 2t) ...................... 1
5 089240001033 Shaft ............................................................ 1
6 089240001023 Screw (M8 x 18 mm).................................... 2
7 089240001087 Washer (D8.2 x D20 x 1.5t) .......................... 3
8 089240001019 Screw (M8 x 10 mm).................................... 1
9 089100207019 Spring Washer (M8) ..................................... 1
10 089240001903 Warning Label.............................................. 1
11 080006014016 Washer (D10 x D20 x 2t) ............................. 1
12 089240001091 Screw (M5 x 12 mm).................................... 1
13 080006014024 Stop Block ................................................... 1
14 089240001035 Tension Spring ............................................. 1
15 089240001034 Spacer Spring .............................................. 1
16 080006014019 Lock Pin Cap ............................................... 1
17 A63000000051 O-Ring ......................................................... 1
18 089240001024 Spindle Lock Pin.......................................... 1
19 080006014029 Laser Module ............................................... 1
20 089240001029 Screw (M4 x 5 mm)...................................... 1
21 089240001028 Laser Bracket............................................... 1
22 089240001022 Knuckle ........................................................ 1
23 080006014021 Bevel Indicator............................................. 1
24 A35030410018 Washer (D4.2 x D10 x1t) .............................. 2
25 080006014026 Screw (M4 x 12 mm).................................... 2
26 089240001026 Bevel Scale Label ........................................ 1
27 A16003040083 Screw (M4 x 8 mm)...................................... 5
28 089240001012 Throat Plate ................................................. 1
29 089077001011 Nut (M8) ...................................................... 1
30 089240001011 Table ............................................................ 1
31 089240001015 Miter Indicator.............................................. 1
32 089240001017 Washer (M3)................................................. 2
33 089240001016 Screw (M3 x 10 mm).................................... 2
34 089240001013 Safety Guard................................................ 1
35 A10003040085 Screw (M4 x 8 mm)...................................... 2
36 080006014002 Wear Ring .................................................... 8
37 089240001007 Screw (M5)................................................... 1
38 089240001008 Spring .......................................................... 1
39 089240001006 Miter Lock Lever .......................................... 1
40 089240001009 Shaft w/Threads........................................... 1
41 089240001010 Plug (D4 x 5 mm) ......................................... 1
42 089240001084 Miter Lock Block.......................................... 1
43 089100207097 No Hands Warning Label ................................ 2
44 089240001908 No Hands Boundary Label .......................... 2
45 089240001001 Base............................................................. 1
46 089240001709 Work Clamp ................................................. 1
47 089240001003 Screw (M5 x 18 mm).................................... 2
48 089240001018 Bolt (M8 x 23 mm, Hex Soc. Hd.) ................ 1
49 080006014059 Screw (M4 x 12 mm).................................... 3
50 089240001710 Carry Handle Assembly ............................... 1
51 089240001002 Extension Bar............................................... 1
52 A36030814204 Spring Lock Washer (M8) ............................ 2
53 089240001021 Screw (M8 x 30 mm).................................... 2
54 089100207013 Grommet...................................................... 1
55 089240001076 Hex Key (M5) ............................................... 1
56 089240001020 Fence ........................................................... 1
57 080009005182 Steel Ball (M8).............................................. 1
58 089240001085 Compression Spring .................................... 1
59 089240001906 Logo Label (Small) ....................................... 1
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY

7

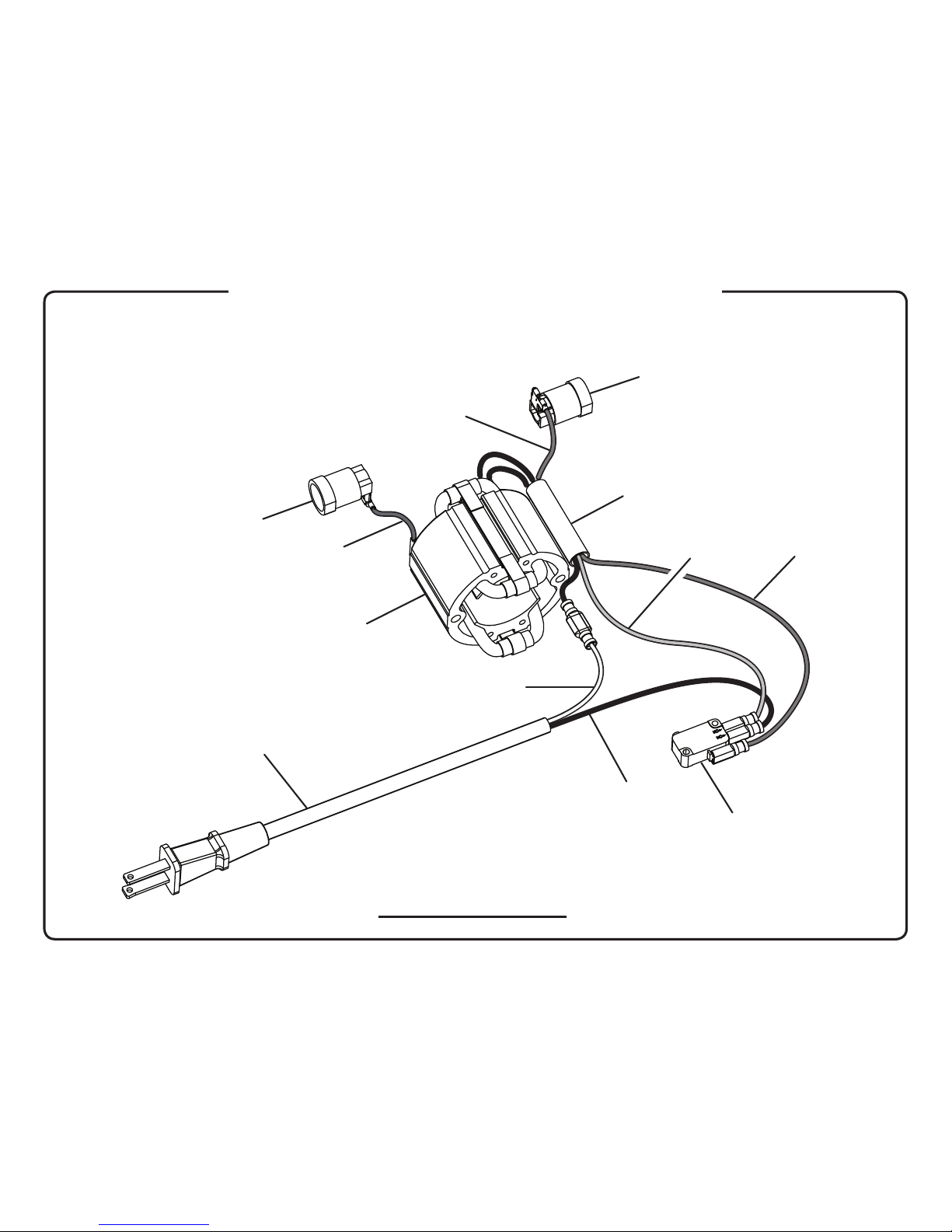

RYOBI 7-1/4 in. COMPOUND MITER SAW – MODEL NUMBER TS1141
MOTOR
YELLOW
LEAD
YELLOW
LEAD
BRUSH
ASSEMBLY
BRUSH
ASSEMBLY
SLEEVE
SWITCH
POWER
CORD
YELLOW
LEAD
BROWN
LEAD
BLACK
LEAD
WHITE
LEAD
WIRING DIAGRAM
