Ryobi R18XLTR20 User manual

R18XLTR20

2
Original Instructions
IMPORTANT!
It is essential that you read the instructions in this manual
before assembling, operating, and maintaining the
product.
Subject to technical modication.
Safety, performance, and dependability have been given top
priority in the design of your cordless line trimmer or edge
trimmer.
INTENDED USE
The cordless line trimmer or edge trimmer is intended to
be used only by adults who have read and understood
the instructions and warnings in this manual and can be
considered responsible for their actions.
The product is intended only for outdoor use in a well-
ventilated area. For safety reasons, the product must be
adequately controlled by a two-handed operation.
When tted with the line trimmer head (and appropriate
guard), the product is intended for cutting long grass, pulpy
weed, and similar vegetation at or about ground level. The
cutting plane should be approximately parallel to the ground
surface.
The cutting plane should be approximately parallel to the
ground surface when trimming and approximately vertical
when edging.
The product should not be used to cut or trim hedges,
bushes, or other vegetation where the cutting plane is not
parallel to the ground surface.
Do not use the product for any other purpose.
GENERAL SAFETY WARNINGS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, re, and /or serious injury.
■When using the product, the safety rules must be
followed. For your safety and that of bystanders, read
these instructions before operating the product. Keep
the instructions safe for later use.
■The product is not intended to be used by children or
persons with reduced physical, mental, or sensory
capabilities. Children should be adequately supervised
to ensure that they do not play with the product.
■Some regions have regulations that restrict the use of
the product. Check with your local authority for advice.
TRAINING
■Read the instructions carefully. Be familiar with all
controls and the proper use of the product.
■Never allow children or people who are unfamiliar with
these instructions to use the product. Local regulations
may restrict the age of the operator.
■Keep bystanders, children, and pets 15 m away from the
area of operation. Turn off the product if anyone enters
the area.
■Never use the product while tired, ill, or under the
influence of alcohol, drugs, or medication.
■Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their
property.
PREPARATION
■Wear full eye and hearing protection while operating the
product. If working in an area where there is a risk of
falling objects, head protection must be worn.
■Hearing protection may restrict the operator’s ability
to hear warning sounds. Pay particular attention to
potential hazards around and inside the working area.
■Wear heavy, long trousers, boots, and gloves. Do not
wear loose-fitting clothing, short trousers, or jewellery of
any kind. Do not use the product with bare feet.
■Secure long hair so that it is above shoulder level to
prevent entanglement in moving parts.
■Before use and after any impact, check that there are no
damaged parts on the product. A defective switch or any
part that is damaged or worn should be properly repaired
or replaced by an authorised service centre.
■Make sure that the cutting attachment is properly
installed and securely fastened.
■Never operate the product unless all guards, deflectors,
and handles are properly and securely attached.
■Consider the environment in which you are working.
Keep the working area free from wires, sticks, stones,
and debris, which if struck by the cutter, can become
thrown objects.
BATTERY TOOL USE AND CARE
■Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
■Use power tools only with specifically designated battery
packs. Use of any other battery packs may create a risk
of injury and fire.
■When the battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
■Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
LINE TRIMMER SAFETY WARNINGS
■Never allow children, persons with reduced physical,
sensory, or mental capabilities, or lack of experience
and knowledge, or people who are unfamiliar with the
instructions to use the product.
■Use the product in daylight or with good artificial light.
■Avoid using the product on wet grass.
■Keep firm footing and balance at all times, and be sure
of proper footing on slopes.
■Do not walk backwards when using the product. Walk,
never run.
■Keep the head attachment below waist level.
■Never use the product with damaged guards or without
guards in place.
■Never fit a metal replacement line.
■Keep hands and feet away from the cutting means at all
times, especially when turning on the motor.

3
Original Instructions
■Beware, the cutting elements continue to rotate after the
motor is turned off.
■Beware of objects thrown by the cutting means. Clear
debris like small stones, gravel, and other foreign objects
from the work area before starting the operation. Wires
or string may become entangled with the cutting means.
■To reduce the risk of injury associated with contacting
moving parts, always turn off the product, remove the
battery pack, and allow both to cool down. Make sure
that all moving parts have come to a complete stop:
●before servicing
●before clearing a blockage
●before checking, cleaning, and working on the
product
●before changing accessories
●after striking a foreign object
●whenever leaving the product unattended
●whenever performing maintenance
●whenever the product starts to vibrate abnormally
■Wear full eye and hearing protection while operating the
product. If working in an area where there is a risk of
falling objects, head protection must be worn.
■Hearing protection may restrict the operator’s ability
to hear warning sounds. Pay particular attention to
potential hazards around and inside the working area.
■Wear heavy, long trousers, boots, and gloves. Do not
wear loose-fitting clothing, short trousers, or jewellery of
any kind. Do not use the product with bare feet.
■Secure long hair so that it is above shoulder level to
prevent entanglement in moving parts.
■The small blade fitted to the lawn guard is designed to
trim the newly extended line to the correct length for safe
and optimum performance. The blade is very sharp.
Do not touch the blade, particularly when cleaning the
product.
■Always ensure that ventilation openings are kept clear
of debris.
■Before use and after any impact, check that there are no
damaged parts on the product. A defective switch or any
part that is damaged or worn should be properly repaired
or replaced by an authorised service centre.
■Make sure that the cutting head attachment is properly
installed and securely fastened.
■Make sure that all guards, deflectors, and handles are
properly and securely attached.
■Do not modify the product in any way. This may increase
the risk of injury to yourself or others.
■Use only the manufacturer’s replacement cutting line.
Do not use any other cutting attachment.
■Immediately turn off the product and remove the battery
pack in the event of an accident or breakdown. Do not
operate the product again until it has been fully checked
by an authorised service centre.
■Ensure that the line cut-off blade in the guard is properly
positioned and secured before each use.
ADDITIONAL BATTERY SAFETY WARNINGS
To reduce the risk of re, personal injury, and product
damage due to a short circuit, never immerse the product,
battery pack, or charger in uid or allow uid to ow inside
them. Corrosive or conductive uids, such as seawater,
certain industrial chemicals, and bleach or bleach-containing
products, etc., can cause a short circuit.

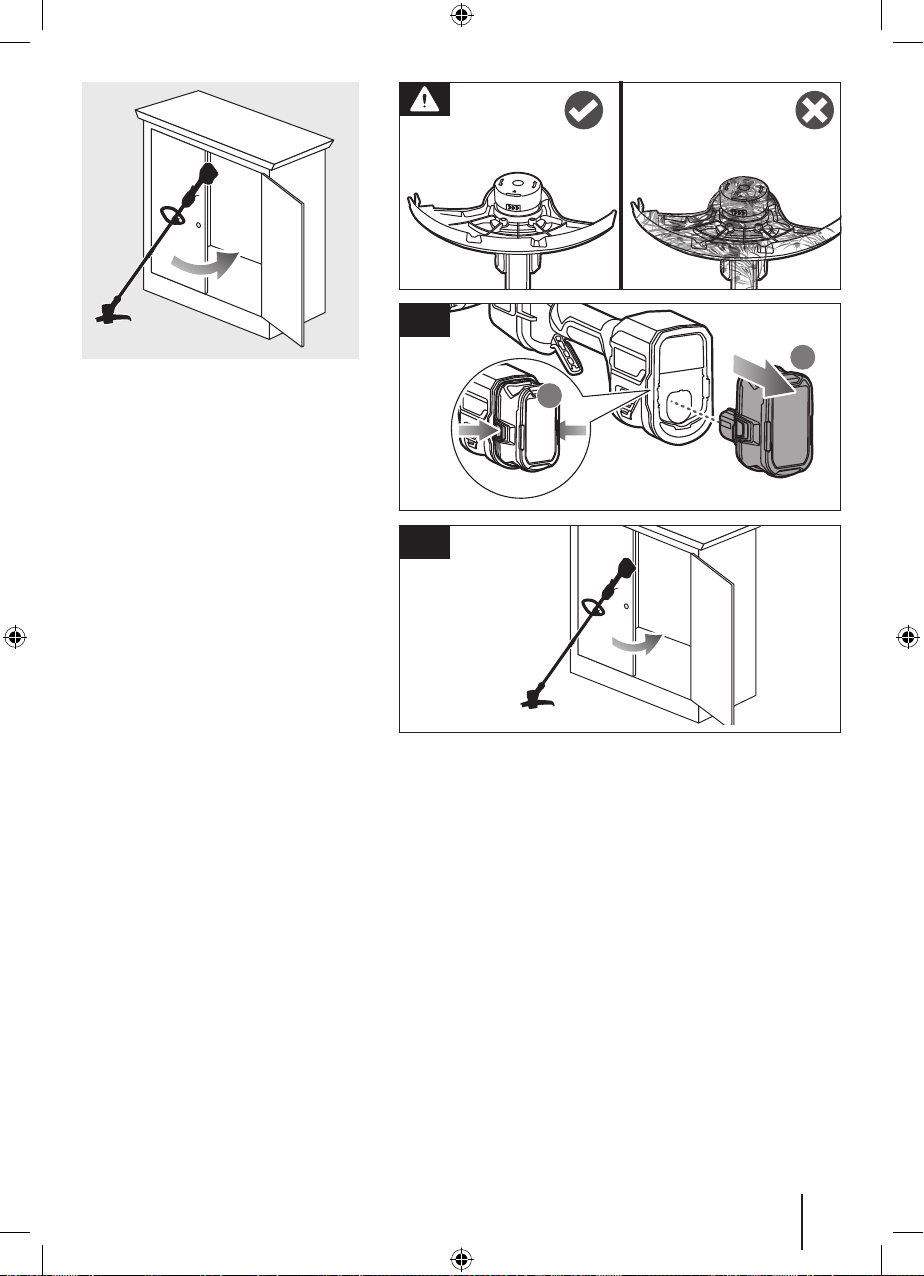

TRANSPORTATION AND STORAGE
■Turn off the product, remove the battery pack, and allow
both to cool down before storing or transporting.
■Remove all foreign materials from the product.
■Do not store or transport the product with the battery
pack fitted. Remove the battery pack, and secure it
separately. Store the product in a cool, dry, and well-
ventilated place that is inaccessible to children. Keep
the product away from corrosive agents, such as garden
chemicals and de-icing salts. Do not store the product
outdoors.
■For transportation in vehicles, secure the product
against movement or falling to prevent injury to persons
or damage to the product.
TRANSPORTING LITHIUM BATTERIES
■Transport the battery pack in accordance with local and
national provisions and regulations.
■Follow all special requirements on packaging and
labelling when transporting batteries by a third party.
Ensure that no batteries can come in contact with other
batteries or conductive materials while in transport
by protecting exposed connectors with insulating,
nonconductive caps or tape. Do not transport batteries
that are cracked or leaking. Check with the forwarding
company for further advice.
MAINTENANCE
■Use only original manufacturer’s replacement parts,
accessories, and attachments. Failure to do so can cause
possible injury, can contribute to poor performance, and
may void your warranty.
■Servicing requires extreme care and knowledge
and should be performed only by a qualified service
technician. Have the product serviced by an authorised
service centre only.
■Turn off the product and remove the battery back before
conducting any maintenance or cleaning work.
■You may make adjustments or repairs described in this
manual. For other repairs, contact an authorised service
centre.
■For the replacement line, use only a nylon filament line
of the diameter described in the specifications table of
this manual.
■After each use, clean the product with a soft, dry cloth.
Any part that is damaged should be properly repaired or
replaced by an authorised service centre.
■Check all nuts, bolts, and screws before each use and
at frequent intervals for proper tightness to ensure that
the product is in safe working condition. Any part that is
damaged should be properly repaired or replaced by an
authorised service centre.
■Bring the product to an authorised service centre to
replace damaged or unreadable labels.
■Injuries may be caused, or aggravated, by prolonged
use of a tool. When using any tool for prolonged periods,
ensure that you take regular breaks.

4
Original Instructions
SYMBOLS ON THE PRODUCT
Read and understand all the instructions
before operating the product. Follow all
the warnings and safety instructions.
Wear eye protection.
Wear ear protection.
Wear non-slip safety footwear when
using the product.
Wear non-slip, heavy-duty protective
gloves.
Do not use metal blades on the product.
Do not expose the product to rain or
damp condition.
Regulatory Compliance Mark (RCM).
The product meets applicable regulatory
requirements.
Do not operate the product if the safety
guard is not installed.
Beware of thrown or ying objects.
Keep all bystanders, especially children
and pets, at least 15 m away from the
operating area.
Keep hands away from the cut-o󰀨 blade.
99
Guaranteed sound power level
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or retailer
for recycling advice.
SYMBOLS IN THIS MANUAL
Parts or accessories sold separately
Note
Warning

5

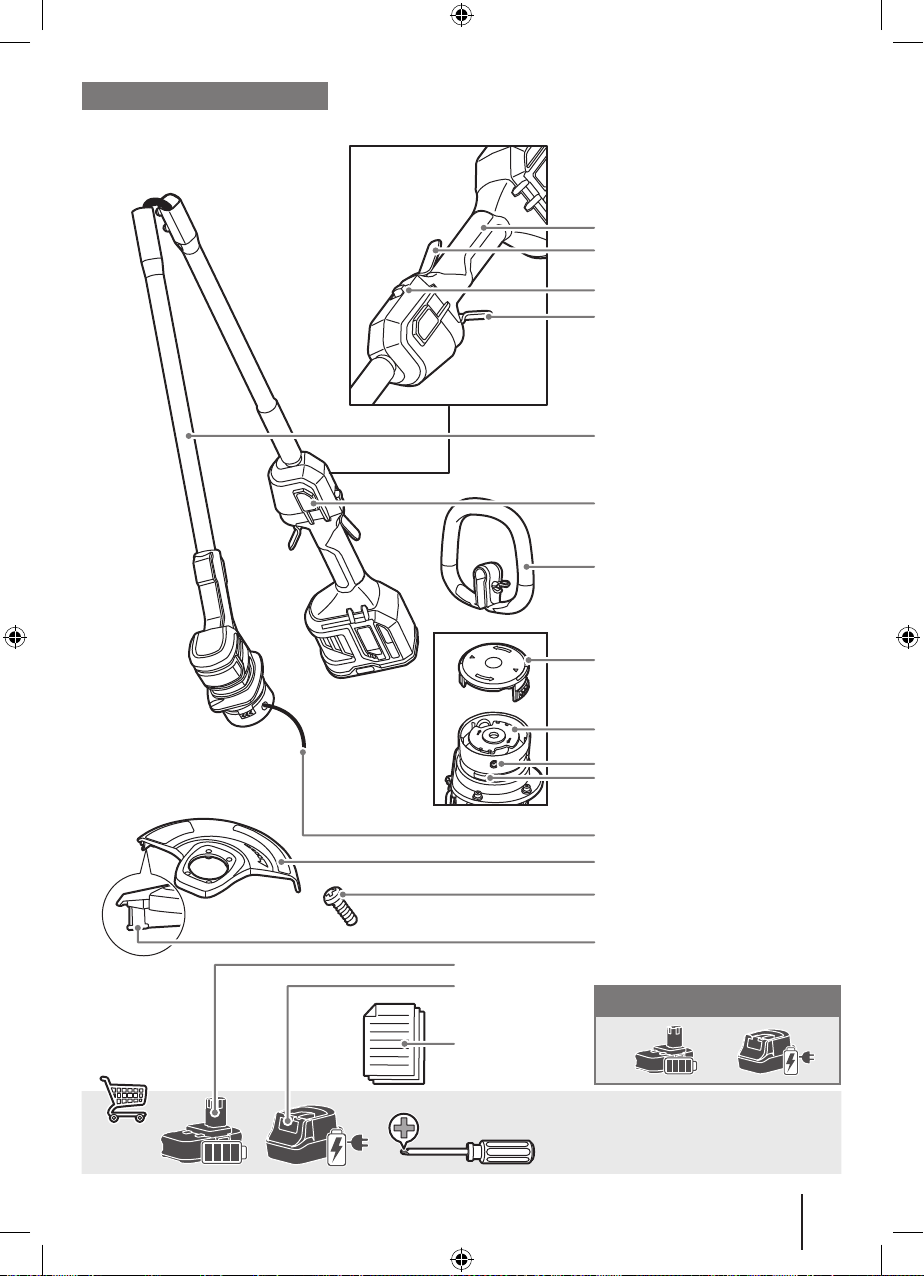

Know your product
Safety guard
Rear handle
Lock-out trigger
Speed selector
Variable speed trigger
Lower shaft
Edging button
Front handle
Spool cover
Spool
Eyelet
Line release button
Cutting line
Cutting blade
Screws
Battery pack
Charger
Operator's manual
R18XLTR20
x 4
R18XLTR24

6
Getting started
x 4
3
12
2
1
3
1
2
1
3
2
2
1
1
4
7
2
5
8
6
4
7
3

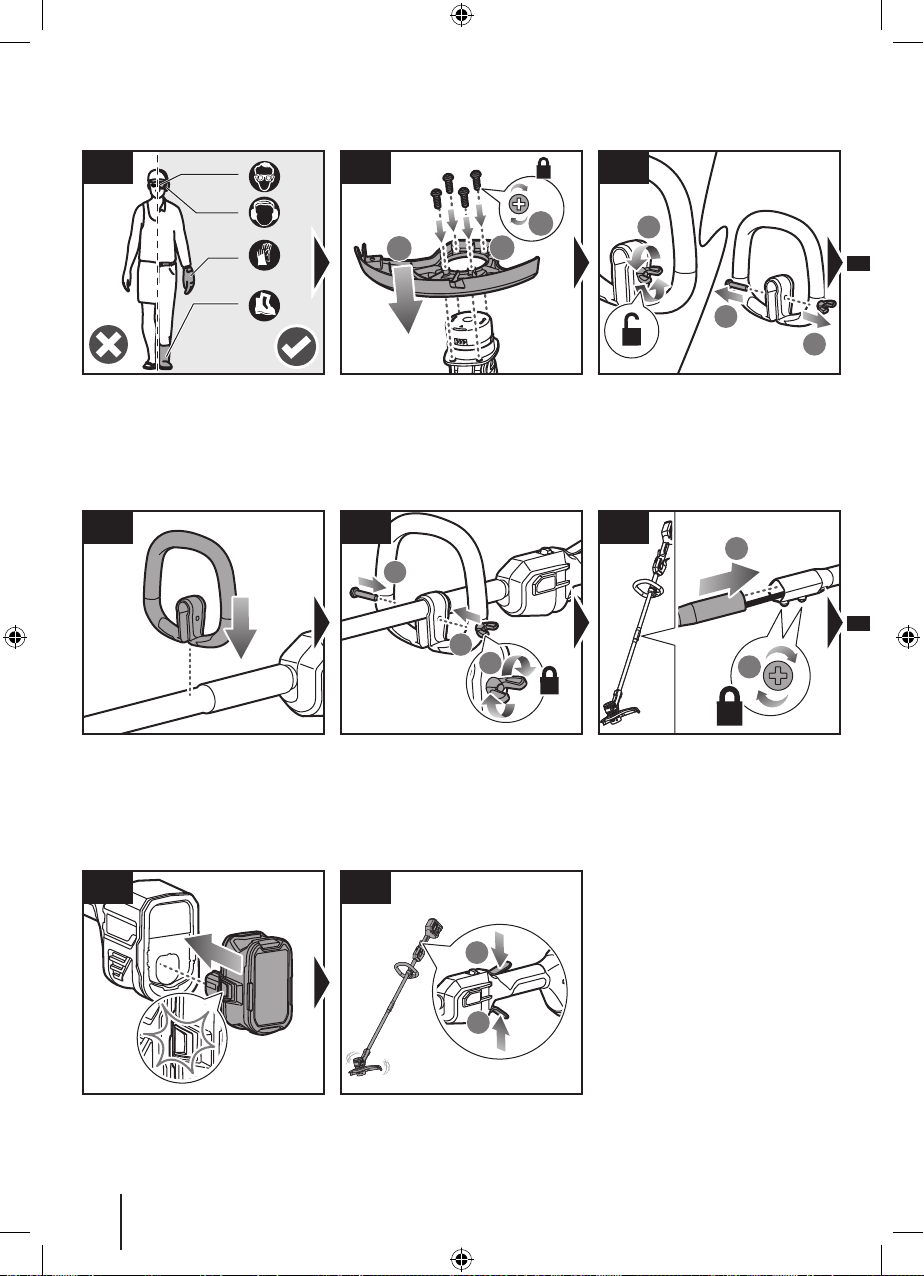

Always wear safety goggles or safety
glasses with side shields when
operating the product. Wear non-slip,
heavy-duty protective gloves. Wear
non-skid, protective footwear that will
protect your feet and improve your
footing on slippery surfaces.
Attach the front handle on the upper
shaft at a comfortable position.
Secure the front handle using the clamp
and wing nut. Tighten the wing nut.
Push the upper shaft into the lower shaft
and tighten the screws in clockwise
direction
Install the safety guard to the trimmer
head. Secure the safety guard into
place with screws.
Turn the wing nut counter clockwise to
release the screw and the clamp from
the front handle.
Insert the battery pack until the battery
latch button clicks into place.
Hold the lock-out trigger, and squeeze
the variable speed trigger to operate
the product.

7
4
7

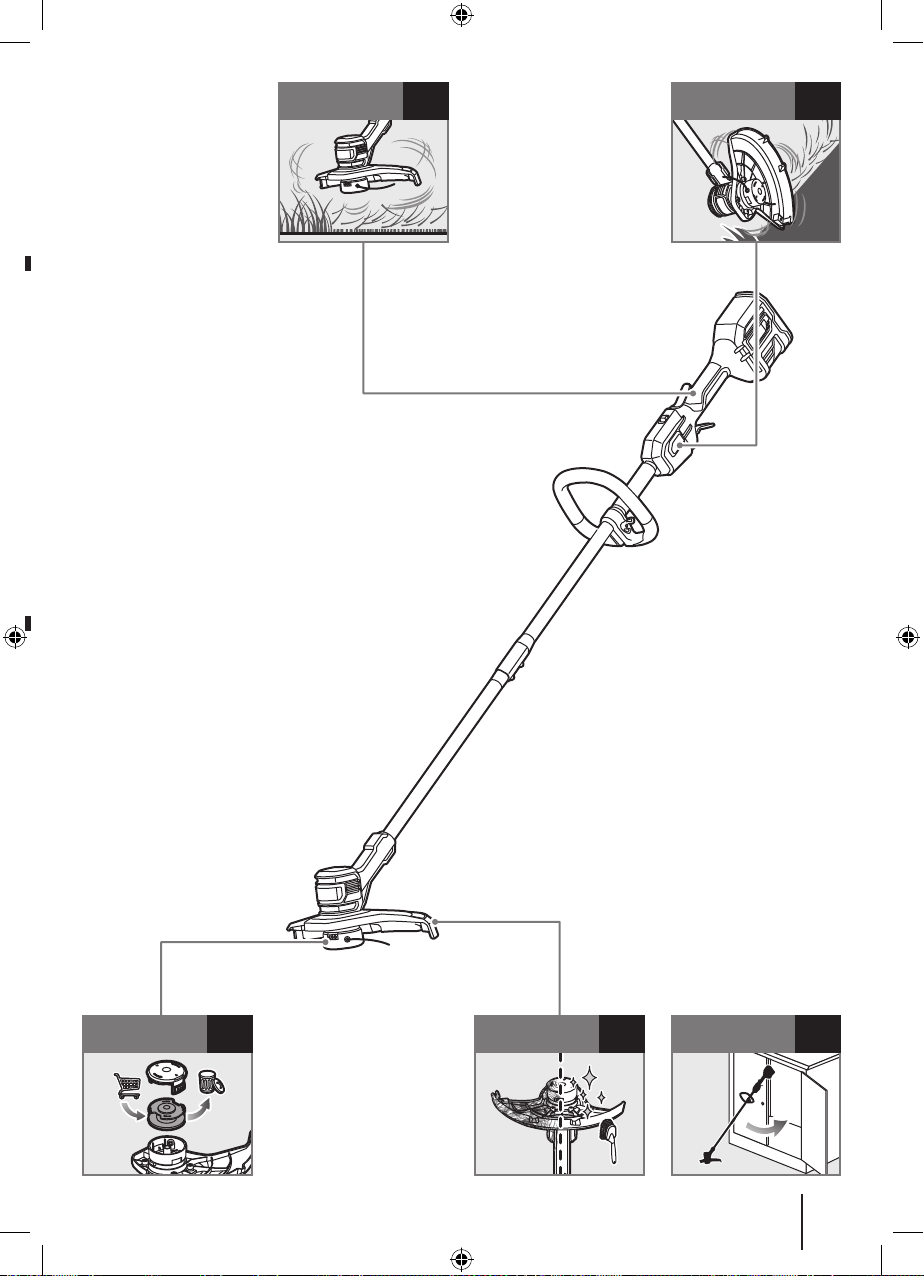

p.13
p.8 p.10
p.12p.11
Operating the
trimmer
Operating the
edger
Replacing the
spool
Cleaning the
product Storing the product

8
Operation
1

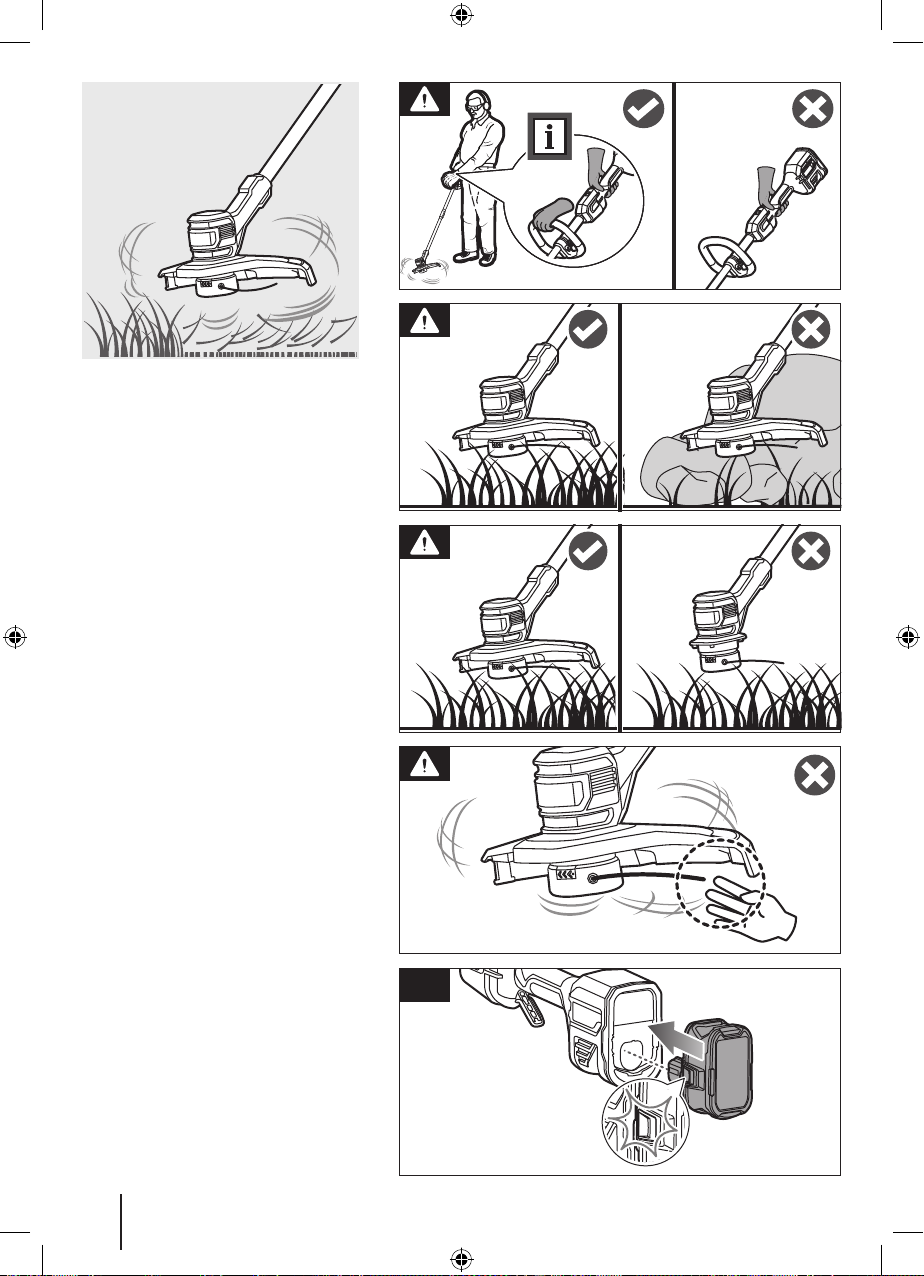

OPERATING THE TRIMMER
WARNING: Always use two hands to
operate the product. Hold the product with
the right hand on the rear handle and the left
hand on the front handle.
WARNING: Beware of objects thrown by
the cutting means. Remove debris like small
stones, gravel, and other foreign objects
from the work area before starting operation.
Wires or string may become entangled with
the cutting means.
WARNING: Do not operate the product if the
safety guard is not installed.
WARNING: Exercise extreme caution when
using the product. Keep hands and feet away
from the cutting means.
1. Insert the battery pack until the battery
latch button clicks into place.

9
Operation
12
3
1
2
3
1
2
3
2
2. Hold the lock-out trigger, and squeeze
the variable speed trigger to operate the
product. Use the speed selector to adjust
the speed from low to high.
NOTE: Holding and releasing both the lock-
out trigger and the variable speed trigger
automatically releases a quarter inch of line.
NOTE: The cutting blade tted to the safety
guard is designed to trim the new extended
line.
NOTE: Cut tall grass from the top down. This
prevents grass from wrapping around the
shaft housing and bump head, which may
cause damage from overheating.
NOTE: Cut grass from the right side to the
left side for cutting ease and safety.

10
Operation
1
2
1
2
1
2
1
180°
2
3
4
5

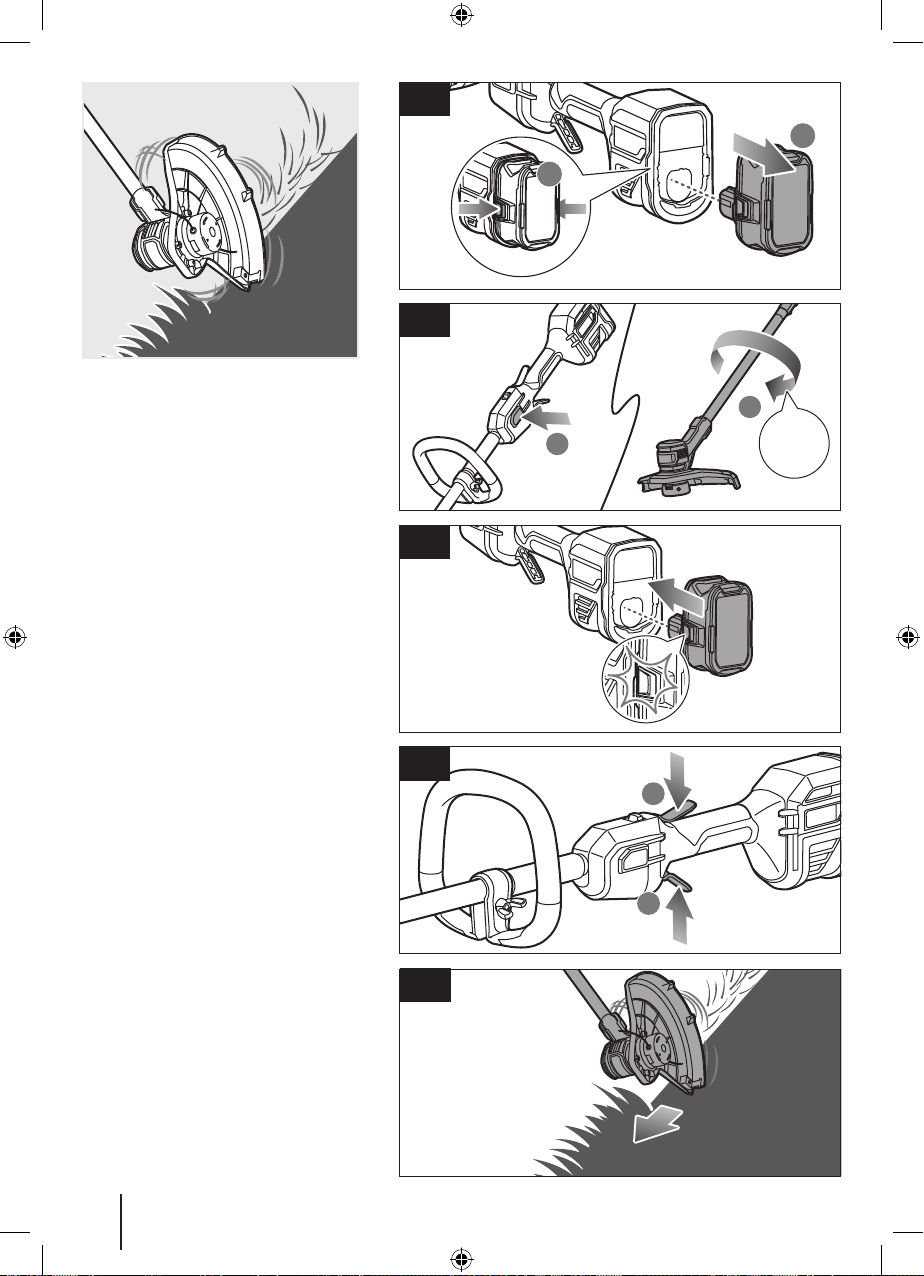

OPERATING THE EDGER
1. Remove the battery pack.
2. Push the edging button. Rotate the lower
shaft counterclockwise 180° to the edger
position
3. Insert the battery pack until the battery
latch button clicks into place.
4. Hold the lock-out trigger, and squeeze
the variable speed trigger to operate the
product.
5. Use the edger along sidewalks,
driveways, flower beds, curbs, and
similar areas.

11
Maintenance
1
2
1
1
2
2
3
1
23
4
4
5
REPLACING THE SPOOL
1. Remove the battery pack.
2. Push the slider on the side of the spool
retainer, and remove the spool cover.
3. Remove the spool.
4. Thread the line of the new spool through
the eyelet. Install the new spool with the
line and slot aligned with the eyelet in the
string head. Push the slider, and pull the
line extending from the string head.
5. Install the spool cover until the spool
cover latch clicks into place.

12
Maintenance
2
1
2
1
CLEANING THE PRODUCT
1. Remove the battery pack.
2. Remove all foreign material from the
product with a soft, dry brush.
WARNING: Avoid using solvents when
cleaning plastic parts. Most plastics are
susceptible to damage from various types of
commercial solvents and may be damaged
by their use.

13
Storage
2
1
2
1
20210621v1
STORING THE PRODUCT
WARNING: Ensure that the product is clean
before storing.
1. Remove the battery pack.
2. Store the product vertically in a cool,
dry, and well-ventilated place that is
inaccessible to children and away from
sources of ignition. Do not store the
product outdoors.

PRODUCT SPECIFICATIONS
Cordless line trimmer
Model R18XLTR24 /
R18XLTR20
Weight 2.5 kg
Voltage 18 V d.c.
No-load speed 6,000 or 7,500/min
Cutting line diameter 2.0 mm
Cutting capacity 28 or 33 cm
Vibration total values determined according to EN 50636-
2-91 Annex BB
Vibration level
Front handle ah = 1.4/ 4.0 m/s²
Rear handle ah = 1.2/ 2.5 m/s²
Uncertainty K = 1.5 m/s²
Noise emission values determined according to EN
50636-2-91 Annex CC
A-weighted sound pressure
level at operator’s position LpA = 82.3 dB(A)
Uncertainty K= 3.0 dB
A-weighted sound power level LWA = 95.8 dB(A)
Uncertainty KWA = 3.0 dB
LWA + KWA 99 dB(A)
BATTERY AND CHARGER
Model R18XLTR24 R18XLTR20
Battery pack RB1840C
-
Weight 0.46 kg
-
Charger RC18115
-
Compatible
battery packs
RB18L13, RB18L13Z, RB18L15,
RB18L15A, RB18L15B, RB1815C,
RB18L20, RB18L20A, RB1820C,
RB18L25, RB18L25A, RB18L26,
RB18L30, RB18L30A, RB18L40,
RB18L40A, RB1840C, RB1840X,
RB18L50, RB18L50A, RB1850C,
RB1850X, RB18L60, RB18L60A,
RB18L90, RB18L90A
Compatible
charger
BCL14183H, RC18627U, RC18150,
RC18150U, RC18120, RC18115
REPLACEMENT PART
Complete spool RAC1211, RAC1204
WARNING! The declared vibration total values and the
declared noise emission values given in this instruction
manual have been measured in accordance with a
standardised test and may be used to compare one tool with
another. They may be used for a preliminary assessment
of exposure.
The declared vibration and noise emission values represent
the main applications of the tool. However, if the tool is used
for di󰀨erent applications, used with di󰀨erent accessories,
or poorly maintained, the vibration and noise emission
may di󰀨er. These conditions may signicantly increase the
exposure levels over the total working period. An estimation
of the level of exposure to vibration and noise should take
into account the times when the tool is turned o󰀨 or when it
is running idle. These conditions may signicantly reduce
the exposure level over the total working period.
Identify additional safety measures to protect the operator
from the e󰀨ects of vibration and noise, such as maintaining
the tool and the accessories, keeping the hands warm (in
case of vibration), and organising work patterns.

Imported by:
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
RYOBI is a trade mark of Ryobi Limited, and is used under license.
© 2021 Techtronic Cordless GP.
961068247-01
