S.M.S.L SU-1 User manual

http://smsl-audio.com/
使用说明书
SU-1
本说明书的内容可能会随版本更改,如有变动,恕不另行通知 Ver 1.0

SU-1
请将设备安装在通风良好、阴凉、干燥、干净的位置，远离直射阳光热源、振动、
灰尘、 潮湿或寒冷。
只能使用本机指定的电压。使用高于指定数值的电压很危险，而且可能导致火
灾，损坏本机或造成人身伤害。对于使用高于指定电压造成的任何损害，我司
将不负任何责任。
不要试图自行改造或修理本机。如果需要任何服务，请与销售或者我司客服人
员联系。不管有任何理由，都没有打开机壳的必要。
如果打算长时间不使用本机（比如度假时），请从墙壁交流电源插座上断开电
源线的连接。
一、服务期限
佛山双木三林科技有限公司承诺产品的良好品质，产品自售出之后7天内
正常使用情况下出现故障，客户可以选择退货或者保修（不影响二次销售
才可退货）。正常使用一年内出现故障可以免费保修。
二、购买日期以销售商开出的购机发票或收据日期为准，网购可以交易截图为准。
三、有以下情况都不能享受“三包”服务
1.一切人为因素损坏，包括非正常工作环境下使用或不按照说明书使用。
2.用户私自拆机、改装、维修。
3.使用非指定或许可的配件造成损坏的。
4.机身的QC或保修贴损毁。
5.不能出示有效购机凭证。
6.不属于本公司产品。
四、保修方式为送修
此条款只适于中国大陆，其它地区请参考当地销售代理商的规定和国家法规。
重要提示：
本说明书所提到的产品规格和资讯仅供参考。如有内容更新，恕不另行通知。
技术参数
保修条款

产品特点
SU-1
全接口支持MQA,支持MQA-CD;
超小型设计，并且支持多种放置方式；
采用最新XMOS XU-316方案支持到32位768kHz和DSD512；
采用最新CK-03时钟系统，大幅降低系统JITTER；
采用一片AKM新款AK4493S，并且精心调校使其达到了前所未有
的0.00013%；
内置高性能电源过滤系统, 使其仅使用USB接口供电就可以达到
最佳性能!
阳极氧化CNC铝合金外壳；
日本电子音频协会Hi-Res认证。
USB:
同轴：
光纤：
渲染Renderer + MQA + MQA Studio
MQA 规格表

技术参数
SU-1
规格时有变更，恕不另行通知。
输入接口 ...........................................................................USB、光纤、同轴
输出电平.............................................................................................2.0Vrms
THD+N...........................................................................0.00013%（-117dB)
动态范围................................................................................................121dB
信噪比....................................................................................................121dB
USB传输方式....................................................................................异步传输
USB兼容性.....................................................Windows 7 / 8 / 8.1 / 10 / 11
Mac OS X10.6以上 、Linux
位深
USB....................................................................................1bit ~ 32bit
光纤/同轴........................................................................ 16bit ~ 24bit
采样率
USB................................................PCM 44.1kHz~768kHz
DSD 2.8224~22.5792MHz
光纤/同轴.................................................................44.1kHz~192kHz
MQA......................................................................................................384kHz
消耗功率....................................................................................................<5W
待机功耗..........................................................................................<0.1W
体积.........................................................................96 x 27 x 78mm (WxHxD)
重量............................................................................................195g/0.43lbs

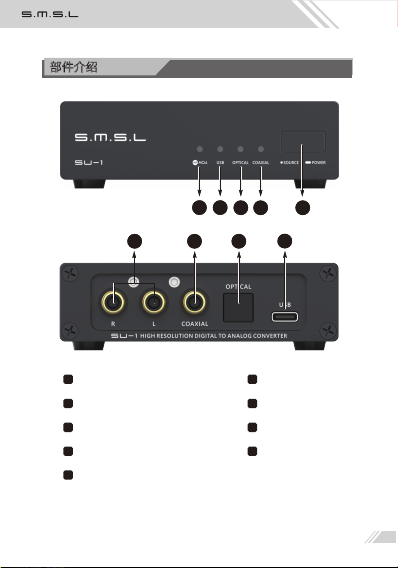

部件介绍
SU-1
6 7 89
2 13
45
按键
同轴输入灯
光纤输入灯
USB输入灯
MQA指示灯
单端线路输出
同轴输入
光纤输入
USB输入
5
6
7
1
2
3
4
8
9
6 7 89
2 13
45

按键
长按关闭电源，短按打开电源。
短按切换输入源，输入会在“USB，光纤，同轴”之间切换。
绿色： 表示正在播放MQA格式的流媒体或文件
蓝色： 表示正在播放MQA Studio文件
洋红色： 传输最终展开的MQA文件并显示原始采样率
MQA指示灯颜色说明
SU-1
功能介绍
播放MQA-CD注意事项
必须确认所播放的是一张真正的MQA-CD；
确认CD播放器输出的光纤或同轴信号是未经处理的源码。

SU-1
关于MQA
MQA文件播放
MQA（Master Quality Authenticated）是一项屡获殊荣的英国技术，
是一种兼有极高的采样率和足够小的文件体积的高解析音频编码技
术。 此机采用MQA技术，可以接收并解码MQA音频，提供母带级别的
声音。
有关更多信息，请访问https://www.mqa.co.uk/how-it-works
此机的MQA播放不要求使用特殊的播放软件，例如foobar2000，
Audirvanaplus只要 支持ASIO或者WASAPI的音频输出就可以了
，并且在播放MQA音频时，最好将电脑的音量调到最大，以使得电
脑的音频输出是最佳状态。
在播放MQA文件时， 显示屏显示的采样率为音频原始采样率。
和声波标志是MQA Limited的注册商标。©2016

http://smsl-audio.com/
USER MANUAL
SU-1
The contents of this manual may be changed with the edition, and are subject to change
without notice! Ver 1.0

SU-1
Install this unit in a well ventilated, cool, dry, clean place-away from direct sunlight, heat
sources, vibration, dust, moisture, or cold..
Use the voltage specified on this unit Only. Using this unit with a higher voltage than
specified is dangerous and may cause fire , damage to this unit, or personal injury. Our
company will not be held responsible for any damage resulting from the use of this unit with
a voltage other than that specified.
Do not attempt to modify or fix this unit by yourself. Contact alesperson or customer service
when any service is needed. The cabinet should never be opened for any reason.
When not planning to use this unit for long periods of time (i.e. when going on vacation),
disconnect the power cable from the AC wall outlet.
Important note:
The product specifications and information mentioned in this manual are for reference
only. The content of this manual is subject to change without notice.
Warranty Terms
1.The term of service Foshan Shuangmusanlin Technology Co., Ltd. promises good quality
products. If the product is defective by normal use within 7 days after purchasing, the customer
can chose to send it back for returning or repairing (only the product does not affect the
secondary sales can be returned ). Faulty for free within one year warranty normal use.
2.Date of purchase is in accordance with the date on invoice or receipt uesd by seller, on line
shopping can show the screenshot of trade.
3.Following situation can not enjoy“Three Guarantees service”
a.All damages by human factors,including use it under non-normal working environment the
and not follow manual in structions.
b.User privately disassemble, modification, maintenance.
c.Use non-designated or approved accessories cause damage.
d.QC or warranty stickers damage on cabinet.
e.Can not provide a valid purchasing prove.
f. Not belong to SMSL product.
4.How to guarantee These terms only suitable for China mainland, other region pleaserefer to
the policy of the local sales agents and nations.
Safety Notes
Warranty Terms

SU-1
Features
All interfaces support MQA,Supports MQA-CD ;
Ultra-tiny shape design and supports a variety of placement
ways ;
The latest XMOS XU-316 solution supports sampling rate up to
32bit/768KHz and DSD512 ;
The new self-developed CK-03 clock processing circuit greatly
reduces clock jitter ;
One pieces of AKM's new AK4493S chip, and carefully adjusted
it to an unprecedented 0.00013% ;
Built-in high-performance power filtering system, so that it can
achieve the best performance using only one USB interface for
power supply !
Anodized CNC aluminum alloy housing ;
Japan Electronics Association Hi-Res Audio certification .
USB ：
Coaxial：
Optical：
Renderer + MQA + MQA Studio
MQA SPEC TABLE

SU-1
Specifications are subject to change without notice.
Specification
Input ..........................................................................USB / Optical / Coaxial
Output Level.......................................................................................2.0Vrms
THD+N ..............................................................................0.00013%(-117dB)
Dynamic range ......................................................................................121dB
SNR ...........................................................................................................121dB
USB compatibility ...........................................Windows 7 / 8 / 8.1 / 10 / 11
Mac OS X10.6 or Later / Linux
Bit depth
USB.................................................................................1bit ~ 32bit
Optical/coaxial .........................................................16bit ~ 24bit
Sampling rate
USB .................... PCM 44.1 ~ 768kHz
DSD 2.28224 ~ 22.5792MHz
Optical/coaxial ................................................44.1kHz ~ 192kHz
MQA .....................................................................................384kHz
Power Consumption ............................................................................＜5W
Standby power ...................................................................................＜0.1W
Size ...........................................................................96x27x78mm (WxHxD)
Weight ........................................................................................195g/0.43lbs

SU-1
Display Interface and Instructions
Botton
Coaxial input light
Optical input light
USB input light
MQA Indicator light
RCA output
Coaxial input
Optical input
USB Input
5
6
7
1
2
3
4
8
9
6 7 89
2 13
45

Botton
Hold the key to switch power OFF,press the key to switch
power ON.
Press the key to switch INPUTS between “USB, COAXIAL,
OPTICAL”
Green: It means streaming or files in MQA format
Blue: It means playing MQA Studio file
Magenta: Delivering the final unfold of the MQA file and
displays the original sample rate.
MQA INDICATOR LIGHT COLOR INTRODUCTION
SU-1
Instructions for use
Tips for playing MQA-CD
Please confirm that what you’re playing is a real MQA-CD.
Please confirm that the Optical or coaxial signal output by
CD player is unprocessed source code.

SU-1
About MQA
MQA files playback
MQA (Master Quality Authenticated) is an award-winning British
technology that delivers the sound of the original master recording. The
master MQA file is fully authenticated and is small enough to stream or
download. The machine includes MQA technology, which enables you to
playback MQA audio files and streams, delivering the sound of the original
master recording.
Visit How it works https://www.mqa.co.uk/how-it-works for more
information.
SU-1's MQA playback does not require additional software. You can
use foobar2000 or Audirvana for MQA playback as it supports ASIO
or WASAPI audio output. When playing MQA audio, it is suggested to
adjust the volume of the computer to the maximum for the best audio
output.
The SU-1 LED next to MQA logo glows green or blue to indicate that
the unit is decoding and playing an MQA stream or file, and denotes
provenance to ensure that the sound is identical to that of the source
material. It glows blue to indicate it is playing an MQA Studio file,
which has either been approved in the studio by the artist/producer
or has been verified by the copyright owner.
When playing an MQA file, the sampling rate of the original master
recording is displayed.
and the Sound Wave Device are registered trade marks of
MQA Limited.© 2016
