Saba FL914L21W User manual

TABLE OF CONTENTS
Thank you for choosing SABA quality.This product has been developed by our
team of professional and according to European regulations. In order to get the
most out of your new appliance, we recommend that you read this instruction
manual carefully and keep it for future reference.
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
OPERATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
MAINTENANCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
DISPOSAL OF OLD ELECTRICAL APPLIANCES . . . . . . . . . . . . . . . . . . . 95
GB

SAFETY INSTRUCTIONS
• Safety Instructions
For your safety, the information in this manual must be followed
to minimize the risk of re or explosion, electric shock, or
to prevent property damage, personal injury or loss of life.
Explanation of the symbols:
Warning!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in death or
serious injuries unless it’s avoided.
Caution!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight or
minor injuries or damage to property and the environment.
Note!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight or
minor injuries.
• This appliance is intended to be used in household and similar
applications such as:
– sta kitchen areas in shops, oces and other working
environments;
– farm houses;
– by clients in hotels, motels and other residential type
environments;
52
GB

– bed and breakfast type environments.
– Areas for communal use in blocks of ats or in launderettes.
• This appliance is designed to wash 9.0 /10.0 /12.0 kg of dry
laundry
Warning!
The electric shock!
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
• The new hose-sets supplied with the appliance are to be used
and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the appliance from
the mains.
• Always unplug the machine and turn o the water supply after
use.The max. inlet water pressure, in 1 mPa. The min. inlet
water pressure, 0.05 mPa.
• To ensure your safety, power plug must be inserted into an
earthed three-pole socket. Check carefully and make sure that
your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be
connected by a qualied technician in accordance with the
manufacturer’s instructions and local safety regulations.
• Pull out its plug from the power socket before cleaning or
maintenance.
53
GB

• Do not use any socket with rated current less than that of
appliance. Never pull out power plug with wet hand.
• Please remember to disconnect water and power supply
immediately after the clothes are washed.
Risk to children!
• EN countries: the appliance can be used by children aged from
8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
• Children of less than 3 years should be supervised to ensure
that they do not play with appliance.
• Animals and children may climb into the machine. Check the
machine before every operation.
• Kids should be supervised that they do not play with the
appliance.
SAFETY INSTRUCTIONS
• Glass door may be very hot during the operation. Keep kids
and pets far away from the machine during the operation very
wet rooms as well as in the rooms with explosive or caustic
gas.
• Remove all packages and transport bolts before using the
appliance. Otherwise, serious damage may result.
54
GB

Risk of explosion!
• Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances (such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.)This may result in re or
explosion.
• The washer dryer is not to be used if industrial chemicals have
been used for cleaning.
• The exhaust air must not be discharged into a ue which is for
exhausting fumes from appliances burning gas or other fuels.
• Beforehand thoroughly rinse items of washing by hand.
Caution!
Installing the product!
• This appliance is for indoor use only.
• It isn’t intended to be built-in using.
• The openings must not be obstructed by a carpet.
• The appliance shall not be installed in bathroom or very wet
rooms as well as in the rooms with explosive or caustic gases.
• The appliance with single inlet valve only can be connected to
the cold water supply. The appliance with double inlet valves
should be correctly connected to the hot water and cold water
supply.
• Plug must be accessible after installation.
• The appliance must not be installed behind a lockable door,
asliding door or a door with a hinge on the opposite side to
that of the washer dryer.
55
GB

• The appliance shall not be installed at a humid place.
• Remove all packages and transport bolts before using the
appliance. Otherwise, serious damage may result.
Risk of damaging appliance!
• The product is only for home use and is only designed for the
textiles suitable for machine washing and drying.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1. Transport bolts shall be reinstalled to the machine by a
specialized person.
2. The accumulated water shall be drained out of the machine.
3. Handle the machine carefully. Never hold each protruded part on
the machine while lifting. Machine door cannot be used as the
handle during the conveyance.
4. This appliance is heavy.Transport with care.
5. That the hands shall not be inserted into running water
extracting tub.
• Please do not close the door with excessive forces. If it is found
dicult to close the door, please check if the clothes are put in
or distributed well.
• It is forbidden to wash carpets.
Operating the appliance!
• Before using the wash machine, the product shall be
calibrated.
56
GB

• Before washing the clothes at rst time, the product shall be
operated in one round of the whole procedures without the
clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc. shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid items
such as coin, brooch, nail, screw or stone etc. may cause
serious damages to this machine.
• Please check whether the water inside the drum has been
drained before opening its door. Please do not open the door if
there is any water visible.
• Be careful of burning when the product drains hot washing
water.
• After the program is completed, please wait for two minutes
to open the door.
• Never rell the water by hand during washing.
• If it is unavoidable that fabrics that contain vegetable or
cooking oil or have been contaminated by hair care products, it
be placed in a tumble dryer they should rst be washed in hot
water with extra detergent, this will reduce, but not eliminate,
the hazard.
• Adequate ventilation has to be provided to avoid the back ow
of gases into the room from appliances burning other fuels,
including open res.
57
GB

• Do not dry unwashed items in the appliance.
• Items that have been soiled with substances such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, waxes and wax removers should be washed in hot
with an extra amount of detergent before being dried in the
appliance.
• Items such as foam rubber (latex foam), shower caps, water-
proof textiles, rubber backed articles and clothes or pillows
tted with foam rubber pads should not be dried in the
machine.
• Fabric softeners, or similar products, should be used as
specied by the fabric softener instructions.
• The machine whose lid can be opened during water extraction,
that it takes 15s or more for complete stop of water extracting
chamber tub.
• The nal part of a washer dryer cycle occurs without heat (cool
down cycle) to ensure that the items are left at a temperature
that ensures that the items will not be damaged.
• Remove all objects from pockets such as lighters and matches
before use the appliance.
• WARNING: Never stop a washer dryer before the end of the
drying cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
58
GB

Installation
• Product Description
1
7
8
9
2
3
4
6
5
1. Top cover
2. Control panel
3. Power supply cord
4. Drum
5. Service lter
6. Drain hose
7. Water supply hose
8. Detergent dispenser
9. Door
Note!
• The product line chart is for reference only, please refer to real
product as standard.
59
GB

Accessories
Transport hole
plug
Supply hose
cold water
Supply hose hot
water (optional)
Drain hose
support
(optional)
Owner’s manual
Installation area
Warning!
• Stability is important to prevent the product
from wandering!
• Make sure that the product should not stand
on the power cord.
Before installing the machine, the location characterized
as follows shall be selected:
1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sucient ventilation
4. Room temperature is above 0°C
5. Keep far away from the heat resources such as
coal or gas.
60
GB

Unpacking the washing machine
Warning!
• Packaging material (e.g. Films, Styrofoam) can
be dangerous for children.
• There is a risk of suocation! Keep all
packaging well away from children.
1. Remove the cardboard box and Styrofoam packing.
2. Lift the washing machine and remove the base packing. Make
sure the small triangle foam is removed with the bottom one
together. If not, lay the unit down with side surface, then remove
the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Remove transport bolts
Warning!
• You must remove the transport bolts from the backside before
using the product.
• You’ll need the transport bolts again if you move the product,
so make sure you keep them in a safe place.
Please take the following steps to remove the
bolts:
1. Loosen 4 bolts with spanner and then remove
them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.
61
GB

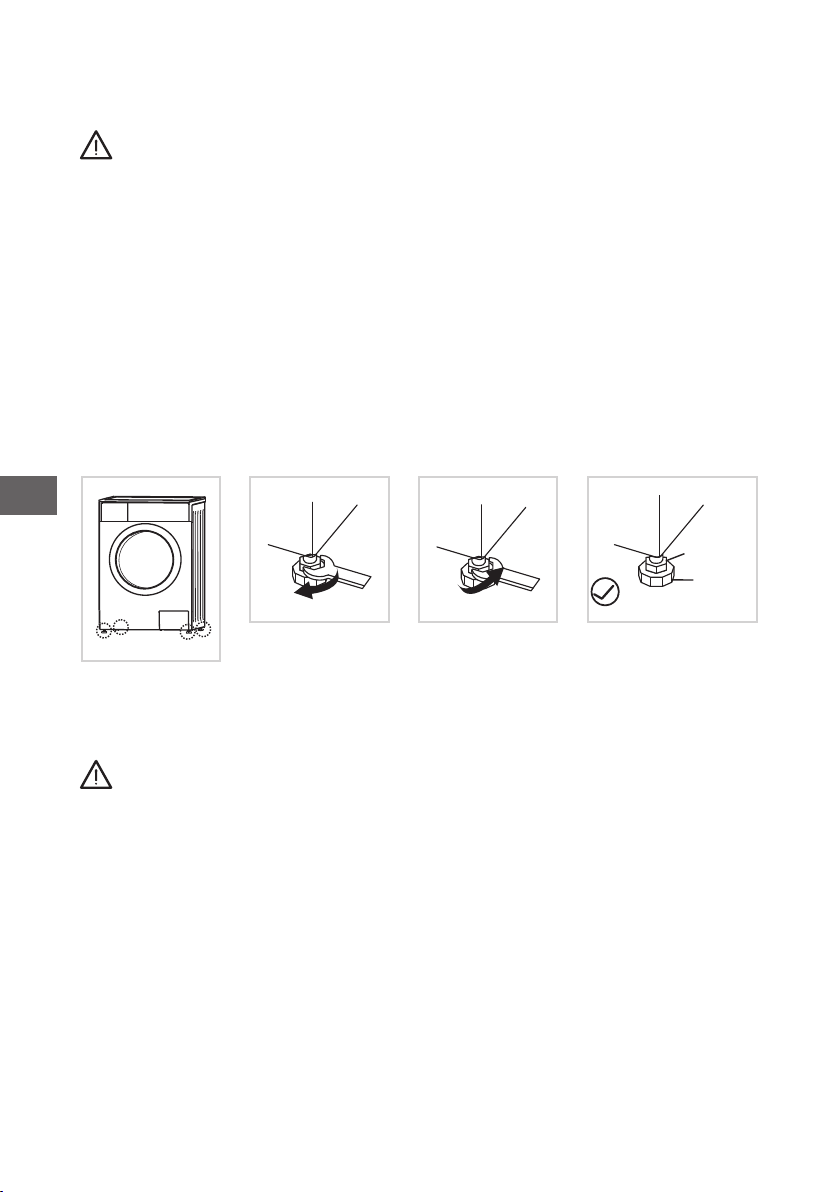

Levelling the washing machine
Warning!
• The lock nuts on all four feet must be screwed tightly against
the housing.
1. Check if the legs are closely attached to the cabinet. If not, please
turn them to their original positions tighten the nuts.
2. Loosen the lock nut turn the feet until it closely contacts with the
oor.
3. Adjust the legs and lock them with a spanner, make sure the
machine is steady.
Raise Lower foot
Lock nut
foot
Connect Water Supply Hose
Warning!
• To prevent leakage or water damage, follow the instructions in
this chapter!
• Do not kink, crush, modify or sever water inlet hose.
• For the model equips hot valve, connect it to hot water tap
with hot water supply hose. Energy consumption will decrease
automatically for some program.
62
GB

Connect the inlet pipe as indicated, there are two ways to connect
the inlet pipe.
1. Connection between ordinary tap and inlet hose.
damp nut
slide bushing
Loosen clamp nut and
four bolts
Tighten clamp nut Press slide bushing,
insert inlet hose into
connecting base
Connection nished
2. Connection between screw tap and inlet hose.
Tap with threads and inlet hose Special tap for washing machine
slide bushing
Connect the other end of inlet pipe to the inlet valve at the
backside of product and fasten the pipe tightly clockwise.
63
GB

water supply hose
water Inlet valve
Drain Hose
Warning!
• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result
of water leakage.

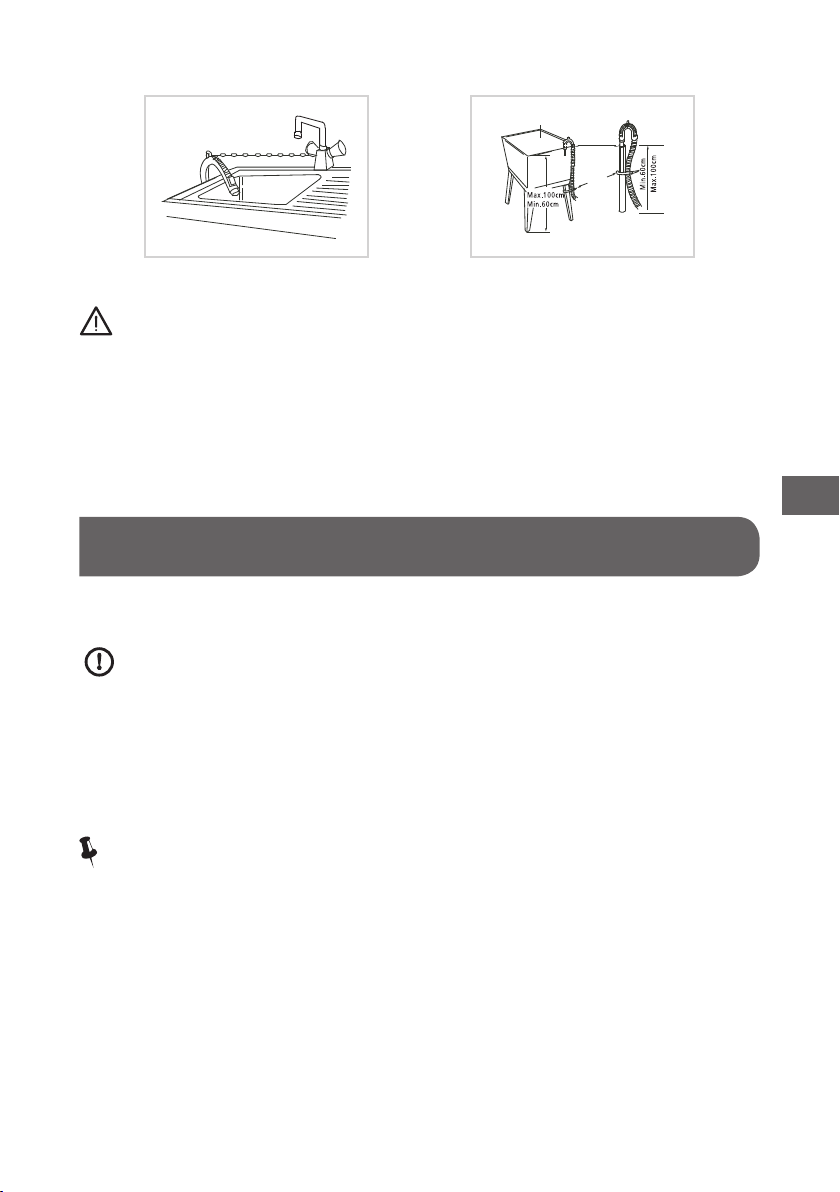

There are two ways to place the end of drain hose:
1. Put it into the water trough. 2. Connect it to the branch drainpipe of
the trough.
Note!
• If the machine has drain hose support, please install it like the
following .
water
trough
64
GB

Hose Retainer
Bind
Warning!
• When installing drain hose, x it properly with a rope.
• If drain hose is too long, do not force it into washing machine
as it will cause abnormal noises.
Operations
Quick Start
Caution!
• Before washing, please make sure it’s installed properly.
• Before washing at rst time, the washing machine shall
be operated in one round of the whole procedures without
clothes in as follows.
Calibration
It is recommended to calibrate the wash machine so that can
serve you better.
1. Empty the wash machine;
2. Plug in;
65
GB

3. Power on the wash machine and press «Delay» and «Spin» at the
same time within 10 seconds then display « t19 »
4. Press to start the wash machine and wait till display «****»

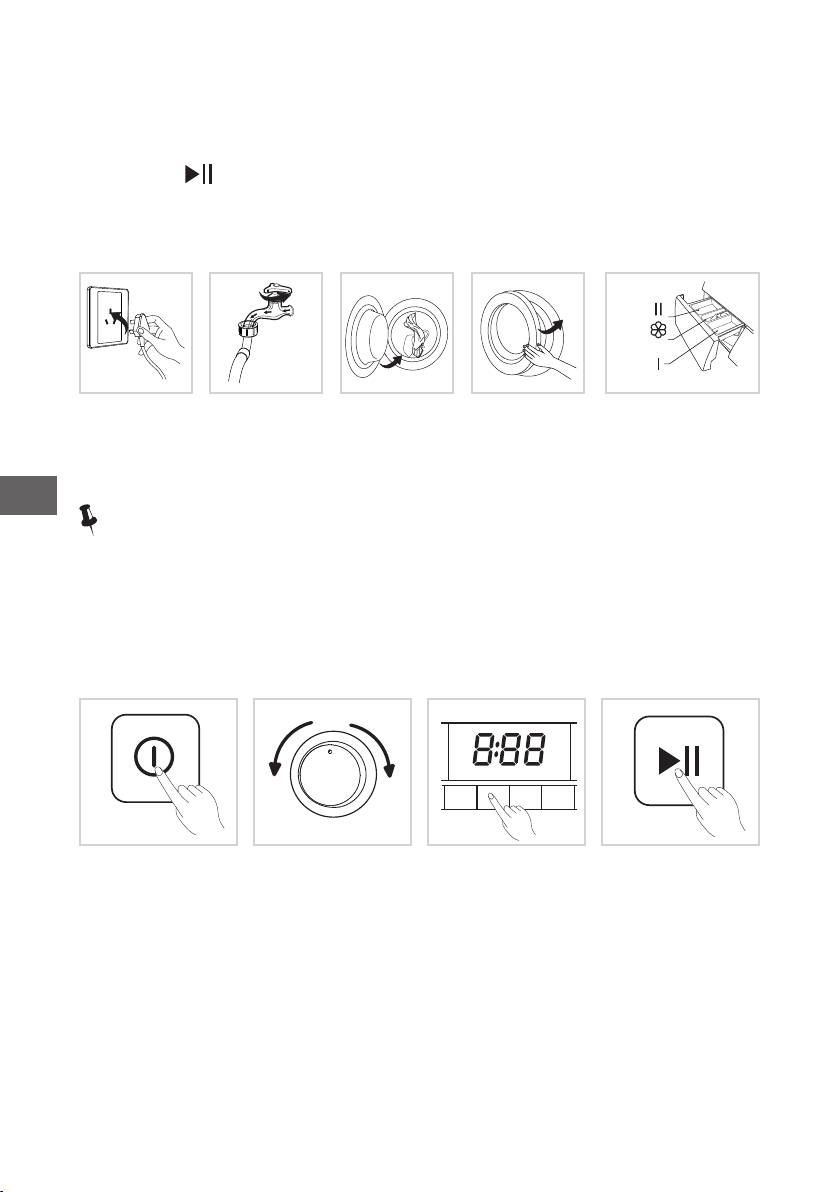

1. Before Washing
Prewash
Main
wash
Softener
Plug in Open tap Load Close door Add detergent
Note!
• Detergent need to be added in «case I» after selecting pre-
washing for machines with this function.
2. Before Washing
Power On Select Programme Select function or
default
Start up
66
GB

Note!
1. If default is selected, step 3 can be skipped.
2. The function button line chart is for reference only, please refer
to real product as standard.
3. After Washing
Buzzer beep or «End» on display.
Before Each Washing
• The working condition of the washer should be (0-40)°C. lf
it is used under 0°C,the inlet valve and draining system may
be damaged. If the machine is placed under condition of
0°Cor less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose
are not frozen before use.
• Please check the labels and the explanation of using detergent
before wash. Use non-foaming or less-foaming detergent
suitable for machine washing properly.
67
GB

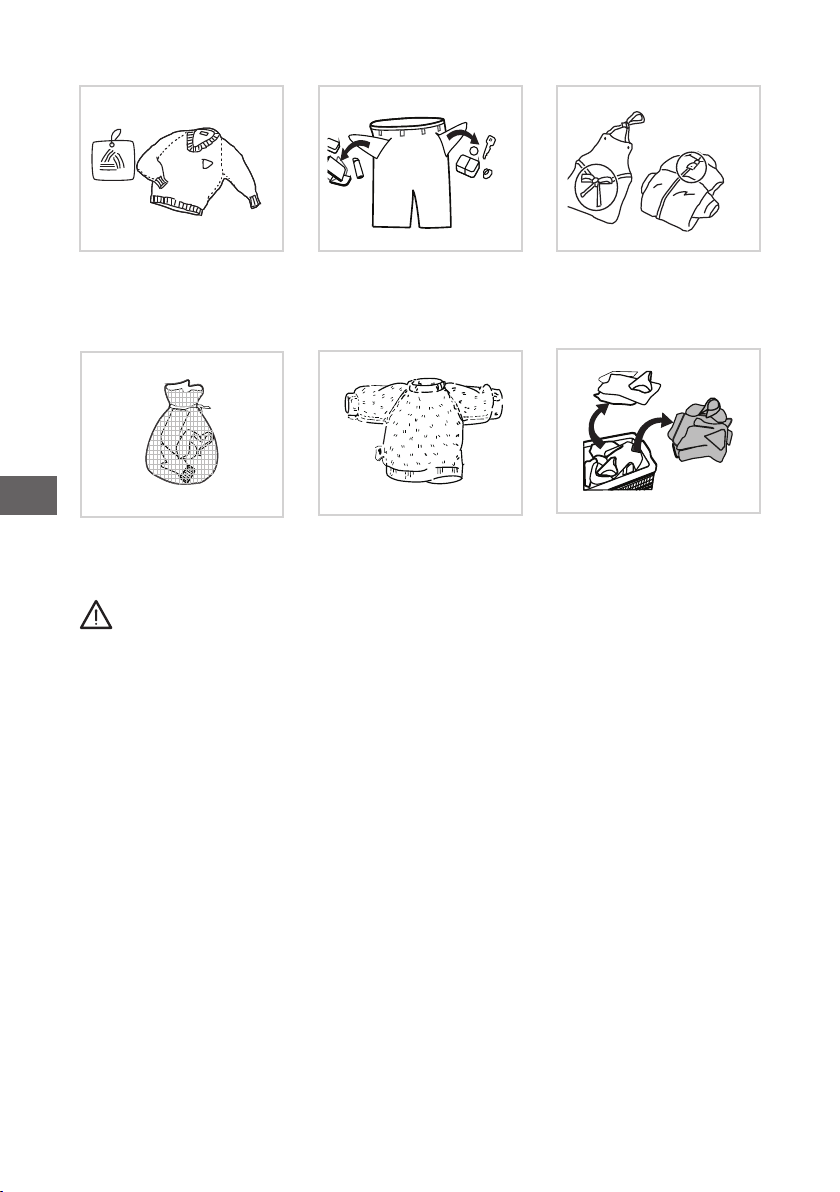

Check the label
Put small clothes into the
pillowslip
Take out the items out of the
pockets
Turn easy-pilling and long-
pile fabric inside out
Knot the long strips.zip or
button
Separate clothes with
dierent textures
Warning!
• When washing a single piece of clothes, it may easily cause
great eccentricity and give alarm due to great unbalance.
Therefore it is suggested to add one or two more clothes to be
washed together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline,
alcohol and other ammable materials.
68
GB

Detergent Dispenser
Pre-Wash detergent
Pull out the dispenser
MainWash detergent
Softener
Caution!
• Detergent only need to be added in «case I» after selecting
pre-washing for machines with this function.
Programme I II Programme I II
Coton Intensive
Synthetic ECO 40-60
Sterilization Delicate
Jeans Wool
Mix Sportwear
20°C Rapid 45’
Rinse & Spin Quick 15’
Spin Only
Means must Means optional
69
GB
